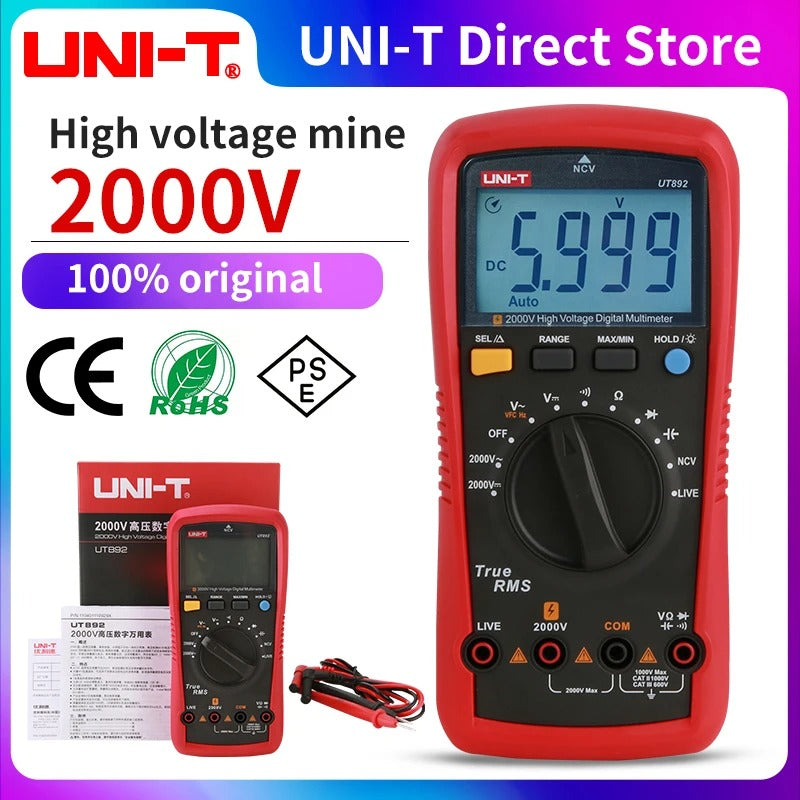

UNI-T UT892 Digital Multimeter, 6000 Counts, True RMS, 2000V AC/DC, CAT III 600V, VFC Filter, NCV, 60mF Capacitance, Live Wire Test

English Manual

Key Features:

• High-Voltage Measurement:

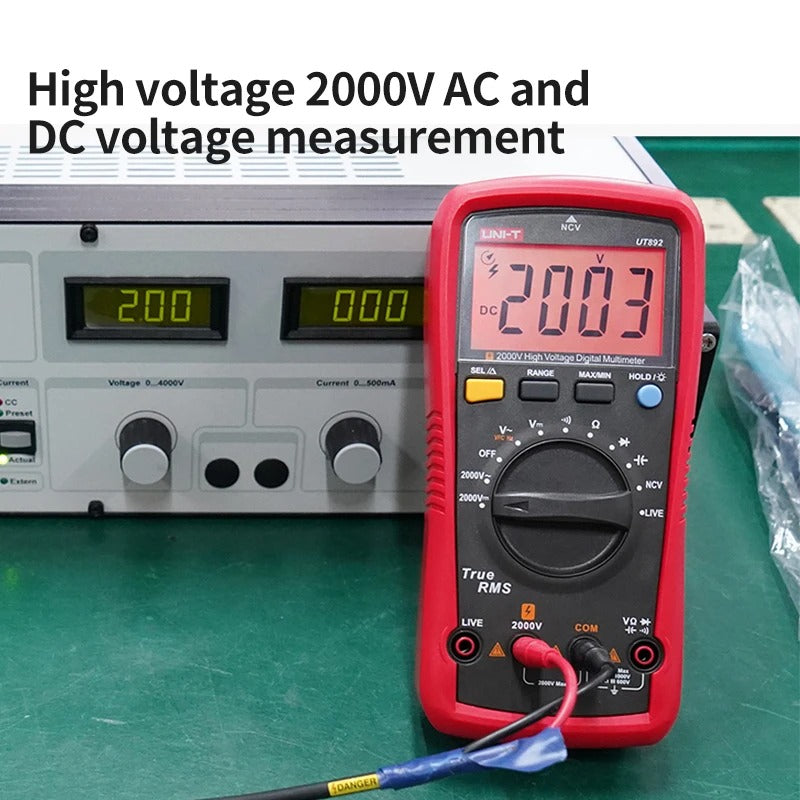

  • 2000V AC/DC voltage measurement (±0.8%+8 DC / ±1.5%+5 AC).

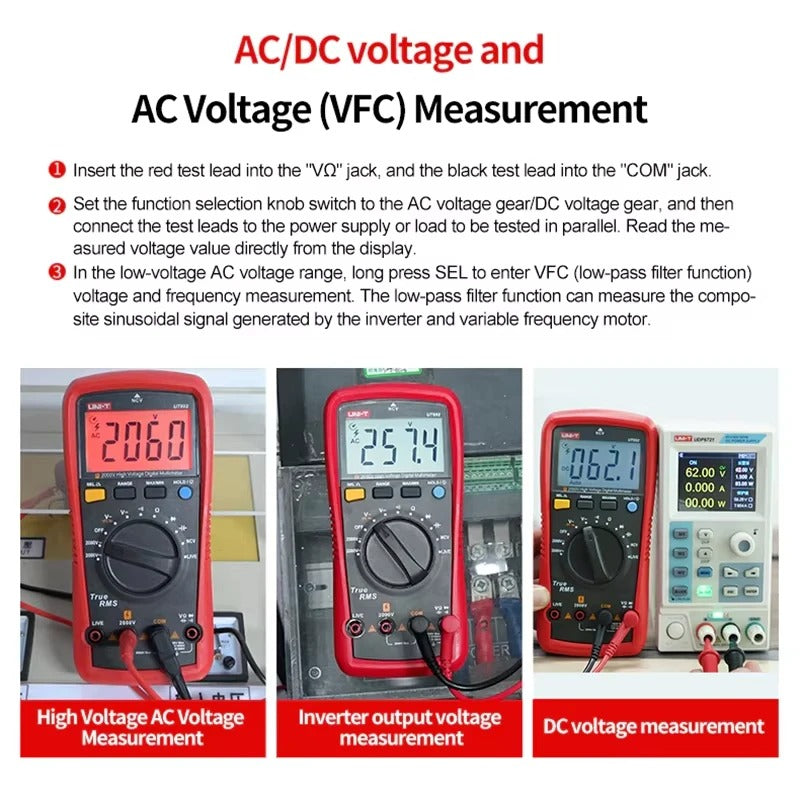

  • VFC (Variable Frequency Control) Filter: Stable readings for inverter/motor drive systems with harmonic interference (±8% accuracy).
  • High-voltage frequency measurement: 10Hz–10kHz (±0.5%+2).

• Professional-Grade Accuracy:

  • 6000-count True RMS for nonlinear loads.

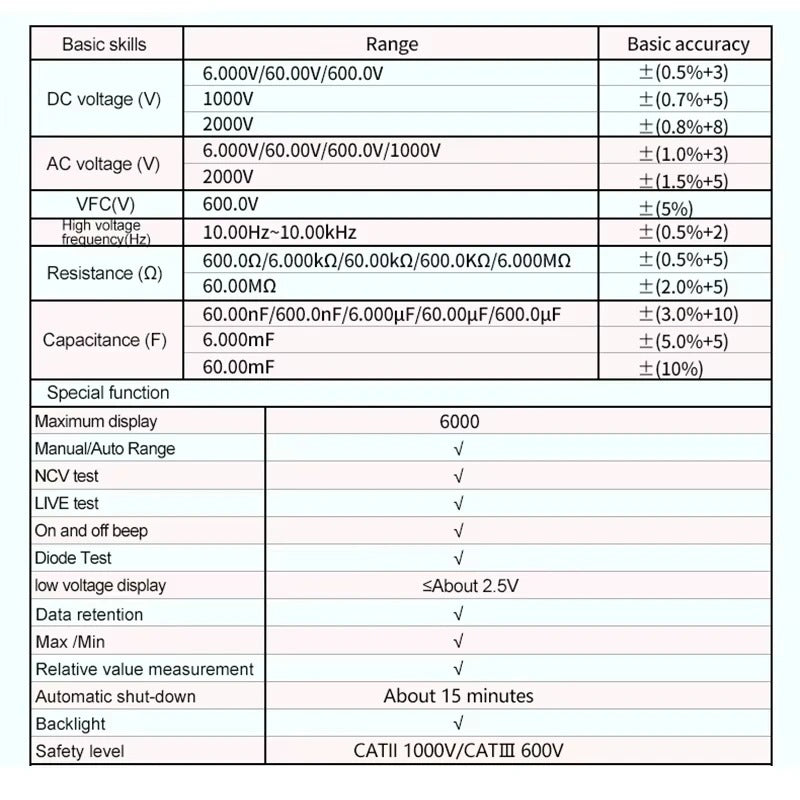

  • Wide measurement ranges:
    • Resistance: 600Ω–60MΩ (±0.5%+5 to ±2.0%+5).
    • Capacitance: 60nF–60mF (±3.0%+10 to ±10%).
    • Current: Not specified in PDF (assumed similar to UT890 series).

• Safety & Durability:

  • CAT III 600V / CAT II 1000V safety rating.
  • 1m drop protection with soft rubber casing.
  • Overvoltage/overcurrent alarms and fuse protection.

• User-Friendly Design:

  • Large backlit LCD with high-voltage red backlight alert (≥1500V).

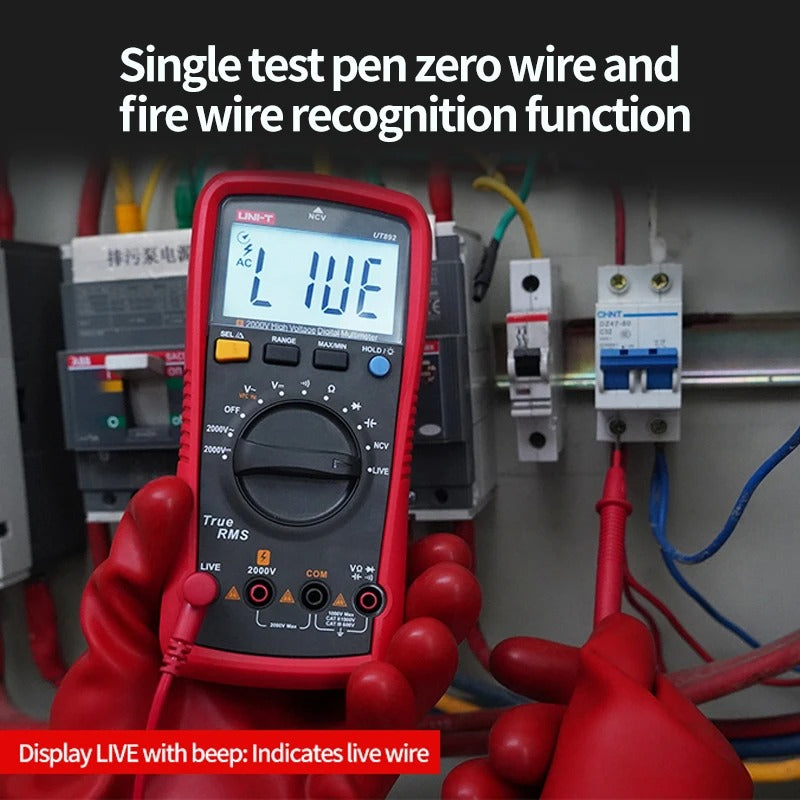

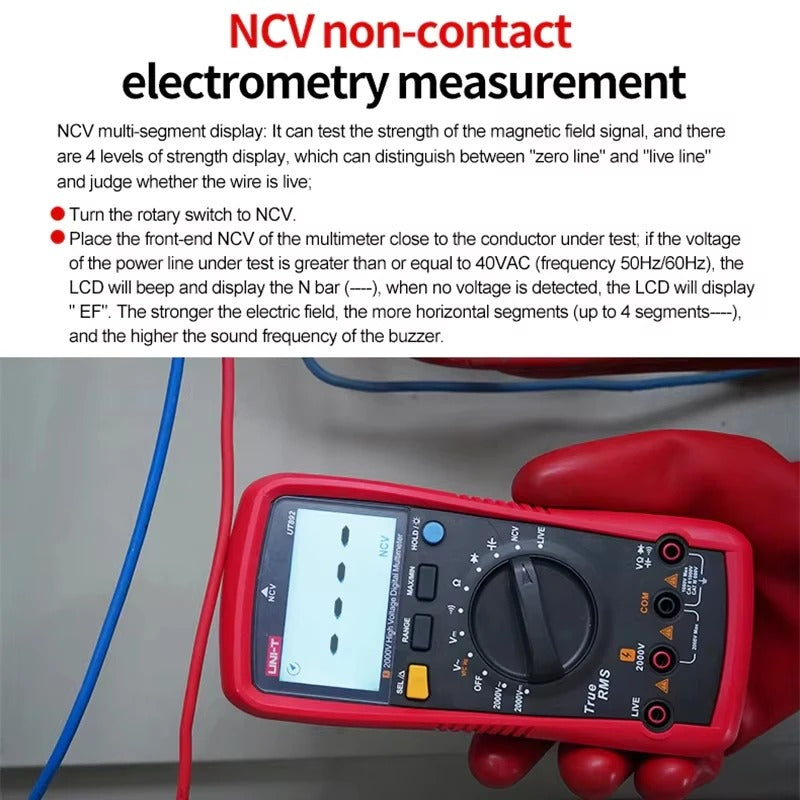

  • Live/neutral wire detection (NCV + contactless testing).
  • Auto power-off (~15 minutes) and data hold.

Applications:

• High-voltage industrial equipment, mining electrical systems, motor drives, and HVAC diagnostics.

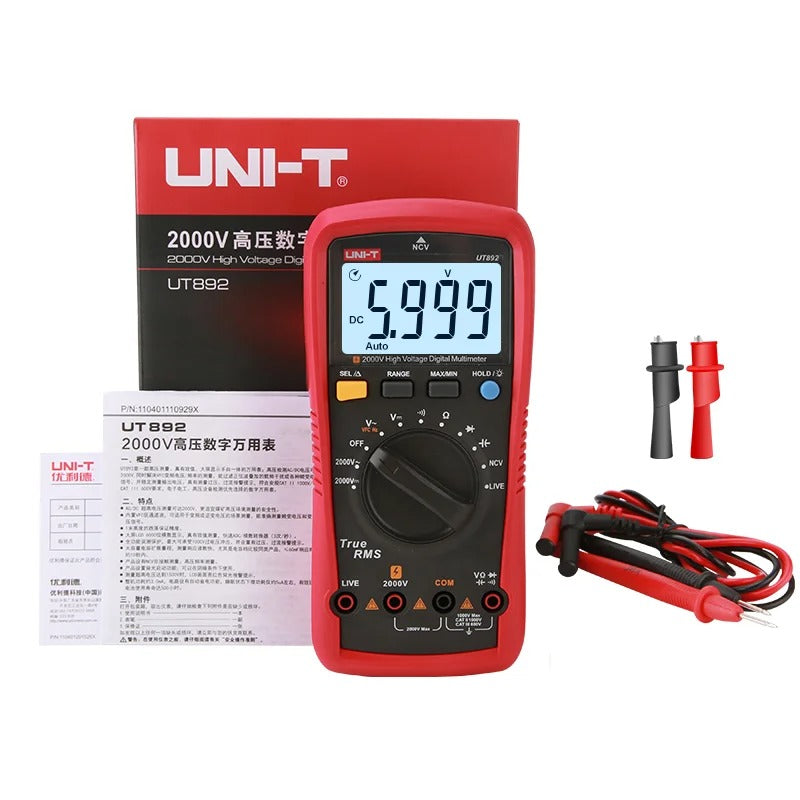

Packaging:

• 1×UT892 Digital Multimeter
• Test leads, user manual, warranty card.

Why Choose UT892?

• 2000V Specialist: One of few handheld multimeters measuring 2000V AC/DC safely.
• VFC Filter: Unique harmonic noise rejection for变频器/inverter measurements.
• Safety Focus: CAT III 600V + overload alarms + 1m drop-proof design.
• Speed: Fast capacitance measurement (60mF in ~10 seconds).
