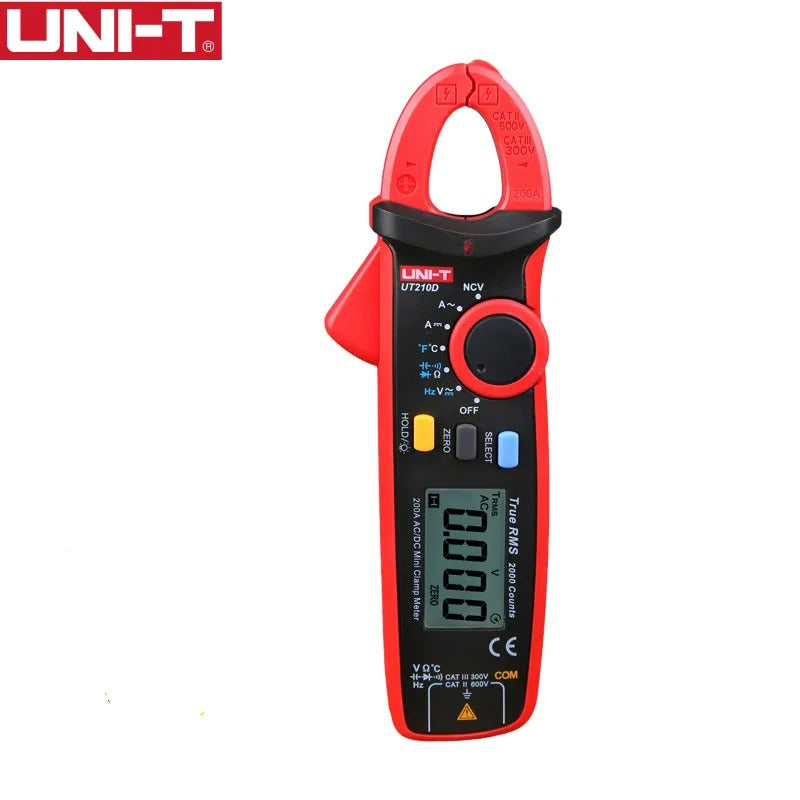

UNI-T UT210D Digital Clamp Meter, TRMS AC/DC Current/Voltage, NCV Detection, 17mm Jaw, 1999 Count Display, for Tight Space Measurements

English Manual

Key Features:

• Miniature & Portable Design: Weighs only 170g with a 17mm jaw opening, ideal for measurements in confined spaces.
• True RMS Measurement: Ensures accurate readings for both AC and DC signals, including distorted waveforms.
• NCV Non-Contact Voltage Detection: Safely detects live wires without direct contact via the clamp head.
• Comprehensive Measurement Functions:
  • AC/DC Current: 2A/20A/200A (±(2.5%+8) for AC, ±(2%+3) for DC).
  • AC/DC Voltage: 2V/20V/200V/600V (±(1%+3) for AC, ±(0.7%+3) for DC).
  • Resistance: 200Ω–20MΩ (±(1%+2)).
  • Frequency: 10Hz–60kHz (±(0.1%+4)).
  • Capacitance: 2nF–20mF (±(4%+5)).
  • Temperature: -40°C~1000°C (±(1%+3)).
• Advanced Features:
  • Data Hold, Auto Range, Auto Power Off (15-minute timeout).
  • LCD Backlight for low-light visibility.
  • Zero Adjustment (ZREO) for precise null measurements.
  • Low Battery Indicator (≤2.5V).

Applications:

• Electrical maintenance in tight spaces (e.g., control panels, appliances).
• HVAC system diagnostics (temperature/current).
• Electronics testing (capacitance/resistance).

Packaging:

• 1×UT210D clamp meter, 2×1.5V AAA batteries, test leads, temperature probe, carrying bag, user manual, warranty card.

Technical Specifications:

• Display: 39.3mm×26.5mm LCD with 1999 counts.
• Power Supply: 2×1.5V AAA batteries.
• Safety Compliance: EN61010-1, CAT III 600V (implied by voltage range).
• Dimensions: 175mm×60mm×33.5mm; Weight: 170g.

Why Choose UT210D?

• Precision & Safety: TRMS and NCV features ensure reliable, hazard-free measurements.
• Compact Ergonomics: Lightweight design with a slim jaw for effortless use in restricted areas.
• Versatile Testing: Combines 10+ functions in one portable tool.
