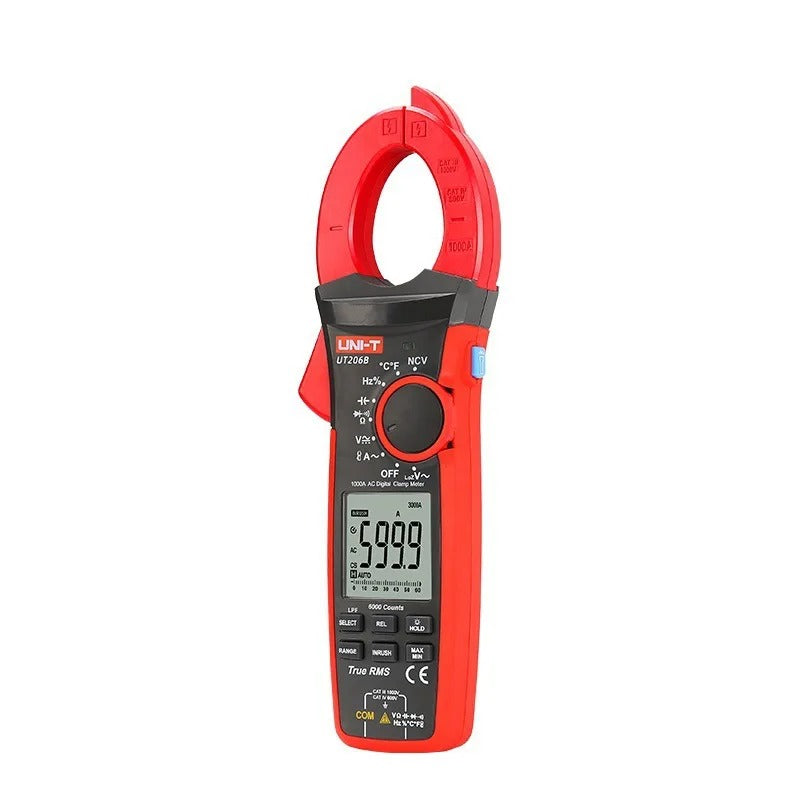

UNI-T UT206B Digital Clamp Meter, 6000 Counts, True RMS, LPF/LoZ/Temp/Flex Probe, 1000V CAT III/600V CAT IV, for Industrial & Electrical Testing

English Manual

Key Features:

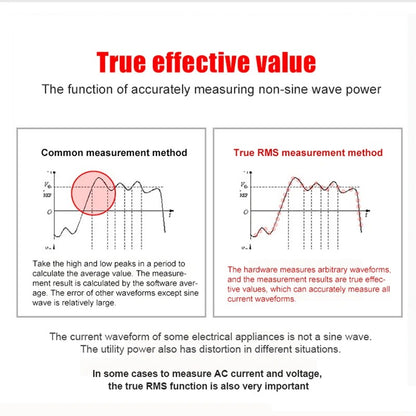

• True RMS Measurement: Accurately measures AC/DC voltage/current with 6000-count resolution and 40Hz~400Hz frequency response.
• Advanced Functions:
  • Low-pass filter (LPF) for noisy signal measurement.
  • Low-impedance (LoZ) ACV to eliminate ghost voltage.
  • Temperature measurement (-40°C~1000°C) and flexible current probe (expandable to 3000A).
  • Surge current measurement for motor startup analysis.
• Safety & Durability: CAT III 1000V/CAT IV 600V safety rating, IP54 dust/water resistance, and auto power-off to save battery.
• User-Friendly Design:
  • Large 6000-count LCD with data hold/max/min/relative value functions.

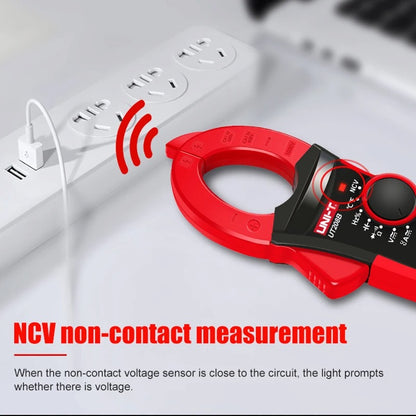

  • NCV non-contact voltage detection and backlit display for dark environments.

Applications:

• Industrial electrical maintenance, power system troubleshooting, and HVAC system diagnostics.

Packaging:

• 1×UT206B Digital Clamp Meter
• Test leads, temperature probe, flexible current probe (optional), user manual, warranty card.

Technical Specifications:

• Power Supply: 9V battery (6F22).
• Dimensions: 208mm×82mm×43mm; Weight: ~400g (with battery).

Why Choose UT206B?

• Precision & Versatility: Combines True RMS, LPF, LoZ, and temperature measurement for comprehensive diagnostics.
• Safety & Durability: High safety ratings and rugged design for harsh environments.
• Efficient Workflow: Data hold and flexible probe expand measurement capabilities.
