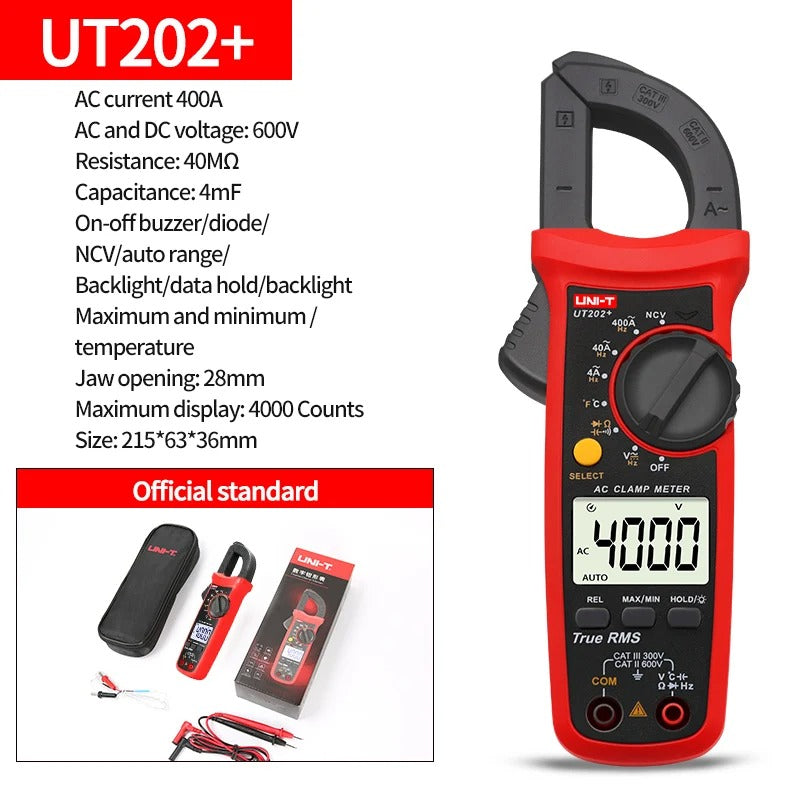

UNI-T UT202+ Digital Clamp Meter, 400A AC, True RMS, CAT III 300V, NCV, Temperature, 4mF Capacitance, Backlit LCD

English Manual

Professional Clamp Meter with Temperature Measurement
The UNI-T UT202+ is a feature-rich digital clamp meter designed for electricians and HVAC technicians. With True RMS accuracy, temperature measurement capability, and a 400A AC current range, it's ideal for comprehensive electrical diagnostics in various environments.

Key Features:

• 400A AC Current Measurement (±2%+10 accuracy)
• True RMS for accurate measurements of non-linear loads
• 600V AC/DC Voltage (±0.8%+5 AC, ±0.5%+2 DC)
• Temperature Measurement (-40°C to 1000°C/1832°F) with included K-type thermocouple
• 4mF Capacitance Measurement (±4%+5)
• NCV (Non-Contact Voltage) Detection with audible/visual alerts
• CAT III 300V/CAT II 600V Safety Rating with full overload protection
• Auto-Ranging for simplified operation
• Backlit LCD Display (4000 counts) for low-light visibility
• Data Hold, Relative Mode & Auto Power-Off (15 minutes)
• Compact & Lightweight (248g, 215×63×36mm)
• Powered by 2×AAA Batteries (included)

Applications:

• Electrical maintenance and troubleshooting
• HVAC system diagnostics and repair
• Industrial equipment maintenance
• Residential and commercial wiring inspection

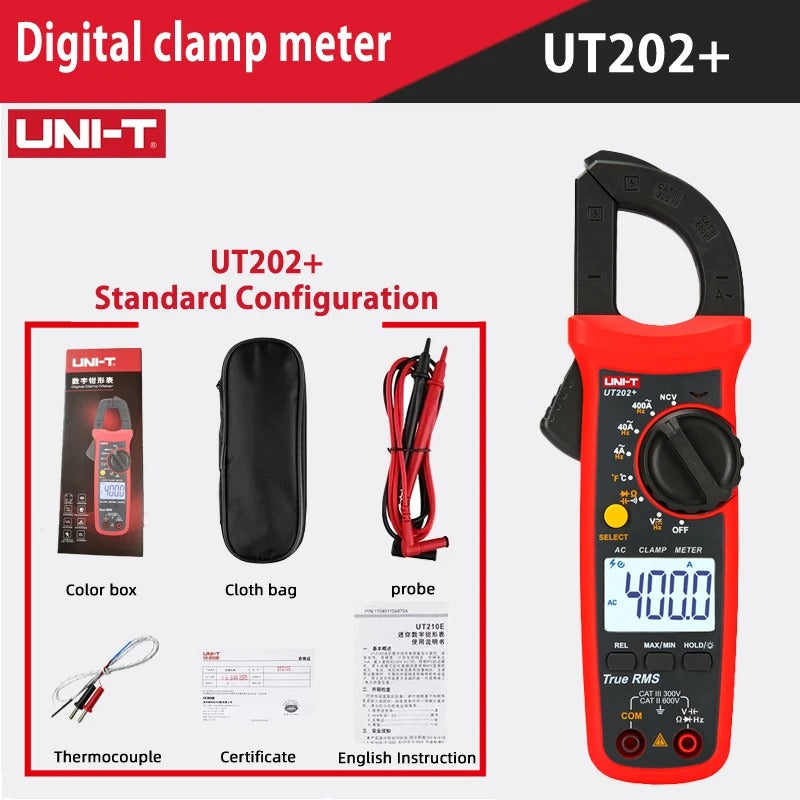

Package Includes:

• 1×UT202+ Digital Clamp Meter
• Test Leads
• K-type Temperature Probe
• User Manual
• Warranty Card

Why Choose UT202+?
✔ True RMS Accuracy for reliable measurements
✔ Temperature Measurement for HVAC applications
✔ 400A AC Current measurement capability
✔ NCV Detection for safer voltage checks
✔ CAT III 300V Safety Rating for professional use
