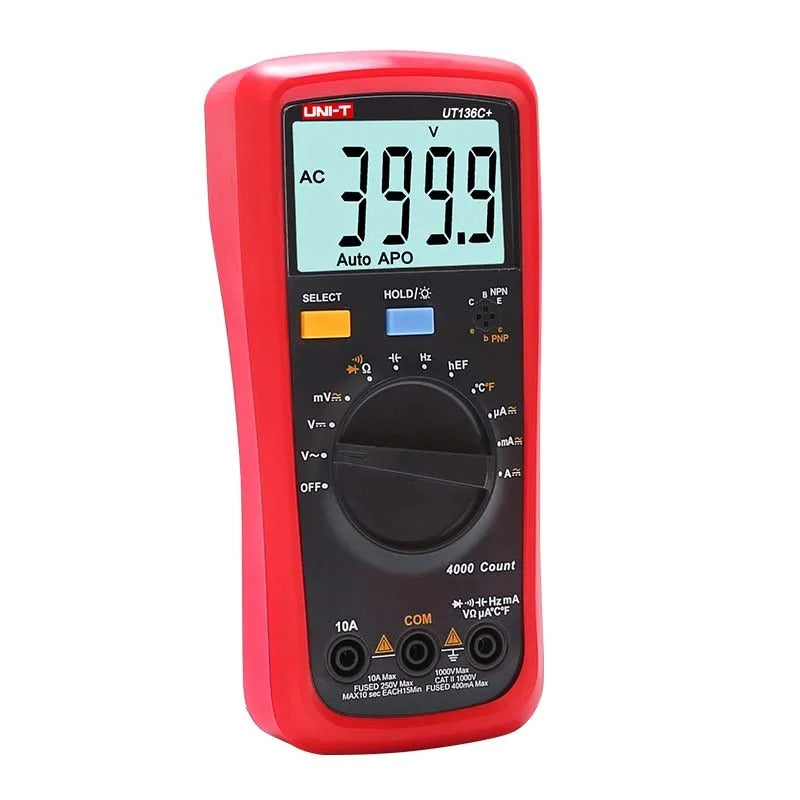

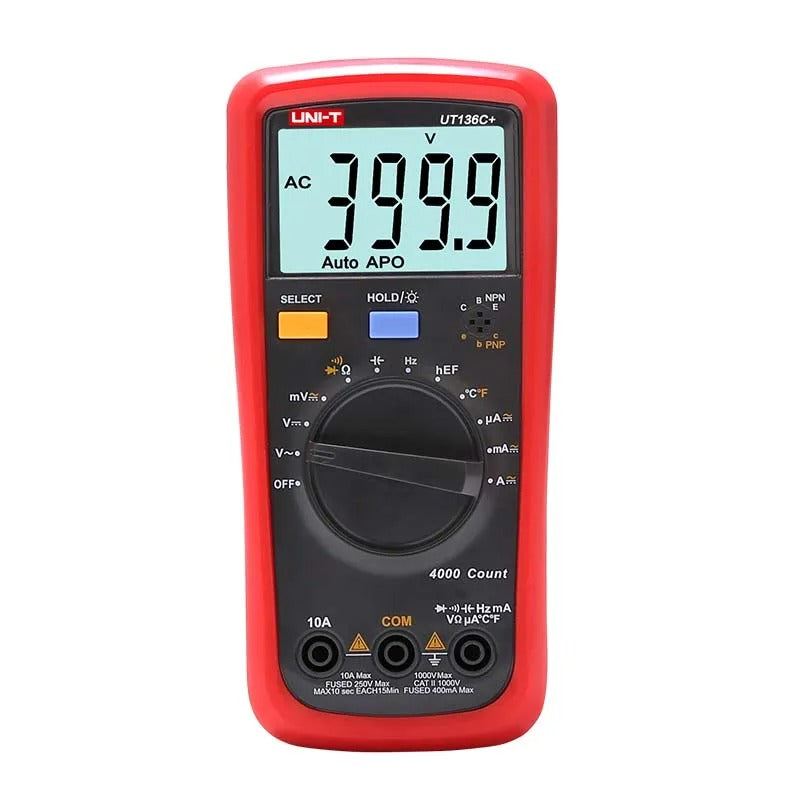

UNI-T UT136C+ Digital Multimeter, 3999 Counts, True RMS, CAT III 600V, Temperature, hFE, 10A Current, 40mF Capacitance

English Manual

Key Features:

• Professional-Grade Accuracy:

  • 3999-count True RMS for precise AC/DC voltage/current measurements.
  • Wide measurement ranges:
    • Voltage: DC (400mV–1000V, ±0.7%+3), AC (400mV–1000V, ±1.0%+3).
    • Current: DC/AC (400μA–10A, ±0.8%+3 to ±1.0%+2).
    • Resistance: 400Ω–40MΩ (±0.8%+2).
    • Capacitance: 4nF–40mF (±3.0%+5).
    • Frequency: 400Hz–40MHz (±0.1%+4).
    • Temperature: -40°C to 1000°C (±1.0%+4).

• Advanced Functions:

  • hFE testing for transistor current amplification measurement.
  • Temperature measurement with included thermocouple probe.
  • Diode test, continuity buzzer, and data hold.

• Safety & Durability:

  • CAT III 600V safety rating with 2m drop protection.
  • Dual fuse design (10A range) and overload alarms.

• User-Friendly Design:

  • Backlit LCD (49×18mm) with auto power-off (~15 minutes).
  • Powered by 2×AA batteries (low-battery indicator).

Applications:

• HVAC maintenance, electronic repairs, and industrial diagnostics.

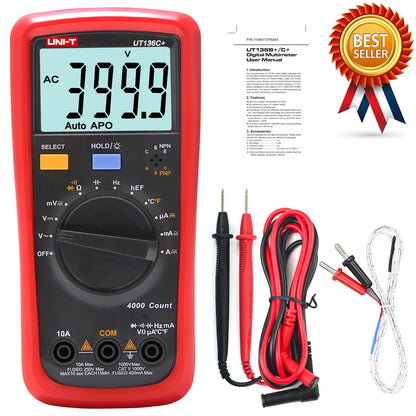

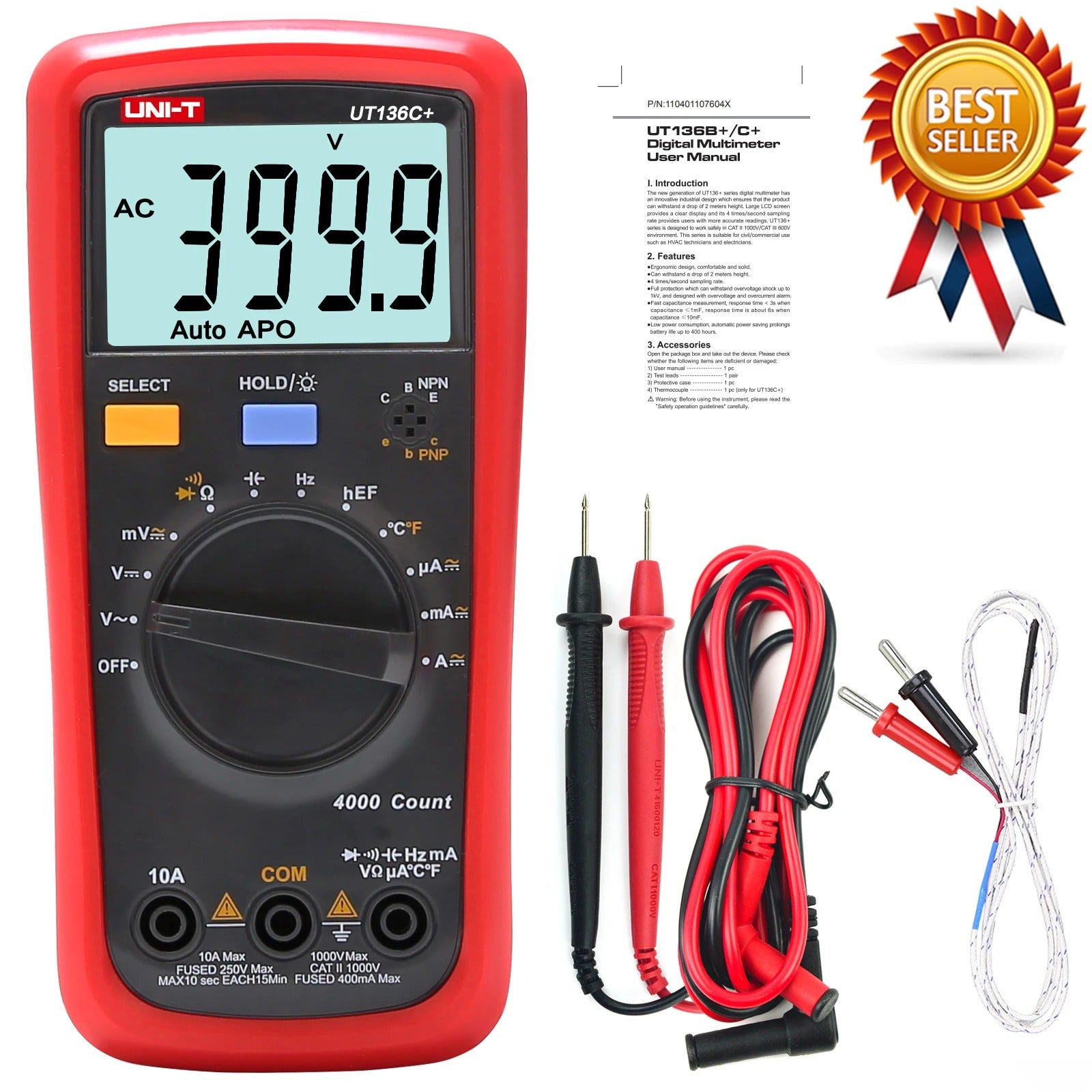

Packaging:

• 1×UT136C+ Digital Multimeter
• Test leads, temperature probe, user manual, warranty card.

Why Choose UT136C+?

• HVAC Specialist: Unique temperature measurement (-40°C to 1000°C) for HVAC/refrigeration diagnostics.
• Versatility: Combines True RMS accuracy, hFE testing, and wide capacitance range (4nF–40mF).
• Safety First: CAT III 600V protection ensures safe use in high-voltage environments.
• Durability: 2m drop-proof design for fieldwork.
