Key Features:

• Automotive-Focused Measurements:

  • RPM (2/4 stroke): 300–19,999 RPM (±3% accuracy).
  • DWELL angle: 1–8 cylinders (±3% accuracy).
  • Pulse width: Up to 999.9ms (±1.5%+10).

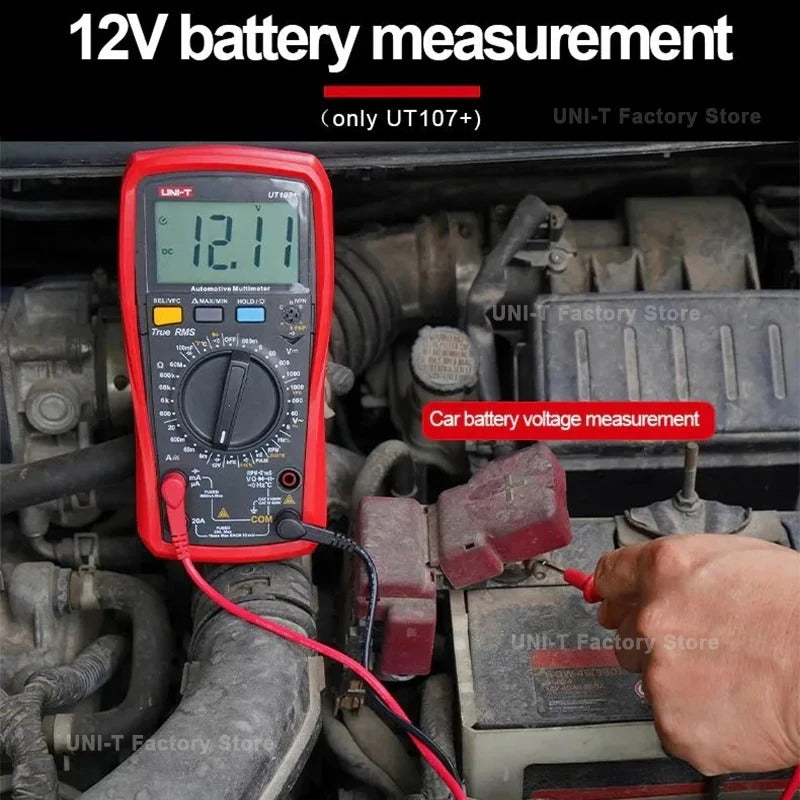

  • 12V battery testing (UT107+ exclusive).

• Professional-Grade Accuracy:

  • 6000-count True RMS for precise AC/DC voltage/current.
  • Wide measurement ranges:
    • Voltage: DC (600mV–1000V, ±0.5%+3), AC (6V–1000V, ±0.8%+3).
    • Current: DC/AC (6mA–20A, ±1.0%+8).
    • Capacitance: Up to 100mF (±3%+10), resistance (600Ω–60MΩ, ±0.8%+3).
    • Frequency: 10Hz–10MHz (±0.1%+5).

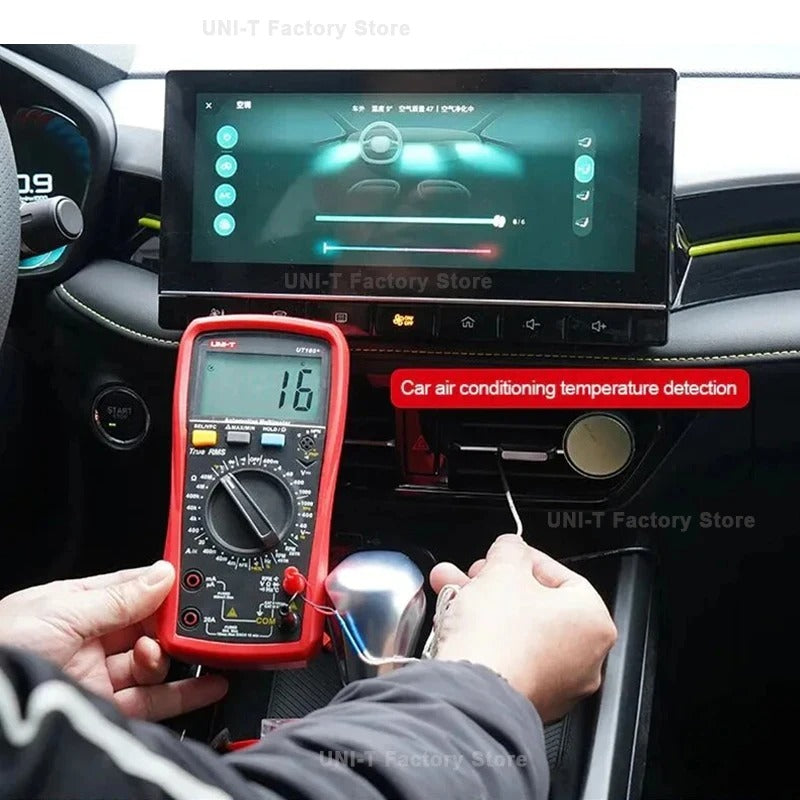

    • Temperature: -40°C to 1000°C (±1.0%+3).

• Safety & Durability:

  • CAT III 600V/CAT II 1000V safety rating with 1m drop protection.
  • Dual fuse design (20A range) and overload alarms (visual/audible).
  • Low-pass filter (VFC) for noisy AC voltage measurements (1000V range).

• User-Friendly Design:

  • Backlit LCD with data hold, max/min/relative values, and auto power-off (15 minutes).
  • Soft rubber casing for grip and shock absorption.
  • Powered by 2×AAA batteries (low-battery indicator).

Applications:

• Automotive diagnostics (RPM/DWELL/pulse width), industrial electrical maintenance, and HVAC troubleshooting.

Packaging:

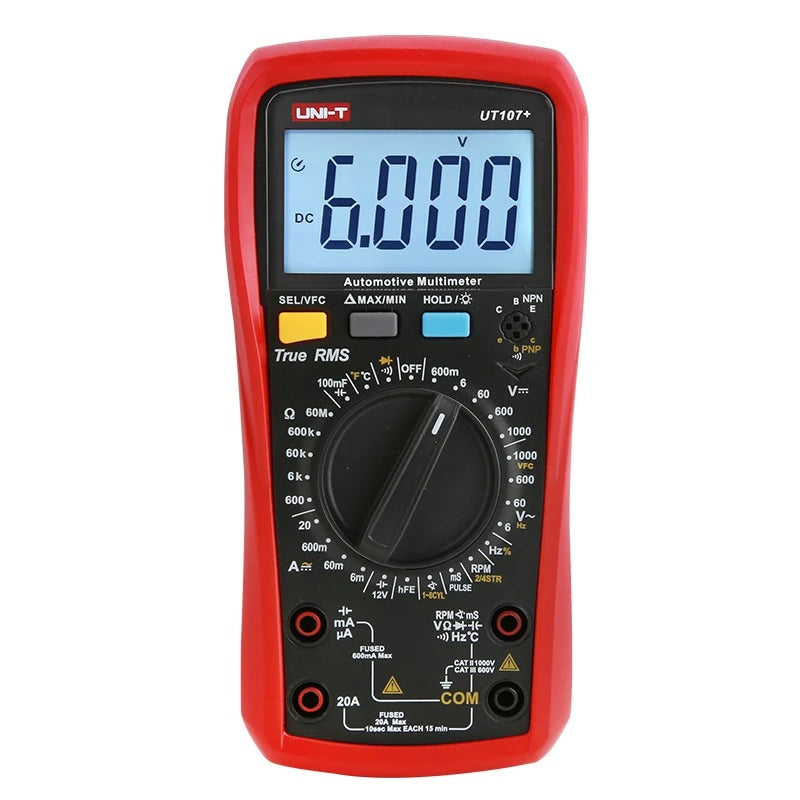

• 1×UT107+ Automotive Multimeter
• Test leads, temperature probe, user manual, warranty card.

Why Choose UT107+?

• Automotive Specialist: Unique RPM/DWELL/pulse width/12V battery tests for car/engine diagnostics.
• High-Capacity Testing: 100mF capacitance range and 20A current measurement for industrial use.
• Rugged & Safe: CAT III 600V rating and 1m drop-proof design for fieldwork.
• Precision + Speed: 6000-count True RMS with auto-ranging for quick, accurate readings.
