Tonghui Handheld LCR Meter TH2822C TH2822E LCD Display for precise component measurement handheld bridge tester

$349.00 USD

Sale Sold out

Model TH2822C(0.25%Accuracy) TH2822E(0.1%Accuracy;DCR)

Quantity

English Manual

Overview

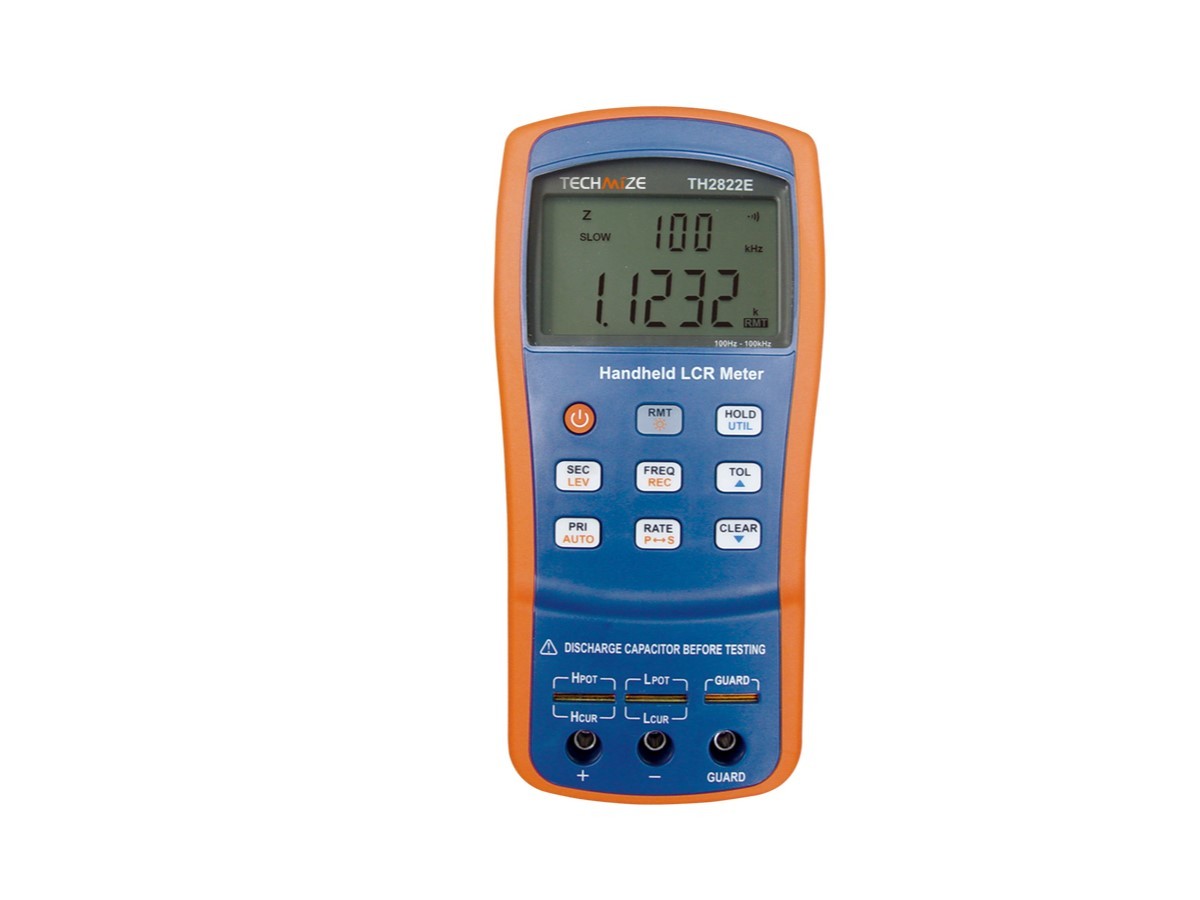

Tonghui's TH2822C and TH2822E are high-performance handheld LCR digital bridges, ideal for precise component measurement in electronics, field testing, and maintenance scenarios.

Key Features

Portable & Ergonomic: Easy to carry and operate for on-site testing tasks.

Wide Measurement Capability: Cover inductance, capacitance, impedance, ESR, and more parameters.

Reliable Accuracy: Ensure trustworthy measurement results for various components.

Technical Specifications

Parameter	TH2822C	TH2822E
Test Frequency	100Hz, 120Hz, 1kHz, 10kHz, 100kHz	100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Maximum Measurement Accuracy	0.25%	0.1%
Test Speed (LCR)	Fast: 250ms; Slow: 667ms	Fast: 333ms; Slow: 400ms
Signal Level (LCR)	0.6Vrms	0.3Vrms, 0.6Vrms, 1Vrms

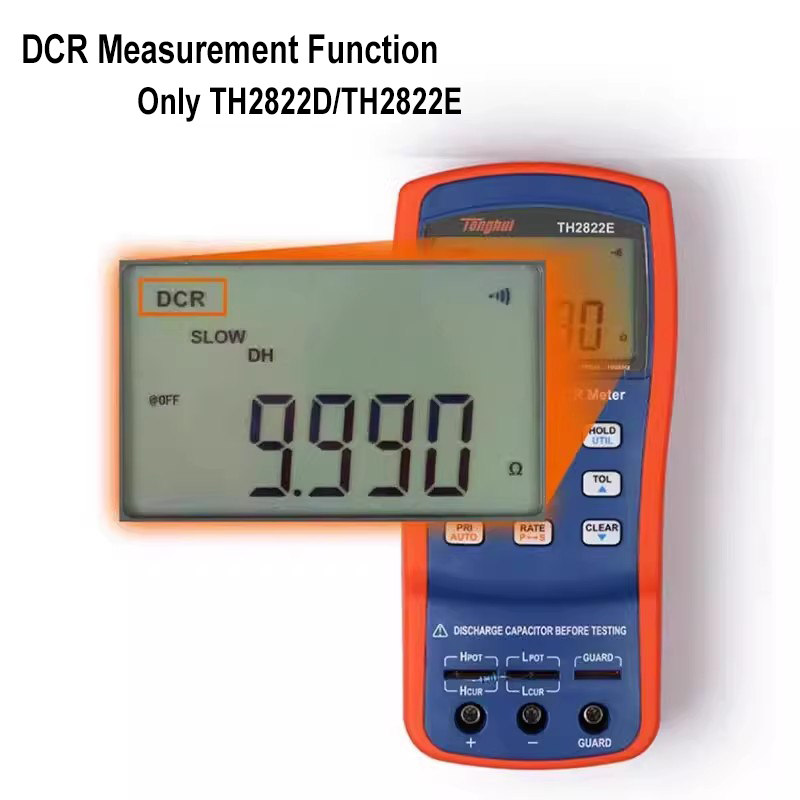

Signal Level (DCR)	-	1VDC
L Inductance Range	0.000uH ~ 1000.0H	0.000uH ~ 1000.0H
C Capacitance Range	0.000pF ~ 20.000mF	0.000pF ~ 20.000mF
Z/R Range	0.00000Ω ~ 10.000MΩ	0.00000Ω ~ 10.000MΩ
ESR Series Equivalent Resistance	0.0000Ω ~ 10.000MΩ	0.0000Ω ~ 10.000MΩ
D Loss Range	0.0000 ~ 9.999	0.0000 ~ 9.999
Quality Factor Range	- 179.999 ~ 179.9990	- 179.999 ~ 179.9990
Phase Angle Range	- 3.14159 ~ 3.14159	- 3.14159 ~ 3.14159

Selection Tips

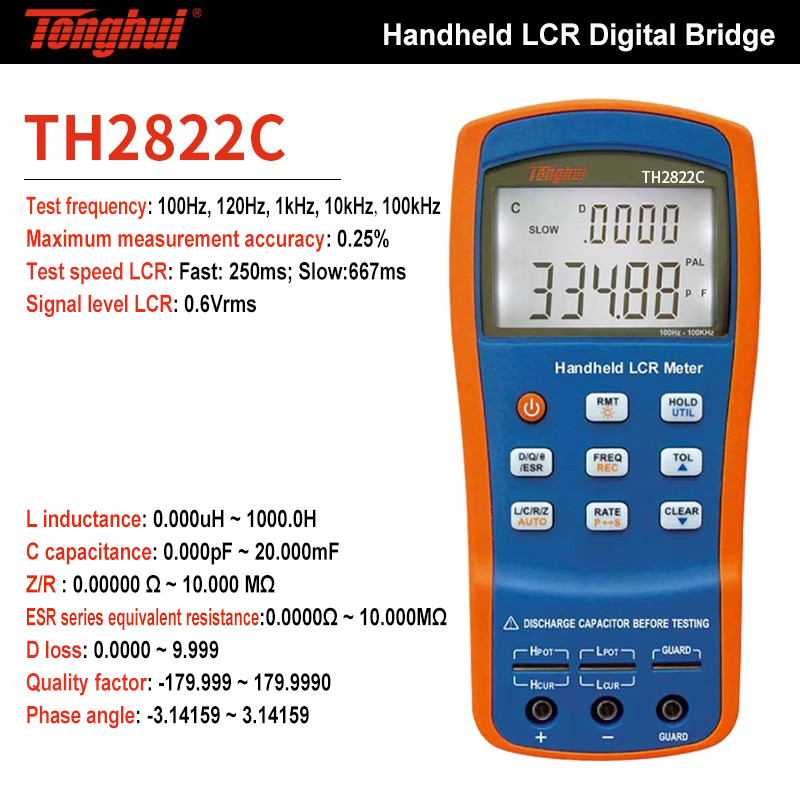

Choose TH2822C if you need a handheld LCR bridge with 0.25% maximum accuracy, 0.6Vrms signal level, and basic LCR measurement functions.

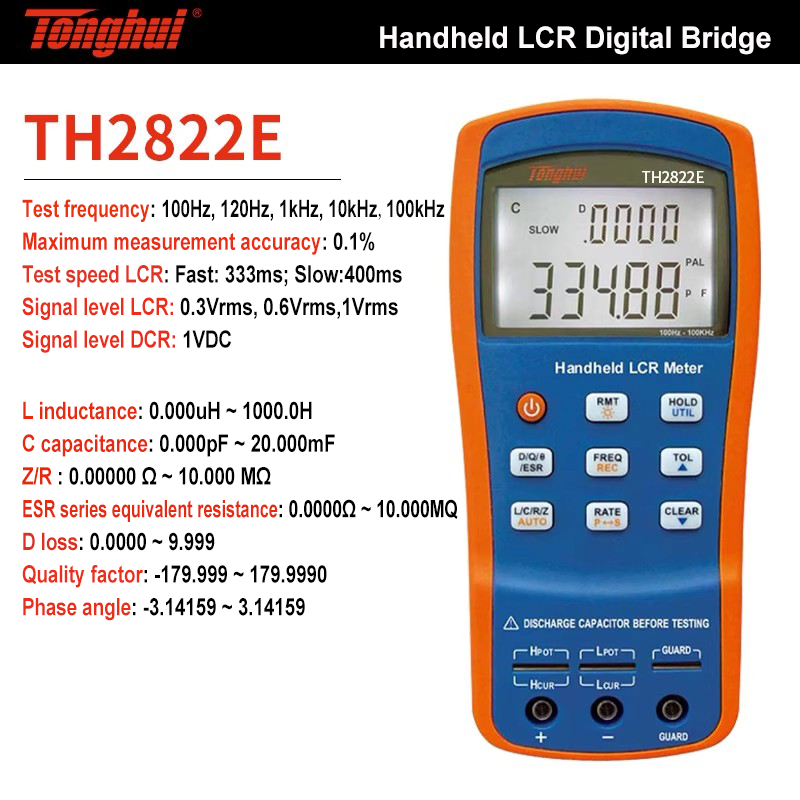

Opt for TH2822E when you require higher 0.1% maximum accuracy, multiple signal levels (0.3Vrms, 0.6Vrms, 1Vrms), 1VDC DCR signal level, and more versatile measurement capabilities.

Application Scenarios

Electronics Field Testing: Measure components on - site for equipment maintenance.

Component Inventory Checking: Verify component specifications in stockrooms.

DIY Electronics Projects: Test components for hobbyist electronics builds.

Small - Scale Production: Conduct component testing in small manufacturing setups.

Educational Labs: Teach LCR measurement principles in electronics courses.

Appliance Repair: Troubleshoot component issues in household appliances.

Get Tonghui handheld LCR digital bridges now for precise component measurement!
