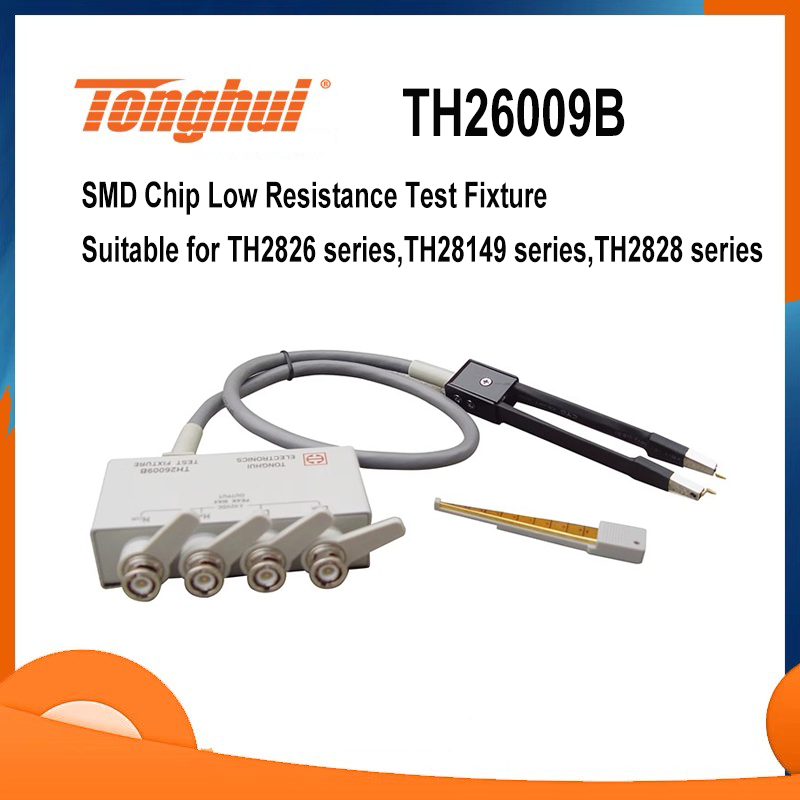

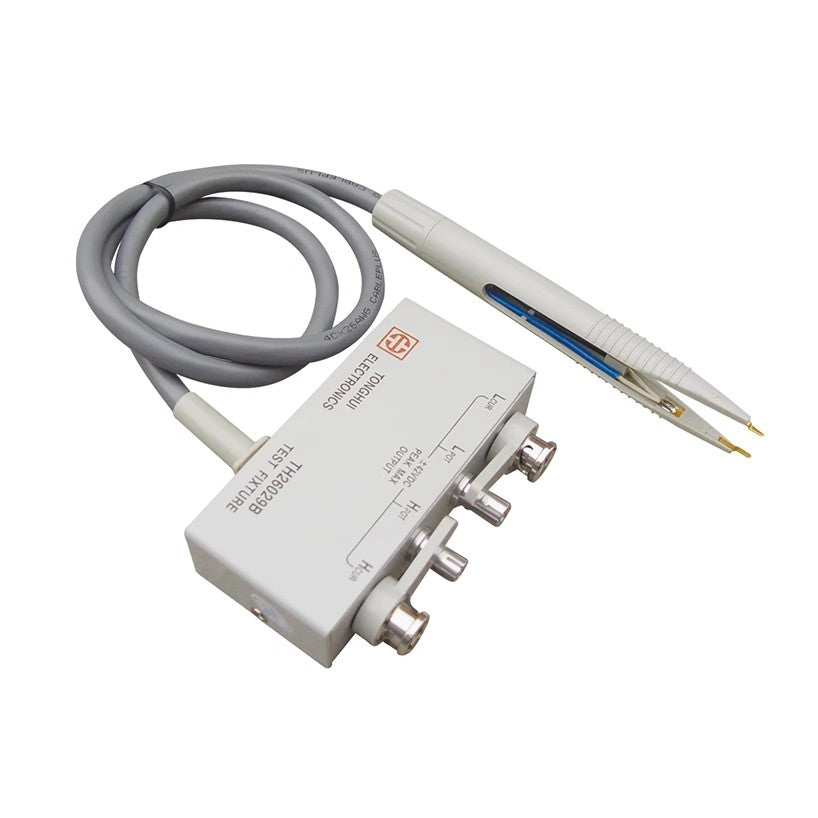

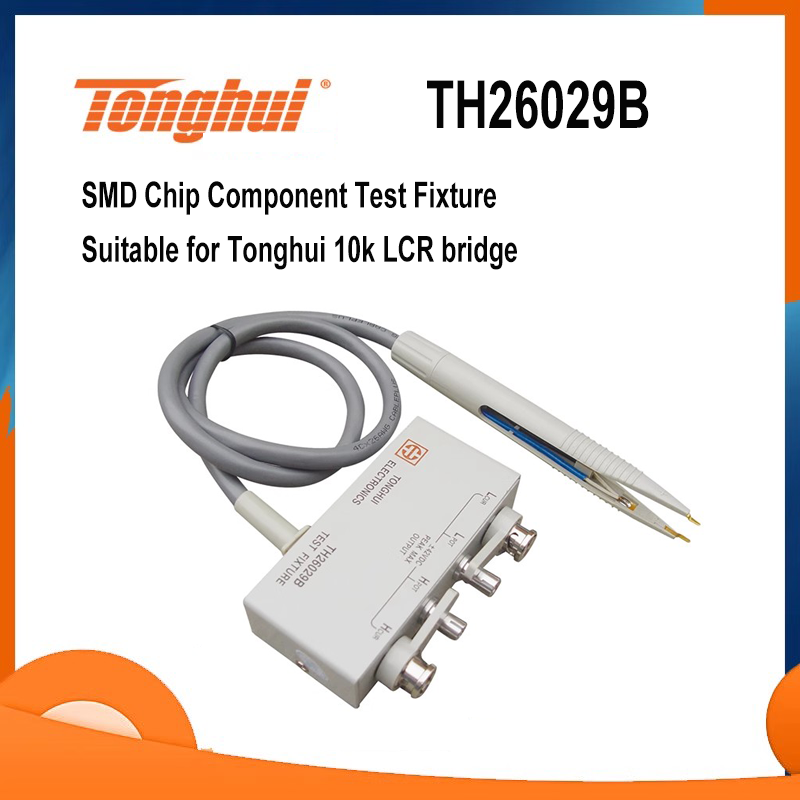

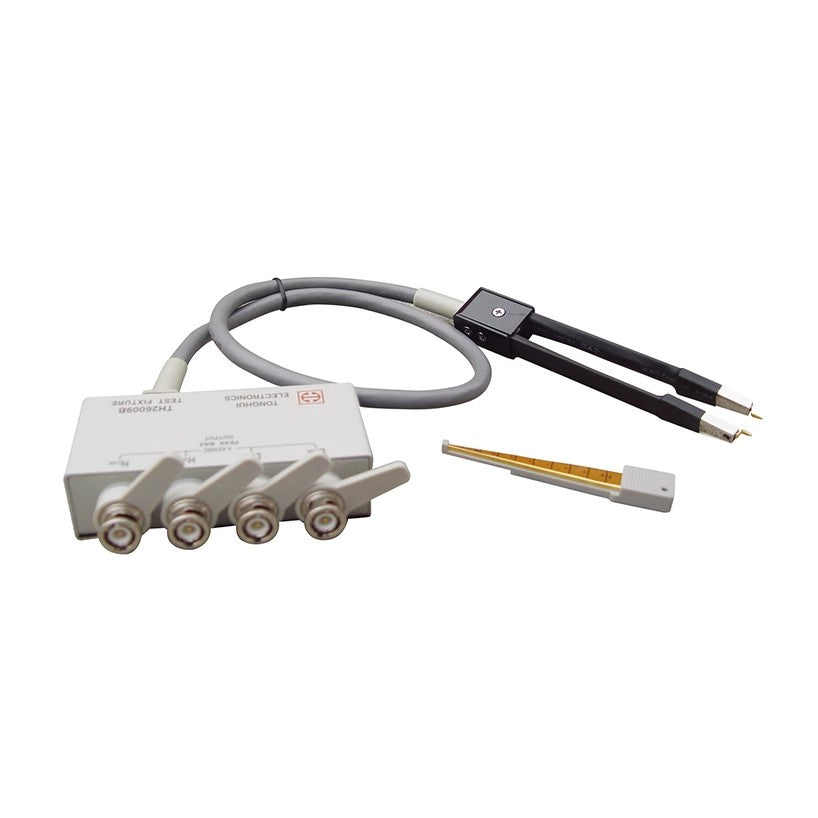

Tonghui Test Fixture TH26029B TH26009B SMD Chip Low Resistance Test Fixture BNC 4-terminal 10kHz 40MHz

$69.90 USD

Sale Sold out

Model TH26029B(Up to 10kHz) TH26009B(DC to 40MHz)

Quantity

Overview

Tonghui's TH26029B and TH26009B are specialized test fixtures, essential accessories for LCR bridges, enabling precise testing of surface-mount device (SMD) components. They are engineered to minimize measurement errors caused by poor contact or signal loss, ensuring reliable data for quality control and R&D tasks.

Key Features

SMD Component Focus: Optimized for testing SMD capacitors, inductors, resistors, and other chip-type components.

Reliable Connections: Gold-plated test probes for low contact resistance and long-term durability, ensuring stable signal transmission.

Tailored Compatibility: Each fixture is calibrated to match specific LCR bridge models, avoiding compatibility issues and maximizing measurement accuracy.

Ergonomic Design: Compact structure with anti-slip base for easy operation on workbenches; adjustable probe spacing to fit different SMD sizes.

Wide Environmental Adaptability: Resistant to dust and mild moisture, suitable for factory workshops and lab environments.

Technical Specifications

Parameter	TH26029B	TH26009B
Compatible LCR Bridges	TH2810B+, TH2810D, TH2811D, TL2812D	TH2828 series, TH2826 series, TH2819 series
Max Voltage	±42V (DC)	±40V (peak, AC + DC)
Terminal Connection	BNC, 4-terminal	BNC, 4-terminal
Frequency Range	Up to 10kHz	DC to 40MHz
Operating Temperature	-	0 - 55°C
Cable Length	Approximately 80cm	Approximately 100cm

Selection Tips

Choose TH26029B if: you use LCR bridges like TH2810B+, TH2810D, TH2811D, or TL2812D; your testing frequency is within 10kHz.

Opt for TH26009B when: you work with TH2828/2826/2819 series LCR bridges; you need high-frequency testing (DC - 40MHz); or your application requires higher current (up to 150mA).

Application Scenarios

Electronics Manufacturing: Test SMD components during mass production to ensure they meet design specifications.

SMD Component Quality Control: Inspect incoming/outgoing SMD capacitors, inductors, and resistors for consistency.

R & D Labs: Conduct precise SMD component performance testing during product development (e.g., verifying capacitor stability at different frequencies).

Educational Institutions: Demonstrate SMD component measurement principles in electronics or electrical engineering courses.

Electronics Repair Shops: Test faulty SMD components on circuit boards (e.g., checking inductor continuity or capacitor capacitance).

High-Frequency Electronics Testing: Evaluate SMD components in high-frequency devices (e.g., RF modules) with TH26009B’s DC - 40MHz range.

Automated Testing Systems: Integrate with Handler interfaces of compatible LCR bridges for automated SMD component sorting.

Get Tonghui TH26029B or TH26009B now to ensure accurate, reliable SMD component testing with your LCR bridge!
