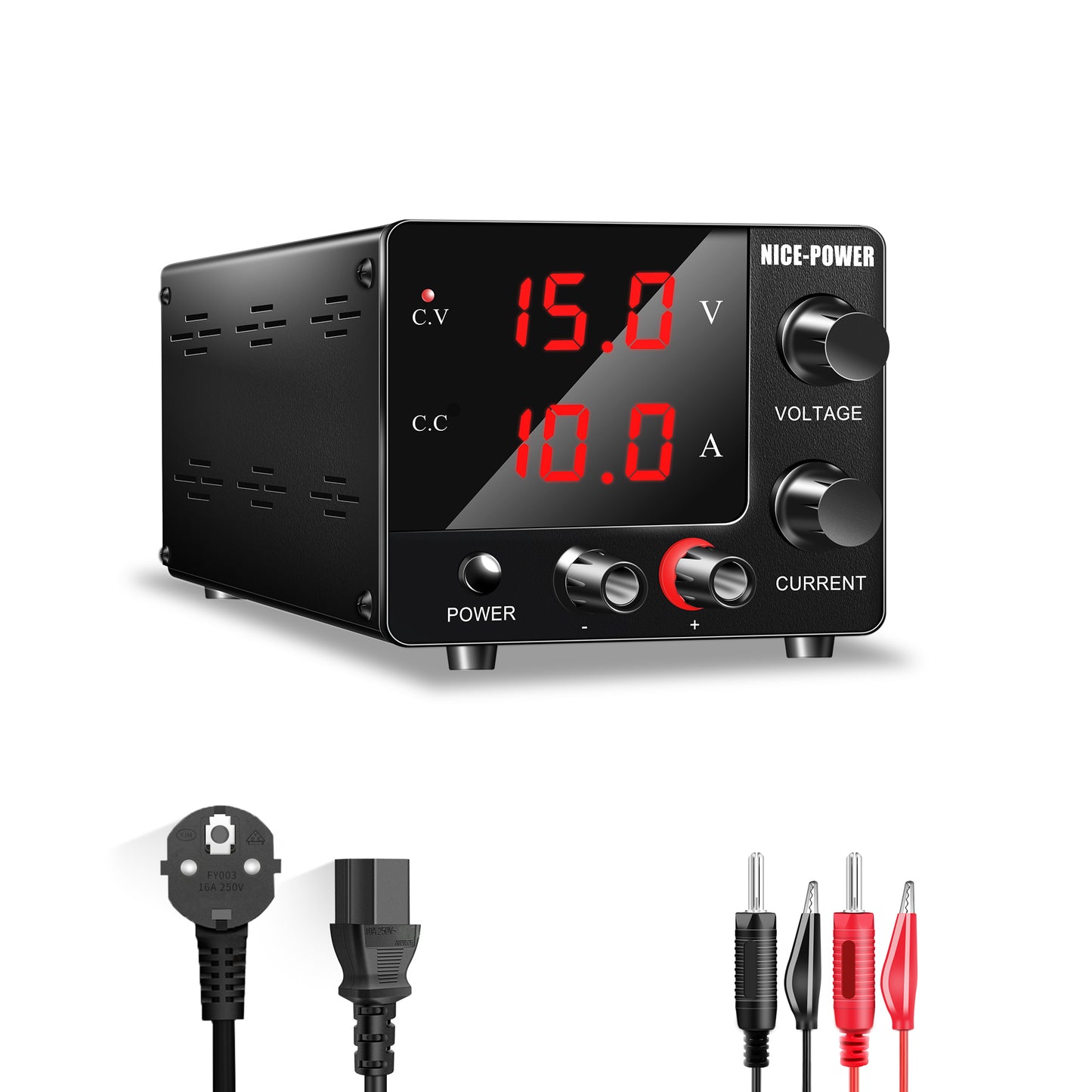

The NICE-POWER 30V 10A 150W Compact DC Power Supply combines adjustable DC output with an ultra-compact and lightweight design, providing a practical power source for electronics repair, PCB testing, automotive electronics, LED testing, DC motor testing, and 12V/24V equipment testing.
With adjustable output up to 30V and 10A and a maximum power rating of 150W, this 30V 10A DC power supply provides flexible power for low-to-medium power electronic devices and DC loads. Measuring only 10 × 18.5 × 8 cm and weighing less than 1 kg, it is also a practical portable DC power supply for compact workbenches, repair stations, and mobile testing.
Rather than taking up the space of a large laboratory bench power supply, this compact model is designed for engineers, technicians, makers, and repair professionals who need a capable 150W DC power supply in a small footprint.

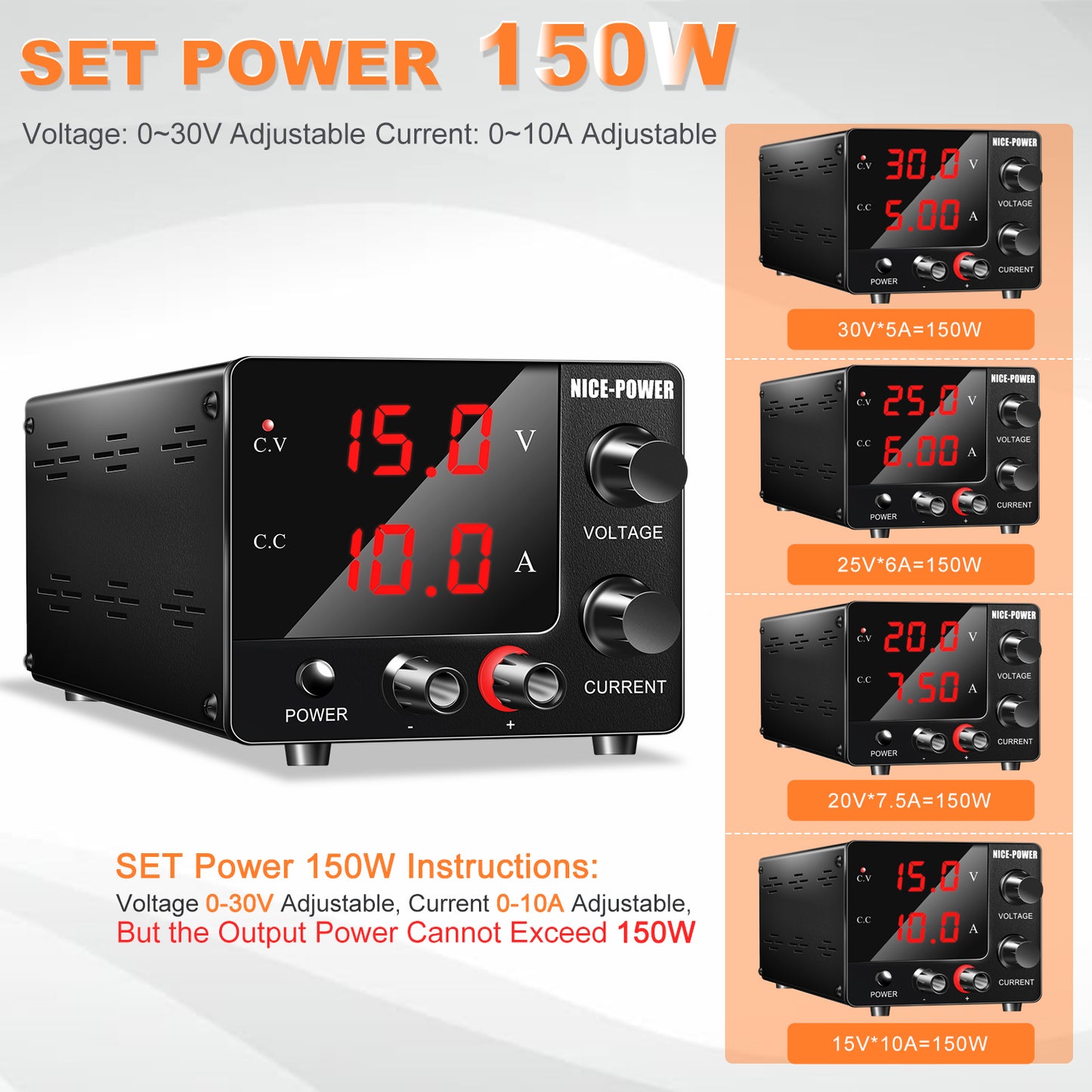

The power supply provides adjustable output up to 30V and 10A, with a maximum output power of 150W. The available voltage and current combination is automatically restricted to remain within the 150W power limit.
For example, it can provide up to 15V/10A for higher-current low-voltage loads or 30V/5A for applications requiring higher voltage.
This flexible output makes it suitable as a 30V variable power supply for electronics repair, component testing, LED testing, DC motor testing, and other low-voltage DC applications.

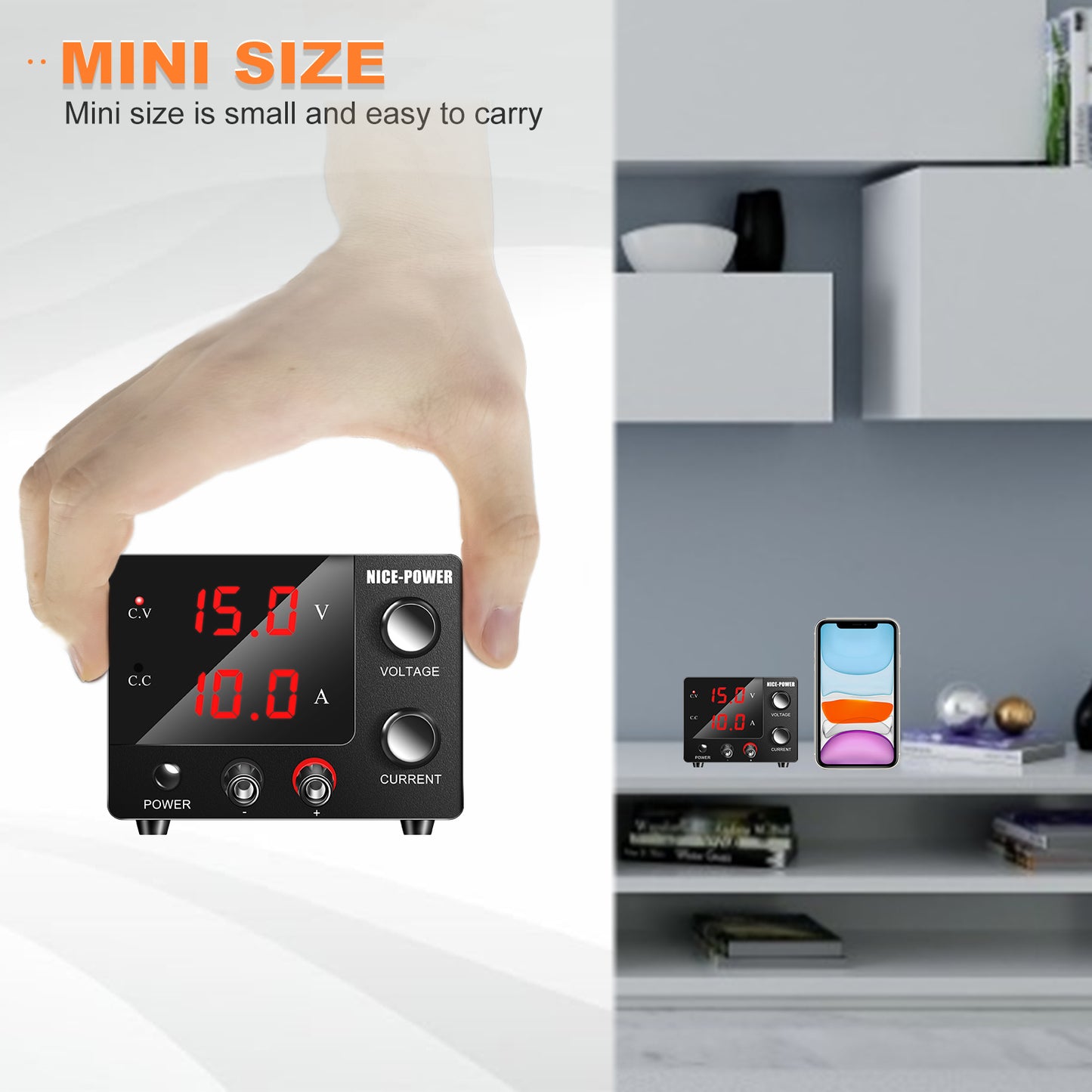

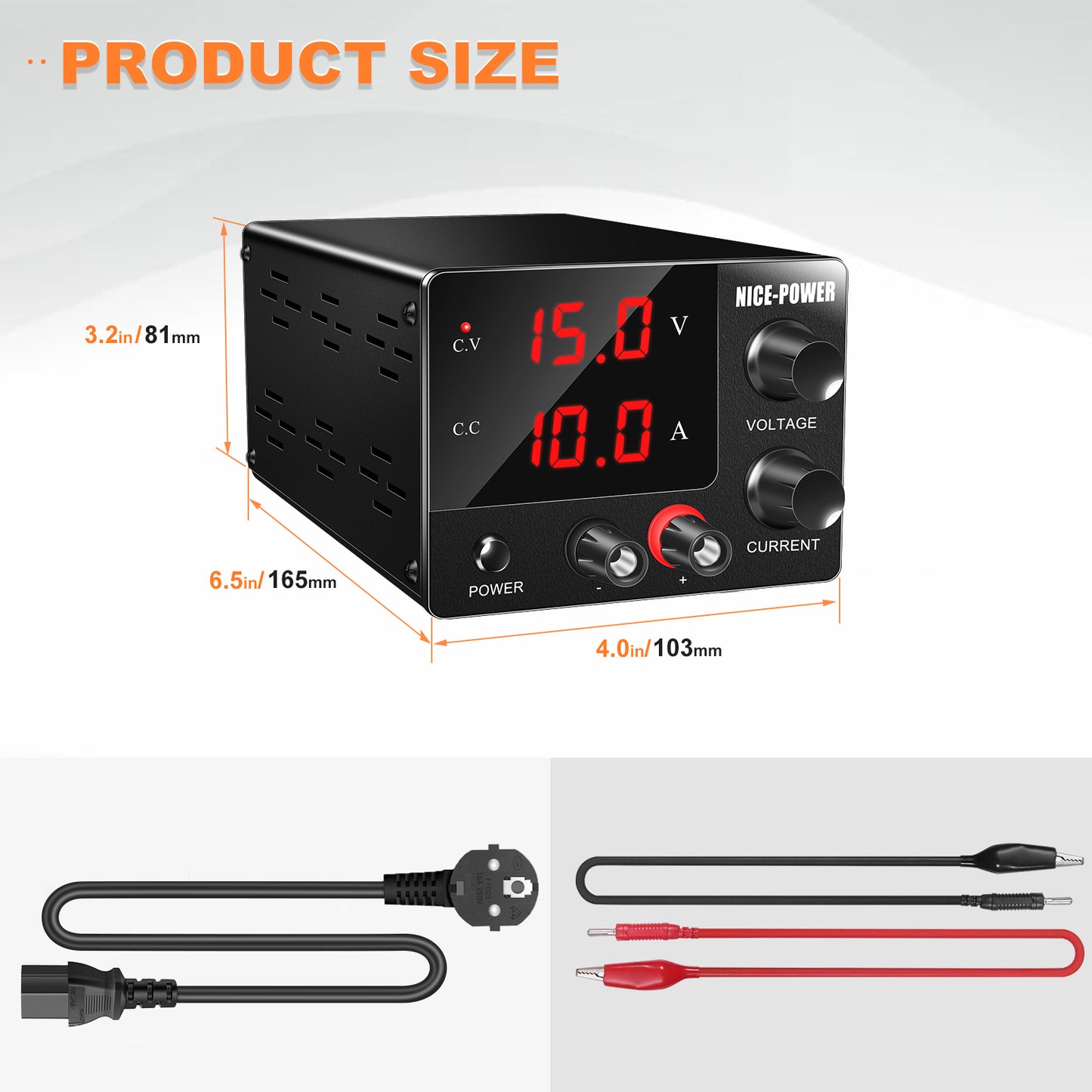

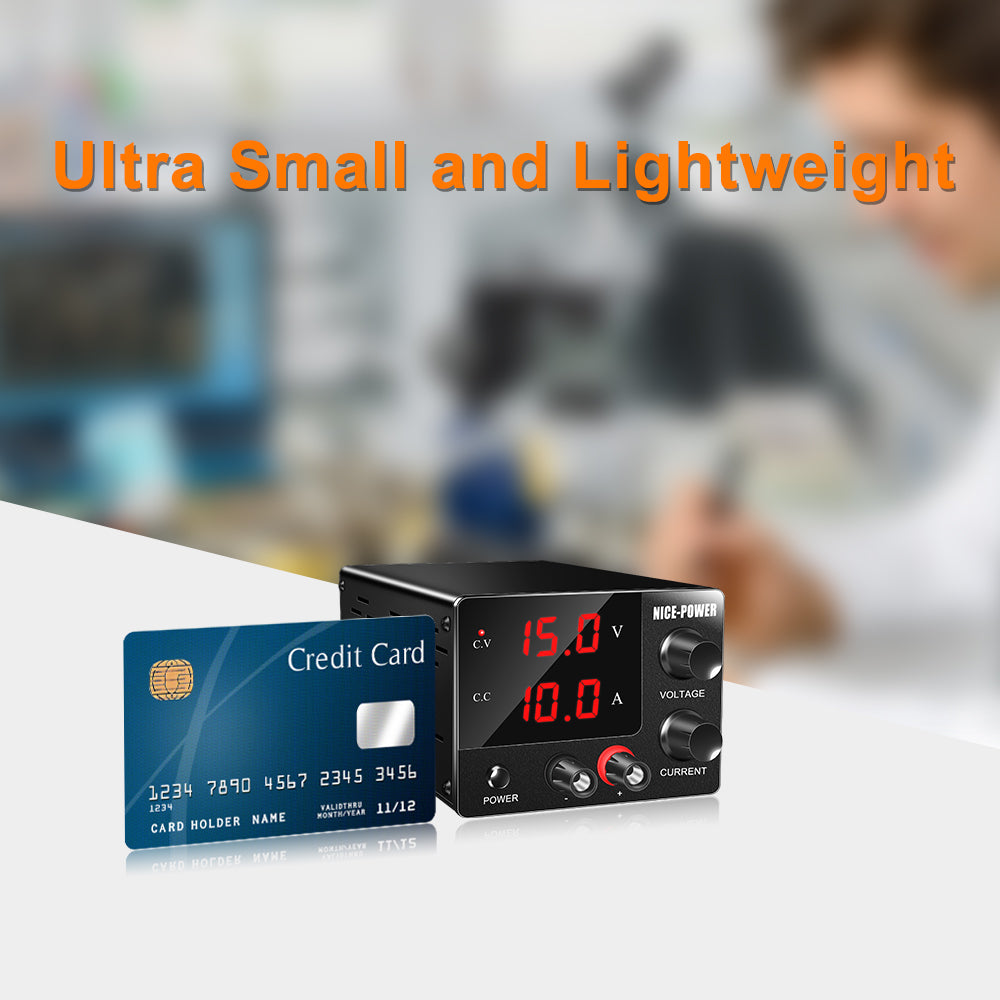

With dimensions of only 10 × 18.5 × 8 cm and a weight of less than 1 kg, this compact bench power supply occupies minimal workspace while still providing up to 150W of adjustable DC power.
It is particularly suitable for:
The lightweight design also makes it easier to move between workstations than a conventional full-size bench power supply.

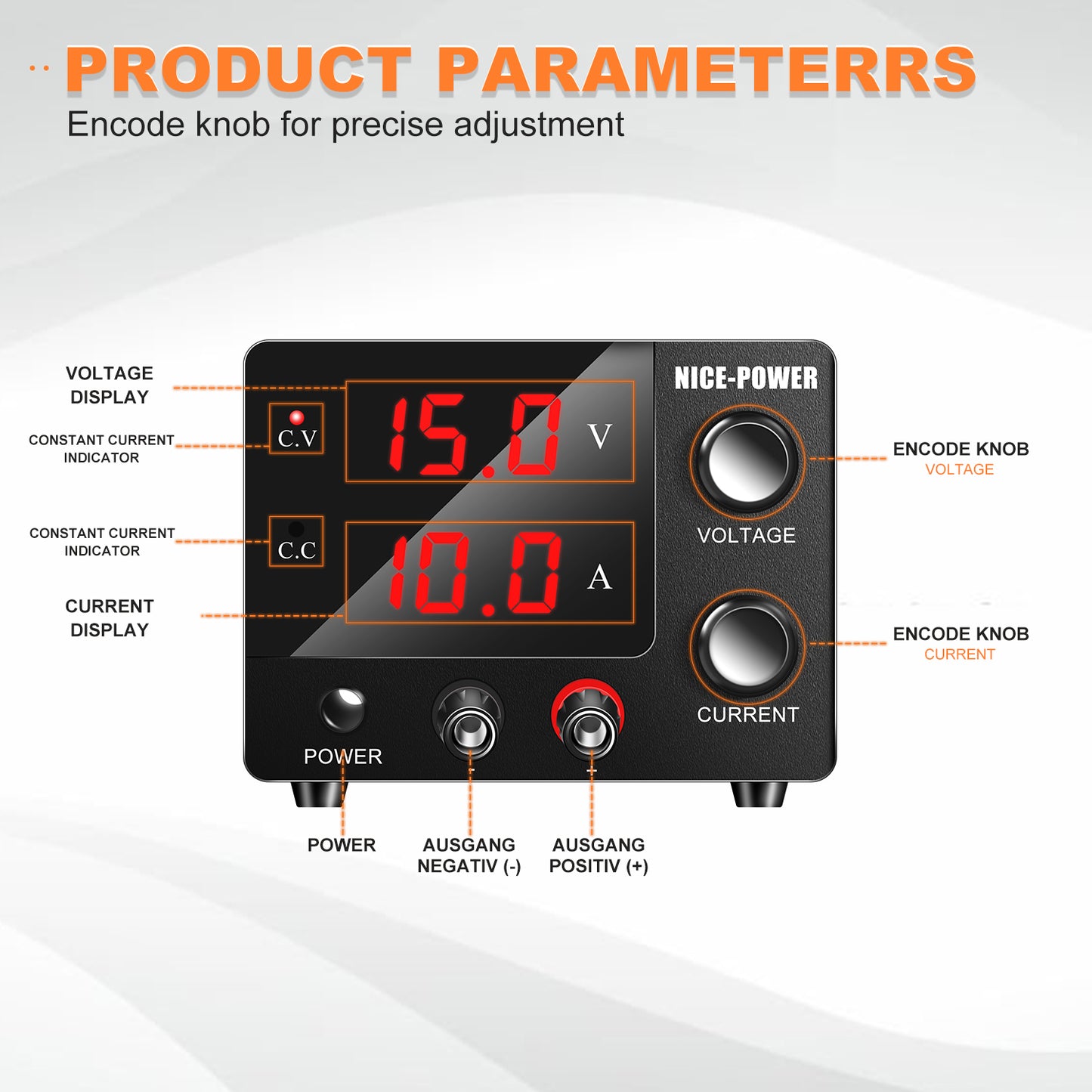

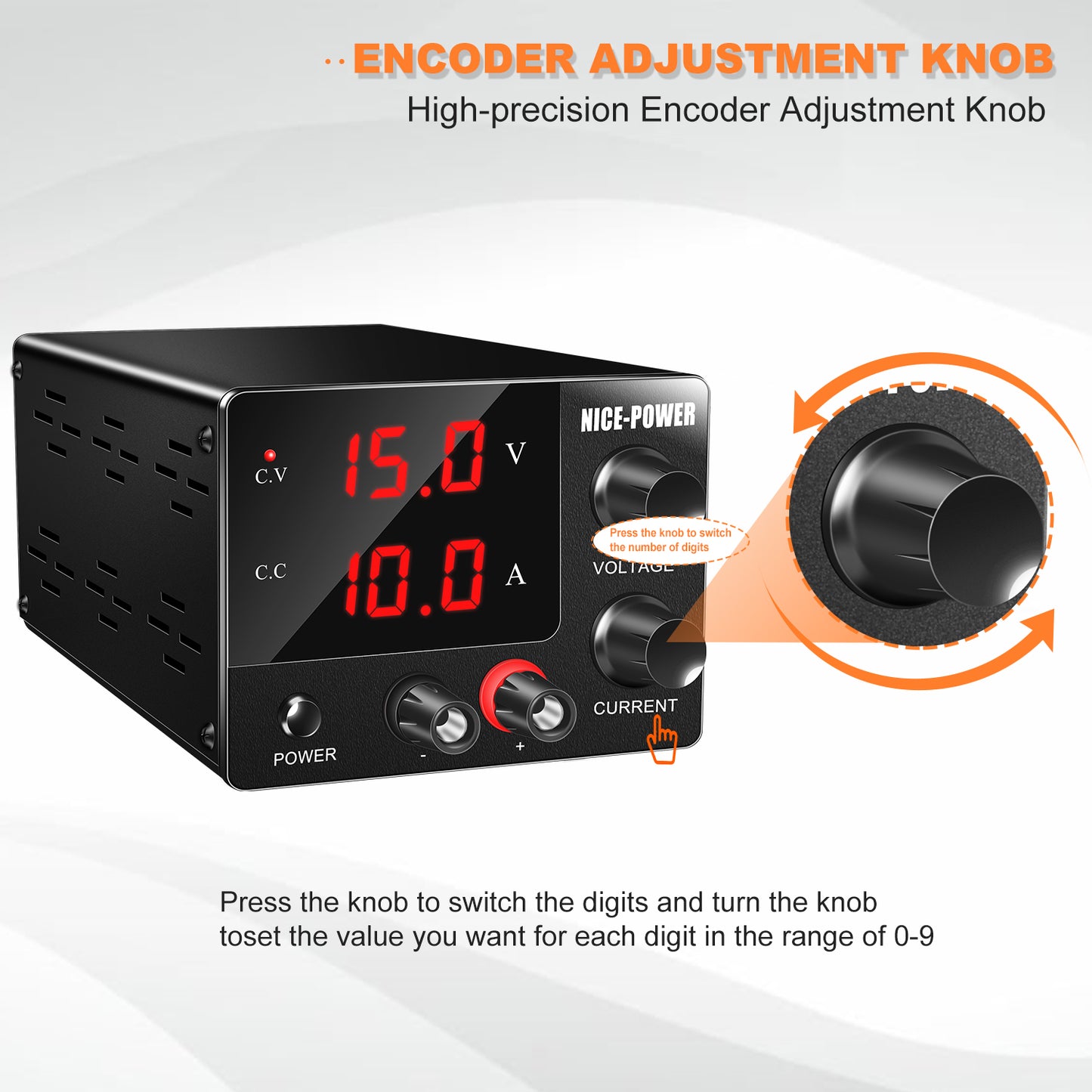

Instead of conventional potentiometer adjustment, the unit uses encoder knob control for setting voltage and current.
Press the encoder to select the desired digit and rotate the knob to change the value. The display provides 0.1V voltage resolution and 0.01A current resolution, allowing users to set and repeat power conditions more conveniently during electronics testing and troubleshooting.
This makes the unit particularly practical as a DC power supply for electronics repair and circuit board testing.
The built-in cooling fan automatically starts when additional heat dissipation is required, helping maintain stable operation during higher-power use while reducing unnecessary fan operation at lighter loads.
If the power supply becomes excessively hot, stop using the unit and allow it to cool before continuing operation.
The power supply supports 100–240V AC, 50–60Hz ±10%, making it suitable for use across a wide range of electrical standards without requiring an external transformer.
This wide input range is useful for portable engineering work, international users, workshops, and different testing environments.
Ideal for PCB repair, electronic module troubleshooting, component testing, and controlled power-up of low-voltage circuits.
Designed for testing 12V/24V automotive modules, lighting, sensors, relays, fans, and other low-voltage automotive electronics.
The up-to-10A output makes it suitable for testing 12V/24V DC motors, cooling fans, small pumps, and other motor-driven loads.
Packaging & After-Sales:
| Parameter | Sub-Parameter | SPS-E3010 |
|---|---|---|
| Rated Value (0℃~40℃) | Voltage | 0-30V |
| Current | 0-10A | |
| Power | 150W | |
| Load Regulation | Voltage | ≤0.3%+10 mV (All Models) |
| Current | ≤0.1%+2.5 mA (All Models) | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV (All Models) |
| Current | ≤0.1%+2.5 mA (All Models) | |
| Setting Resolution | Voltage | 10mV (All Models) |
| Current | 1mA (All Models) | |
| Readback Resolution | Voltage | 10mV (All Models) |
| Current | 1mA (All Models) | |
| Setting Accuracy | Voltage | ≤0.05%+10mV (All Models) |
| Current | ≤0.01%+10mA (All Models) | |
| Readback Accuracy | Voltage | ≤0.05%+10mV (All Models) |
| Current | ≤0.01%+10mA (All Models) | |
| Ripple (20Hz~20MHz) | Voltage | ≤100 mVp-p
|
| Current | ≤15 mArms | |
| Rise Time (No Load) | Time | ≤200mS (All Models) |
| Rise Time (Full Load) | Time | ≤300mS (All Models) |
| Fall Time (No Load) | Time | ≤20S |
| Fall Time (Full Load) | Time | ≤300mS (All Models) |
| Dynamic Response | Time | ≤200mS (All Models) |
| Efficiency | - | ≥85% (All Models) |
| Input Voltage/Current | - | 110V/5A 220V/3.15A (All Models) |
| Size/Net Weight | - | SPS-E: about 18.5*10*7.8cm, weight:0.7KG |
| Package Size/Weight | - | Single unit: 231911cm, weight:1.1KG (12pcs/Carton) (All Models) |
