KUAIQU SPPS3010-2KD - 30V 10A Dual Channel Power Supply with 4 in 1 Mode, Short Killer, 8 Groups Memory Presets, Negative Voltage for DC Motor Scenarios

English Manual

Key Features

• 4 in 1 DC Power Supply
  This dual DC power supply meets the needs of multiple power supply specifications at one time—one dual DC power supply is equivalent to two 30V10A power supplies, one 30V20A power supply, and one 60V10A power supply, eliminating the need for multiple separate power supplies and saving space.
• Dual Independent Outputs
  By pressing the "INDEP" button, you will get two independent DC power supplies (30V 10A each). These two DC power supplies feature completely independent control of each output channel—each channel can be adjusted separately without interference, and can output voltage, current, and power independently while supporting simultaneous output.

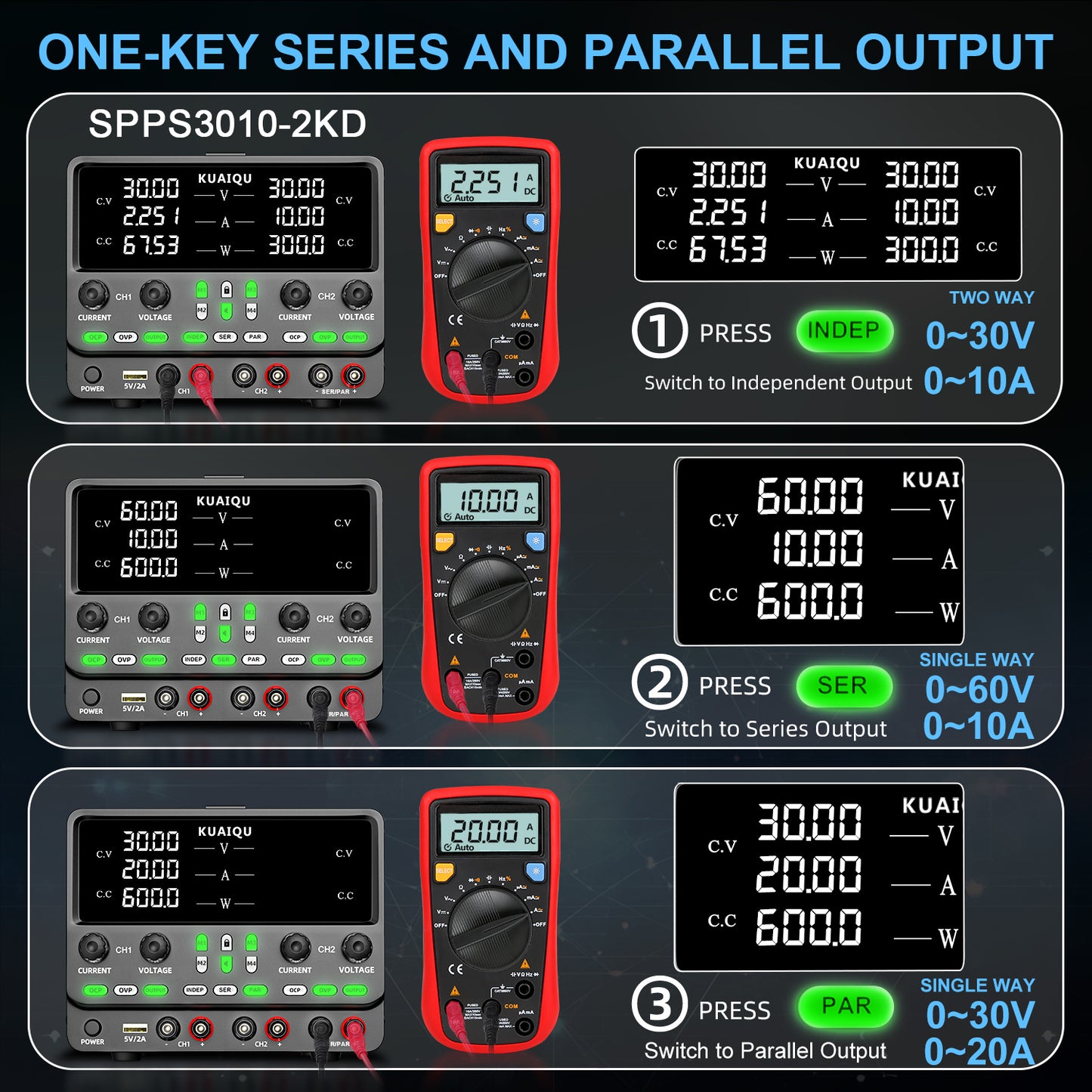

• One-key Series/Parallel Operation
  One-key Series Mode: Press the "SER" button of the dual power supply, and you will have one 60V 10A power supply.
  One-key Parallel Mode: Press the "PAR" button of the dual power supply, and you will have one 30V 20A power supply.
  Dedicated series/parallel ports: No complex wiring required, simplifying operation and reducing wiring errors.

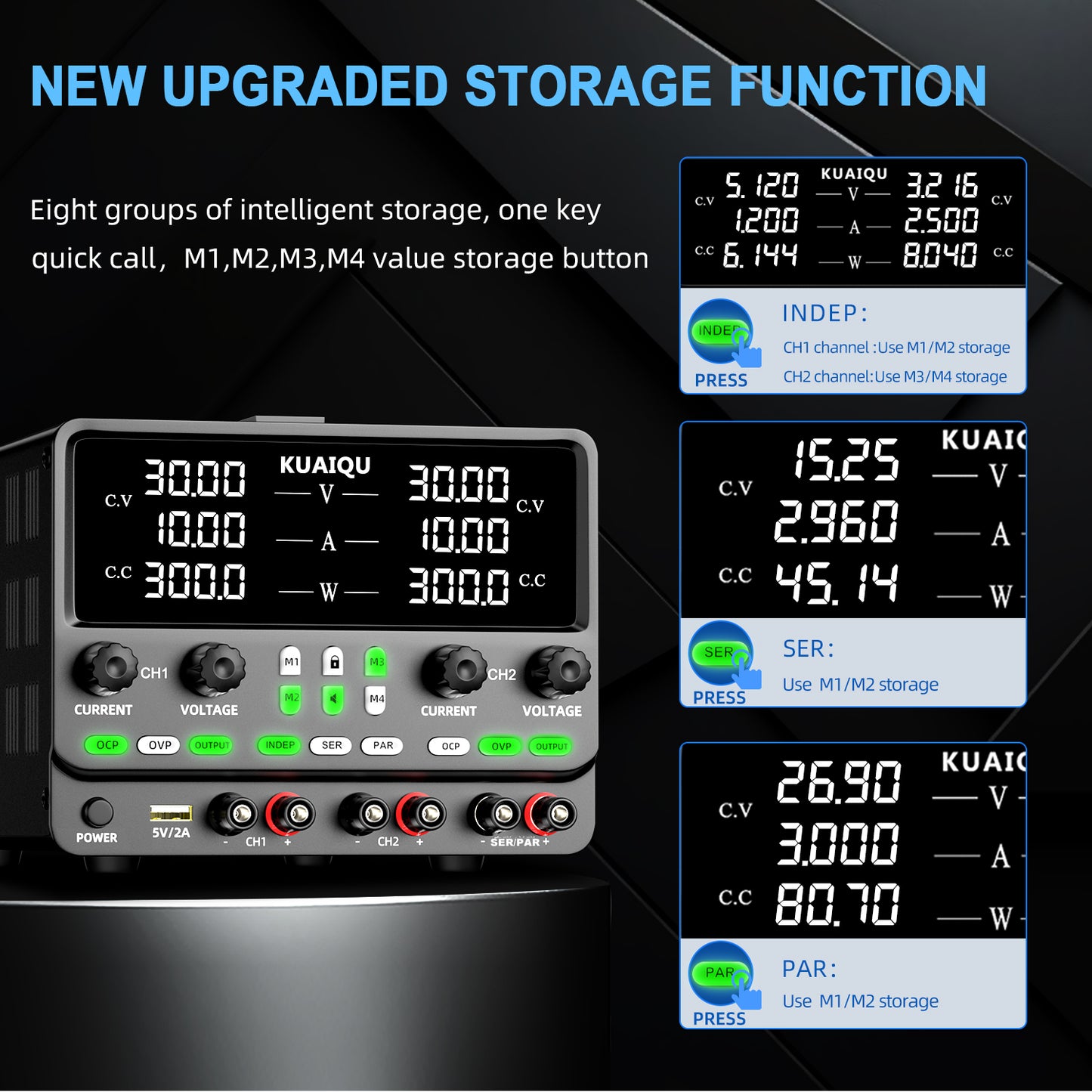

• 8 Data Sets for Storage
  In independent mode, a total of 4 groups of data can be stored, namely M1/M2/M3/M4. M1/M2 can be used for data storage in serial mode. In parallel mode, M1/M2 can be used to store data. The data stored in different modes with the same memory key will not be mixed up, so you don't have to worry about it.

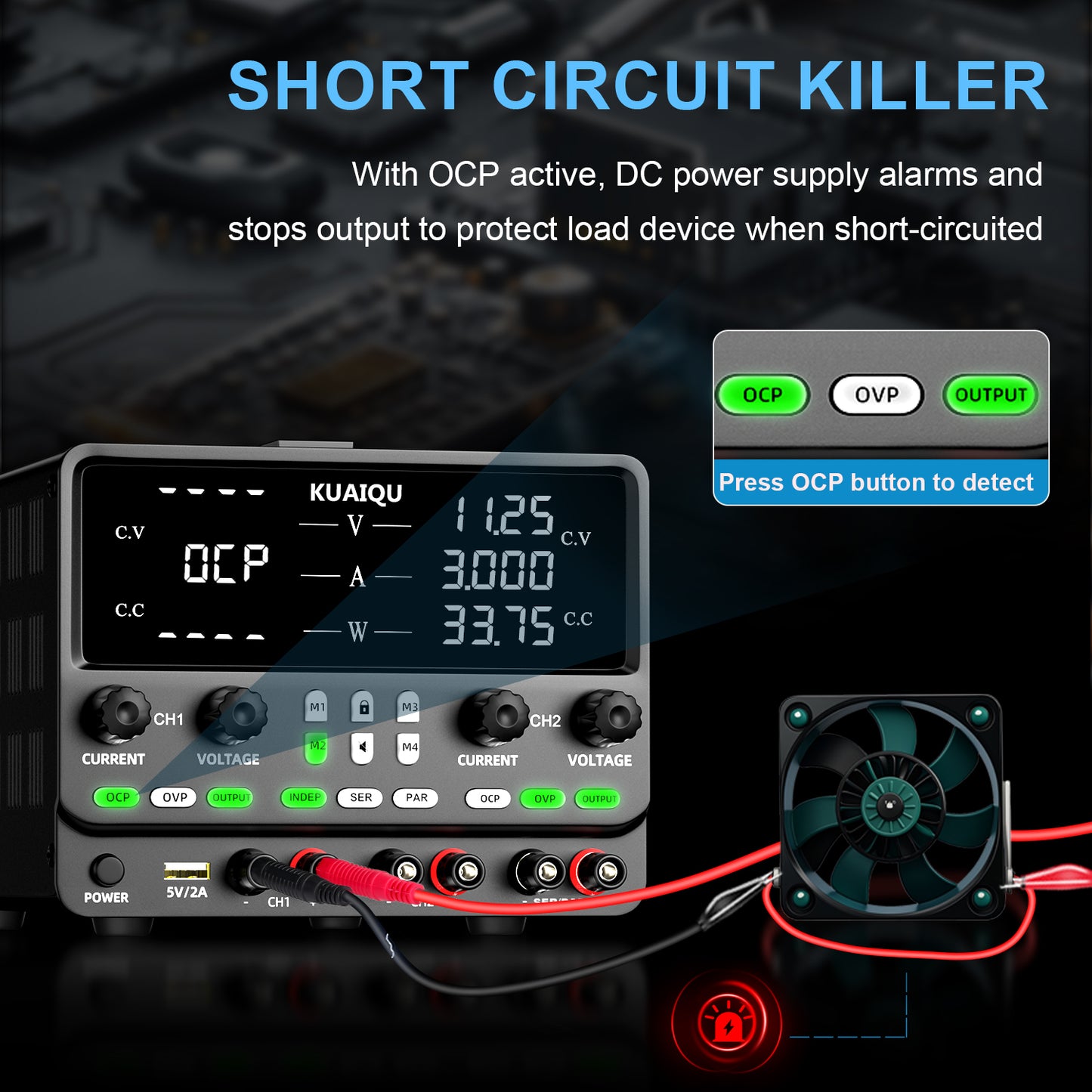

• OCP/OVP Function
  Press the “OCP/OVP” button to set the rated voltage value and rated current value. When there is a short-circuit or over-voltage in the circuit, the DC power supply will automatically turn off the output switch, thus protecting the dc power supply and your loads.

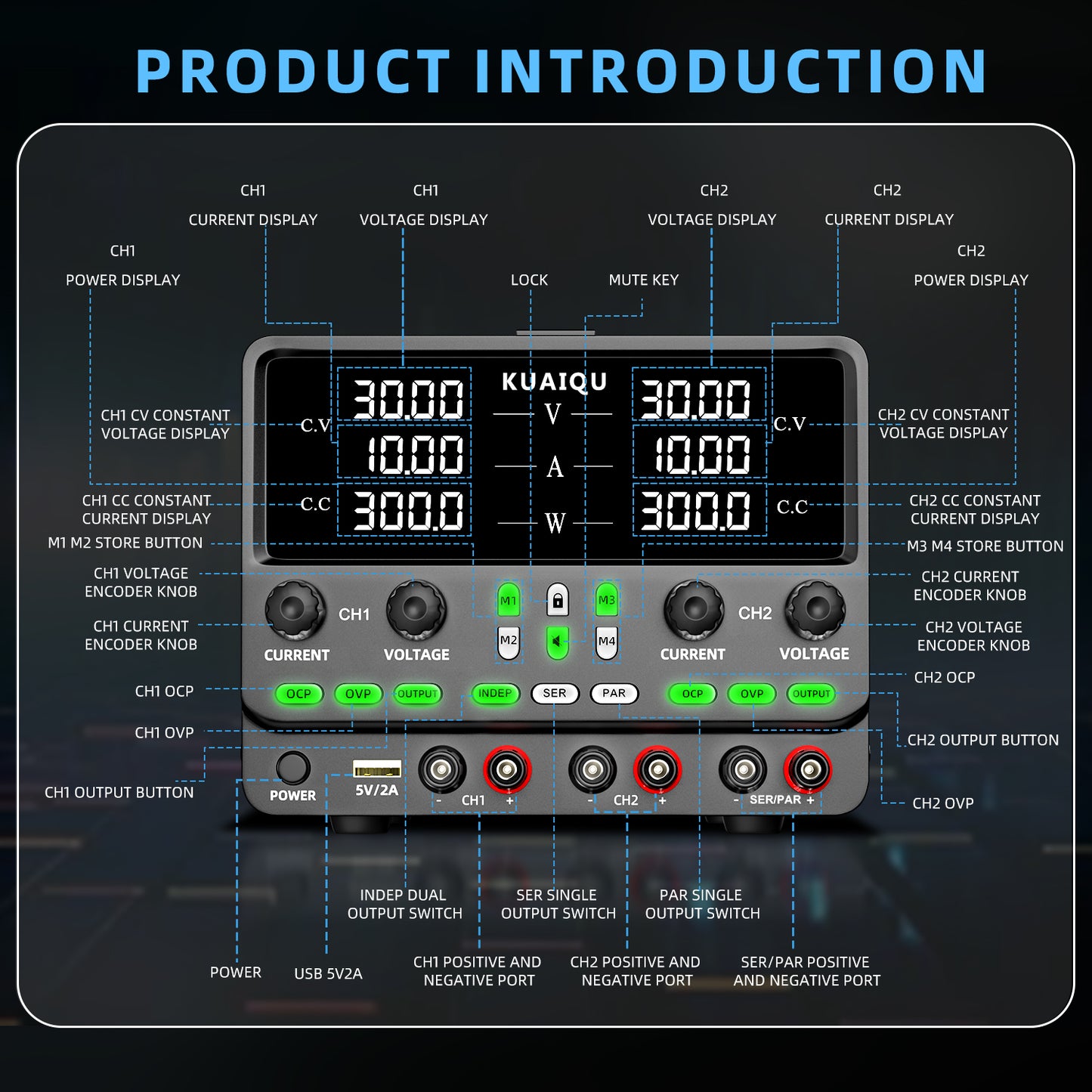

• Dedicated OUTPUT Buttons
  Offers dedicated OUTPUT buttons for each channel to control output. In indep mode, with output via CH1 and CH2, you can use their respective OUTPUT buttons to manage output. In ser/par mode, the OUTPUT button of CH1 controls the output.

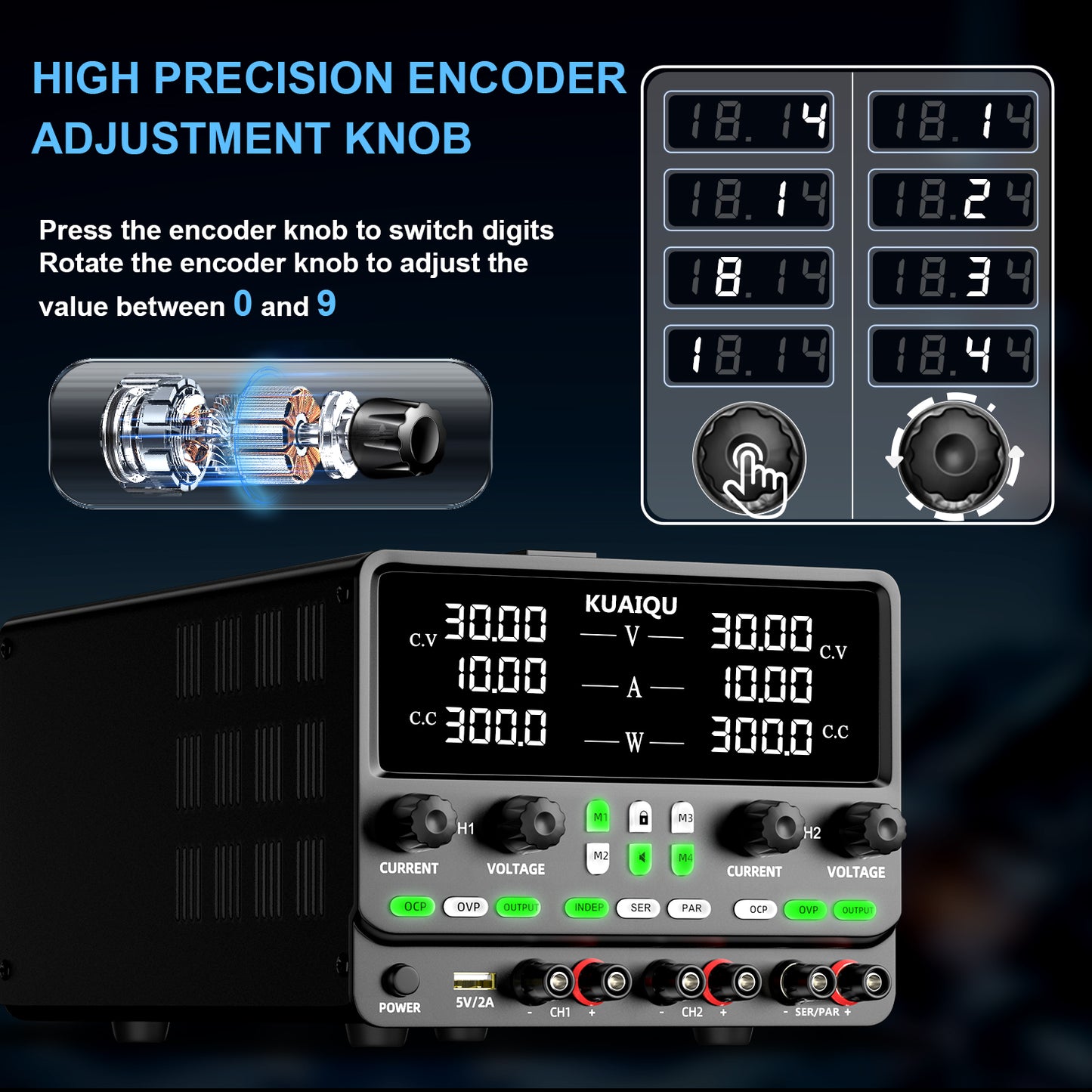

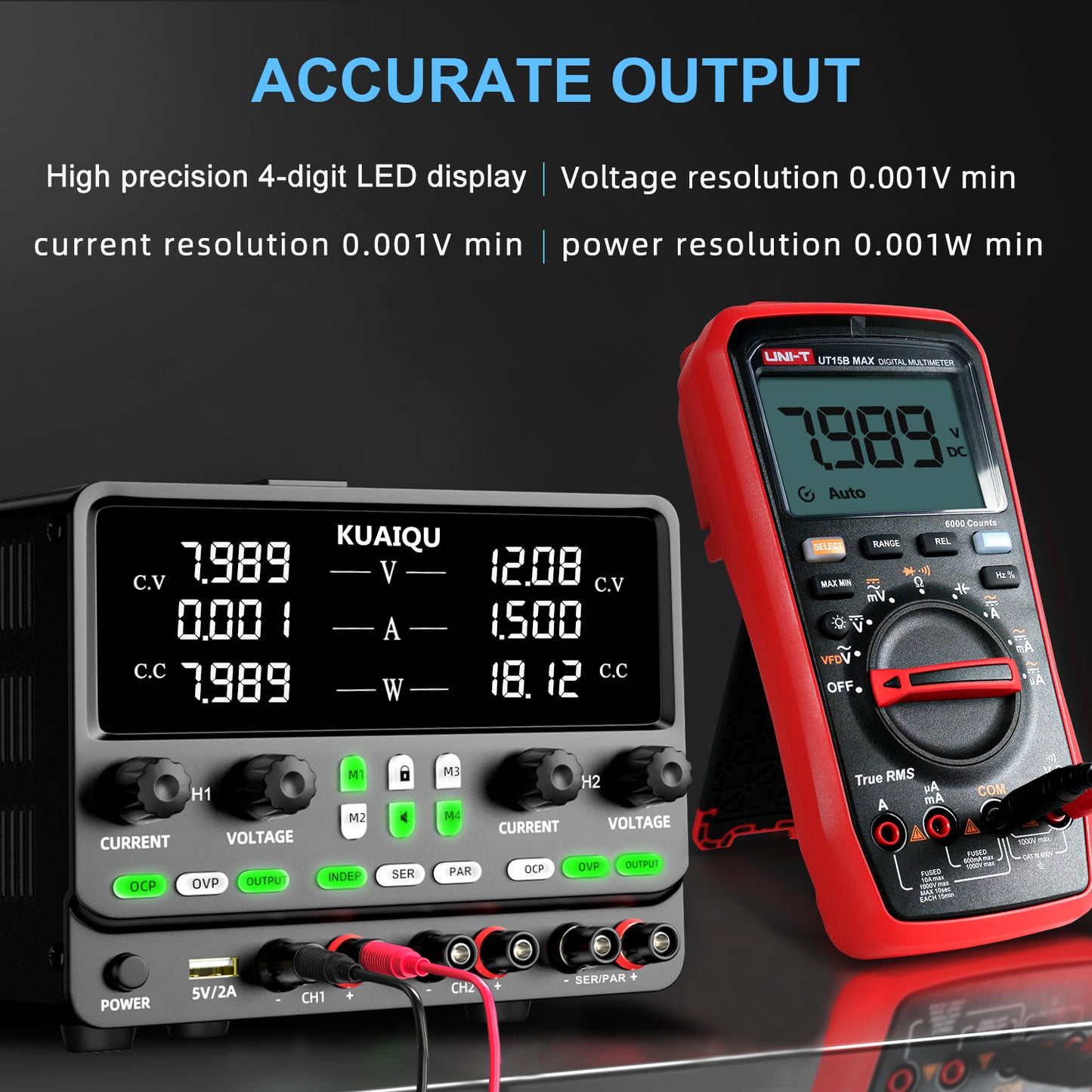

• Precise Adjustment
  Equipped with a high-precision encoder knob for accurate voltage/current control, ensuring stable output performance even in long-term use, meeting the needs of high-precision power supply scenarios.
• 3rd Channel Fixed USB 5V2A Output
  Comes with an additional fixed USB output channel (5V2A) for powering small devices like smartphones, tablets, or USB-enabled sensors. A USB cable is included for immediate use.
• Dual-Polarity Power Supply Capability
  Can be used as a positive and negative power supply, typically for circuit boards and DC motors. It supports simultaneous output of positive and negative voltages, adapting to the power supply requirements of bipolar-dependent electronic components and equipment.
• USB / RS-232 / RS485 (optional)
  Optional interface USB / RS-232 / RS485 for automated control(Please note when placing an order).

Applications
Laboratory: Ideal for circuit testing, electronic development, and component performance verification, providing stable and flexible power support for R&D work.
Industry: Reliable power supply for production lines, industrial control systems, and precision equipment, ensuring smooth operation of manufacturing processes.
Education: Perfect for teaching experiments, student training, and electronics courses, helping learners understand power supply principles and circuit applications.
Circuit Board & DC Motor Scenarios: Suitable for powering circuit boards (such as analog signal processing boards, sensor modules) and DC motors (like small servo motors, precision drive motors), meeting the dual-polarity or high-current power needs of these devices.

Quality Check and Terms of Service

• Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
• Has passed CE & FCC Certification.
• All DC power supplies and accessories are inspected before shipment to ensure good quality.
• Customer support: Contact us with any questions, and we'll respond within 24 hours.
