Click the link above to get the full user guide for this product.

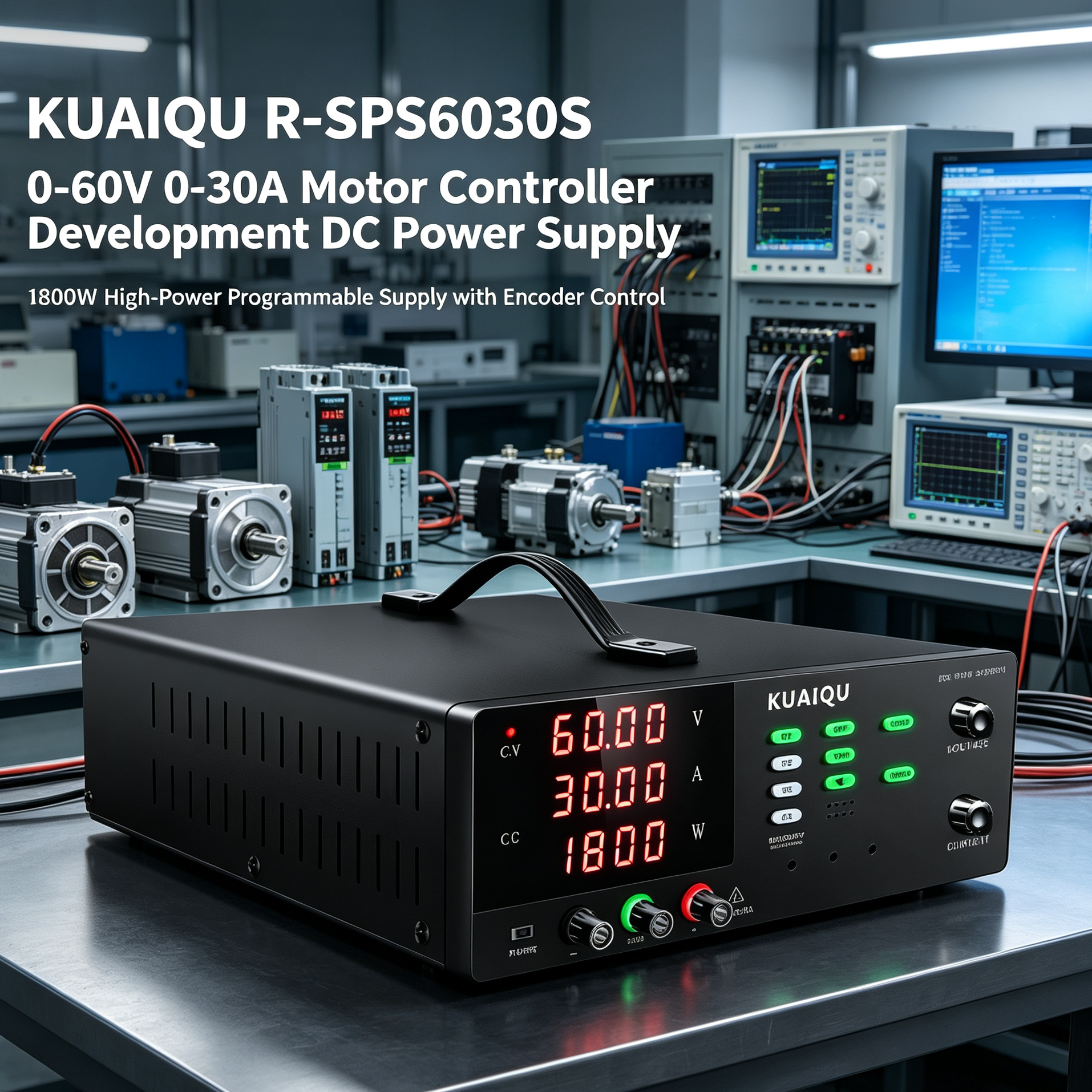

The KUAIQU R-SPS6030S is a 60V 30A 1800W motor controller development and debugging power supply designed for motor controller R&D, drive system development, controller board debugging, and electrical system testing. Its high-power adjustable DC output, 4-digit voltage/current/power display, memory presets, encoder adjustment, output ON/OFF switch, and OCP/OVP protection provide a stable and flexible power source for demanding motor control development applications.
60V 30A 1800W High-Power Output
Provides adjustable output up to 60V and 30A, making it suitable for powering and debugging motor controllers, motor drive systems, inverter modules, controller boards, and other high-power electrical systems.
Motor Controller Development & Debugging
Designed for motor controller R&D, controller board debugging, drive system development, and electrical performance testing, providing adjustable DC power during development and troubleshooting.
4-Digit Voltage, Current & Power Display
The clear LED display shows output voltage, current, and power simultaneously, allowing engineers to monitor the power requirements of a motor controller or drive system in real time.
Independent Output ON/OFF Switch
The dedicated output switch allows engineers to configure output parameters before applying power to the controller, helping reduce accidental power delivery during development and debugging.
OCP & OVP Protection
Built-in over-current protection and over-voltage protection help protect the power supply and connected motor control equipment against excessive current, abnormal voltage, overload, and short-circuit conditions.
4 Memory Presets M1–M4
Four memory groups allow frequently used voltage and current settings to be stored and recalled quickly, making repeated motor controller testing and debugging more efficient.
Precision Encoder Adjustment
The encoder knob supports coarse and fine adjustment for quick parameter changes as well as precise voltage and current settings during motor controller development.
Panel Lock Function
The panel lock helps prevent accidental changes to configured voltage, current, and other operating parameters during testing.
Buzzer Mute Function
Audible feedback confirms parameter changes and operations, while the mute function allows quieter operation in engineering laboratories and development environments.
Optional RS232 / RS485 Communication
Optional RS232 or RS485 interfaces support remote control, monitoring, and integration with automated development or testing systems
Quality Check and Terms of Service:
| Models | R-SPS6030S |
|---|---|
| Rated Value (0°C~40°C) | |
| Voltage | 0–60V |
| Current | 0–30A |
| Power | 1800W |
| Load Regulation | |
| Voltage | ≤0.1%+10 mV |
| Current | ≤0.1%+2.5 mA |
| Line Regulation | |
| Voltage | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA |
| Setting Resolution | |
| Voltage | 10 mV |
| Current | 10 mA |
| Readback Resolution | |
| Voltage | 10 mV |
| Current | 10 mA |
| Setting Accuracy | |
| Voltage | ≤0.05%+10 mV |
| Current | ≤0.01%+10 mA |
| Readback Accuracy | |
| Voltage | ≤0.05%+10 mV |
| Current | ≤0.01%+10 mA |
| Ripple (20Hz~20MHz) | |
| Voltage |
≤400 mVp-p / ≤60 mVrms |
| Current | ≤20 mArms |
| Rise Time (No Load) | ≤100 mS |
| Rise Time (Full Load) | ≤150 mS |
| Fall Time (No Load) | ≤15 s |
| Fall Time (Full Load) | ≤50 mS |
| Dynamic Response Time | ≤20 mS |
| Efficiency | ≥85% |
| Size/Net Weight | 35×27×10 cm, 4.6kg / 6.8kg (3000W) |
| Package Size/Weight | 47×36×19 cm, 5.8kg / 7.5kg (3000W, 2 pcs/carton) |
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
