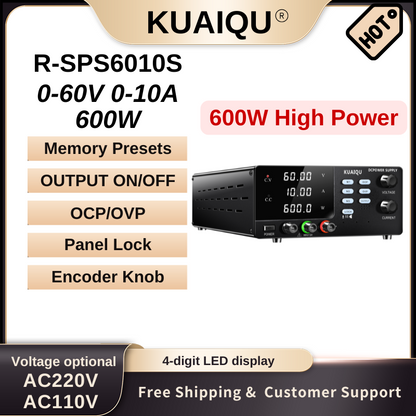

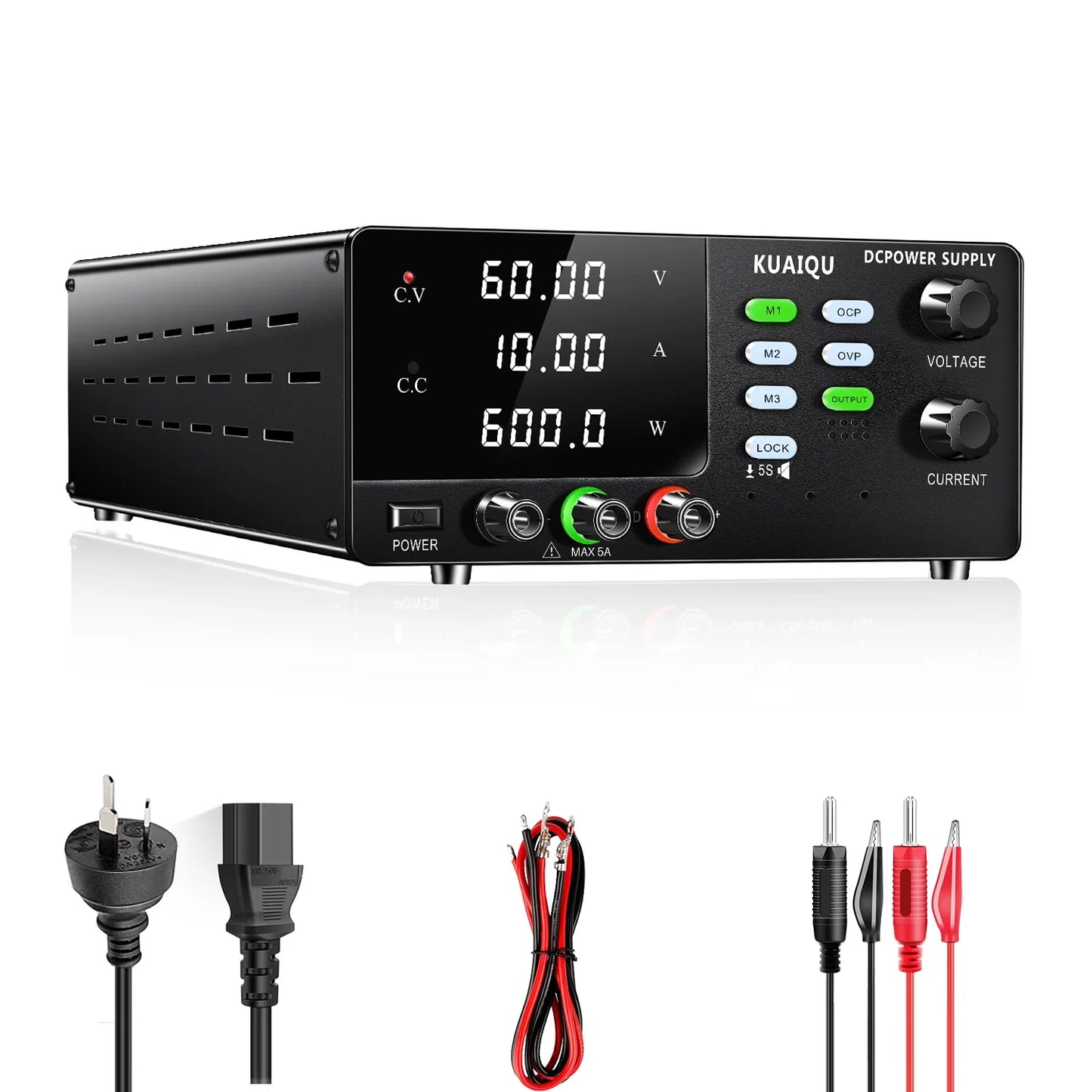

KUAIQU R-SPS6010S-USB 60V 10A DC Power Supply, OCP Short Killer, USB Programmable Control, Memory Presets for Industrial equipment

English Manual

Key Specifications:

• Voltage/Current Range: Offers a voltage range of 15V and a current range of 30A, catering to a wide array of power - hungry devices and battery types.

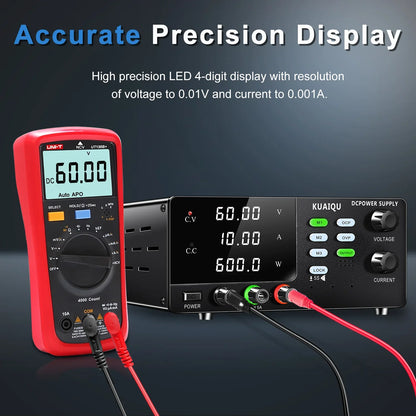

• Power Display: Equipped with a clear 4 - digit LED display that simultaneously shows voltage, current, and power values, enabling you to monitor the charging or power - supplying status with precision at a glance.
• Output Control: Features a dedicated output switch, allowing you to safely turn the power output on or off, which is crucial for preventing accidental power surges during setup or adjustments.

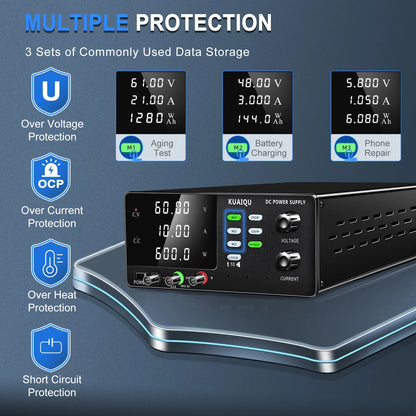

• Safety Protection:
  OCP (Over Current Protection) Short Killer: Instantly cuts off output and provides protection when excessive current is detected or a short - circuit occurs, safeguarding both the charger and the connected device from damage.
  OVP (Over Voltage Protection): Automatically shuts down the output if the voltage exceeds the safe limit, preventing over - voltage - related hazards to sensitive electronics.

User - Friendly Design:

• Panel Lock: Comes with a panel lock function that can be activated to prevent any accidental adjustments to voltage, current, or other settings, ensuring the device operates as intended once configured.
• Memory Function: Boasts 3 memory groups (M1~M3) that let you store preset voltage, current, and power values. This is especially handy for recurring tasks where the same power parameters are needed, saving you time on repeated adjustments.
• Precision Adjustment: Utilizes an encoder knob with adjustable speed. You can switch between coarse and fine adjustment modes, making it easy to set precise voltage and current values with the level of detail you need.
• Buzzer Feedback: Provides audible confirmation for various operations (like setting changes or mode switches). If the beeping is not desired, there's a mute option available to keep your workspace quiet.

Connectivity & Control:

• USB Port: Includes a standard USB port that enables programmable control.
• Optional RS232/RS485: Supports expandable serial communication via RS232 or RS485 (optional). This allows for more advanced remote control and monitoring capabilities, ideal for industrial or laboratory settings where centralized control is necessary.

Output Ports:

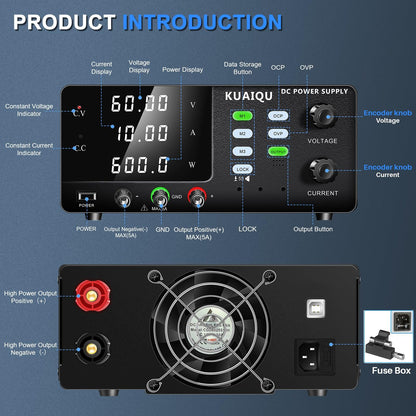

• Features dual output ports, with one set on the front panel and another on the rear panel. This flexible design gives you the freedom to connect devices in a way that best suits your workspace layout.

Note:

• RS232/RS485 requires optional remote interface (not included). If you need the RS232/RS485 remote interface, please note this requirement when placing your order.
