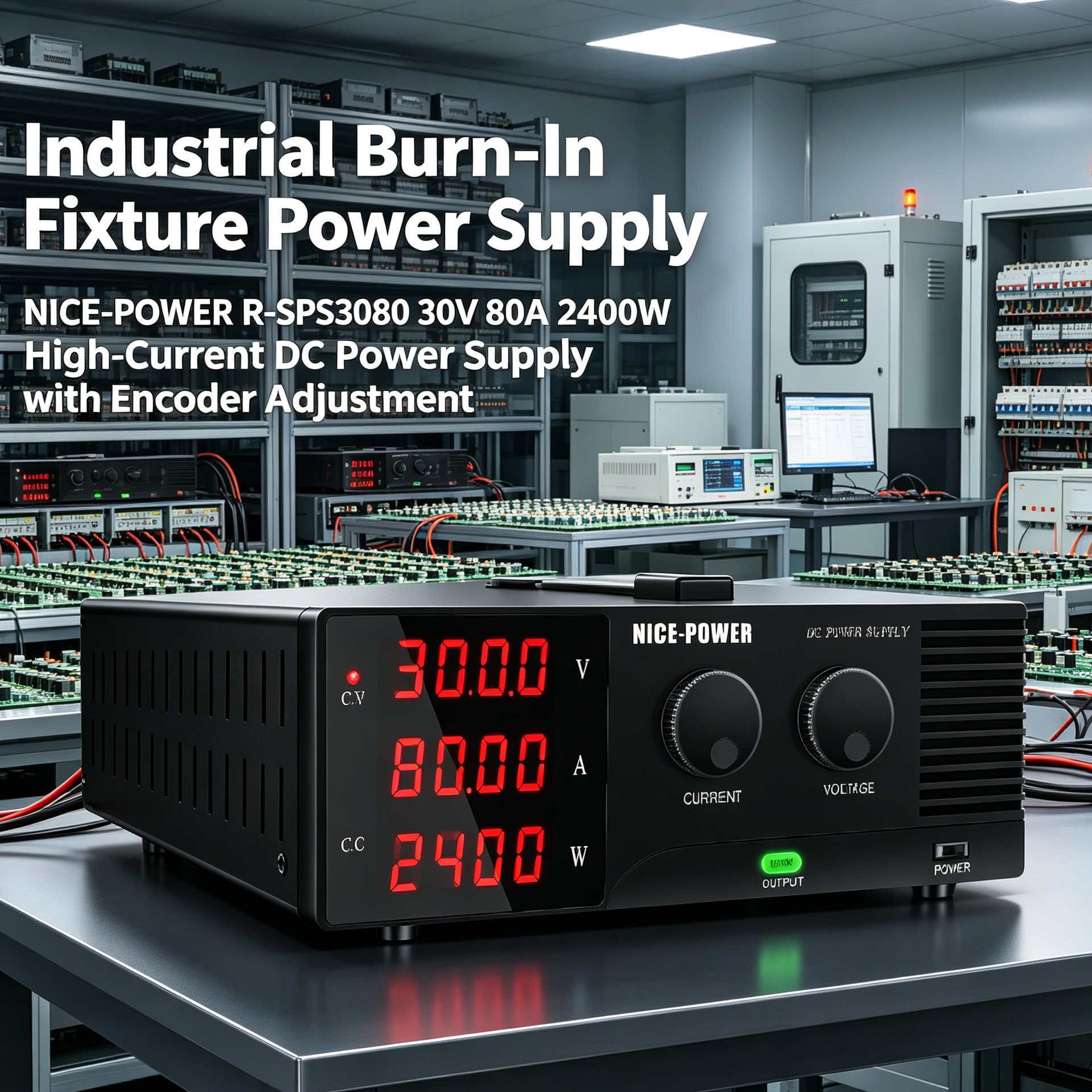

NICE-POWER R-SPS3080 30V 80A 2400W High-Current DC Power Supply with Encoder Adjustment
Description
The NICE-POWER R-SPS3080 Industrial Burn-In Fixture Power Supply delivers adjustable 0–30V, 0–80A and 2400W output, providing stable high-current DC power for industrial burn-in equipment, aging test fixtures, reliability testing systems, and high-power DC loads. Its high-current output, low-ripple performance, encoder adjustment, 4-digit digital display, and output control make it suitable for continuous power supply applications where stable and reliable DC output is required.
Key Features
- 30V 80A 2400W High-Current Power Supply
With adjustable 0–30V / 0–80A output and up to 2400W power, the R-SPS3080 provides high-current DC power for demanding industrial burn-in and aging test applications. - Industrial Burn-In Fixture Power Supply
Designed as a Burn-In Fixture Power Supply for equipment and fixtures that require stable DC power during extended aging, burn-in, reliability, and continuous-load operation. - High-Current Output for Aging Equipment
The 80A maximum output provides substantial current capacity for multi-load burn-in fixtures, high-power DC loads, and industrial aging equipment. - Stable Output for Long-Duration Operation
Stable and low-ripple DC output helps maintain consistent power conditions during extended burn-in and aging tests, supporting repeatable equipment operation. - Precise Encoder Adjustment
The encoder knob allows convenient adjustment of voltage and current, making it easy to configure the required output conditions for different aging fixtures and test loads. - 4-Digit Digital Display
The 4-digit display provides clear real-time voltage and current readings, allowing operators to monitor the power supplied to burn-in equipment. - Independent Output ON/OFF Control
The dedicated output switch allows operators to start or stop DC output without changing the configured parameters, helping prevent accidental power delivery to connected fixtures. - Optional Programmable Communication
Optional USB, RS-232 and RS485 interfaces support remote control, programmable operation, data communication, and integration with automated burn-in equipment. - Comprehensive Protection
Built-in protection functions help protect the power supply and connected aging fixtures during overload, short-circuit, and abnormal operating conditions.
Applications
- Industrial Burn-In Equipment
Suitable as an Industrial Burn-In Power Supply for equipment and systems requiring stable DC power during extended operating tests. - Aging Test Fixtures
The 2400W output provides sufficient power for aging test fixtures and burn-in fixtures with high-current or multiple connected loads. - Reliability Testing Systems
Provides controlled DC power for product reliability testing, endurance testing, and continuous-load applications. - Production Burn-In Systems
The high-current output is suitable for production burn-in equipment requiring consistent DC power across repeated testing cycles. - High-Power DC Loads
The 30V / 80A output is suitable for high-power DC loads and equipment that require stable adjustable power during extended operation. - Automated Aging Equipment
With optional communication interfaces, the R-SPS3080 can be integrated into automated aging equipment and programmable burn-in systems for remote power control. - Industrial Power Testing
Suitable for industrial applications involving long-duration power operation, aging evaluation, endurance testing, and equipment reliability verification.
Quality Check and Terms of Service
| Item | Sub-item | Specification |
|---|---|---|
| Rated Value (0℃~40℃) | Voltage | 0–30V |
| Current | 0–80A | |
| Power | 2400W | |
| Load Regulation | Voltage | ≤0.1%+10 mV |
| Current | ≤0.1%+2.5 mA | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA | |
| Setting Resolution | Voltage | 10mV |
| Current | 10mA | |
| Readback Resolution | Voltage | 10mV |
| Current | 10mA | |
| Setting Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Readback Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤3500 mVp-p
|
| Current | ≤200 mArms | |
| Rise Time (No Load) | Time | ≤100mS |
| Rise Time (Full Load) | Time | ≤150mS |
| Fall Time (No Load) | Time | ≤35S |
| Fall Time (Full Load) | Time | ≤50mS |
| Dynamic Response | Time | ≤20mS |
| Efficiency | - | ≥85% |
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
