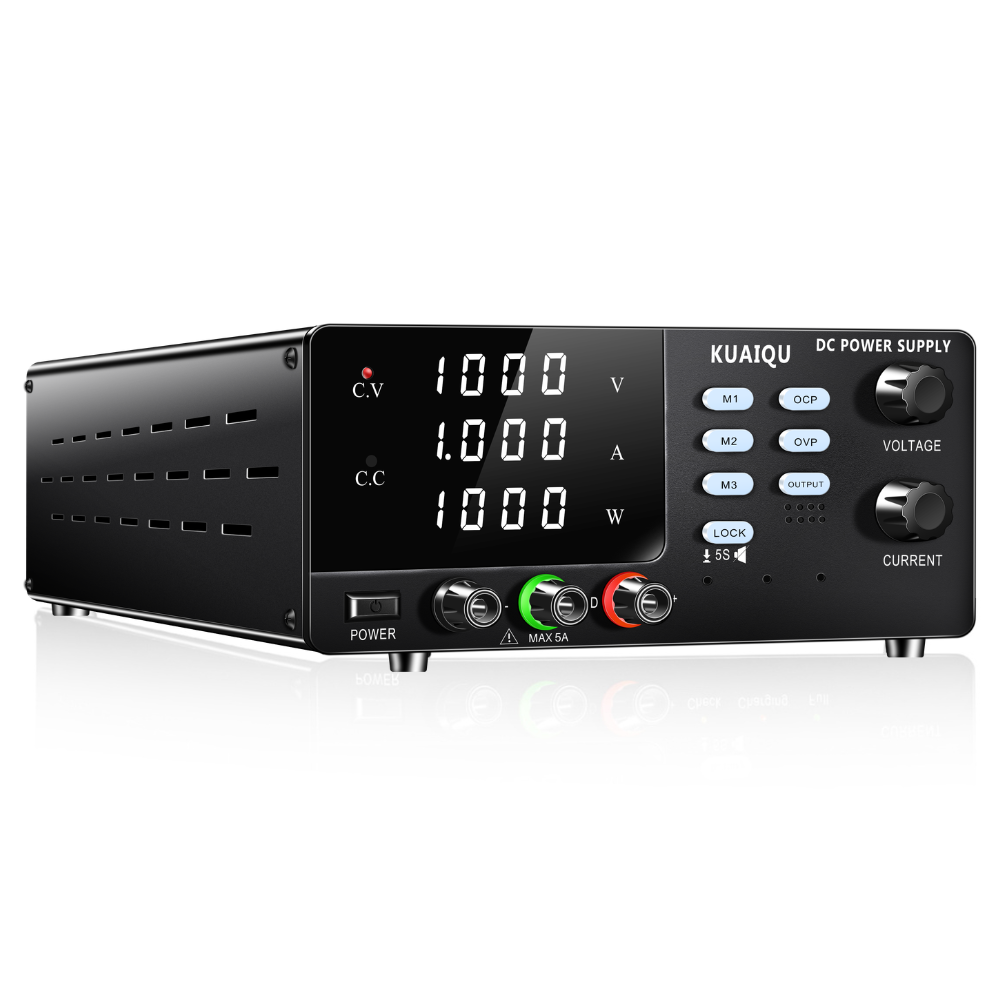

KUAIQU R-SPS10001SR - 1000V 1A High Voltage Programmable DC Power Supply with Memory Presets for Photovoltaic Inverter Testing

High-Precision Programmable DC Power Supply: A Professional Solution for New Energy & Industrial Testing

Superior Output Performance & Precision Control

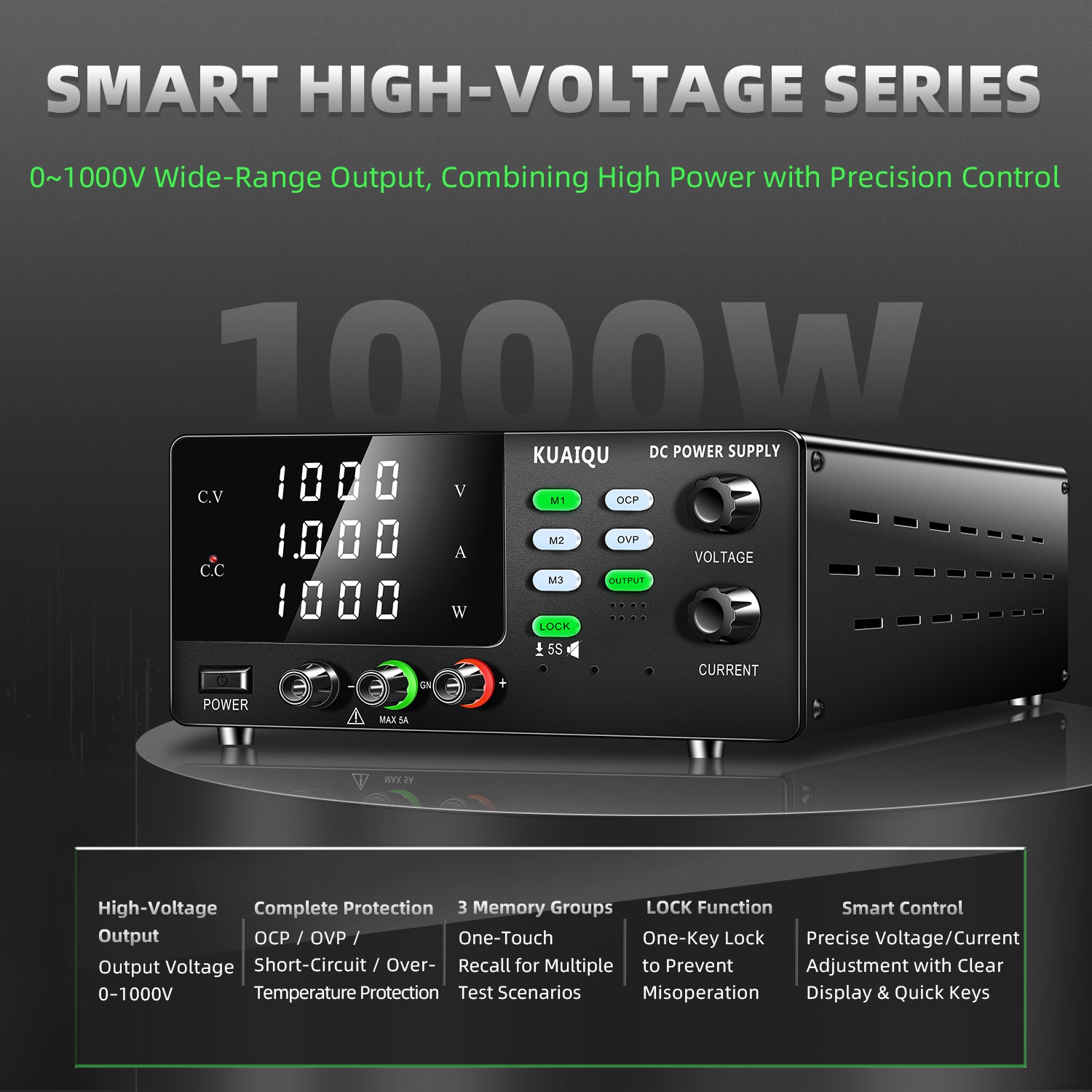

• High-Power, Wide-Range Output: Capable of delivering up to 1000V voltage and 1A current, it meets the demanding needs of high-voltage testing in solar energy, photovoltaic modules, and more—far exceeding the capabilities of standard power supplies.

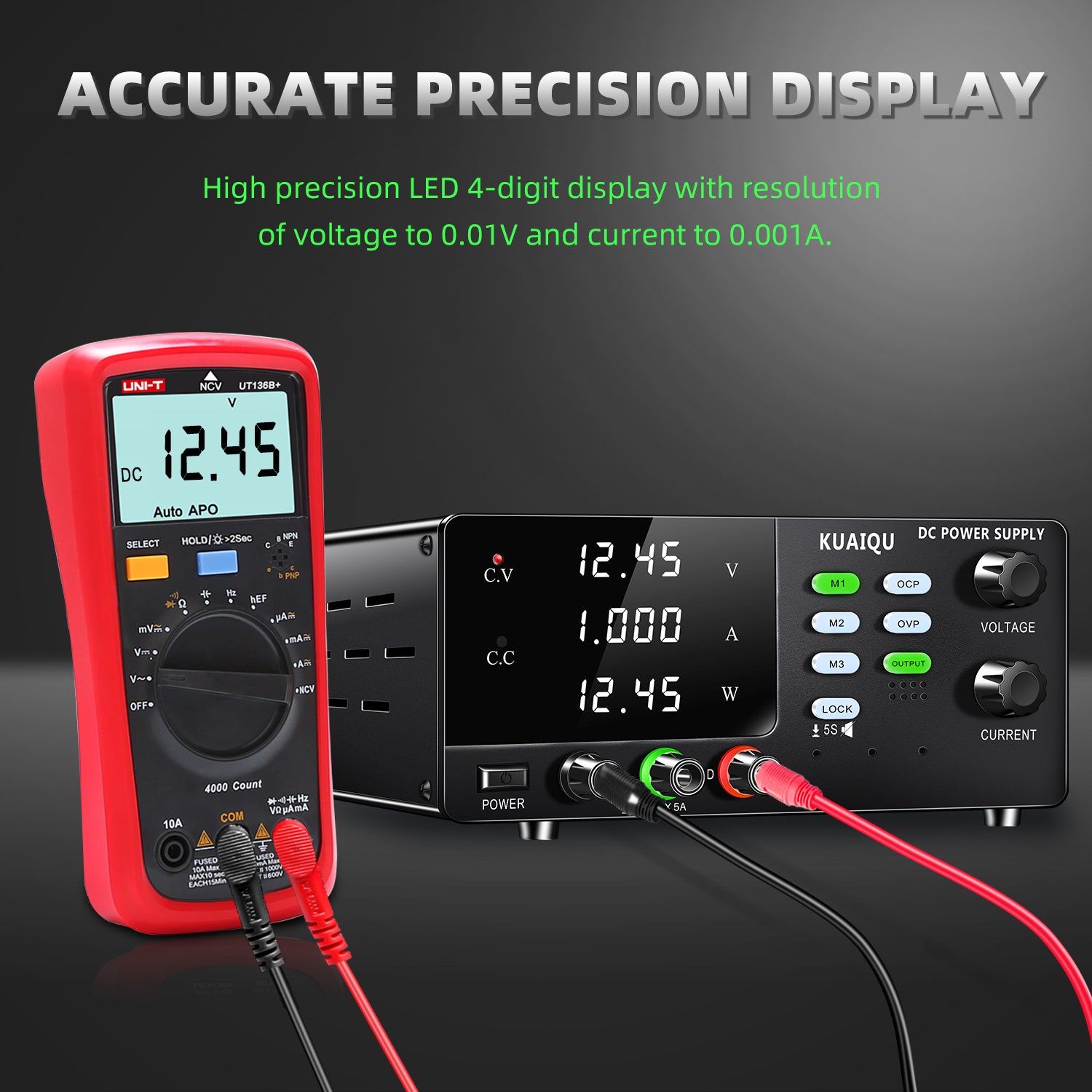

• Ultra-Precision & Stability: A 4-digit digital display provides 0.01V/0.001A resolution, ensuring accurate and consistent voltage/current output for reliable, repeatable test data.

Comprehensive Safety Protection

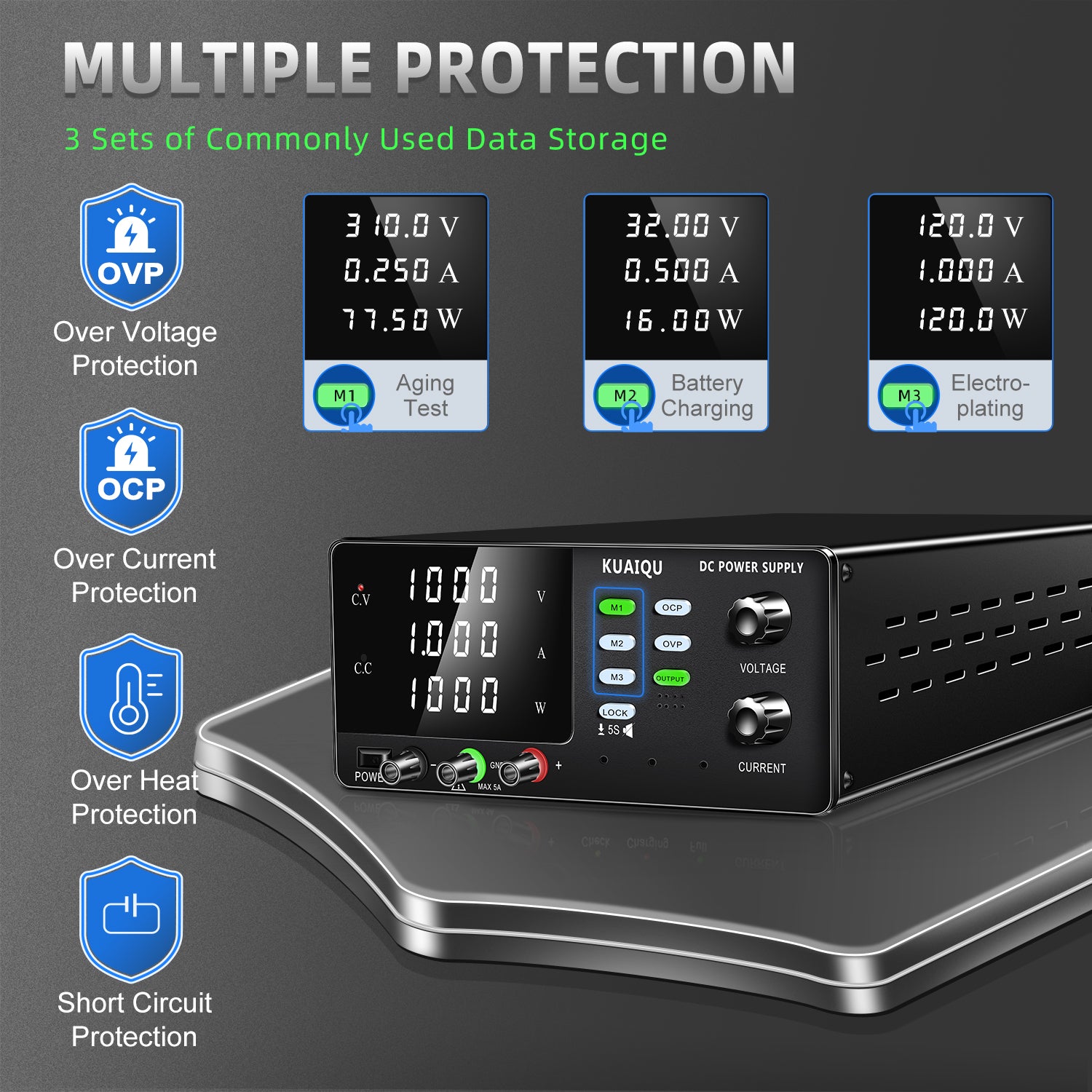

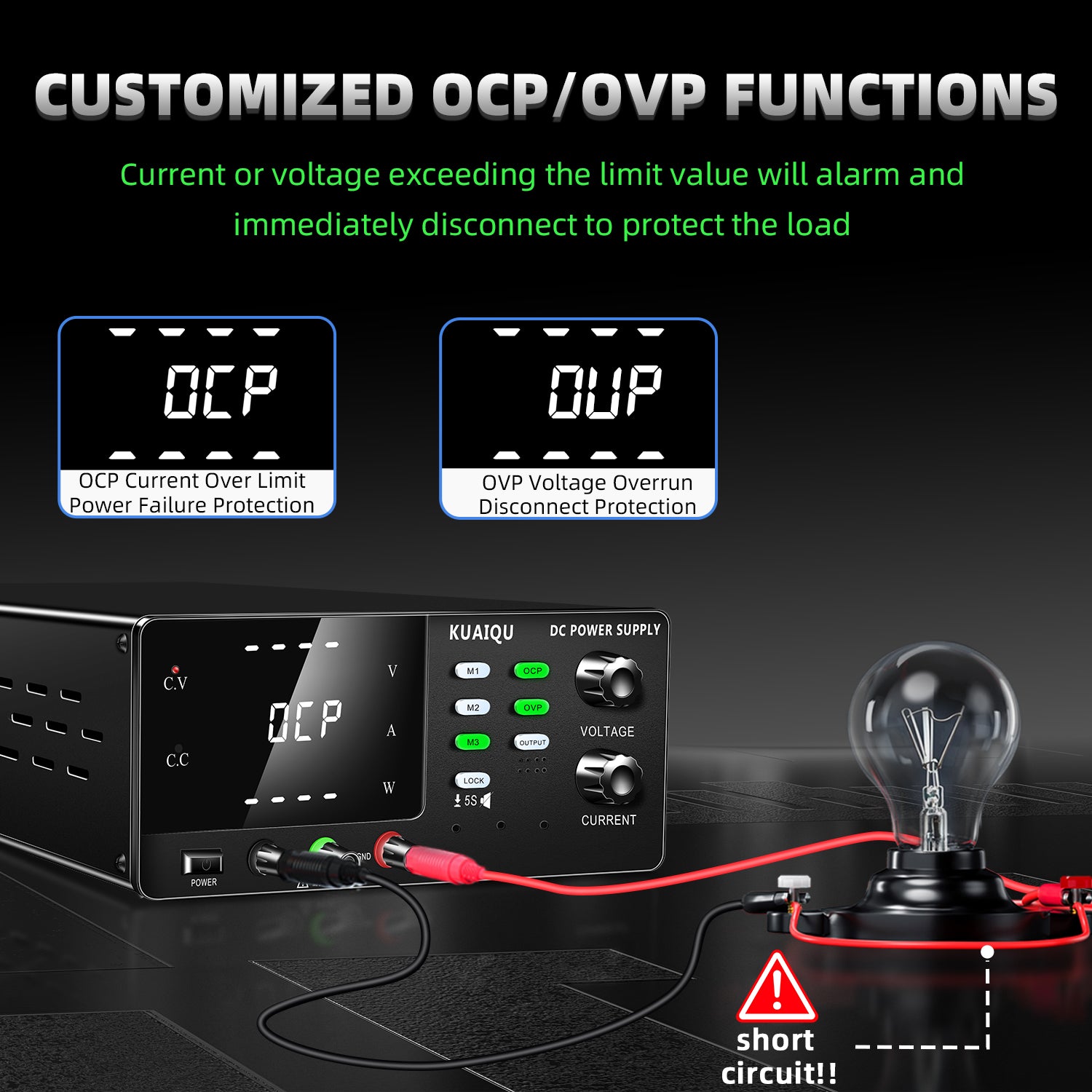

• Intelligent OCP/OVP Dual Protection: Presettable overcurrent (OCP) and overvoltage (OVP) thresholds instantly cut off output in case of anomalies, preventing damage to costly test equipment from operational errors or load failures.
• Independent Output Switch (ON/OFF): Safely activate or deactivate the load without altering set parameters, enhancing operational safety and convenience.

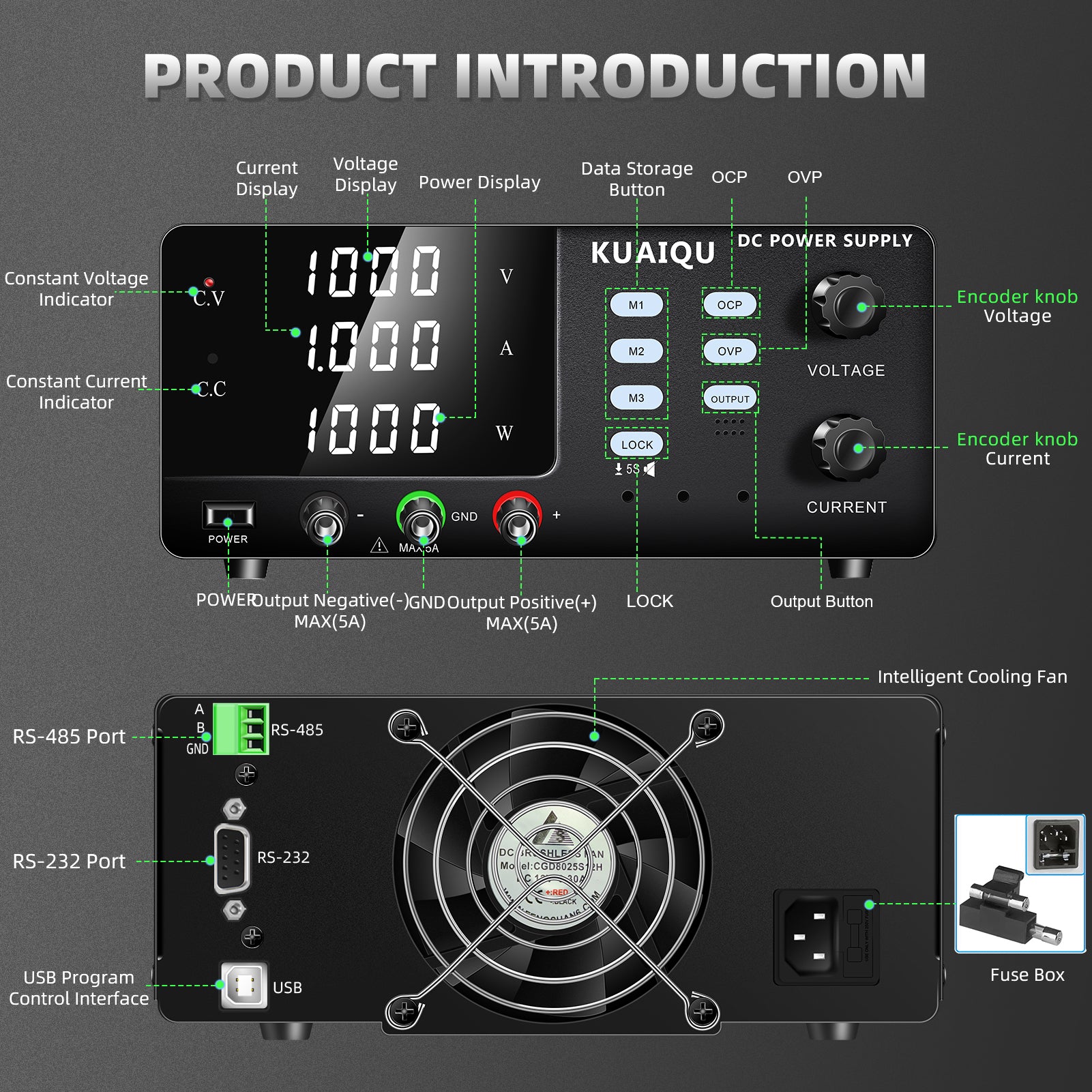

Efficient Operation & Data Management

• 3-Group Data Storage (M1-M3): Save and recall up to 3 sets of voltage/current parameters with one click, streamlining repetitive testing processes—ideal for batch production line testing.
• Panel Lock Function: Lock panel buttons to prevent accidental parameter changes, ensuring consistency and data accuracy during testing.

Intuitive Monitoring & Auxiliary Features

• Real-Time Power Display: The screen shows current output power (W) in real time, enabling instant work status monitoring, energy efficiency analysis, and troubleshooting.

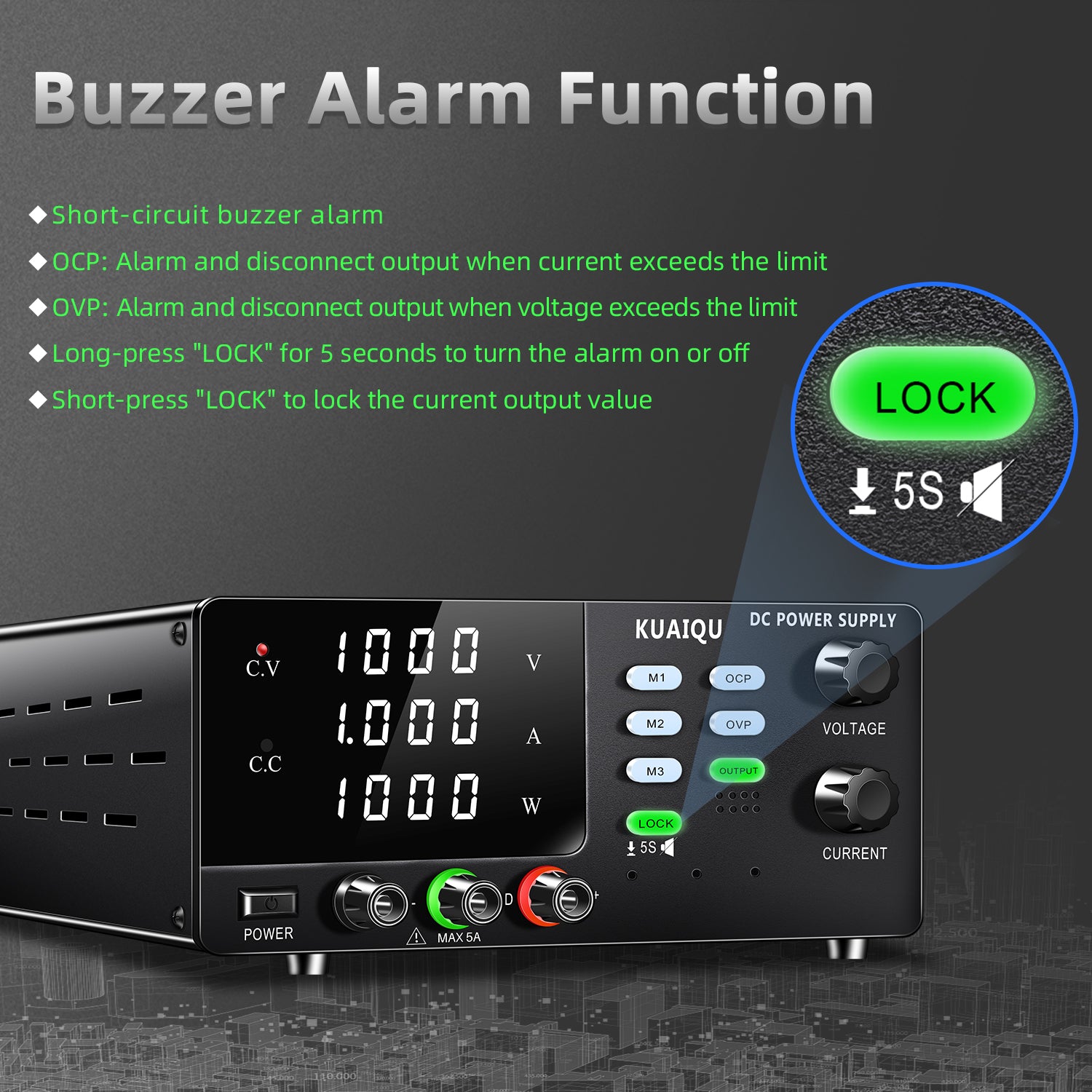

• Buzzer Alarms: Audible prompts for protection actions and operation confirmations keep users informed of device status without constant screen monitoring.

Broad Professional Applications

Tailored for new energy and industrial testing, its high-voltage capabilities make it an ideal choice for solar panel/photovoltaic module testing, electronic component aging, laboratory R&D, and production line quality inspection—combining power and precision for targeted use cases.

Reliable, Durable Build

Constructed with high-quality components and advanced circuit design, it guarantees long-term stability and durability—making it a trusted tool for engineers and researchers.

Technical Specifications

• Input Voltage: AC 220/110V ±10%, 50/60Hz
• Operating Temperature: -10°C to 40°C, Relative Humidity <90%
• Storage Temperature: -10°C to 70°C, Relative Humidity <80%
• Voltage Regulation (Stabilized State): ≤1% + 30mV (Voltage Stability), ≤1% + 30mV (Load Stability), Recovery Time ≤100μs, Ripple Noise ≤50mVrms, Temperature Coefficient ≤300PPM/°C
• Current Regulation (Stabilized State): ≤1% + 30mA (Current Stability), ≤1% + 30mA (Load Stability), Ripple Noise ≤50mArms (RMS)
• USB Interface: Enables computer control, data transmission, and recording via dedicated software.

Application Fields

• New Energy

  • Photovoltaic (Solar) Inverter Testing: Serves as a DC input source to test the conversion efficiency and stability of inverters under high-voltage DC input.
  • Fuel Cell Stack Testing: Simulates and tests the performance of fuel cell stacks under different voltages and currents.
  • High-Voltage Battery Pack Testing: Used for charge-discharge testing, performance evaluation, and aging experiments of high-voltage battery packs in electric vehicles or energy storage systems.

• Electronic Component Testing & Aging

  • Power Device Testing: Conducts voltage withstand and breakdown characteristic tests for devices like MOSFETs, IGBTs, diodes, and TVS tubes.
  • Electronic Component Aging Testing: Performs long-term stability and reliability tests for capacitors, resistors, insulators, and other components under high voltage.

• Laboratory & Scientific Research

  • Plasma Experiment: Provides stable high-voltage power supply for plasma generators, ion sources, and other equipment.
  • Material Breakdown Testing: Tests the breakdown voltage and leakage characteristics of insulating materials, coatings, and films under high voltage.

Quality Check and Terms of Service:

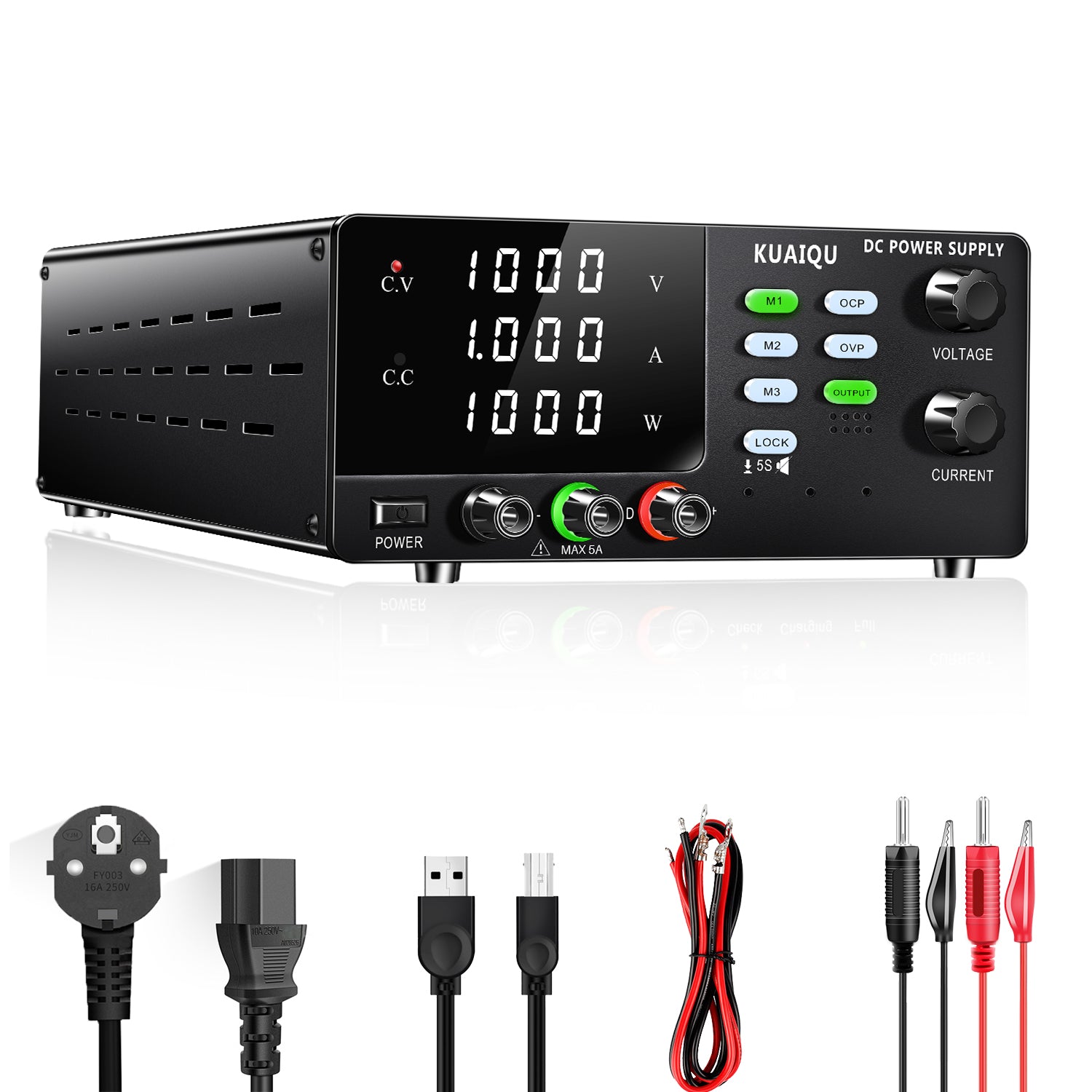

• Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
• Has passed CE & FCC Certification.
• All DC power supplies and accessories are inspected before shipment to ensure good quality.
• Customer support: Contact us with any questions, and we'll respond within 24 hours.
