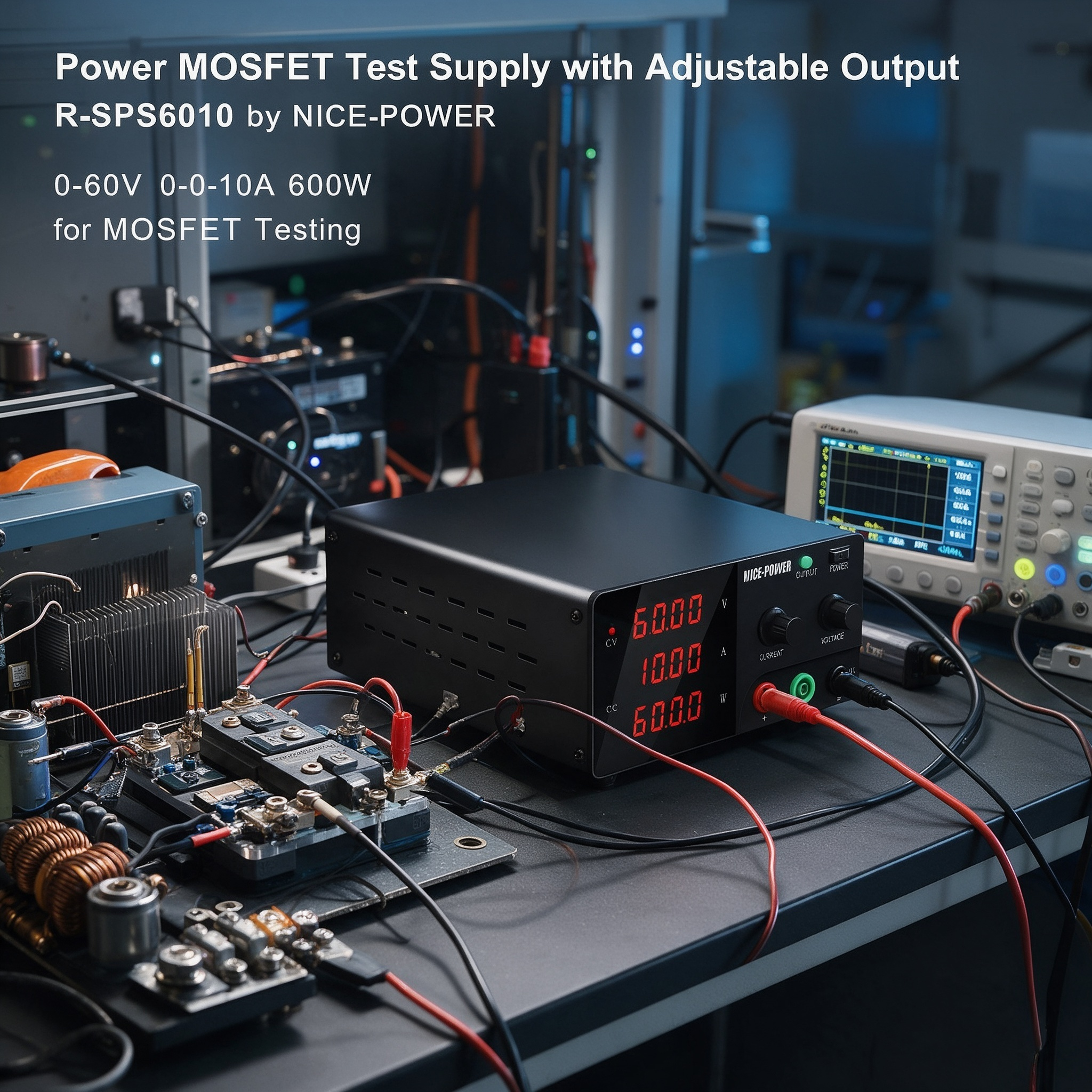

Power MOSFET Test Supply with Adjustable Output

R-SPS6010 by NICE-POWER 0-60V 0-10A 600W for

MOSFET Testing

Evaluating a power MOSFET requires a suitable DC source to supply the surrounding test circuit under defined operating conditions. The NICE-POWER R-SPS6010 provides an adjustable 0-60V output, a 0-10A current range, and 600W rated power for compatible MOSFET test circuits and power electronics prototypes. Users can set the required supply conditions, monitor voltage and current readings, and switch the output on or off during bench work. Whether preparing a device evaluation circuit, checking a MOSFET-based power stage, or troubleshooting a DC switching circuit, the R-SPS6010 serves as an adjustable DC supply within a broader test setup.

Key Features

Adjustable 0-60V Output for MOSFET Test Circuits

Power MOSFET evaluation circuits may require different DC supply voltages depending on the device, circuit design, and test procedure. The R-SPS6010 provides an adjustable output from 0V to 60V, allowing users to configure the supply voltage for compatible test fixtures and power circuits. This range supports DC power delivery for device evaluation, but it does not generate specialized gate-drive signals or switching waveforms.

0-10A Output and 600W Rated Power for Power Circuit Testing

With a maximum rated current of 10A and rated power of 600W, the R-SPS6010 can supply compatible MOSFET-based circuits and power electronics assemblies. These ratings are useful when a test setup requires a substantial DC input source. The actual operating point must remain within the voltage, current, and power limits of both the power supply and the device under test.

Voltage, Current, and Power Readback During Evaluation

During a MOSFET test, monitoring the DC source helps users confirm the supply conditions applied to the test circuit. The R-SPS6010 features a four-digit voltage and current display, along with a power display, so users can observe the supply output while conducting bench experiments. These readings describe the power supply output; they do not directly measure MOSFET drain current, gate voltage, switching loss, or other device parameters.

Encoder Adjustment for Different Test Conditions

The front-panel encoder provides direct manual adjustment of the output settings. Users can configure the DC supply for different test-circuit requirements without relying on a fixed output voltage. This is useful when preparing a test fixture, changing the supply setting between experiments, or troubleshooting a MOSFET-based circuit. The R-SPS6010 is a manually adjustable bench supply, not an automated semiconductor test system.

Output ON/OFF Control for Bench Test Setup

The dedicated Output ON/OFF control allows users to enable or disable the DC output during test preparation and troubleshooting. This helps separate connection and setup work from the stage when power is applied to the circuit. Users should disable the output before changing wiring and follow the test circuit's operating procedure.

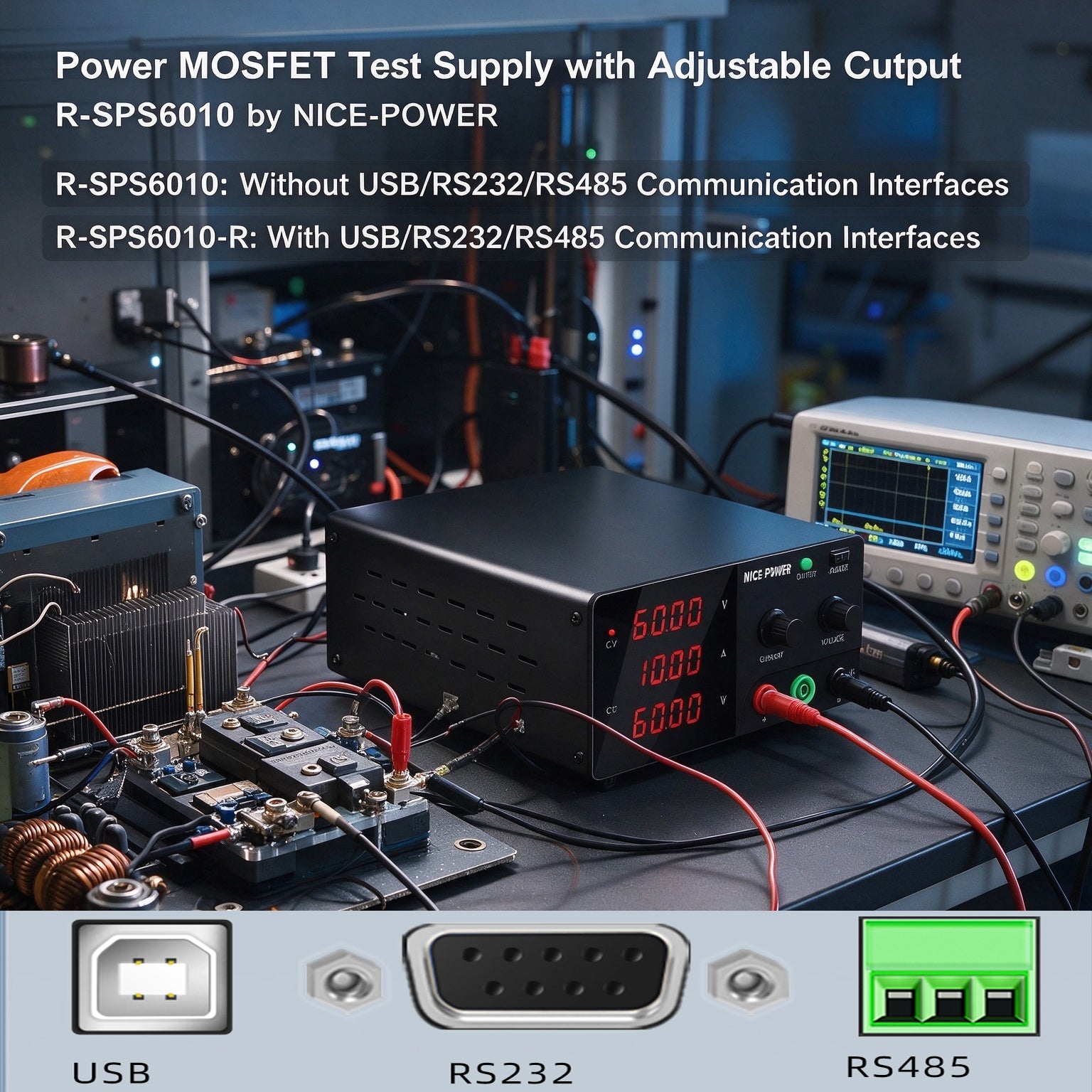

Front and Rear Output Connections for Flexible Test Setups

The R-SPS6010 provides output connections on both the front and rear panels. The front output is convenient for individual test fixtures and benchtop experiments, while the rear output can be used when the setup requires the full rated output. The front-panel output is rated below 5A; use the rear-panel output for applications requiring the full rated output, in accordance with the product specifications.

Applications

Power MOSFET DC Circuit Evaluation

Use the R-SPS6010 as the DC source for a compatible test circuit used to evaluate a power MOSFET. Its adjustable output helps establish the required supply conditions while external measurement instruments are used to observe the relevant electrical parameters.

MOSFET-Based Power Stage Development

During the development of a MOSFET-based power stage, engineers may need a controllable DC input source before integrating the circuit into a larger system. The R-SPS6010 can supply compatible prototype circuits during initial power-up, operating checks, and troubleshooting.

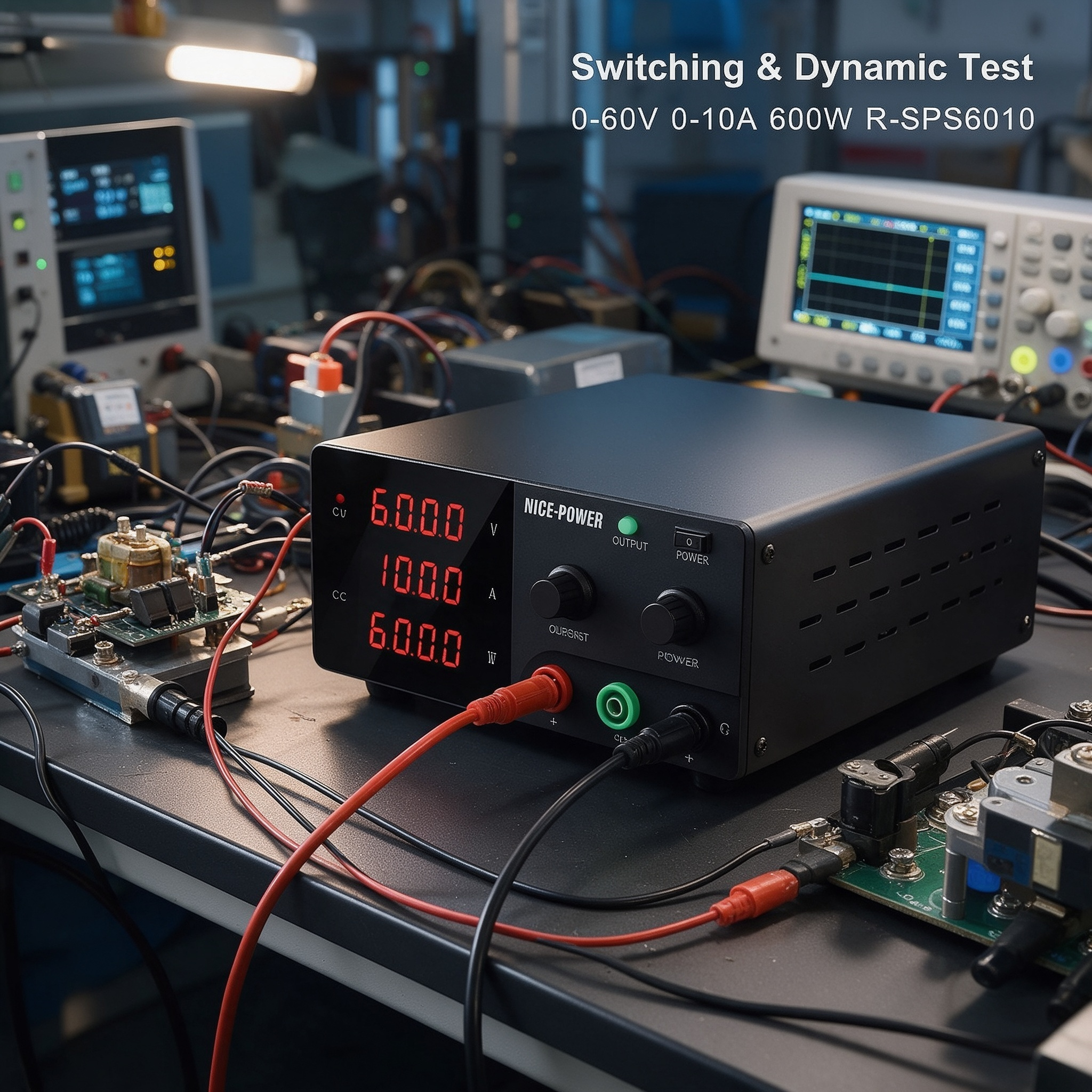

DC Switching Circuit Bench Testing

For DC switching circuits built around power MOSFETs, the R-SPS6010 provides adjustable DC power for the circuit under test. It can be used to establish the circuit's supply input while an oscilloscope, electronic measurement equipment, or other suitable instruments are used to examine switching behavior.

Power Electronics Prototype Troubleshooting

When a MOSFET-based prototype does not operate as expected, a suitable adjustable DC source helps engineers establish and monitor the supply conditions during troubleshooting. The R-SPS6010 supports this bench workflow through manual voltage and current adjustment, output switching, and output readback.

Quality Check and Terms of Service:

Before connecting a MOSFET test circuit, verify the device ratings, circuit topology, required supply voltage, expected current, polarity, and wiring. Configure the R-SPS6010 within the rated limits of the power supply and the connected circuit. Ensure that the test fixture, cables, and connectors are suitable for the intended current. Disable the output before changing connections, and follow the test procedure recommended for the device and circuit.

The R-SPS6010 is an adjustable DC power supply, not a dedicated MOSFET curve tracer, semiconductor parameter analyzer, or gate-drive generator. It does not independently perform drain-source characteristic sweeps, gate-charge measurements, switching-time analysis, or automated device screening. These evaluations require suitable external instruments and a properly designed test circuit. The built-in voltage, current, and power displays indicate the power supply output and should not be treated as direct measurements of MOSFET device characteristics.

Technical Specifications

Why Choose NICE-POWER R-SPS6010?

The NICE-POWER R-SPS6010 provides an adjustable DC source for engineers working with power MOSFET circuits and power electronics prototypes. Its 0-60V output, 0-10A current range, and 600W rated power support a variety of compatible DC test setups. Manual encoder adjustment, voltage and current readback, power display, and Output ON/OFF control help users establish and monitor supply conditions during evaluation and troubleshooting. With front and rear output connections, the R-SPS6010 offers a practical bench power solution for MOSFET-related circuit development when used with the appropriate external test instruments.
