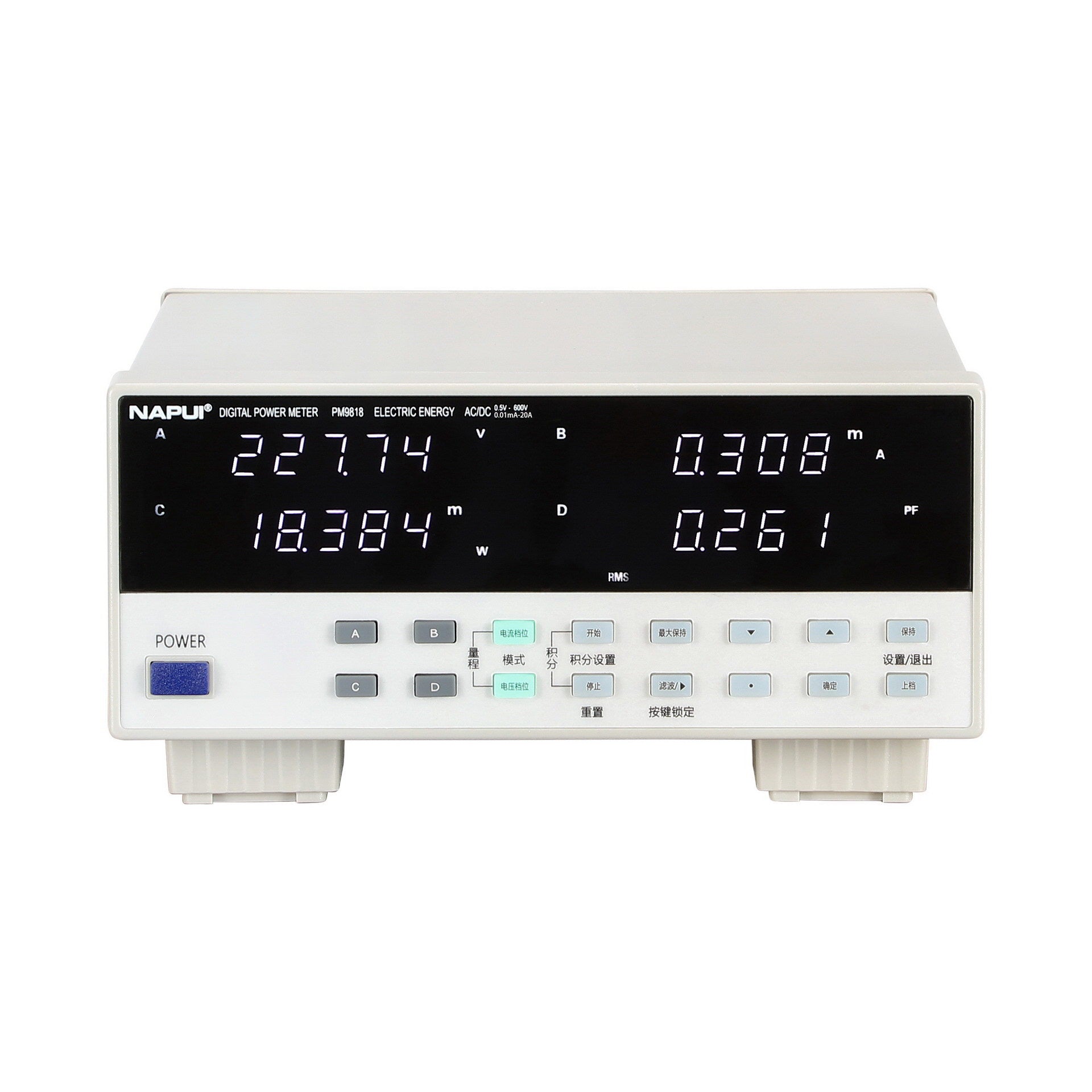

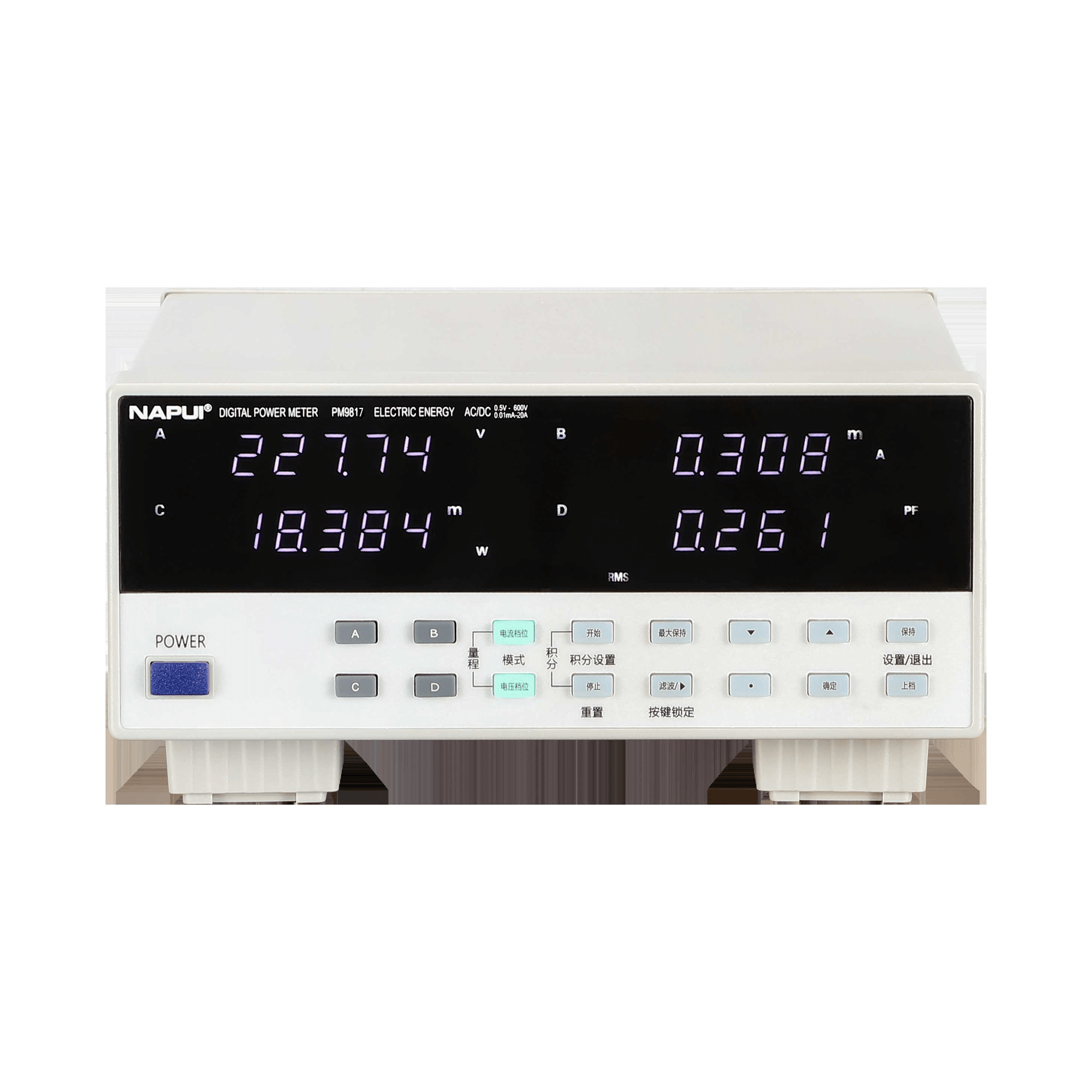

Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement

Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement

$699.00
$699.00
Please hurry! Only 10 left in stock
Model: Model 1(Low Current-AC)
Subtotal: $699.00
10 customers are viewing this product

Storewide Discounts

Spend $100+ for 10% OFF | $300+ for 15% OFF | $400+ for 20% OFF. Discounts will be automatically deducted at checkout.

Free Shipping

We offer free express shipping on all orders.

You'll receive your order an estimated 7-15 working days after shipment.

Free Returns

30-Day return and refund guarantee refer to our refund policy.
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement

Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement

$699.00
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement
Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement

Digital Power Meter 600V 20A 12kW 400Hz 2kHz High-accuracy Bench TRMS AC / DC Voltage Current Power Factor Tester Electrical parameter measurement

$699.00
Model: Model 1(Low Current-AC)
Product Details

Overview

This series of power meters is designed for high-precision measurement of electrical parameters, catering to AC, DC, and AC/DC testing needs. With a basic accuracy of 0.2%, they deliver reliable results for various industrial, R&D, and quality control applications.

Key Features

  • High Measurement Accuracy: Boasts a basic accuracy of ±(0.1% reading + 0.1% range), ensuring precise data for critical applications.
  • Multi-Parameter Measurement:

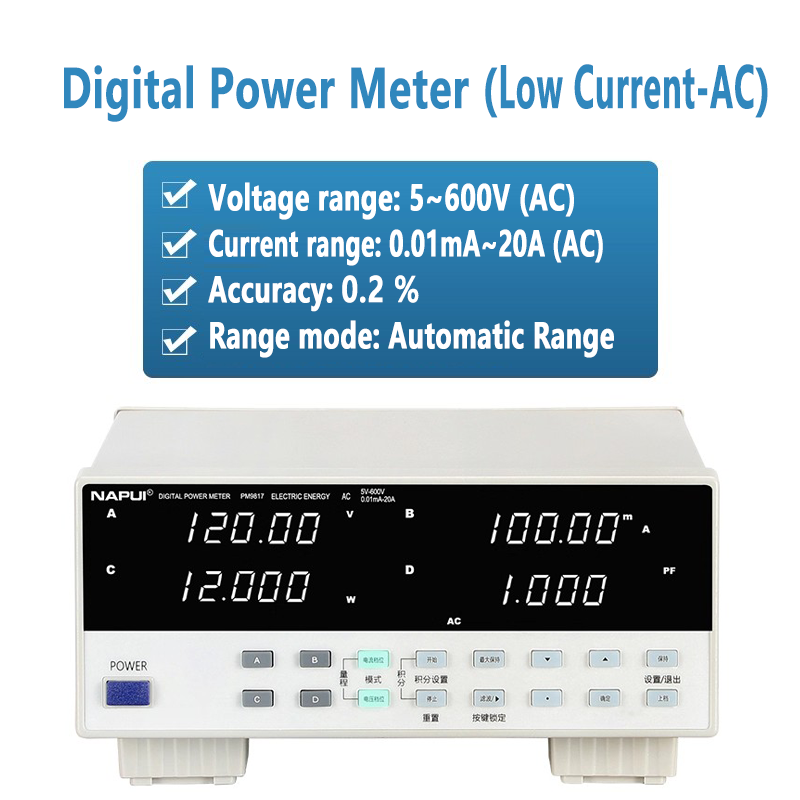

    • Model 1: Measures AC parameters including voltage, current, power, power factor, frequency, harmonics, phase angle, and energy accumulation.

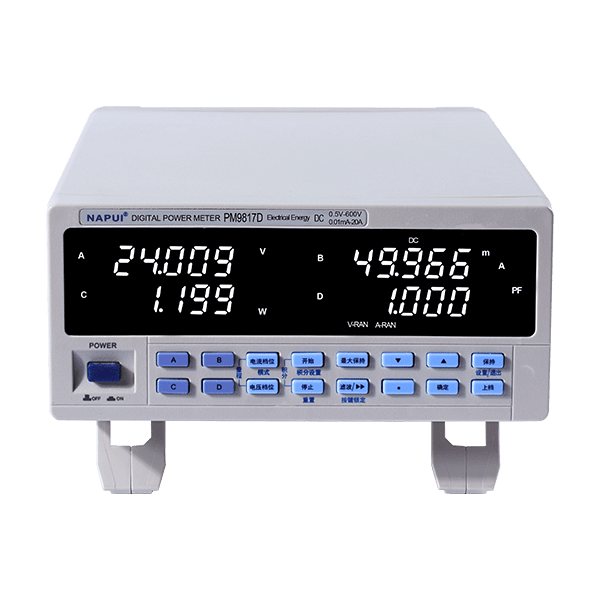

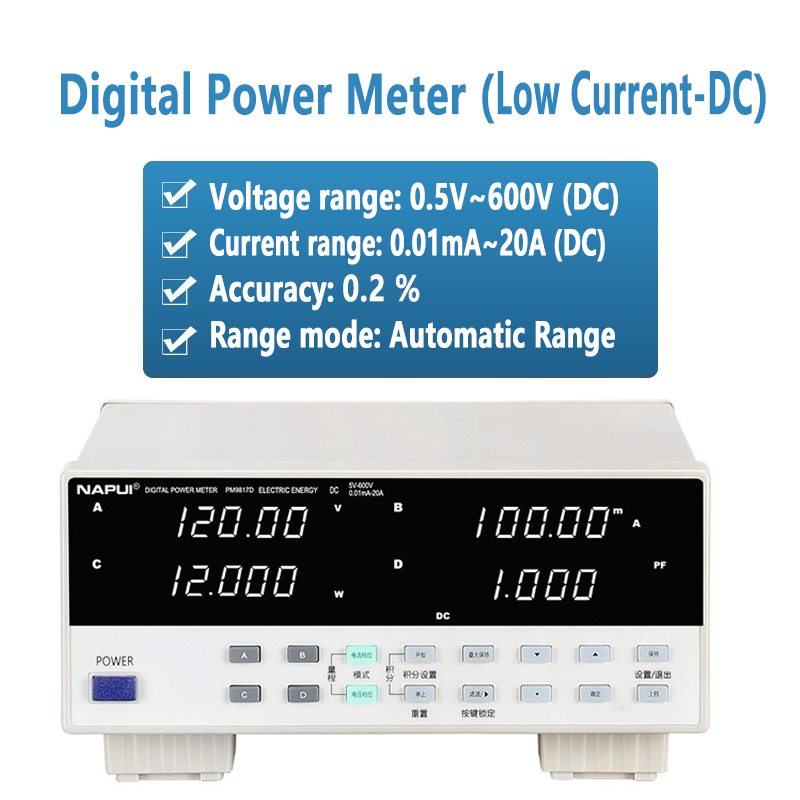

    • Model 2: Focuses on DC parameters with similar multi-parameter capabilities as Model 1.

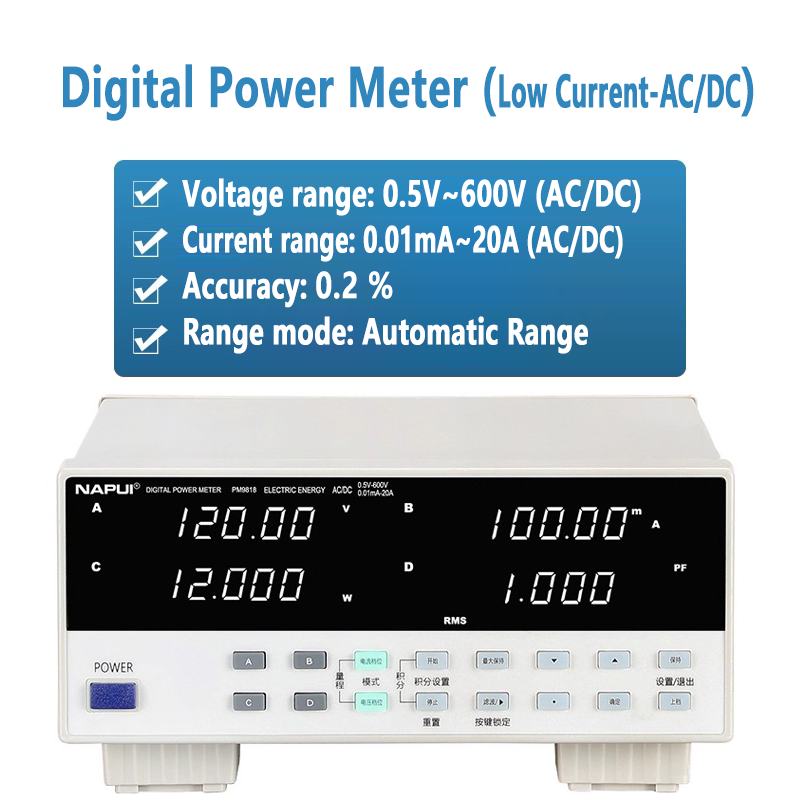

    • Model 3: Supports both AC and DC measurement, covering a wide range of electrical parameters and a high frequency range (0.5-2kHz).
  • True RMS Measurement: Adopts true RMS (Trms) technology for accurate readings of non-sinusoidal signals.
  • Automatic Range Switching: Automatically adjusts voltage and current ranges for convenience and accuracy.
  • Standby Power Consumption Measurement: Capable of measuring standby power, ideal for energy efficiency testing.
  • Alarm and Communication: All models come with standard RS232 or RS485 interfaces and optional relay output, enabling integration into automated systems and real-time anomaly alerts.
  • Clear LED Display: Equipped with LED digital screens for real-time visualization of electrical parameters.

Technical Specifications

Parameter
Model 1
Model 2
Model 3
Wiring Method
Single-phase
Single-phase
Single-phase
Display
LED digital screen
LED digital screen
LED digital screen
Measurement Type
AC
DC
AC/DC
Measurement Parameters
Voltage, Current, Power, Power Factor, Frequency, Harmonics, Phase Angle, Energy Accumulation, etc.
Voltage, Current, Power, Power Factor, Energy Accumulation, etc.
Voltage, Current, Power, Power Factor, Frequency, Phase Angle, Energy Accumulation, etc.
Voltage Range
0.5V ~ 600V AC (auto-range), Peak: 700V AC
0.5V ~ 600V DC (auto-range), Peak: 700V DC
0.5V ~ 600V AC/DC (auto-range)
Current Range
0.01mA ~ 20A AC (auto-range), Peak: 23A AC
0.01mA ~ 20A DC (auto-range), Peak: 23A DC
0.01mA ~ 20A AC/DC (auto-range)
Power Range
0.001W ~ 12kW
0.001W ~ 12kW
U*I*PF
Power Factor Range
0.001 ~ 1.000
0.001 ~ 1.000
0.001 ~ 1.000
Frequency Range
40-400Hz
40-400Hz
0.5-2kHz
Basic Accuracy
±(0.1% reading + 0.1% range)
±(0.1% reading + 0.1% range)
±(0.1% reading + 0.1% range)
Measurement Speed
0.1S, 0.25S, 0.5S, 1S, 2S, 5S
0.1S, 0.25S, 0.5S, 1S, 2S, 5S
0.1S, 0.25S, 0.5S, 1S, 2S, 5S
Input Impedance
~2MΩ (all voltage ranges)
~2MΩ (all voltage ranges)
~2MΩ (all voltage ranges)
Power Supply
100-240V AC / 100-300V DC
100-240V AC / 100-300V DC
100-240V AC / 100-300V DC
Dimensions & Weight
355mm×223mm×112mm, 2.5kg
355mm×223mm×112mm, 2.5kg
300mm×215mm×88mm, ~3KG
Communication Interface
Standard RS232 or RS485, optional relay output
Standard RS232 or RS485, optional relay output
Standard RS232/RS485
Special Functions
AC multi-parameter measurement, harmonic analysis
DC multi-parameter measurement
AC/DC measurement, wide frequency range (0.5-2kHz)

Model Selection Tips

  • Model 1: Choose for AC-only applications such as testing AC-powered industrial equipment, home appliances, and lighting systems where harmonic analysis and multi-parameter measurement are needed.
  • Model 2: Ideal for DC-only testing scenarios, including DC power supplies, electric vehicle components, and battery-powered devices.
  • Model 3: Best for hybrid AC/DC environments and high-frequency applications (up to 2kHz), suitable for R&D labs, renewable energy systems, and devices with mixed power inputs.

Application Scenarios

  1. Industrial Equipment Testing: Measure AC parameters of motors, pumps, and machinery (Model 1) to ensure optimal performance and detect faults.
  1. DC Power Supply R&D: Evaluate DC power supplies, chargers, and battery systems (Model 2) for efficiency and stability.
  1. Renewable Energy Systems: Test AC/DC converters, inverters, and solar panels (Model 3) in renewable energy setups.
  1. Electronics Manufacturing: Conduct quality control on production lines for AC/DC electronic devices (all models) to ensure compliance with electrical standards.
  1. Energy Efficiency Audits: Measure standby power of home appliances, office equipment, and industrial machinery (all models) to identify energy-saving opportunities.
  1. High-Frequency Device Analysis: Analyze electrical parameters of high-frequency devices like RF components and power electronics (Model 3) in R&D labs.
Get your power meter now to achieve accurate, efficient, and specialized electrical parameter measurement for your unique needs!
