Product Details

Overview

This power meter series is designed for precise measurement of AC electrical parameters, catering to diverse industrial and R&D needs. Each model offers specialized features to handle harmonic analysis, small current/power testing, and general electrical parameter measurement with high accuracy.

Key Features

  • True RMS Measurement: All models use true RMS (Trms) technology for accurate readings of non-sinusoidal AC signals.
  • Clear LED Display: Equipped with LED digital screens for real-time visualization of voltage, current, power, power factor, and frequency.
  • Automatic Range Switching: Automatically adjusts voltage (2V~600V AC) and current ranges based on the tested signal, ensuring convenience and accuracy.
  • High Measurement Accuracy: Boasts a basic accuracy of ±(0.4% reading + 0.1% range) across all models for reliable results.
  • Alarm & Communication: All models offer optional RS232/RS485 interfaces and relay output for integration into automated systems. Model 1 comes with standard RS232, while Models 2 and 3 have optional communication ports.
  • Wide Frequency Compatibility: Covers 40-400Hz (Models 2, 3) and 45-65Hz (Model 1) to match different electrical systems.
  • Specialized Functions:

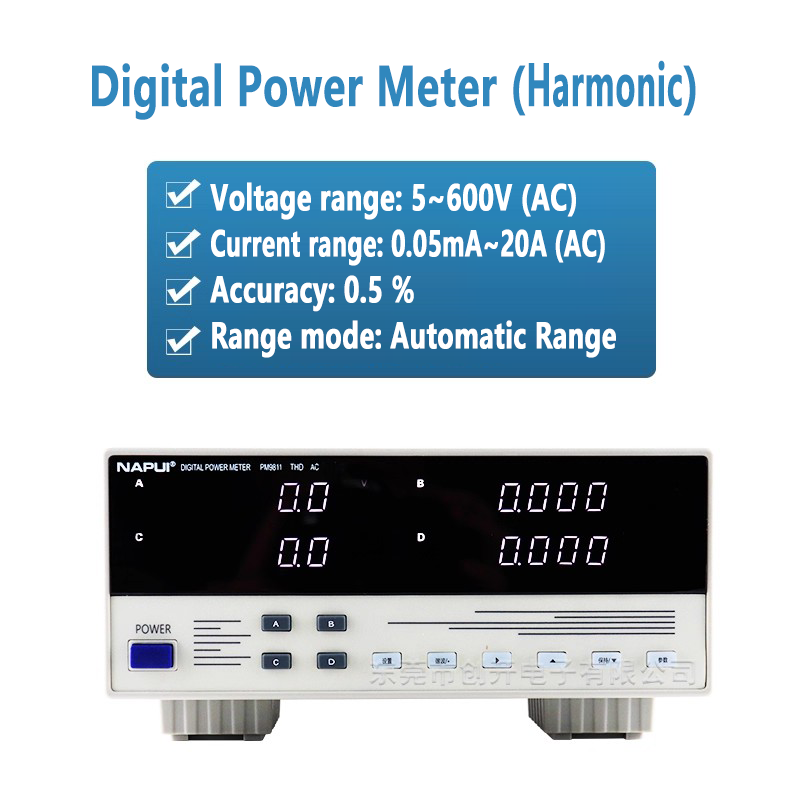

    • Model 1: Measures 2-50th harmonics, ideal for analyzing electrical signal quality and distortion.

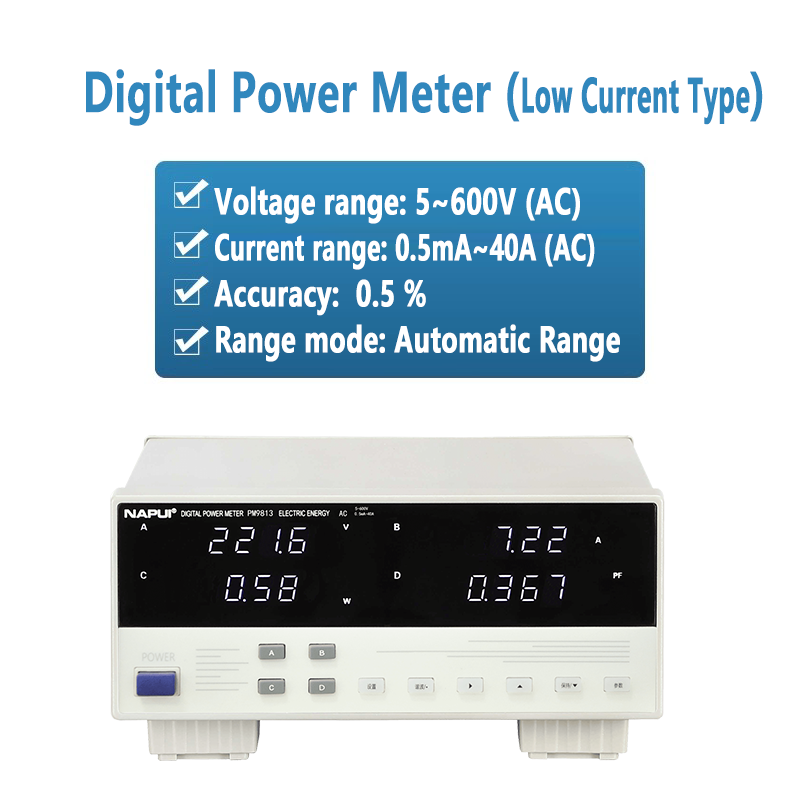

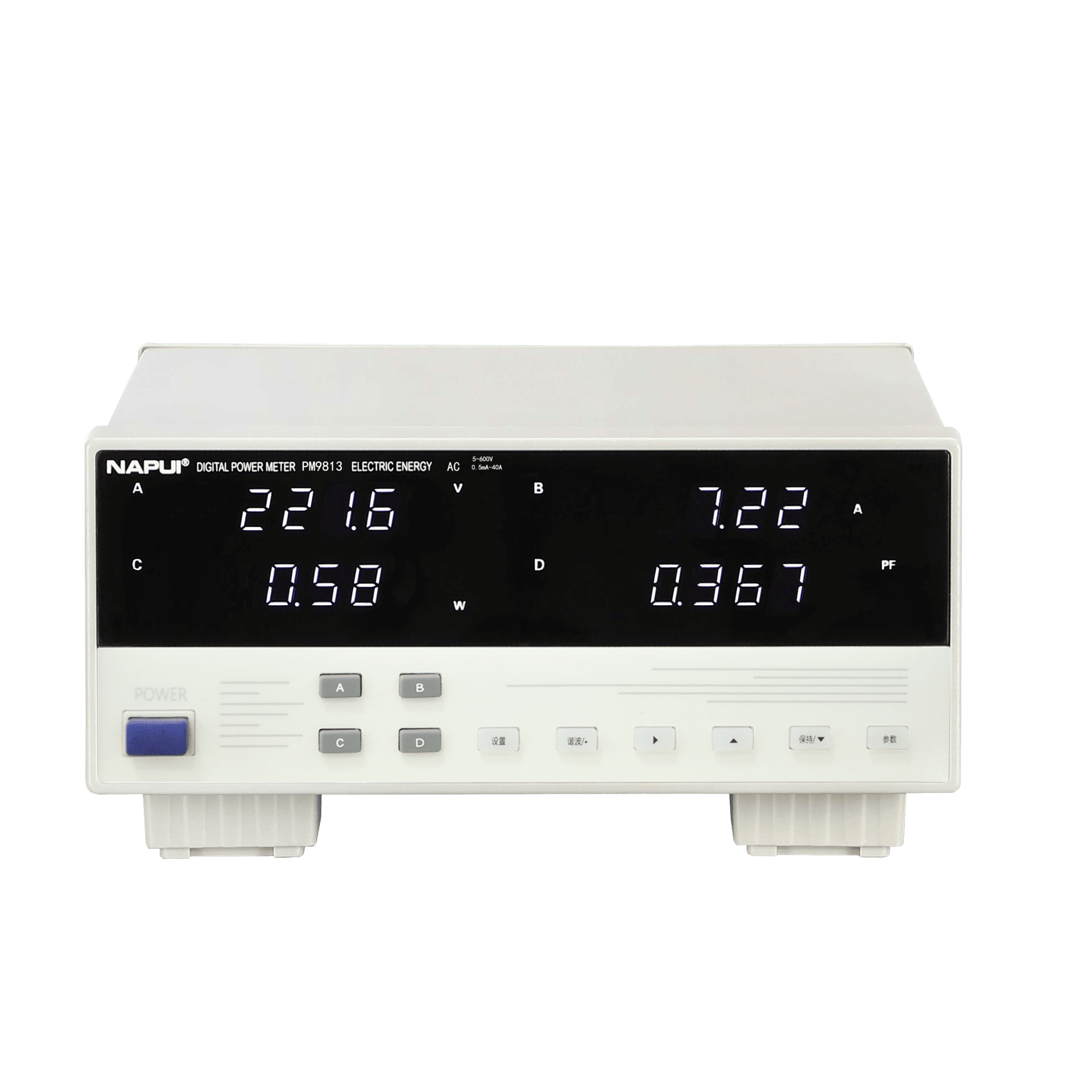

    • Model 2: Supports small current testing (0.5mA~40A AC) and standby power measurement, perfect for energy efficiency audits.

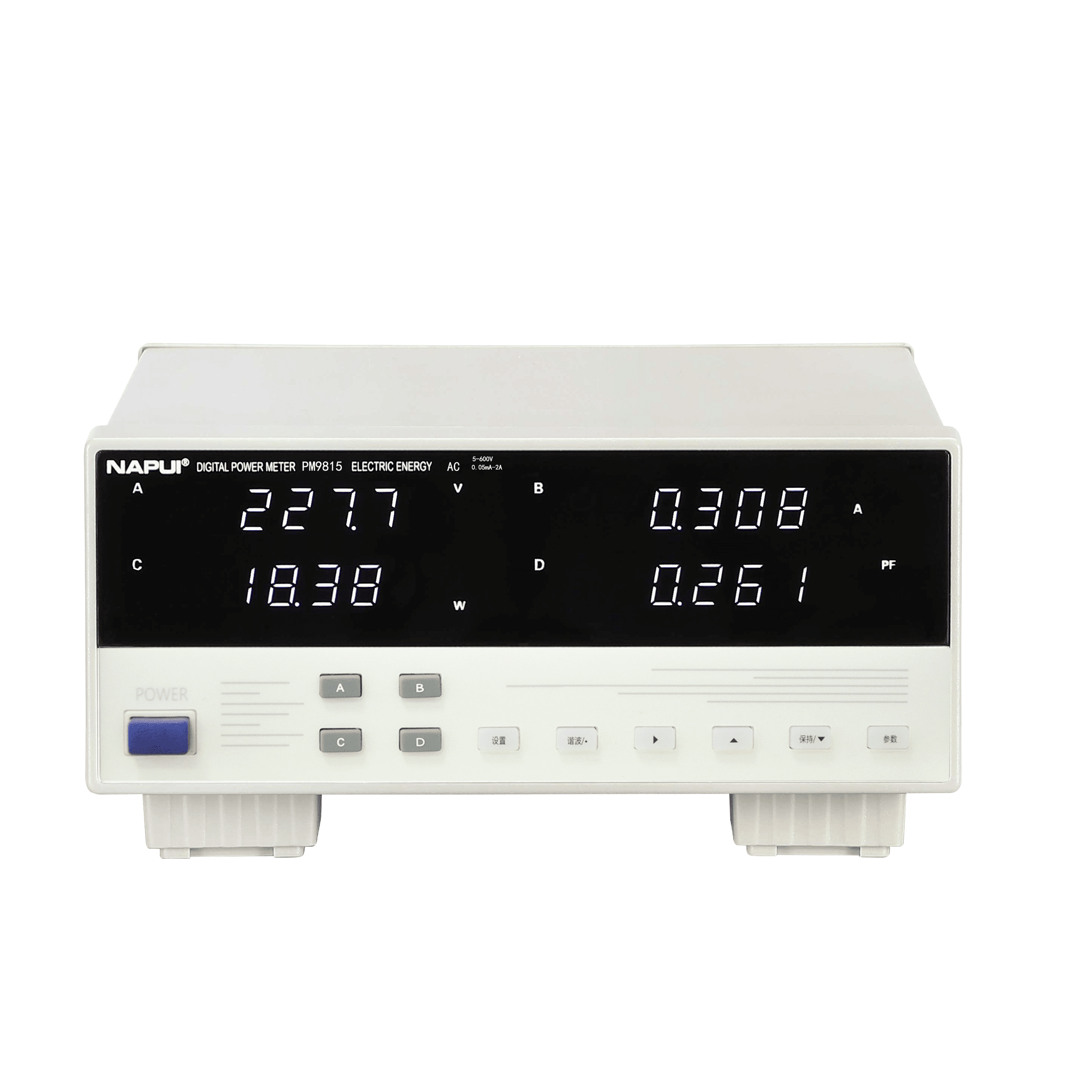

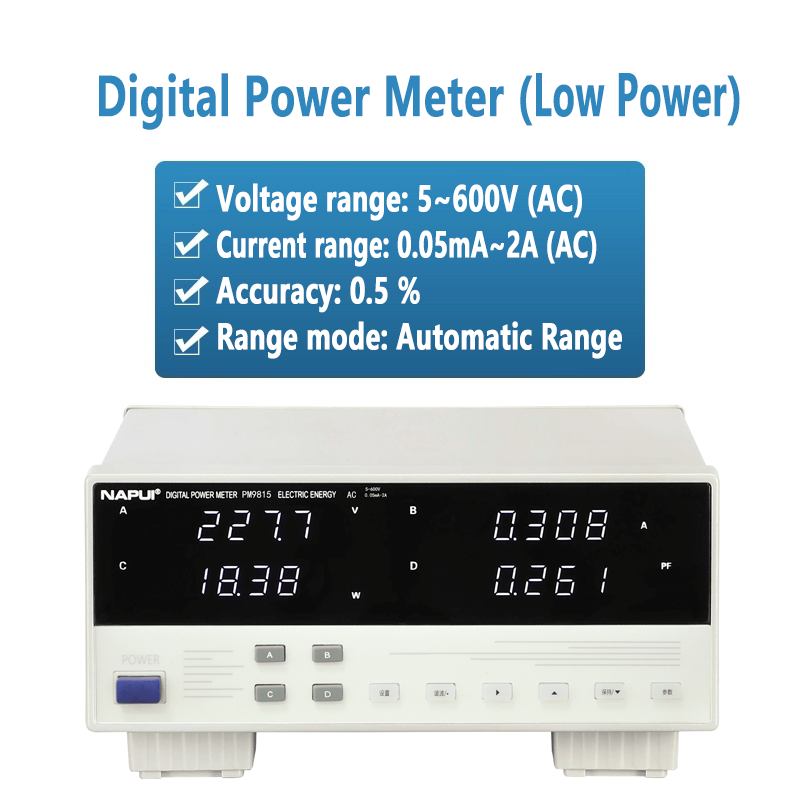

    • Model 3: Focuses on small power testing (0.01W~1.2kW) with a narrow current range (0.5mA~2A AC), suited for low-power device analysis.

Technical Specifications

Parameter
Model 1
Model 2
Model 3
Wiring Method
Single-phase
Single-phase
Single-phase
Display
LED digital screen
LED digital screen
LED digital screen
Measurement Parameters
Voltage, Current, Power, Power Factor, Frequency, 2-50th Harmonics
Voltage, Current, Power, Power Factor, Frequency, Standby Power
Voltage, Current, Power, Power Factor, Frequency
Measurement Form
True RMS Trms
True RMS Trms
True RMS Trms
Voltage Range
2V~600V AC (auto-range), Peak: 700V AC
2V~600V AC (auto-range), Peak: 700V AC
2V~600V AC (auto-range), Peak: 700V AC
Current Range
0.5mA~20A AC (auto-range), Peak: 23A AC
0.5mA~40A AC (auto-range), Peak: 46A AC
0.5mA~2A AC (auto-range), Peak: 6A AC
Power Range
0.001W~12kW
0.001W~24kW
0.01W~1.2kW
Power Factor Range
0.001~1.000
0.001~1.000
0.001~1.000
Frequency Range
45-65Hz
40-400Hz
40-400Hz
Basic Accuracy
±(0.4% reading + 0.1% range)
±(0.4% reading + 0.1% range)
±(0.4% reading + 0.1% range)
Measurement Speed
3 times/second
0.1S, 0.25S, 0.5S, 1S, 2S, 5S
3 times/second
Input Impedance
~2MΩ (all voltage ranges)
~2MΩ (all voltage ranges)
~2MΩ (all voltage ranges)
Power Supply
100-240V AC / 100-300V DC
100-240V AC / 100-300V DC
100-240V AC / 100-300V DC
Dimensions & Weight
355mm×223mm×112mm, 2.5kg
355mm×223mm×112mm, 2.5kg
355mm×223mm×112mm, 2.5kg
Communication Interface
Standard RS232, optional relay output
Optional RS232/485, optional relay output
Optional RS232/485, optional relay output
Special Functions
Harmonic analysis (2-50th)
Small current (up to 40A AC), standby power measurement
Small power (up to 1.2kW), narrow current range (up to 2A AC)

Model Selection Tips

  • Model 1: Choose for harmonic analysis (e.g., testing LED drivers, variable frequency drives) where signal distortion needs evaluation.
  • Model 2: Ideal for small current/standby power testing (e.g., home appliances, industrial equipment) to assess energy efficiency and current draw.
  • Model 3: Best for low-power device analysis (e.g., small electronics, sensors) where precise measurement of minimal power consumption is critical.

Application Scenarios

  1. Harmonic Monitoring in Factories: Analyze harmonic distortion in industrial machinery (Model 1) to prevent equipment damage.
  1. Home Appliance Energy Audits: Measure standby power of refrigerators, TVs, and air conditioners (Model 2) for energy efficiency labeling.
  1. LED Fixture Testing: Evaluate power factor and harmonic content of LED lights (Model 1) to ensure compliance with electrical standards.
  1. Low-Power Sensor R&D: Test current/power of small sensors and IoT devices (Model 3) during prototype development.
  1. Industrial Equipment Maintenance: Monitor current and power of motors/pumps (Model 2) to detect early signs of failure.
  1. Quality Control in Electronics Production: Verify electrical parameters of power supplies and chargers on production lines (all models).
Get this power meter today to ensure accurate, efficient, and specialized electrical parameter measurement!
