Product Details

Overview

This power meter is a high-performance instrument designed for accurate measurement of electrical parameters. It caters to diverse electrical testing needs in various industries, ensuring precise and reliable assessment of voltage, current, power, and other electrical characteristics for both AC and DC signals.

Key Features

  • Dual AC/DC Measurement: Capable of testing both AC and DC electrical signals, providing versatile measurement capabilities for different electrical systems and devices.
  • Clear LED Display: Equipped with an LED digital screen for clear and intuitive display of voltage, current, power, power factor, frequency, and other parameters (Model 2 also displays energy accumulation and peak values).
  • True RMS Measurement: Adopts true RMS (Trms) measurement for accurate measurement of electrical parameters, even for non-sinusoidal signals.
  • Automatic Range Switching: Features automatic range switching for voltage and current to adapt to different electrical measurement requirements, saving time and reducing manual operation errors.
  • High Measurement Accuracy: Model 1 offers a basic accuracy of ±(0.4% reading + 0.1% range), while Model 2 provides a higher accuracy of ±(0.1% reading + 0.1% range), ensuring reliable measurement results for various applications.
  • Multiple Measurement Speeds: Provides various measurement speeds (0.1S, 0.25S, 0.5S, 1S, 2S, 5S) to meet different testing efficiency needs.
  • Standby Power Consumption Measurement: Capable of measuring standby power consumption, ideal for energy efficiency testing of electronic devices.
  • Alarm and Communication Functions: Both models come with standard RS232 or RS485 communication interfaces, and optional relay output function, facilitating data transmission and integration into automated systems. Model 2 also supports energy accumulation and peak value measurement.
  • Wide Frequency Range: Model 1 covers a frequency range of 40-400Hz, while Model 2 extends to 0.5-2kHz, supporting testing of high-frequency electrical devices and systems.
  • High Input Impedance: Features an input impedance of approximately 2MΩ (all voltage ranges), minimizing the impact on the measured circuit.

Technical Specifications

Parameter
Model 1
Model 2
Wiring Method
Single-phase
Single-phase
Display
LED digital screen
LED digital screen
Measurement Parameters
Voltage V, Current A, Active Power W, Power Factor PF, Frequency Hz
Voltage, Current, Active Power, Power Factor, Frequency, Energy Accumulation, Peak Voltage, Peak Current, Average Power
Measurement Form
True RMS Trms
True RMS Trms
Voltage Range
2V ~ 600V AC/DC (automatic range switching),
Peak Voltage: 700V AC/DC
0.5V - 600V (AC/DC), Automatic Range Switching
Current Range
0.05mA ~ 20A AC/DC (automatic range switching),
Peak Current: 12A AC/DC
0.05mA - 40A (AC/DC), Automatic Range Switching
Power Range
0.001W - 6kW
0.01mW - 24kW
Power Factor Range
0.001 - 1.000
0.001 - 1.000
Frequency Range
40 - 400Hz
0.5 - 2kHz
Basic Accuracy
±(0.4% reading + 0.1% range)
±(0.1% reading + 0.1% range)
Measurement Speed
0.1S, 0.25S, 0.5S, 1S, 2S, 5S
0.1S, 0.25S, 0.5S, 1S, 2S, 5S
Input Impedance
Approximately 2MΩ (all voltage ranges)
-
Line filtering
-
500Hz
Power Supply
100 - 240V AC 45 - 440Hz, 100 - 300V DC
AC 100-240V 45-440Hz, DC 100V-300V
Dimensions and Weight
Instrument size: 355mm (L)×223mm (W)×112mm (H), Opening size: 225mm (W)×99mm (H), Weight: 2.5kg
Instrument size: 355mm (L)×223mm (W)×112mm (H), Opening size: 225mm (W)×99mm (H), Weight: 2.5kg
Communication Interface
Standard RS232/RS485, optional relay output function
Standard RS232/RS485, optional relay output
Accessories
Power cord, warranty card, instruction manual, communication cable, software CD
Power cord, warranty card, instruction manual, communication cable, software CD
Special Functions
Standby power consumption measurement
Energy accumulation, peak value measurement, wide frequency range support

Model Selection Tips

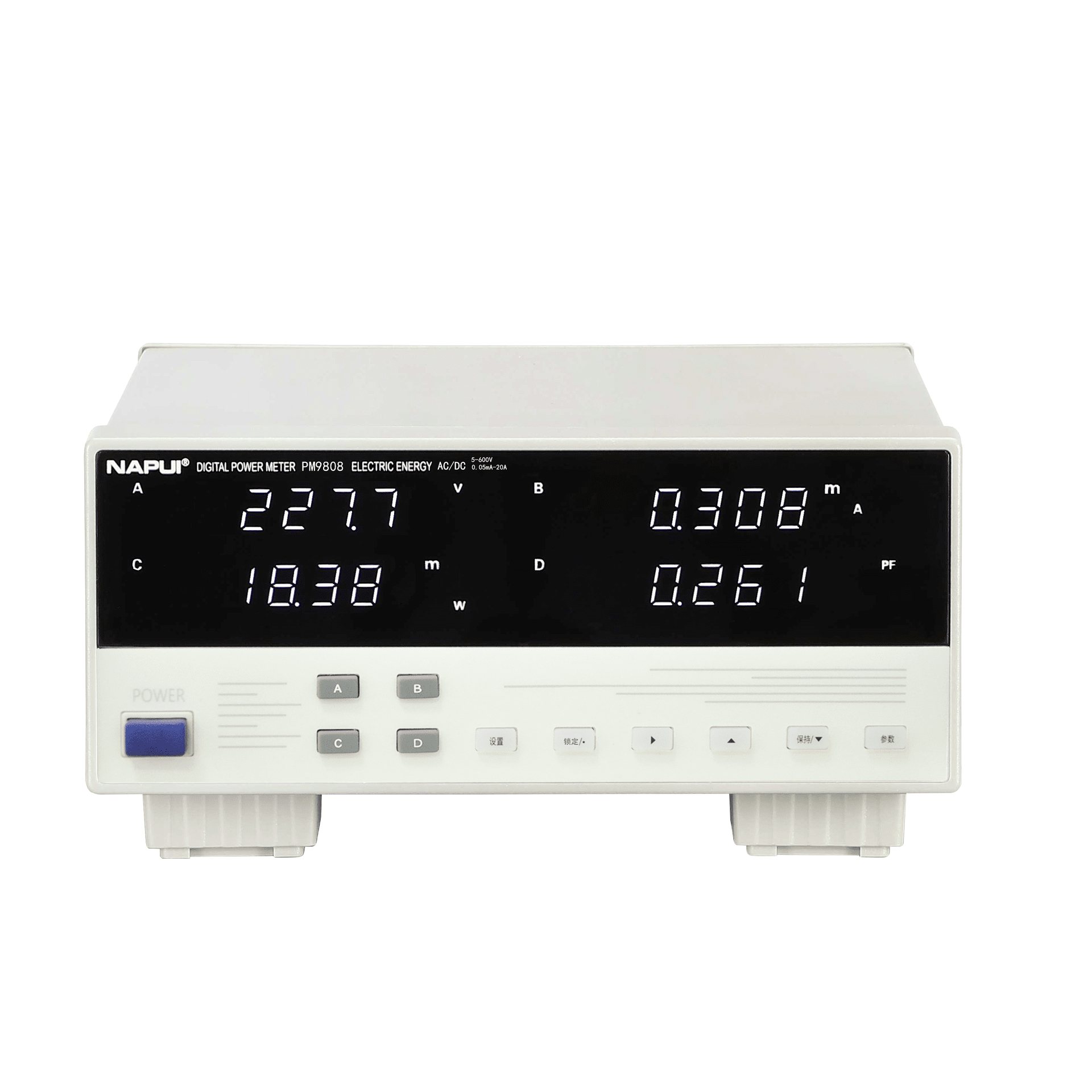

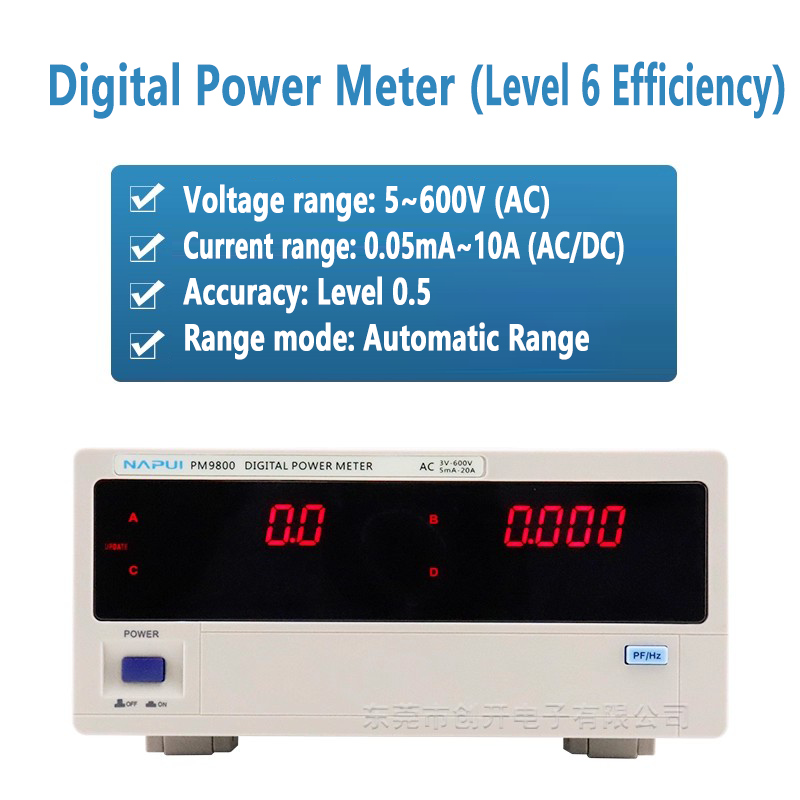

  • Model 1: Suitable for general AC/DC electrical parameter measurement and standby power consumption testing. It is a cost-effective choice for energy efficiency testing of products with a frequency range of 40-400Hz and a current range of up to 20A AC/DC.

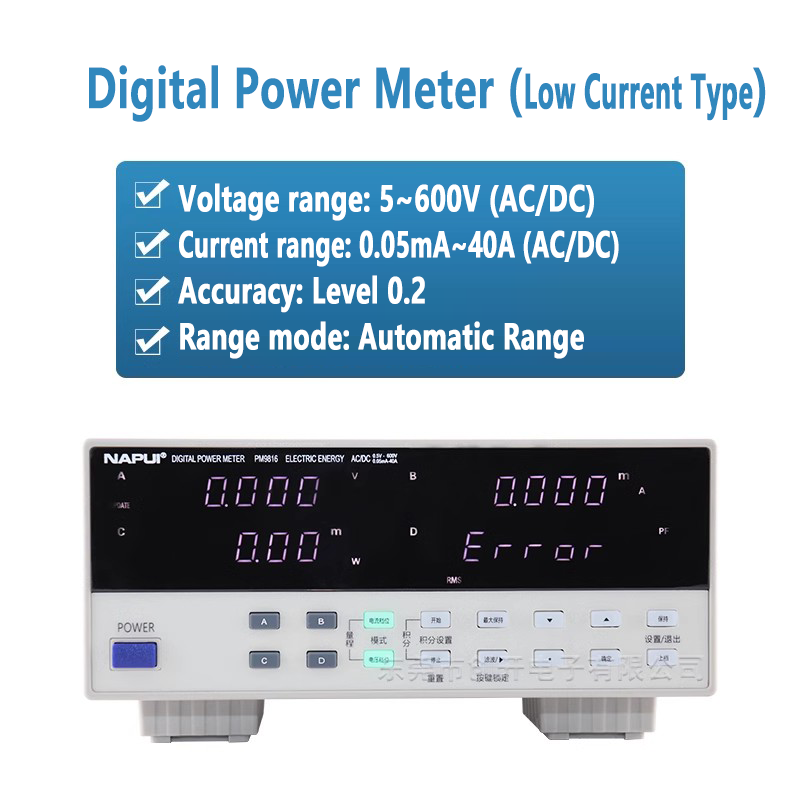

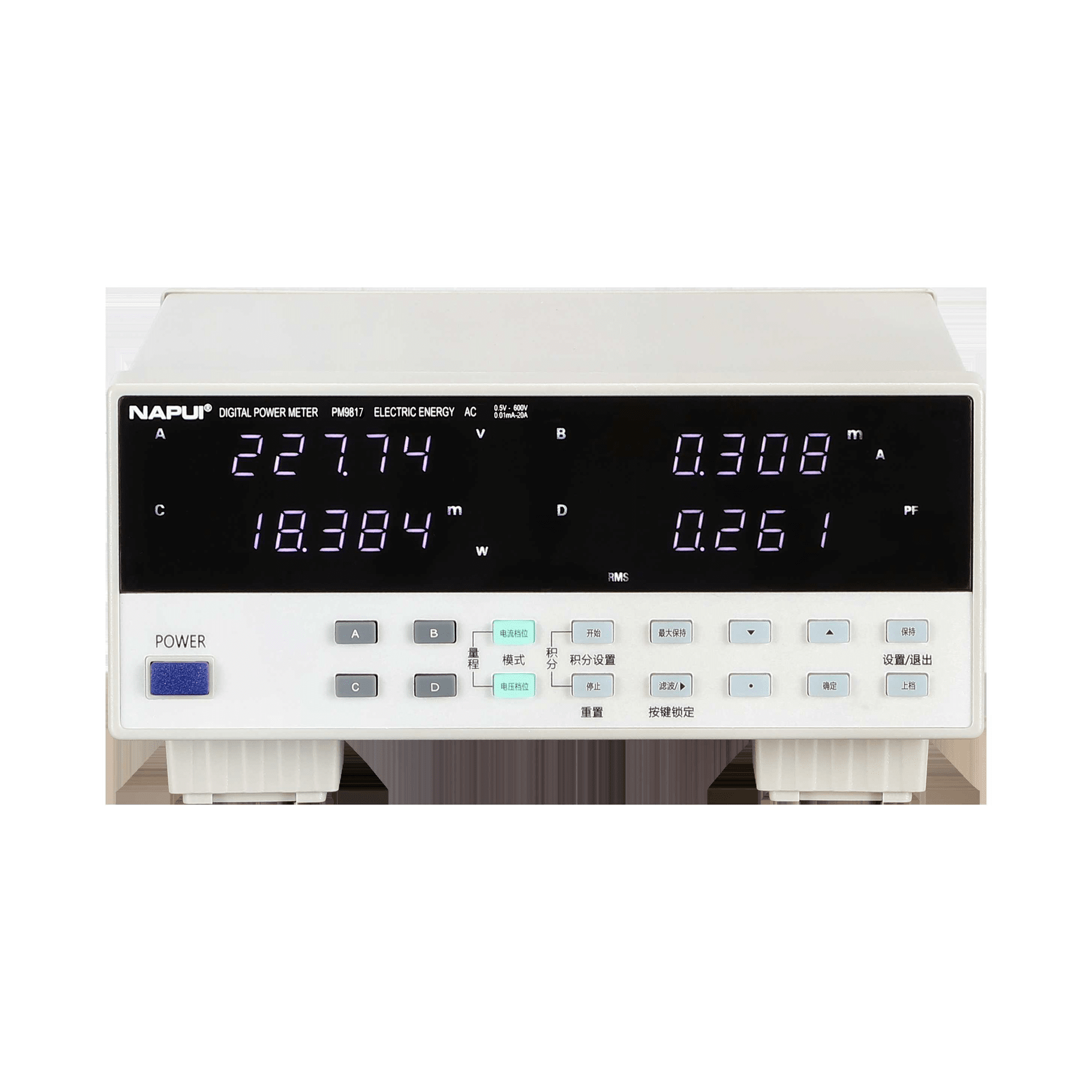

  • Model 2: Designed for high-precision measurement and advanced applications. It offers higher accuracy (0.1% level), a wider frequency range (0.5-2kHz), and additional features like energy accumulation and peak value measurement, making it ideal for R&D labs, high-frequency device testing, and applications requiring detailed energy analysis.

Application Scenarios

  1. Home Appliance Energy Efficiency Testing: Measures the standby power consumption and operating power of home appliances such as refrigerators, washing machines, and air conditioners.
  1. LED and Lighting Product Testing: Tests the power, power factor, and frequency characteristics of LED fixtures, drivers, and other lighting products.
  1. Power Supply and Charger R&D: Evaluates the electrical parameters, efficiency, and frequency response of AC/DC power supplies, chargers, and inverters.
  1. Industrial Equipment Monitoring: Monitors the voltage, current, power, and frequency of industrial equipment like motors and pumps to ensure their normal operation and energy efficiency.
  1. Electronic Product Quality Control: Conducts quality control testing of electrical products on production lines, with communication interfaces enabling integration into automated testing systems.
  1. High-Frequency Device Testing (Model 2): Tests the electrical characteristics of high-frequency devices and systems with a frequency range of up to 2kHz.
Get this power meter now for accurate and efficient measurement of electrical parameters in both AC and DC systems!
