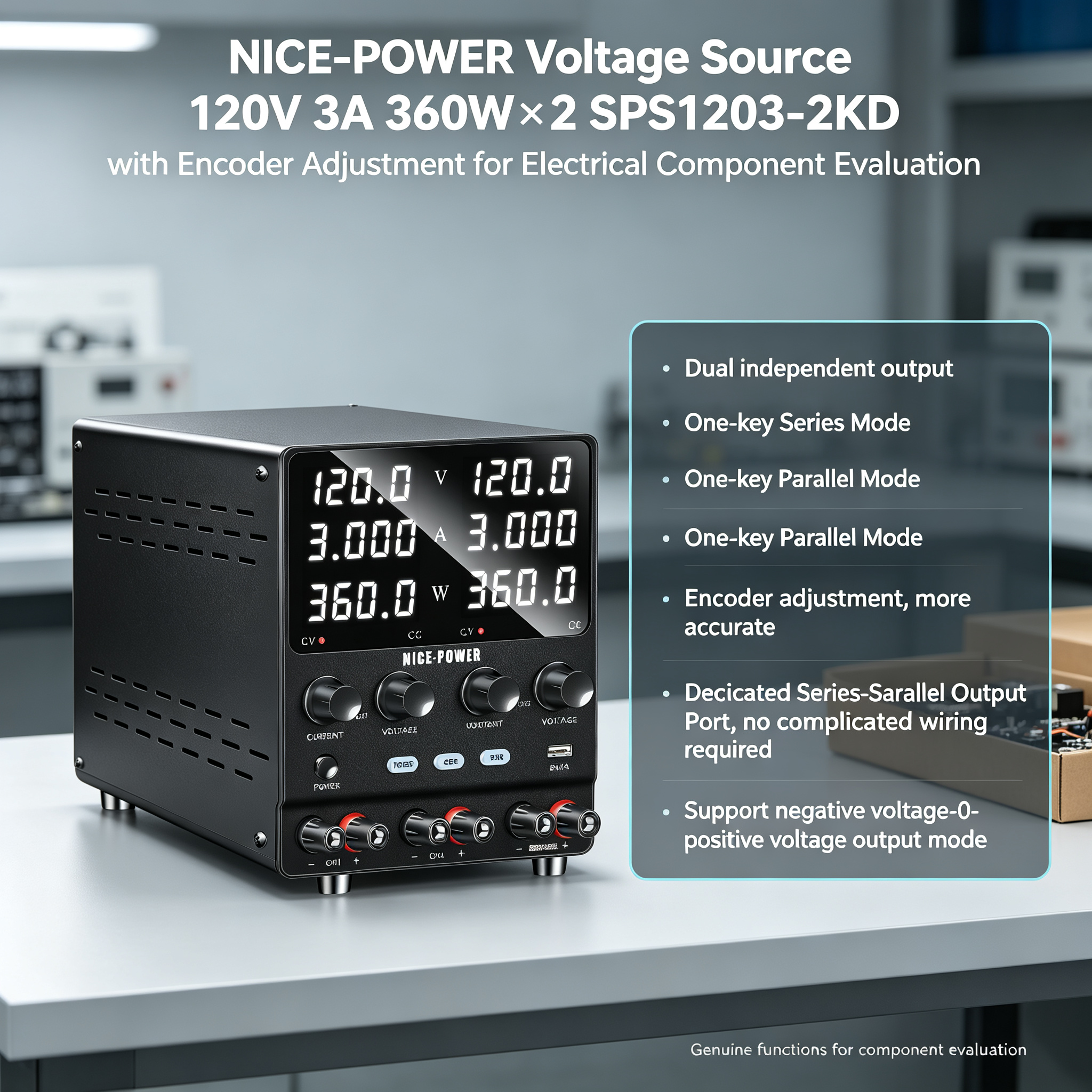

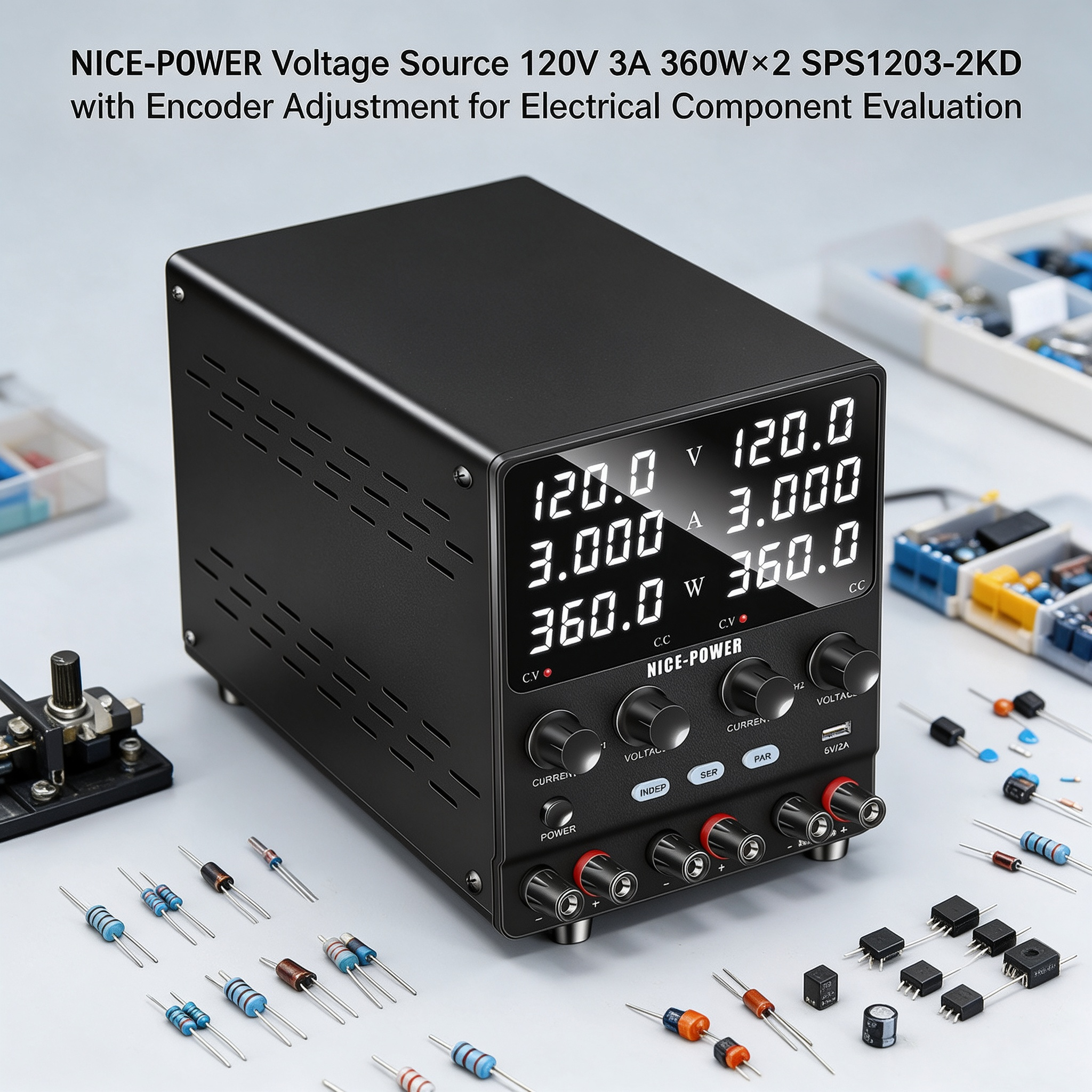

NICE-POWER Voltage Source 120V 3A

360W×2 SPS1203-2KD with Encoder

Adjustment for Electrical Component

Evaluation

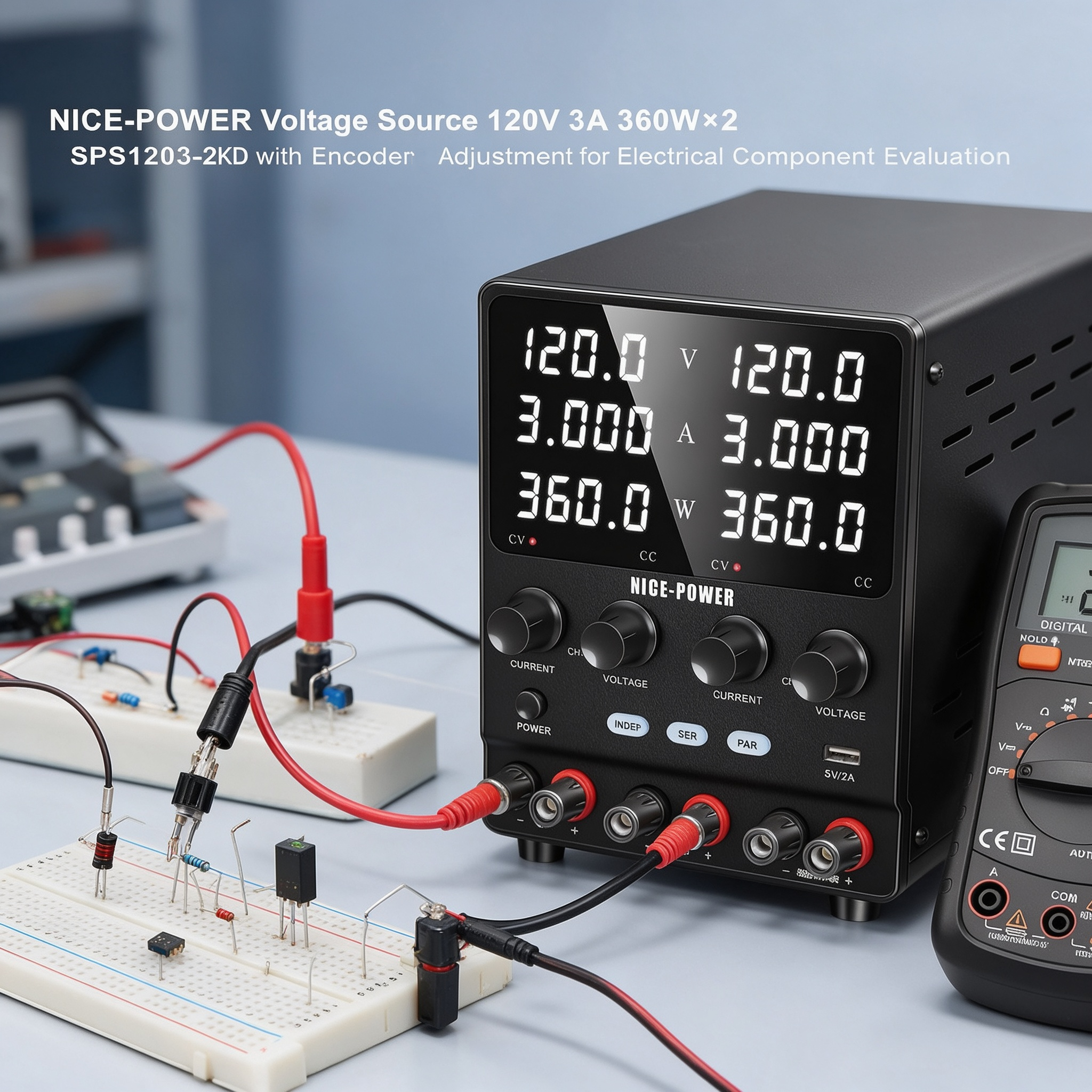

The NICE-POWER SPS1203-2KD is a Dual Output Voltage Source designed for Electrical Component Evaluation, electronic circuit testing, and laboratory DC power applications. Featuring two independent 0-120V 0-3A outputs with 360W×2 power capability, this DC Power Supply provides adjustable and flexible power conditions for evaluating electronic components under different voltage and current requirements.

During Electrical Component Evaluation, engineers need a stable and adjustable DC power source to analyze component operating characteristics, compare performance under different conditions, and verify circuit behavior. The SPS1203-2KD allows users to independently adjust two output channels or combine outputs through One-Key Series Mode and One-Key Parallel Mode to support different evaluation requirements.

With Encoder Adjustment, a dedicated Series-Parallel Output Port, and multiple output configurations, the SPS1203-2KD provides a convenient testing solution for electronic components, power devices, circuit modules, and other DC powered systems within the rated operating range.

Key Features

Dual Independent Outputs for Component Performance Evaluation

The SPS1203-2KD provides two independent DC outputs, each supporting 0-120V and 0-3A output.

The Dual Output Voltage Source configuration allows engineers to evaluate multiple electronic components or provide different voltage conditions for separate sections of a circuit during Electrical Component Evaluation.

Adjustable 120V 3A DC Output for Flexible Testing Conditions

Each output channel provides adjustable voltage and current settings within the rated range.

This adjustable DC output capability allows users to create different test conditions when evaluating electronic components, checking operating characteristics, and comparing component responses under various power requirements.

One-Key Series Mode for Extended Voltage Evaluation

The One-Key Series Mode combines the two outputs to provide up to 0-240V and 0-3A output capability.

This configuration expands the available voltage range and allows engineers to evaluate components that require higher DC voltage conditions without complicated external series wiring.

One-Key Parallel Mode for Higher Current Component Testing

The One-Key Parallel Mode combines both outputs to provide up to 0-120V and 0-6A output capability.

This increased current capability supports Electrical Component Evaluation applications where higher current output is required for testing power components and electronic loads.

Encoder Adjustment for Accurate Parameter Setting

The SPS1203-2KD uses Encoder Adjustment for voltage and current control.

During component evaluation procedures, engineers can conveniently adjust output parameters when comparing different components, testing circuit responses, or repeating measurement conditions.

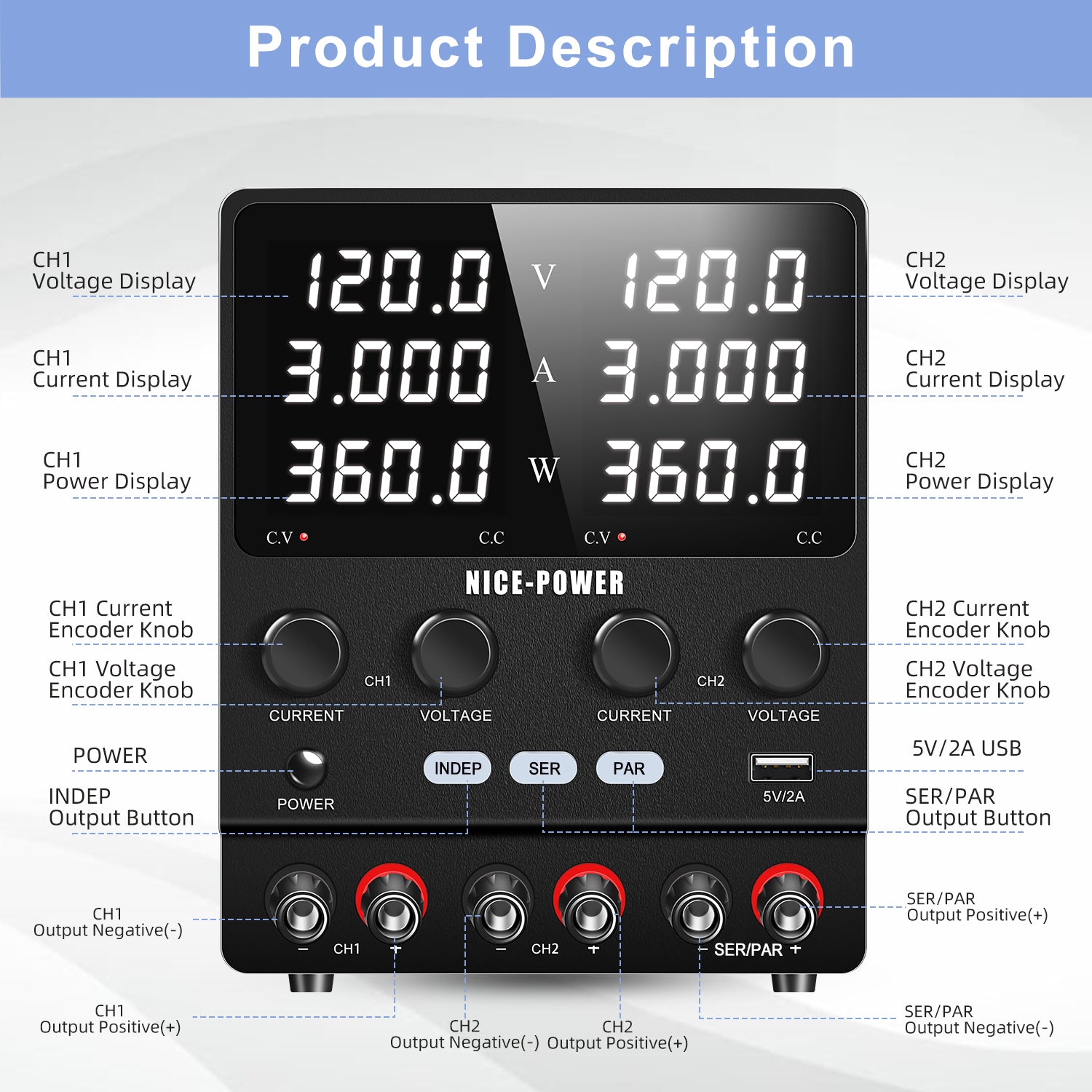

Dedicated Series-Parallel Output Port for Simplified Configuration

The dedicated Series-Parallel Output Port allows users to switch between independent output, series output, and parallel output configurations more conveniently.

This design reduces complicated external wiring and improves efficiency when changing test configurations during electronic component evaluation.

Negative Voltage to Positive Voltage Output Mode

The SPS1203-2KD supports negative voltage to positive voltage output mode.

This function provides additional flexibility for evaluating electronic components and circuits that require different voltage polarity conditions during testing.

Applications

Semiconductor Component Evaluation

The SPS1203-2KD provides adjustable DC power conditions for evaluating semiconductor components and electronic devices.

Engineers can adjust voltage and current parameters to observe component behavior under different operating conditions within the specified range.

Electronic Component Parameter Testing

The Dual Output Voltage Source is suitable for testing electronic components that require controlled DC power input.

Independent output channels allow engineers to create separate power conditions for different components or circuit sections during evaluation.

Power Device Performance Evaluation

The SPS1203-2KD can be used for evaluating power-related components and electronic modules that require adjustable DC voltage and current conditions.

Series and Parallel Modes provide additional output configurations for different evaluation requirements.

Electronic Circuit Module Testing

The adjustable DC output and dual channel design make the SPS1203-2KD suitable for testing electronic circuit modules and related components.

Engineers can apply different voltage conditions to verify circuit operation and component performance.

Quality Check and Terms of Service

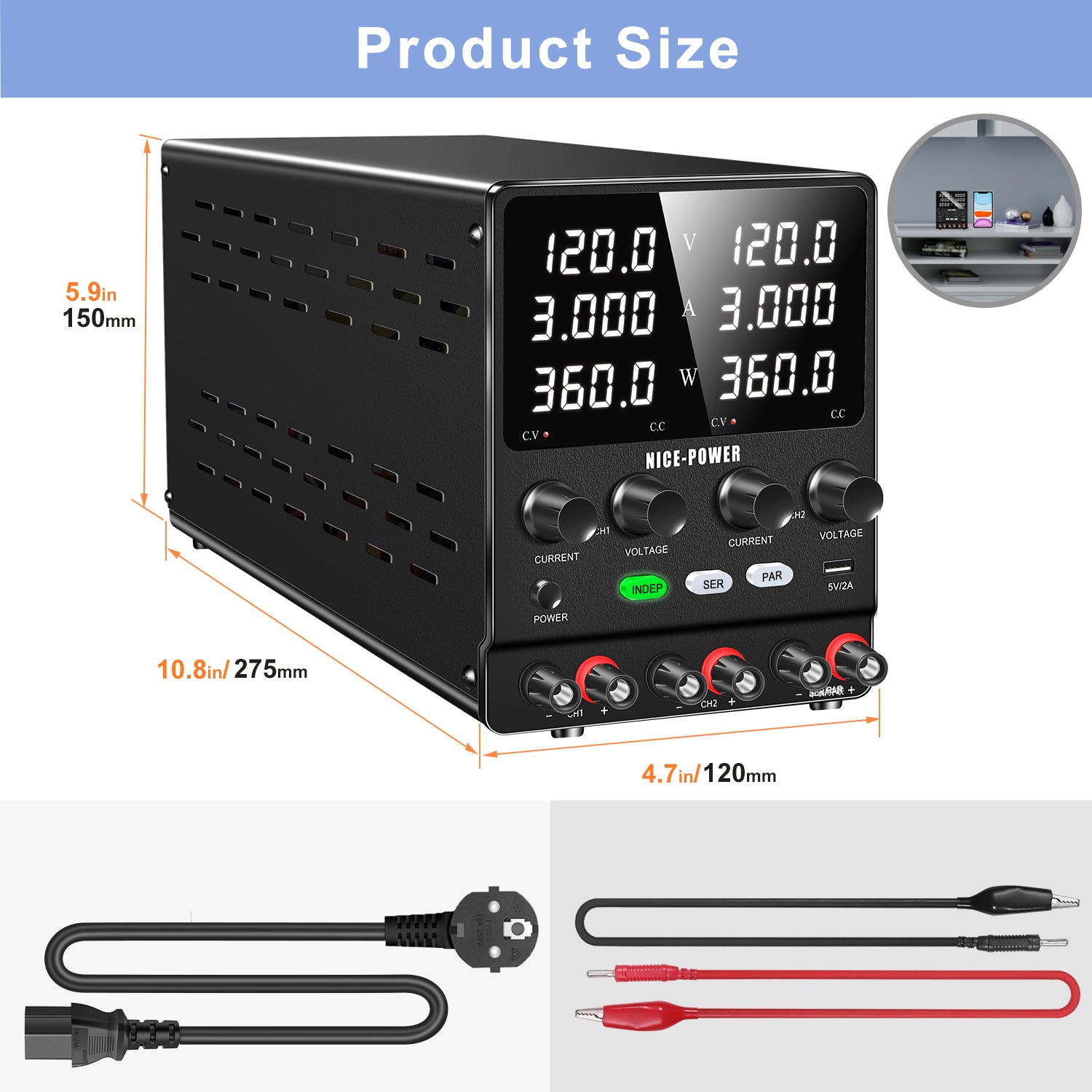

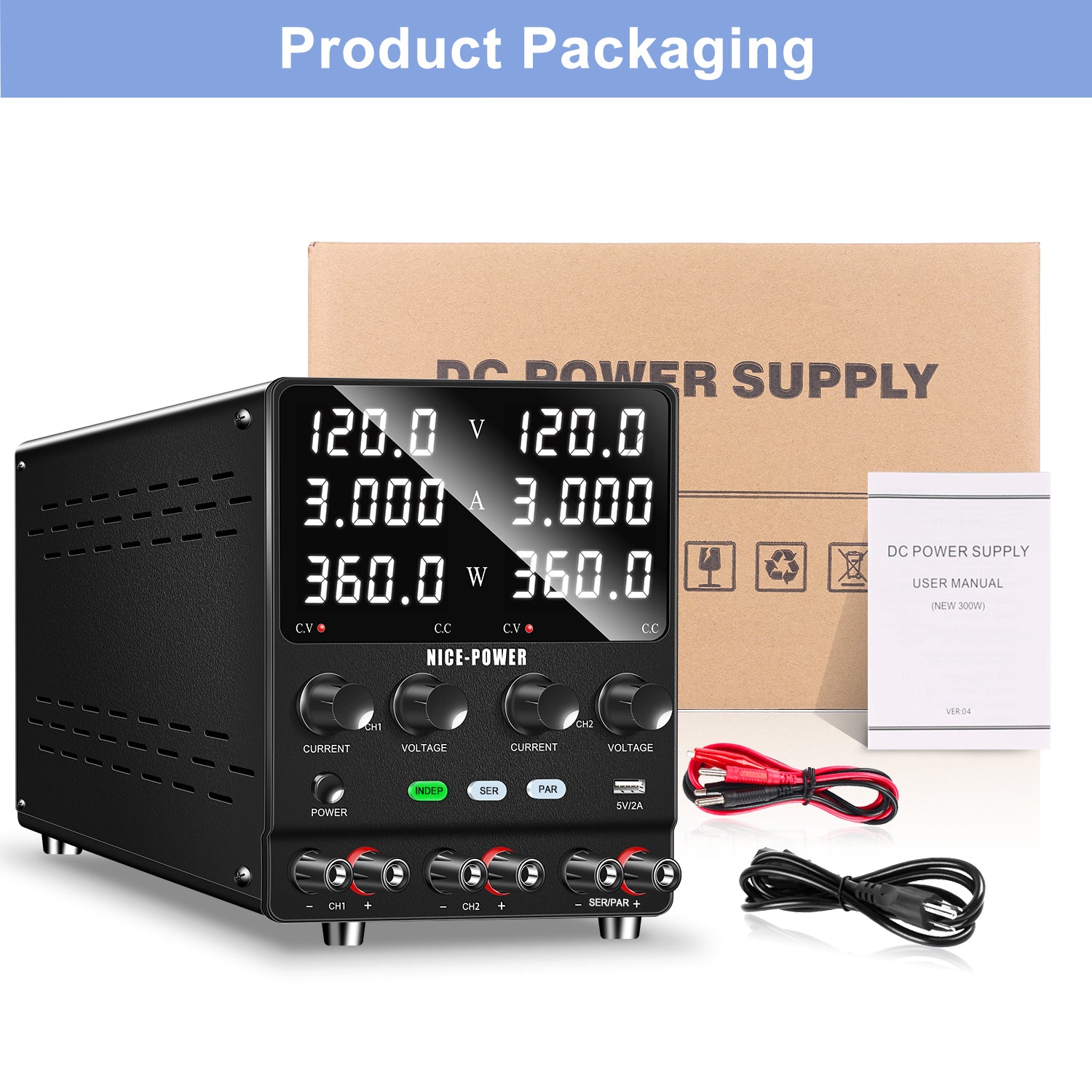

• Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.

• Has passed CE & FCC Certification.

• All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER SPS1203-2KD?

The NICE-POWER SPS1203-2KD combines dual independent 0-120V 0-3A outputs with flexible series and parallel operating modes, providing a practical Voltage Source solution for Electrical Component Evaluation.

The independent output design allows engineers to create different power conditions for component testing, while Series Mode and Parallel Mode expand available voltage and current configurations for various evaluation requirements.

With Encoder Adjustment, a dedicated Series-Parallel Output Port, and negative voltage to positive voltage output mode, the SPS1203-2KD provides a flexible DC Power Supply solution for electronic component testing, circuit module evaluation, semiconductor testing, and laboratory development applications within its specified operating range.
