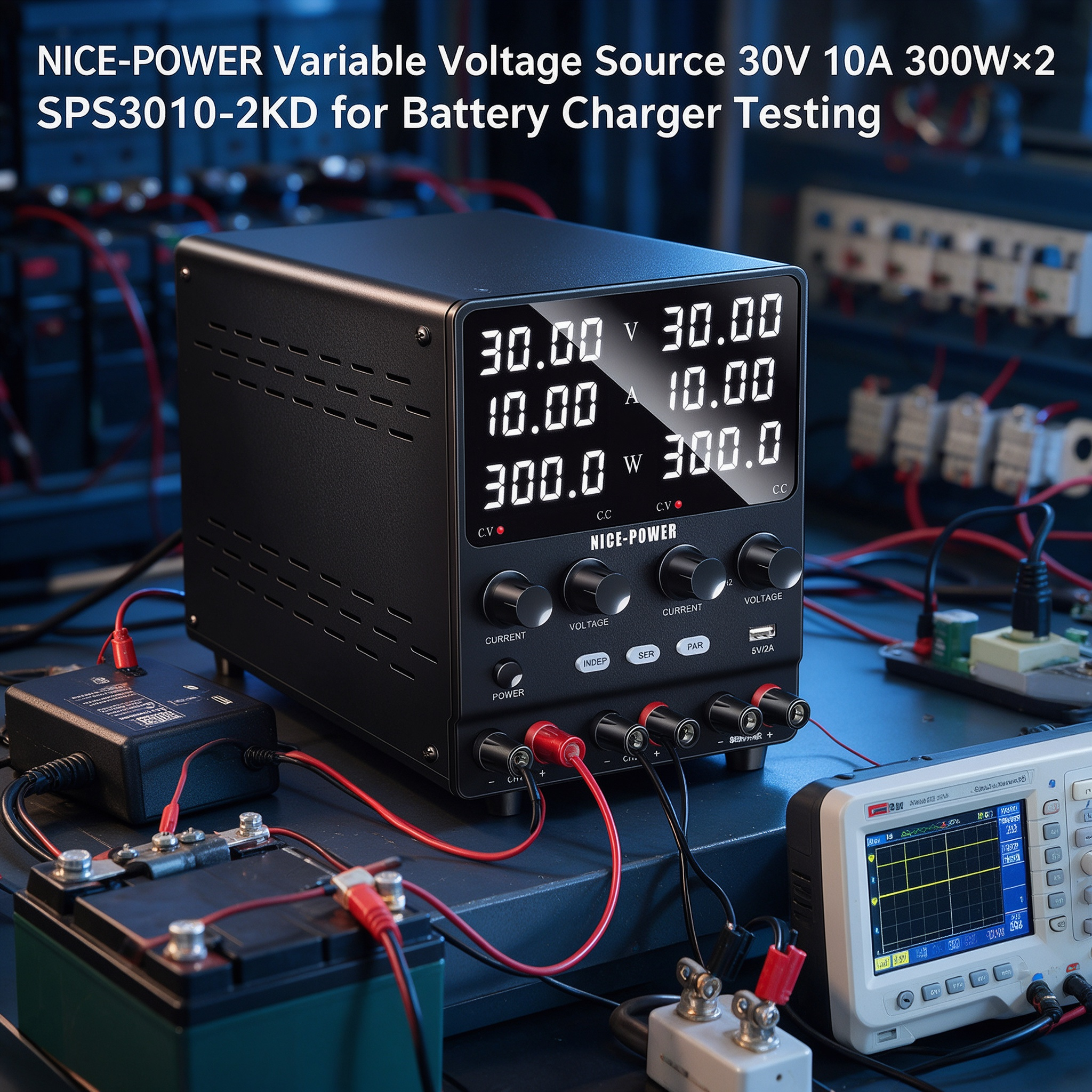

NICE-POWER Variable Voltage Source 30V
10A 300W×2 SPS3010-2KD for Battery
Charger Testing
The NICE-POWER SPS3010-2KD is a dual output Variable Voltage Source designed for Battery Charger Testing, charger circuit evaluation, and controlled DC power testing. With two independent 0-30V 0-10A outputs, this Laboratory Power Supply provides flexible power configuration for testing battery charger circuits, charger modules, and related DC power systems within the rated output range.

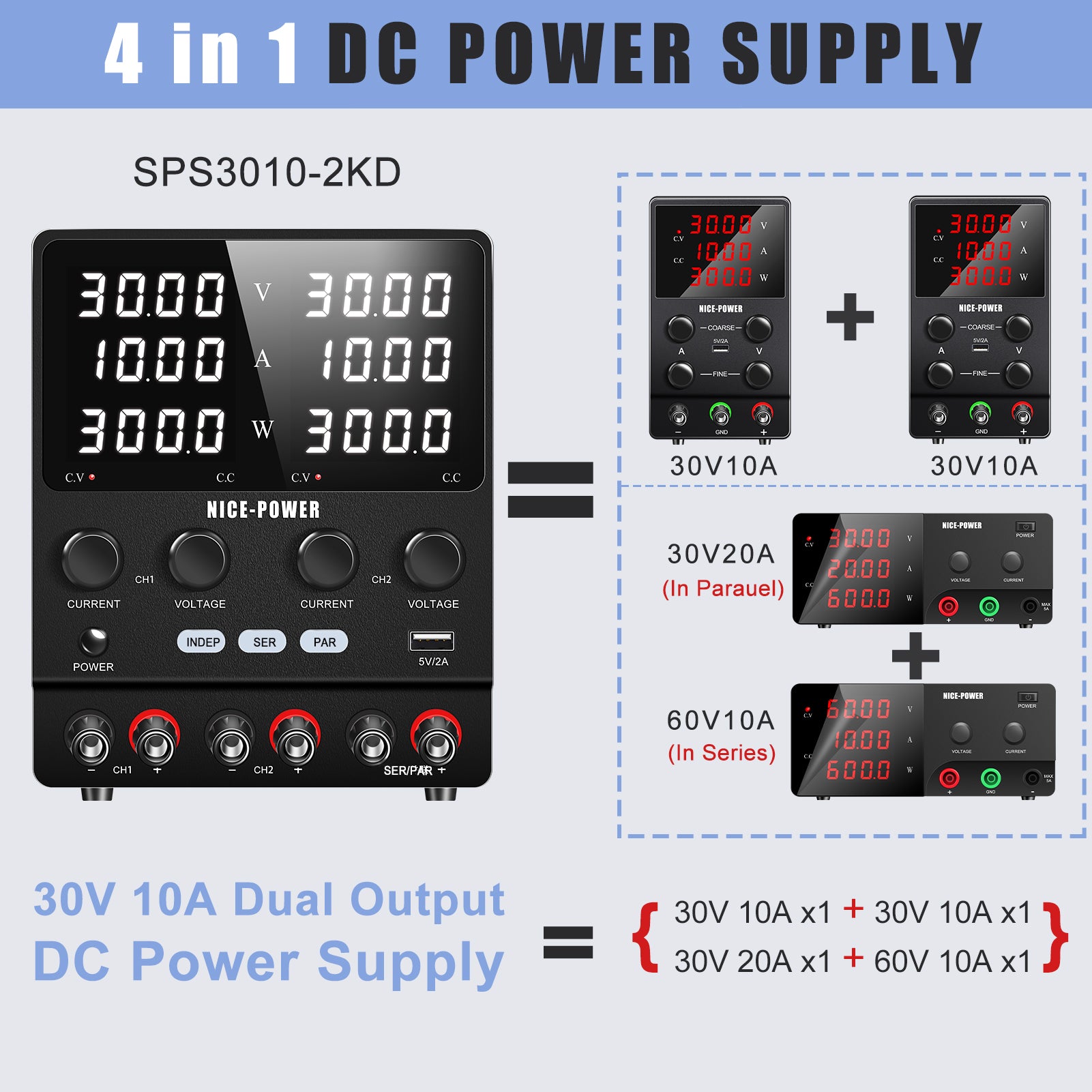

The SPS3010-2KD also supports One-Key Series Mode and One-Key Parallel Mode. Series Mode provides up to 0-60V at 0-10A, while Parallel Mode provides up to 0-30V at 0-20A. The dedicated Series-Parallel Output Port simplifies configuration without complicated external wiring, giving users multiple output options for different Battery Charger Testing requirements.

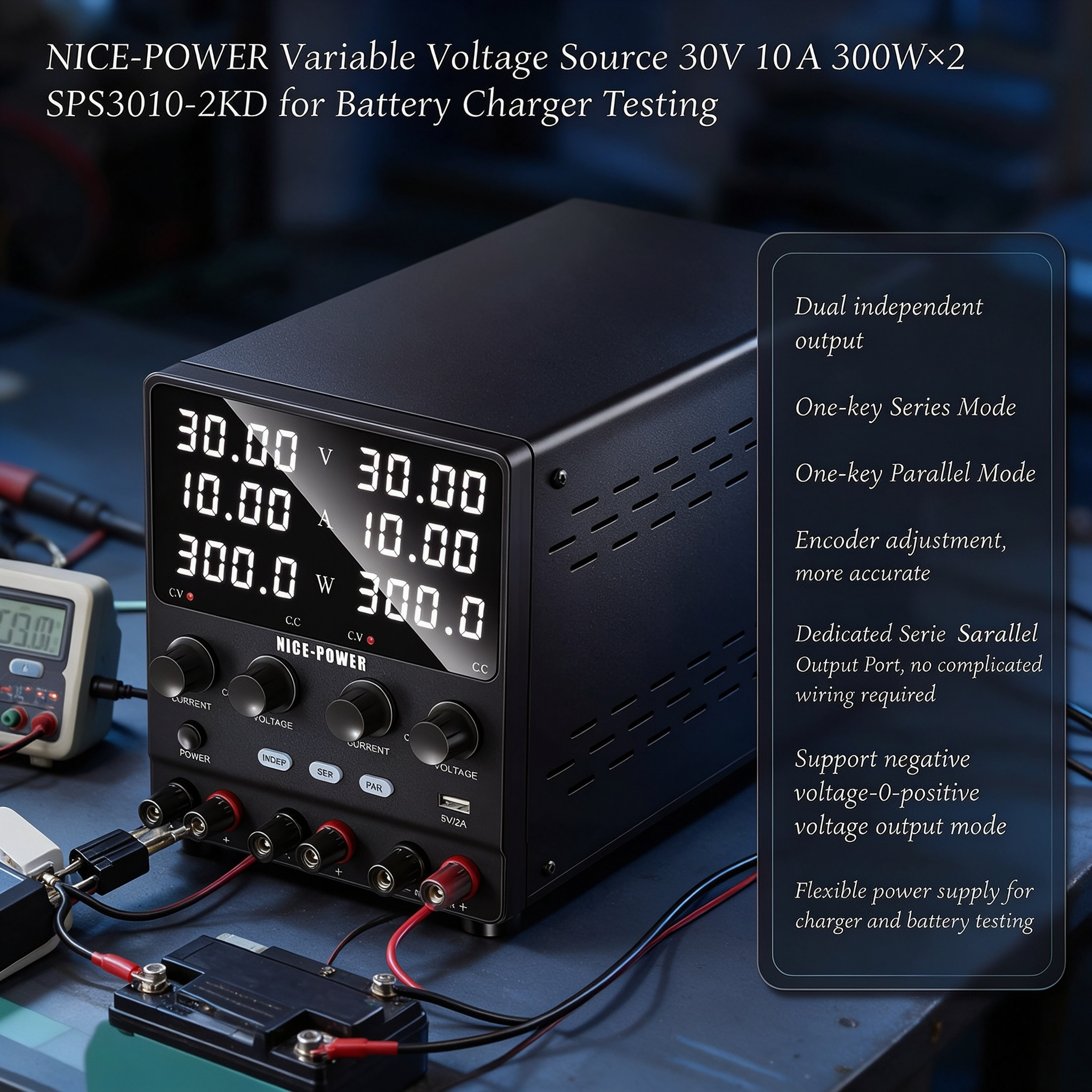

Key Features
Dual Independent Outputs for Charger Circuit Testing
The SPS3010-2KD provides two independent DC outputs, with each output supporting 0-30V and 0-10A. This dual output configuration allows users to establish separate power conditions for a charger circuit and related test circuitry, or configure two independent test outputs when evaluating different charging circuit conditions.
Adjustable 0-30V 0-10A Output
Each independent output provides an adjustable 0-30V voltage range and up to 0-10A current. This Variable Voltage Source configuration allows users to set appropriate DC input conditions for Battery Charger Testing according to the requirements of the charger circuit and the intended test procedure.
One-Key Series Mode for Higher Voltage Testing
The One-Key Series Mode combines the two outputs to provide up to 0-60V at 0-10A. This mode can be used when Battery Charger Testing requires a higher DC voltage than a single output can provide, while keeping the two outputs configured through the dedicated Series-Parallel Output Port.
One-Key Parallel Mode for Higher Current Testing
The One-Key Parallel Mode combines the outputs to provide up to 0-30V and 0-20A. This higher-current configuration is useful for Battery Charger Testing applications where the test circuit requires greater available current within the rated output range.

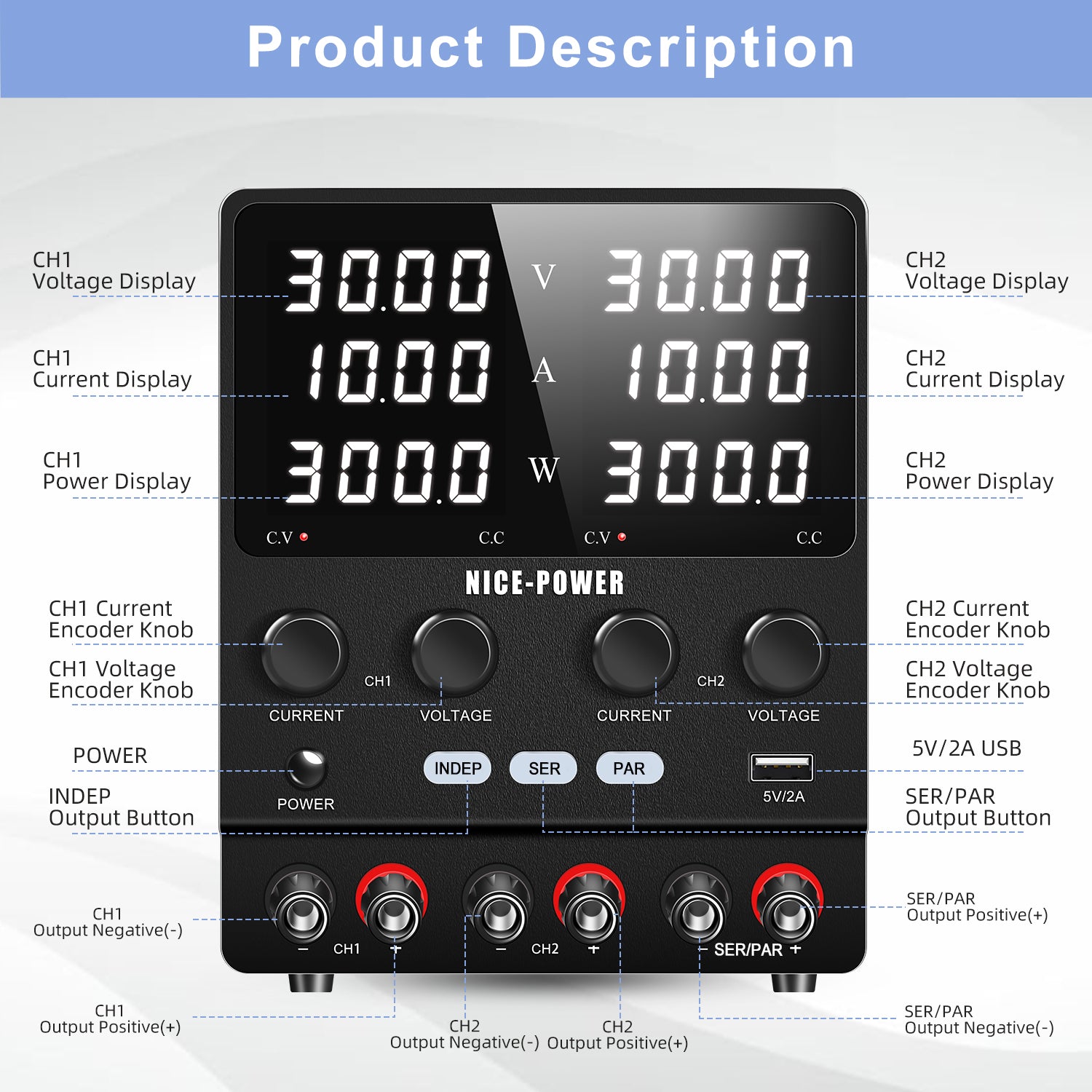

Precision Encoder Adjustment
The SPS3010-2KD uses precision encoder adjustment for voltage and current settings. This provides controlled adjustment of the Variable Voltage Source during Battery Charger Testing, allowing users to establish specific test conditions and make controlled changes to the output parameters.
Dedicated Series-Parallel Output Port
The dedicated Series-Parallel Output Port simplifies the transition between different output configurations. Users can select independent, series, or parallel operation without complicated external wiring, making the Laboratory Power Supply easier to configure for different Battery Charger Testing requirements.
Negative-Voltage to Positive-Voltage Output Mode
The SPS3010-2KD supports negative-voltage to positive-voltage output mode. This capability can be used for Battery Charger Testing setups that require a bipolar power arrangement or positive and negative voltage relationships for associated charger control circuits.
Applications
Battery Charger Input Testing
Use the adjustable 0-30V 0-10A output to establish controlled DC input conditions for battery charger circuits. The Variable Voltage Source allows test engineers to adjust the supply voltage and current according to the requirements of the charger under evaluation.
Charger Circuit Development and Verification

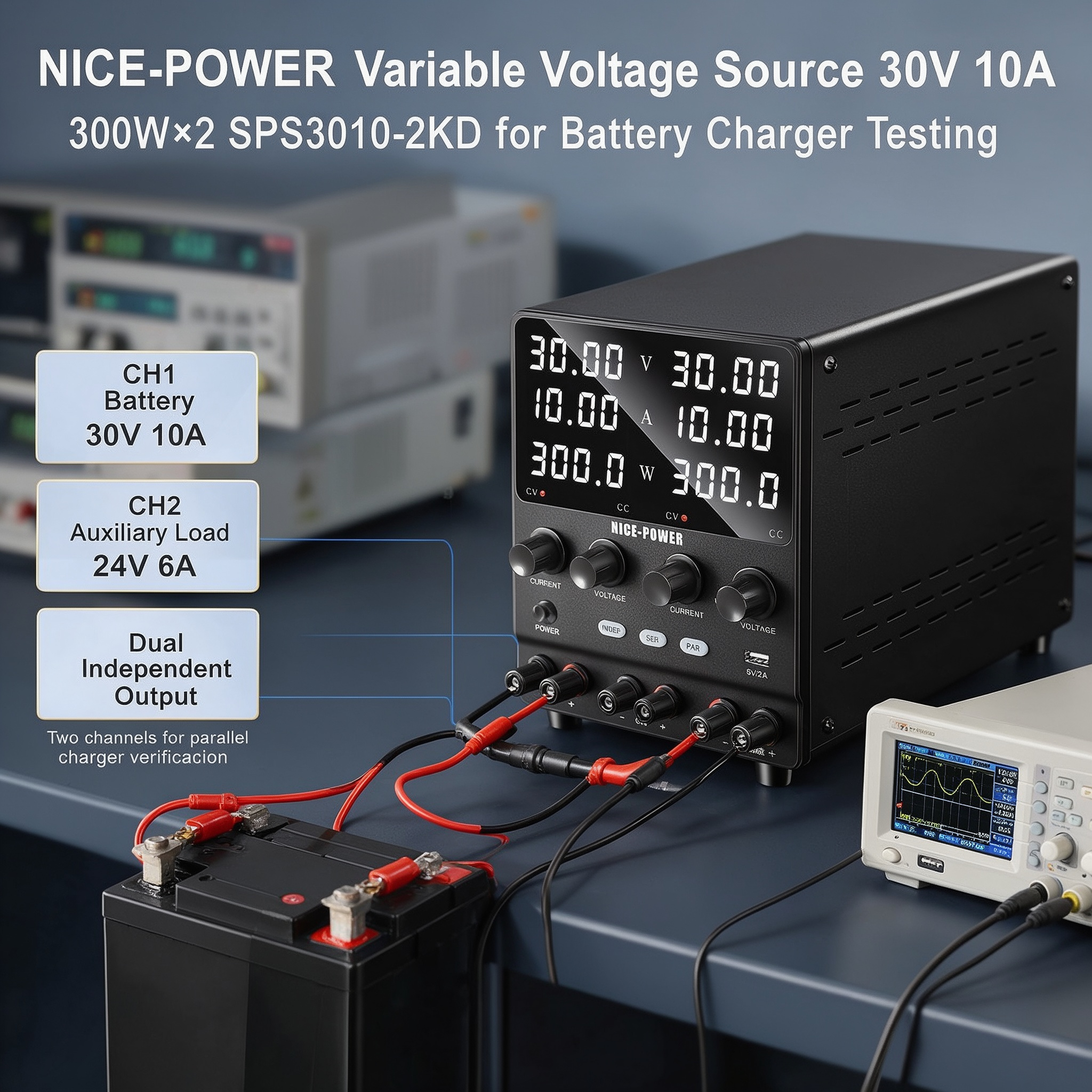

The dual independent outputs provide flexible power configurations for development and verification work on battery charger circuits. One output can be used for a primary test circuit while the second output provides a separate adjustable DC source for another part of the test setup.
High-Current Charger Testing
When a Battery Charger Testing setup requires higher available current, Parallel Mode provides up to 0-30V and 0-20A. This configuration can be used for charger circuits that require higher current during testing within the SPS3010-2KD rated output range.
Higher-Voltage Charger Testing
For charger circuits requiring a higher test voltage, Series Mode provides up to 0-60V at 0-10A. This expands the available voltage range compared with a single independent output and supports testing requirements that fall within the series operating specifications.
Quality Check and Terms of Service
The SPS-2KD series is inspected before shipment to help ensure that the DC Power Supply and included accessories are in good condition.

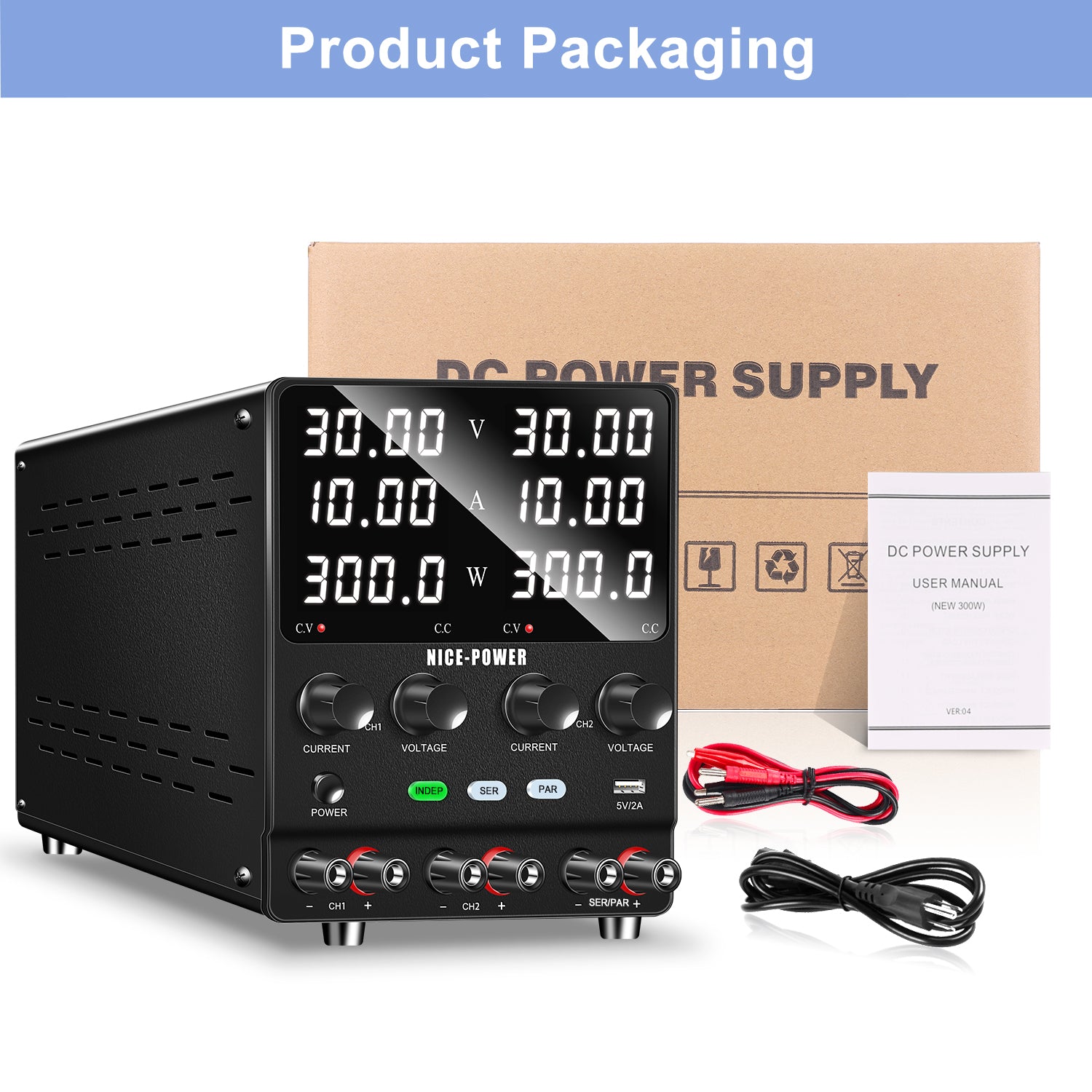

Package Includes:
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
Quality Assurance:
-
Passed CE and FCC Certification.
-
All DC power supplies and accessories are inspected before shipment.
-
Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS3010-2KD |
| Product Type |
Dual Output DC Bench Power Supply |
| Independent Output |
0-30V, 0-10A, 300W ×2 |
| Series Output |
0-60V, 0-10A, 600W |
| Parallel Output |
0-30V, 0-20A, 600W |
| Load Regulation Voltage |
≤0.3%+10mV |
| Load Regulation Current |
≤0.1%+2.5mA |
| Line Regulation Voltage |
≤0.01%+2.5mV |
| Line Regulation Current |
≤0.1%+2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
1mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
1mA |
| Setting Accuracy Voltage |
≤0.05%+10mV |
| Setting Accuracy Current |
≤0.01%+10mA |
| Readback Accuracy Voltage |
≤0.05%+10mV |
| Readback Accuracy Current |
≤0.01%+10mA |
| Ripple Voltage, Independent |
≤180mVp-p, ≤15mVrms |
| Ripple Voltage, Series/Parallel |
≤200mVp-p, ≤20mVrms |
| Ripple Current, Independent |
≤15mArms |
| Ripple Current, Series/Parallel |
≤30mVrms |
| Rise Time, No Load |
≤200mS |
| Rise Time, Full Load |
≤300mS |
| Fall Time, No Load |
≤20S |
| Fall Time, Full Load |
≤300mS |
| Dynamic Response |
≤200mS |
| Programming Response |
≤200mS |
| Sense Compensation |
None |
| Efficiency |
≥85% |
| Power Factor |
0.68 |
| Maximum Input Current |
110V/8A, 220V/5A |
| Rated Temperature |
0℃-40℃ |
| Product Size |
Approx. 27.5 × 12 × 15cm |
| Net Weight |
Approx. 2.36KG |
| Package Size |
Approx. 37.5 × 18.5 × 22cm |
| Package Weight |
Approx. 2.9KG |
| Carton Quantity |
6 pcs/carton |
Why Choose NICE-POWER SPS3010-2KD?
The NICE-POWER SPS3010-2KD combines two independent 0-30V 0-10A outputs with Series and Parallel operating modes, providing a flexible Variable Voltage Source for Battery Charger Testing. Independent Mode supports separate adjustable DC outputs, Series Mode extends the available voltage to 0-60V, and Parallel Mode increases the available current to 0-20A.
With precision encoder adjustment and a dedicated Series-Parallel Output Port, the SPS3010-2KD provides a practical Laboratory Power Supply for charger circuit development, input testing, higher-current testing, and higher-voltage DC testing within its specified operating ranges.
