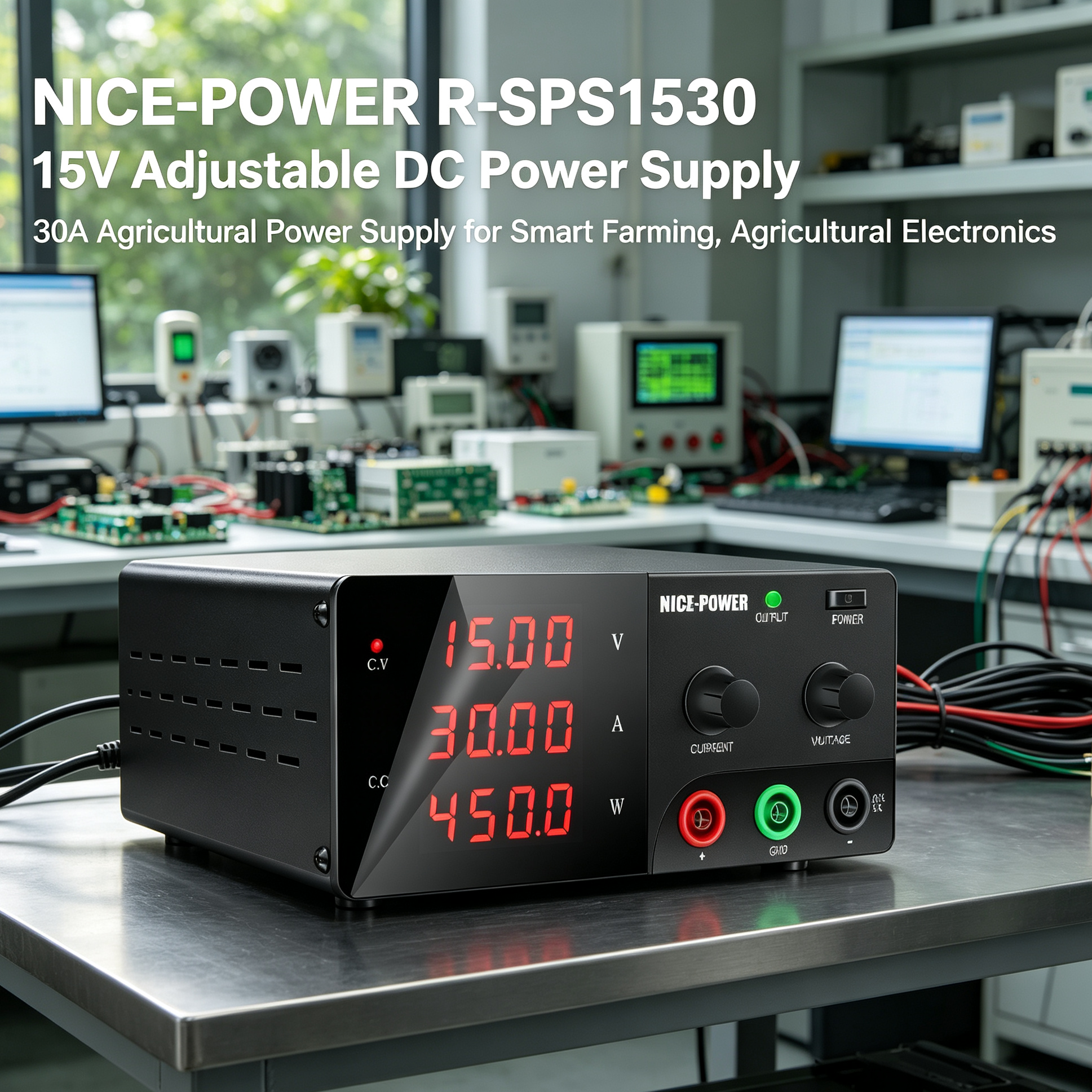

NICE-POWER R-SPS1530 15V 30A Adjustable DC Agricultural Power Supply
Product Description
The NICE-POWER R-SPS1530 is a 15V 30A DC power supply designed for agricultural technology, smart farming equipment, agricultural electronics, and low-voltage farm automation systems. With adjustable 0–15V output, up to 30A current, and 450W output power, this Agricultural Power Supply provides stable and adjustable DC power for agricultural equipment development, maintenance, and electrical system integration.
As an Agricultural DC Power Supply, the R-SPS1530 can support smart agriculture equipment, agricultural monitoring systems, control electronics, sensor interfaces, communication modules, and other low-voltage electronic equipment used in modern farming environments.
The 15V 30A power supply combines Constant Voltage (CV) and Constant Current (CC) operation with precise voltage and current adjustment. Its low-ripple output and 4-digit digital display make it practical as a regulated DC power supply for agricultural electronics and agricultural equipment engineering.
For engineers developing or maintaining agricultural equipment, this 450W DC power supply for agricultural equipment provides a convenient adjustable power source for prototype development, component verification, control-system maintenance, and equipment servicing.
Key Features
-
Agricultural Power Supply for Smart Farming Equipment
Designed as an Agricultural DC Power Supply for agricultural electronics, smart farming systems, agricultural control equipment, monitoring devices, and low-voltage agricultural technology. -
0–15V Adjustable, 30A Output, 450W Power
This 15V 30A power supply provides adjustable 0–15V DC output with up to 30A current and 450W power, making it suitable as a 450W power supply for agricultural electronics and agricultural equipment development. -
Stable Regulated DC Output
CV/CC operation provides controlled voltage and current output. The low-ripple design makes this regulated DC power supply for agricultural electronics suitable for sensitive control boards, sensors, communication modules, and agricultural monitoring equipment. -

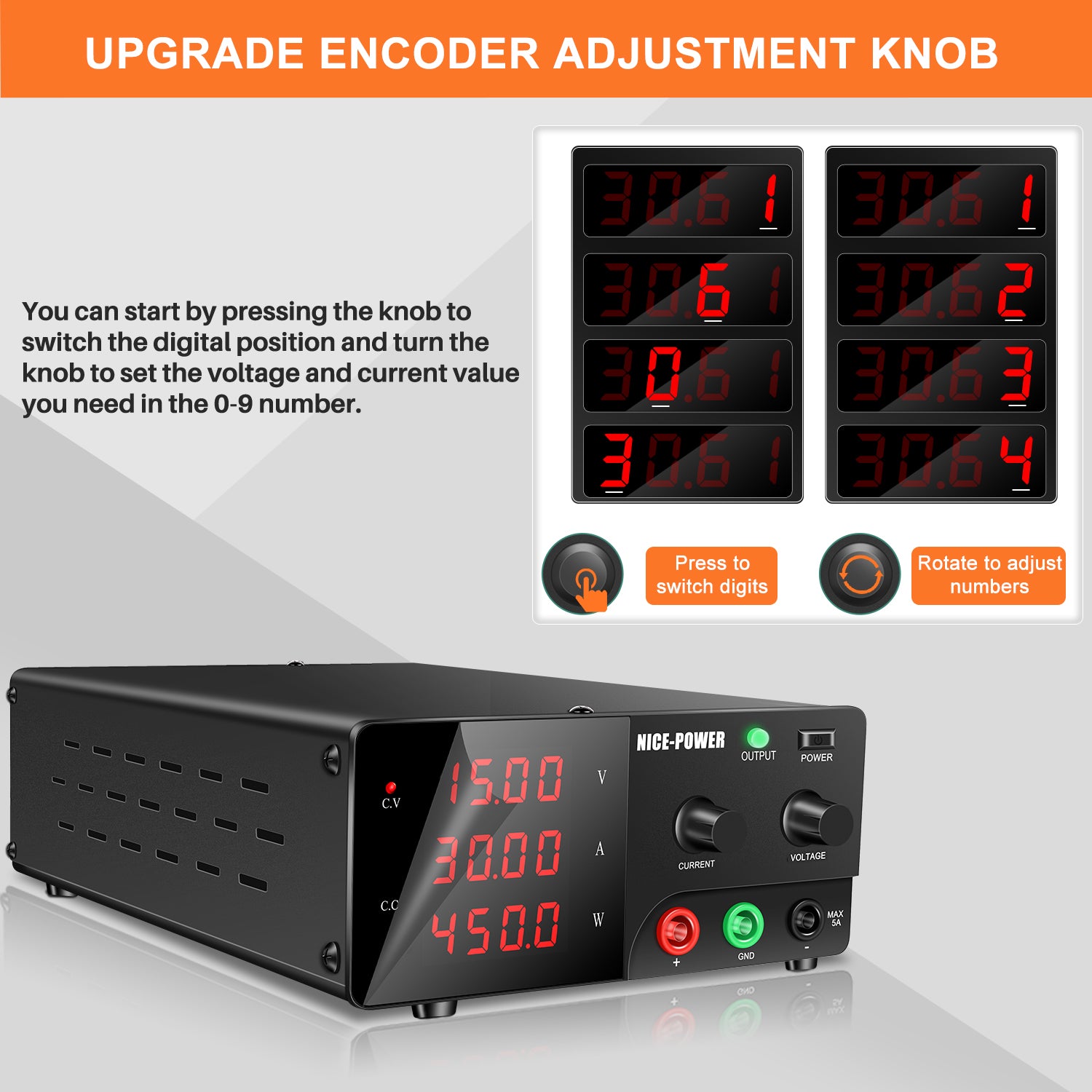

Precision Voltage & Current Adjustment
10mV voltage and 10mA current setting/readback resolution allows engineers to make controlled adjustments when developing or servicing agricultural control systems and agricultural electronic equipment. -

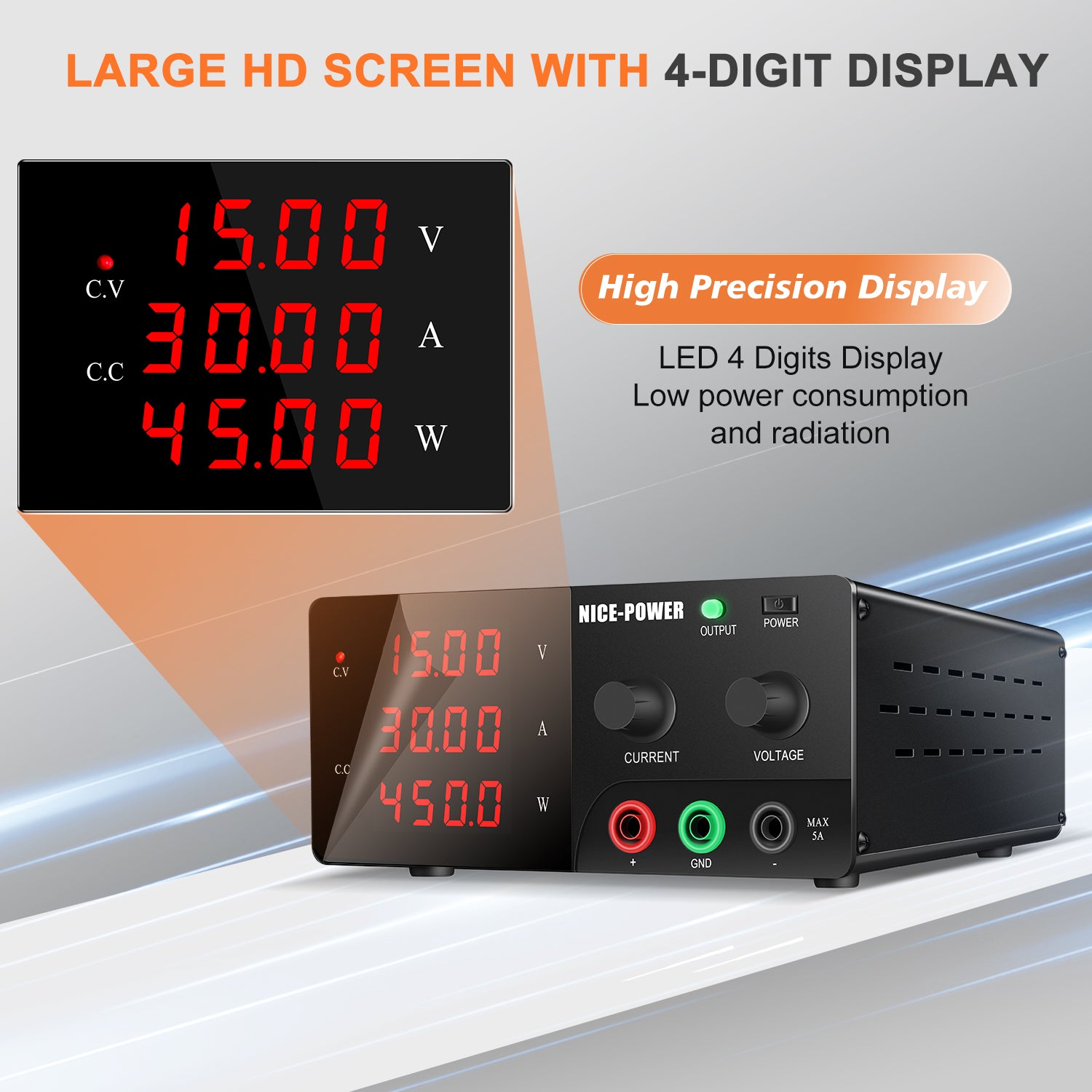

4-Digit Digital Display
Real-time voltage and current monitoring makes the 15V 450W power supply convenient for agricultural equipment development, troubleshooting, and maintenance. -

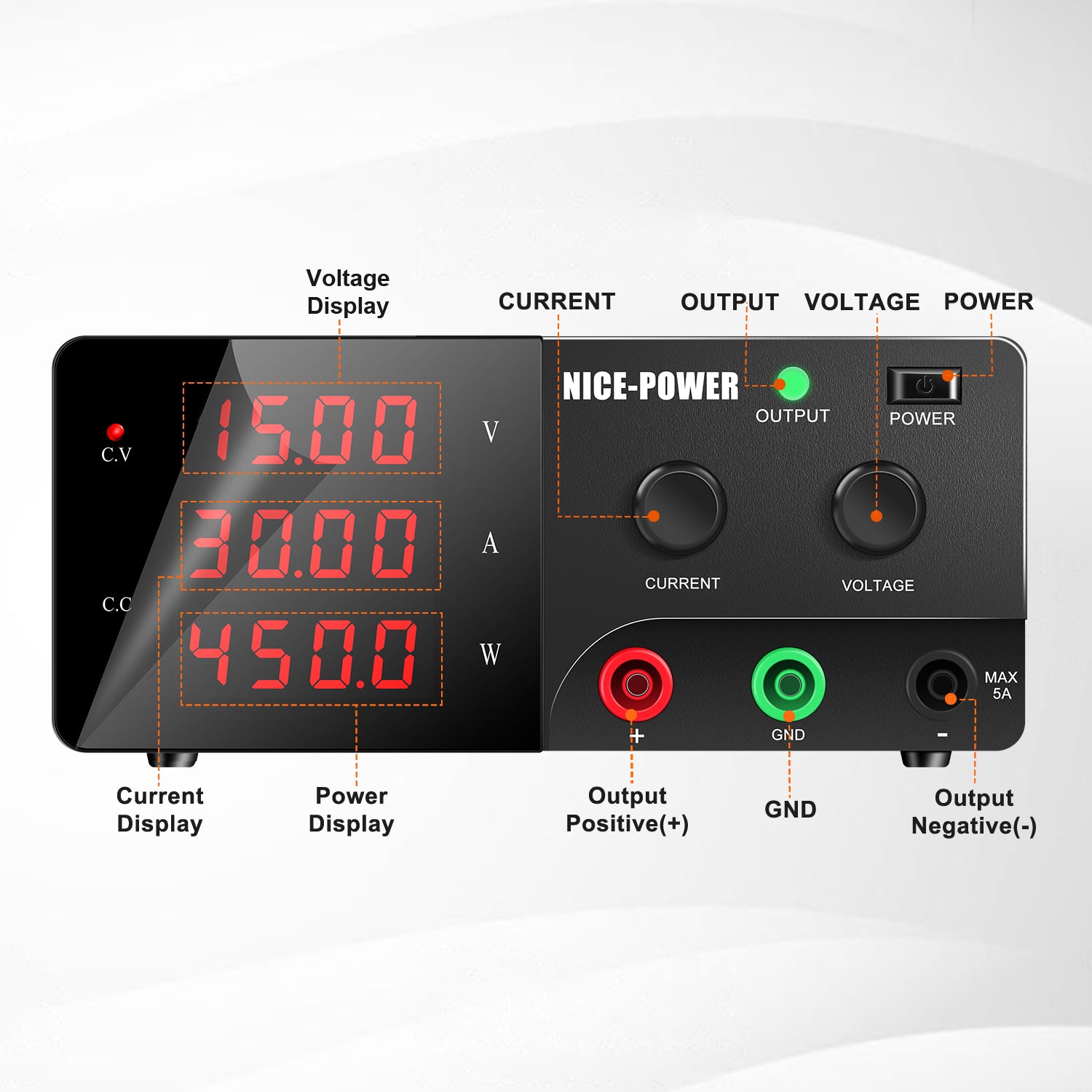

Front & Rear Output Configuration
The front output terminal is designed for applications up to 5A, while the rear output provides the full-power connection for higher-current applications. This configuration allows the 30A DC power supply to adapt to different agricultural equipment requirements. -
Protection for Professional Agricultural Applications
Over-temperature, overload, and short-circuit protection help protect the Agricultural Power Supply and connected agricultural electronics during development and maintenance. -
Optional Remote Control & Data Communication
Optional USB, RS232, and RS485 interfaces can support remote monitoring, control, and data transmission, making the R-SPS1530 suitable for automated agricultural equipment power systems and engineering development.
Applications
Smart Agriculture Equipment
Use the R-SPS1530 as a DC power supply for smart agriculture equipment, including agricultural monitoring systems, electronic control units, sensor systems, communication modules, and intelligent farming equipment.
Agricultural Electronics Development
The 15V 30A DC power supply for agricultural equipment provides adjustable DC power for developing and verifying agricultural electronic circuits, control boards, sensor interfaces, and embedded agricultural systems.
Agricultural Monitoring Systems
Suitable as a power source for agricultural monitoring equipment, including electronic monitoring devices, environmental sensing systems, control electronics, and low-voltage data acquisition equipment.
Agricultural Control Systems
The adjustable output makes this DC power supply for agricultural control systems suitable for engineers working with agricultural controllers, electronic actuators, control boards, and farm automation equipment.
Agricultural Equipment Maintenance
Technicians can use this 30A DC power supply for farm equipment during troubleshooting, repair, component replacement, and electrical system maintenance.
Agricultural Technology R&D
For agricultural technology developers, the R-SPS1530 works as an adjustable power supply for agricultural technology, supporting prototype development, electronic component evaluation, system integration, and engineering validation.
Smart Farming Electronics
Its adjustable 0–15V output and 30A capability make it a practical 15V power supply for agricultural electronics, smart farming controllers, monitoring devices, and other low-voltage agricultural technology.
Agricultural Equipment Engineering
The R-SPS1530 can serve as a 450W DC power supply for agricultural equipment, providing controlled DC power during equipment development, engineering testing, troubleshooting, and maintenance.
Quality Check and Terms of Service:
Model Specifications
| Item | Sub-item | R-SPS1560 | R-SPS1530 |
|---|---|---|---|
| Rated Value (0℃~40℃) | Voltage | 0–15V | 0–15V |
| Current | 0–60A | 0–30A | |
| Power | 900W | 450W | |
| Load Regulation | Voltage | ≤0.1%+10 mV | ≤0.1%+10 mV |
| Current | ≤0.1%+2.5 mA | ≤0.1%+2.5 mA | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA | ≤0.1%+2.5 mA | |
| Setting Resolution | Voltage | 10mV | 10mV |
| Current | 10mA | 10mA | |
| Readback Resolution | Voltage | 10mV | 10mV |
| Current | 10mA | 10mA | |
| Setting Accuracy | Voltage | ≤0.05%+10mV | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | ≤0.01%+10mA | |
| Readback Accuracy | Voltage | ≤0.05%+10mV | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | ≤0.01%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤300 mVp-p
|
≤300 mVp-p
|
| Current | ≤20 mArms | ≤20 mArms | |
| Rise Time (No Load) | Time | ≤150mS | ≤150mS |
| Rise Time (Full Load) | Time | ≤200mS | ≤200mS |
| Fall Time (No Load) | Time | ≤15S | ≤15S |
| Fall Time (Full Load) | Time | ≤50mS | ≤50mS |
| Dynamic Response | Time | ≤20mS | ≤20mS |
| Efficiency | - | ≥85% | ≥85% |
