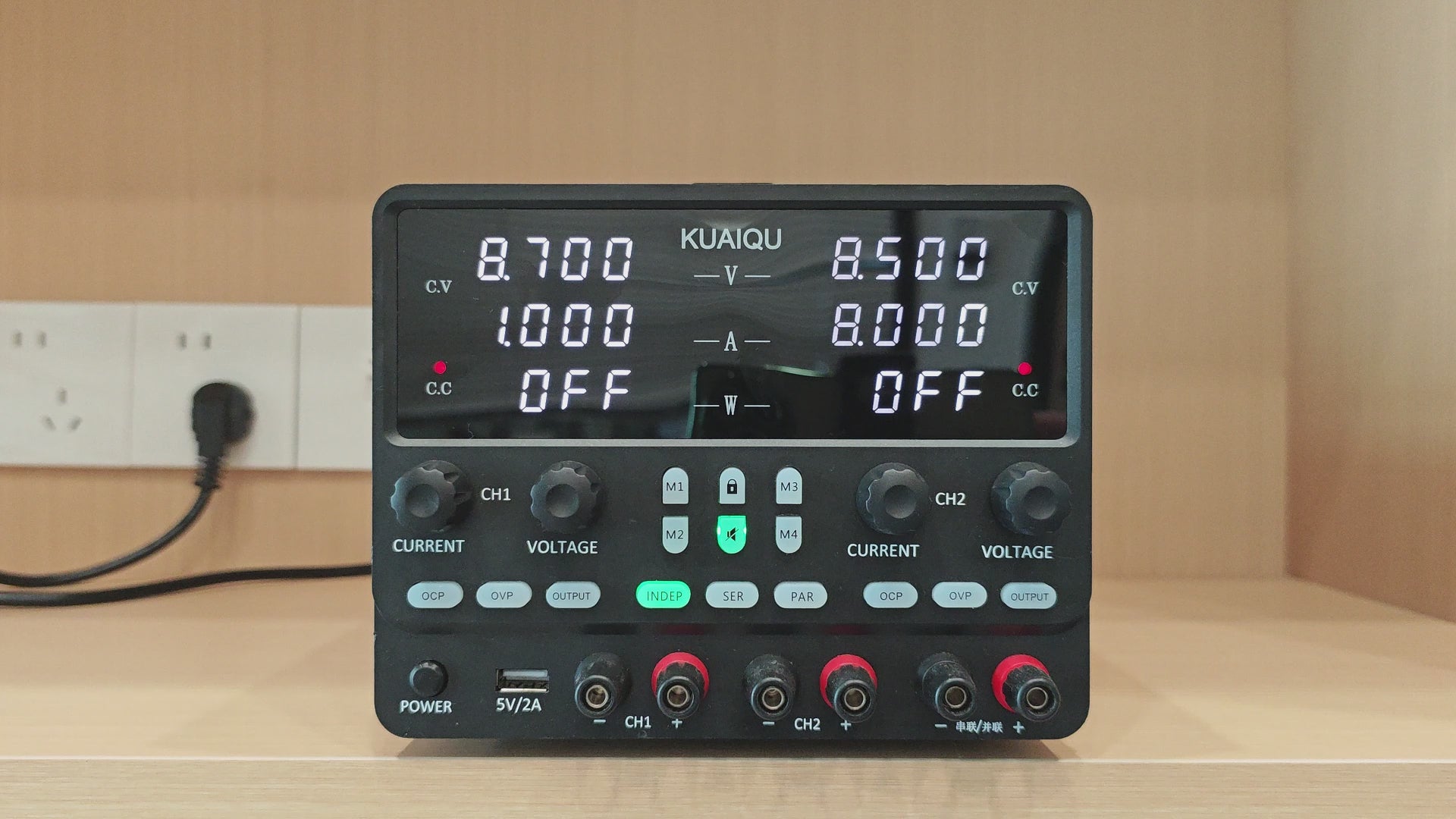

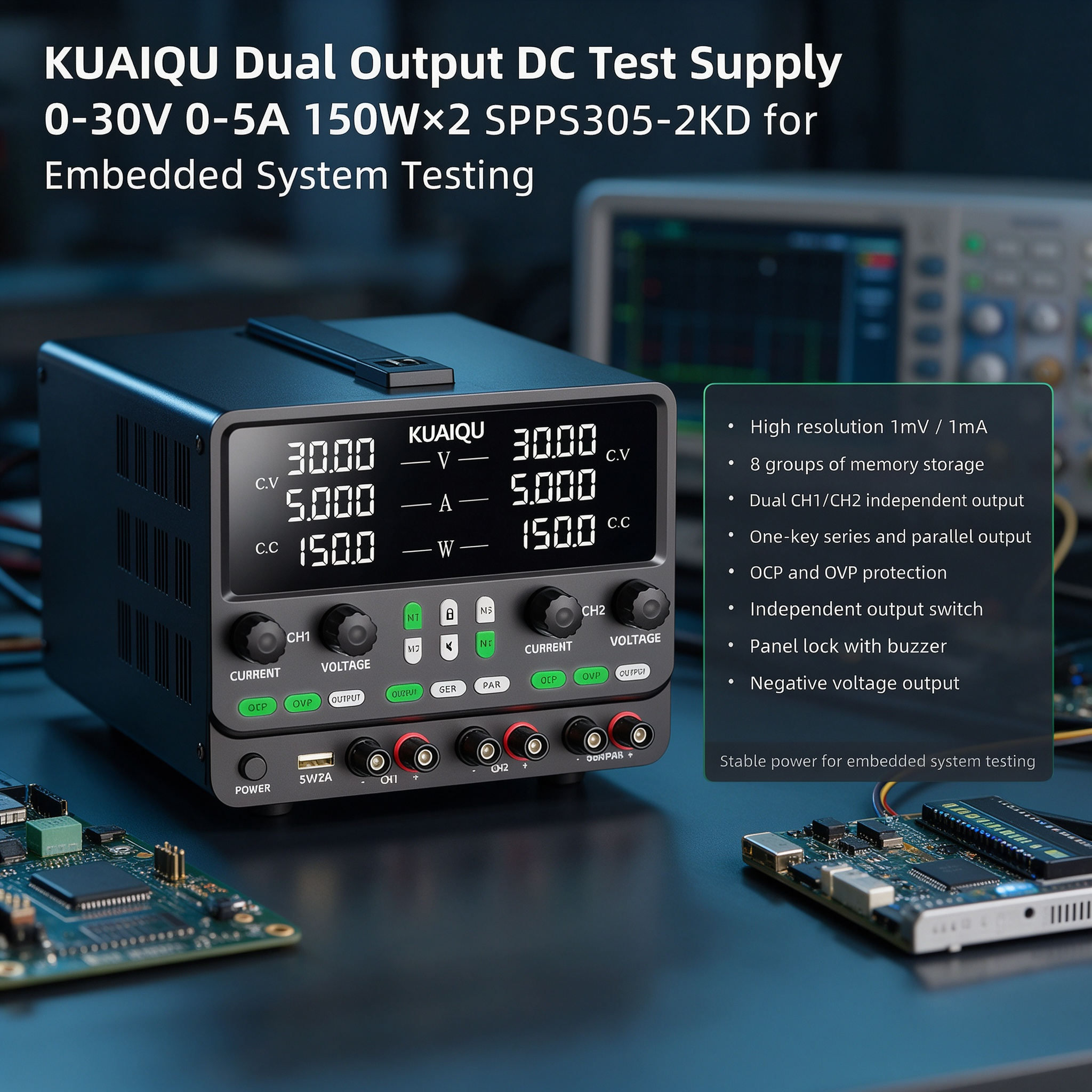

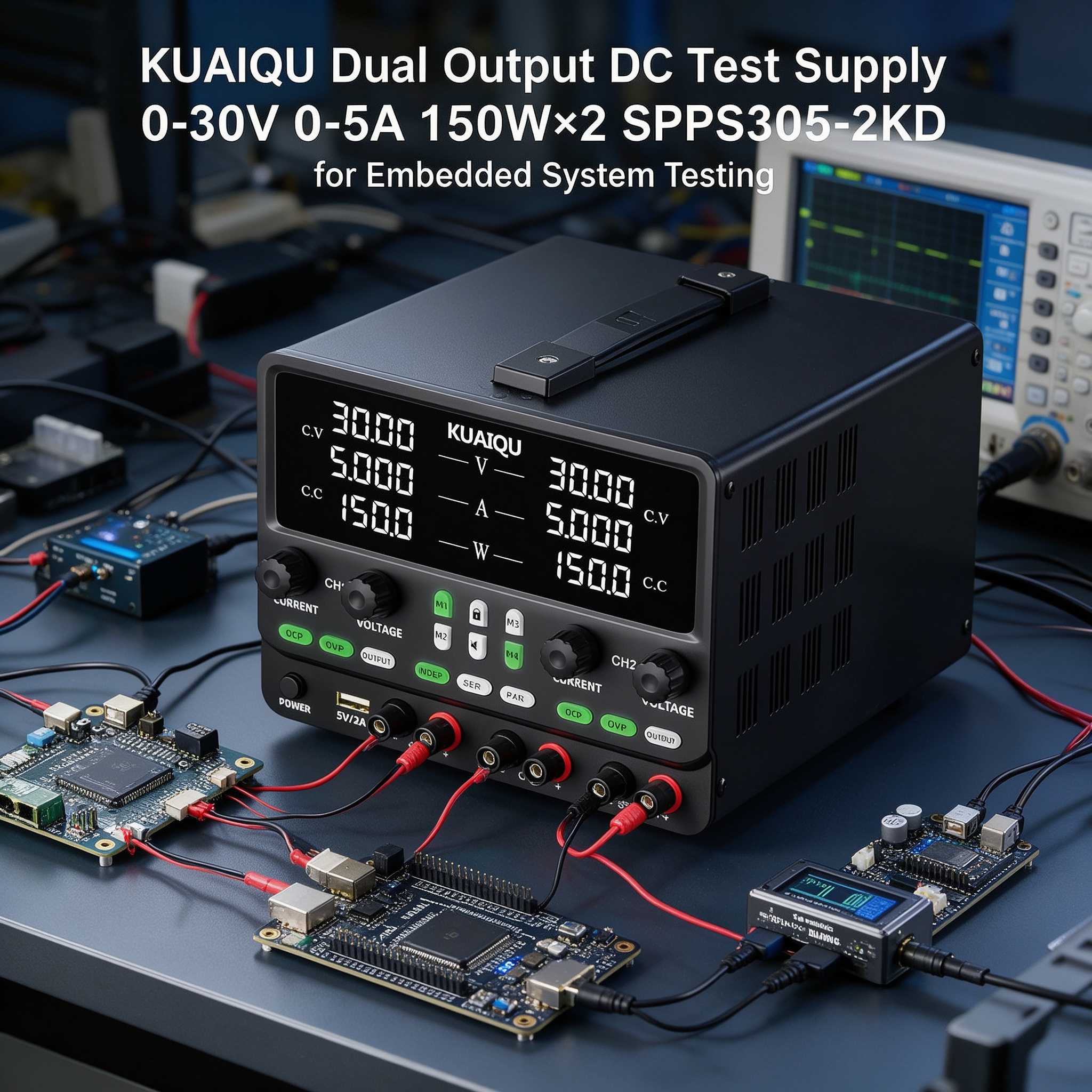

KUAIQU Dual Output DC Test Supply
0-30V 0-5A 150W×2 SPPS305-2KD for
Embedded System Testing
The KUAIQU SPPS305-2KD is a Dual Output DC Test Supply designed for Embedded System Testing, embedded hardware development, controller board testing, and electronic module verification. It provides two independent adjustable output channels, with each channel supporting 0-30V, 0-5A, and 150W output, allowing users to establish separate DC power conditions for embedded controllers, development boards, peripheral circuits, and related electronic modules.
Embedded System Testing often involves different power requirements between the main control board and peripheral circuits. The SPPS305-2KD allows CH1 and CH2 to operate independently, while Series and Parallel modes provide additional output configurations when higher voltage or current is required within the specified range. Precision encoder adjustment, OCP and OVP, Output ON/OFF control, and 8-group memory provide practical control for repeated embedded hardware testing.
Key Features
Dual Output for Embedded System Testing
The SPPS305-2KD provides two independent DC output channels, with each channel supporting 0-30V, 0-5A, and 150W output.
For Embedded System Testing, the two channels can be configured separately to supply different parts of a test setup. One channel can provide power to an embedded controller or development board while the other can supply a related peripheral circuit or electronic module, helping users establish separate adjustable power conditions during hardware testing.

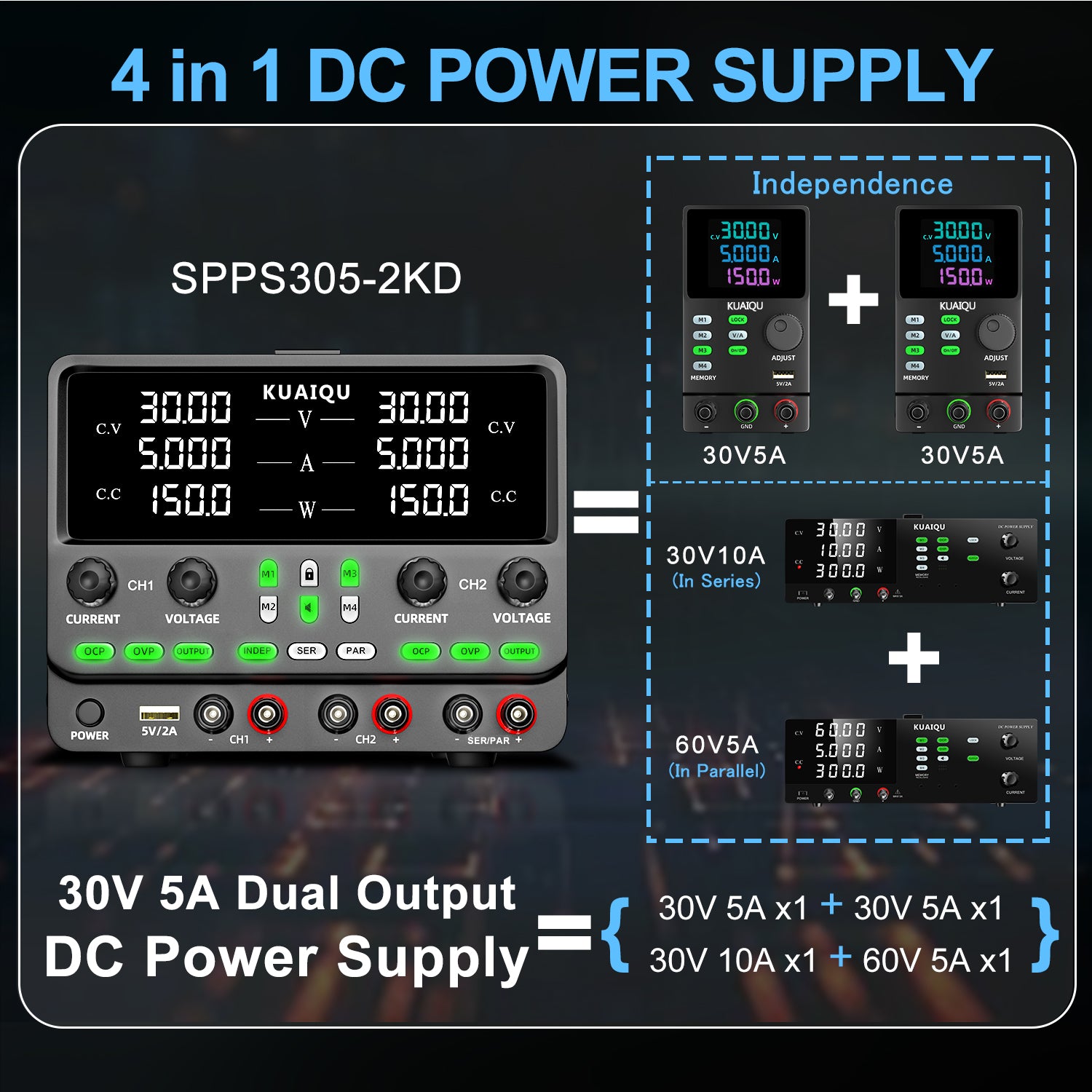

Independent, Series, and Parallel Output Modes
The SPPS305-2KD supports Independent, Series, and Parallel output configurations for different embedded hardware test requirements.
In Independent Mode, both channels provide separate 0-30V and 0-5A outputs. In Series Mode, the two channels can provide up to 0-60V and 0-5A. In Parallel Mode, the two channels can provide up to 0-30V and 0-10A.
The dedicated Series and Parallel output port avoids complicated wiring when changing the output configuration, making it practical when an embedded system test requires different voltage or current conditions.
Precision Encoder Adjustment for Embedded Hardware
The SPPS305-2KD uses high-precision encoder adjustment for voltage and current control.
During Embedded System Testing, users may need to adjust the supply conditions for different hardware configurations. The 10mV voltage setting resolution and 1mA current setting resolution allow controlled adjustment within the specified output range for development boards, controller circuits, and electronic modules.

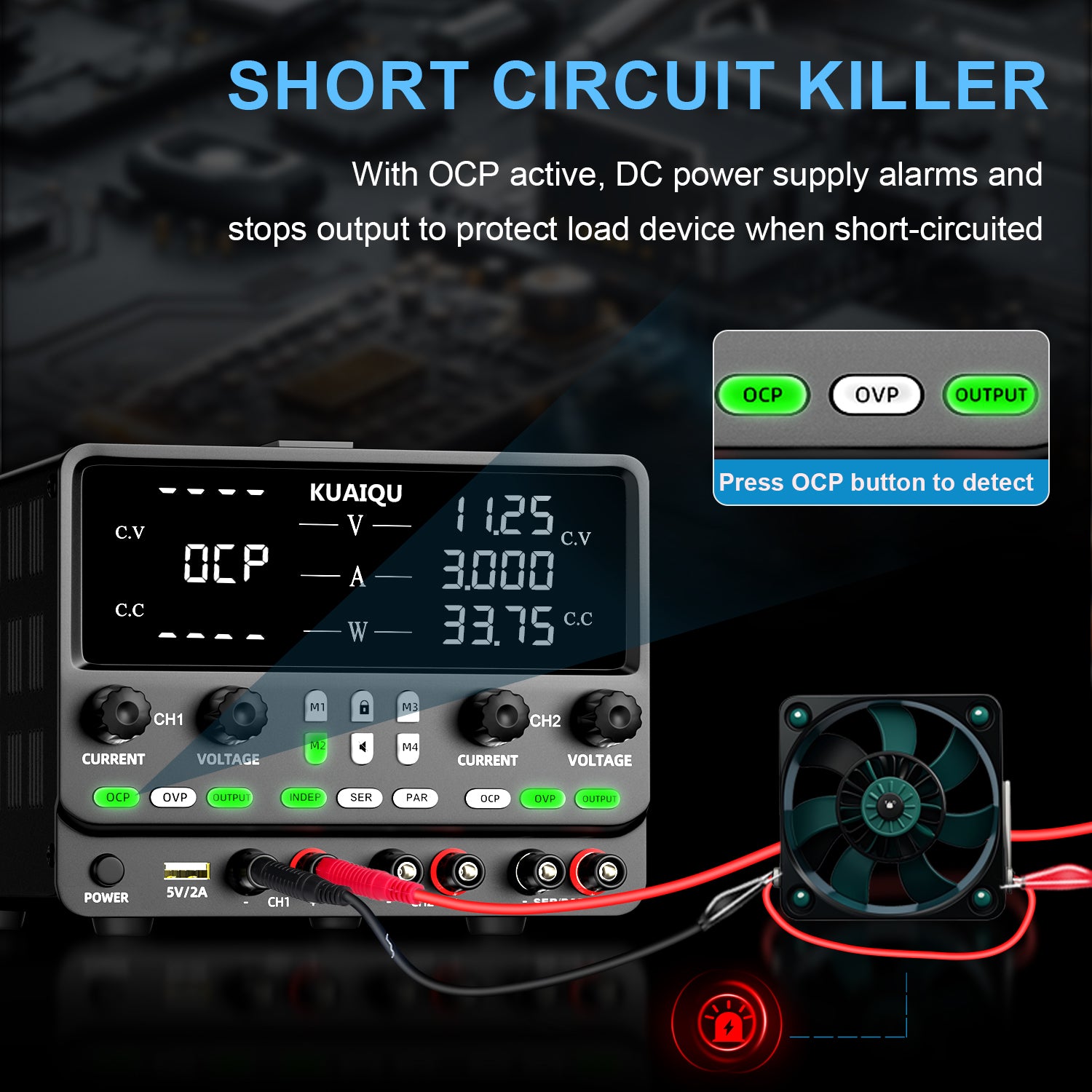

OCP and OVP Protection
The SPPS305-2KD provides Over Current Protection and Over Voltage Protection for Independent, Series, and Parallel output modes.
Embedded hardware may contain sensitive electronic circuits, and incorrect voltage or current settings can cause unexpected operating conditions. OCP and OVP can turn off the output when the corresponding protection condition is triggered, helping protect the DC Test Supply and connected loads during testing.

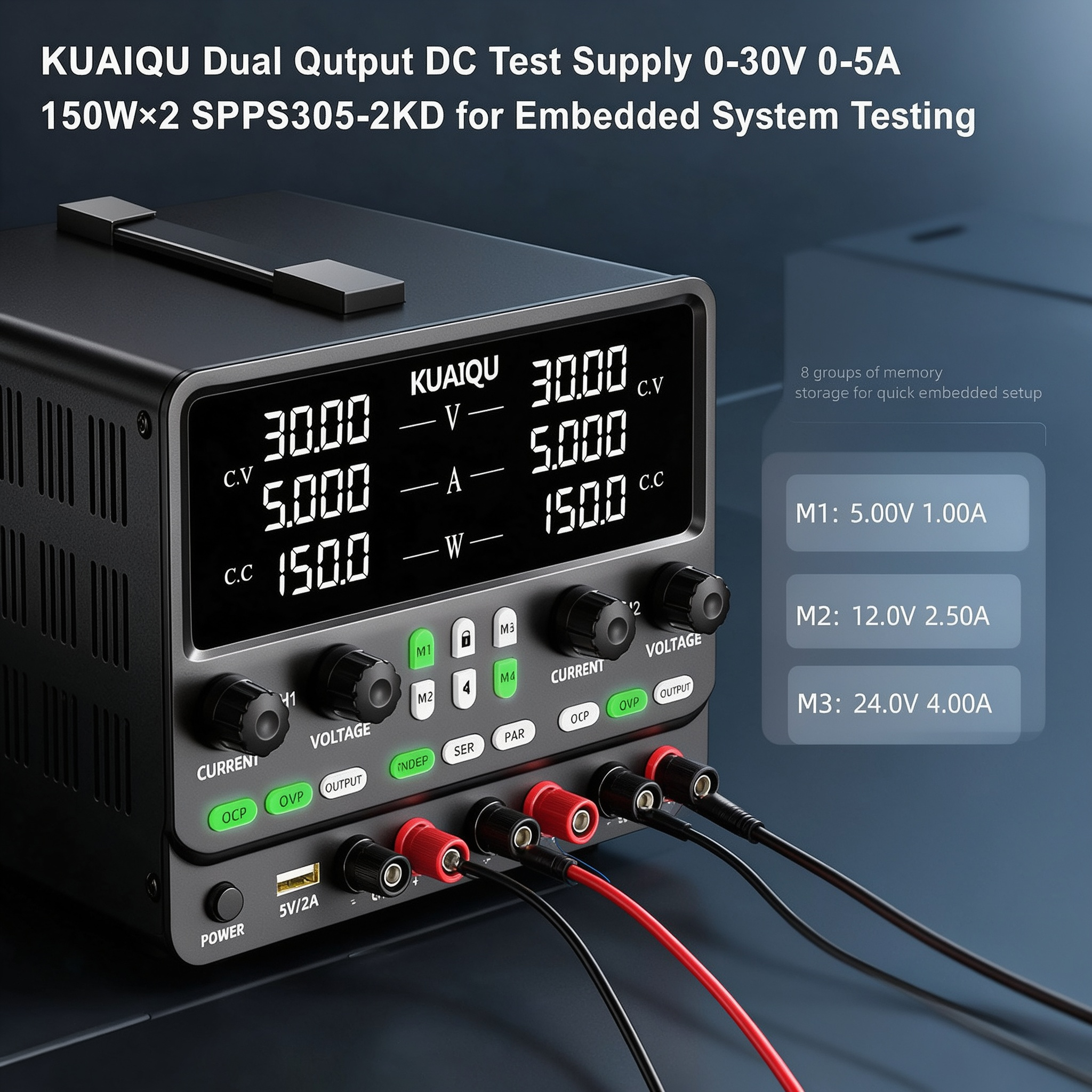

Output ON/OFF and 8-Group Memory
The SPPS305-2KD provides dedicated Output ON/OFF control and supports 8 groups of memory.
The memory function provides two groups for each independent channel and two groups for Series and Parallel modes. Frequently used voltage and current settings can therefore be stored for repeated Embedded System Testing, reducing the need to repeatedly configure the same test conditions.
Panel Lock and Negative-0-Positive Voltage Output
The SPPS305-2KD includes a Panel Lock function with buzzer and supports Negative Voltage - 0 - Positive Voltage output mode.
Panel Lock can help prevent unintended changes to the configured output settings during embedded hardware testing. The Negative Voltage - 0 - Positive Voltage output mode provides an additional power configuration for embedded circuits and electronic systems that require positive and negative supply conditions.
Applications
Embedded Controller Board Testing
The SPPS305-2KD can provide adjustable DC power for embedded controller boards during hardware development and verification.
The dual output configuration allows users to establish separate power conditions for a controller board and related circuits. Voltage and current can be adjusted according to the requirements of the embedded hardware under test.

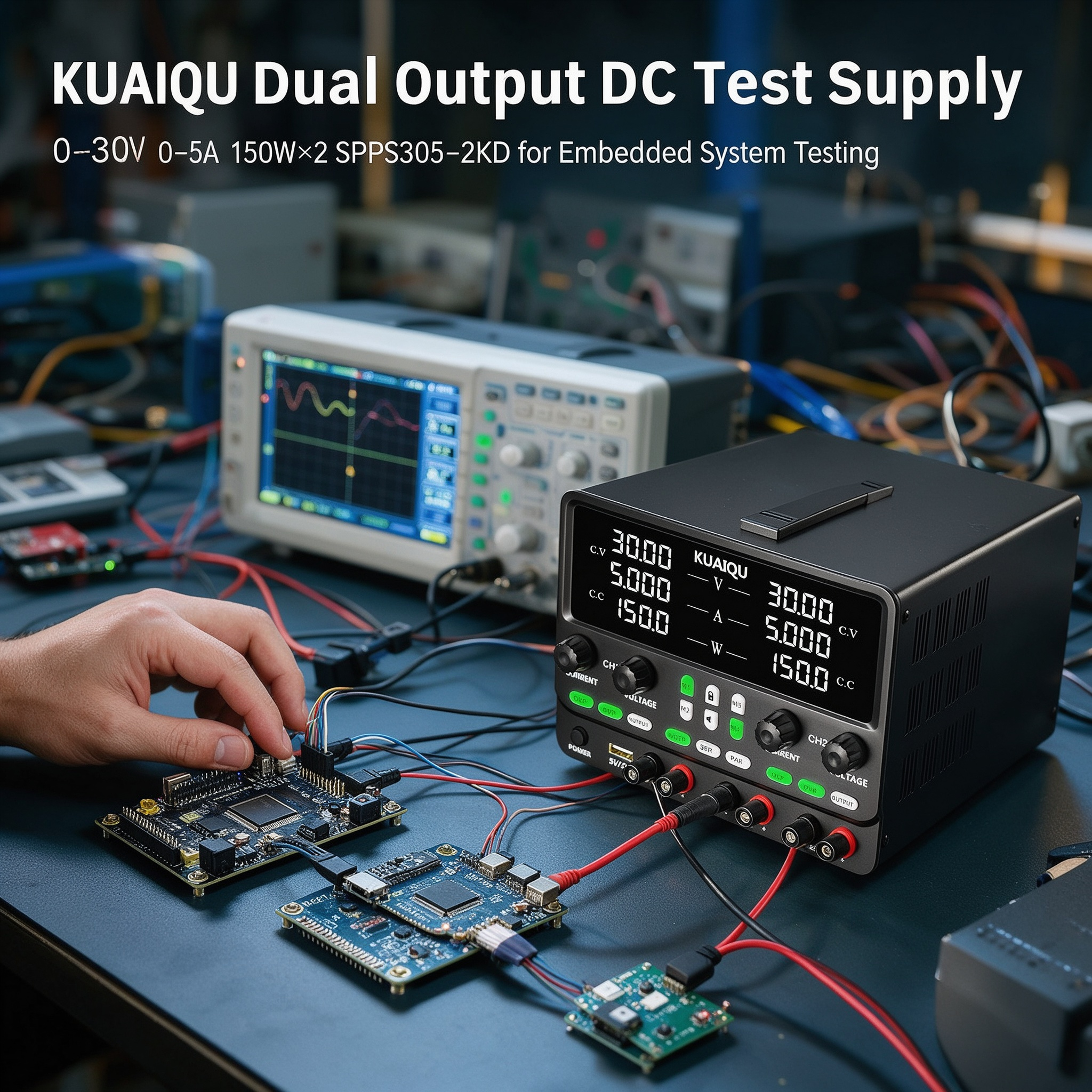

Development Board and Peripheral Module Testing
Embedded systems commonly include a main development board together with peripheral modules.
The two independent output channels of the SPPS305-2KD can be used to supply different parts of the test setup. This provides a practical way to establish separate adjustable DC power conditions when testing development boards, peripheral circuits, and related electronic modules.
Embedded Hardware Power Condition Testing
During Embedded System Testing, users may need to evaluate hardware under different supply voltage and current conditions.
The adjustable 0-30V and 0-5A output per channel allows users to configure different DC power conditions within the product's specified range. Series and Parallel modes provide additional output configurations when the test requires higher voltage or current capability.
Repeated Embedded System Testing
For development projects that require repeated testing, the 8-group memory function can store commonly used output settings for Independent, Series, and Parallel modes.
Combined with Output ON/OFF control, precision encoder adjustment, OCP and OVP, and Panel Lock, the SPPS305-2KD provides practical control for repeated embedded hardware development and verification tasks.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPPS305-2KD |
| Independent Mode Voltage |
0-30V × 2 Channels |
| Independent Mode Current |
0-5A × 2 Channels |
| Independent Mode Power |
150W × 2 Channels |
| Series Mode Voltage |
0-60V |
| Series Mode Current |
0-5A |
| Series Mode Power |
300W |
| Parallel Mode Voltage |
0-30V |
| Parallel Mode Current |
0-10A |
| Parallel Mode Power |
300W |
| USB Output |
5V 2A |
| Load Regulation Voltage |
≤0.3%+10mV |
| Load Regulation Current |
≤0.1%+2.5mA |
| Line Regulation Voltage |
≤0.01%+2.5mV |
| Line Regulation Current |
≤0.1%+2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
1mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
1mA |
| Setting Accuracy Voltage |
≤0.05%+10mV |
| Setting Accuracy Current |
≤0.01%+10mA |
| Readback Accuracy Voltage |
≤0.05%+10mV |
| Readback Accuracy Current |
≤0.01%+10mA |
| Ripple Voltage, Independent |
≤150mVp-p, ≤10mVrms |
| Ripple Voltage, Series/Parallel |
≤200mVp-p, ≤15mVrms |
| Ripple Current, Independent |
≤10mArms |
| Ripple Current, Series/Parallel |
≤20mVrms |
| Rise Time, No Load |
≤200mS |
| Rise Time, Full Load |
≤300mS |
| Fall Time, No Load |
≤15S |
| Fall Time, Full Load |
≤300mS |
| Dynamic Response |
≤200mS |
| Efficiency |
≥85% |
| Input Voltage |
110V/8A, 220V/5A |
| Protection Functions |
OCP, OVP |
| Memory Function |
8 groups |
| Control Features |
Independent Output ON/OFF, One-Key Series/Parallel, Panel Lock, Buzzer |
| Adjustment Method |
Encoder Adjustment |
| Output Mode |
Negative Voltage - 0 - Positive Voltage |
| Rated Value Temperature |
0℃-40℃ |
| Size |
About 24 × 12.5 × 13 cm |
| Net Weight |
About 2.75 kg |
| Package Size |
About 38.5 × 23.5 × 20 cm |
| Package Weight |
About 3.4 kg |
| Carton Quantity |
4 pcs/carton |
Why Choose KUAIQU SPPS305-2KD?
The KUAIQU SPPS305-2KD combines a Dual Output DC Test Supply with flexible Independent, Series, and Parallel output configurations for Embedded System Testing.
With two independent 0-30V, 0-5A channels and 150W×2 independent power capability, the SPPS305-2KD can provide separate adjustable DC power conditions for embedded controller boards, development boards, peripheral circuits, and electronic modules. Series and Parallel modes provide additional voltage and current configurations when required by the test setup.
Precision encoder adjustment, OCP and OVP, Output ON/OFF control, 8-group memory, Panel Lock, and Negative Voltage - 0 - Positive Voltage output provide practical functions for embedded hardware development, controller board testing, peripheral module testing, and repeated verification work.
For users who need a Dual Output DC Test Supply for Embedded System Testing, the SPPS305-2KD provides flexible output configuration and practical control functions within its specified 30V and 5A per-channel range.
