Multi-channel Temperature Tester -200° C~1300° C 8 Channels 16 Channels 24 Channels Handheld Temperature Logger U disk Storage

$639.90 USD

Sale Sold out

Model 8 channels 16 channels 24 channels

Quantity

Overview

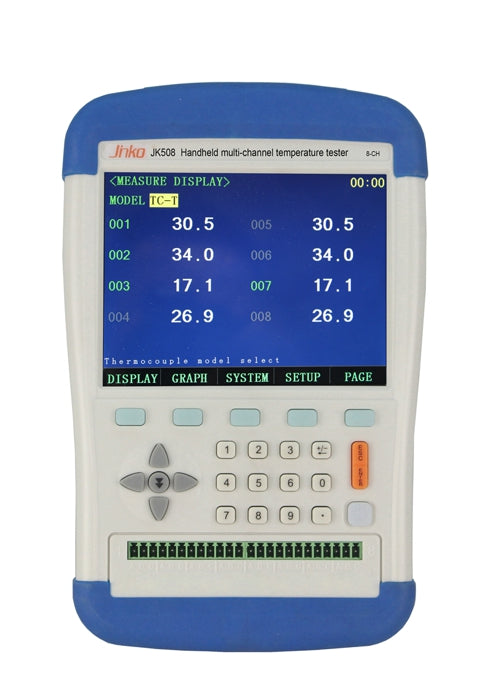

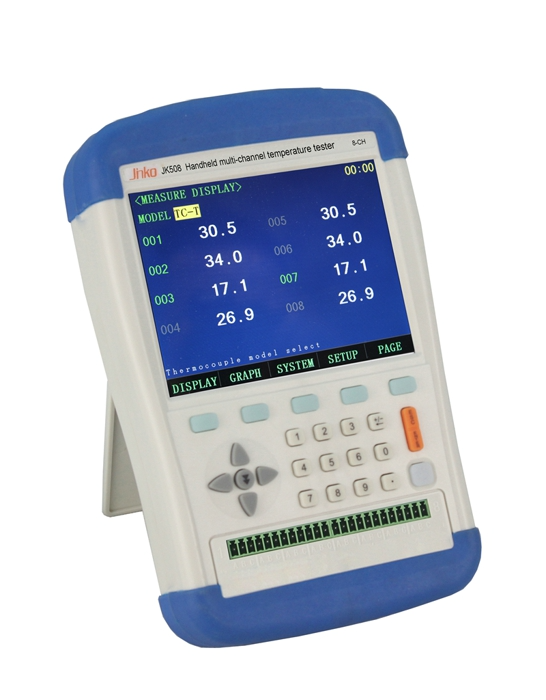

The Handheld Multi-Channel Temperature Tester, controlled by an ARM microprocessor, enables parallel sampling, data acquisition, alarming, and communication. Compatible with multiple temperature sensors, it offers fast response, stable data, and a wide temperature measurement range. With easy operation, large storage capacity, and strong PC communication capabilities, it's ideal for diverse temperature testing needs.

Key Features

5.6-inch TFT true-color LCD display with Chinese/English options.

Cold junction compensation for accurate measurements.

USB disk interface for large-capacity storage and real-time data saving.

Mini USB interface for PC communication, with free JK808A data acquisition software for data collection, analysis, and printing.

Open-circuit automatic detection and specified channel scanning functions.

Rugged vibration-resistant shell and fully isolated digital/analog signals for safe use in harsh environments.

Technical Specifications

Parameter	8 Channels	16 Channels	24 Channels
Thermocouple Types	J/K/T/E/S/N/B	J/K/T/E/S/N/B	J/K/T/E/S/N/B
Basic Accuracy	0.2% + 1°C	0.2% + 1°C	0.2% + 1°C
Measurement Range	-200°C - 1300°C (varies by thermocouple type)	-200°C - 1300°C (varies by thermocouple type)	-200°C - 1300°C (varies by thermocouple type)
Resolution	0.1°C	0.1°C	0.1°C
Channel Expansion	Expandable to 128 channels	Expandable to 128 channels	Expandable to 128 channels
Scanning Speed	Fast: 100ms/channel; 8 channels: 800ms	Fast: 100ms/channel; 16 channels: 1600ms	Fast: 100ms/channel; 24 channels: 2400ms
Calibration	Error correction for each channel	Error correction for each channel	Error correction for each channel
Comparator	Upper/lower over-alarm, independent upper/lower limit setting for each channel	Upper/lower over-alarm, independent upper/lower limit setting for each channel	Upper/lower over-alarm, independent upper/lower limit setting for each channel
Communication Interface	USB communication interface	USB communication interface	USB communication interface
Equipped Software	JK808A data acquisition software	JK808A data acquisition software	JK808A data acquisition software
Cold Junction Compensation Accuracy	0.5°C	0.5°C	0.5°C
Other Features	TFT-LCD true-color display, open-circuit detection	TFT-LCD true-color display, open-circuit detection	TFT-LCD true-color display, open-circuit detection
Power Requirements	Input: 100-240V ~ 50/60Hz 0.35A; Output: 9V DC 8.4V, Li, 2200mAh rechargeable battery	Input: 100-240V ~ 50/60Hz 0.35A; Output: 9V DC 8.4V, Li, 2200mAh rechargeable battery	Input: 100-240V ~ 50/60Hz 0.35A; Output: 9V DC 8.4V, Li, 2200mAh rechargeable battery

Application Scenarios

Home Appliances: Testing temperature of components in refrigerators, air conditioners, and washing machines to ensure safe operation.

Motor Manufacturing: Measuring temperature of motor windings and casings during operation and under load to prevent overheating.

Electric Heaters: Checking temperature distribution in electric heaters for uniform heating and safety compliance.

Thermostats: Verifying accuracy and response time of thermostats at different temperature points for reliable control.

Transformers: Monitoring temperature of transformer coils and oil during operation to ensure longevity and safety.

Ovens: Calibrating and testing temperature uniformity inside ovens for consistent cooking or baking results.

Get this Handheld Multi - Channel Temperature Tester today for accurate and efficient temperature measurement!
