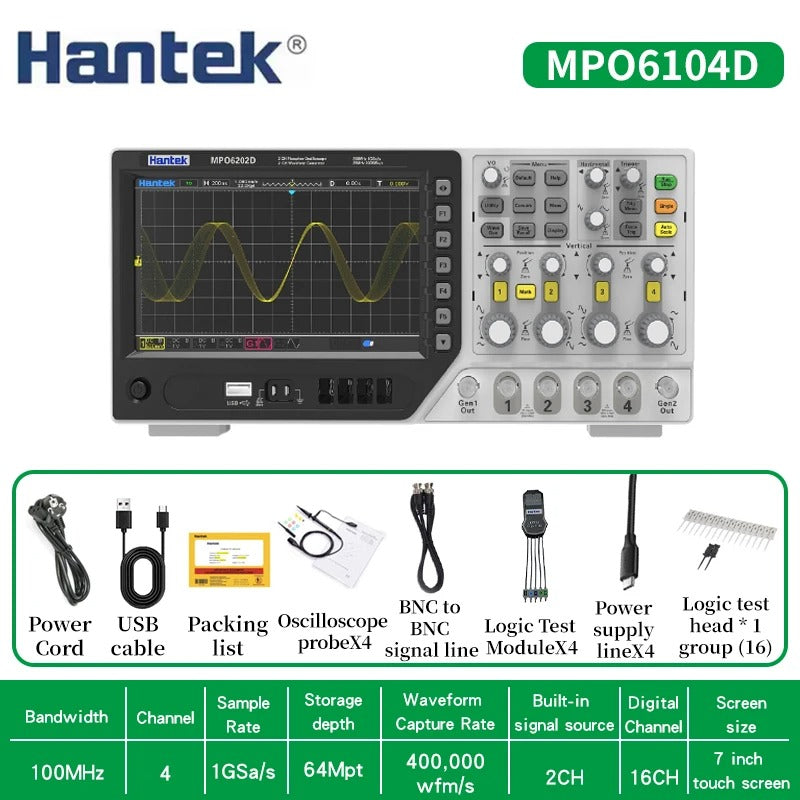

Model: MPO6104D
Subtotal: $669.90
10 customers are viewing this product

Storewide Discounts

Spend $100+ for 10% OFF | $300+ for 15% OFF | $400+ for 20% OFF. Discounts will be automatically deducted at checkout.

Free Shipping

We offer free express shipping on all orders.

You'll receive your order an estimated 7-15 working days after shipment.

Free Returns

30-Day return and refund guarantee refer to our refund policy.
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing

Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing

$669.90
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing
Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing

Hantek MPO6104D MPO6204D Digital Oscilloscope 4CH-Fluorescent Screen Oscilloscope 100MHz 200MHz for Pro Multi-Signal Testing

$669.90
Model: MPO6104D
Product Details

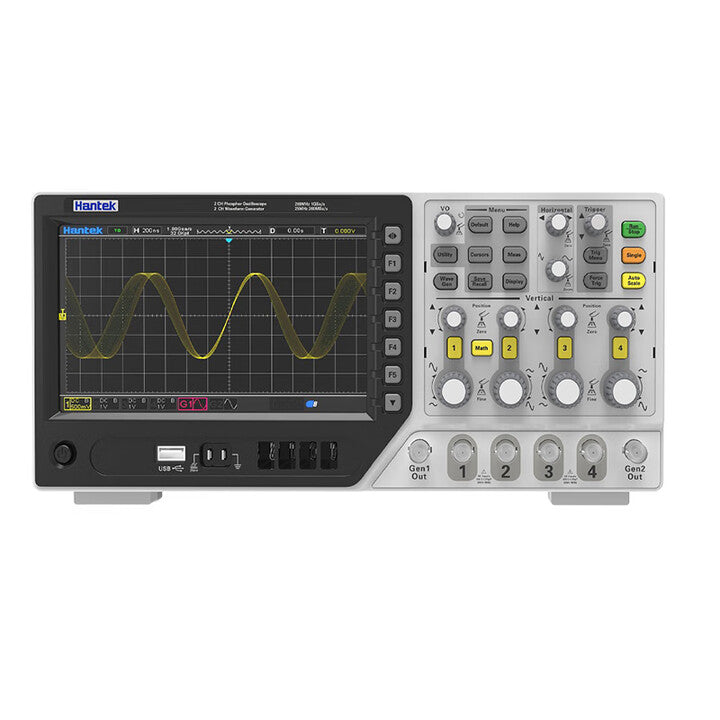

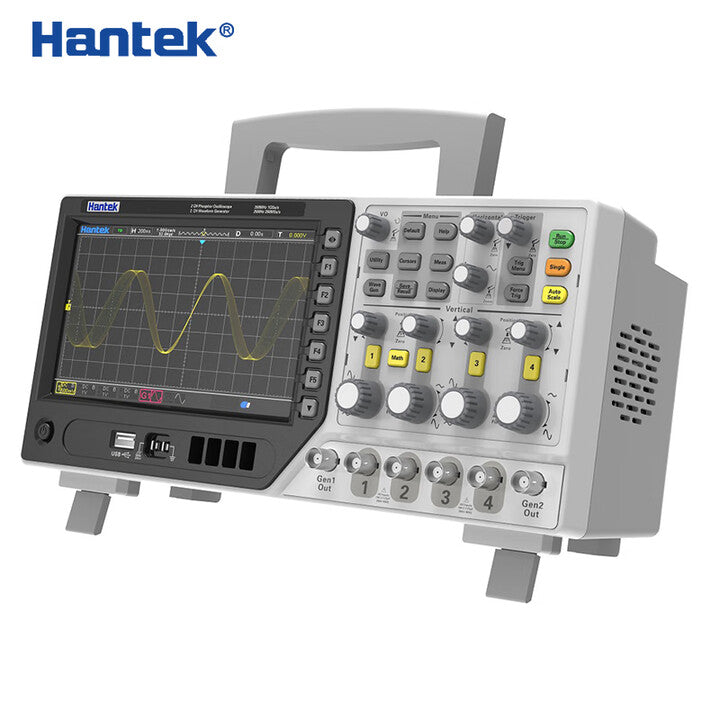

Hantek MPO6004D Series Oscilloscopes: 4CH + 2CH AWG + 16CH LA for Pro Multi-Signal Testing

Need all-in-one testing for complex digital-analog hybrid systems? The Hantek MPO6004D Series (MPO6104D/MPO6204D) integrates 4-channel scope + 2CH 25MHz AWG + 16-channel logic analyzer, with 1GSa/s sampling rate and bandwidth options (100MHz/200MHz)—ideal for aerospace, 5G R&D, embedded systems, and premium labs.

1. Shared Core Functions & Design

  • 7-in-1 Integration: 4CH analog scope + 16CH logic analyzer (LA) + 2CH AWG + serial decoder (UART/LIN/CAN/SPI/IIC) + FFT + DVM + Bode diagram; no extra tools needed.
  • High-Speed Capture: 400,000 FPS waveform capture rate + 64M single-channel memory depth, capturing fast glitches and long-period signals without distortion.
  • Intuitive Touch Control: 7-inch 800×480 capacitive touch screen (16M color, 256-grade color temperature); adjustable brightness/grid for clear viewing.
  • Pro-Grade Tools: 16 trigger types (including 5 protocol triggers), 42 auto-measurements (with stats), and segmented acquisition (up to 80,000 sections).

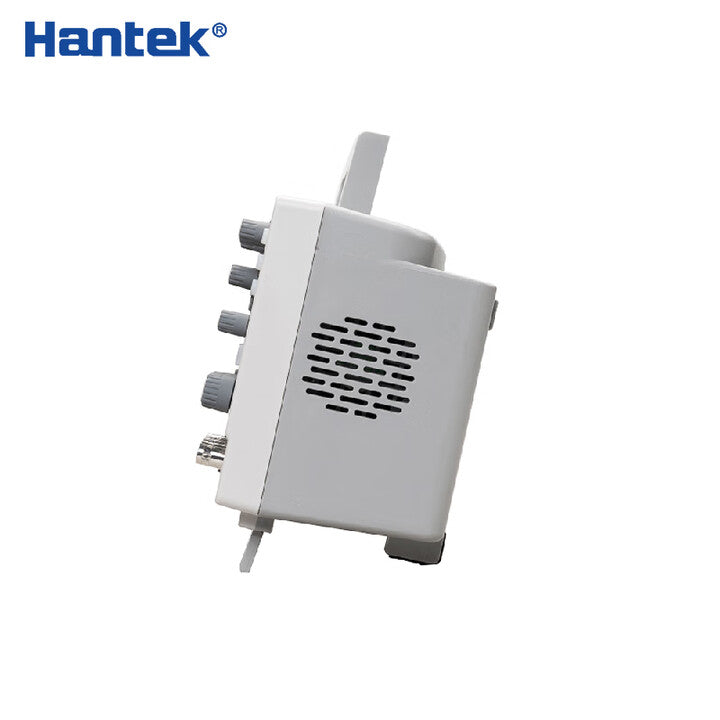

  • Safety & Connectivity: 300V CAT II input; USB Host/Device, LAN (LXI CORE 2011 compliant); convection cooling (quiet); -40~71℃ storage temperature.

2. Model Differences: Bandwidth & Strengths

Parameter
MPO6104D

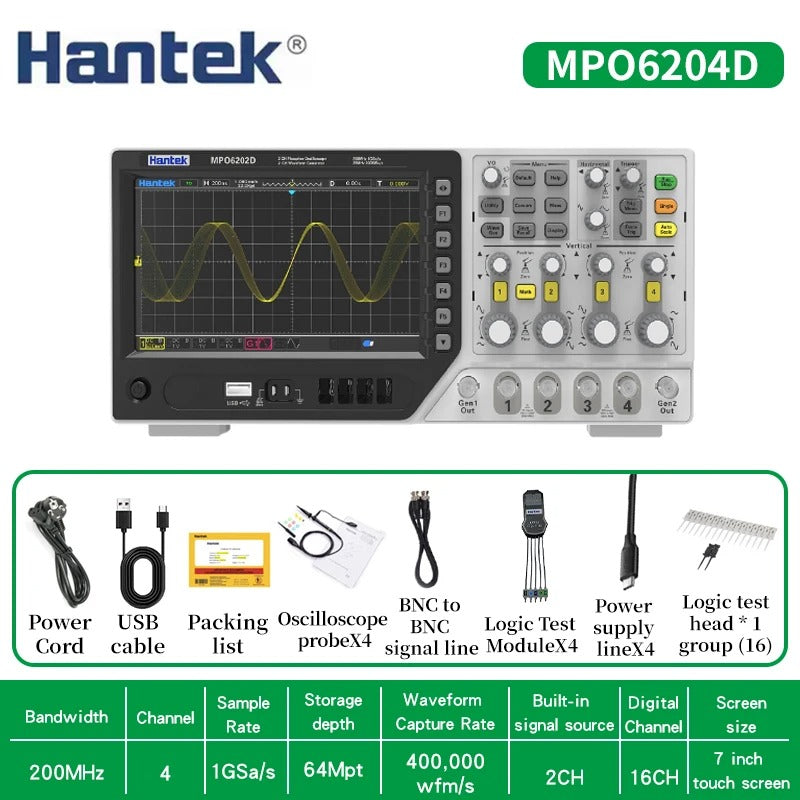

MPO6204D
Bandwidth
100MHz
200MHz
Typical Rise Time
≤3.5ns
≤1.8ns
Core Strength
Balances performance & cost for mid-speed digital-analog hybrid testing
Ultra-high freq for 5G/RF and high-speed serial bus analysis

3. Key Shared Specifications

Parameter
Detail
Sampling Rate
1GSa/s (single CH), 500MSa/s (dual CH), 250MSa/s (3-4 CH);
LA: 1GSa/s
Memory Depth
64M (single CH), 32M (dual CH), 16M (3-4 CH)
AWG Performance
25MHz max freq, 200MSa/s sampling, 12-bit resolution; 10mV~7Vp-p (High-Z)
LA Features
8 adjustable thresholds (TTL/3.3V CMOS/etc.), -25V~25V input range
Vertical Sensitivity
500μV/div~10V/div, ±3% DC gain accuracy
Time Base Range
2ns/div~100s/div
Power
100-240VAC±10% (45-66Hz), <30W

4. Core Advantages (All Models)

  • All-in-One Value: Scope + AWG + LA eliminates 3+ separate devices, saving bench space and cost.
  • Hybrid Signal Expertise: Simultaneously test analog signals (e.g., sensors) and digital logic (e.g., MCU pins) for complex systems.
  • Precision & Speed: 400,000 FPS capture + 64M memory ensures no detail is missed—even rare glitches.

5. Ideal Use Scenarios

 MPO6104D (100MHz)

  • Embedded system debugging (MCU + sensor hybrid circuits)
  • 4G module testing (CAN/LIN bus + analog RF signals)
  • Industrial controller QC (digital logic + power supply signals)

 MPO6204D (200MHz)

  • 5G RF R&D (high-speed serial buses + analog RF components)
  • Aerospace electronics testing (high-freq control signals + digital logic)
  • Premium lab validation (high-speed ADC/DAC + microwave device analysis)

6. How to Choose?

  • Pick MPO6104D for mid-speed digital-analog hybrid tasks (4G/industrial).
  • Pick MPO6204D for high-frequency 5G/aerospace R&D.
Elevate complex system testing! Select your model and click “Add to Cart” for Hantek MPO6004D.
