KUAIQU SPS305C 30V 5A DC Power Supply

for Battery Charging with Ah Display

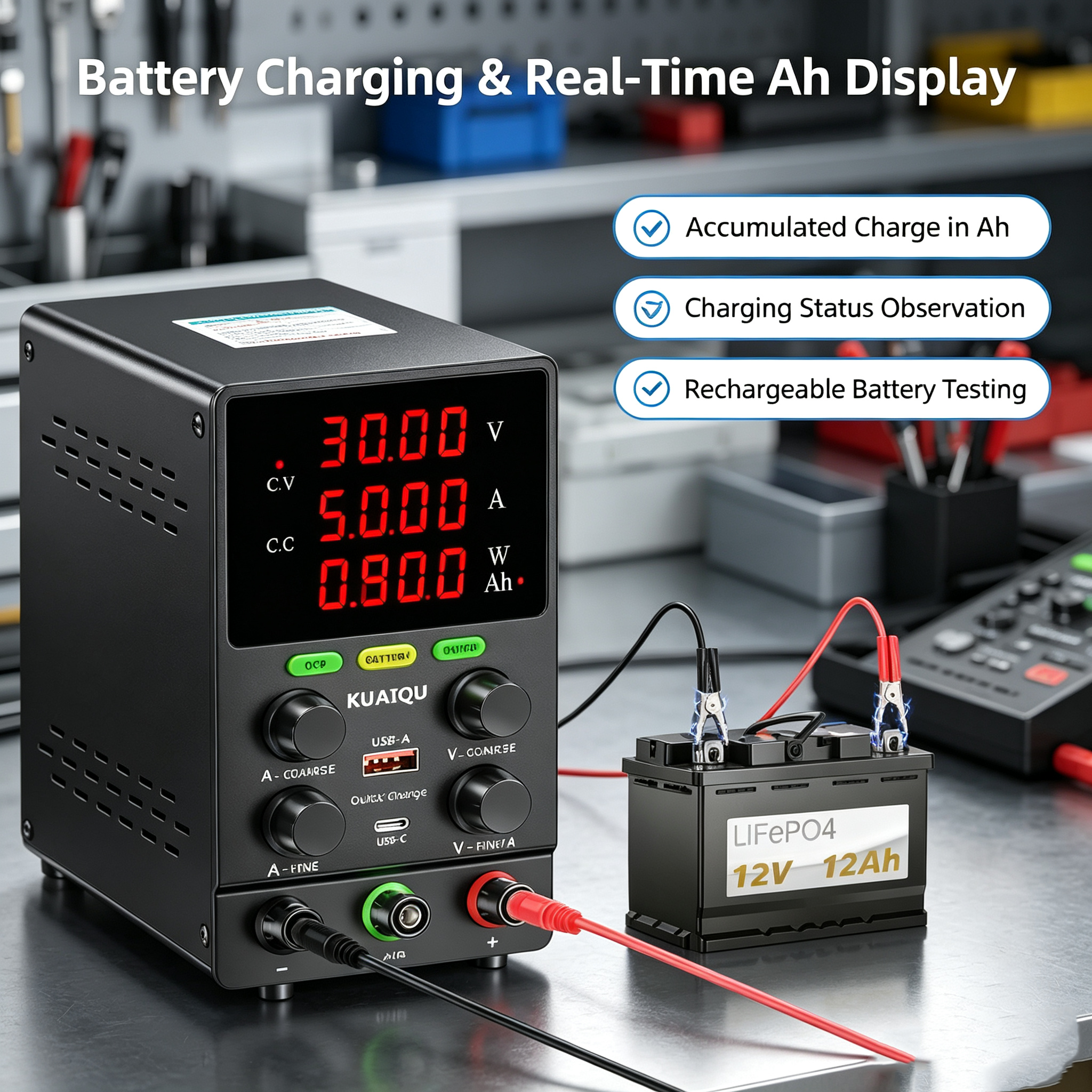

✦ Battery Charging & Real-Time Ah Display

The KUAIQU SPS305C is a 30V 5A DC power supply with battery charging function, designed for battery charging, charging process monitoring, battery-related testing, electronics service, and laboratory applications. With a maximum output of 0–30V, 0–5A, and 150W, the SPS305C provides adjustable DC power for compatible rechargeable batteries and electronic devices.

The dedicated battery charging function allows users to monitor the charging process through the built-in digital display.

The SPS305C displays:

• Output voltage

• Charging current

• Charging power

• Accumulated charged amount in Ah

• Battery charging status

• Output status

The Ah display provides real-time information about the accumulated amount of charge delivered during the charging process, making it useful for observing charging progress and comparing charging conditions during battery-related testing.

This combination of adjustable DC output and real-time charging information makes the SPS305C suitable for Battery Charging & Capacity Monitoring, battery service, electronics laboratories, and charging process evaluation.

✦ Adjustable 0–30V / 0–5A DC Output

The SPS305C provides a 0–30V adjustable output voltage and 0–5A adjustable output current, with a maximum output power of 150W.

The adjustable output allows users to set appropriate voltage and current parameters according to the requirements of compatible rechargeable batteries and connected electronic equipment.

The SPS305C supports:

• 0–30V adjustable output voltage

• 0–5A adjustable output current

• 150W maximum output power

• 10mV voltage setting resolution

• 1mA current setting resolution

• 10mV voltage readback resolution

• 1mA current readback resolution

• Real-time voltage, current, power and Ah display

The precise adjustment capability makes the SPS305C suitable for controlled battery charging and electronics testing where users need to monitor charging voltage, current, and accumulated charge.

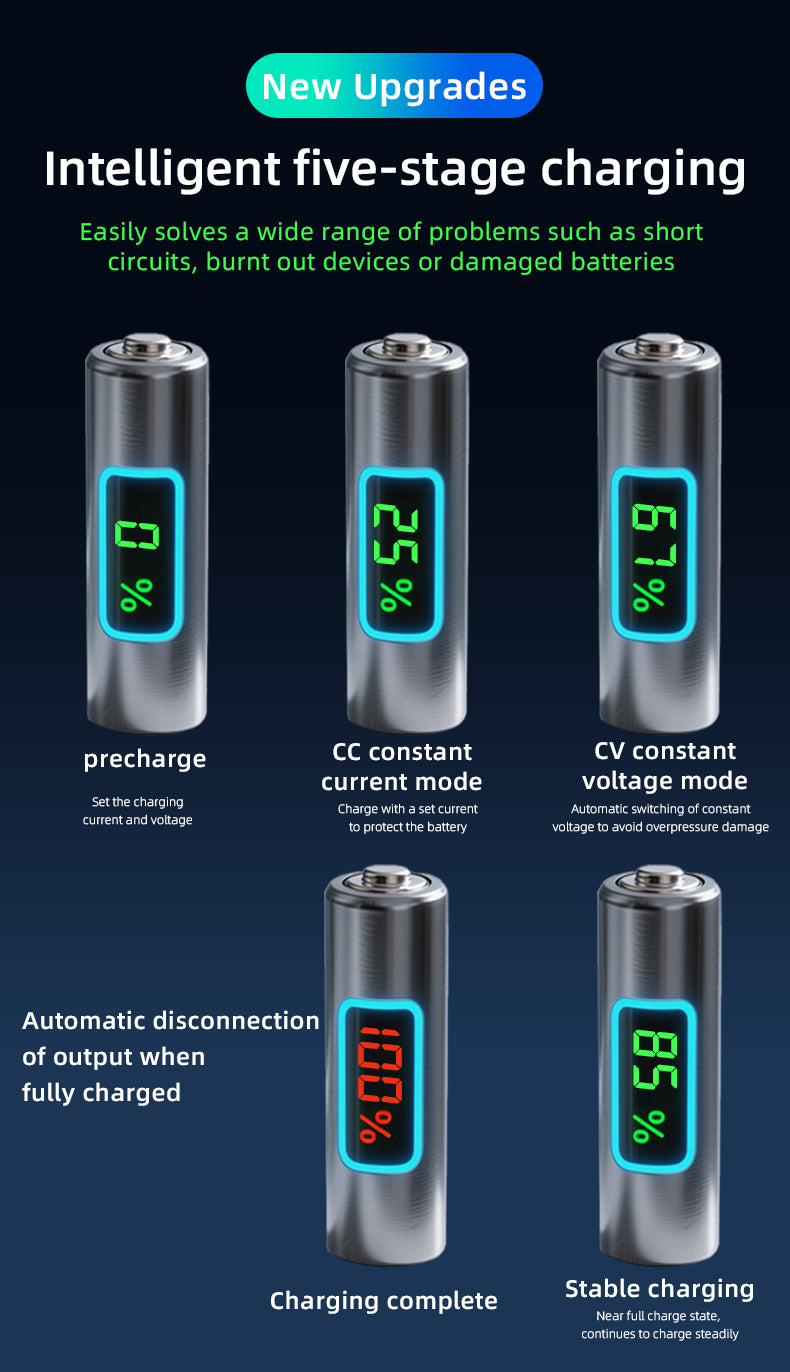

✦ Dedicated Battery Charging Function

The SPS305C is equipped with a dedicated battery charging function for compatible rechargeable batteries.

When the battery charging function is activated, the power supply provides charging-related status information through the front-panel display and indicators.

The battery charging function supports:

• Battery charging mode

• Charging status indication

• Accumulated charged amount display in Ah

• Reverse polarity protection

• Overcharge protection

• Automatic output shutdown after the battery is fully charged

This makes the SPS305C more suitable for battery charging applications than a standard adjustable DC power supply when users need to monitor the charging process and accumulated charge.

✦ Reverse Polarity Protection

The SPS305C provides reverse polarity protection during battery charging.

Incorrect battery connection can cause damage or abnormal charging conditions. The battery charging function is designed to identify incorrect connection conditions and provide protection against damage caused by reverse polarity.

This function is particularly useful for:

• Rechargeable battery charging

• Battery service and maintenance

• Battery-related laboratory experiments

• Electronics repair

• Charging process verification

• Battery charging workstations

The battery charging indicator provides a visual indication of the connection and charging status.

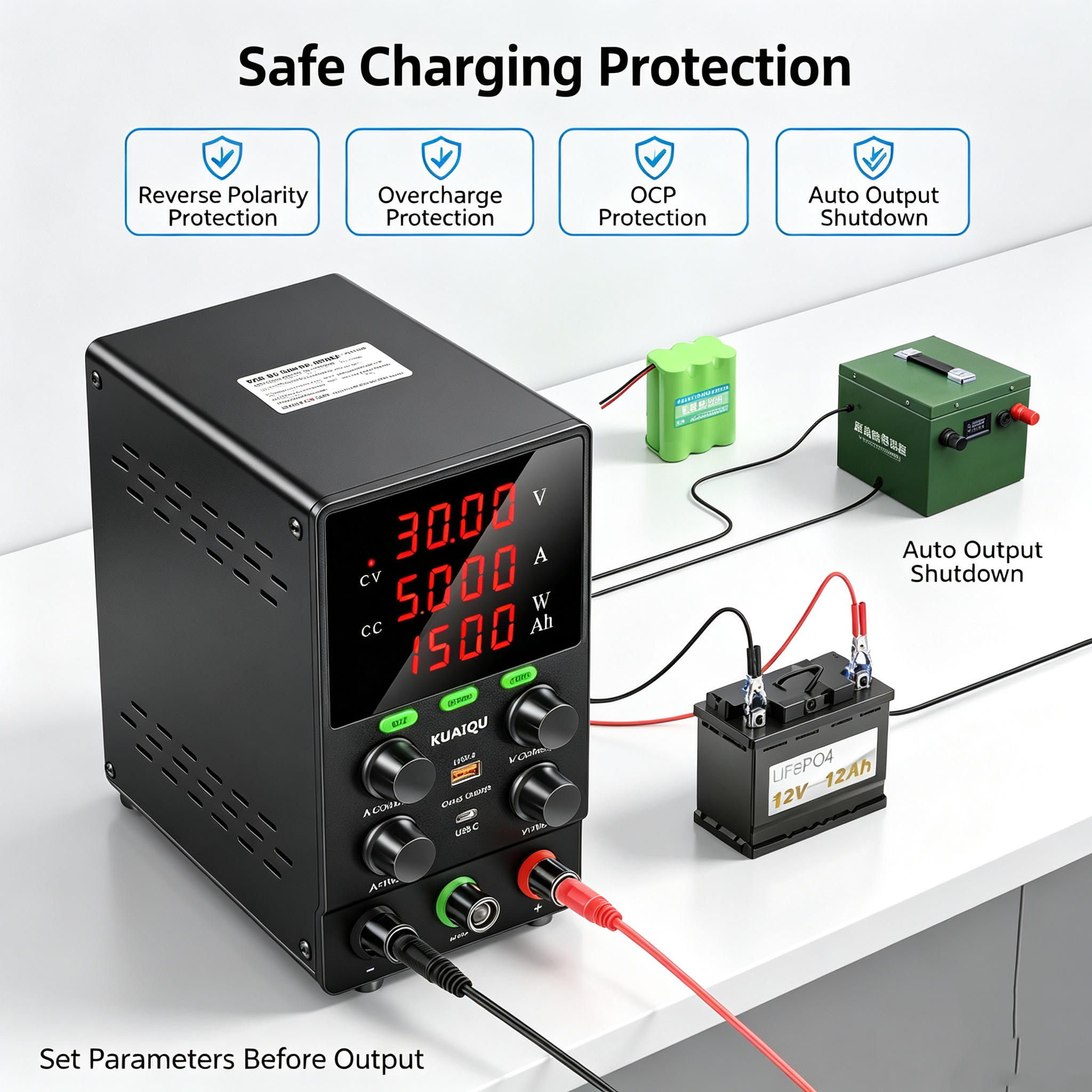

Battery Charging Protection

OCP — Over Current Protection

The SPS305C provides an OCP (Over Current Protection) function to help protect the power supply and connected equipment when excessive current conditions occur.

During battery charging or electronics testing, abnormal loads or incorrect parameter settings may cause excessive current. The OCP function helps provide additional protection under these conditions.

Overcharge Protection

The dedicated battery charging function provides overcharge protection.

When the battery reaches full charge, the SPS305C can automatically turn off the output to help prevent continued charging.

This function is useful for charging applications where users need additional protection against prolonged charging after the battery reaches its charging limit.

Output Switch

The independent OUTPUT control allows users to set voltage and current parameters before applying output power to the connected battery or electronic device.

This helps reduce the possibility of applying an unintended output condition during battery connection and charging setup.

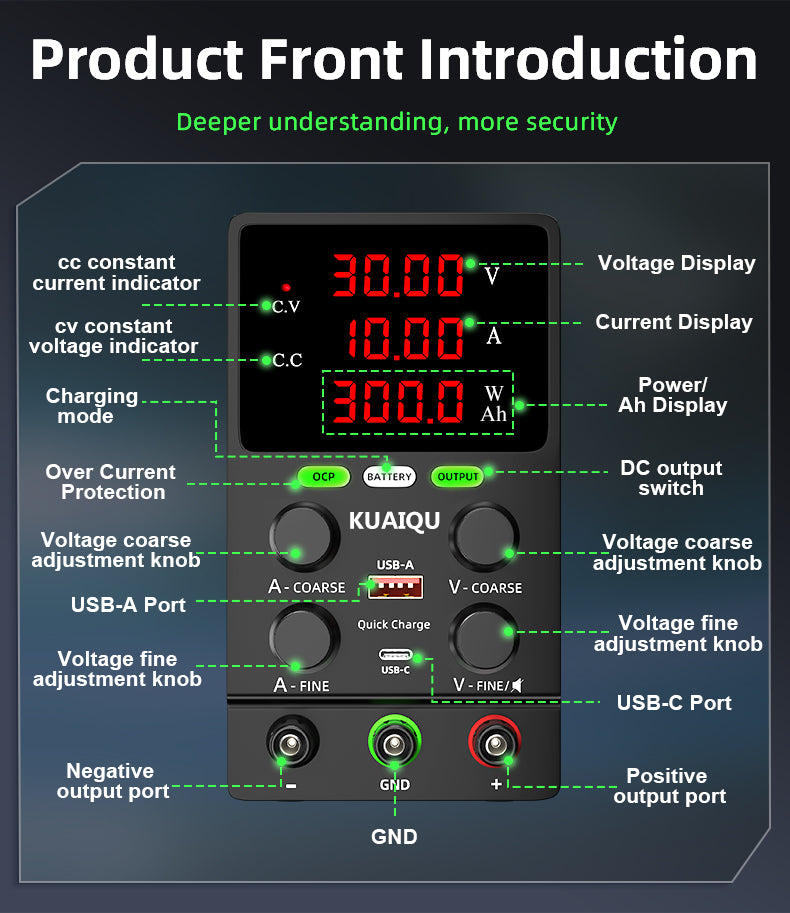

✦ Real-Time Charging Data Display

The SPS305C provides a digital display for monitoring charging-related parameters during operation.

Users can observe:

• Voltage

• Current

• Power

• Ah

• Charging status

• Output status

The real-time Ah display is particularly useful for monitoring the accumulated amount of charge delivered during a charging session.

Instead of requiring a separate charge-amount display, the SPS305C allows users to directly observe the accumulated Ah value from the front panel while charging.

This is useful for:

• Charging process observation

• Battery charging comparison

• Battery service

• Laboratory charging experiments

• Charging parameter verification

• Battery-related electronics testing

✦ Precise Encoder Adjustment

The SPS305C uses encoder controls for voltage and current adjustment.

The encoder adjustment system allows users to conveniently set the required charging voltage and current parameters while performing battery charging or electronics testing.

With:

• 10mV voltage setting resolution

• 1mA current setting resolution

users can make relatively fine adjustments to charging parameters according to the requirements of the connected application.

✦ Low Ripple & Stable DC Output

The SPS305C provides low-ripple DC output for battery charging and electronics testing.

Its voltage ripple is specified at:

• ≤60mVp-p

• ≤10mVrms

The current ripple is:

• ≤10mArms

Stable DC output is useful when the power supply is used not only for battery charging but also for powering and testing battery-related electronic circuits and modules.

✦ USB-A & USB-C Fast Charging Output

In addition to the adjustable DC output, the SPS305C provides USB-A and USB-C charging ports for compatible USB devices.

The USB-A output supports:

• PE1.1/2.0

• Apple

• BC1.2

• AFC

• FCP

• QC2.0/QC3.0

The USB-C output supports:

• PE1.1/2.0

• Apple

• BC1.2

• AFC

• FCP

• QC2.0/QC3.0

• PD3.0

• PPS

The USB charging ports provide additional convenience for charging and testing compatible portable electronic devices alongside the main DC power supply.

✦ Compact 150W Battery Charging Power Supply

The SPS305C combines a 0–30V / 0–5A adjustable output with a maximum power rating of 150W, making it suitable for battery charging and electronics testing applications requiring adjustable DC power.

Its compact design measures approximately 22 × 8.5 × 15.5 cm and weighs about 1.2 kg, making it suitable for desktop workstations, electronics laboratories, repair benches, and battery testing environments.

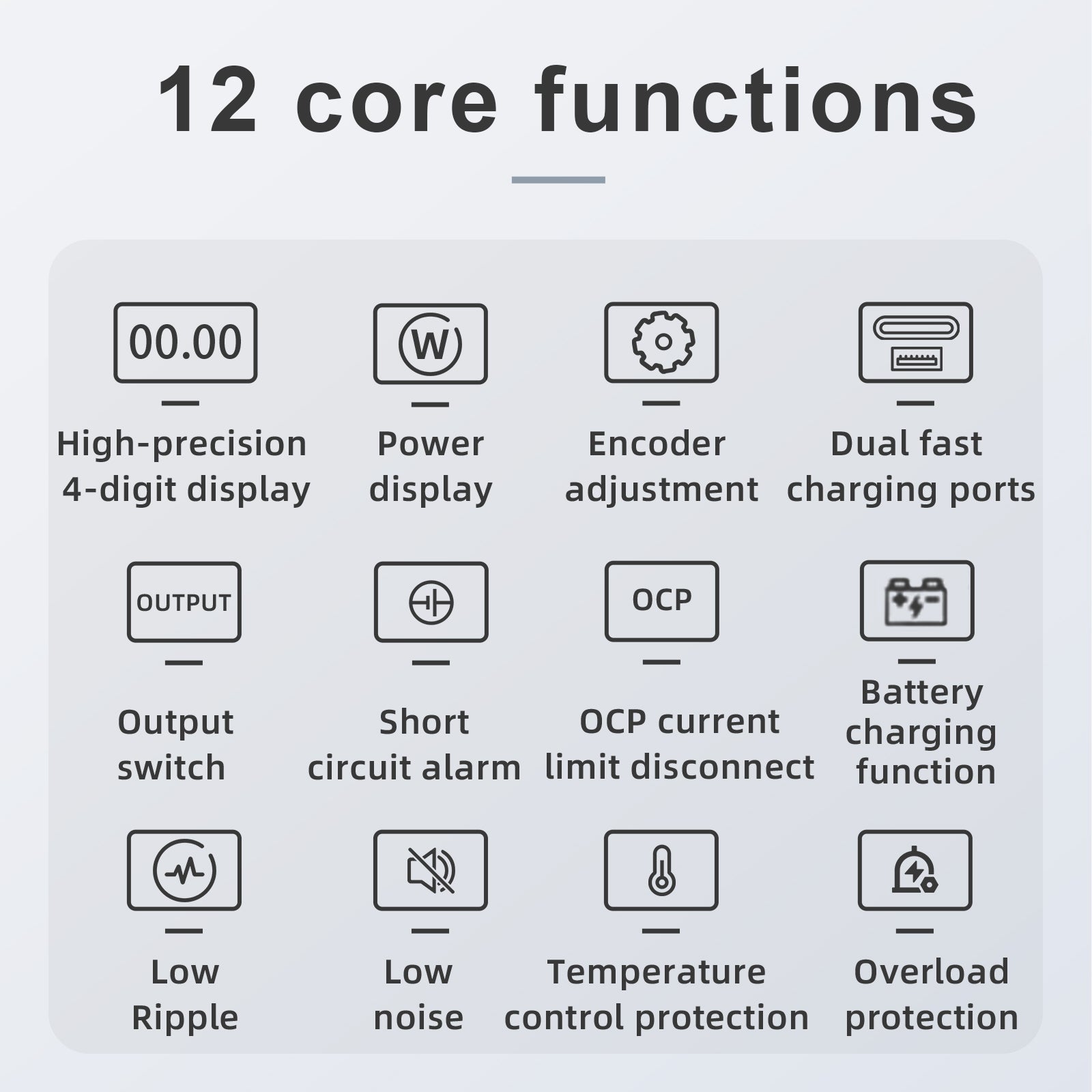

The SPS305C combines:

• Adjustable 0–30V output

• Adjustable 0–5A output

• 150W maximum power

• Battery charging function

• Real-time Ah display

• Reverse polarity protection

• Overcharge protection

• Automatic output shutdown when fully charged

• OCP protection

• Low-ripple DC output

• USB-A fast charging

• USB-C fast charging

• Encoder adjustment

• Output ON/OFF control

It is particularly useful for monitoring:

• Battery charging progress

• Charging voltage

• Charging current

• Charging power

• Accumulated charged amount

• Battery charging status

• Abnormal current conditions

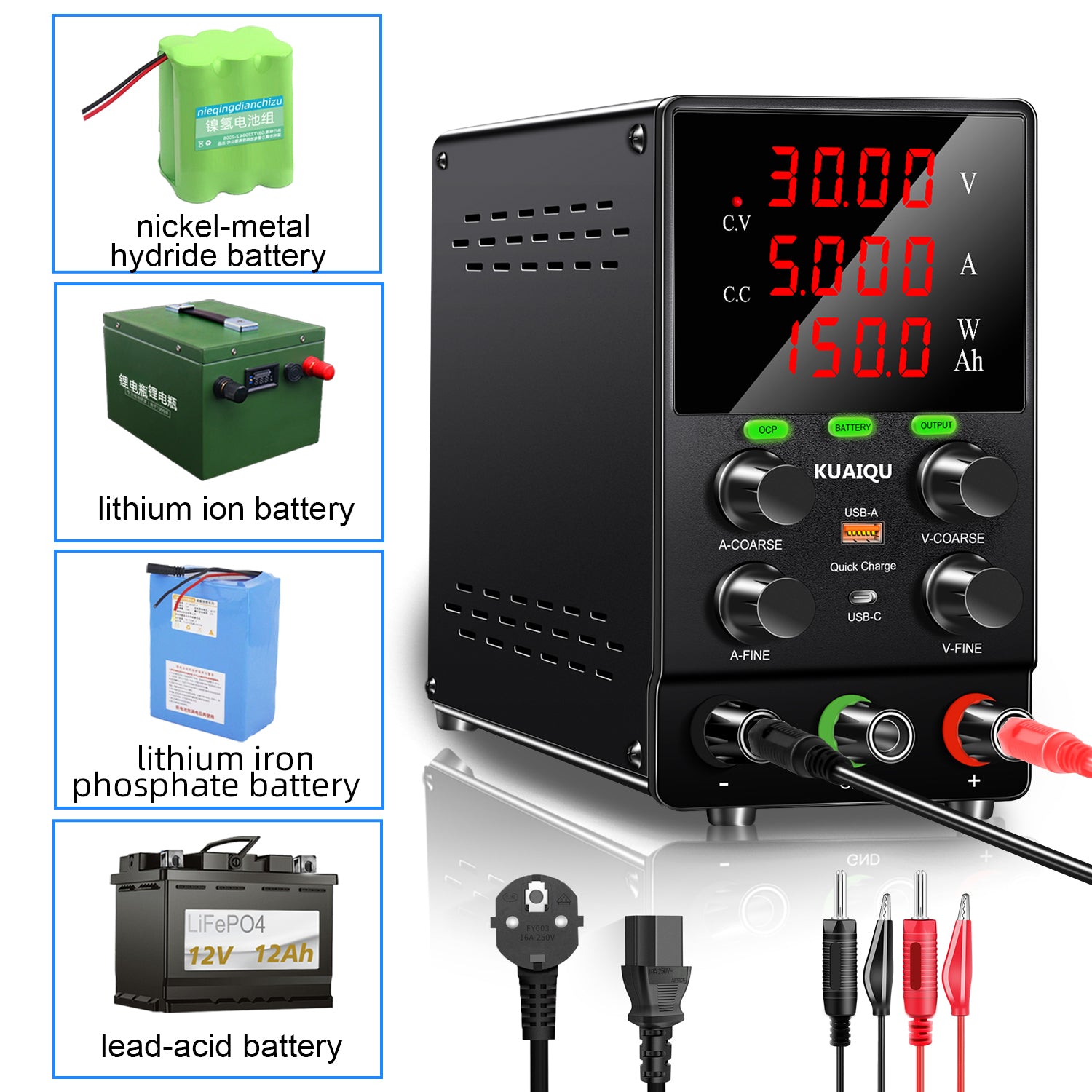

✦ Wide Range of Applications

The SPS305C is designed for applications requiring adjustable DC power and battery charging monitoring, especially:

Battery Charging & Capacity Monitoring

• Rechargeable battery charging

• Battery charging process monitoring

• Accumulated Ah monitoring

• Battery charging parameter verification

• Charging condition comparison

• Battery service and maintenance

• Laboratory battery charging experiments

Battery-Related Electronics Testing

• Battery-powered electronic device testing

• Battery charging circuit testing

• DC charging module testing

• Battery-related control circuit testing

• Electronic module power testing

• Charging parameter verification

Electronics Repair & Service

• Battery charging during electronics repair

• Electronic device power-up testing

• PCB troubleshooting

• Electronic module testing

• Component and circuit debugging

• Controlled DC power supply for repair workstations

Laboratory & Educational Applications

• Battery charging experiments

• Charging current observation

• Charging voltage observation

• Ah accumulation observation

• DC power supply experiments

• Basic battery-related electronics testing

The SPS305C provides adjustable DC power, battery charging protection, and real-time Ah monitoring to support battery charging, charging process observation, electronics service, and laboratory testing applications.

✦ Quality Assurance & Customer Support

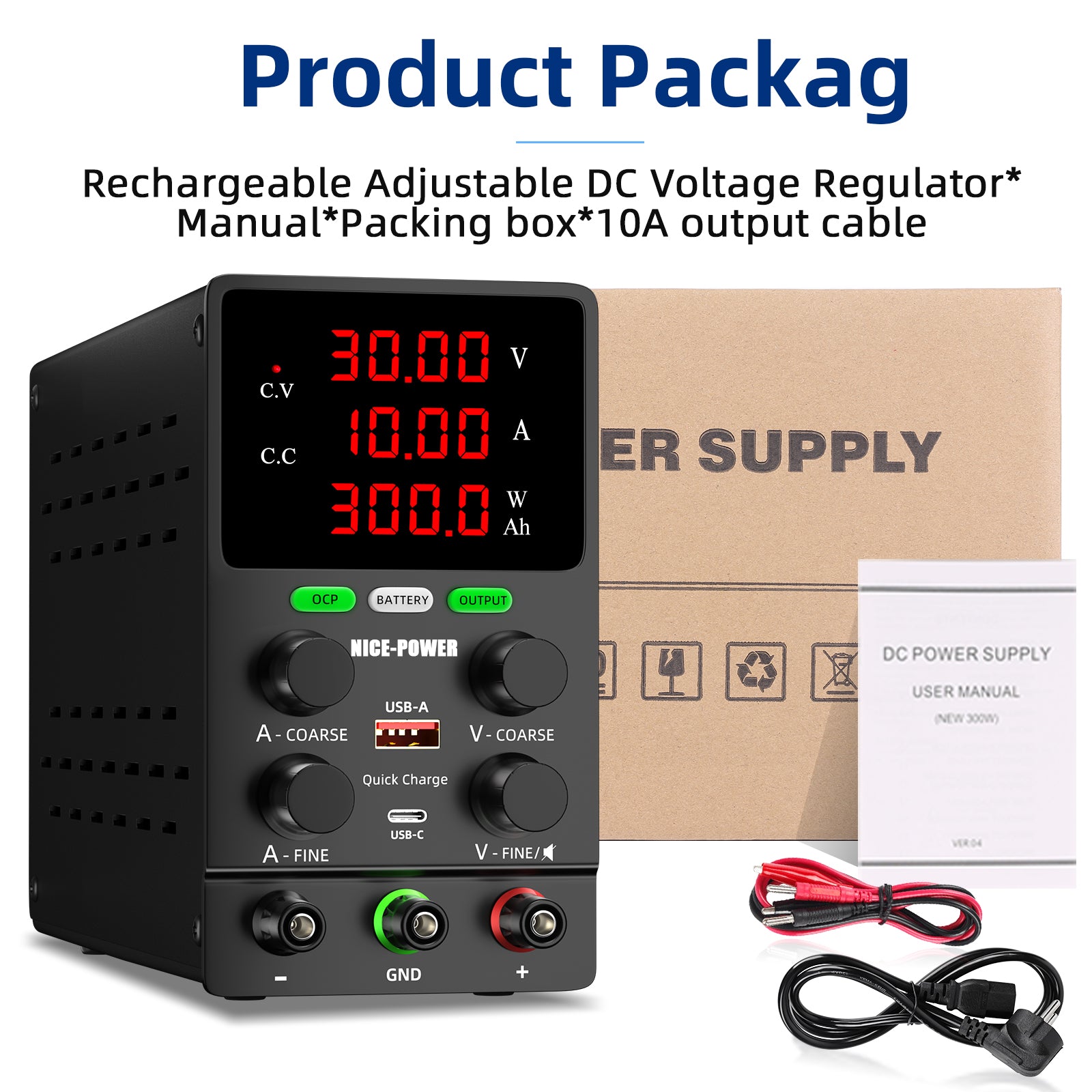

Each package includes:

1 × DC power supply

1 × output power cable

1 × input power cable

1 × user manual

1 × warranty card

All DC power supplies and accessories undergo inspection before shipment to ensure reliable quality. The SPS305C has passed CE & FCC certification.

We provide professional after-sales service and technical support. If you have any questions about the SPS305C 30V 5A DC power supply with battery charging function, please feel free to contact us.

Technical Specifications

Why Choose KUAIQU SPS305C?

For battery charging and charging process monitoring, users need a DC power supply that provides adjustable output, charging protection, and clear charging information.

The KUAIQU SPS305C combines:

✓ 0–30V / 0–5A adjustable output

✓ 150W power capability

✓ Dedicated battery charging function

✓ Real-time voltage, current and power display

✓ Real-time Ah accumulated charge display

✓ Reverse polarity protection

✓ Overcharge protection

✓ Automatic output shutdown after full charge

✓ OCP protection

✓ 10mV voltage setting/readback resolution

✓ 1mA current setting/readback resolution

✓ Low-ripple DC output

✓ USB-A + USB-C fast charging

✓ Precision encoder adjustment

✓ Output ON/OFF control

Providing a practical charging and monitoring solution for rechargeable battery charging, accumulated Ah monitoring, battery-related electronics testing, electronics repair, laboratory charging experiments, and charging process evaluation.
