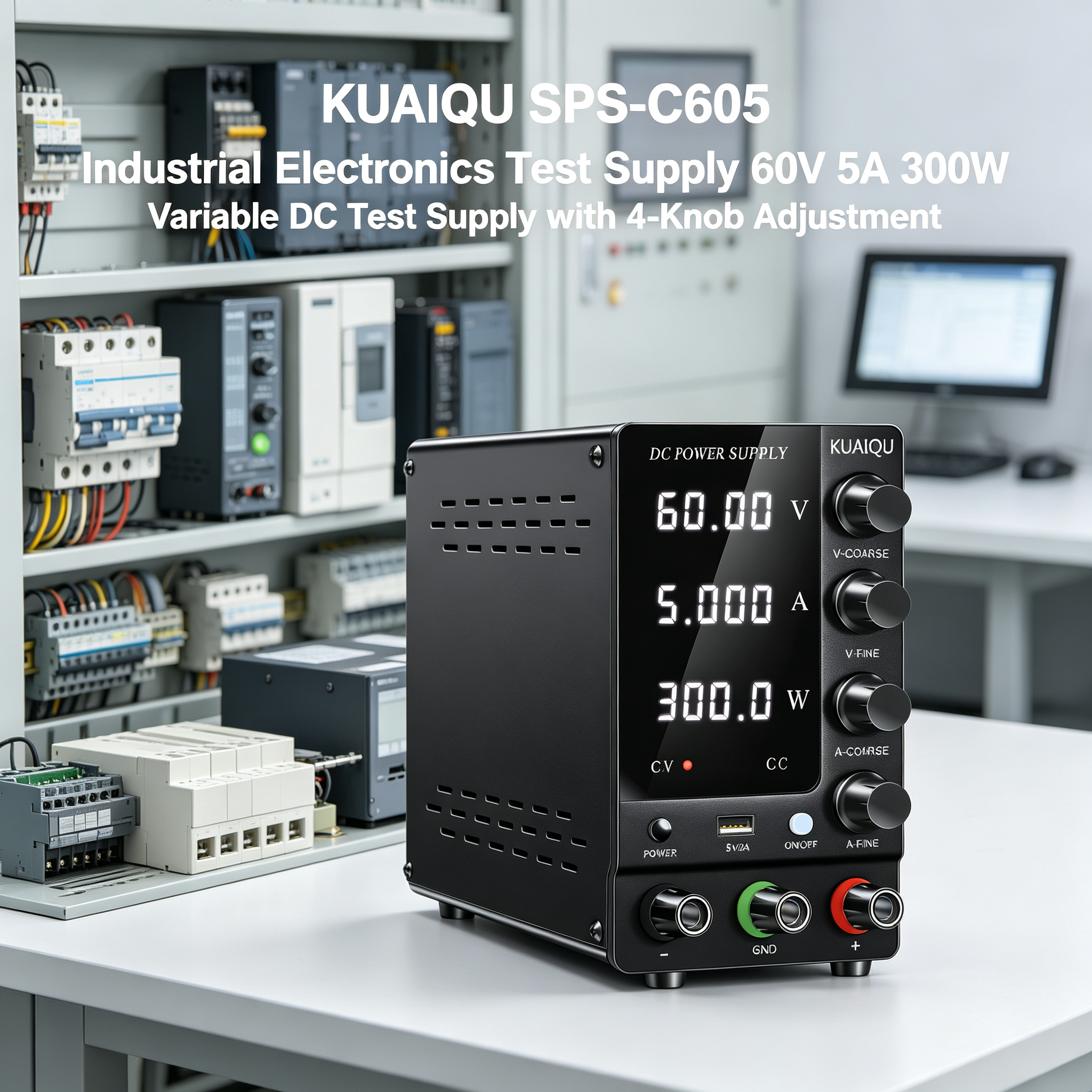

KUAIQU SPS-C605 Industrial Electronics
Test Supply 60V 5A 300W Variable DC Test
Supply with 4-Knob Adjustment
The KUAIQU SPS-C605 is a 0-60V, 0-5A, 300W Variable DC Test Supply designed for Industrial Electronics Testing, electronic equipment development, circuit verification, and laboratory bench testing. Its adjustable DC output allows users to establish different voltage and current conditions for industrial electronic circuits and equipment within its rated output range. The 4-Knob Adjustment provides direct control of test conditions, while the Voltage and Current Display and Power Display allow users to observe electrical values during testing.
Industrial electronic circuits can operate under different DC supply conditions during development, inspection, and troubleshooting. The SPS-C605 provides an adjustable DC source that allows engineers and technicians to change the test voltage and current, observe the resulting electrical readings, and repeat evaluations at different operating points. Its CV/CC operation and Output Switch provide practical control for daily laboratory and engineering test work.

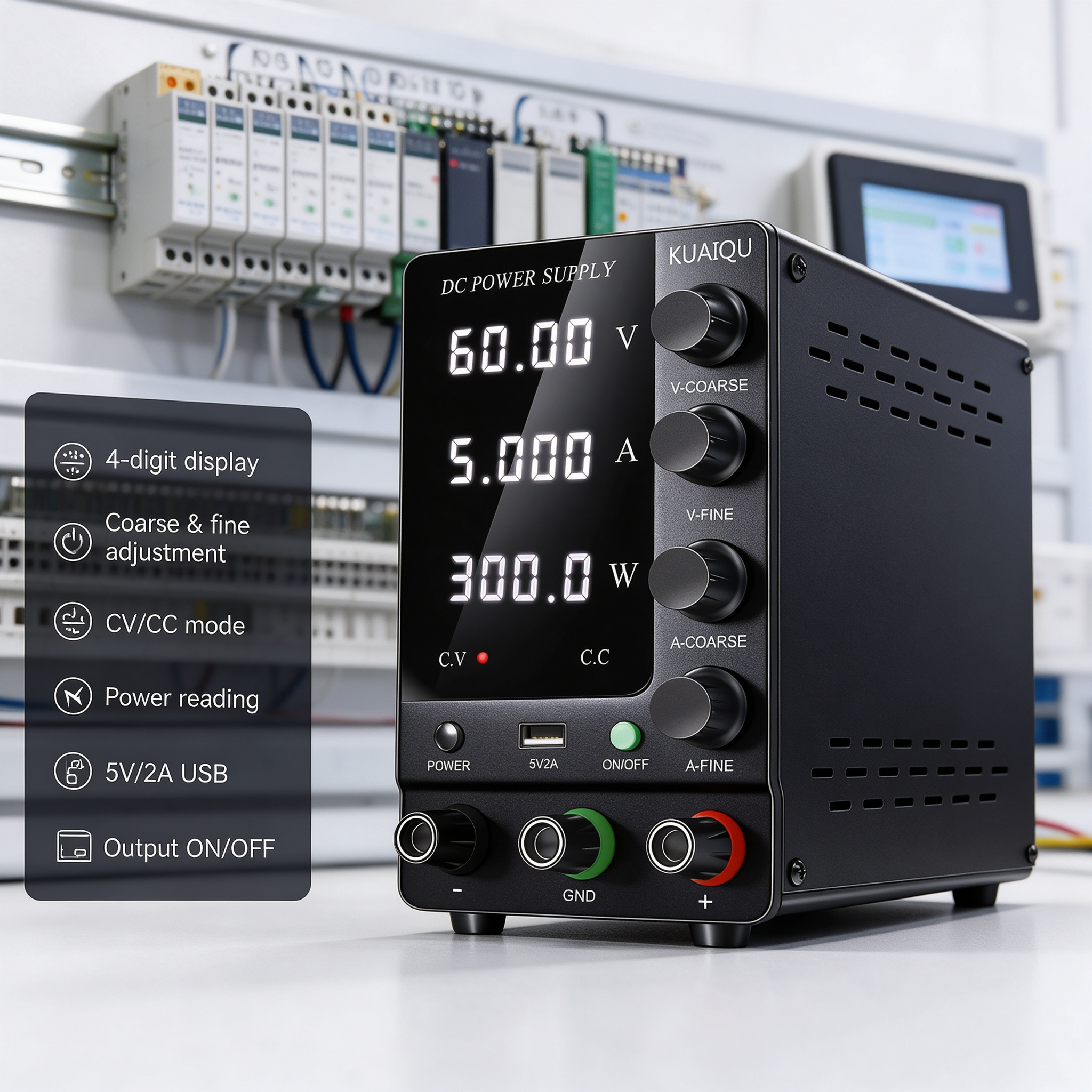

Key Features
0-60V Variable DC Output for Industrial Electronics Testing
The SPS-C605 provides a 0-60V adjustable DC output with up to 5A and 300W of output power. The wide voltage range allows users to establish different DC supply conditions when testing industrial electronic circuits, control equipment, modules, and other compatible electronic systems.
4-Knob Adjustment for Direct Test Condition Changes
The 4-Knob Adjustment allows voltage and current settings to be changed directly from the front panel. This is useful when industrial electronics testing requires multiple operating points or when technicians need to make controlled adjustments while evaluating circuit behavior.
Voltage and Current Display for Circuit Monitoring
The built-in Voltage and Current Display provides direct visibility of the electrical values during testing. Engineers and technicians can monitor the supply condition while changing the test settings, making it easier to compare electrical readings between different test stages.
Power Display for Industrial Circuit Evaluation
The Power Display provides a direct indication of the output power being delivered by the Variable DC Test Supply. During industrial electronics testing, the displayed power value can be used as an additional reference when observing changes in the circuit's electrical operating condition.
CV/CC Operation for Different Test Requirements
The SPS-C605 supports Constant Voltage (CV) and Constant Current (CC) operation. These two operating modes provide flexibility for different industrial electronics test procedures, allowing users to work with the supply according to the requirements of the particular test setup.
Adjustable Current for Controlled Bench Testing
The adjustable current setting allows the operator to establish the required current condition within the SPS-C605's 0-5A output capability. This is useful when comparing industrial electronic circuits under different current settings or when performing repeated bench evaluations.
Output Switch for Convenient Test Control
The Output Switch provides direct control of the DC output from the front panel. It allows the operator to turn the output on or off when preparing a test setup, changing connections, or moving between different test stages.
5V/2A USB Output for Compatible Accessories
The built-in 5V/2A USB Output provides an additional power source for compatible USB-powered accessories used around the laboratory or engineering workbench. It complements the main adjustable DC output without replacing its primary testing function.

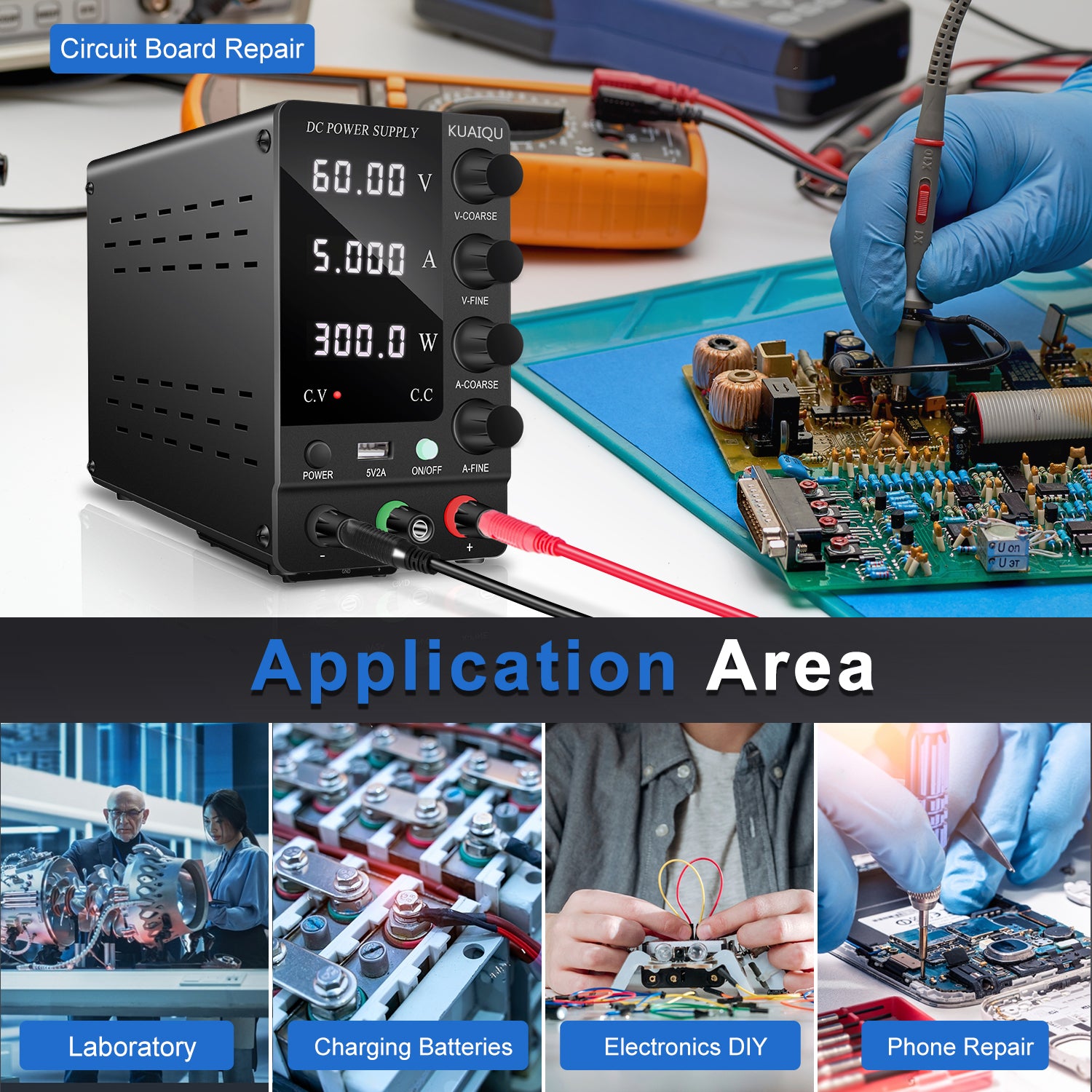

Applications
Industrial Electronic Circuit Testing
The SPS-C605 can provide adjustable DC power for testing compatible industrial electronic circuits under different voltage and current conditions. Users can adjust the test parameters and observe the displayed electrical values during circuit evaluation.
Industrial Control Equipment Testing
The Variable DC Test Supply can be used during bench testing of compatible industrial control equipment and electronic control circuits that operate within the SPS-C605's output range. Adjustable voltage and current settings allow different DC test conditions to be established during evaluation.
Electronic Module and Board Testing
For industrial electronic modules and circuit boards requiring an adjustable DC source, the SPS-C605 can provide controlled test conditions within its 0-60V, 0-5A, 300W capability. The Voltage and Current Display provides direct electrical information during the test process.
Industrial Electronics Development
During electronic equipment development, engineers may need to evaluate a circuit at several different DC operating points. The SPS-C605 allows test conditions to be changed directly using the 4-Knob Adjustment while voltage, current, and power readings remain available for observation.
DC Input Condition Verification
The SPS-C605 can be used to establish different DC input conditions for compatible industrial electronic circuits. By adjusting the output voltage and current, users can compare circuit behavior and electrical readings across multiple test conditions.
Electronic Equipment Troubleshooting
When troubleshooting compatible industrial electronic equipment, an adjustable DC test source can help establish controlled supply conditions during bench evaluation. The SPS-C605 provides direct voltage and current adjustment together with visible electrical readings for the test setup.
Repeated Industrial Bench Testing
For repeated testing, the combination of 4-Knob Adjustment, CV/CC operation, Voltage and Current Display, Power Display, and Output Switch provides direct access to the main supply controls. This supports repeated measurements and condition changes during industrial electronics development and verification.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-C605 |
| Product Type |
Industrial Electronics Test Supply / Variable DC Test Supply |
| Output Voltage |
0-60V |
| Output Current |
0-5A |
| Output Power |
300W |
| Operation Mode |
CV/CC |
| Voltage Display |
Yes |
| Current Display |
Yes |
| Power Display |
Yes |
| Adjustment |
4-Knob Adjustment |
| Current Adjustment |
Adjustable |
| Output Control |
Output Switch |
| USB Output |
5V/2A |
| Rated Operating Temperature |
0-40°C |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Readback Accuracy |
≤0.01% + 15mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤200mVp-p / ≤20mVrms |
| Current Ripple |
≤20mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20s |
| Fall Time, Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input |
AC 220V, AC 110V Optional |
| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
Why Choose KUAIQU SPS-C605?
The KUAIQU SPS-C605 combines a 0-60V variable DC output, 0-5A current capability, and 300W output power in a compact Variable DC Test Supply for Industrial Electronics Testing. The wide adjustment range allows engineers and technicians to establish different DC operating conditions instead of relying on a single fixed output level.
The 4-Knob Adjustment provides direct control during test condition changes, while the Voltage and Current Display and Power Display provide electrical readings for bench observation. CV/CC operation adds flexibility for different test procedures, and the Output Switch provides straightforward control of power delivery between test stages.
For industrial electronics development, module testing, control equipment evaluation, troubleshooting, and repeated bench verification, the SPS-C605 provides the basic adjustable DC power and monitoring functions needed to establish, change, and observe compatible test conditions within its 0-60V, 0-5A, 300W ratings.
