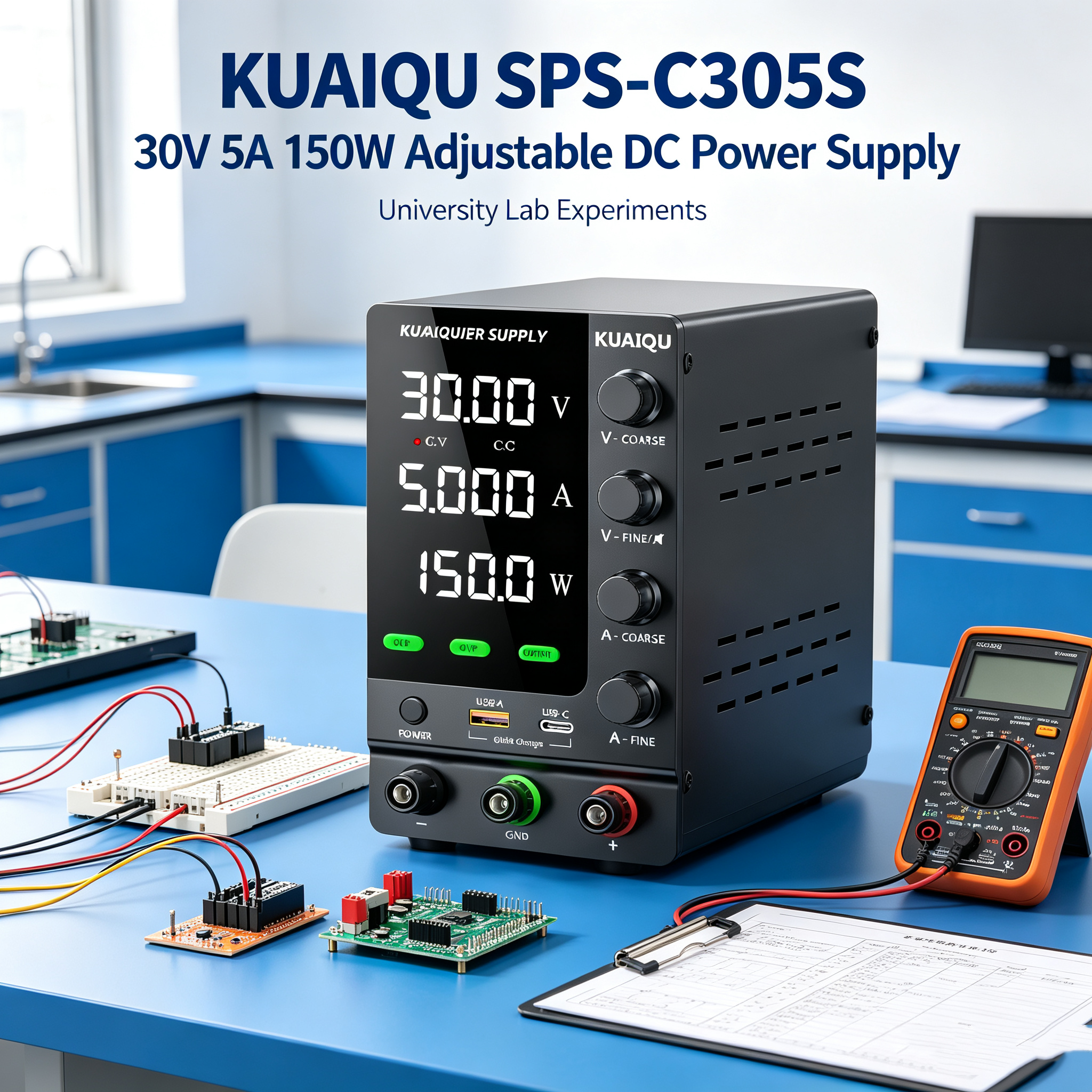

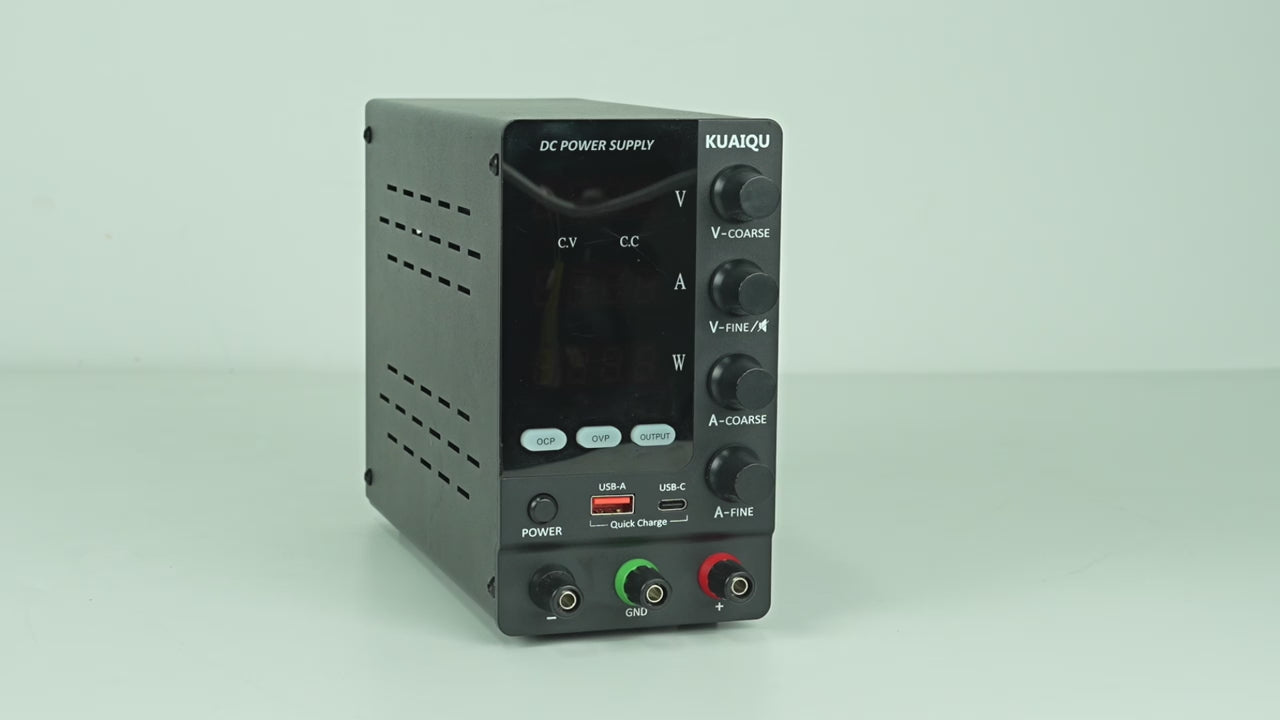

KUAIQU SPS-C305S 30V 5A 150W
Adjustable DC Power Supply with HD
Display for University Lab Experiments
The KUAIQU SPS-C305S is a 30V 5A 150W Adjustable DC Power Supply designed for university laboratory experiments, electronics teaching, circuit projects, and student research. With precision voltage and current adjustment, an HD 4-Digit Display, low-ripple DC output, and multiple protection functions, it provides practical and controlled power for a wide range of laboratory testing tasks.
Key Features
Adjustable Voltage and Current for Laboratory Experiments
With a 0–30V adjustable voltage range and 0–5A adjustable current output, the SPS-C305S allows students and researchers to set appropriate power conditions for different experimental circuits and electronic devices. The adjustable DC output makes it suitable for repeated laboratory experiments requiring different voltage and current levels.

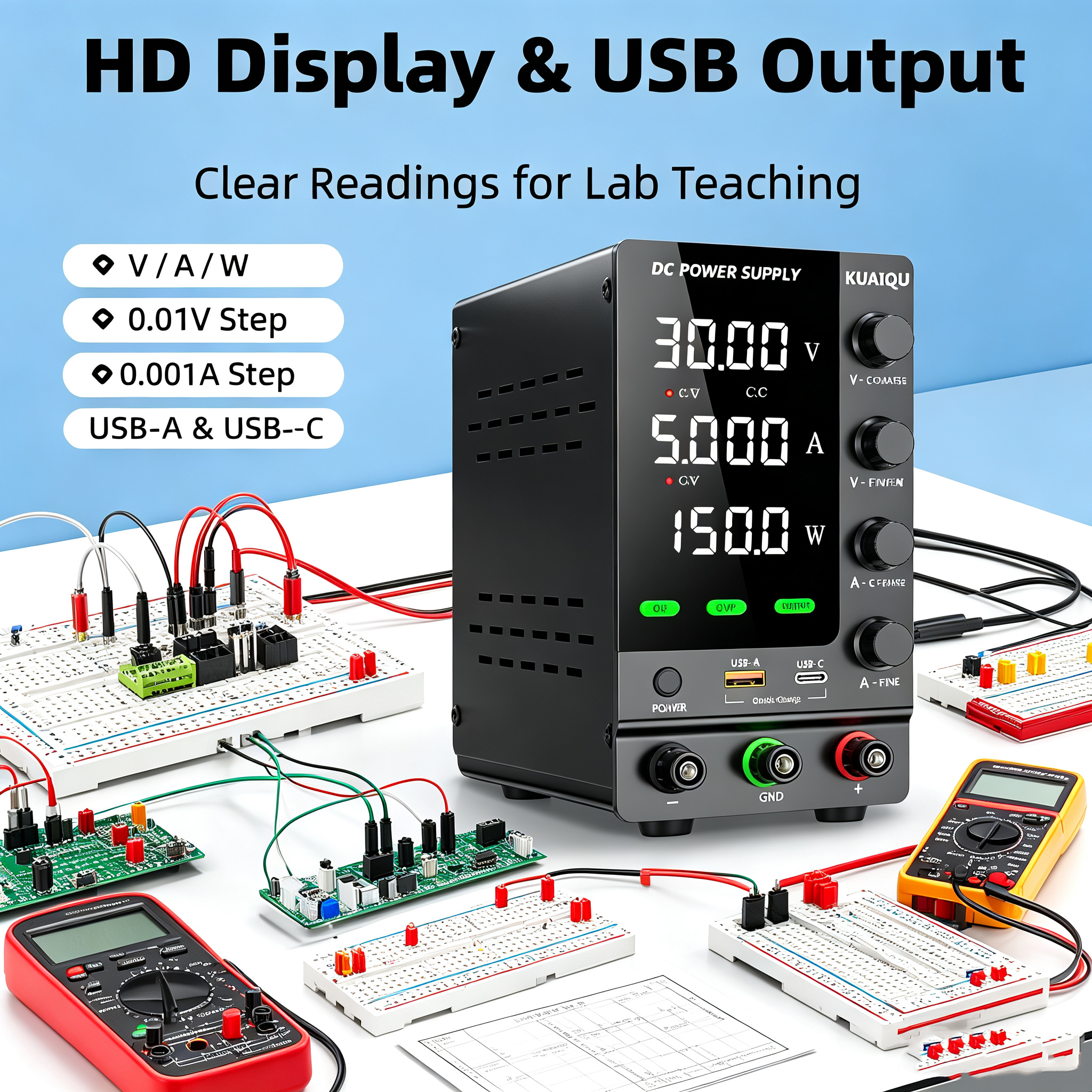

HD 4-Digit Display for Clear Experimental Readings
The HD 4-Digit Display provides clear real-time readings of voltage, current, and power. This allows students to observe electrical parameters directly during experiments and makes it easier to record and compare test results.

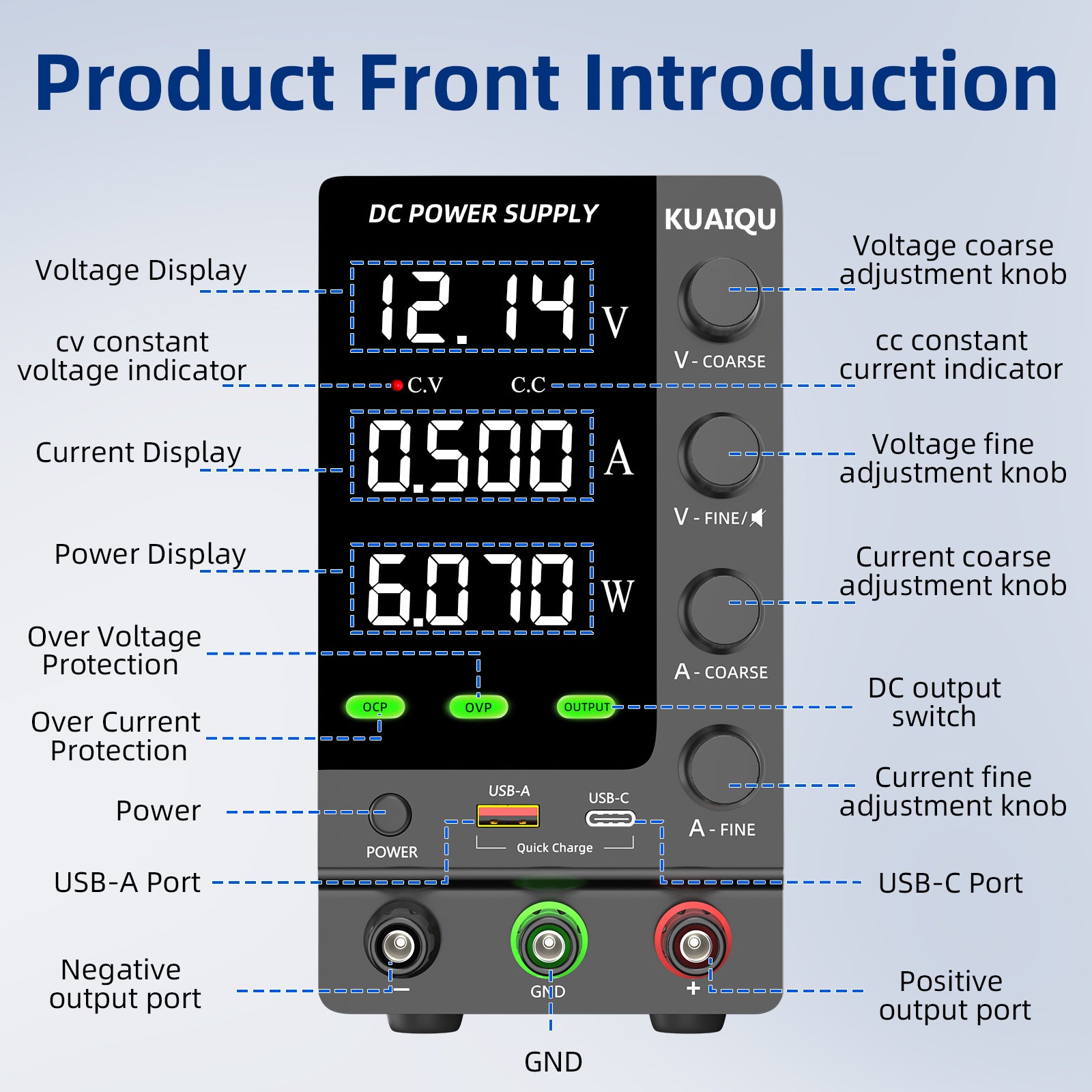

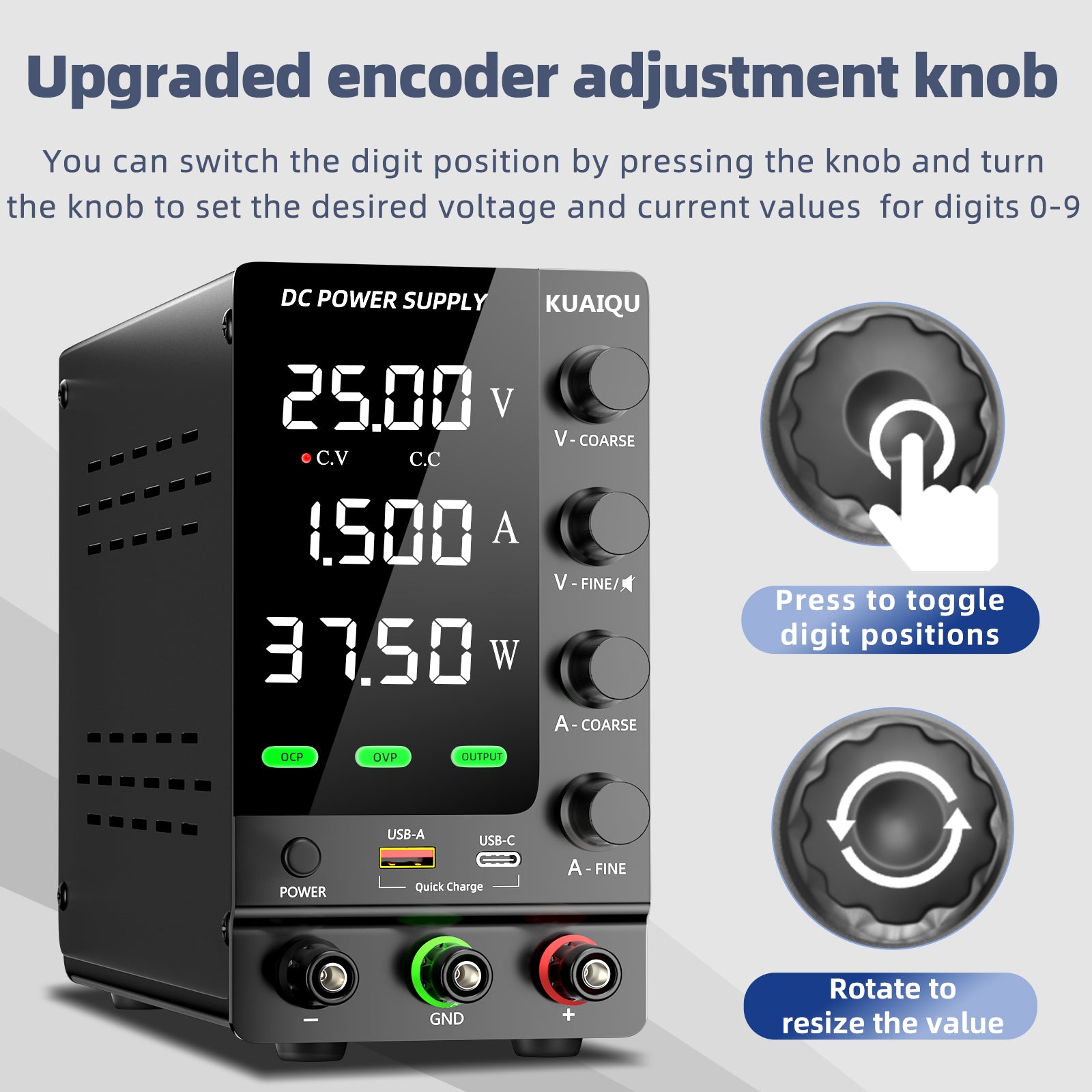

Precision Encoder for Fine Parameter Adjustment
The Precision Encoder with V-COARSE, V-FINE, A-COARSE, and A-FINE controls provides flexible adjustment of output voltage and current. Coarse adjustment helps quickly reach the desired range, while fine adjustment is useful when laboratory experiments require more precise parameter settings.
Stable DC Output with Low Ripple
The SPS-C305S provides regulated DC output with low ripple, supporting experiments where stable power conditions are important. Its voltage ripple is specified at ≤60mVp-p / ≤10mVrms, helping provide a consistent power source for laboratory circuits and electronic components.

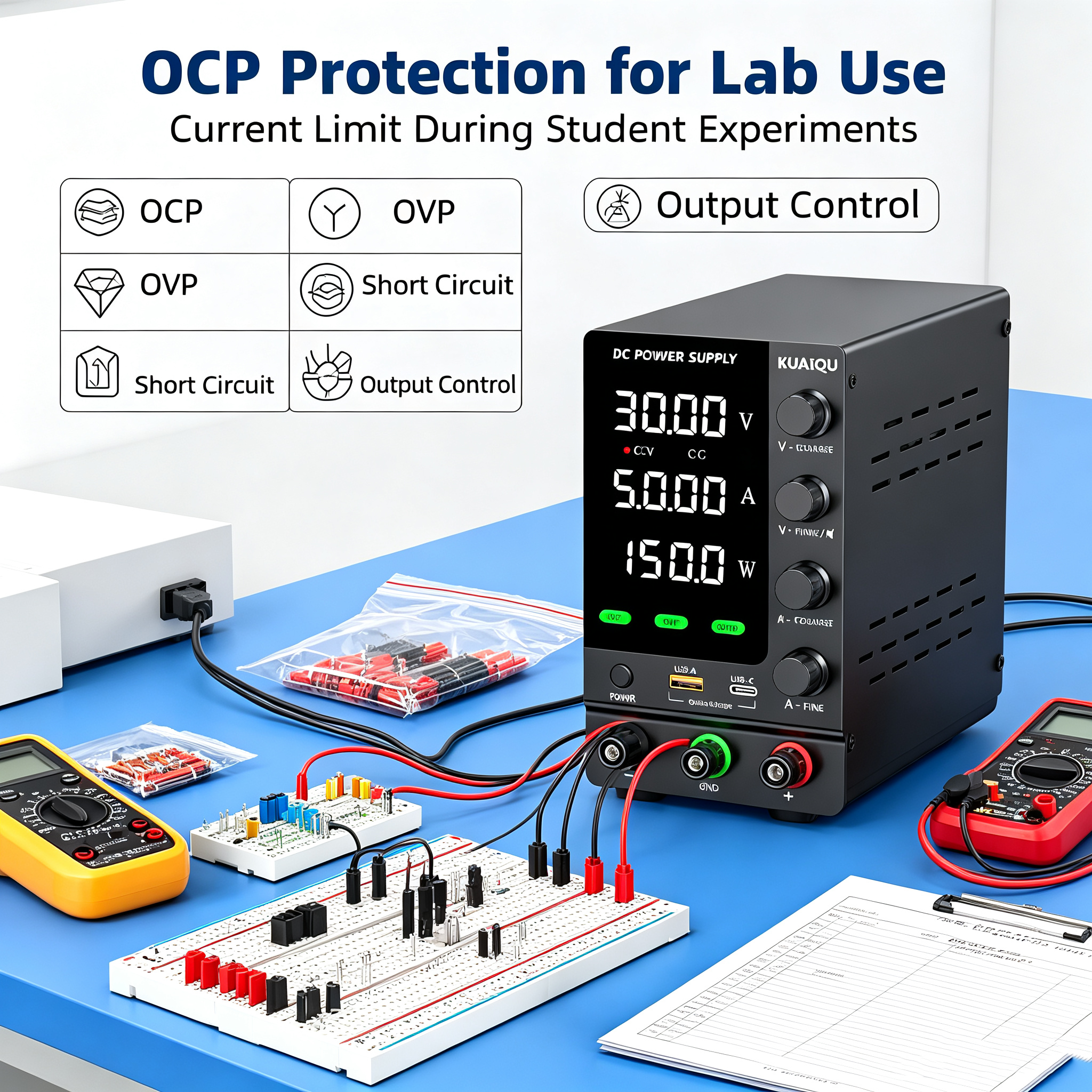

OCP and Multiple Protection Functions
For safer laboratory operation, the power supply includes Over-Current Protection (OCP), Over-Voltage Protection (OVP), Over-Load Protection, Short Circuit Protection, Over-Temperature Protection, and Grounding Protection. These protection functions help reduce risks caused by abnormal operating conditions during student experiments and electronics testing.
Independent Output Button for Convenient Operation
The Independent Output Button allows users to control DC output separately from parameter adjustment. Students can prepare the required voltage and current settings before activating the output, making operation more convenient during laboratory procedures.
USB and Type-C Charging Output
The built-in USB and USB Type-C charging outputs provide convenient charging support for compatible devices used alongside laboratory work. The USB/Type-C output supports PDO profiles of 5V/3A, 9V/2A, and 12V/1.5A, as well as PPS output of 3.3V–5.9V/3A and 3.3V–11V/1.6A.
Low-Noise Cooling for Laboratory Environments
The integrated cooling fan helps manage operating temperature while the low-noise design is suitable for laboratory environments where students and researchers need to work around the equipment for extended periods.
Applications
University Electronics Laboratory Experiments
The SPS-C305S provides adjustable DC power for basic and advanced electronics experiments, allowing students to change voltage and current settings according to different laboratory requirements.

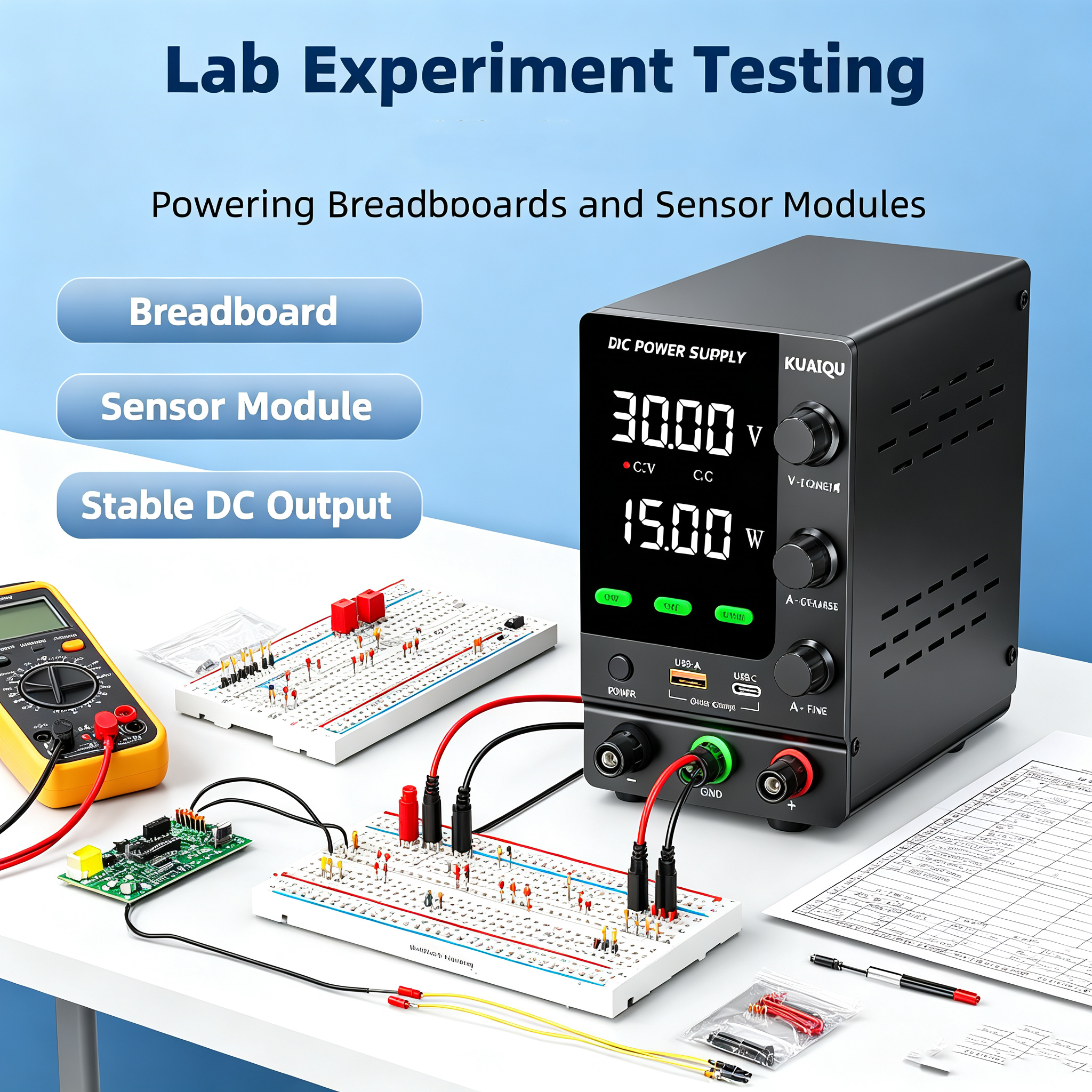

Circuit and Component Experimentation
Students can use the adjustable DC output to supply electronic circuits and components during practical experiments, while the 4-digit display provides direct voltage, current, and power readings for observation.
Electrical Parameter Measurement
The clear voltage, current, and power display helps students monitor electrical parameters during experiments and supports comparison between theoretical calculations and measured results.
Student Research and Electronics Projects
For university research projects and student electronics development, the SPS-C305S provides controlled DC power with fine adjustment and multiple protection functions for repeated testing.
Laboratory Equipment and Device Testing
The 0–30V, 0–5A output range can be used as a practical DC power source when testing compatible laboratory circuits, modules, and electronic devices within its rated specifications.
Quality Check and Terms of Service:

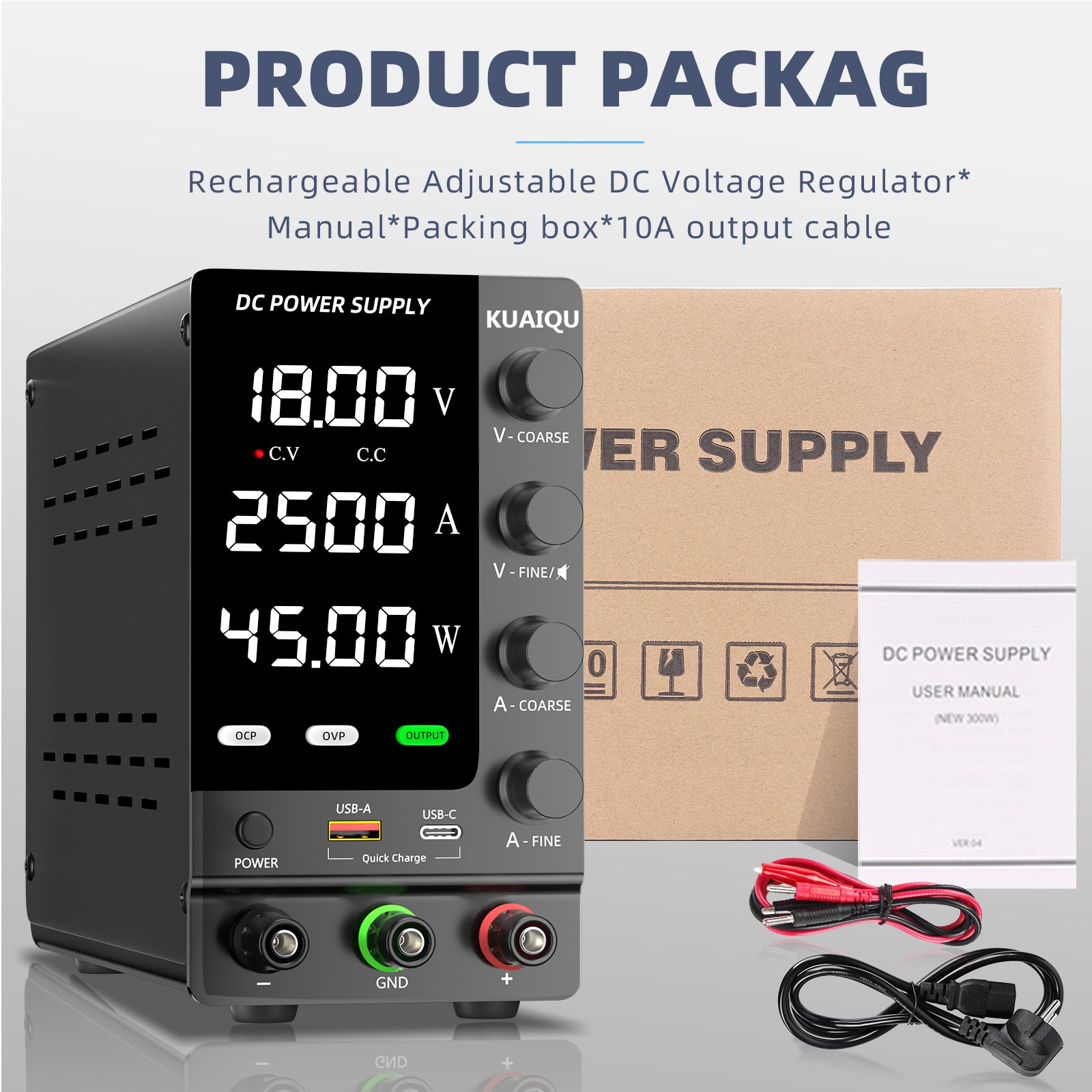

Package Includes
Each KUAIQU SPS-C305S DC Power Supply is packaged for delivery with the necessary standard accessories.
CE & FCC Certification
The product is designed to meet applicable CE and FCC requirements for its intended use.
Inspection Before Shipment
Each power supply undergoes inspection before shipment to help ensure proper operation and product quality.
Customer Support within 24 Hours
If you have questions about product operation, specifications, or usage, KUAIQU customer support will respond within 24 hours.
Technical Specifications
| Item |
Specification |
| Model |
SPS-C305S |
| Rated Voltage |
0–30V |
| Rated Current |
0–5A |
| Rated Power |
150W |
| USB/Type-C PDO |
5V/3A, 9V/2A, 12V/1.5A |
| USB/Type-C PPS |
3.3V–5.9V/3A, 3.3V–11V/1.6A |
| Load Regulation — Voltage |
≤0.3% + 10mV |
| Load Regulation — Current |
≤0.1% + 2.5mA |
| Line Regulation — Voltage |
≤0.01% + 2.5mV |
| Line Regulation — Current |
≤0.1% + 2.5mA |
| Setting Resolution — Voltage |
10mV |
| Setting Resolution — Current |
1mA |
| Readback Resolution — Voltage |
10mV |
| Readback Resolution — Current |
1mA |
| Setting Accuracy — Voltage |
≤0.05% + 10mV |
| Setting Accuracy — Current |
≤0.01% + 10mA |
| Readback Accuracy — Voltage |
≤0.05% + 10mV |
| Readback Accuracy — Current |
≤0.01% + 10mA |
| Ripple (20Hz–20MHz) — Voltage |
≤60mVp-p / ≤10mVrms |
| Ripple — Current |
≤10mArms |
| Rise Time — No Load |
≤200ms |
| Rise Time — Full Load |
≤300ms |
| Fall Time — No Load |
≤15s |
| Fall Time — Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input Voltage |
AC 220V (AC 110V optional) |
Why Choose KUAIQU SPS-C305S?
The KUAIQU SPS-C305S combines a 30V 5A 150W adjustable DC output with an HD 4-Digit Display and precision adjustment controls, making it well suited to university laboratory experiments and electronics teaching. Its 10mV voltage setting resolution and 1mA current setting resolution support controlled parameter adjustment, while low-ripple output helps maintain stable experimental conditions. OCP, OVP, Over-Load, Short Circuit, Over-Temperature, and Grounding Protection provide additional protection during laboratory operation. USB and Type-C charging outputs further add convenience when compatible devices are used alongside laboratory experiments.
