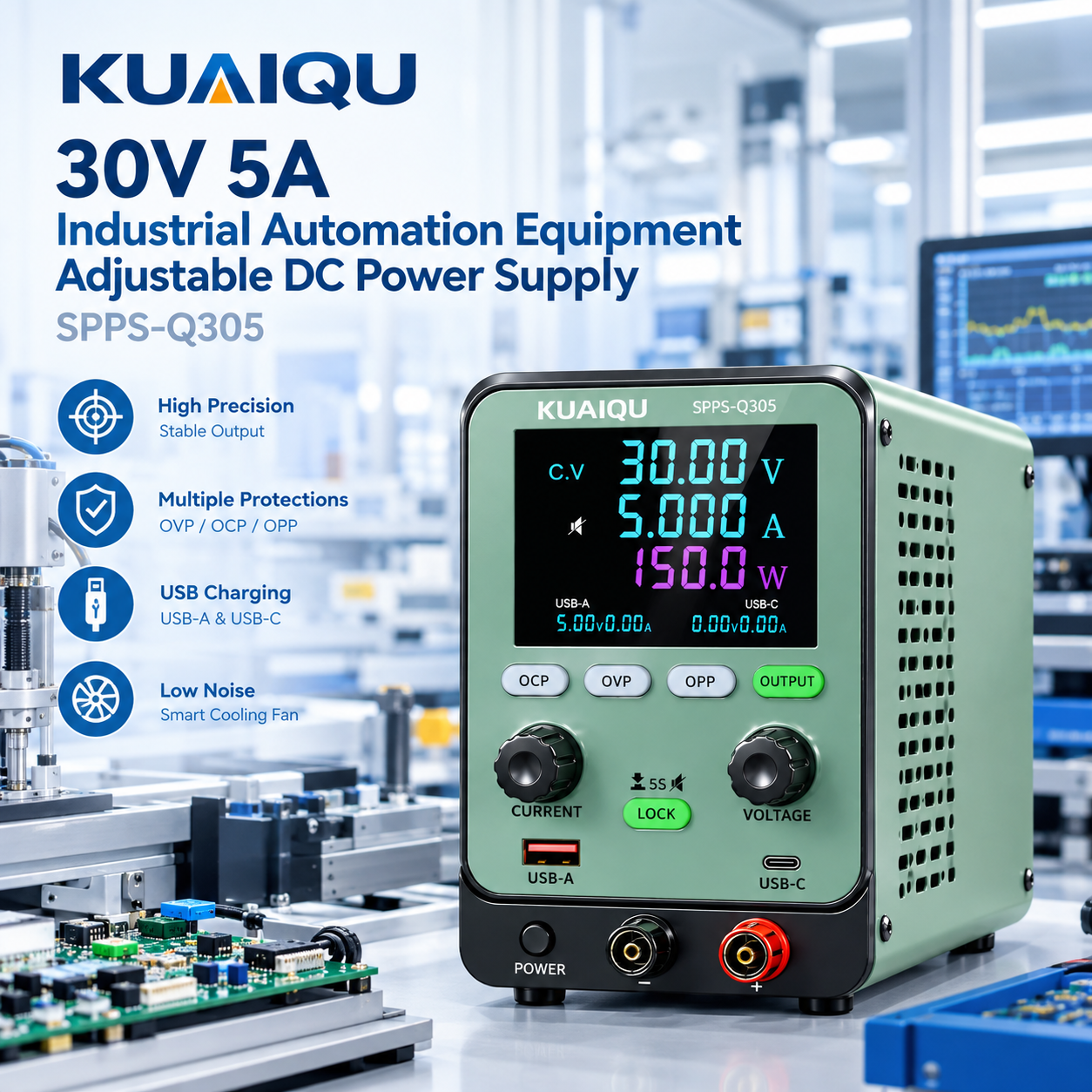

The KUAIQU SPPS-Q305 30V 5A adjustable DC power supply is designed for industrial automation equipment evaluation, control system development, and low-voltage automation applications. With an adjustable output range of 0–30V, up to 5A current, and 150W power capacity, this regulated DC bench power supply provides flexible power for evaluating compatible automation controllers, interface modules, signal control devices, and low-voltage electrical assemblies.
The color LCD display provides clear voltage, current, and power readings, allowing users to monitor output conditions when evaluating automation hardware. Integrated overcurrent protection (OCP), overvoltage protection (OVP), and overpower protection (OPP) help protect connected equipment against abnormal output conditions.
The SPPS-Q305 also features USB-A and USB-C fast-charging ports with up to 18W USB output and real-time USB voltage and current monitoring. Fine voltage display below 10V supports detailed observation of low-voltage settings, while automatic A/mA and W/mW conversion simplifies output reading. The output switch, panel lock, and mute function provide additional convenience for routine engineering work.
Combining adjustable DC output, electrical protection, and convenient measurement features, the KUAIQU SPPS-Q305 is a practical bench power supply for industrial automation equipment evaluation and low-voltage control applications.
Adjustable 0–30V DC Output: Provides flexible DC power for compatible industrial automation devices and low-voltage control equipment.
5A Output Current and 150W Power: Supports a range of automation hardware evaluation tasks within the rated output capacity.
Color LCD Display: Shows voltage, current, and power for convenient output monitoring.
OCP, OVP, and OPP Protection: Helps protect connected devices against overcurrent, overvoltage, and overpower conditions.

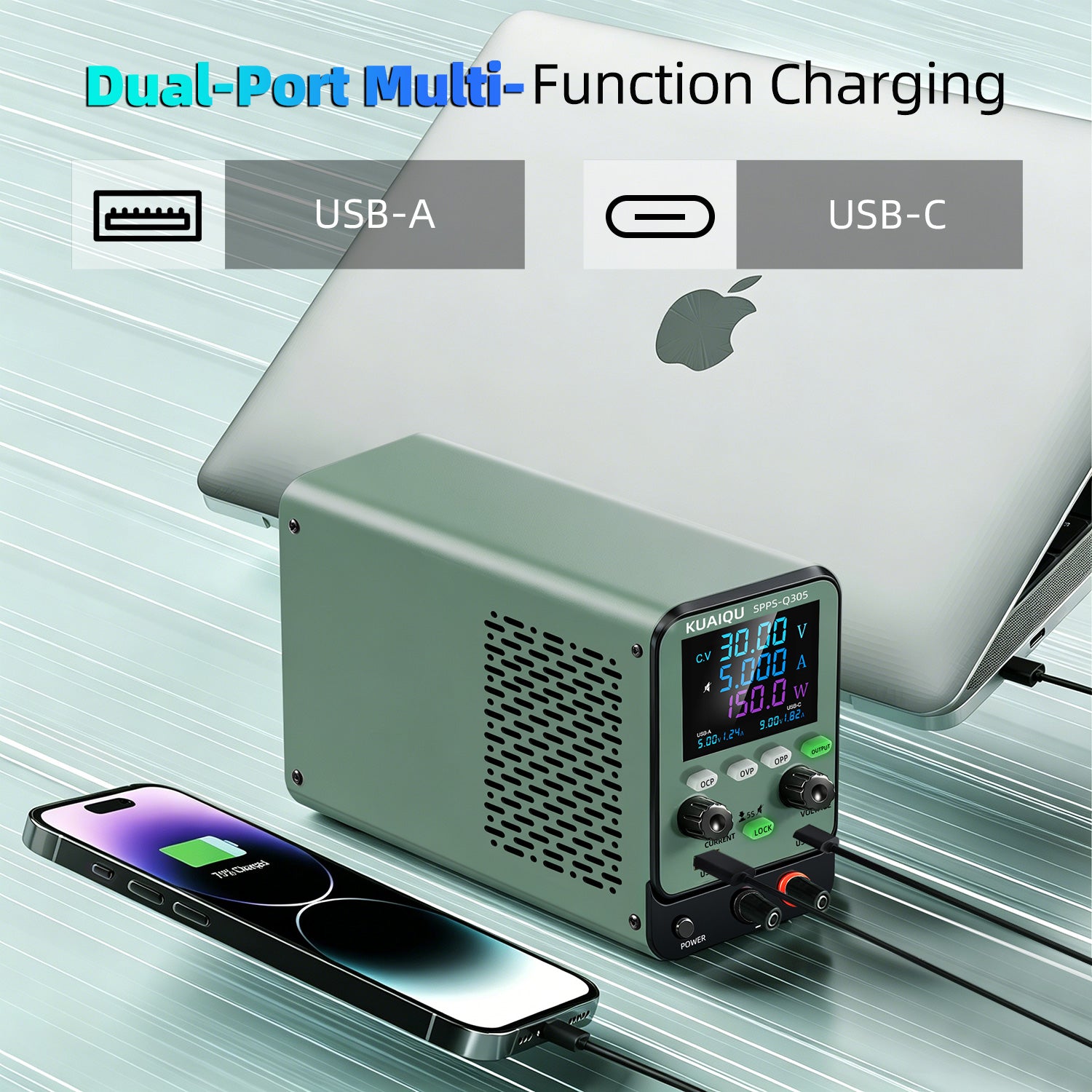

USB-A and USB-C Fast-Charging Ports: Provides up to 18W USB output with automatic adaptation to supported charging protocols.
Real-Time USB Voltage and Current Display: Helps users observe USB output conditions during compatible device checks.
Fine Low-Voltage Display: Shows voltage to three decimal places when the output voltage is below 10V.
Output ON/OFF Control: Allows convenient DC output control during equipment evaluation.
Panel Lock Function: Helps prevent accidental changes to voltage and current settings.
Automatic A/mA and W/mW Conversion: Makes electrical readings easier to interpret across different output levels.
Audible Alarm with Mute Function: Allows the buzzer to be muted when silent operation is preferred.
Industrial Automation Equipment Evaluation
Low-Voltage Control System Development
Automation Controller Testing
Industrial Interface Module Evaluation
Electrical Control Device Verification
Automation Hardware Prototyping
Low-Voltage Industrial Equipment Maintenance
Industrial Control Engineering Workbenches
DC Power Supply *1
Output Power Cord *1
Input Power Cord *1
User Manual *1
Warranty Card *1
| Parameter Item | SPPS-Q305 | |
|---|---|---|
| Rated Values | Voltage | 0~30V |
| Current | 0~5A | |
| Power | 150W | |
| Load Regulation | Voltage | ≤ 0.01%+25mV |
| Current | ≤ 0.1%+10mA | |
| Line Regulation | Voltage | ≤0.01%+5mV |
| Current | ≤0.1%+5mA | |
| Setting Resolution | Voltage | <10V: 1mV
|
| Current | 1 mA | |
| Readback Resolution (Display Resolution) | Voltage | <10V: 1mV
|
| Current | < 20mA: 10 uA
|
|
| Setting Accuracy | Voltage | ≤0.05%+20mV |
| Current | ≤0.05%+15mA | |
| Readback Accuracy (Display Accuracy) | Voltage | ≤0.05%+20mV |
| Current | <20mA: 0.1%+60uA
|
|
| Ripple (20Hz～20MHz) | Voltage | ≤60mV(p-p)
|
| Current | ≤20mA(rms) | |
| Rise Time (No Load) | Voltage | ≤100ms |
| Rise Time (Full Load) | Voltage | ≤1200ms |
| Fall Time (No Load) | Voltage | ≤2500ms |
| Fall Time (Full Load) | Voltage | ≤100ms |
| Efficiency (Full Power) | / | ≥83% |
| Input Voltage Range | Vac | 200Vac~240Vac |
| Minimum Display Current | mA | 0.01mA |
| Fuse | 220v Input | 3.15A |
| Product Dimensions | / | 218mm89mm150mm |
| Product Weight | / | 1.2KG |
