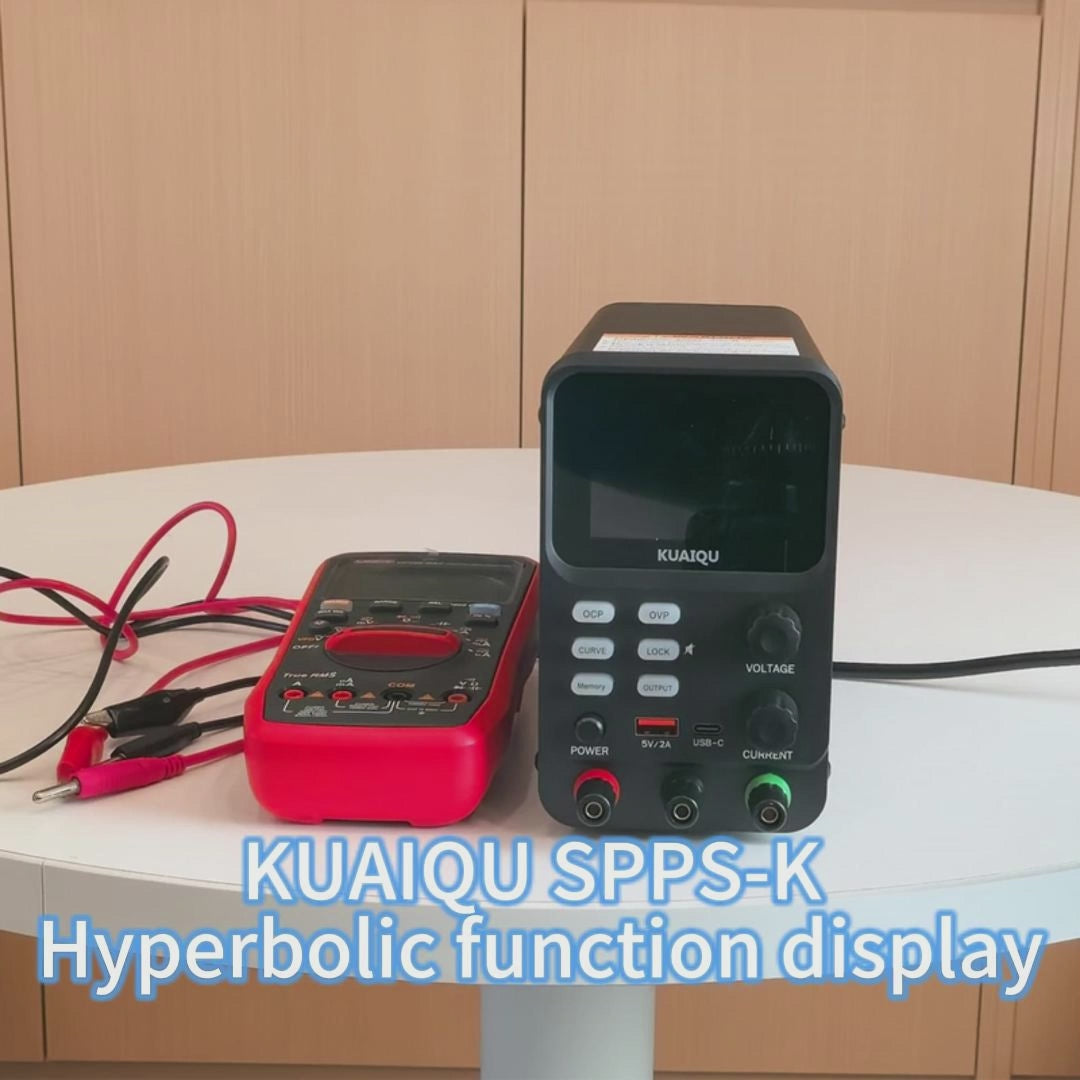

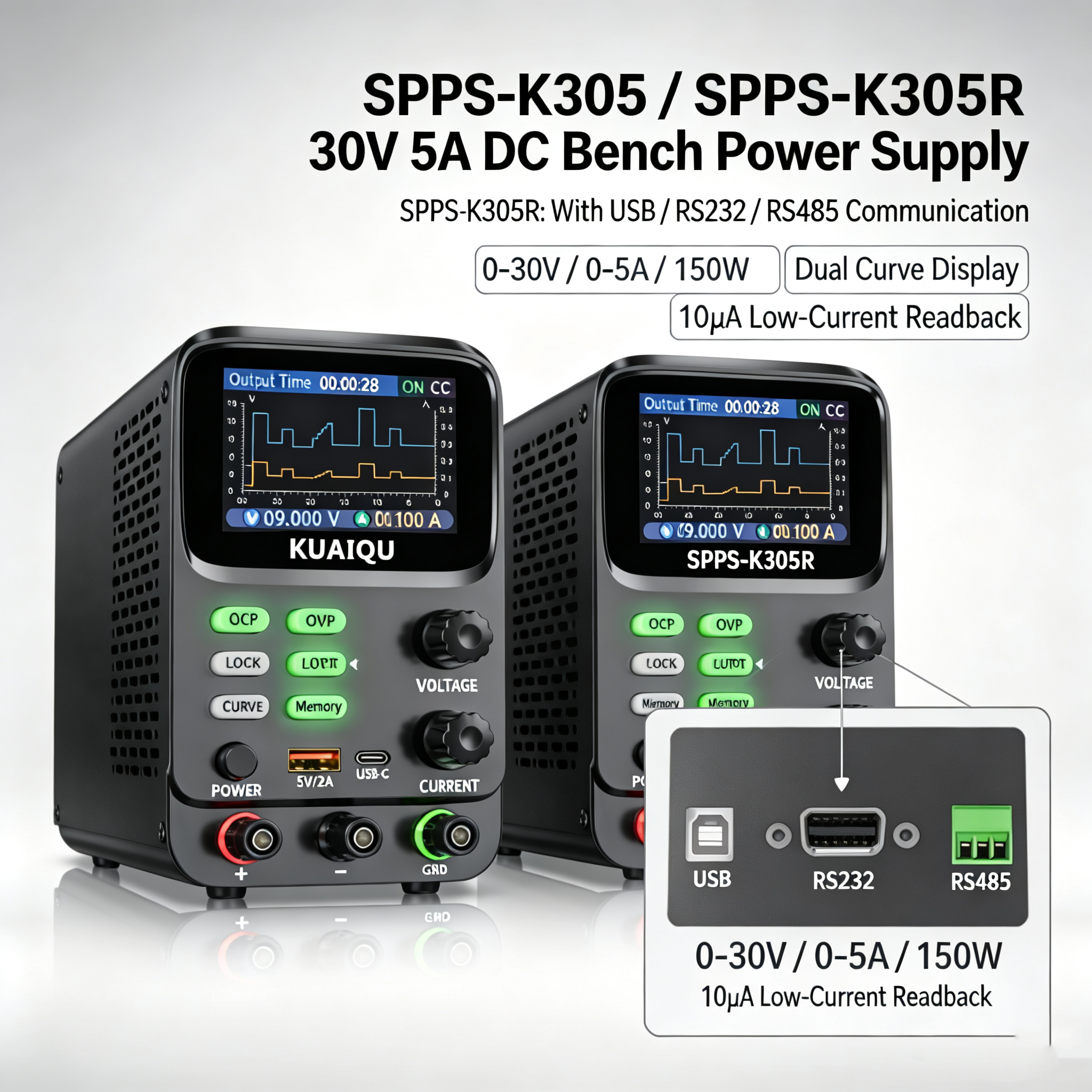

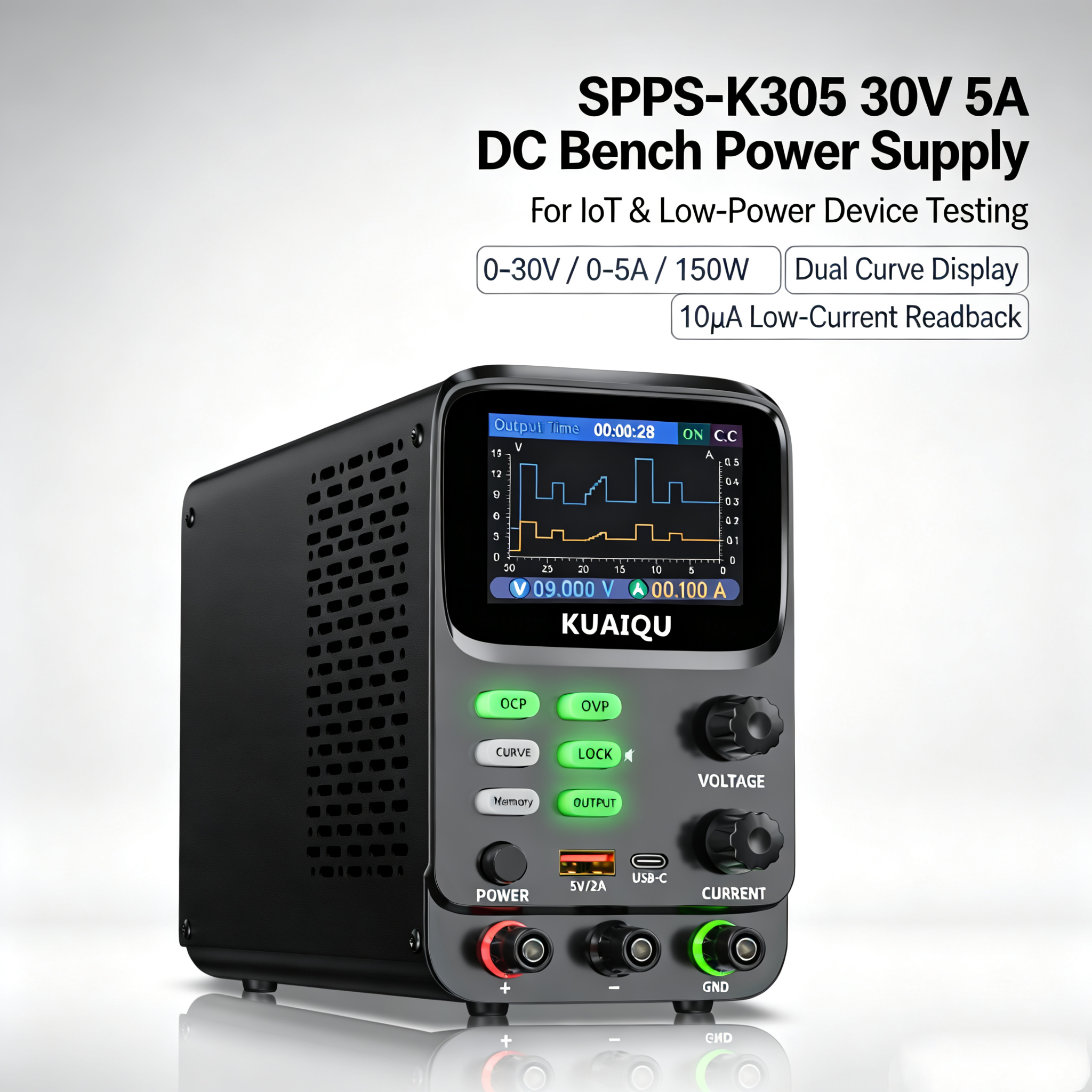

SPPS-K305 30V 5A DC Bench Power
Supply for IoT Testing
🔥 Pain Points You’re Actually Facing
⚠️ Unstable or inaccurate power output can affect IoT device testing and lead to unreliable validation results
⚠️ Small standby-current changes are difficult to observe, making low-power IoT device evaluation inefficient
⚠️ Limited current measurement resolution makes it difficult to analyze sleep-mode and low-load power consumption
⚠️ Repeatedly adjusting voltage and current for different IoT test conditions wastes development time
⚠️ Incorrect voltage, excessive current, or accidental short circuits may damage sensitive IoT prototypes and development boards
⚠️ Accidental panel operation can change test parameters during long-duration device testing
⚠️ Coarse adjustment makes it difficult to fine-tune the power conditions required for embedded and low-power devices
⚠️ Without real-time voltage and current trend visualization, abnormal startup and power-consumption behavior is harder to identify
✅ Corresponding Core Solutions
✅ Stable 0–30V Adjustable DC Output: Provides flexible voltage adjustment for IoT devices, embedded systems, development boards, and low-voltage electronic circuits.
✅ 0–5A Adjustable Current Control: Allows engineers to configure controlled current conditions for different IoT hardware and testing requirements.
✅ 1mV Voltage Resolution & High-Precision Measurement: Provides fine voltage adjustment and accurate parameter monitoring for reliable device testing.
✅ Dual Curve Voltage & Current Display: Real-time voltage and current curves help engineers observe startup behavior, load changes, and abnormal power consumption.
✅ 10μA Low-Current Readback Resolution: Helps capture small current changes during standby, sleep-mode, and low-power IoT device testing.
✅ 4 Groups of Stored Parameters: Save frequently used test conditions and quickly recall voltage/current settings for repeatable testing.
✅ Complete Protection System: OVP, OCP, and SCP protection help reduce the risk of damage caused by overvoltage, overcurrent, or accidental short circuits.
✅ Panel Lock to Prevent Misoperation: Locks the front-panel settings to help maintain stable parameters during extended IoT testing.
✅ TYPE-C + USB Charging Ports: Dual USB interfaces provide convenient 5V/2A output for compatible electronic devices and accessories.
✅ Encoder Precision Adjustment: Provides smoother and more precise voltage/current adjustment for low-power and embedded device testing.
✦ Stable Power Source for IoT Device Testing
IoT devices often operate under different voltage, load, standby, and sleep conditions. A stable adjustable DC source is important for validating device power behavior and ensuring consistent test conditions.
The KUAIQU SPPS-K305 provides:
-
0–30V adjustable output voltage
-
0–5A adjustable output current
-
150W maximum output power
-
1mV voltage resolution
-
1mA current setting resolution
-
10μA current readback resolution under low-current range
It enables engineers to evaluate:
✓ IoT device operating voltage
✓ Device startup behavior
✓ Operating current
✓ Standby current
✓ Low-load power consumption
✓ Power stability under different operating conditions
Providing a dependable DC power source for IoT hardware development, prototype validation, and device testing.
✦ Real-Time Voltage & Current Curve Display for IoT Power Analysis
IoT devices can switch between active, standby, sleep, and communication states, resulting in changing voltage and current characteristics.
The SPPS-K305 features a real-time dual voltage and current curve display, allowing engineers to visually monitor power changes during device operation.
The curve display helps analyze:
-
Startup current changes
-
Current fluctuations during operation
-
Standby and sleep-mode behavior
-
Load-related current changes
-
Power consumption variations
-
Abnormal current conditions
This allows engineers to identify:
-
Unexpected current consumption
-
Unstable operating conditions
-
Abnormal startup behavior
-
Power-related design issues
Improving debugging and power-analysis efficiency during IoT device development.

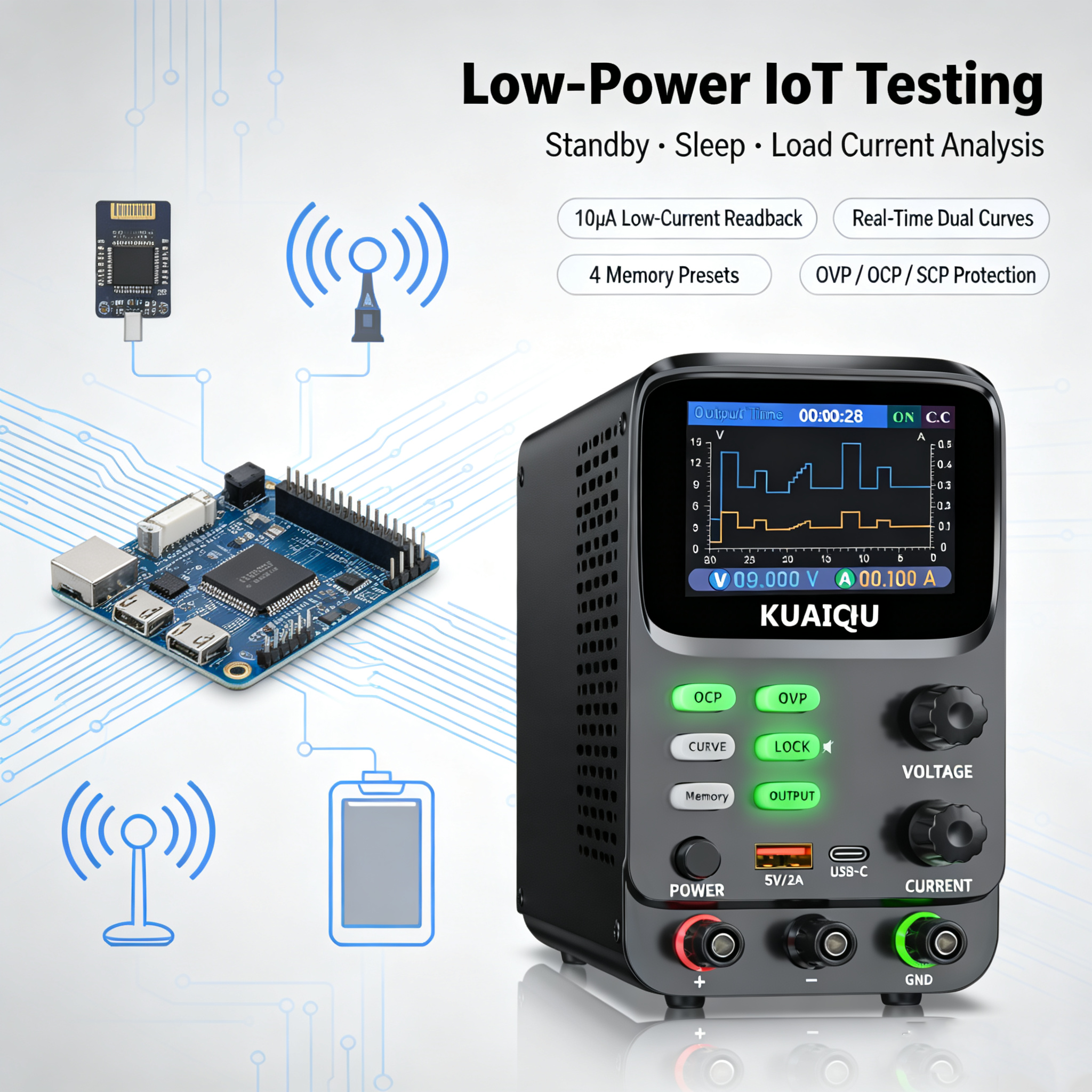

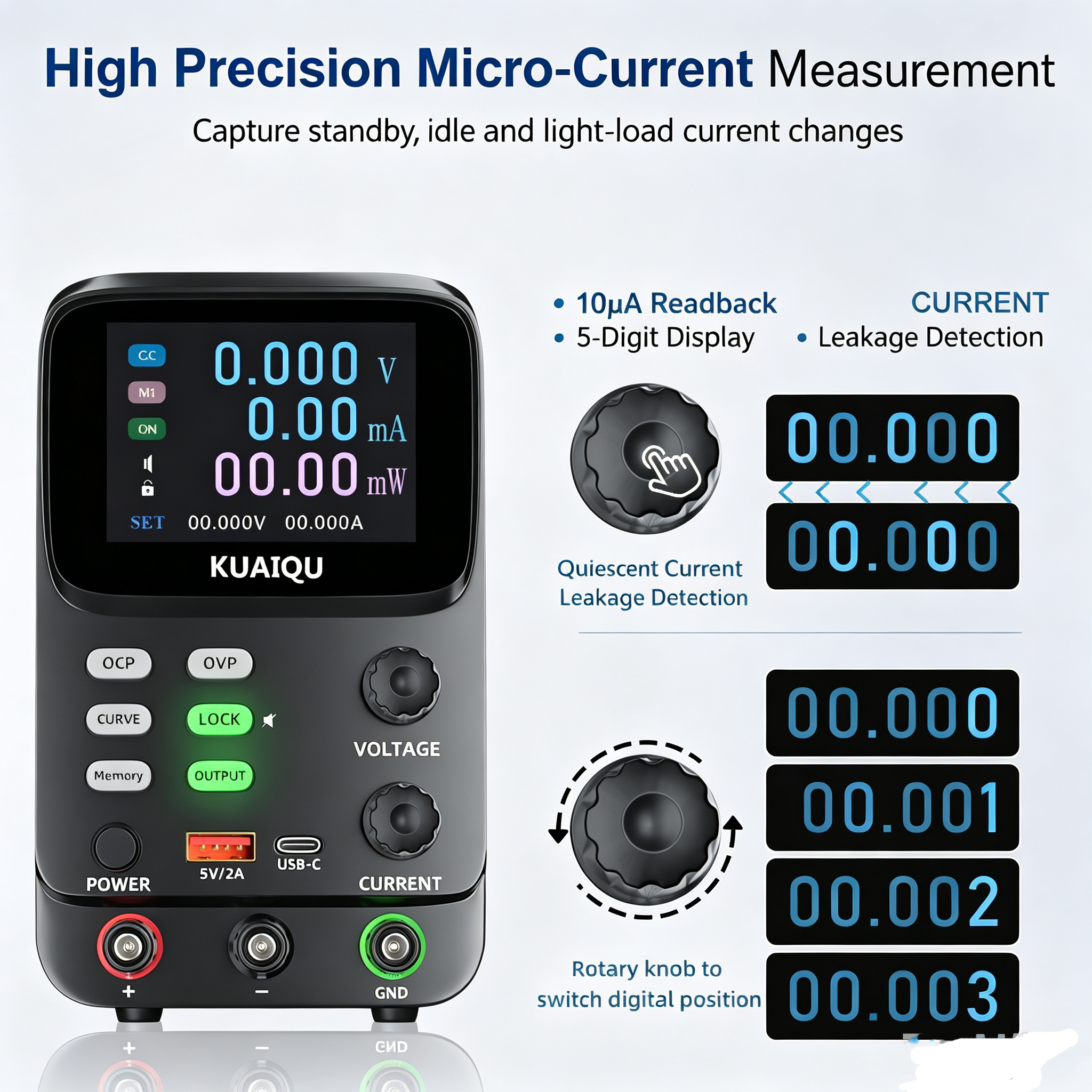

✦ 10μA Low-Current Measurement for Low-Power IoT Devices
Low-power operation is an important consideration for battery-powered IoT devices, wireless sensors, smart controllers, and embedded electronics.
The SPPS-K305 provides 10μA current readback resolution under the low-current range, allowing engineers to observe small changes in device current consumption.
Engineers can evaluate:
The 5-digit high-resolution display makes small voltage and current changes easier to monitor during IoT device evaluation.
This helps engineers analyze:
✦ 4 Memory Presets for Repeatable IoT Testing
IoT device development often requires testing the same device under multiple voltage and current conditions.
The SPPS-K305 provides 4 groups of stored parameters, allowing engineers to save frequently used test configurations and quickly recall them.
Example test configurations:
M1: Low-voltage operating test
M2: Normal operating condition test
M3: High-load operating test
M4: Standby or sleep-mode test
With quick parameter recall, engineers can switch between different test conditions without repeatedly adjusting the power supply manually.
This helps improve testing efficiency and maintain consistent conditions during IoT hardware development and validation.
✦ Protection Functions for Safe IoT Prototype Testing
IoT development boards and embedded prototypes may contain sensitive ICs, MCUs, sensors, wireless modules, and power-management circuits.
Incorrect voltage settings, excessive current, or wiring mistakes may damage the device under test.
The SPPS-K305 provides:
OVP — Over Voltage Protection
Helps prevent excessive output voltage from being applied to sensitive IoT circuits and development boards.
OCP — Over Current Protection
Helps limit abnormal current conditions during device startup, overload, or unexpected circuit behavior.
SCP — Short Circuit Protection
Helps protect the power supply and connected circuits in the event of an accidental short circuit.
Panel Lock Function
Helps prevent unintended voltage or current adjustments during long-duration IoT device testing.
These protection functions provide an additional layer of safety when testing IoT prototypes, development boards, and embedded electronic systems.
✦ Precision Control for IoT & Embedded System R&D
IoT device testing may require small voltage and current adjustments when evaluating power consumption under different operating states.
The SPPS-K305 provides:
-
1mV voltage adjustment resolution
-
1mA current setting resolution
-
10μA current readback resolution
-
0.05% + 10mV voltage accuracy
-
0.1% + 10mA current accuracy
Combined with encoder adjustment and a high-resolution display, the power supply allows engineers to establish repeatable test conditions and monitor small changes in device power behavior.

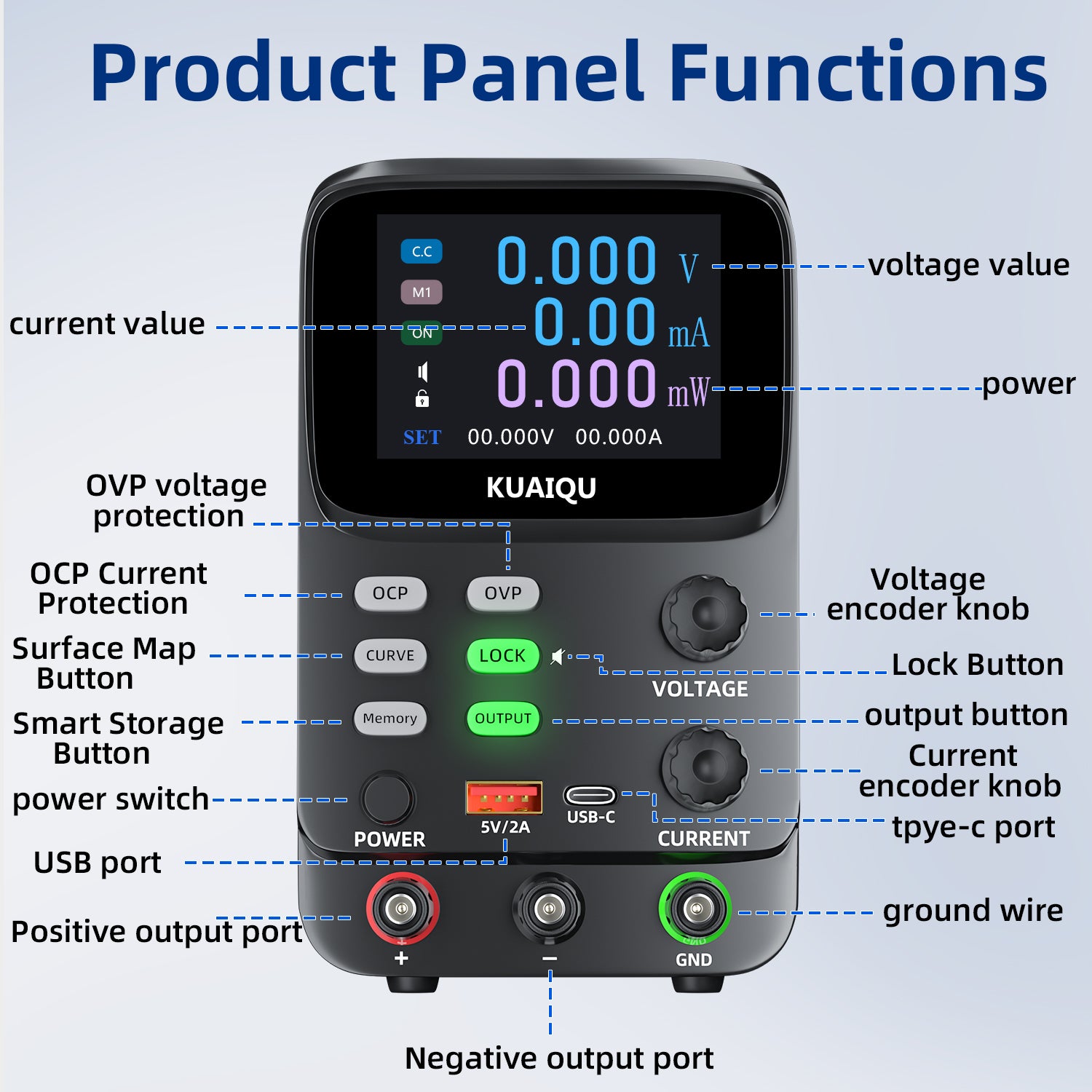

✦ Professional Operation Features for IoT Testing Applications
Designed for R&D laboratories, electronics workshops, and prototype testing environments, the SPPS-K305 includes:

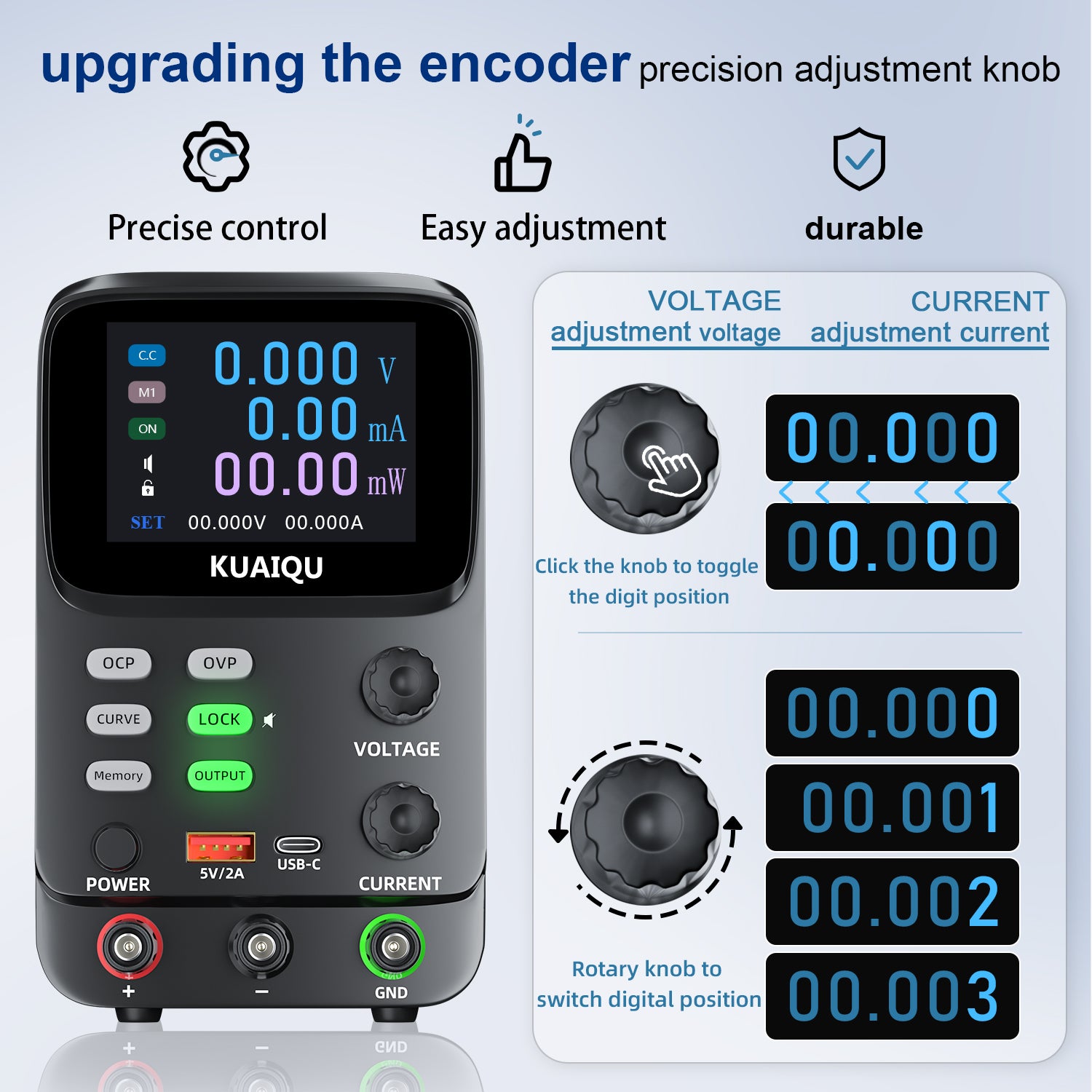

Encoder Precision Adjustment
Provides smooth and accurate voltage/current adjustment for repeatable IoT device testing.
Output Enable Switch
Allows engineers to configure voltage and current parameters before applying power to the IoT device under test.
Adjustable Key Tone
Provides adjustable operation feedback and mute functionality for different laboratory and workshop environments.
USB + Type-C Charging Ports
Provides convenient 5V/2A output for compatible electronic devices and accessories.
Intelligent Cooling System
Helps maintain stable operation during extended IoT device testing and development.
✦ Applications IoT Device Testing
Low-Power Device Testing
-
Standby current testing
-
Sleep-mode current testing
-
Low-load power testing
-
Power consumption analysis
-
Battery-powered device evaluation
Embedded System Development
-
MCU development board testing
-
Embedded controller testing
-
Sensor module testing
-
Communication module testing
-
Embedded hardware debugging
Electronic System Testing
Quality Check and Terms of Service
-
Package includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1.
-
CE & FCC Certified: The product has passed CE and FCC certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter SPPS-K305 Specs |
|
| Model |
SPPS-K305 |
| Rated Output (0℃~40℃) |
0–30V, 0–5A, 150W |
| USB/Type-C Output |
5V/2A |
| Load Regulation |
Voltage: ≤0.01%+10mV / Current: ≤0.1%+5mA |
| Line Regulation |
Voltage: ≤0.01%+2.5mV / Current: ≤0.1%+2.5mA |
| Setting Resolution |
Voltage: 1mV / Current: 1mA |
| Readback Resolution |
Current: <20mA: 10μA |
| Setting Accuracy |
Voltage: 0.05%+10mV / Current: 0.1%+10mA |
| Readback Accuracy |
Voltage: 0.05%+10mV / Current: <20mA: 0.1%+60μA |
| Ripple (20Hz~20MHz) |
Voltage: ≤100mVp-p / 15mVrms / Current: ≤15mArms |
| Rise Time (No Load) |
≤200mS |
| Fall Time (No Load) |
≤3S |
| Input Voltage |
AC 220V (AC110V optional) |
| Net Weight |
1.17KG / 2.58lb |
Why Choose KUAIQU SPPS-K305?
For IoT device testing and low-power electronics evaluation, engineers need a stable, adjustable, and accurately measurable DC power source.
The KUAIQU SPPS-K305 combines:
✓ 0–30V / 0–5A adjustable output
✓ 150W power capability
✓ Dual voltage & current curve display
✓ 1mV voltage resolution
✓ 10μA low-current measurement
✓ 4 programmable memory presets
✓ OVP / OCP / SCP protection
✓ Panel lock function
✓ Precision encoder adjustment
✓ High-resolution 5-digit display
Providing an efficient testing solution for IoT device development, low-power device testing, embedded system evaluation, standby power analysis, and electronic hardware validation.
