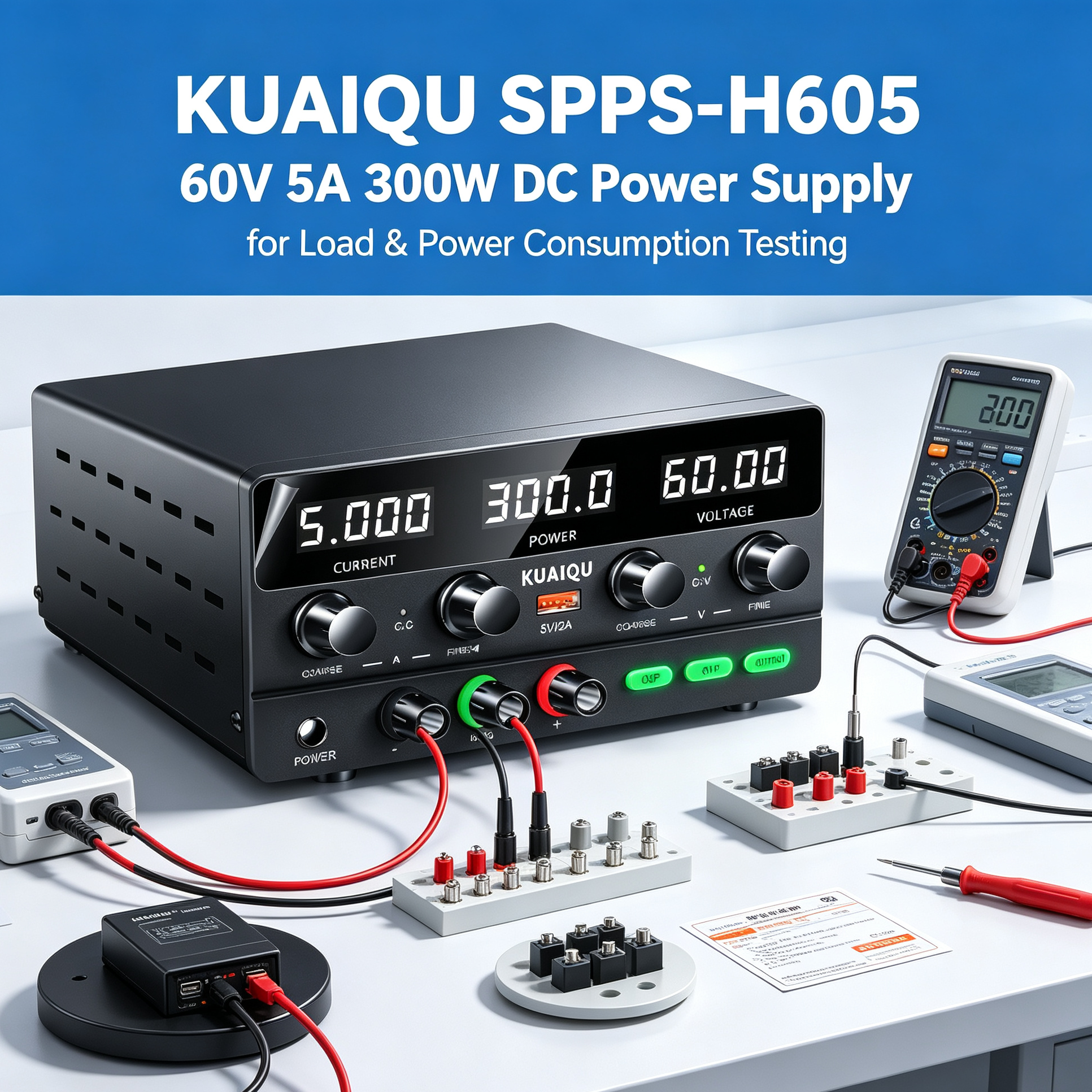

KUAIQU SPPS-H605 60V 5A 300W DC Power Supply

The KUAIQU SPPS-H605 is a DC Power Supply for Load Testing, providing a 0–60V adjustable output, 0–5A current range, and 300W maximum output power for controlled power evaluation.

During power consumption testing, engineers can adjust the output voltage and current according to the device under test while monitoring voltage, current, and power in real time. This makes the SPPS-H605 a practical 300W adjustable DC power supply for evaluating the operating conditions and power requirements of DC-powered equipment.

The independent Output ON/OFF switch provides convenient control during load testing. The output can be disabled while connecting the load or changing test settings, helping prevent accidental power delivery and adding an extra layer of protection. OCP and OVP protection provide additional protection during abnormal current or voltage conditions.

Key Features

  • 0–60V Adjustable DC Output – Provides flexible voltage control for different load conditions.
  • 0–5A Adjustable Current – Allows controlled current settings during power evaluation.
  • 300W Output Power – Suitable for medium-power DC load testing.
  • Independent Output ON/OFF Switch – Allows the output to be disabled during setup or adjustment, helping prevent accidental power delivery and adding an extra layer of protection.
  • Real-Time V/A/W Display – Monitor voltage, current, and power consumption during operation.
  • OCP Over-Current Protection – Helps protect against excessive-current conditions.
  • OVP Over-Voltage Protection – Helps protect connected equipment against excessive output voltage.
  • USB 5V/2A Output – Provides convenient auxiliary power for USB instruments and accessories.

Applications

  • DC load testing
  • Power consumption testing
  • Device power evaluation
  • Operating current testing
  • Power input verification
  • Electronic equipment evaluation
  • Prototype load testing
  • Continuous load verification

Quality Check and Terms of Service:

  • Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
  • Has passed CE & FCC Certification.
  • All DC power supplies and accessories are inspected before shipment to ensure good quality.
  • Customer support: Contact us with any questions, and we'll respond within 24 hours

Specifications

Parameter Category Parameter Item SPPS-H605
Rated Output Parameters (0℃~40℃) Voltage 0-60V
Current 0-5A
Power 300W
General Interface USB Output 5V/2A
Load Regulation Voltage ≤0.3%+10mV
Current ≤0.1%+2.5mA
Line Regulation Voltage ≤0.01%+2.5mV
Current ≤0.1%+2.5mA
Setting Resolution Voltage 10mV
Current 1mA
Readback Resolution Voltage 10mV
Current 1mA
Setting Accuracy Voltage ≤0.01%+15mV
Current ≤0.01%+10mA
Readback Accuracy Voltage ≤0.01%+15mV
Current ≤0.01%+10mA
Ripple & Noise (20Hz~20MHz) Voltage Ripple ≤200mVp-p / ≤20mVrms
Current Ripple ≤20mArms
Dynamic Response Parameters Rise Time (No Load) ≤200mS
Rise Time (Full Load) ≤300mS
Fall Time (No Load) ≤20S
Fall Time (Full Load) ≤300mS
Dynamic Response Time ≤200mS
Efficiency Conversion Efficiency ≥85%
Dimensions & Weight Unit Size / Net Weight Approx. 21178cm, 1.3KG
Warranty

Warranty

30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
