Product Details

Download English Manual (PDF)

Click the link above to get the full user guide for this product.

KUAIQU SPPS-H3010 30V 10A 300W Adjustable DC Power Supply for Relay & Control Circuit Testing

The KUAIQU SPPS-H3010 is an Adjustable DC Power Supply for Relay and Control Circuit Testing, providing a 0–30V adjustable output and up to 10A current adjustment for low-voltage control circuits and electrically operated components.

Its wide 0–30V range allows engineers to test relay coils, contactors, control modules, switches, and other DC-powered control components at different supply voltages. The 300W output capacity provides additional flexibility when multiple components or larger control loads are involved.

The SPPS-H3010 combines OCP and OVP protection with an independent Output ON/OFF switch. The output can be disabled during wiring and parameter adjustment, helping prevent accidental power delivery and adding an extra layer of protection for the test circuit.

Key Features

  • 0–30V Adjustable Output – Supports different DC voltage requirements for control circuit testing.
  • 0–10A Adjustable Current – Provides flexible current control for control components and loads.
  • 300W Output Power – Suitable for relay, contactor, and control circuit testing.
  • Independent Output ON/OFF Switch – Allows the output to be disabled during setup or adjustment, helping prevent accidental power delivery and adding an extra layer of protection.

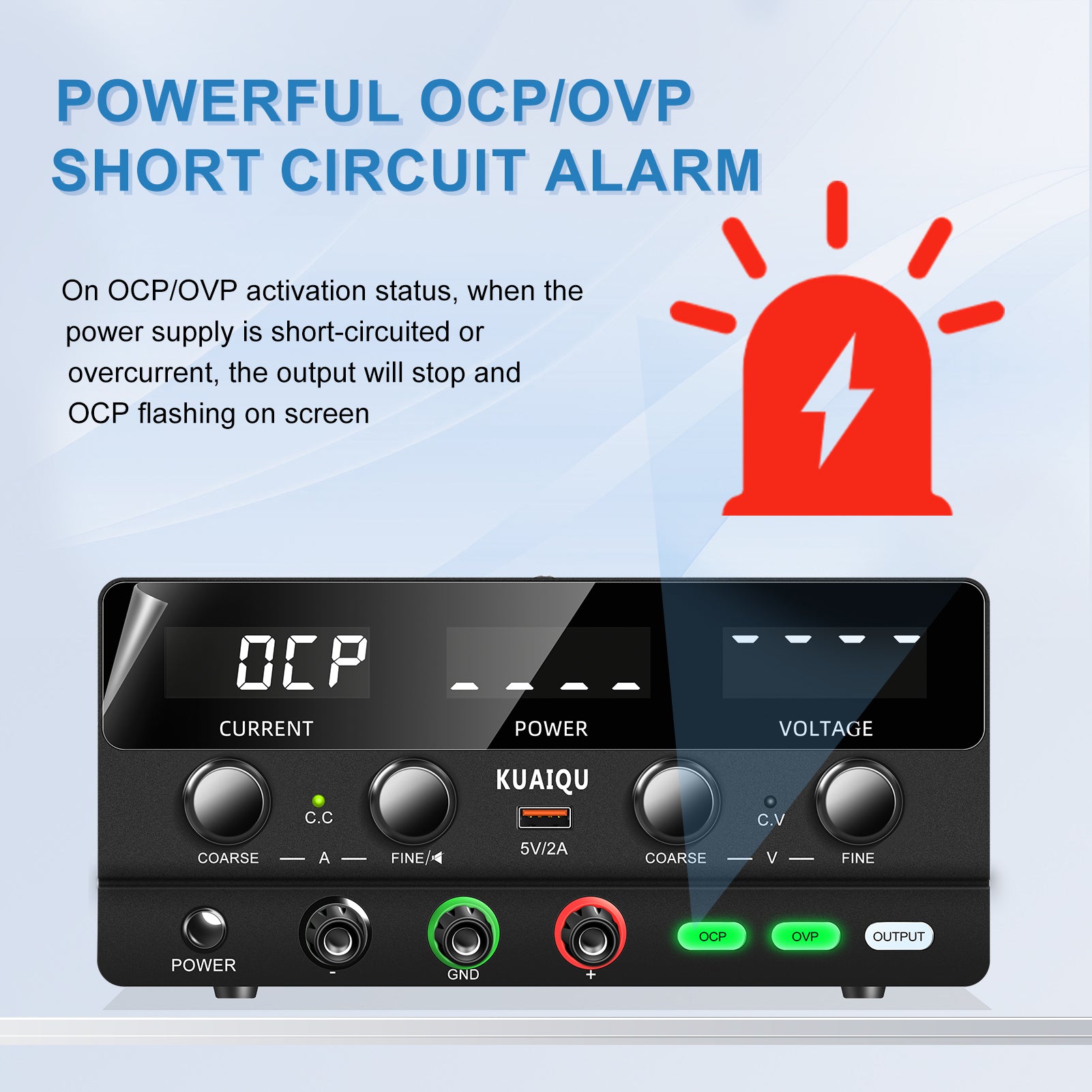

  • OCP & OVP Protection – Helps protect control circuits and connected components during testing.
  • USB 5V/2A Output – Provides convenient auxiliary power for USB instruments and accessories.
  • Real-Time V/A/W Display – Allows quick monitoring of the test circuit.
  • Precision Encoder Knob – Enables controlled voltage and current adjustment.

Applications

  • Relay testing
  • Relay coil testing
  • Contactor testing
  • Control circuit testing
  • Switch testing
  • DC control module testing
  • Industrial control prototypes
  • Electrical control component evaluation

Quality Check and Terms of Service

  • Package includes:  DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
  • The high voltage bench power supply is made of high quality electronic components and is FCC and CE certified to provide reliable and stable performance and effectively extend product life.
  • All DC power supplies and accessories are inspected before shipment to ensure good quality.
  • Customer support: Contact us with any questions, and we'll respond within 24 hours.
Item Parameter SPPS‑H3010
Rated Value

(0℃‑40℃) 		Voltage 0‑30V
Current 0‑10A
Power 300W
USB Output ‑ 5V/2A
Load Regulation Voltage ≤0.3%+10 mV
Current ≤0.1%+2.5 mA
Line Regulation Voltage ≤0.01%+2.5 mV
Current ≤0.1%+2.5 mA
Setting Resolution Voltage 10 mV
Current 1 mA
Readback Resolution Voltage 10 mV
Current 1 mA
Setting Accuracy Voltage ≤0.01%+10 mV
Current ≤0.01%+10 mA
Readback Accuracy Voltage ≤0.01%+10 mV
Current ≤0.01%+10 mA
Ripple

(20Hz‑20MHz) 		Voltage ≤100 mVp‑p

≤15 mVrms
Current ≤15 mArms
Rise Time (No Load) Time ≤200 mS
Rise Time (Full Load) Time ≤300 mS
Fall Time (No Load) Time ≤20S
Fall Time (Full Load) Time ≤300 mS
Dynamic Response Time ≤200 mS
Efficiency ‑ ≥85%
Input Voltage / Current ‑ AC 220V (AC110V optional)
Size / Net Weight ‑ Size: approx 21178cm,

Net Weight:1.3KG
Package Size / Weight ‑ Single unit: 3112.522cm, 1.72KG

(8pcs/Carton)
