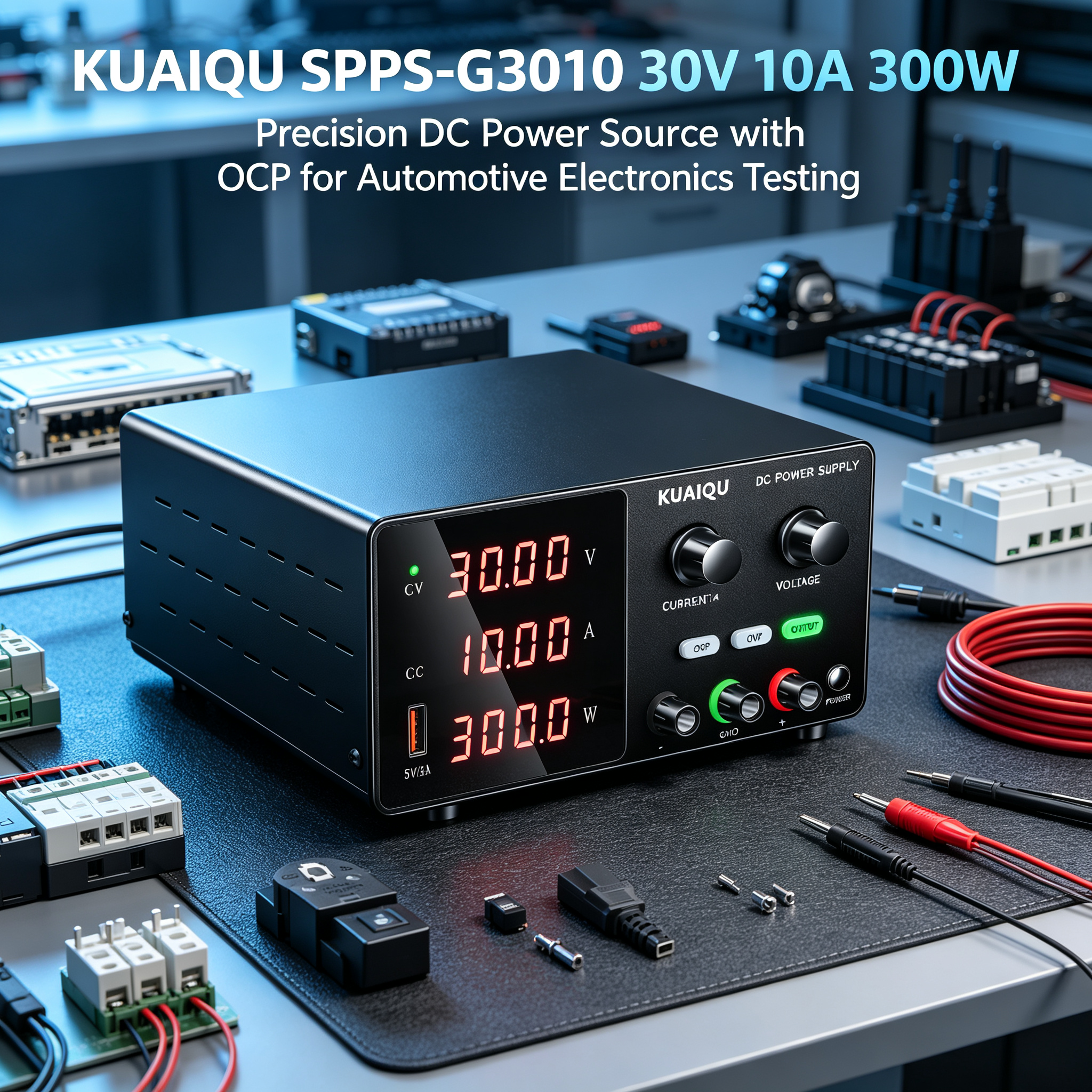

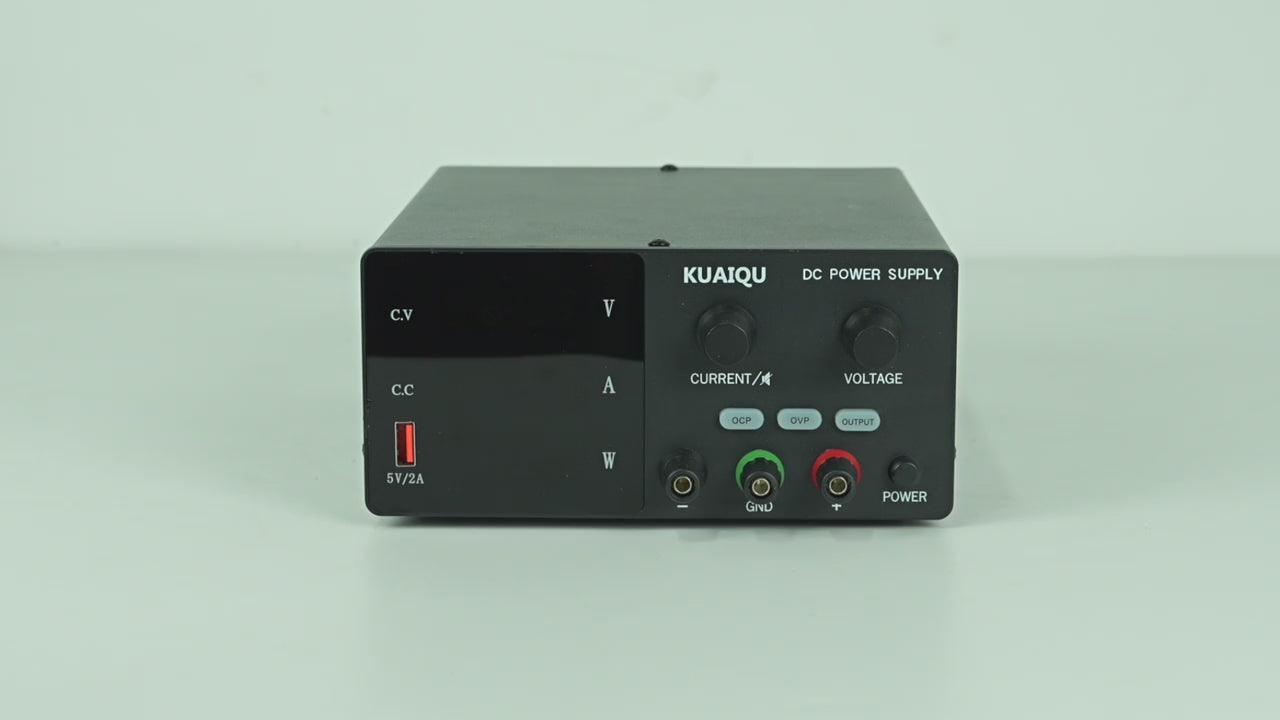

KUAIQU DC Bench Power Supply SPPS-
G3010 0-30V 0-10A 300W with Output
Control for Automotive Electronics Testing
The KUAIQU SPPS-G3010 is a 0-30V 0-10A 300W DC Bench Power Supply designed for Automotive Electronics Testing applications that require adjustable and controlled DC power output. With adjustable voltage up to 30V and current up to 10A, it provides a practical power source for testing automotive electronic circuits, control modules, sensors, actuators, and other low-voltage automotive-related devices within its rated output range.
For automotive electronics testing, engineers often need a reliable bench power supply that allows flexible parameter adjustment, real-time monitoring, and safe power management during development and troubleshooting. The SPPS-G3010 features Output ON/OFF Control, precision encoder adjustment, 4-digit voltage/current/power display, OCP and OVP protection, providing convenient operation for automotive electronic testing environments.
Key Features
0-30V Adjustable DC Output
The SPPS-G3010 provides a 0-30V adjustable DC output range, allowing users to set suitable voltage conditions for different automotive electronic components and circuits. This flexibility helps engineers evaluate devices under controlled bench testing conditions instead of relying only on vehicle power systems.
Up to 10A Current Output for Automotive Electronics Testing
With up to 10A adjustable current output and 300W power capacity, the SPPS-G3010 supports automotive electronics testing applications that require higher current compared with standard low-current testing equipment. It is suitable for evaluating automotive modules, electronic circuits, and DC-powered components within its rated specifications.
Output ON/OFF Control for Safer Testing Operation
The independent output control allows users to adjust voltage and current parameters before supplying power to the connected automotive device. This helps simplify connection procedures and provides convenient control during repeated testing and troubleshooting operations.
OCP and OVP Protection
Built-in Over Current Protection (OCP) and Over Voltage Protection (OVP) provide additional protection during automotive electronics testing. These protection functions help reduce the risk caused by abnormal current or voltage conditions when connecting different electronic devices.

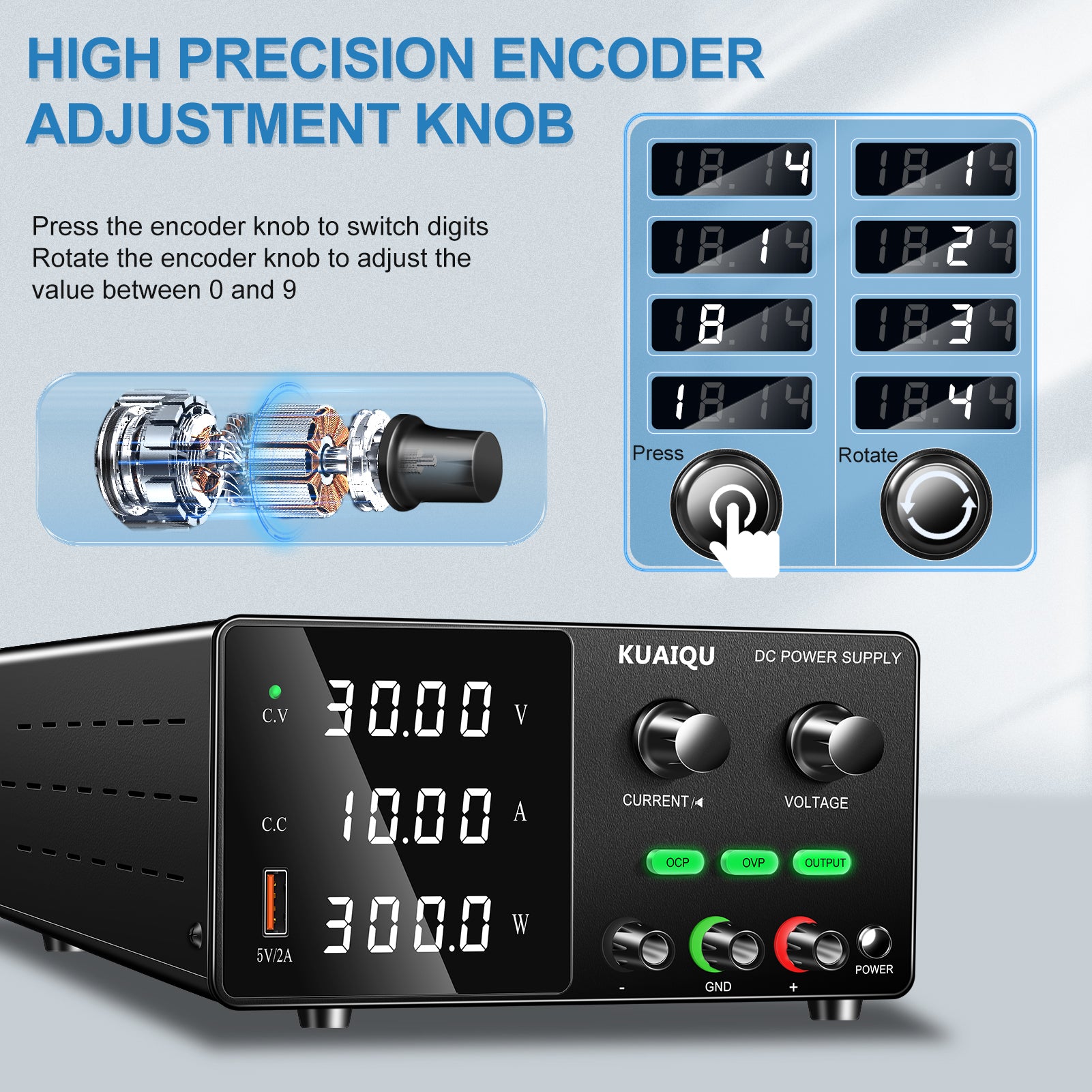

Precision Encoder Adjustment
The encoder knob allows users to adjust voltage and current settings more conveniently. With 10mV voltage setting resolution and 1mA current setting resolution, the SPPS-G3010 supports precise parameter adjustment for automotive electronic testing requirements.

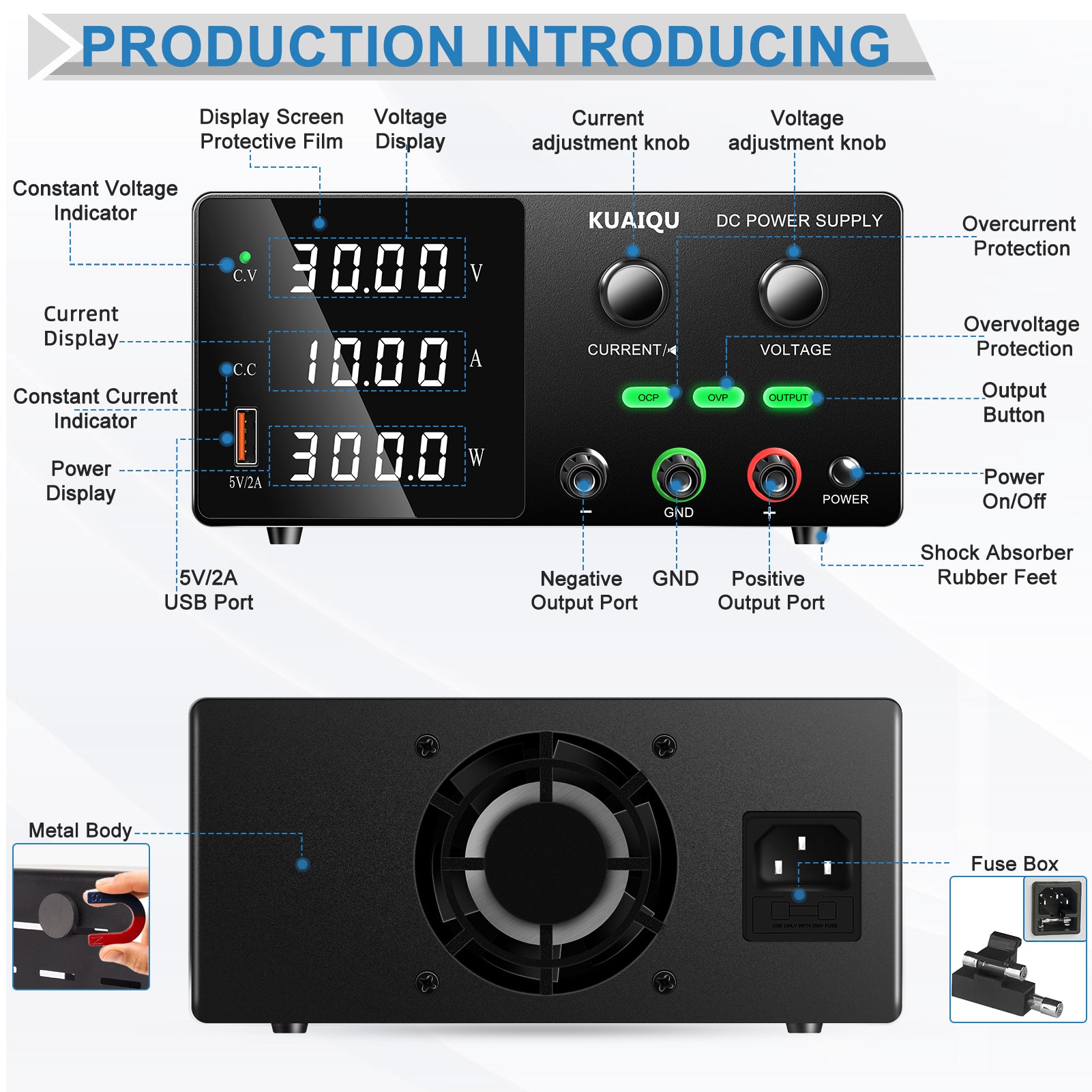

4-Digit Voltage, Current and Power Display
The integrated display provides real-time monitoring of output voltage, current, and power. This allows engineers to observe electrical conditions during automotive module testing, circuit debugging, and electronic component evaluation.
Adjustable Buzzer Setting
The built-in buzzer function provides operation feedback during use and can be adjusted or muted according to different working environments.
USB 5V/2A Auxiliary Output
The USB 5V/2A output provides additional power output for compatible auxiliary devices and basic testing accessories.
Controlled Power for Automotive Electronics Testing
Flexible Testing Conditions for Vehicle Electronics
Automotive electronic systems often require different voltage and current conditions during development, inspection, and troubleshooting. The SPPS-G3010 DC Bench Power Supply allows users to adjust output parameters within the 0-30V and 0-10A range to support different automotive electronics testing requirements.
This adjustable output capability makes it suitable for bench testing of vehicle electronic modules, sensors, control circuits, and other DC-powered automotive devices within the rated specifications.
Convenient Power Control During Testing
The Output ON/OFF Control function allows engineers to prepare test parameters before applying power to the connected device. This improves convenience when connecting, replacing, or evaluating different automotive electronic components during testing procedures.

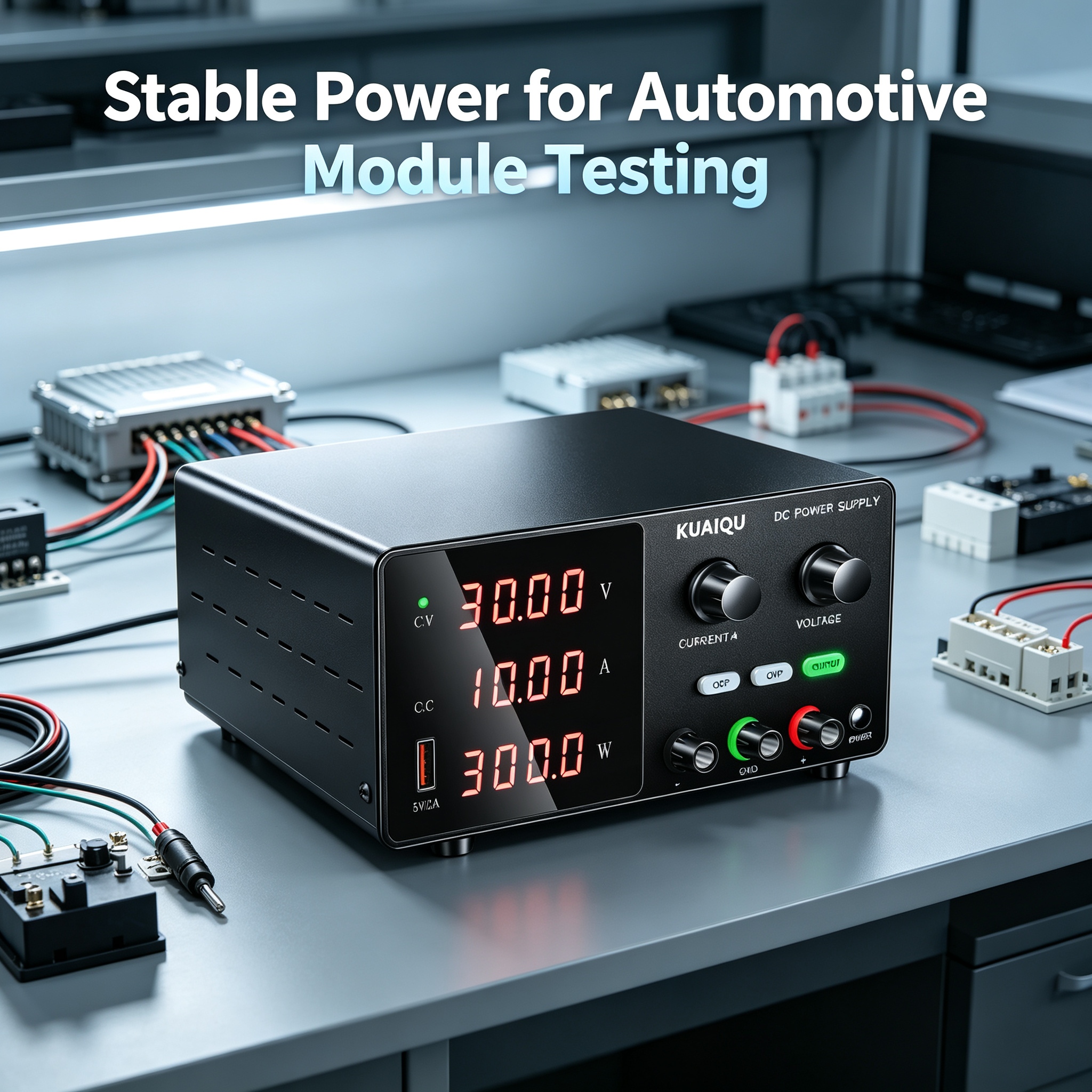

Stable DC Power for Automotive Diagnostics
Regulated DC Output Performance
The SPPS-G3010 provides regulated DC output for automotive electronics testing and development applications. Its specified load regulation, line regulation, and ripple performance help maintain controlled power conditions during normal operation.
Real-Time Electrical Parameter Monitoring
During automotive electronics testing, voltage, current, and power values can be monitored directly through the 4-digit display. This helps users evaluate load changes and understand the operating condition of connected automotive electronic devices.
Protection Support for Automotive Electronics Testing

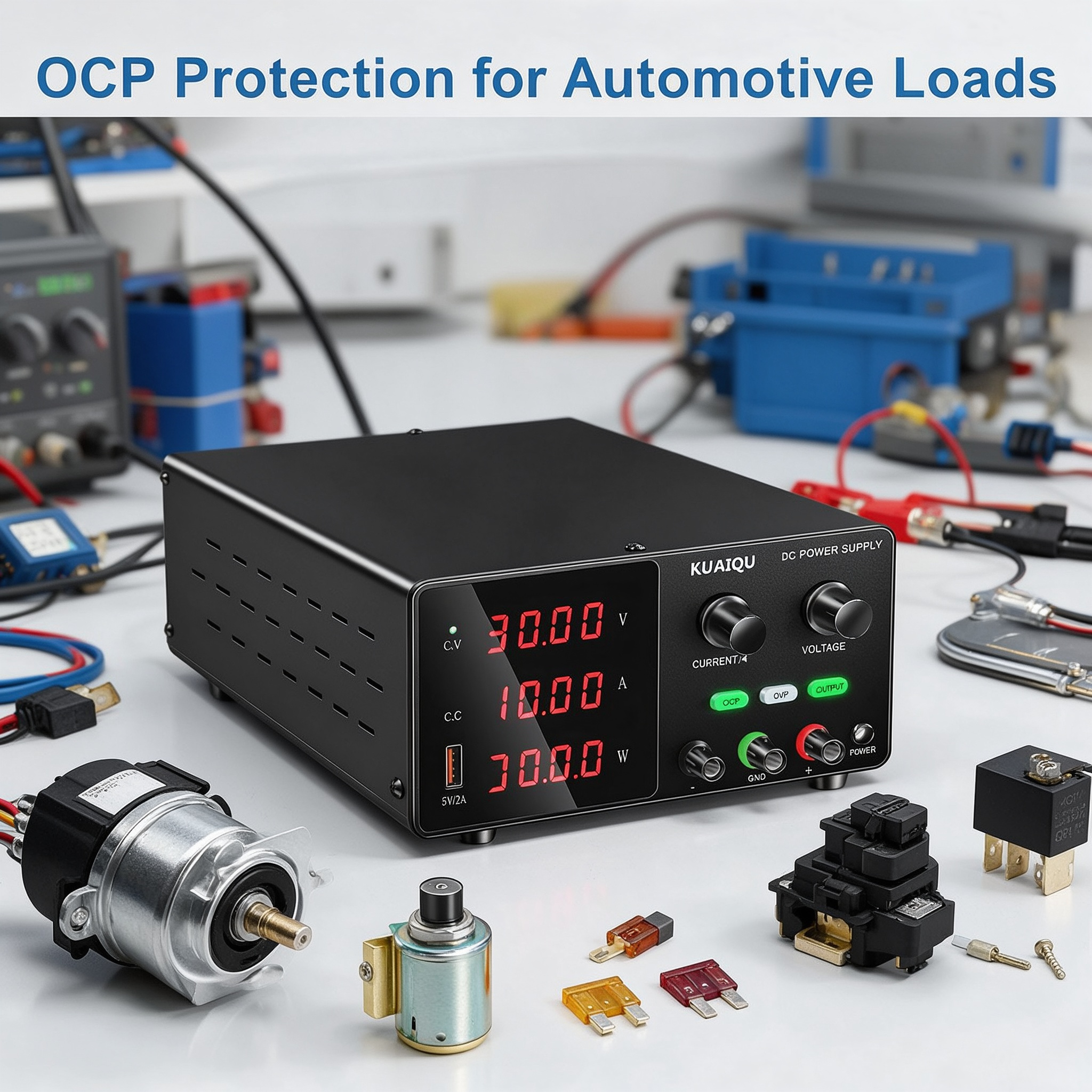

Over Current Protection
The OCP function helps protect the connected equipment when excessive current conditions occur during testing. It provides additional safety support when evaluating automotive electronic circuits and modules.
Over Voltage Protection
The OVP function helps protect connected devices against abnormal voltage conditions, supporting safer operation during automotive electronics testing.
Applications
The KUAIQU SPPS-G3010 DC Bench Power Supply is suitable for:
-
Automotive Electronics Testing
-
Vehicle Electronic Module Testing
-
Automotive Control Circuit Testing
-

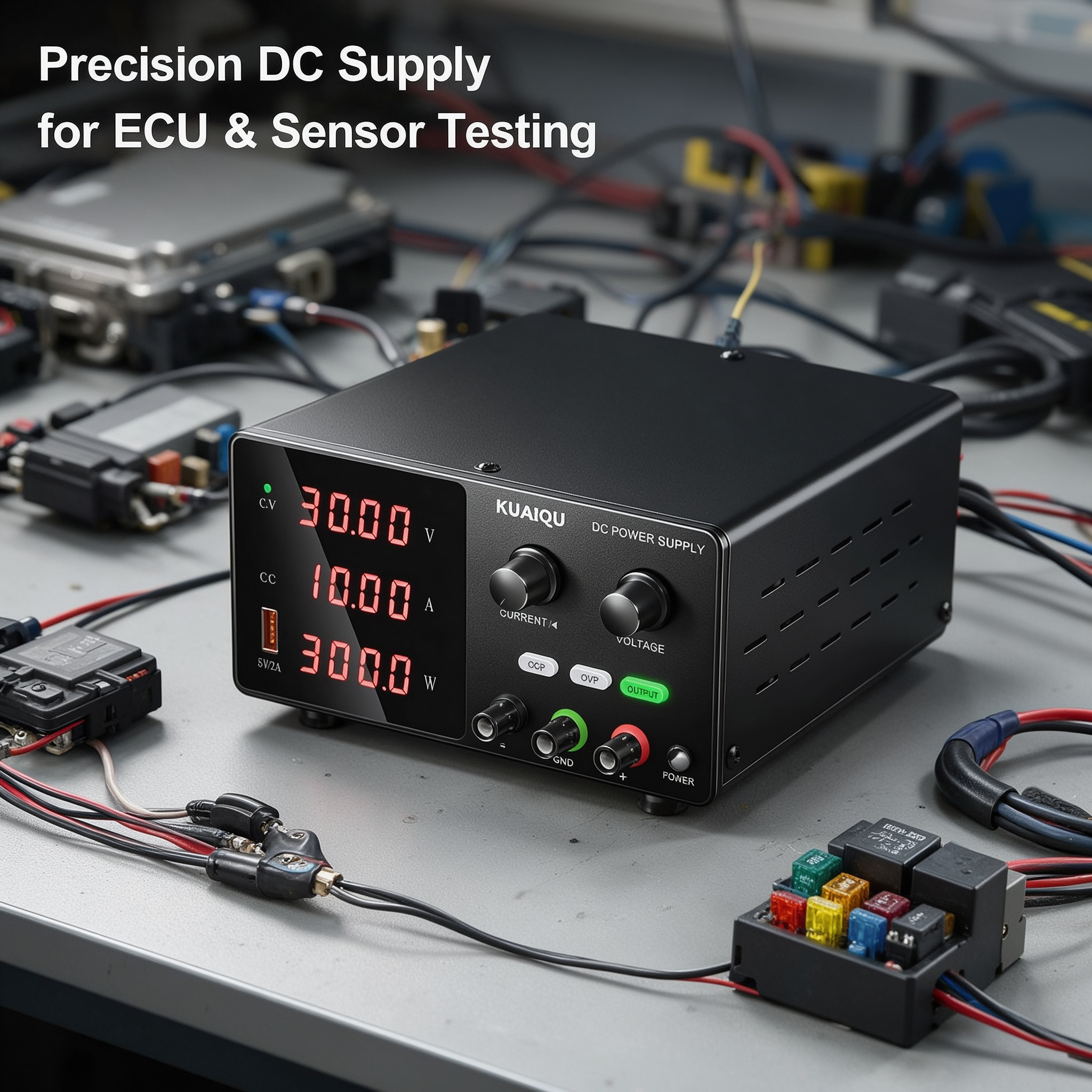

Automotive Sensor Testing
-
Automotive Actuator Testing
-
12V and 24V Automotive Electronics Evaluation
-
Vehicle Electronic Component Troubleshooting
-
Automotive Prototype Circuit Testing
-
Laboratory Automotive Electronics Development
Quality Check and Terms of Service

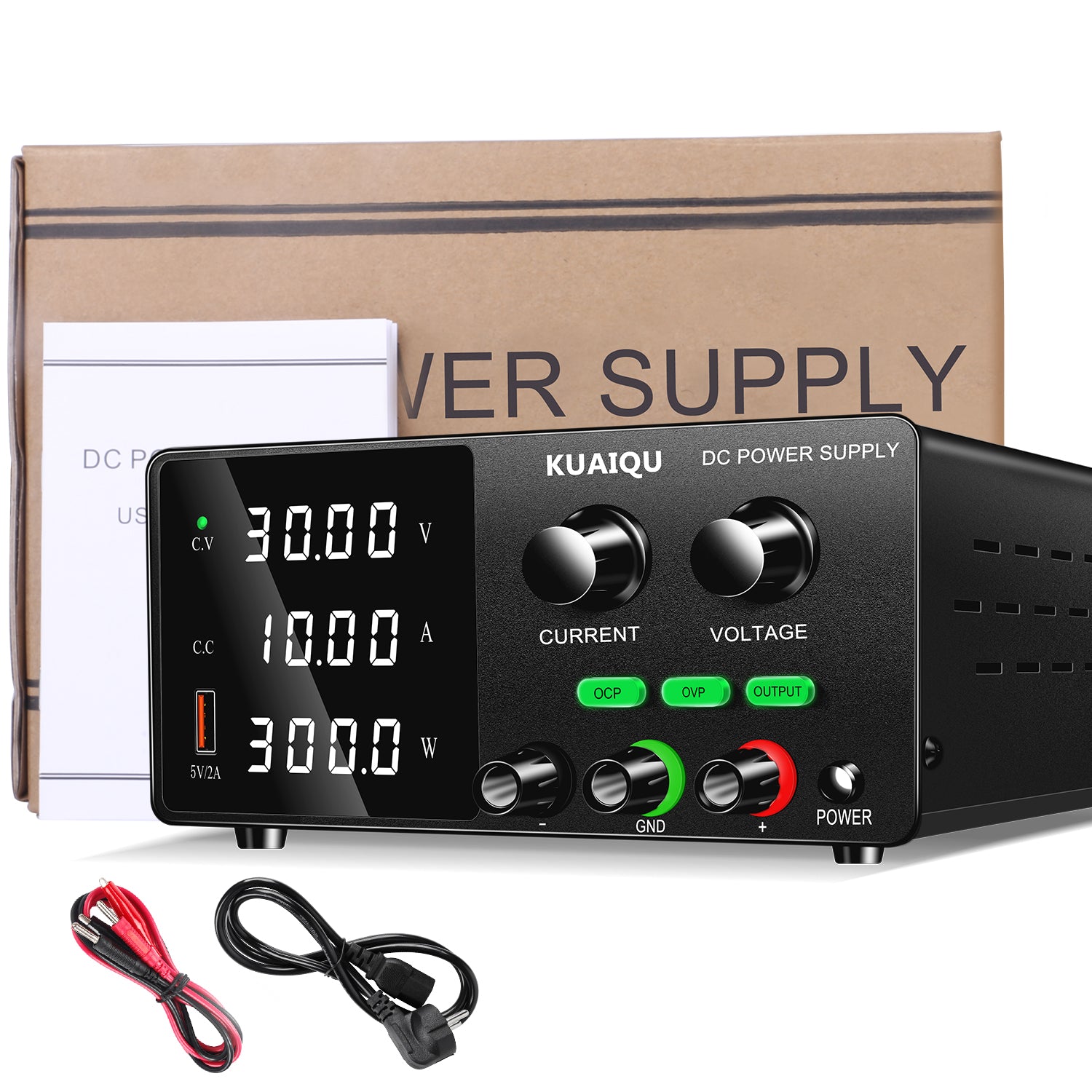

Package Includes
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
Quality Assurance
The SPPS-G3010 DC Bench Power Supply is manufactured with reliable electronic components and is FCC and CE certified to provide stable performance and dependable operation.
All DC power supplies and accessories are inspected before shipment to help ensure product quality and proper operation.
Customer Support
If you have any questions about the product or its operation, please contact us. We will respond within 24 hours.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Value (0°C~40°C) | |
| Voltage | 0–30V |
| Current | 0–10A |
| Power | 300W |
| USB Output | 5V/2A |
| Load Regulation | |
| Voltage | ≤0.3% + 10mV |
| Current | ≤0.1% + 2.5mA |
| Line Regulation | |
| Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA |
| Setting Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Readback Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Setting Accuracy | |
| Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA |
| Readback Accuracy | |
| Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA |
| Ripple (20Hz~20MHz) | |
| Voltage | ≤100mVp-p / ≤15mVrms |
| Current | ≤15mArms |
| Rise Time (No Load) | ≤200ms |
| Rise Time (Full Load) | ≤300ms |
| Fall Time (No Load) | ≤20s |
| Fall Time (Full Load) | ≤300ms |
| Dynamic Response | ≤200ms |
| Efficiency | ≥85% |
| Input Voltage / Current | AC 220V (AC110V optional) |
| Size / Net Weight | Approx. 21 × 17 × 8 cm, 1.3 kg |
| Package Size / Weight | Single unit: 31 × 12.5 × 22 cm, 1.72 kg |
Why Choose KUAIQU SPPS-G3010?
The KUAIQU SPPS-G3010 combines 0-30V adjustable output, up to 10A current capability, 300W power capacity, Output ON/OFF Control, precision encoder adjustment, real-time parameter display, and OCP/OVP protection in a compact DC Bench Power Supply.
Designed for Automotive Electronics Testing, it provides engineers with a practical adjustable DC power solution for vehicle electronic module testing, control circuit evaluation, sensor testing, and automotive electronics troubleshooting within its specified operating range.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
