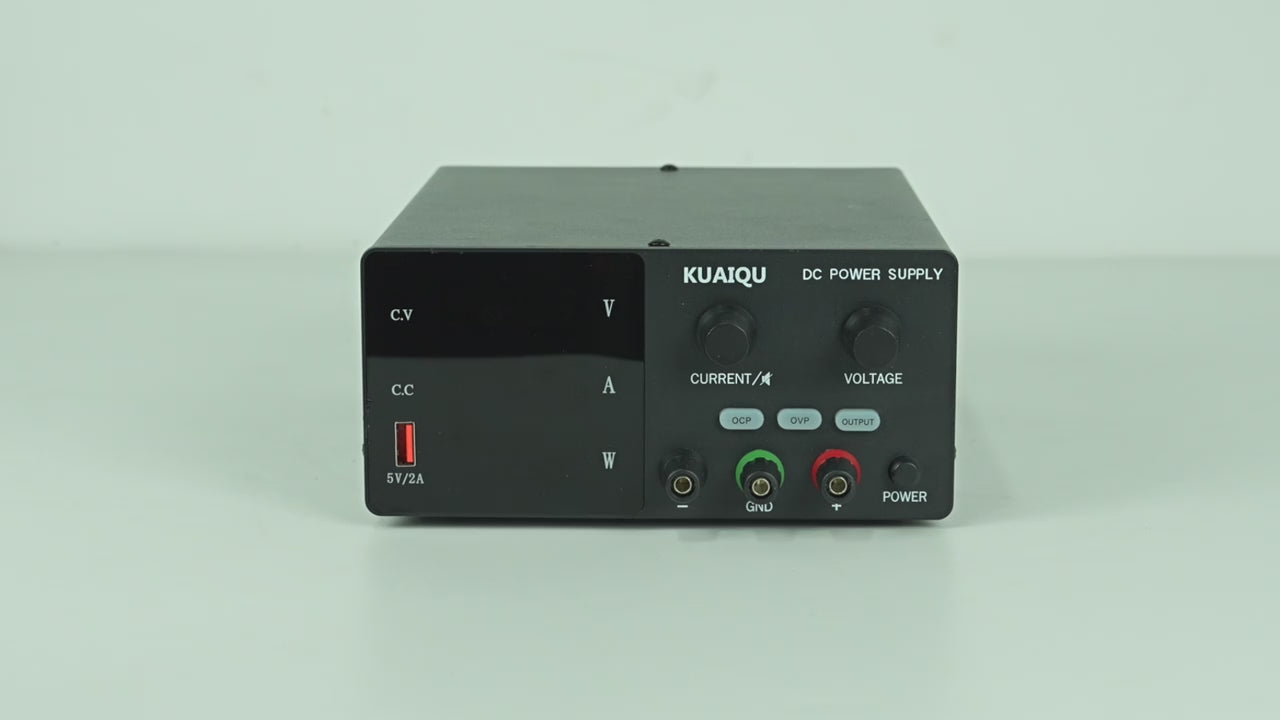

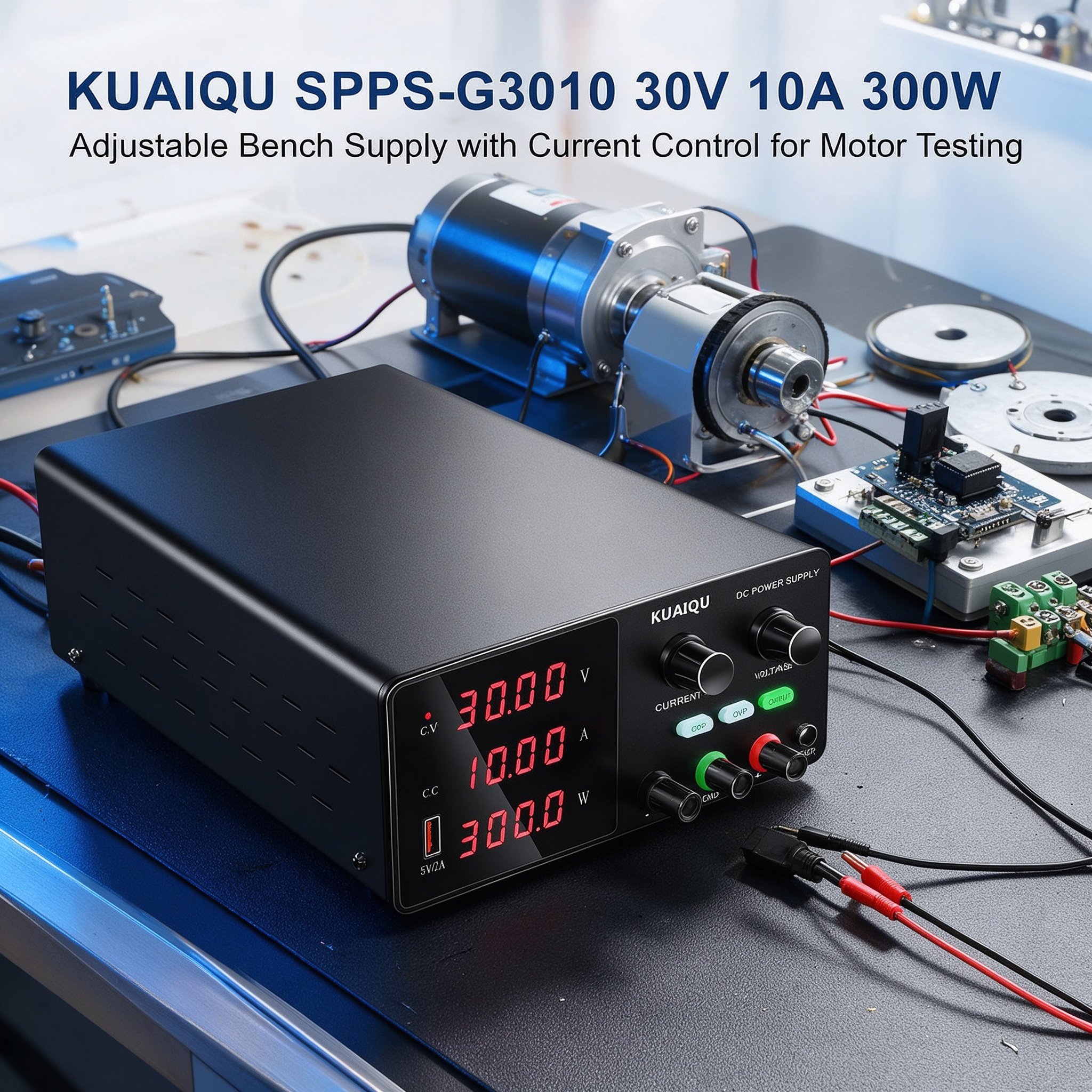

KUAIQU SPPS-G3010 30V 10A 300W
Adjustable Bench Supply with Current
Control for Motor Testing
The KUAIQU SPPS-G3010 is a 30V 10A 300W Adjustable Bench Supply designed for Motor Testing applications that require flexible voltage and current adjustment. With a 0-30V adjustable output range, up to 10A current capability, and 300W power capacity, it provides a practical DC power solution for testing DC motors, motor control circuits, motor drivers, and related electronic systems within its rated specifications.
During motor testing, controlled power adjustment and real-time electrical monitoring are important for evaluating motor performance under different operating conditions. The SPPS-G3010 features Current Control, precision encoder adjustment, Output ON/OFF Control, 4-digit voltage/current/power display, OCP and OVP protection, helping users manage power output during motor evaluation and bench testing.
Key Features
Adjustable 0-30V DC Output for Motor Testing
The SPPS-G3010 provides an adjustable 0-30V DC output range, allowing users to set suitable voltage conditions for different DC motor testing requirements. This flexibility helps engineers evaluate motor operation under controlled bench power conditions.

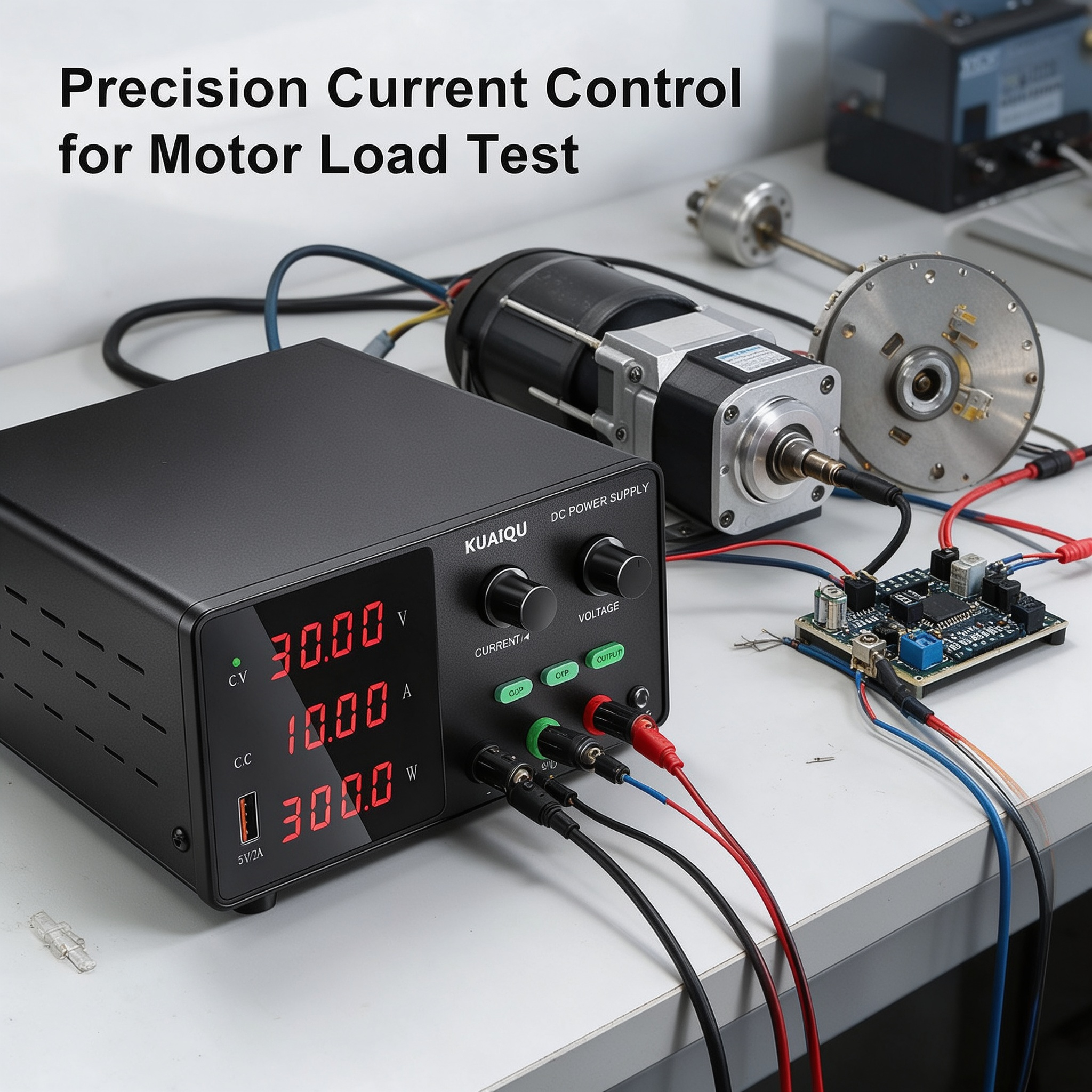

Up to 10A Current Control for Motor Applications
With up to 10A adjustable current output and 300W rated power, the SPPS-G3010 supports motor testing applications that require higher current supply capability. The adjustable current setting helps users evaluate motor behavior during different load conditions and operating states.
Output ON/OFF Control for Testing Convenience
The independent Output ON/OFF Control allows users to set voltage and current parameters before supplying power to the motor or connected circuit. This provides convenient operation when connecting motors, replacing test samples, or performing repeated measurements.
OCP and OVP Protection
Built-in Over Current Protection (OCP) and Over Voltage Protection (OVP) provide additional protection during motor testing. These functions help reduce the risk caused by abnormal current or voltage conditions when testing motors and related electronic circuits.
Precision Encoder Adjustment
The encoder knob provides smooth adjustment of voltage and current settings. With 10mV voltage setting resolution and 1mA current setting resolution, the SPPS-G3010 allows users to make precise output adjustments according to different motor testing requirements.

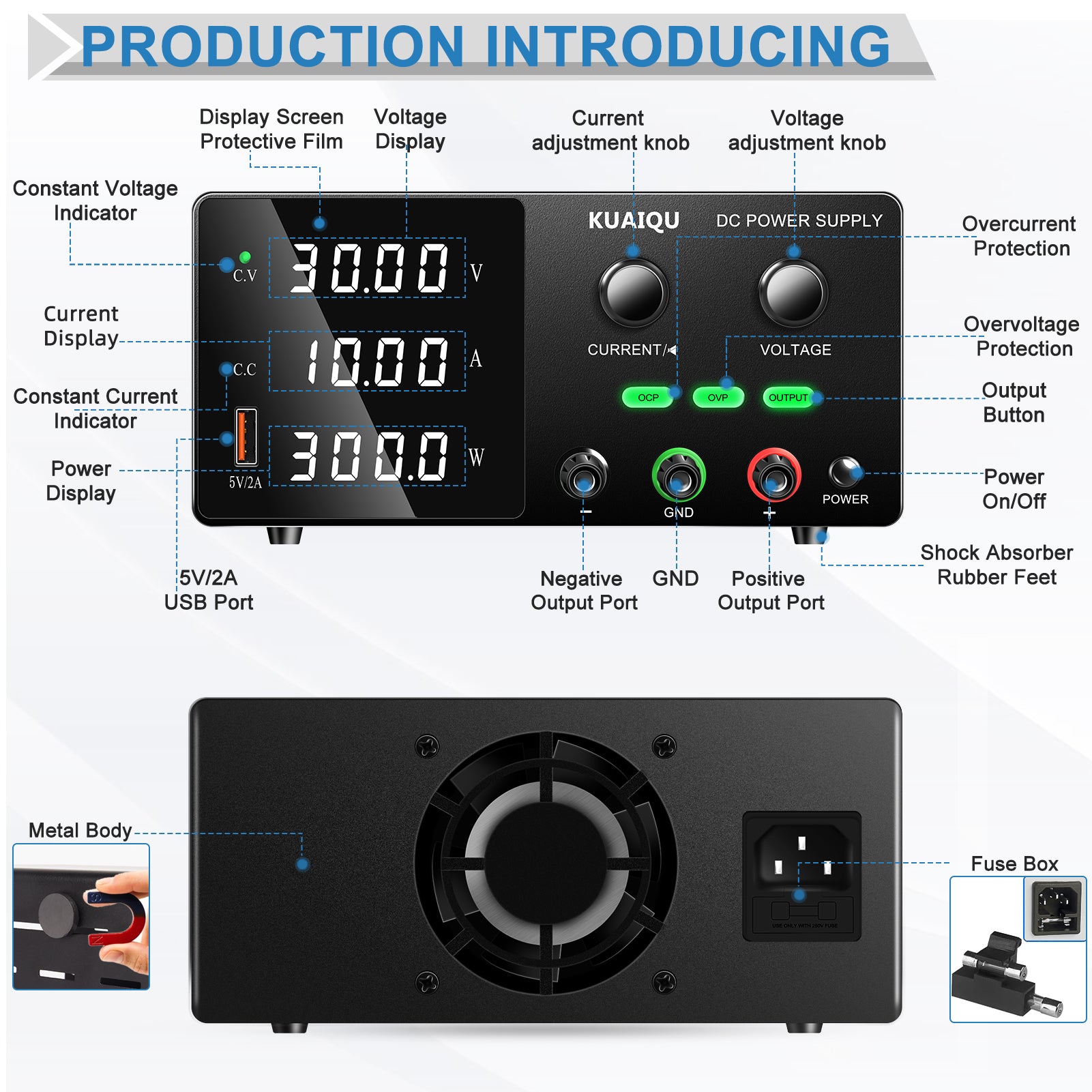

4-Digit Voltage, Current and Power Display
The integrated display shows real-time voltage, current, and power values. This allows users to monitor electrical changes during motor startup, operation testing, and circuit evaluation.
Adjustable Buzzer Setting
The built-in buzzer function provides operation feedback during adjustment and can be muted according to the working environment.
USB 5V/2A Auxiliary Output
The USB 5V/2A output provides additional power output for compatible auxiliary devices and basic testing accessories.
Controlled Power for Motor Testing
Adjustable Testing Conditions for Different Motors

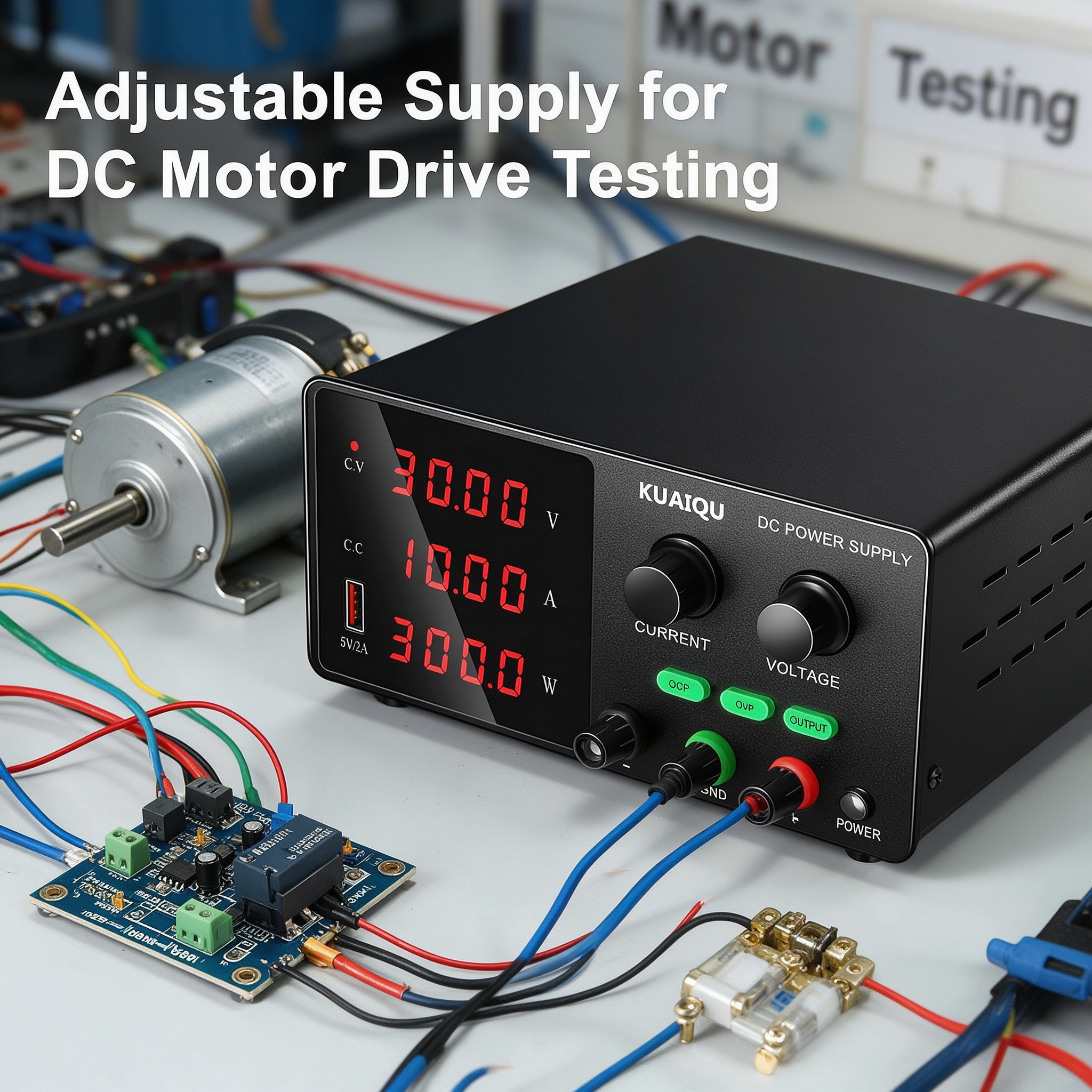

Different motors may require different voltage and current conditions during evaluation. The SPPS-G3010 Adjustable Bench Supply allows users to adjust output parameters within its 0-30V and 0-10A operating range to support various motor testing requirements.
This makes it suitable for testing DC motors, motor control circuits, and electronic systems that require adjustable DC power input.
Convenient Current Adjustment During Testing
Current control is important when evaluating motor operating characteristics. The SPPS-G3010 allows users to adjust current settings and observe real-time power changes through the display, helping users analyze motor electrical performance during bench testing.
Stable DC Power for Motor Evaluation
Regulated DC Output Performance
The SPPS-G3010 provides regulated DC output for motor testing and electronic development applications. Its specified load regulation, line regulation, and ripple performance help maintain controlled output conditions during operation.
Real-Time Electrical Monitoring
During motor testing, users can directly monitor voltage, current, and power through the 4-digit display. This helps evaluate changes during motor startup, running conditions, and different testing processes.
Protection Support for Motor Testing

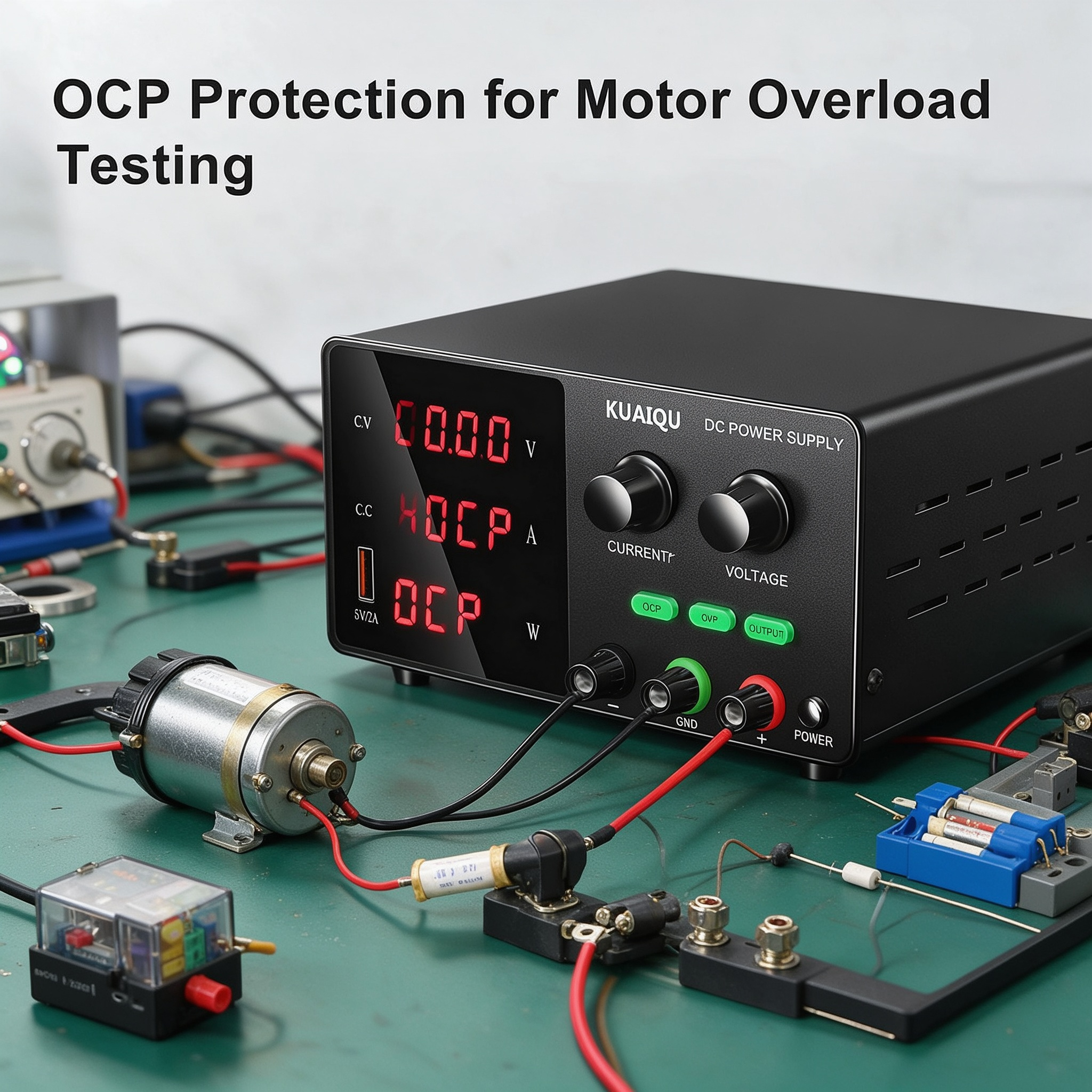

Over Current Protection
The OCP function helps protect the connected motor and testing circuit when excessive current conditions occur. It provides additional safety support during motor operation evaluation.
Over Voltage Protection
The OVP function helps protect connected equipment from abnormal voltage conditions and supports safer operation during motor testing procedures.
Applications
The KUAIQU SPPS-G3010 Adjustable Bench Supply is suitable for:
-
DC Motor Testing
-
Motor Driver Testing
-
Motor Control Circuit Testing
-
Small Electric Motor Evaluation
-
Motor Startup Current Testing
-
DC Motor Performance Testing
-
Electronic Motor System Development
-
Laboratory Motor Testing
-
Workshop DC Power Testing
Quality Check and Terms of Service

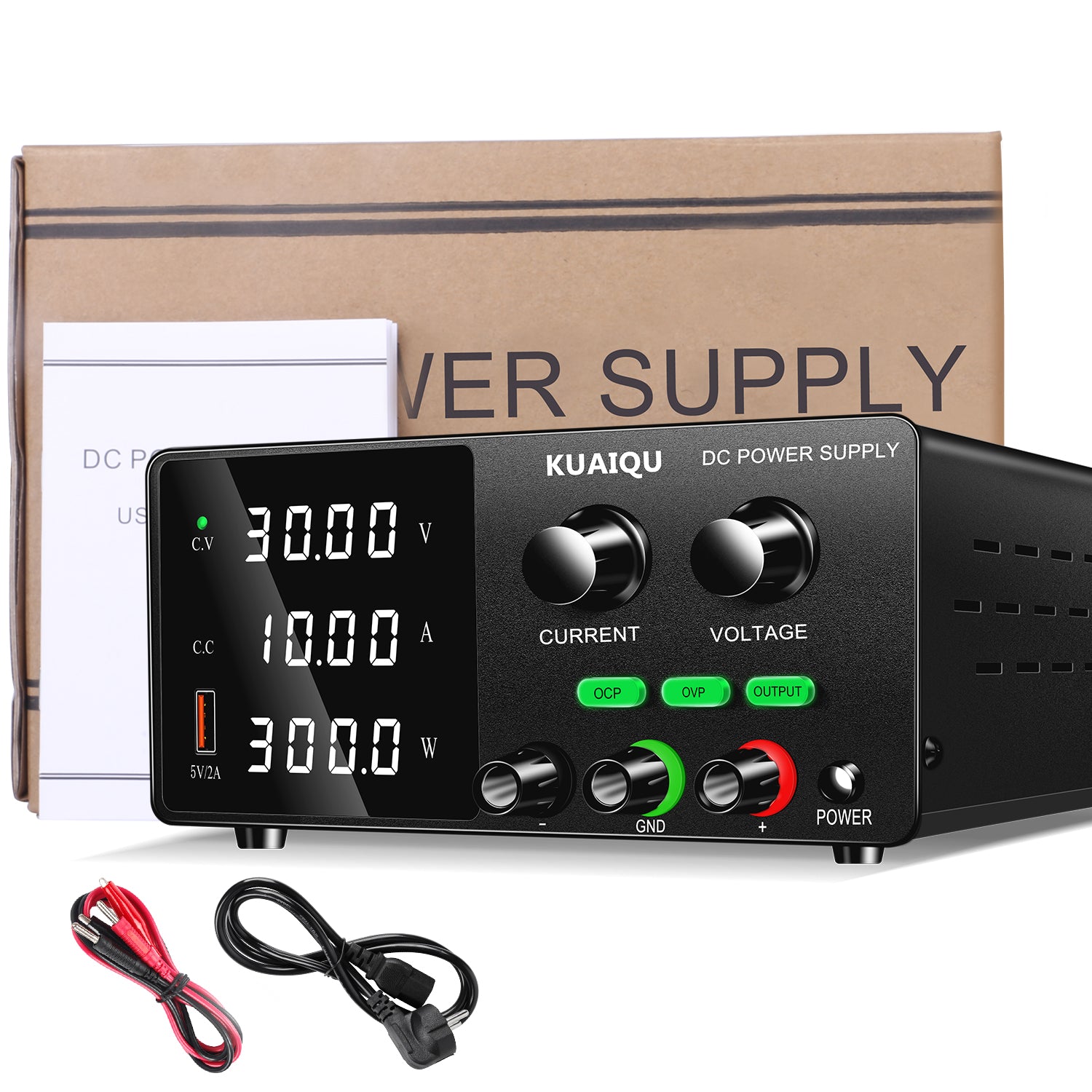

Package Includes
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
Quality Assurance
The SPPS-G3010 Adjustable Bench Supply is manufactured with reliable electronic components and is FCC and CE certified to provide stable performance and dependable operation.
All DC power supplies and accessories are inspected before shipment to help ensure product quality and proper operation.
Customer Support
If you have any questions about the product or its operation, please contact us. We will respond within 24 hours.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Value (0°C~40°C) | |
| Voltage | 0–30V |
| Current | 0–10A |
| Power | 300W |
| USB Output | 5V/2A |
| Load Regulation | |
| Voltage | ≤0.3% + 10mV |
| Current | ≤0.1% + 2.5mA |
| Line Regulation | |
| Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA |
| Setting Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Readback Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Setting Accuracy | |
| Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA |
| Readback Accuracy | |
| Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA |
| Ripple (20Hz~20MHz) | |
| Voltage | ≤100mVp-p / ≤15mVrms |
| Current | ≤15mArms |
| Rise Time (No Load) | ≤200ms |
| Rise Time (Full Load) | ≤300ms |
| Fall Time (No Load) | ≤20s |
| Fall Time (Full Load) | ≤300ms |
| Dynamic Response | ≤200ms |
| Efficiency | ≥85% |
| Input Voltage / Current | AC 220V (AC110V optional) |

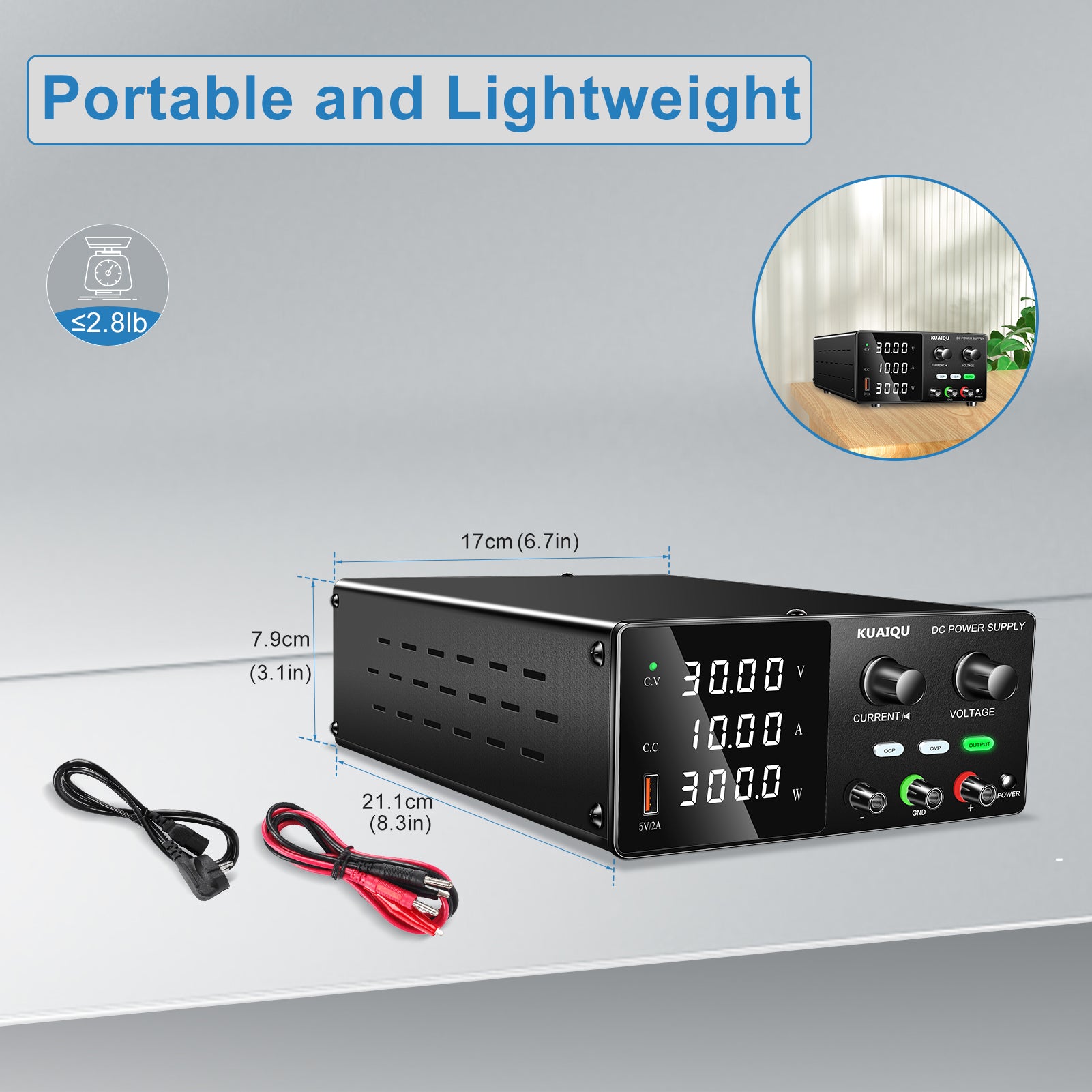

| Size / Net Weight | Approx. 21 × 17 × 8 cm, 1.3 kg |
| Package Size / Weight | Single unit: 31 × 12.5 × 22 cm, 1.72 kg |
Why Choose KUAIQU SPPS-G3010?
The KUAIQU SPPS-G3010 combines 30V adjustable voltage, up to 10A current control capability, 300W power capacity, precision encoder adjustment, Output ON/OFF Control, real-time voltage/current/power display, and OCP/OVP protection in one compact Adjustable Bench Supply.
Designed for Motor Testing, it provides a practical adjustable DC power solution for DC motor evaluation, motor driver testing, startup current observation, and electronic motor system development within its specified operating range.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
