Click the link above to get the full user guide for this product.

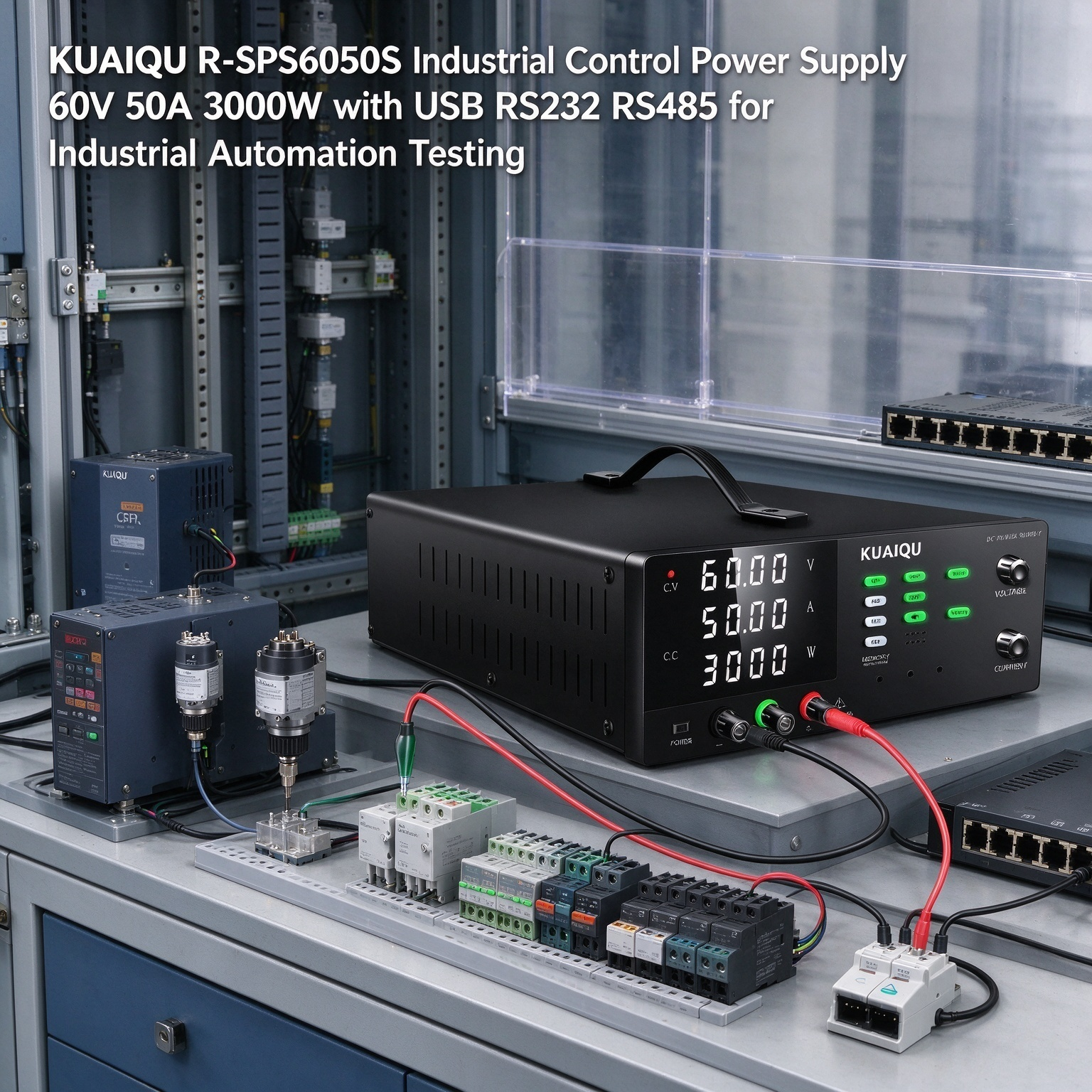

KUAIQU R-SPS6050S Industrial Control
Power Supply 60V 50A 3000W with USB
RS232 RS485 for Industrial Automation
Testing
Key Features
Adjustable DC Output for Industrial Control Equipment Testing
Industrial automation equipment can operate under different DC supply conditions during development, verification, and maintenance. The R-SPS6050S provides a 0-60V adjustable DC output, allowing engineers to establish the required supply voltage within the rated operating range.
This makes the Industrial Control Power Supply suitable for testing compatible industrial control equipment, control electronics, automation components, and other DC-powered equipment where adjustable supply conditions are required.
50A High-Current Capacity for Industrial Automation Equipment
Some industrial automation test setups require substantially more current than standard laboratory equipment. With a maximum output of 50A and a rated power of 3000W, the R-SPS6050S provides high-power DC output for compatible industrial equipment and test systems.
The combination of adjustable voltage and high-current capacity allows engineers to evaluate equipment under different DC power conditions without being limited to low-current bench testing.
4-Digit Display for Direct Electrical Monitoring
During Industrial Automation Testing, engineers need to monitor the actual electrical conditions of the equipment under test. The R-SPS6050S provides a 4-digit Voltage, Current and Power Display for direct observation of the output condition.
Users can monitor voltage, current, and power while connected industrial control equipment is operating. This helps engineers compare power requirements between different equipment states and test conditions.
Precision Encoder for Convenient Test Parameter Adjustment
The Precision Encoder provides direct front-panel adjustment of voltage and current settings. During industrial equipment evaluation, engineers can change the configured DC supply condition and observe how the connected equipment responds.
This is useful when a test procedure requires several predefined supply levels rather than operation at one fixed voltage.
Output ON/OFF for Industrial Equipment Startup Testing
The Output ON/OFF function allows the operator to apply or remove the DC output while retaining the configured settings.
For Industrial Automation Testing, this can be used during equipment startup, shutdown, restart, and power interruption verification. It allows repeated power application without requiring the operator to completely configure the power supply again.
4-Group Memory for Repeated Automation Test Conditions
Industrial automation test procedures may use several recurring power configurations. The M1-M4 4-Group Memory Function allows frequently used voltage and current settings to be stored for later recall.
This can simplify repeated testing when the same industrial control equipment needs to be evaluated under multiple established power conditions.
Rear High-Current Output for Industrial Test Connections
The R-SPS6050S provides a Rear Panel Output for high-current connections. The front output is limited to below 5A, while the rear output supports the full rated output capability.
For industrial automation equipment requiring higher current, the rear terminals provide the appropriate connection point. This is particularly useful when the test setup requires wiring designed for currents closer to the R-SPS6050S maximum output.
OCP and OVP for Industrial Test Protection
The R-SPS6050S includes Over Current Protection and Over Voltage Protection. These functions provide additional protection when supplying compatible industrial control equipment and automation test setups.
OCP and OVP are useful safeguards when establishing test conditions, changing output settings, or working with equipment having different electrical requirements.
Panel Lock for Stable Industrial Test Conditions
Once a required test voltage and current have been established, accidental adjustment of the front-panel controls may affect test consistency. The Panel Lock function helps prevent unintended changes to the configured parameters during operation.
This is useful when industrial automation equipment needs to remain under a defined DC power condition during a verification procedure.

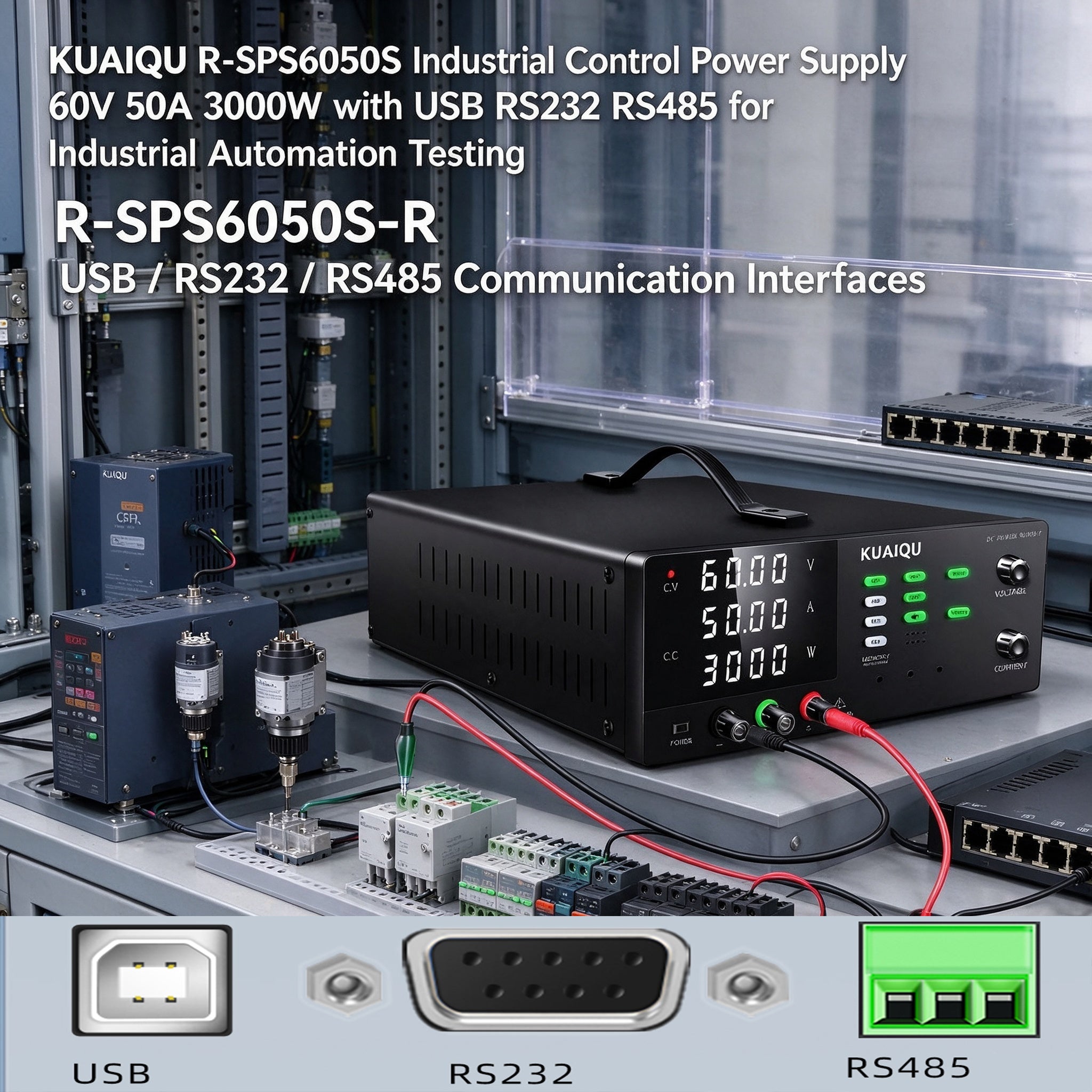

USB, RS232 and RS485 Interfaces for Test Bench Connectivity
The R-SPS6050S provides USB, RS232 and RS485 interfaces, offering multiple connection options for compatible industrial and laboratory test environments.
These interfaces allow the Industrial Control Power Supply to be incorporated into suitable test benches alongside other compatible equipment. The interfaces should not be interpreted as dedicated PLC communication, remote programming, or automatic control functions.
Buzzer Mute for Industrial Test Environments
The encoder knob includes a Buzzer function that can be muted. This provides additional operating convenience when engineers repeatedly adjust power parameters during industrial automation development and testing.
Applications
Industrial Automation Testing
The R-SPS6050S provides adjustable DC power for compatible industrial automation equipment requiring up to 60V, 50A, and 3000W. Engineers can establish different supply conditions and observe the resulting electrical behavior during equipment evaluation.
Industrial Control Equipment Testing
Industrial control equipment may require different DC supply levels during development and verification. The adjustable 0-60V output allows engineers to establish selected power conditions within the equipment's specified operating range.
Automation Equipment Startup and Shutdown Testing
The Output ON/OFF function supports repeated application and removal of DC power during startup and shutdown verification.
Engineers can use this function to evaluate how compatible automation equipment responds during power-up, power-down, and restart procedures.
Industrial Equipment Power Condition Evaluation
The R-SPS6050S can provide different voltage and current settings for comparing equipment behavior under different DC power conditions. The 4-digit display allows the operator to observe voltage, current, and power during the test.
High-Current Industrial Automation Testing
For compatible automation equipment and industrial test setups requiring higher DC current, the 50A maximum output and 3000W rated power provide substantial power capacity.
When the required current exceeds the front output connection limit, the rear high-current output should be used with appropriately rated wiring and connections.
Repeated Industrial Control Verification
Industrial control equipment may need to undergo repeated tests using the same established power conditions. The M1-M4 Memory Function allows four groups of voltage and current settings to be stored and recalled.
This can reduce repeated manual adjustment when engineers perform multiple verification procedures on the same equipment or across multiple test units.
Industrial Automation Test Bench
The R-SPS6050S can be incorporated into suitable industrial automation test benches where an adjustable high-power DC source is required. Its rear high-current output, electrical display, memory settings, protection functions, and multiple interfaces provide practical features for engineering test environments.
DC Power Testing for Automation Components
The adjustable DC output can be used to provide controlled power conditions for compatible DC-powered automation components and control electronics during development and verification.
Engineers can adjust the supply condition, monitor the resulting electrical demand, and repeat established test configurations using the available memory groups.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1
-
CE & FCC Certification: The product has passed CE and FCC certification requirements.
-
Inspection Before Shipment: The DC power supply and included accessories are inspected before shipment to help ensure product quality.
-
Customer Support: Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
R-SPS6050S |
| Product Type |
High Power Adjustable DC Power Supply |
| Rated Voltage |
0-60V |
| Rated Current |
0-50A |
| Rated Power |
3000W |
| Operating Temperature |
0°C-40°C |
| Load Regulation, Voltage |
≤0.1% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
10mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
10mA |
| Setting Accuracy, Voltage |
≤0.05% + 10mV |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤800mVp-p / ≤120mVrms |
| Current Ripple |
≤40mArms |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage, Current and Power Display |
| Memory Function |
M1-M4, 4 Groups |
| Protection |
OCP, OVP |
| Output Control |
Output ON/OFF |
| Interfaces |
USB, RS232, RS485 |
| Output Connection |
Front Output and Rear High-Current Output |
| Size |
Approx. 35 × 27 × 10cm |
| Net Weight |
Approx. 6.8kg |
Why Choose KUAIQU R-SPS6050S?
The KUAIQU R-SPS6050S Industrial Control Power Supply combines a 0-60V adjustable output, 0-50A maximum current, and 3000W rated power for Industrial Automation Testing applications that require a high-power and adjustable DC source.
For industrial control equipment testing, the R-SPS6050S provides more than basic DC output. The Precision Encoder allows convenient adjustment of voltage and current, while the 4-digit Voltage, Current and Power Display provides direct visibility into the electrical conditions during testing.
For repeated automation test procedures, the M1-M4 4-Group Memory Function allows frequently used settings to be recalled. Output ON/OFF supports repeated startup and shutdown testing, while Panel Lock helps maintain established test parameters during operation.
For higher-current industrial equipment, the Rear High-Current Output supports the full rated output capability, while OCP and OVP provide additional protection functions. The built-in USB, RS232 and RS485 interfaces offer flexible connectivity options for compatible industrial and laboratory test benches.
With its combination of Industrial Control Power Supply capability, high-current DC output, adjustable voltage, 4-group memory, electrical monitoring, protection functions, rear high-current output, and USB, RS232 and RS485 interfaces, the R-SPS6050S is a practical solution for Industrial Automation Testing, industrial control equipment testing, automation equipment power evaluation, startup and shutdown verification, high-current automation testing, and repeated industrial control testing within its rated specifications.
