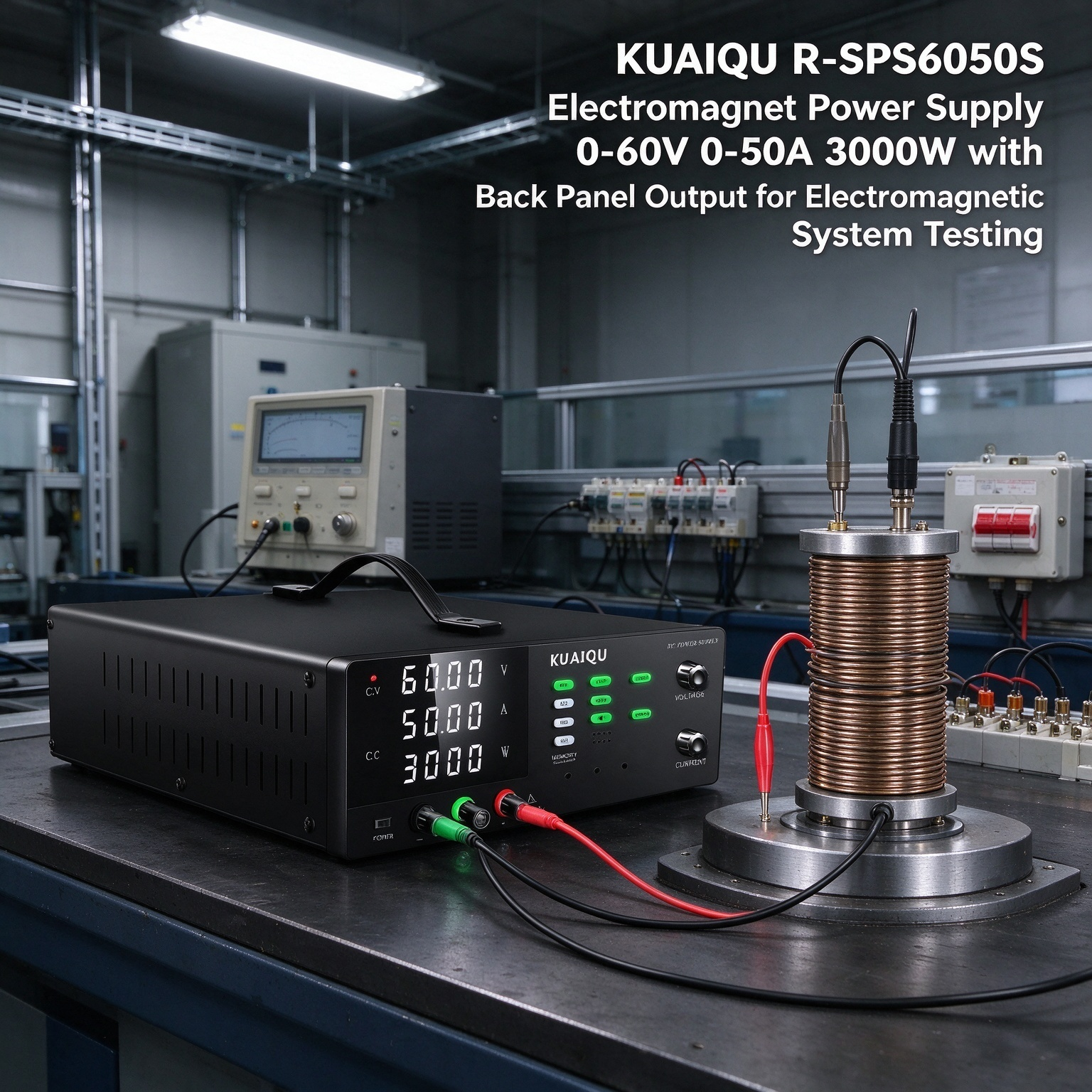

KUAIQU R-SPS6050S Electromagnet Power
Supply 0-60V 0-50A 3000W with Back
Panel Output for Electromagnetic System
Testing
Key Features
Adjustable DC Supply for Electromagnetic Operating Conditions
Electromagnetic equipment can require different supply conditions during development and evaluation. The R-SPS6050S provides a 0-60V adjustable DC output, allowing engineers to establish the required supply voltage instead of being restricted to a single fixed output. This makes it suitable for laboratory evaluation of compatible electromagnetic systems and equipment.
50A High-Current Capacity for Demanding Test Setups
The R-SPS6050S delivers up to 50A and 3000W, providing substantial DC power for electromagnetic test equipment with higher current requirements. The higher output capacity gives engineers more room to evaluate equipment under different operating conditions while keeping the power source within its rated range.
Evaluate Power Demand Through Live Electrical Readings
The integrated 4-digit Voltage, Current and Power Display gives the operator direct visibility into the power being delivered to the test setup. During electromagnetic system testing, changes in current or power demand can be observed while the connected equipment operates, helping engineers compare electrical behavior between different test conditions.
Precision Encoder Adjustment for Repeatable Parameter Changes
The precision Encoder Adjustment provides a practical way to change voltage and current settings directly from the front panel. When an electromagnetic system needs to be evaluated at several supply levels, engineers can make controlled adjustments and observe the corresponding electrical response.
Back Panel Output Designed for High-Current Connections
The Back Panel Output provides a dedicated connection option for higher-current applications. For electromagnetic test setups using the R-SPS6050S closer to its 50A output capability, the rear connection provides a practical way to connect the test equipment while keeping the high-current wiring away from the front panel.
Output ON/OFF for Power Application and Removal Tests
Testing an electromagnetic system often requires controlled application and removal of its DC supply. The Output ON/OFF function allows the operator to switch the output without repeatedly resetting the configured voltage and current values, making it useful for repeated power-up, power-down, and operating tests.

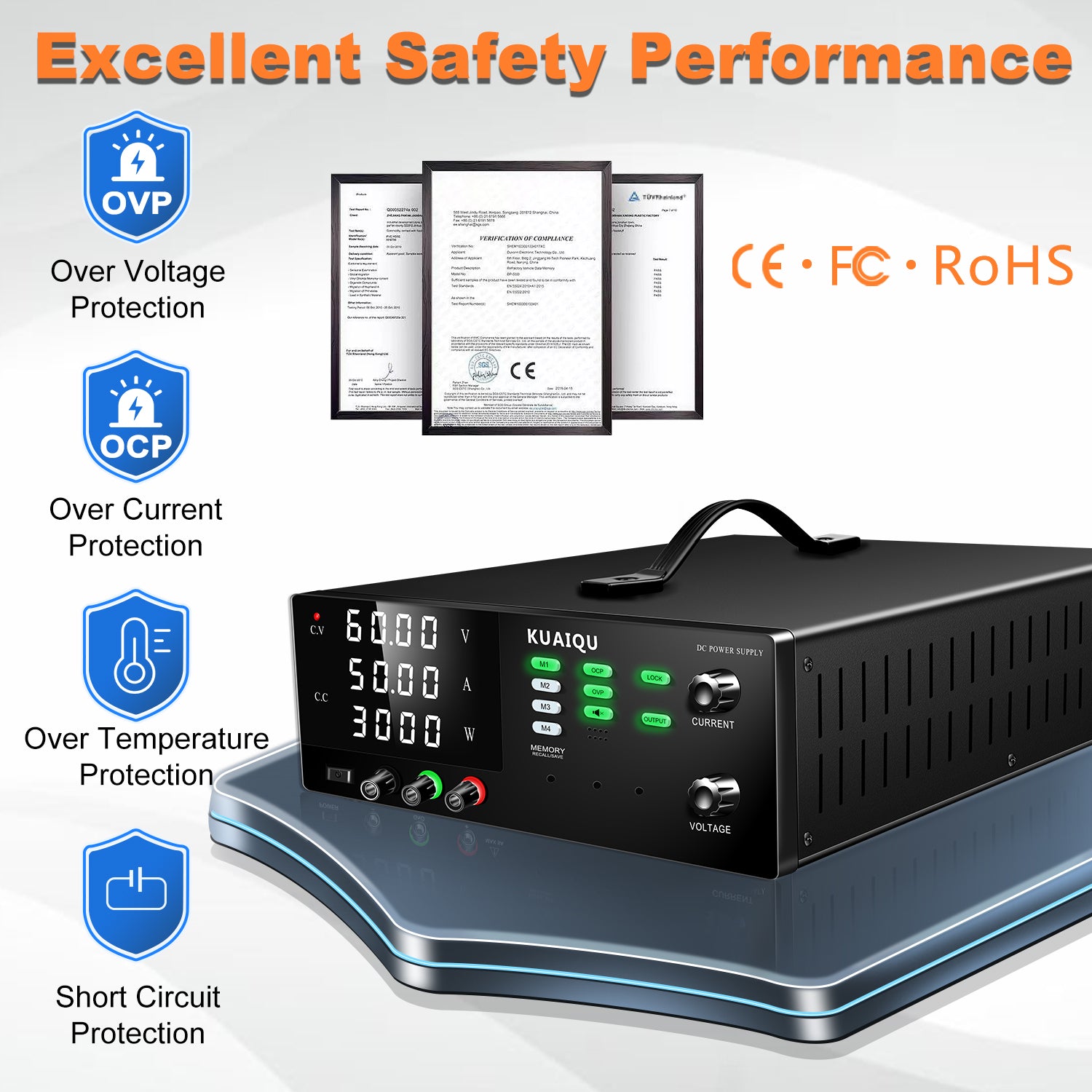

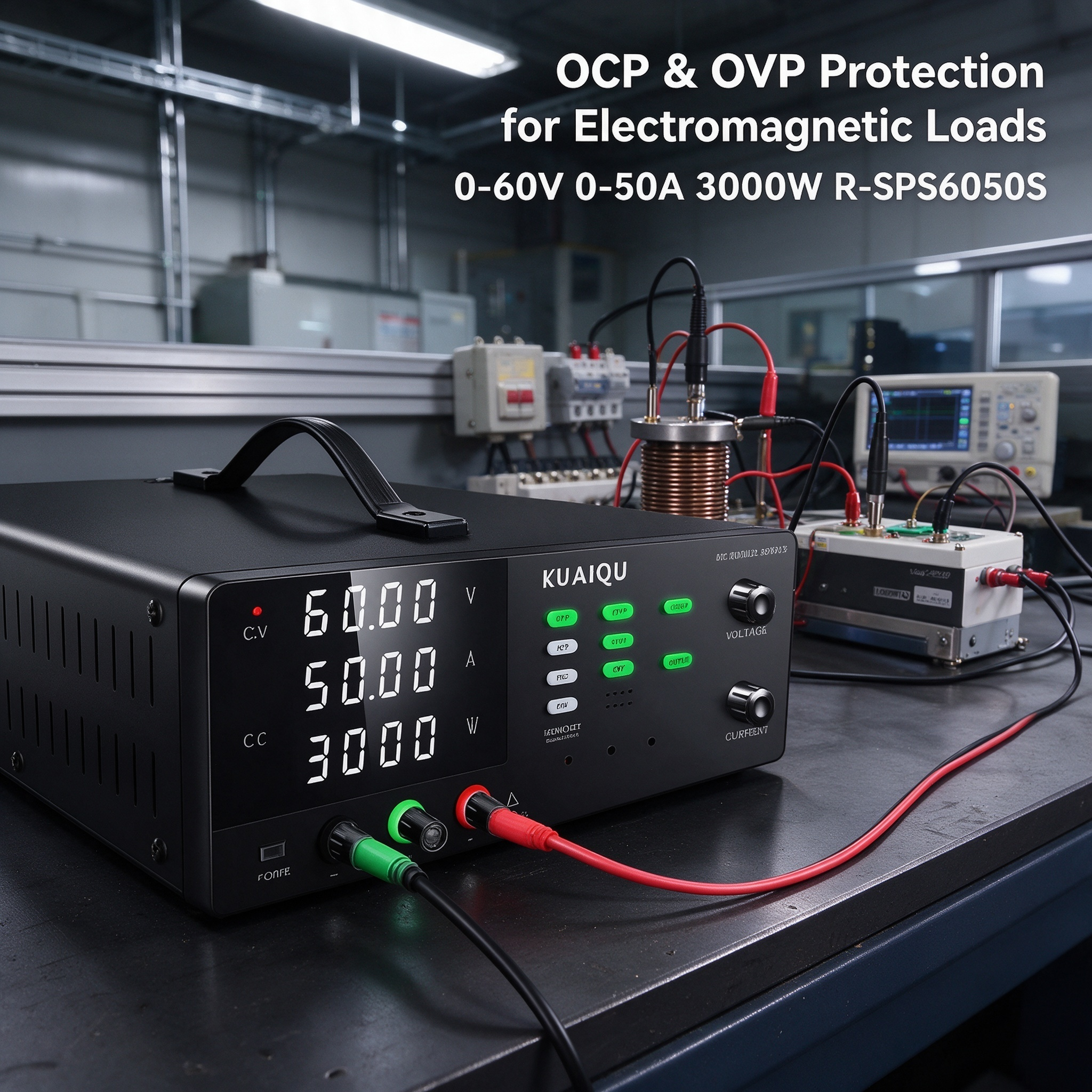

OCP and OVP for Abnormal Output Conditions
The R-SPS6050S includes Over Current Protection and Over Voltage Protection. These functions provide additional protection when the connected test setup experiences an over-current or over-voltage condition, which is particularly useful when working with higher-power electromagnetic equipment.
Four Memory Groups for Different Test Configurations
Electromagnetic system evaluation may involve more than one established power condition. The M1-M4 Memory Function provides four groups for storing commonly used voltage and current settings, making it easier to move between frequently repeated test configurations.
Panel Lock Helps Preserve Established Test Parameters
After engineers have established the required test settings, accidental adjustment of the front-panel controls can affect test consistency. Panel Lock helps prevent unintended parameter changes during operation and is useful when a test needs to continue under a defined power condition.
Buzzer Mute for Laboratory Test Environments
The encoder knob includes a Buzzer function that can be set to mute. This provides a more convenient operating experience when engineers repeatedly adjust parameters during electromagnetic system development and laboratory testing.

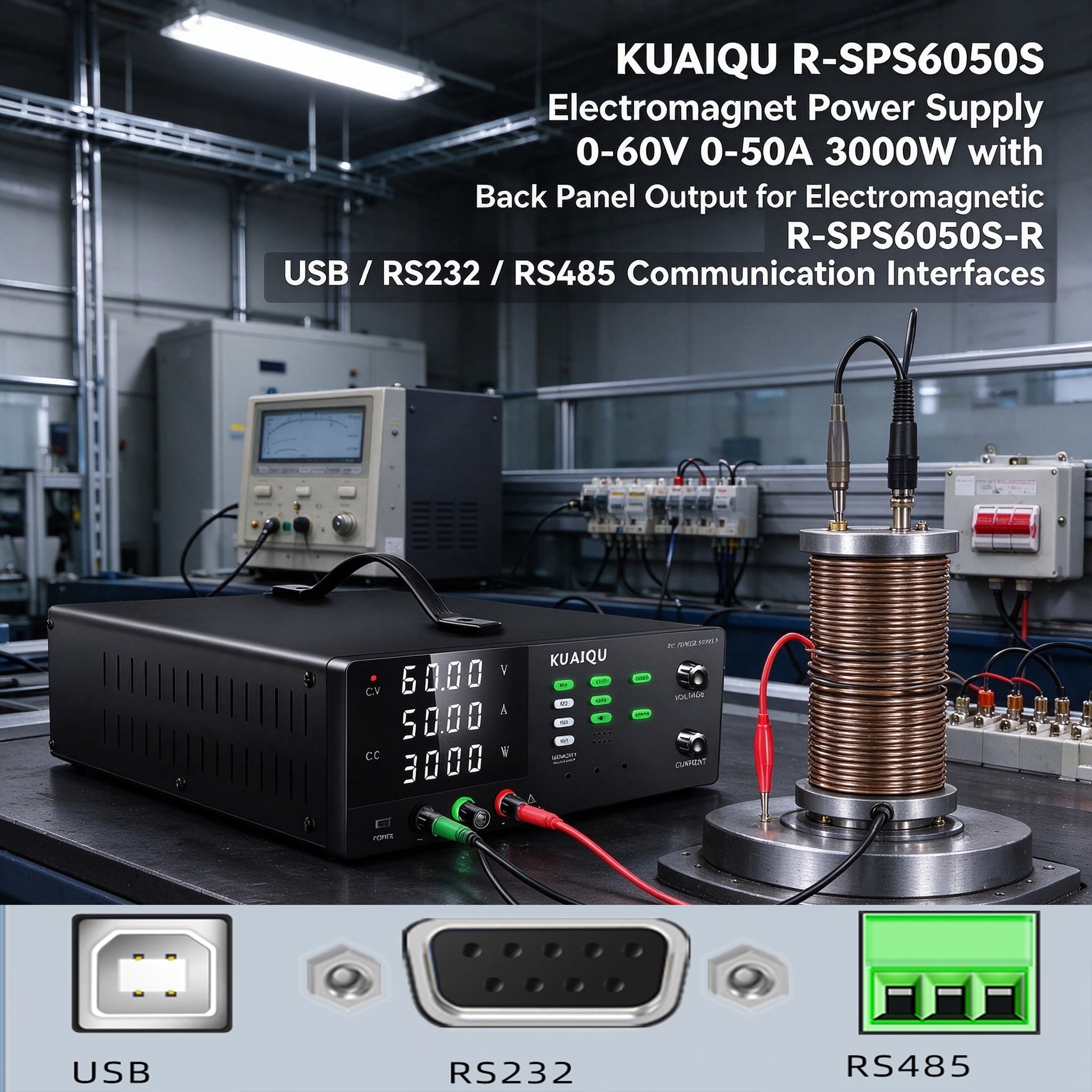

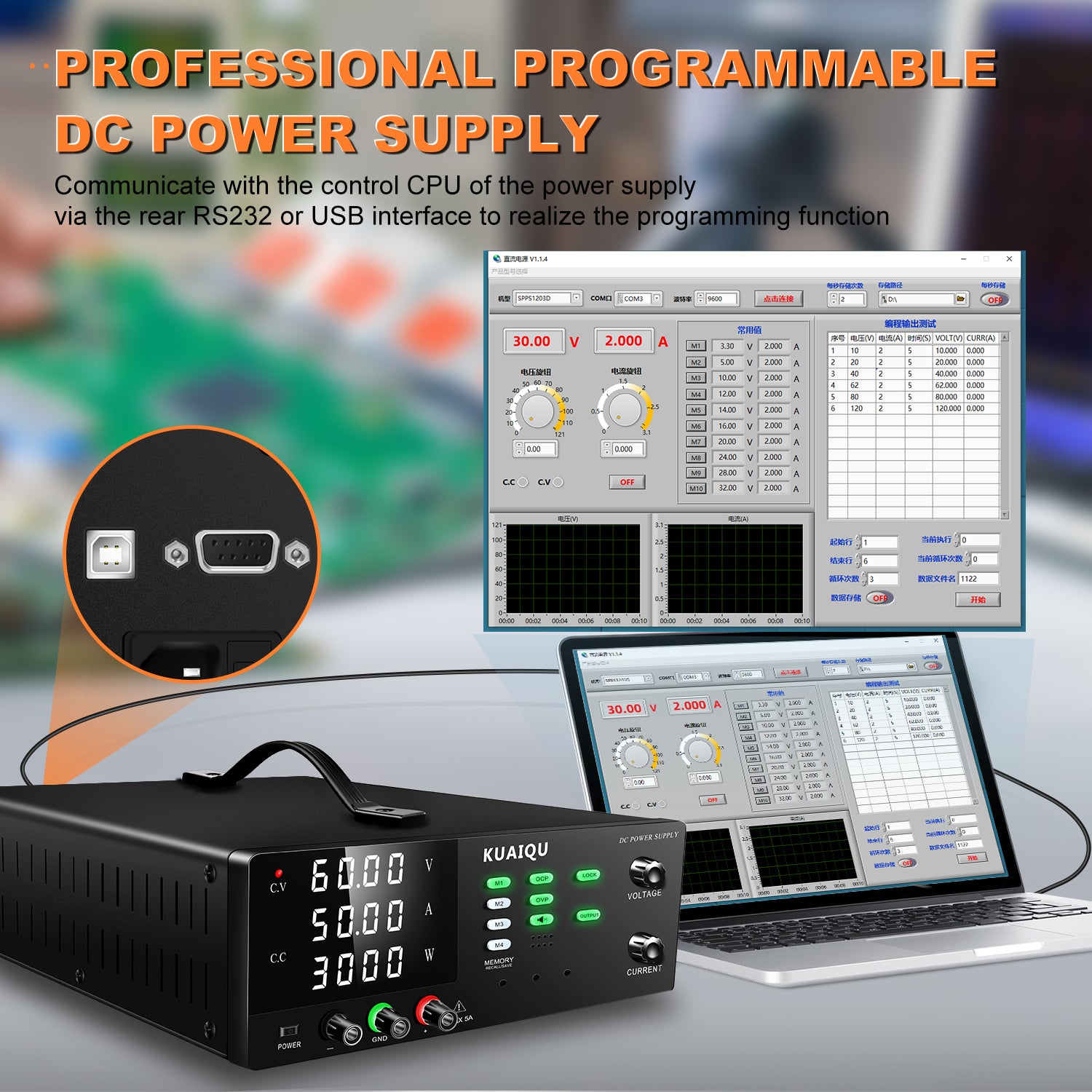

USB, RS232 and RS485 Interfaces for Test Bench Connectivity
The R-SPS6050S provides USB, RS232 and RS485 interfaces, giving the Electromagnet Power Supply multiple interface options for connection within an engineering or laboratory test environment.
Applications

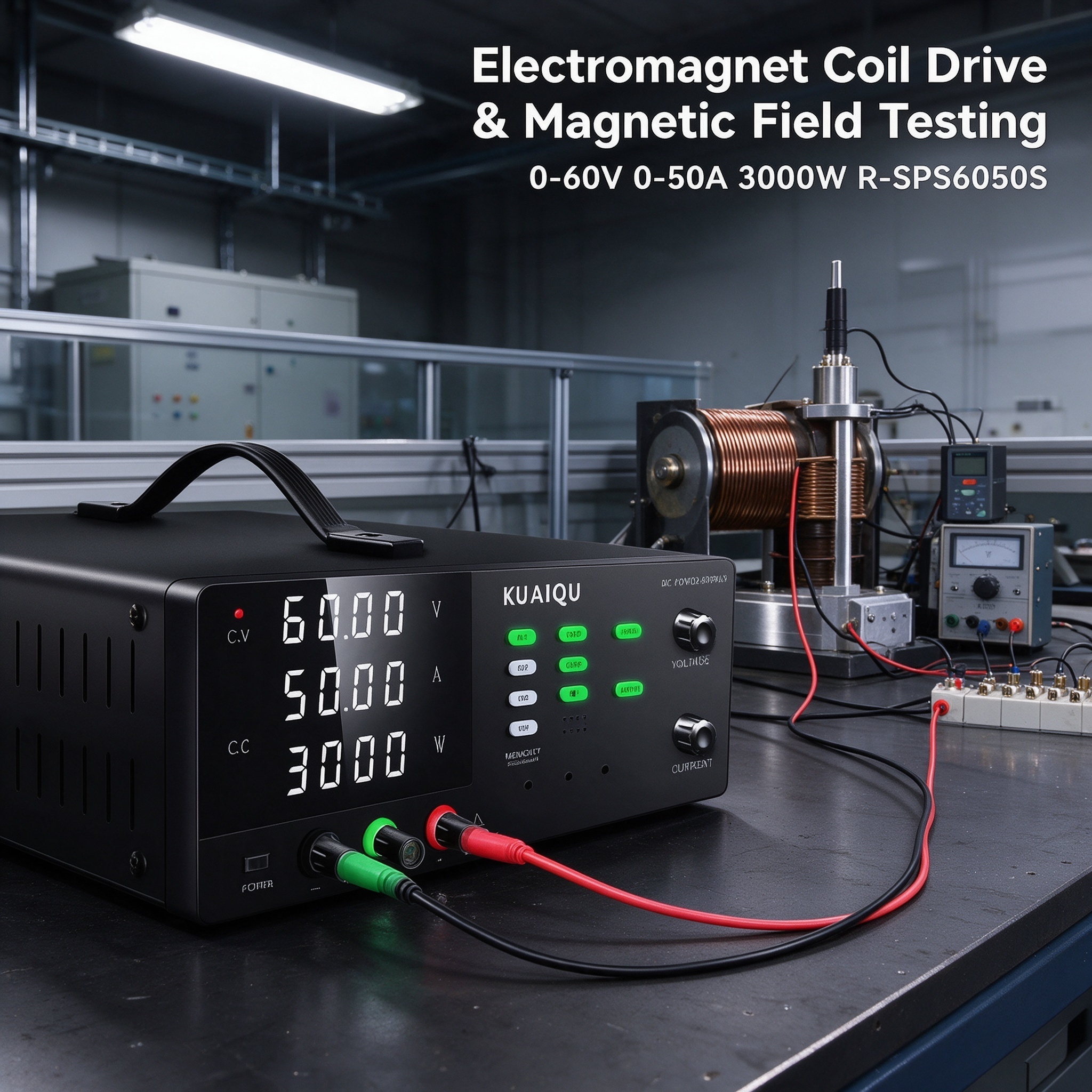

Electromagnetic System Development Testing
The R-SPS6050S can serve as an adjustable DC power source during development of compatible electromagnetic systems. Engineers can change the supply condition and observe the resulting electrical demand of the connected equipment.
Electromagnet Equipment Power Evaluation
For compatible electromagnet equipment, the 0-60V output range and 50A maximum current provide a broad DC supply range for evaluating equipment under different power conditions.
Electromagnetic System Startup and Shutdown Testing
The Output ON/OFF function can be used to apply and remove DC power during startup and shutdown evaluation. This allows engineers to repeatedly examine how compatible electromagnetic equipment responds when power is introduced or removed.
Electromagnetic Operating Condition Comparison
Different supply settings can be established using the Encoder Adjustment. The operator can compare voltage, current, and power readings while the electromagnetic system operates under different DC input conditions.
High-Current Electromagnetic Equipment Testing
The 3000W power rating and 50A maximum output make the R-SPS6050S suitable for compatible electromagnetic equipment and test setups requiring higher-current DC power.
Repeated Electromagnetic System Verification
When the same equipment needs to be evaluated repeatedly, the M1-M4 Memory Function can store frequently used test parameters. This helps make repeated test procedures more consistent and reduces repeated manual setup.
Electromagnetic Test Bench Integration
With USB, RS232 and RS485 interfaces, the R-SPS6050S can be incorporated into suitable laboratory or engineering test benches where the power supply needs to be connected with other compatible equipment.
Long-Duration Electromagnetic Equipment Testing
For tests where the connected equipment needs to remain under an established power condition, the adjustable output, Panel Lock, real-time electrical display, and protection functions provide practical controls for maintaining the test setup.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1
-
CE & FCC Certification: The product has passed CE and FCC certification requirements.
-
Inspection Before Shipment: The DC power supply and included accessories are inspected before shipment to help ensure product quality.
-
Customer Support: Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
R-SPS6050S |
| Product Type |
High Power Adjustable DC Power Supply |
| Rated Voltage |
0-60V |
| Rated Current |
0-50A |
| Rated Power |
3000W |
| Operating Temperature |
0°C-40°C |
| Load Regulation, Voltage |
≤0.1% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
10mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
10mA |
| Setting Accuracy, Voltage |
≤0.05% + 10mV |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤800mVp-p / ≤120mVrms |
| Current Ripple |
≤40mArms |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage, Current and Power Display |
| Memory Function |
M1-M4, 4 Groups |
| Protection |
OCP, OVP |
| Output Control |
Output ON/OFF |
| Interfaces |
USB, RS232, RS485 |
| Size |
Approx. 35 × 27 × 10cm |
| Net Weight |
Approx. 6.8kg |
Why Choose KUAIQU R-SPS6050S?
The KUAIQU R-SPS6050S Electromagnet Power Supply is designed for test environments that require a high-current and adjustable DC power source. Its 0-60V output range, 0-50A maximum current, and 3000W rated power provide substantial capacity for compatible electromagnetic equipment and system-level testing.
For engineers, the value is not only the output capacity. The R-SPS6050S allows the supply condition to be actively adjusted through the precision Encoder, while the 4-digit voltage, current, and power display shows the electrical output during the test. This makes it easier to compare different operating conditions and observe changes in power demand.
For repeated testing, M1-M4 Memory Function provides four stored settings, while Output ON/OFF and Panel Lock help make test operation more controlled. OCP and OVP provide additional protection, and the Back Panel Output offers a practical connection method for higher-current test setups.
With USB, RS232 and RS485 interfaces, the R-SPS6050S can also fit into suitable engineering and laboratory test environments. It is a practical Electromagnet Power Supply for Electromagnetic System Testing, electromagnet equipment evaluation, high-current testing, startup and shutdown verification, operating condition comparison, and repeated system testing within its rated specifications.
