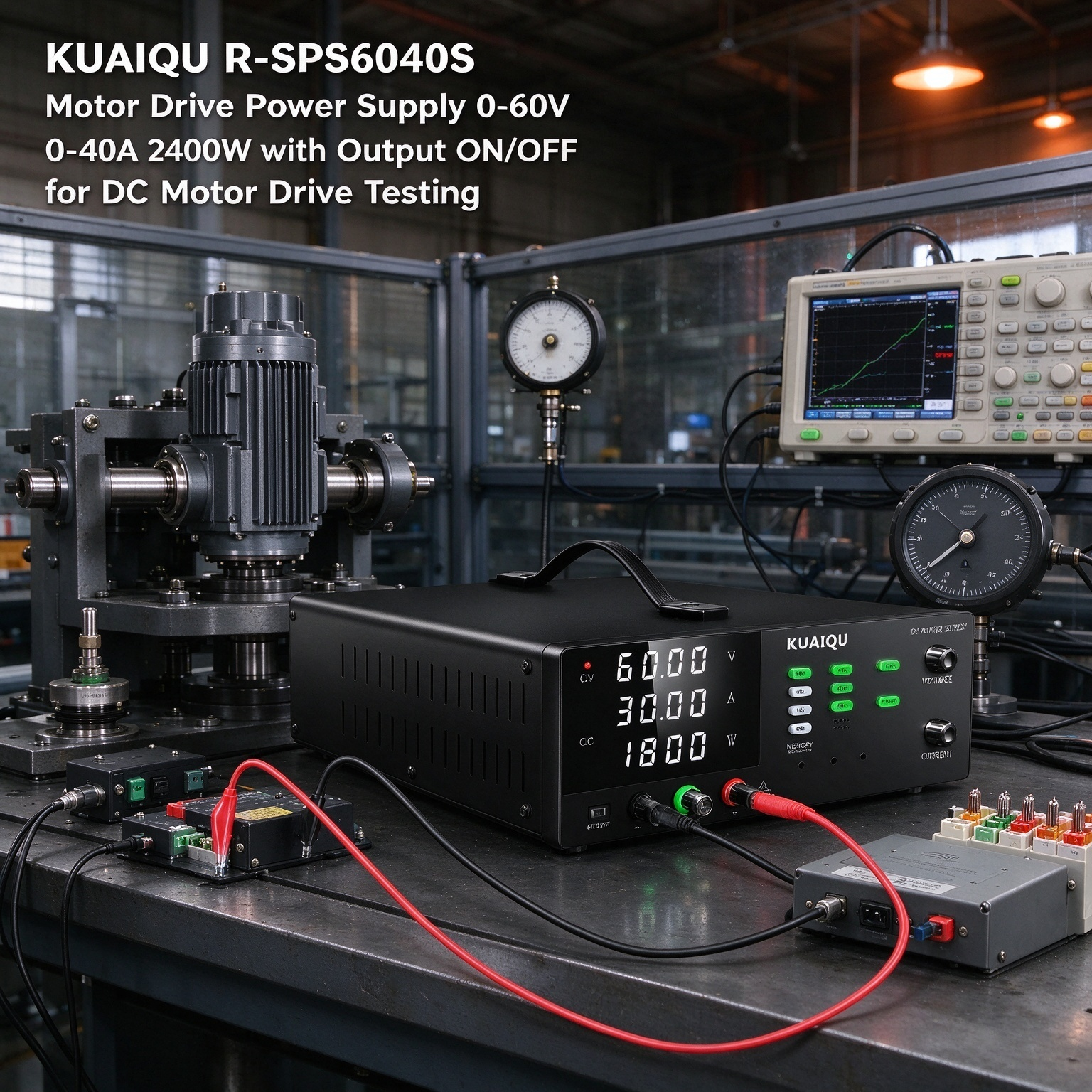

KUAIQU R-SPS6040S Motor Drive Power
Supply 0-60V 0-40A 2400W with Output
ON/OFF for DC Motor Drive Testing
Key Features
0-60V Output Range for Different Motor Drive Supply Conditions
The R-SPS6040S provides a 0-60V adjustable DC output, allowing engineers to establish different supply conditions for compatible DC motor drive circuits. The wide adjustment range is useful when evaluating how a motor drive responds to changes in its DC input supply.
40A Output Capacity for High-Current Motor Drive Testing
DC motor drive circuits can require significantly higher current during certain operating conditions. With up to 40A and 2400W, the R-SPS6040S provides the output capacity needed for compatible high-current motor drive test setups within its rated range.
Observe Voltage, Current and Power While the Drive Operates
The built-in 4-digit voltage, current, and power display provides direct visibility into the electrical output during testing. Engineers can observe changes in current and power while a motor drive circuit is operating, helping them understand the power requirements of the test setup.
Encoder Adjustment for Quick Test Condition Changes
The precision encoder adjustment provides direct control of the voltage and current settings. When testing a motor drive under different supply conditions, users can adjust the output parameters conveniently without relying on fixed-voltage operation.
Output ON/OFF for Motor Drive Start and Stop Tests
The dedicated Output ON/OFF function makes it convenient to apply or remove DC power from the motor drive test circuit. It can be used during repeated startup, shutdown, connection, and operating tests while keeping the configured voltage and current settings available.
OCP and OVP for Motor Drive Circuit Protection
Motor drive testing may involve changing operating conditions and higher current demand. The built-in OCP and OVP functions provide protection against over-current and over-voltage conditions, adding protection when testing compatible motor drive circuits within the power supply's rated range.
M1-M4 Memory for Repeated Motor Drive Tests
The M1-M4 four-group Memory Function allows frequently used voltage and current settings to be stored. When the same motor drive needs to be tested under several established conditions, users can recall stored settings instead of configuring every parameter from the beginning.
Panel Lock for Consistent Drive Testing
Once the required voltage and current settings have been established, Panel Lock helps prevent accidental changes to the front-panel settings. This is useful when a motor drive needs to remain under a defined supply condition during a test.
Rear High-Current Output for Larger Motor Drive Setups
The R-SPS6040S provides a rear high-current output for applications requiring higher current. For motor drive testing that approaches the power supply's higher output capability, the rear connection provides a suitable option for the test setup.
USB, RS232 and RS485 Interfaces
The R-SPS6040S includes USB, RS232 and RS485 interfaces, providing connection options when the Motor Drive Power Supply is used within an engineering or laboratory test environment.
Applications
DC Motor Drive Testing
The R-SPS6040S can provide adjustable DC input power for compatible motor drive circuits. Engineers can configure the required voltage and current settings while monitoring the electrical output during drive operation.
Motor Drive Startup Testing
The Output ON/OFF function provides convenient control when checking the power-up and shutdown behavior of a motor drive circuit. Users can apply or remove the DC supply while maintaining the configured test parameters.
Motor Drive Input Condition Testing
The 0-60V adjustable output allows engineers to evaluate a motor drive under different DC input conditions. Changes in voltage, current, and power can be observed directly from the power supply display during the test.
High-Current Motor Drive Testing
With 0-40A current capability and 2400W rated power, the R-SPS6040S is suitable for compatible motor drive test setups that require higher-current DC input power.
Motor Drive Prototype Evaluation
During motor drive development, the adjustable output provides a practical bench power source for testing prototype drive circuits and checking their electrical behavior under different supply settings.
Repeated Motor Drive Testing
For repeated laboratory testing, M1-M4 Memory Function can store frequently used voltage and current settings. This helps simplify test procedures when the same motor drive must be evaluated under multiple predefined conditions.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1
-
CE & FCC Certification: The product has passed CE and FCC certification requirements.
-
Inspection Before Shipment: The DC power supply and included accessories are inspected before shipment to help ensure product quality.
-
Customer Support: Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
R-SPS6040S |
| Product Type |
High Power Adjustable DC Power Supply |
| Rated Voltage |
0-60V |
| Rated Current |
0-40A |
| Rated Power |
2400W |
| Operating Temperature |
0°C-40°C |
| Load Regulation, Voltage |
≤0.1% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
10mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
10mA |
| Setting Accuracy, Voltage |
≤0.05% + 10mV |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤400mVp-p / ≤60mVrms |
| Current Ripple |
≤20mArms |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage, Current and Power Display |
| Memory Function |
M1-M4, 4 Groups |
| Protection |
OCP, OVP |
| Output Control |
Output ON/OFF |
| Interfaces |
USB, RS232, RS485 |
| Size |
Approx. 35 × 27 × 10cm |
| Net Weight |
Approx. 4.6kg |
Why Choose KUAIQU R-SPS6040S?
The KUAIQU R-SPS6040S Motor Drive Power Supply combines a 0-60V adjustable output, 0-40A current capability, and 2400W power rating for compatible DC motor drive testing where higher-current DC input power is required.
Instead of providing only a fixed supply condition, the R-SPS6040S allows engineers to adjust the voltage and current settings and observe voltage, current, and power during motor drive operation. Output ON/OFF is useful for startup and shutdown tests, while OCP and OVP provide additional protection during testing.
For repeated engineering work, M1-M4 Memory Function helps recall commonly used settings, while Panel Lock, precision Encoder Adjustment, rear high-current output, USB, RS232, and RS485 interfaces add practical flexibility to the test bench.
The R-SPS6040S is a practical Motor Drive Power Supply for DC Motor Drive Testing, motor drive input testing, startup testing, prototype evaluation, and high-current motor drive testing within its rated 0-60V, 0-40A, and 2400W output range.
