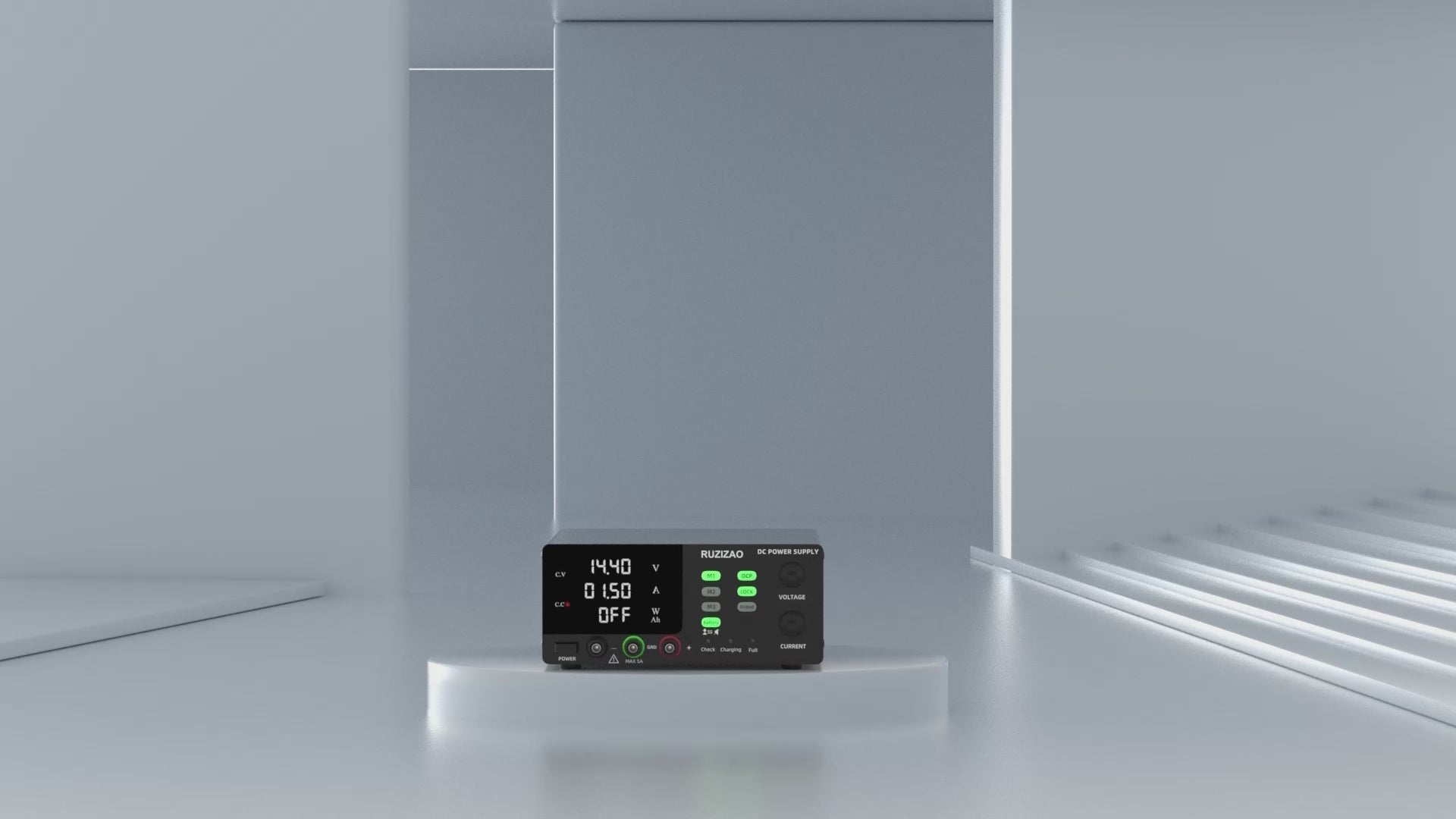

KUAIQU R-SPS6020C 60V 20A 1200W
DC Power Source with Battery Charging &
OCP for High Power Battery Systems
The KUAIQU R-SPS6020C 60V 20A 1200W DC Power Source is designed for High Power Battery Systems, compatible rechargeable battery charging, battery maintenance, and related high-power DC applications.
With an adjustable output range of 0–60V and up to 20A, this 1200W DC Power Source provides flexible voltage and current adjustment for compatible battery systems that require controlled DC power or adjustable charging parameters within the rated output range.
The R-SPS6020C features a dedicated Battery Charging Function, OCP (Over Current Protection), Reverse Polarity Protection, Overcharge Protection, M1–M3 memory presets, precision encoder adjustment, a 4-digit voltage/current/power display, and front and rear dual output ports. These practical functions make it a versatile DC Power Source for High Power Battery Systems where adjustable output, charging control, and real-time parameter monitoring are required.
Key Features
60V 20A 1200W DC Power Source for High Power Battery Systems
The R-SPS6020C provides adjustable 0–60V voltage, up to 20A current, and a maximum output power of 1200W.
For compatible High Power Battery Systems, the wide voltage range and high-current capability allow users to configure voltage and current according to the requirements of the connected battery system.
The adjustable output provides flexible power control for compatible rechargeable batteries, battery-powered equipment, and other battery-related DC applications within the rated specifications of the power supply.
Battery Charging Function for Compatible Rechargeable Batteries
The R-SPS6020C features a dedicated Battery Charging Function designed for compatible rechargeable battery charging applications.
Users can configure the required voltage and current parameters according to the requirements of the compatible battery before beginning the charging process.
The adjustable 0–60V and 0–20A output range provides flexibility for battery-related applications that require different charging voltage and current settings within the rated range of the power supply.
Reverse Polarity Protection for Battery Connection
Incorrect battery connection can cause problems during battery charging operations.
The built-in Reverse Polarity Protection helps prevent damage caused by reverse battery connection when using the dedicated Battery Charging Function.
This protection function provides additional support when connecting compatible batteries and makes the R-SPS6020C more practical for repeated battery charging and battery system maintenance operations.
Overcharge Protection with Automatic Output Shutoff
The R-SPS6020C provides Overcharge Protection during battery charging.
When a compatible battery is fully charged according to the product's battery charging function, the power supply can automatically switch off the output to help prevent continued charging.
After the output is automatically switched off, the BATTERY indicator turns green, providing a visual indication of the charging status.
This function provides practical charging protection for compatible High Power Battery Systems and rechargeable battery applications.

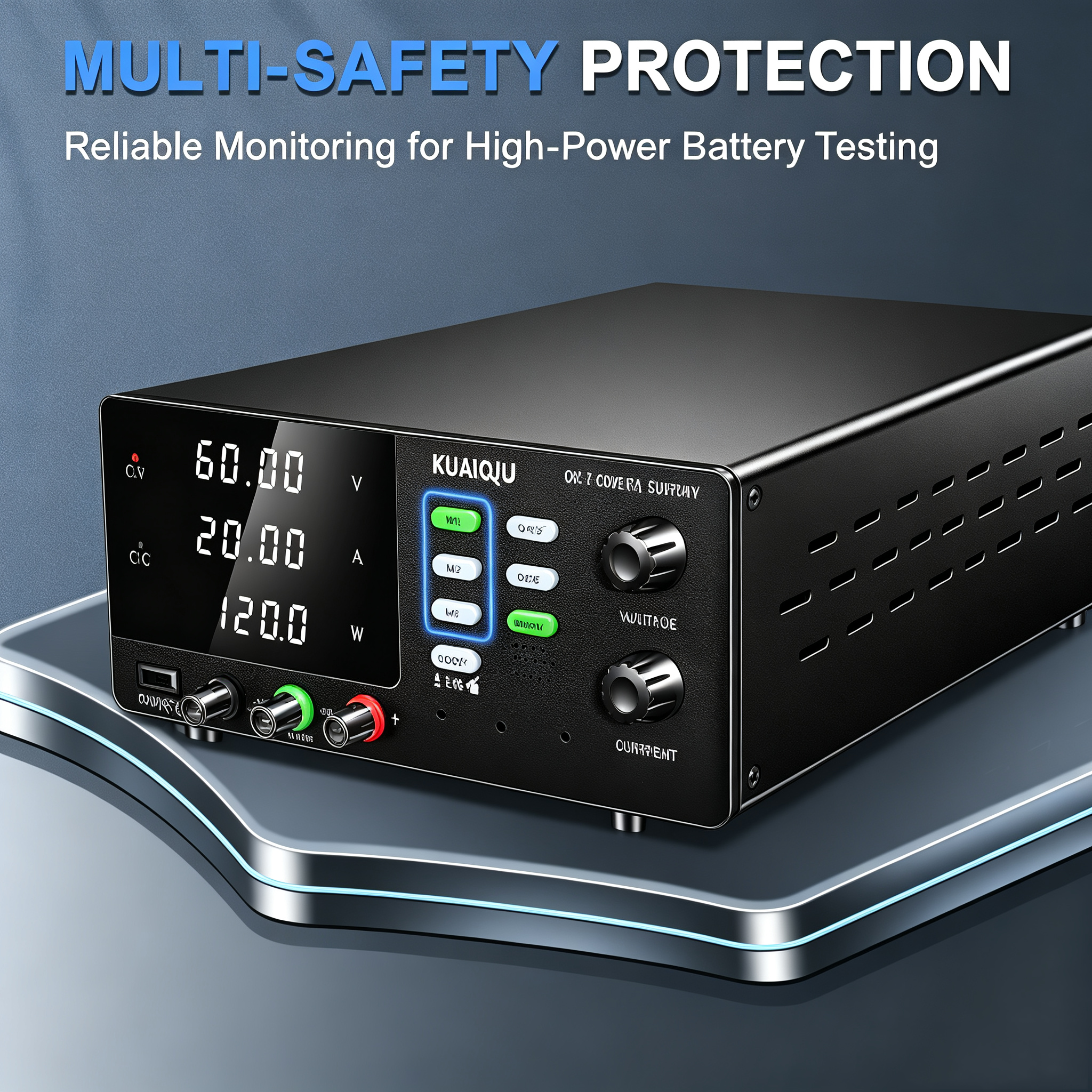

OCP Protection for High-Current Battery Applications
The built-in OCP (Over Current Protection) provides an additional protection function when excessive current conditions occur.
High-power battery systems and connected DC equipment may require significant current during operation. If excessive current conditions occur, OCP helps protect the power supply and connected equipment.
This provides additional protection support when the R-SPS6020C is used for compatible high-current battery-related applications within its rated output specifications.

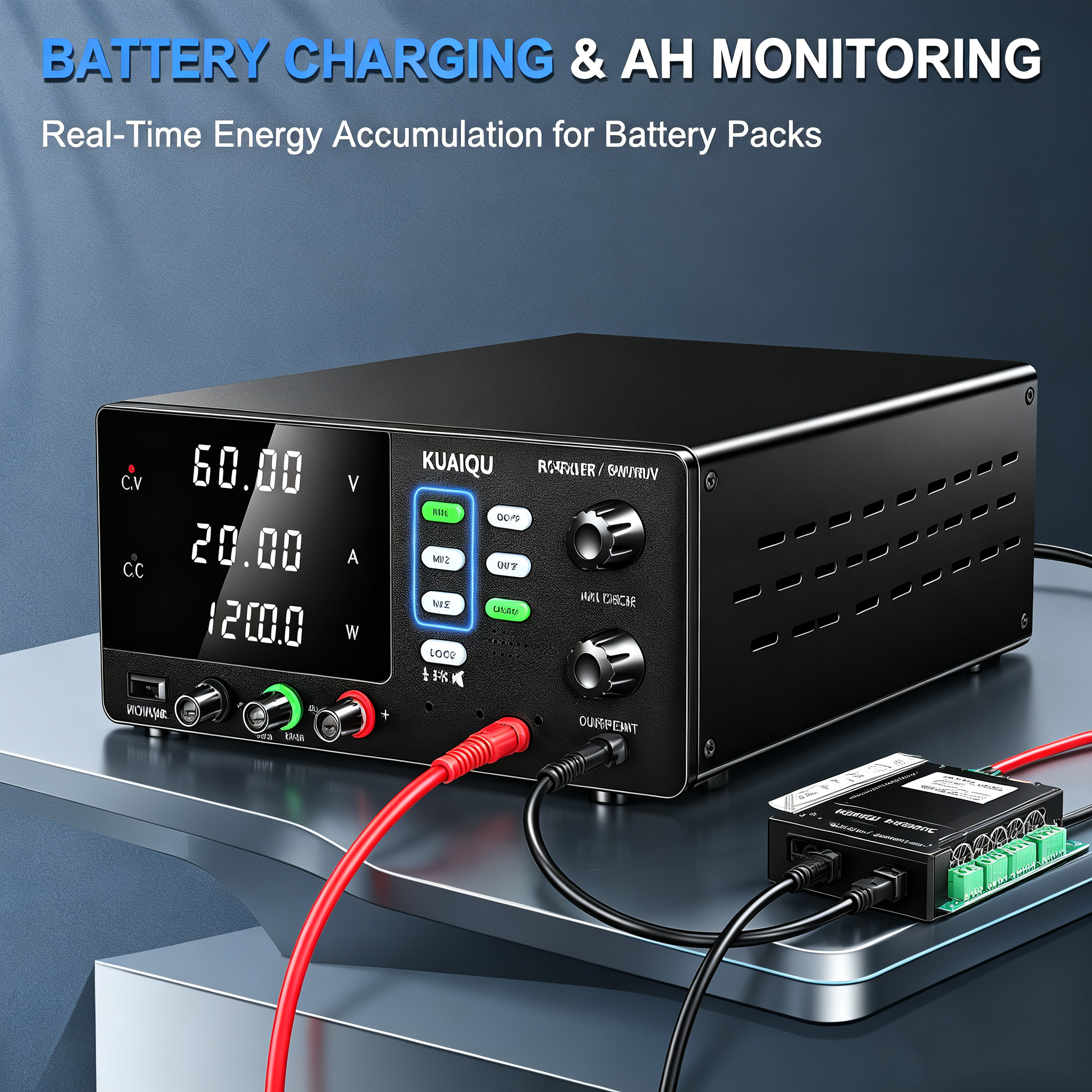

4-Digit Display for Battery Charging Parameter Monitoring
The R-SPS6020C features a 4-Digit Voltage/Current/Power Display for monitoring output parameters during operation.
During battery charging, users can observe voltage, current, and power information in real time.
The product also supports real-time display of charged power, helping users monitor charging-related power information during compatible battery charging operations.
Clear parameter visibility is useful when configuring and monitoring charging conditions for compatible High Power Battery Systems.
M1–M3 Memory for Repeated Battery Settings
The R-SPS6020C provides M1–M3, 3 Groups of Memory Function, allowing users to save frequently used voltage and current settings.
When the same compatible battery systems require repeated charging or testing with commonly used parameters, users can store frequently configured settings and recall them when needed.
This can reduce repeated manual adjustment and improve convenience during routine battery charging and battery system operations.

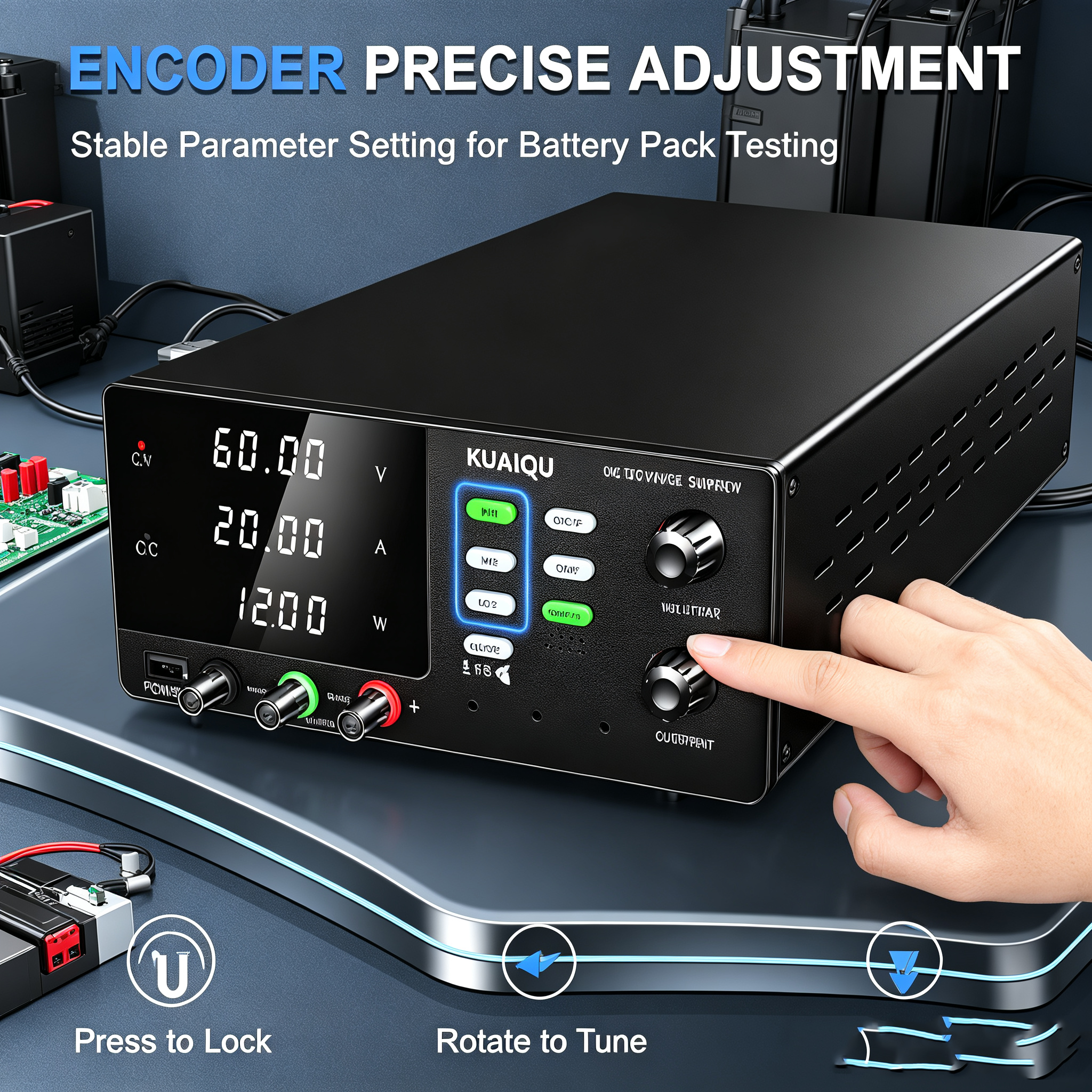

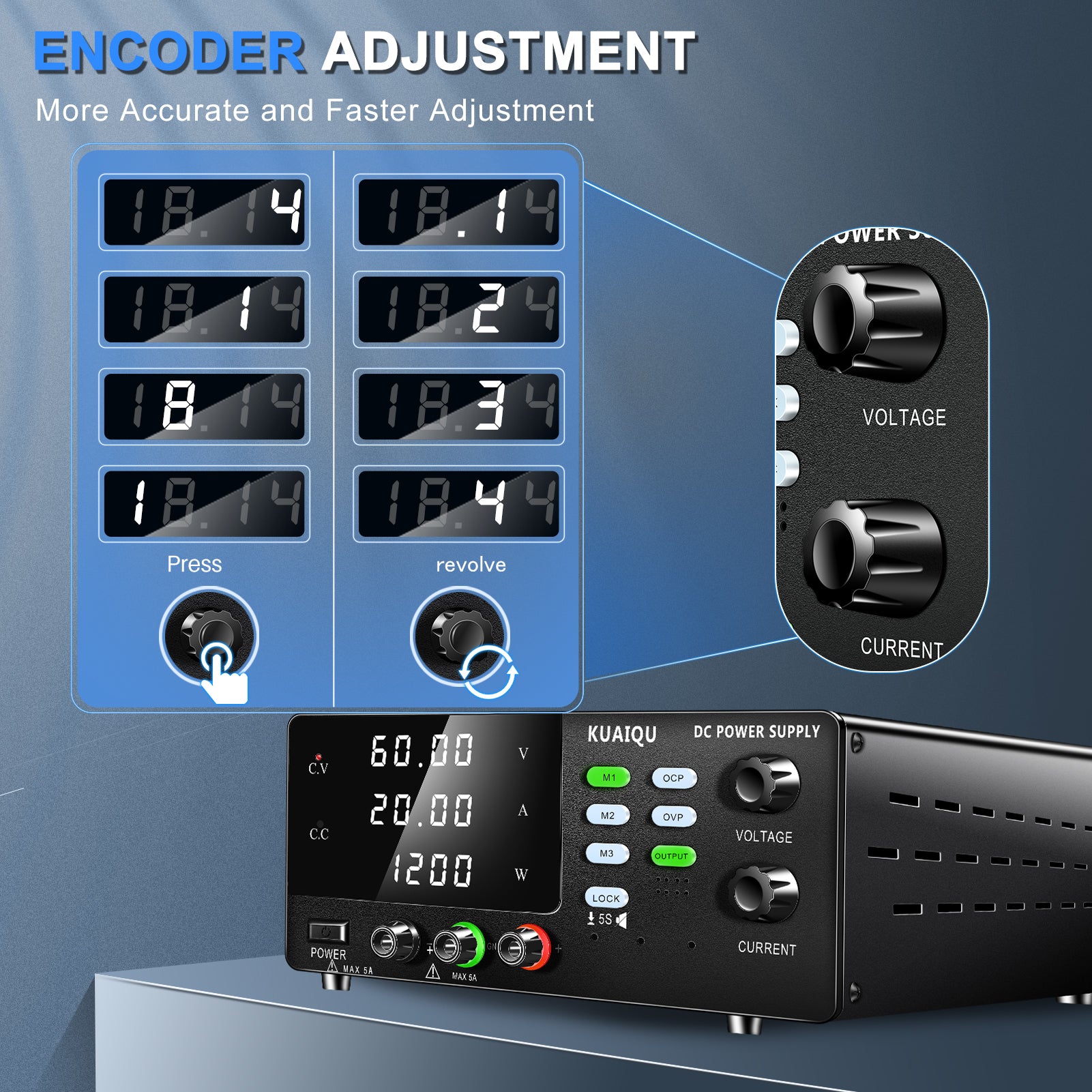

Precision Encoder Adjustment for Charging Parameters
The precision encoder allows users to adjust voltage and current settings when configuring compatible battery charging or DC output conditions.
This provides controlled parameter adjustment within the 0–60V and 0–20A output range.
The precision adjustment function is useful when users need to configure different voltage and current settings for compatible rechargeable batteries or high-power battery systems.

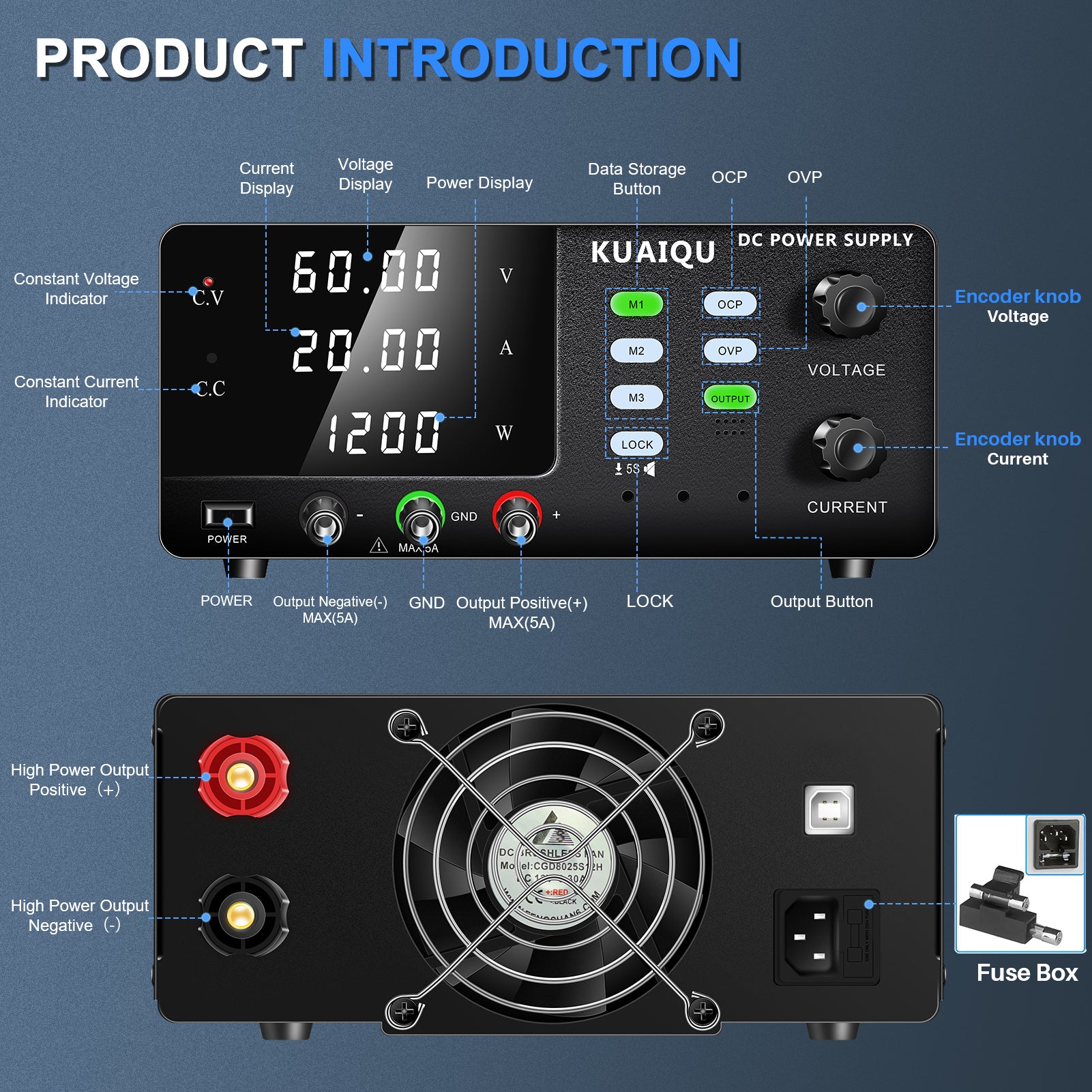

Front and Rear Dual Output Ports
The R-SPS6020C features both front-panel and rear-panel output ports for flexible connection.
The front-panel output supports loads below 5A, making it convenient for lower-current charging and testing operations.
The rear output can be used at full rated power, providing access to the complete 1200W output capability for compatible applications requiring higher current and power.
For higher-power battery-related applications, the rear output provides a suitable connection option when operating within the rated specifications of the power supply.
Panel Lock and Adjustable Buzzer
The Panel Lock Button helps prevent unintended changes after voltage and current parameters have been configured.
This is useful during battery charging operations where users want to maintain the selected output settings.
The control knob also features a buzzer, which can be set to mute according to user preference.
Applications

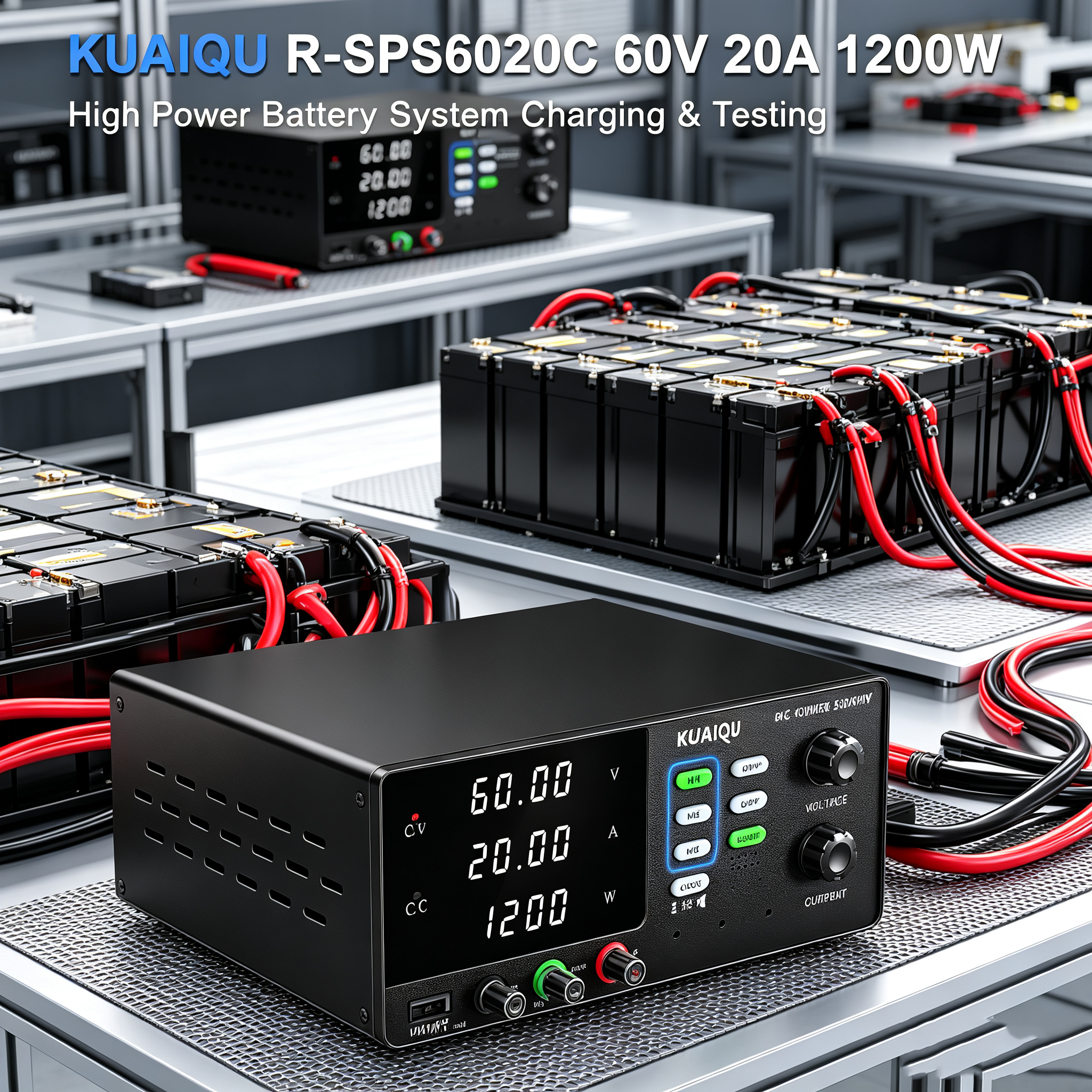

High Power Battery Systems
The R-SPS6020C is designed to provide adjustable DC output and battery charging support for compatible High Power Battery Systems.
Its 0–60V voltage range, 0–20A current capability, 1200W maximum power, Battery Charging Function, Reverse Polarity Protection, Overcharge Protection, and OCP provide practical functions for battery-related applications within the rated output range.
The adjustable voltage and current output allows users to configure suitable operating parameters according to the requirements of compatible battery systems.
Rechargeable Battery Charging
The DC Power Source with Battery Charging is suitable for charging compatible rechargeable batteries that require adjustable voltage and current control.
Users can configure voltage and current parameters using the precision encoder and monitor voltage, current, and power through the 4-Digit Display during operation.
The dedicated Battery Charging Function, Reverse Polarity Protection, and Overcharge Protection provide additional support for controlled battery charging operations.
Battery System Maintenance
The R-SPS6020C can provide adjustable DC output for compatible battery system maintenance tasks.
Its wide 0–60V voltage range and up to 20A output current provide flexibility for battery-related DC applications requiring controlled voltage and current.
The real-time display allows users to monitor output parameters during maintenance and charging operations.
High-Power Battery Charging Applications
With a maximum output capability of 1200W, the R-SPS6020C can support compatible higher-power battery charging applications within its rated specifications.
The rear output port can be used at full rated power, while the adjustable voltage and current settings provide flexibility for configuring compatible charging conditions.
The combination of Battery Charging Function, Overcharge Protection, Reverse Polarity Protection, OCP, and real-time parameter monitoring makes the power supply practical for controlled battery charging operations.
Quality Check and Terms of Service:
-

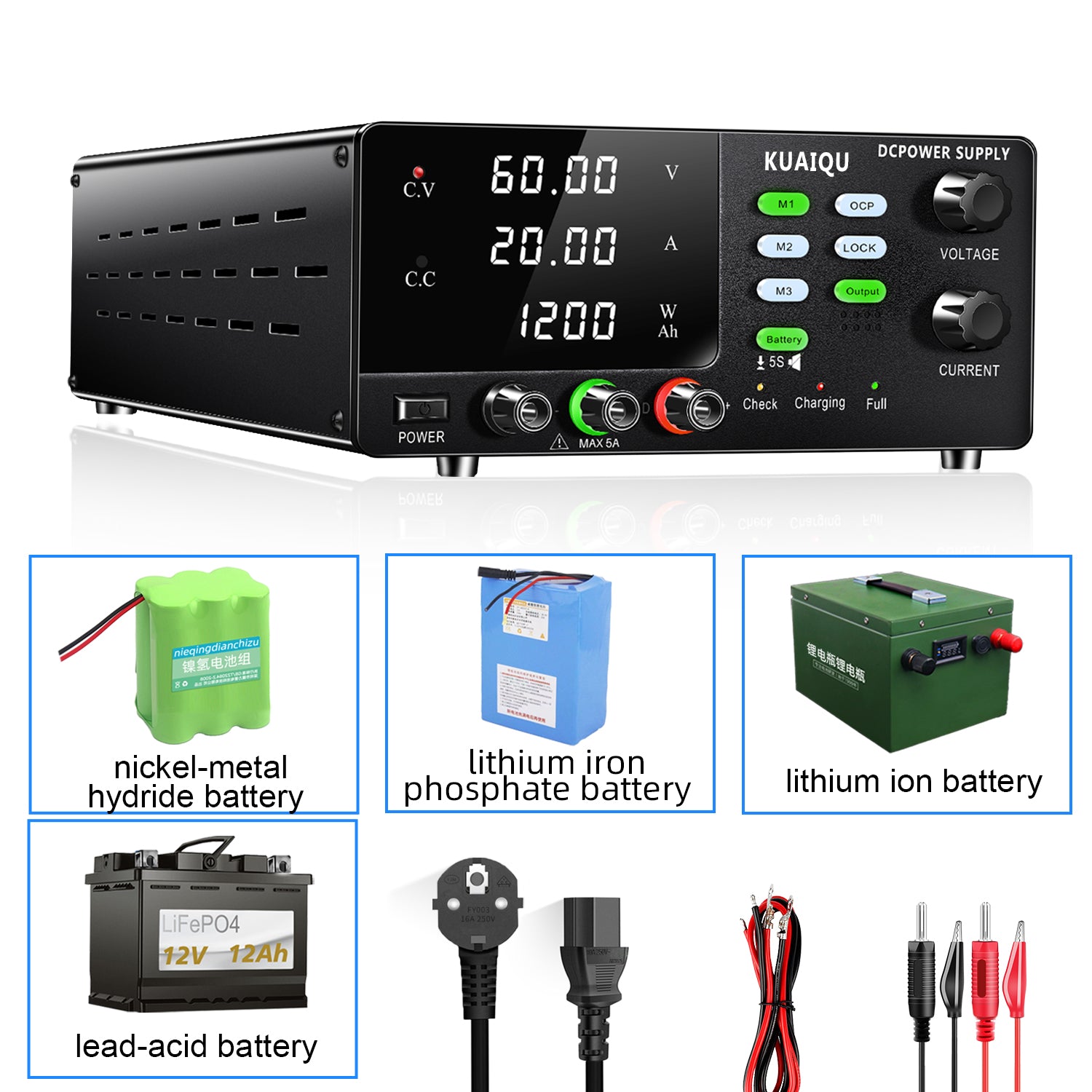

Package includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter Sub-Parameter R-SPS6020C | ||
|---|---|---|
| Rated Value (0°C~40°C) | Voltage | 0–60V |
| Current | 0–20A | |
| Power | 1200W | |
| Load Regulation | Voltage | ≤0.1% + 10mV |
| Current | ≤0.1% + 2.5mA | |
| Line Regulation | Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA | |
| Setting Resolution | Voltage | 10mV |
| Current | 10mA | |
| Readback Resolution | Voltage | 10mV |
| Current | 10mA | |
| Setting Accuracy | Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA | |
| Readback Accuracy | Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤400mVp-p / ≤60mVrms |
| Current | ≤20mArms | |
| Rise Time (No Load) | Time | ≤150ms |
| Rise Time (Full Load) | Time | ≤200ms |
| Fall Time (No Load) | Time | ≤15s |
| Fall Time (Full Load) | Time | ≤50ms |
| Dynamic Response | Time | ≤20ms |
| Efficiency | — | ≥85% |
| Size / Net Weight | — | Approx. 26.5 × 19 × 8.5cm / 2.5kg |
Why Choose KUAIQU R-SPS6020C?
The KUAIQU R-SPS6020C 60V 20A 1200W DC Power Source with Battery Charging & OCP for High Power Battery Systems combines high-power adjustable DC output with dedicated battery charging and practical protection functions.
For compatible High Power Battery Systems and battery-related applications, it provides:
-
0–60V / 0–20A / 1200W adjustable output
-
DC Power Source for High Power Battery Systems
-
Dedicated Battery Charging Function
-
Reverse Polarity Protection
-
Overcharge Protection with automatic output shutoff
-
OCP (Over Current Protection)
-
4-Digit voltage/current/power display
-
Real-time charged power display
-
M1–M3, 3 Groups of Memory Function
-
Precision encoder adjustment
-
Front and rear dual output ports
-
Panel Lock Button
-
Adjustable buzzer with mute function
With its 60V adjustable voltage range, 20A output capability, and 1200W maximum power, the R-SPS6020C provides flexible DC power for compatible High Power Battery Systems.
The combination of a dedicated Battery Charging Function, Reverse Polarity Protection, Overcharge Protection, OCP, memory presets, precision adjustment, and real-time voltage/current/power monitoring makes it a practical DC Power Source with Battery Charging for compatible rechargeable battery charging, battery system maintenance, and other high-power battery-related DC applications within its rated specifications.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
