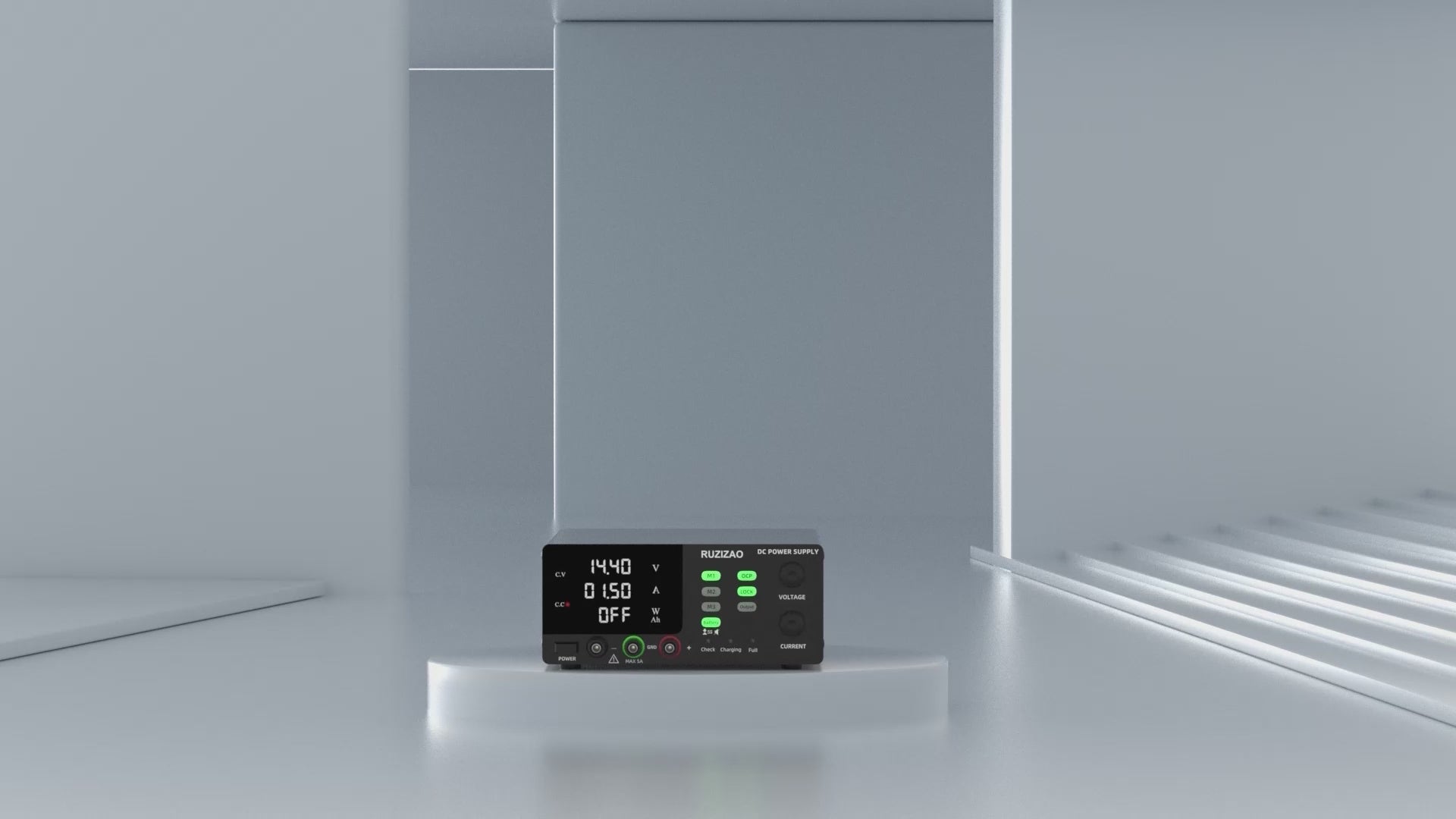

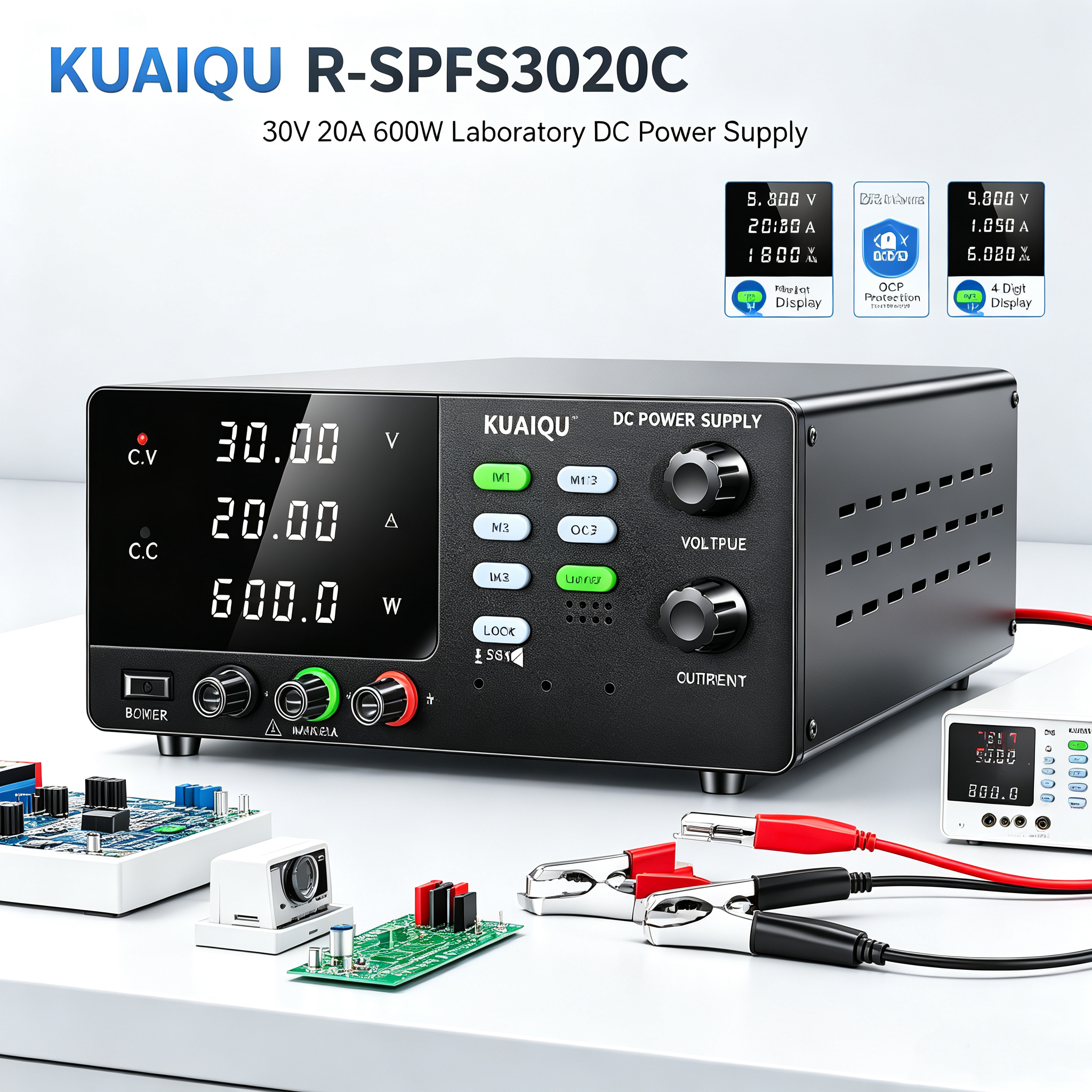

KUAIQU R-SPS3020C 30V 20A 600W
Laboratory DC Power Supply for DC-DC
Converter Testing
The KUAIQU R-SPS3020C 30V 20A 600W Laboratory DC Power Supply is a high-current adjustable power supply designed for DC-DC Converter Testing, power electronics evaluation, electronic circuit testing, and other low-voltage DC applications.
With an adjustable output range of 0–30V and up to 20A, this 30V 20A 600W Laboratory DC Power Supply provides flexible voltage and current adjustment for testing DC-DC converters, power conversion circuits, electronic modules, and other compatible DC loads.
The R-SPS3020C features OCP (Over Current Protection), precision encoder adjustment, M1–M3 memory presets, a 4-digit voltage/current/power display, and front and rear dual output ports. These features make it a practical Laboratory DC Power Supply for users who need adjustable and controlled DC output during DC-DC Converter Testing.
Key Features

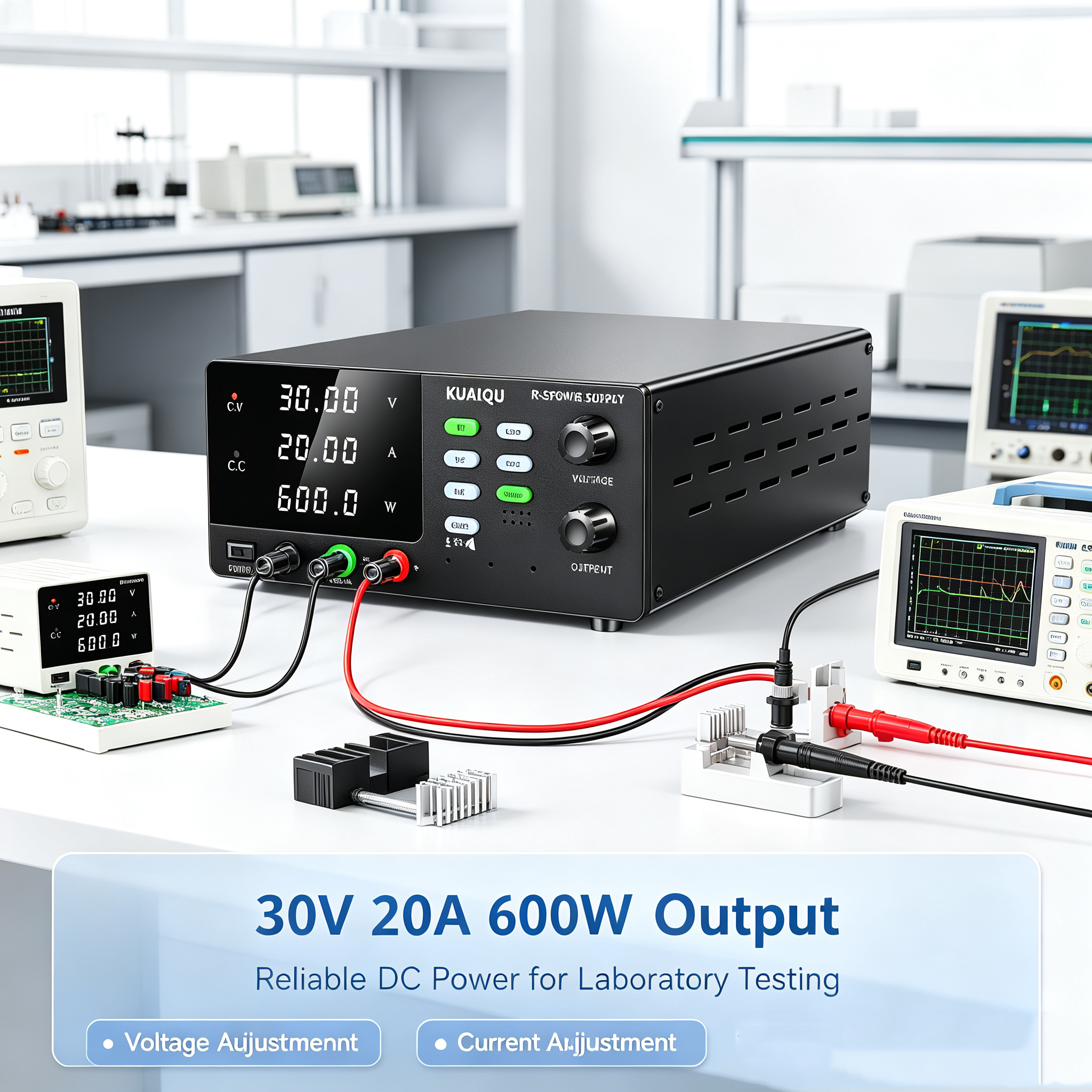

30V 20A 600W Laboratory DC Power Supply for DC-DC Converter Testing
The R-SPS3020C provides adjustable 0–30V voltage and up to 20A current with a maximum output power of 600W. This high-current Laboratory DC Power Supply allows users to adjust voltage and current according to the input requirements of the DC-DC converter or other device under test.
The adjustable output provides flexible power control for evaluating DC-DC converters under different input voltage and current conditions within the rated output range.

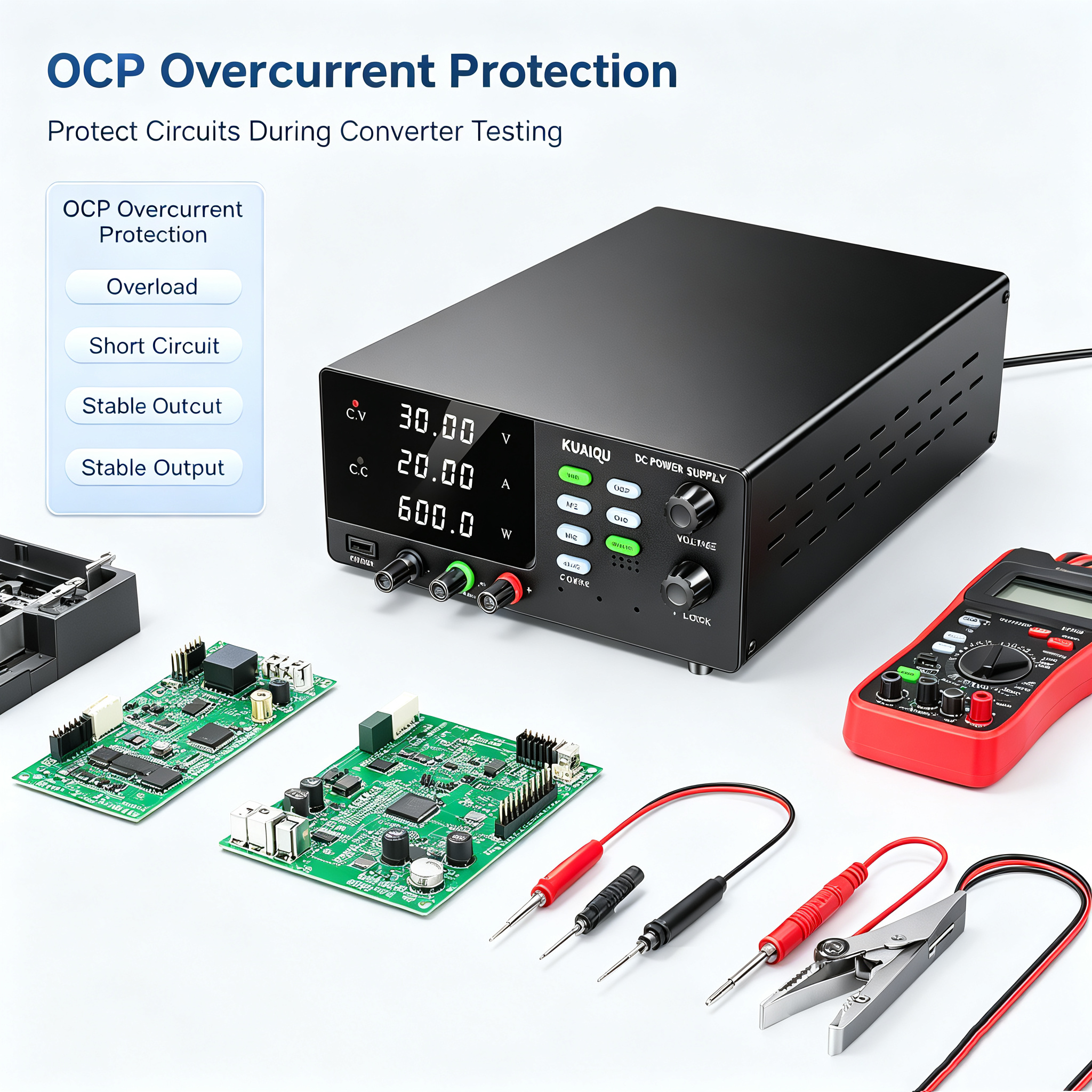

OCP Protection for DC-DC Converter Testing
The built-in OCP (Over Current Protection) helps protect the power supply and connected equipment when excessive current conditions occur.
During DC-DC Converter Testing, the converter under test may draw increased input current under certain operating conditions. OCP provides an additional protection function during high-current testing.
Precise Voltage and Current Adjustment
The encoder provides precision adjustment of voltage and current parameters, allowing users to make controlled output adjustments during DC-DC converter testing.
This adjustment capability is useful when evaluating converter operation under different input power conditions within the R-SPS3020C's 0–30V and 0–20A output range.
4-Digit Display for Real-Time Output Monitoring
The R-SPS3020C features a 4-digit display for clear monitoring of voltage, current, and power information during operation.
The display allows users to observe output parameters while performing DC-DC Converter Testing, making it easier to monitor changes as converter operating conditions vary.

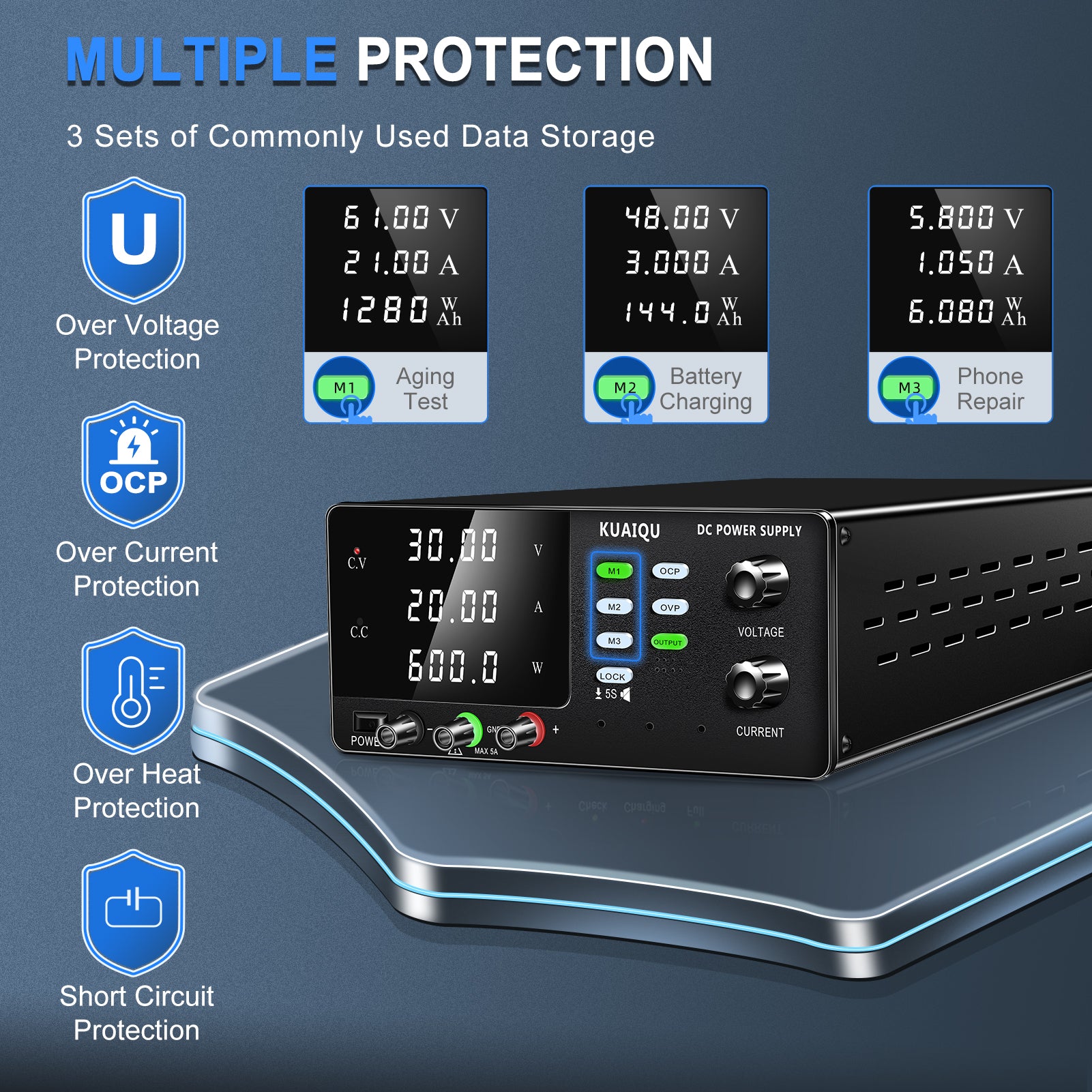

3 Groups of Memory for Fast Parameter Recall
The R-SPS3020C provides M1–M3, 3 groups of memory function, allowing users to save frequently used voltage and current settings.
Memory presets can simplify repeated DC-DC Converter Testing tasks when different converter models or test conditions require frequently reused power supply parameters.

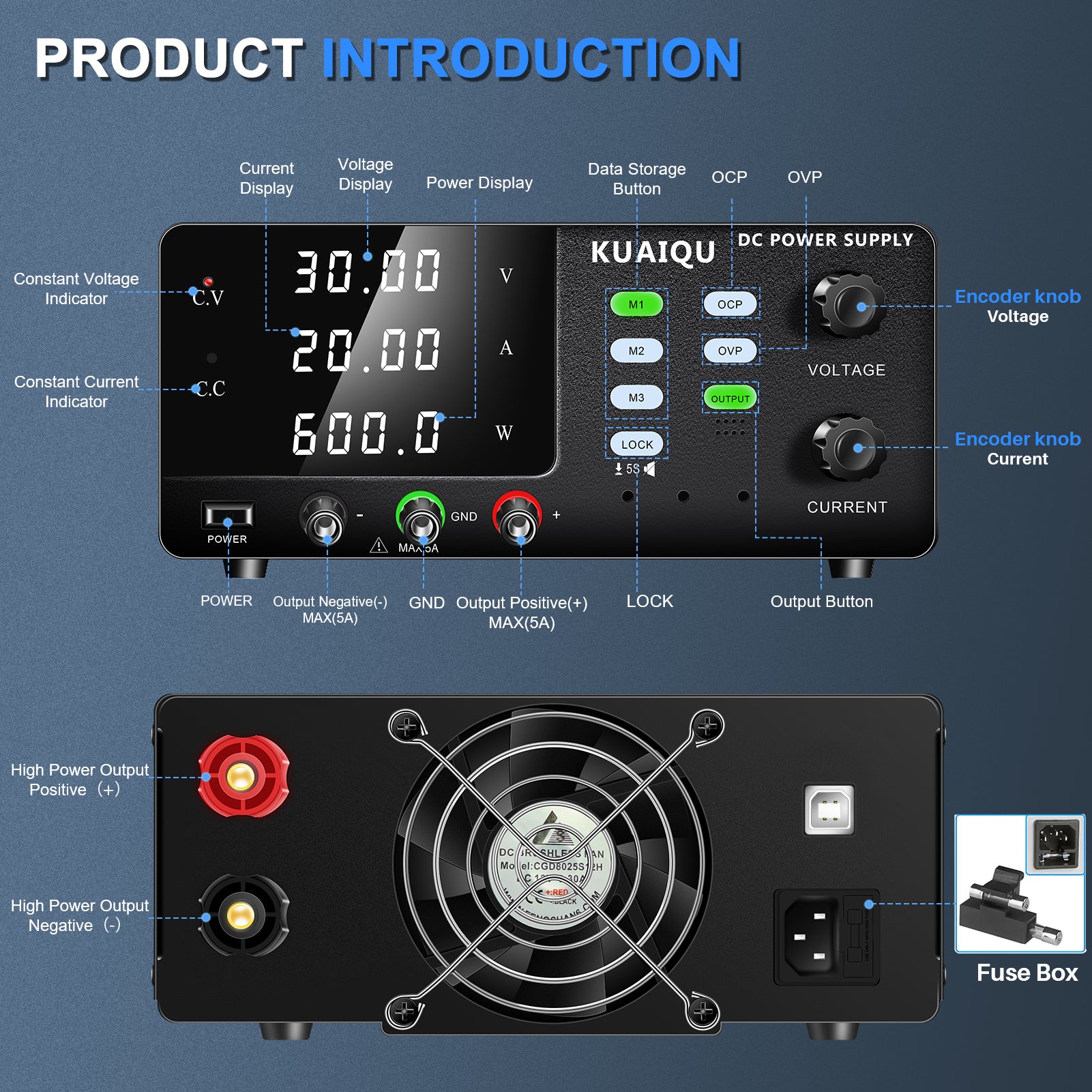

Front and Rear Dual Output Ports
The R-SPS3020C features both front-panel and rear-panel output ports for flexible connection.
The front panel output supports loads below 5A for convenient daily testing, while the rear output can be used at full rated power for applications requiring the complete 600W output capability.
For higher-current DC-DC Converter Testing, the rear output provides a suitable connection option within the rated specifications of the power supply.
Panel Lock and Adjustable Buzzer
The Panel Lock Button helps prevent unintended operation after voltage and current parameters have been configured.
The control knob also features a buzzer, which can be set to mute according to user preference during testing operations.

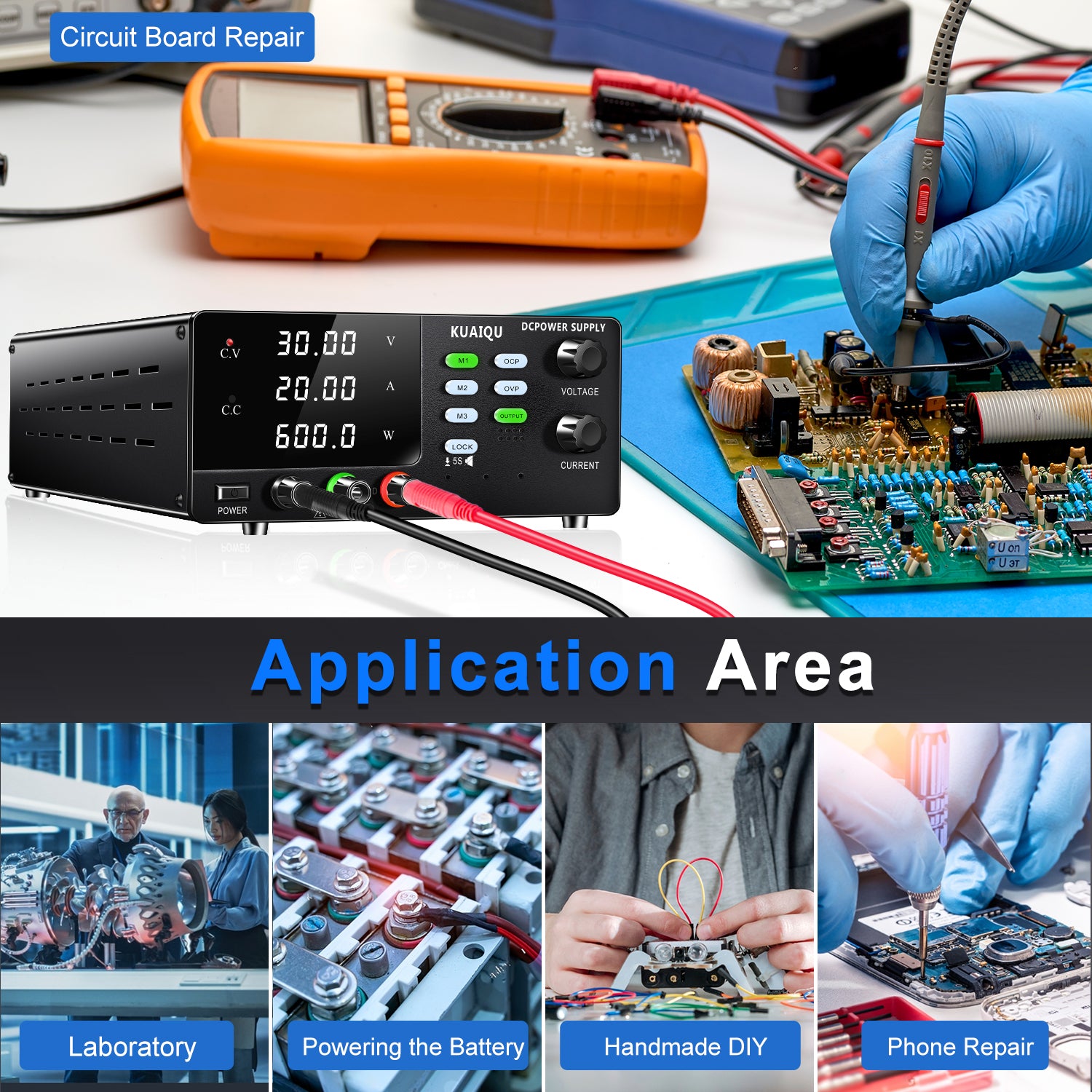

Applications

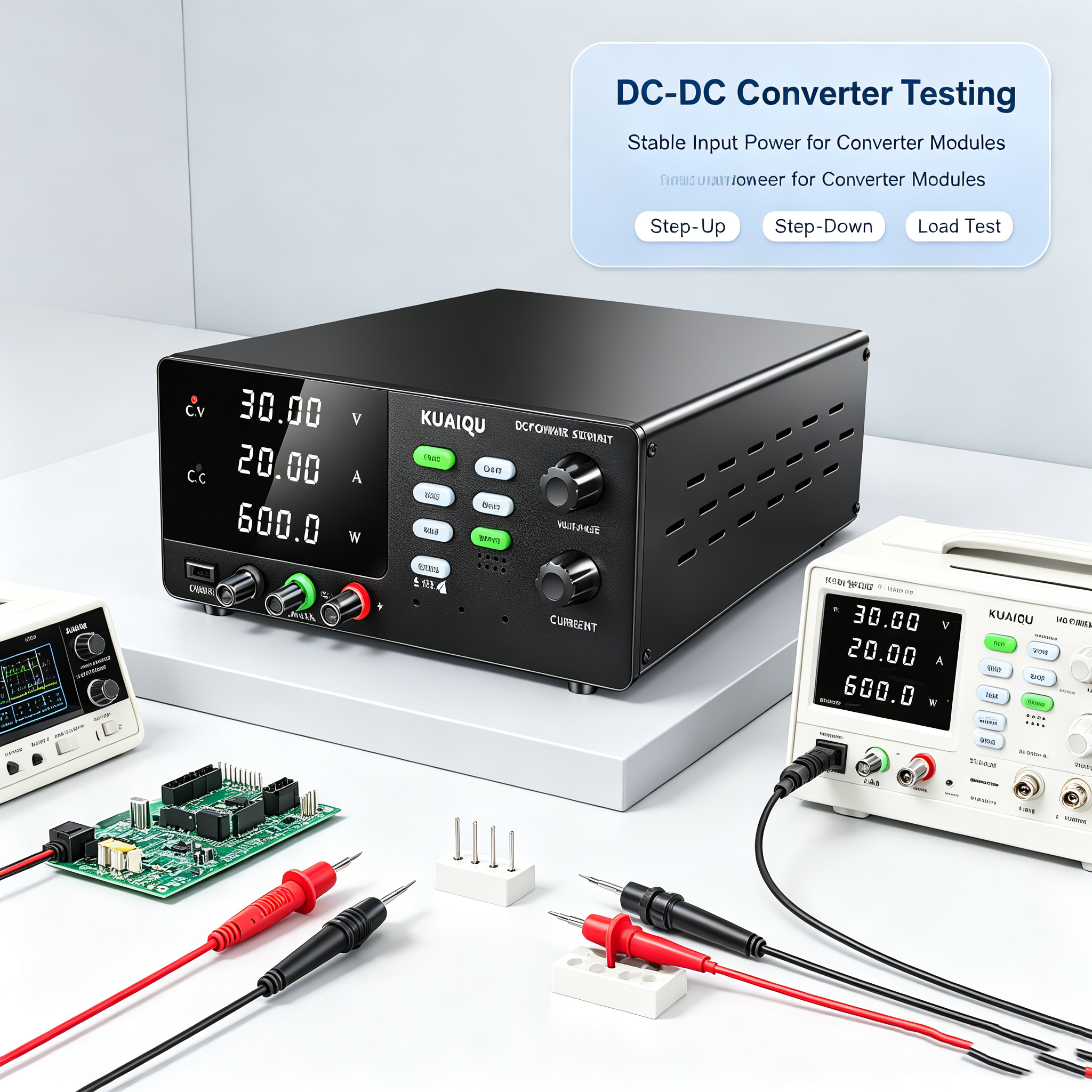

DC-DC Converter Testing
The R-SPS3020C is designed to provide adjustable DC power for DC-DC Converter Testing applications.
Its 0–30V voltage range, 0–20A current output, 600W maximum power, precision adjustment, 4-digit display, and OCP make it suitable for evaluating compatible DC-DC converters and observing their operation under different input voltage and current settings within the rated output range.
Power Converter Development and Evaluation
The Laboratory DC Power Supply can provide adjustable input power during DC-DC converter development and evaluation tasks.
Users can adjust voltage and current parameters and monitor voltage, current, and power through the 4-digit display while evaluating converter operation under different input conditions.
DC Power Conversion Circuit Testing
The R-SPS3020C can provide adjustable DC output for testing compatible power conversion circuits, electronic modules, and other DC-powered devices.
Its high-current output capability, precision encoder adjustment, 4-digit display, and OCP function provide useful support for controlled testing within the 30V 20A 600W rated output range.
Electronics and Power Electronics Testing
In addition to DC-DC Converter Testing, the 30V 20A 600W Laboratory DC Power Supply can provide adjustable DC power for electronic circuits, power electronics, and other compatible low-voltage DC applications within its rated output range.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter Sub-Parameter R-SPS3020C | ||
|---|---|---|
| Rated Value (0°C~40°C) | Voltage | 0–30V |
| Current | 0–20A | |
| Power | 600W | |
| Load Regulation | Voltage | ≤0.1% + 10mV |
| Current | ≤0.1% + 2.5mA | |
| Line Regulation | Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA | |
| Setting Resolution | Voltage | 10mV |
| Current | 10mA | |
| Readback Resolution | Voltage | 10mV |
| Current | 10mA | |
| Setting Accuracy | Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA | |
| Readback Accuracy | Voltage | ≤0.05% + 10mV |
| Current | ≤0.01% + 10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤200mVp-p / ≤20mVrms |
| Current | ≤20mArms | |
| Rise Time (No Load) | Time | ≤150ms |
| Rise Time (Full Load) | Time | ≤200ms |
| Fall Time (No Load) | Time | ≤15s |
| Fall Time (Full Load) | Time | ≤50ms |
| Dynamic Response | Time | ≤20ms |
| Efficiency | — | ≥85% |
| Size / Net Weight | — | Approx. 26.5 × 19 × 8.5cm / 2.5kg |
Why Choose KUAIQU R-SPS3020C?
The KUAIQU R-SPS3020C 30V 20A 600W Laboratory DC Power Supply for DC-DC Converter Testing combines high-current adjustable DC output with practical control, monitoring, memory, and protection functions for DC-DC converter testing applications.
For DC-DC Converter Testing and related DC applications, it provides:
-
0–30V / 0–20A / 600W adjustable output
-
Laboratory DC Power Supply output
-
OCP (Over Current Protection)
-
Precision encoder adjustment
-
4-digit voltage/current/power display
-
M1–M3 memory function
-
Front and rear dual output ports
-
Panel Lock Button
-
Adjustable buzzer with mute function
With its adjustable high-current output, clear parameter display, precision adjustment, memory function, and OCP function, the R-SPS3020C is a practical Laboratory DC Power Supply for DC-DC Converter Testing, power converter evaluation, DC power conversion circuit testing, electronics testing, and other compatible low-voltage DC applications within its rated specifications.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
