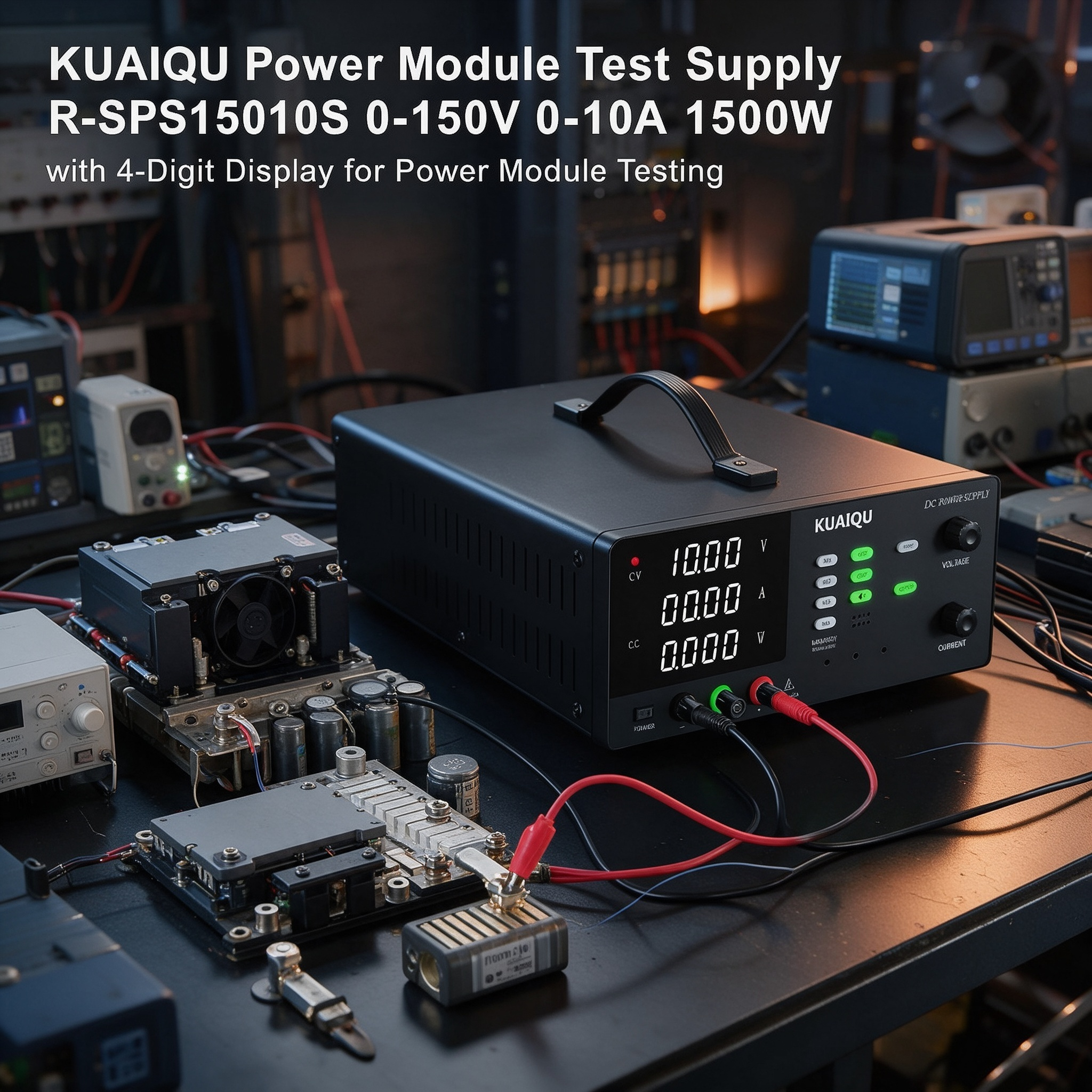

KUAIQU Power Module Test Supply
R-SPS15010S 0-150V 0-10A 1500W with
4-Digit Display for Power Module Testing
Key Features
0-150V Adjustable DC Output for Power Module Testing
Power modules may need to be evaluated under different DC supply conditions during development, verification, and laboratory testing. The R-SPS15010S provides a 0-150V adjustable DC output, allowing engineers to establish different supply voltage conditions within the power supply's rated range.
This makes the Power Module Test Supply suitable for compatible power modules and related DC-powered test setups where an adjustable source is required to evaluate electrical behavior under different input conditions.
10A Output Capacity for Power Module Test Setups
The R-SPS15010S provides up to 10A output current and 1500W rated power, giving engineers substantial DC power capacity for compatible power module testing.
The adjustable voltage and current settings allow the operator to establish different supply conditions according to the requirements and rated limits of the power module under test.
4-Digit Display for Direct Electrical Monitoring
The 4-Digit Voltage, Current and Power Display provides direct visibility into the electrical output during Power Module Testing.
Engineers can observe the supplied voltage, current demand, and power while the power module operates. This helps users compare electrical behavior when different supply conditions are applied and identify changes in power demand during the test.
Precision Encoder for Test Condition Adjustment
The Precision Encoder provides direct adjustment of voltage and current settings from the front panel.
When a power module needs to be evaluated under multiple DC supply conditions, engineers can conveniently change the configured parameters and observe the corresponding electrical response of the connected test setup.
OCP and OVP for Power Module Test Protection
The R-SPS15010S includes Over Current Protection and Over Voltage Protection to provide additional safeguards during power module testing.
These functions are useful when working with electronic power modules and test circuits where abnormal voltage or current conditions may occur. OCP and OVP are protection functions and should be used together with the appropriate protection requirements of the power module and external test setup.
Output ON/OFF for Controlled Power Module Testing
The Output ON/OFF function allows the operator to apply or remove the DC output while retaining the configured voltage and current settings.
This can support controlled power-up, shutdown, restart, and repeated power application procedures during compatible Power Module Testing.
M1-M4 Memory for Repeated Power Module Test Conditions
Power Module Testing may involve several recurring voltage and current configurations. The M1-M4 4-Group Memory Function provides four groups for storing frequently used test settings.
When the same test conditions need to be repeated, engineers can recall stored configurations rather than manually adjusting the parameters each time.
Panel Lock for Stable Test Parameters
Once the required test condition has been established, accidental adjustment of the front-panel controls can affect test consistency. The Panel Lock function helps prevent unintended parameter changes during operation.
This is useful when a power module needs to remain under a defined DC supply condition throughout a verification procedure.

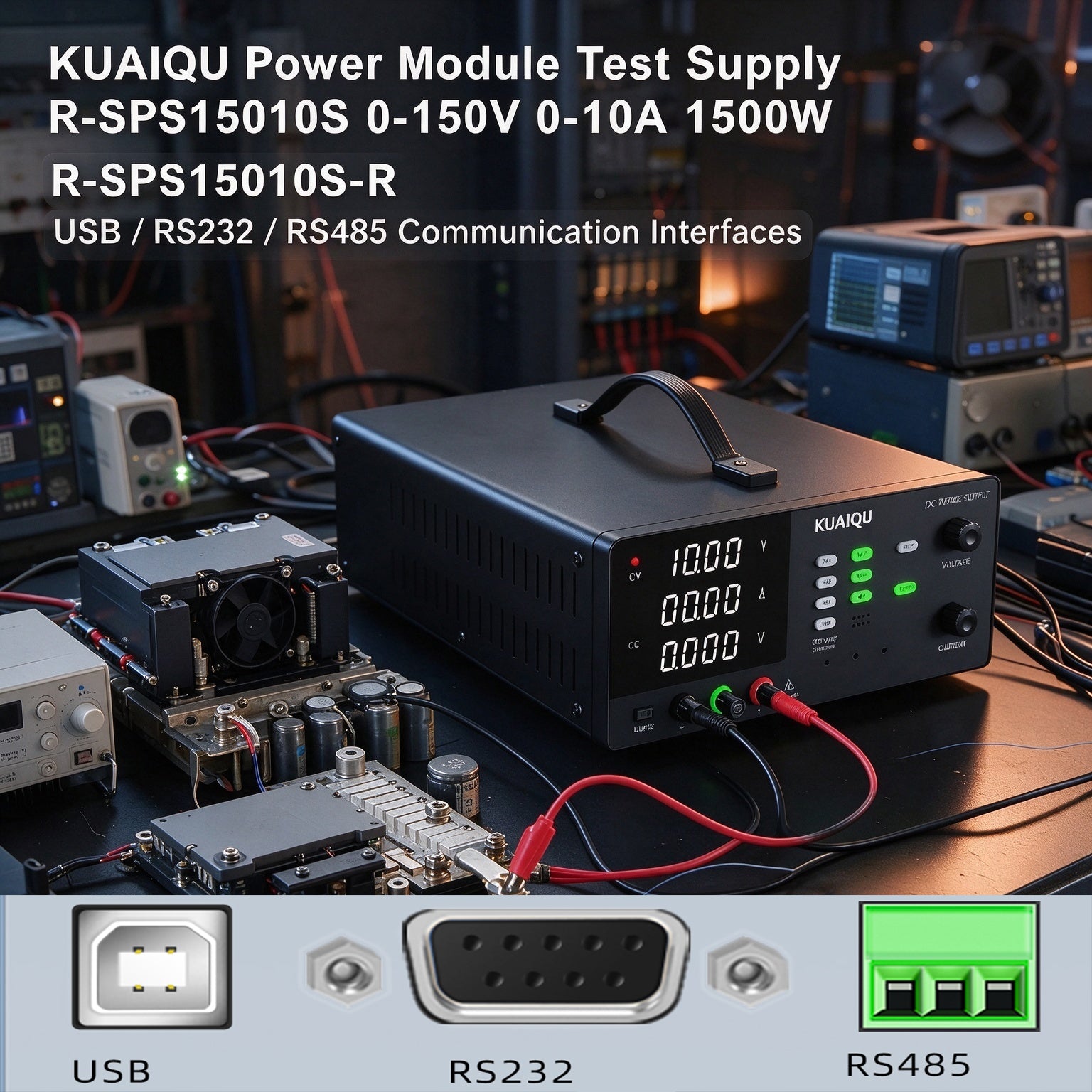

USB, RS232 and RS485 Interfaces for Test Bench Connectivity
The R-SPS15010S provides USB, RS232 and RS485 interfaces, offering multiple connection options for compatible laboratory and engineering test environments.
These interfaces provide connectivity options when integrating the Power Module Test Supply into suitable test benches. They should not be interpreted as dedicated power module programming, automated test, or device communication functions.
Buzzer Mute for Laboratory Test Operation
The encoder knob includes a Buzzer function that can be muted. This provides additional operating convenience when engineers repeatedly adjust voltage and current settings during power module development and testing.
Applications

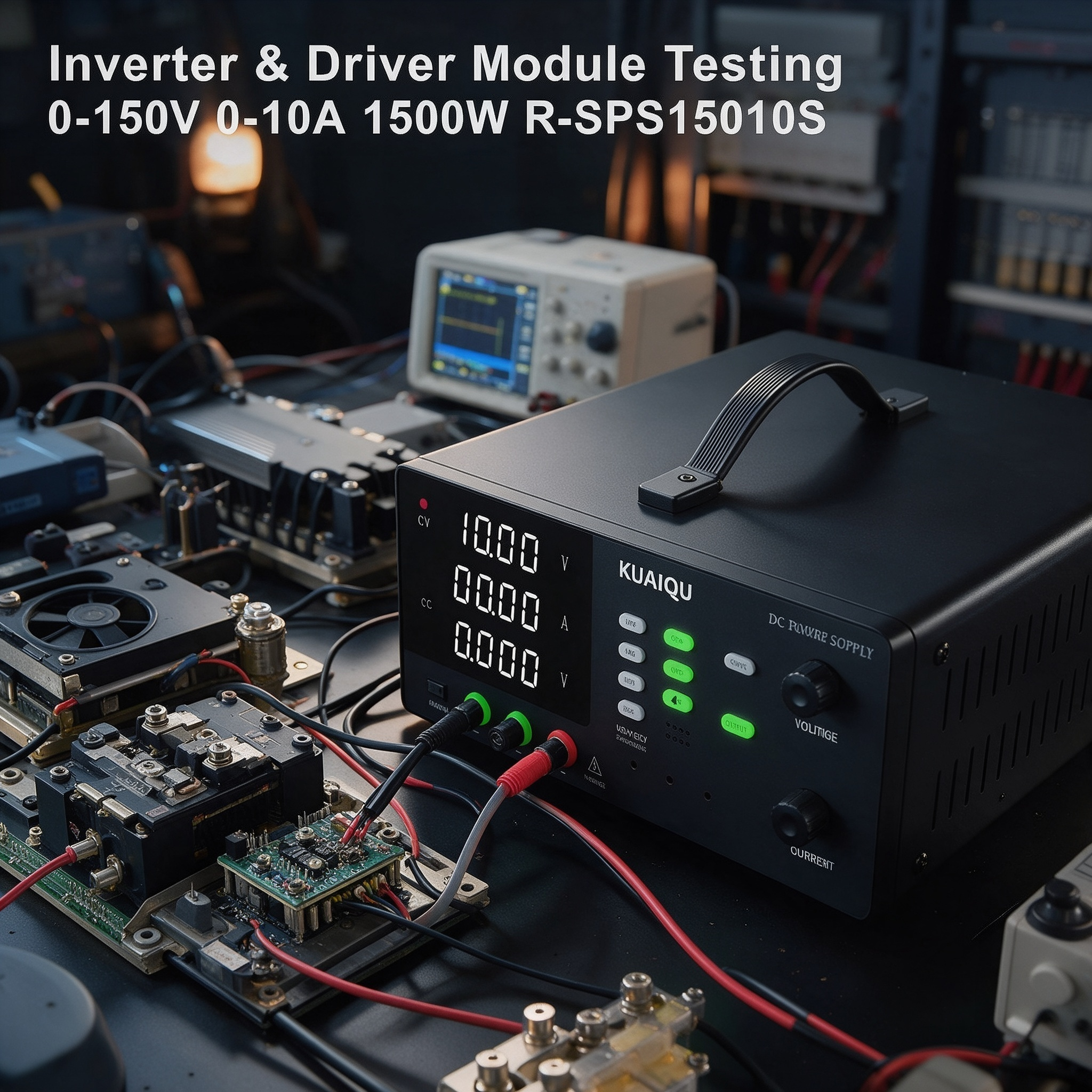

Power Module Testing
The R-SPS15010S provides adjustable DC power for compatible power modules requiring up to 150V, 10A, and 1500W. Engineers can establish selected supply conditions and monitor voltage, current, and power during evaluation.
Power Module Input Condition Evaluation
Different power modules may require different DC input conditions during development and verification. The adjustable 0-150V output allows engineers to establish selected supply levels within the rated range of the Power Module Test Supply and the device under test.

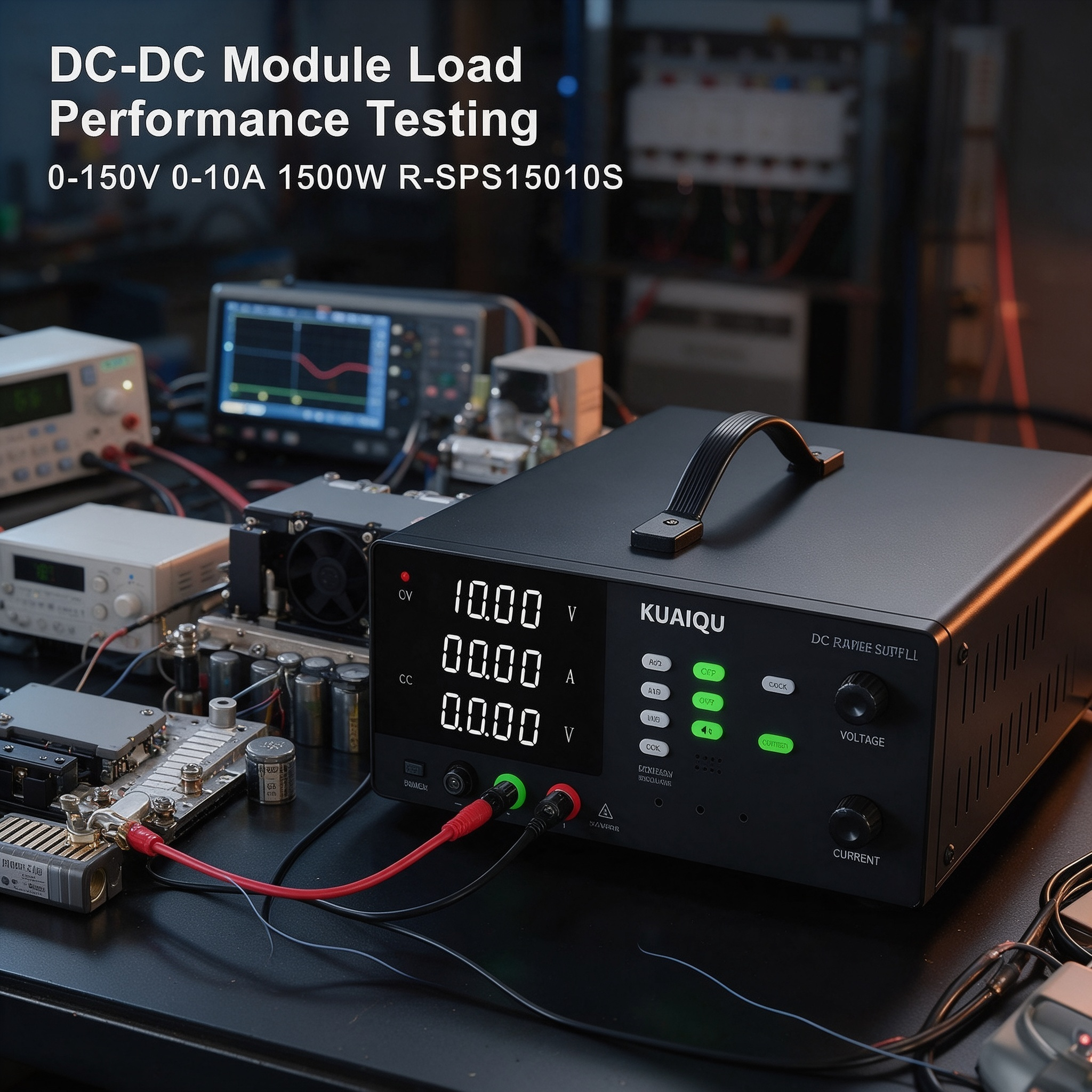

Power Module Electrical Performance Testing
The 4-digit display provides real-time visibility into voltage, current, and power while the connected power module operates.
Engineers can compare electrical demand under different supply conditions and observe changes in the module's input power requirements during laboratory testing.
Power Module Startup and Shutdown Testing
The Output ON/OFF function allows controlled application and removal of DC power during power module evaluation.
This can be used for compatible startup, shutdown, restart, and repeated power application tests where the response of the power module to controlled DC power switching needs to be evaluated.
Power Module Operating Condition Comparison
Power modules may need to be evaluated at multiple supply levels. The Precision Encoder allows engineers to adjust voltage and current settings, while the 4-digit display provides direct visibility into the resulting electrical output.
This allows different test conditions to be established and compared within the rated capabilities of the test supply.
High-Power Power Module Test Setups
With a 1500W rated power and up to 10A output current, the R-SPS15010S provides substantial DC power capacity for compatible power module test setups that require more power than a conventional low-power bench supply.
Repeated Power Module Verification
For testing procedures that use several established voltage and current settings, the M1-M4 Memory Function provides four stored configurations.
This can reduce repeated manual adjustment when engineers evaluate multiple power modules or repeat the same Power Module Testing procedure.
Power Module Test Bench Integration
The R-SPS15010S combines adjustable DC output, 4-digit electrical monitoring, OCP, OVP, Output ON/OFF, Panel Lock, memory settings, and USB, RS232 and RS485 interfaces for suitable laboratory and engineering test benches.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1
-
CE & FCC Certification: The product has passed CE and FCC certification requirements.
-
Inspection Before Shipment: The DC power supply and included accessories are inspected before shipment to help ensure product quality.
-
Customer Support: Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
R-SPS15010S |
| Product Type |
High Power Adjustable DC Power Supply |
| Rated Voltage |
0-150V |
| Rated Current |
0-10A |
| Rated Power |
1500W |
| Operating Temperature |
0°C-40°C |
| Load Regulation, Voltage |
≤0.1% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
10mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
10mA |
| Setting Accuracy, Voltage |
≤0.05% + 10mV |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤3500mVp-p / ≤1200mVrms |
| Current Ripple |
≤200mArms |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage, Current and Power Display |
| Memory Function |
M1-M4, 4 Groups |
| Protection |
OCP, OVP |
| Output Control |
Output ON/OFF |
| Interfaces |
USB, RS232, RS485 |
| Output Connection |
Front Output and Rear Output |
| Size |
Approx. 35 × 27 × 10cm |
Why Choose KUAIQU R-SPS15010S?
The KUAIQU Power Module Test Supply R-SPS15010S combines a 0-150V adjustable output, 0-10A maximum current, and 1500W rated power for Power Module Testing applications that require a flexible and higher-power DC source.
Its adjustable output allows engineers to establish different DC input conditions for compatible power modules and test circuits. The Precision Encoder provides direct adjustment of voltage and current, while the 4-Digit Voltage, Current and Power Display provides clear visibility into the electrical output during testing.
For power module verification, OCP and OVP provide additional protection functions, while Output ON/OFF supports controlled power application and removal. The M1-M4 4-Group Memory Function helps recall frequently used test conditions, and Panel Lock helps maintain established parameters during operation.
The R-SPS15010S also provides USB, RS232 and RS485 interfaces for suitable test-bench connectivity. Combined with its adjustable DC output, 4-digit electrical monitoring, memory function, protection features, and practical front-panel controls, it provides a flexible Power Module Test Supply for Power Module Testing, input condition evaluation, electrical performance testing, startup and shutdown verification, operating condition comparison, and repeated power module testing within its rated specifications.
