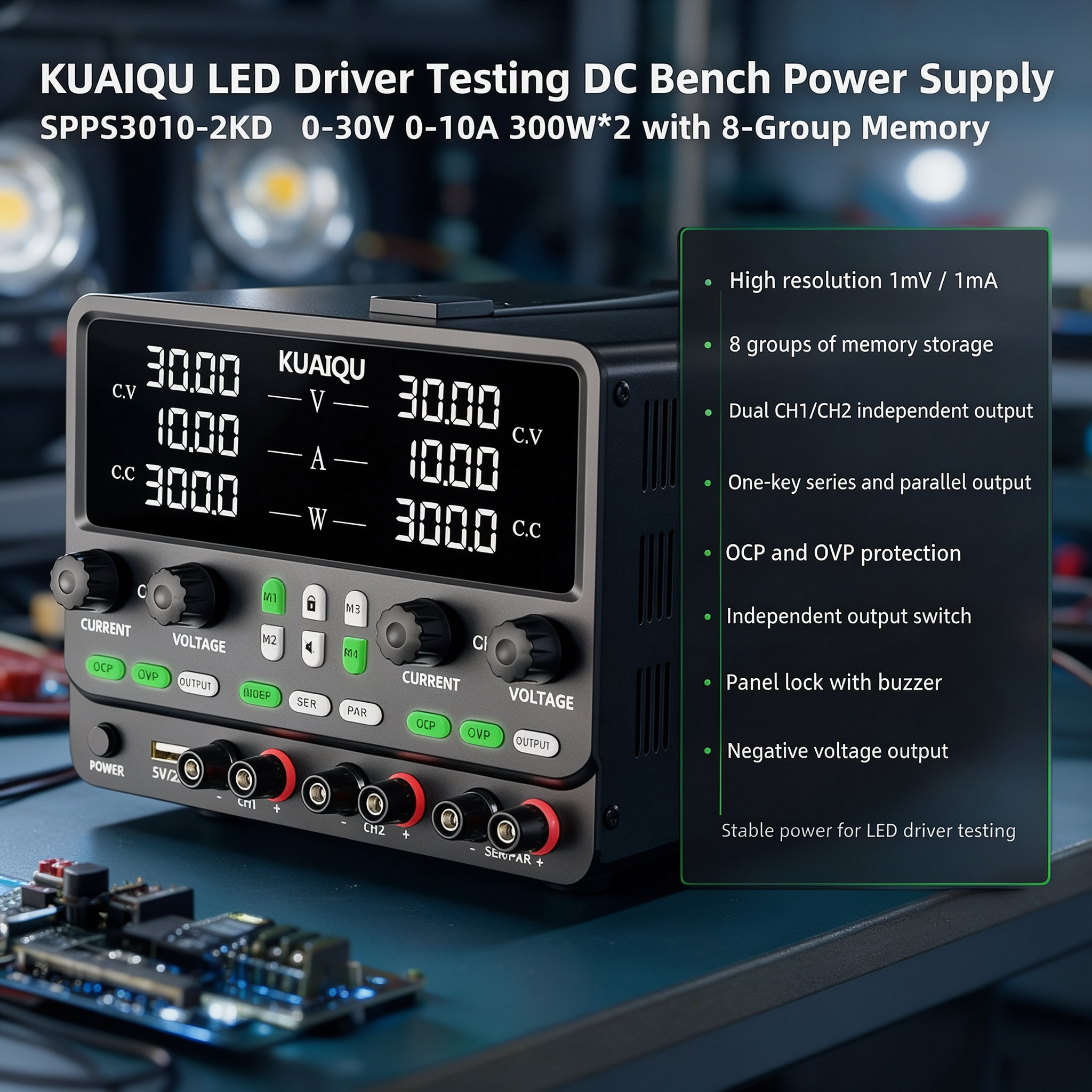

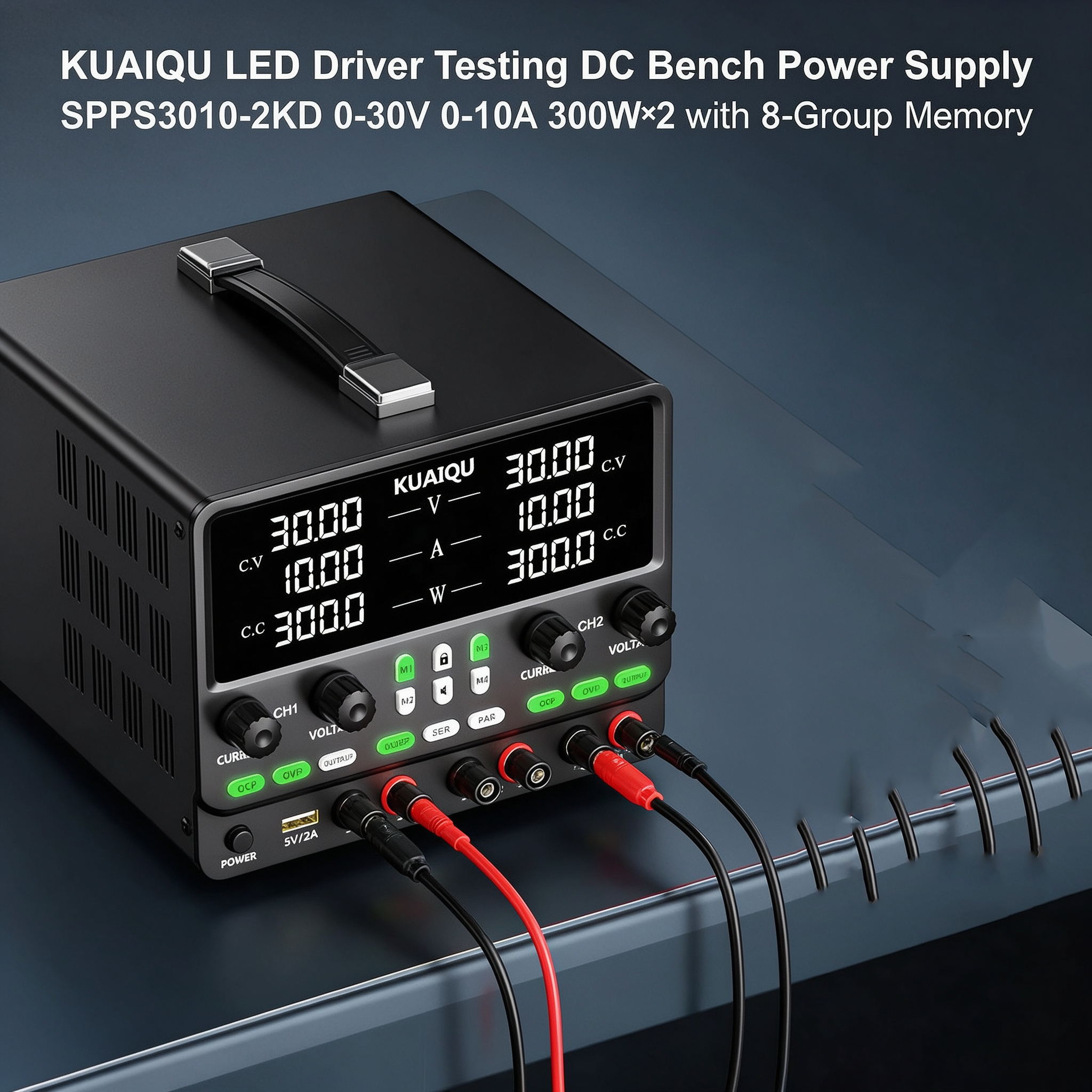

KUAIQU LED Driver Testing DC Bench
Power Supply SPPS3010-2KD 0-30V 0-10A
300W×2 with 8-Group Memory
The KUAIQU SPPS3010-2KD is a dual output DC bench power supply designed for LED driver testing, LED power circuit development, and repeated evaluation of DC powered driver circuits. It provides two independent 0-30V, 0-10A, 300W outputs, giving users adjustable voltage and current conditions for different LED driver test setups. The Parallel Output mode combines the two channels to provide up to 0-30V, 0-20A, and 600W, while Series Output provides up to 0-60V, 0-10A, and 600W. Precision encoder adjustment, OCP and OVP protection, Output ON/OFF control, and 8-Group Memory provide practical control for repeated LED Driver Testing.
Key Features
Dual Output for LED Driver Testing
The SPPS3010-2KD provides two independent adjustable DC outputs, each supporting 0-30V, 0-10A, and up to 300W. Dual output operation allows users to establish separate power conditions for LED driver circuits or test multiple circuit sections within the same bench setup.
Parallel Output up to 20A
Parallel Output combines the two channels to provide up to 0-30V, 0-20A, and 600W. This higher current output capability is useful when testing LED driver circuits that require higher current than a single 10A channel can provide.

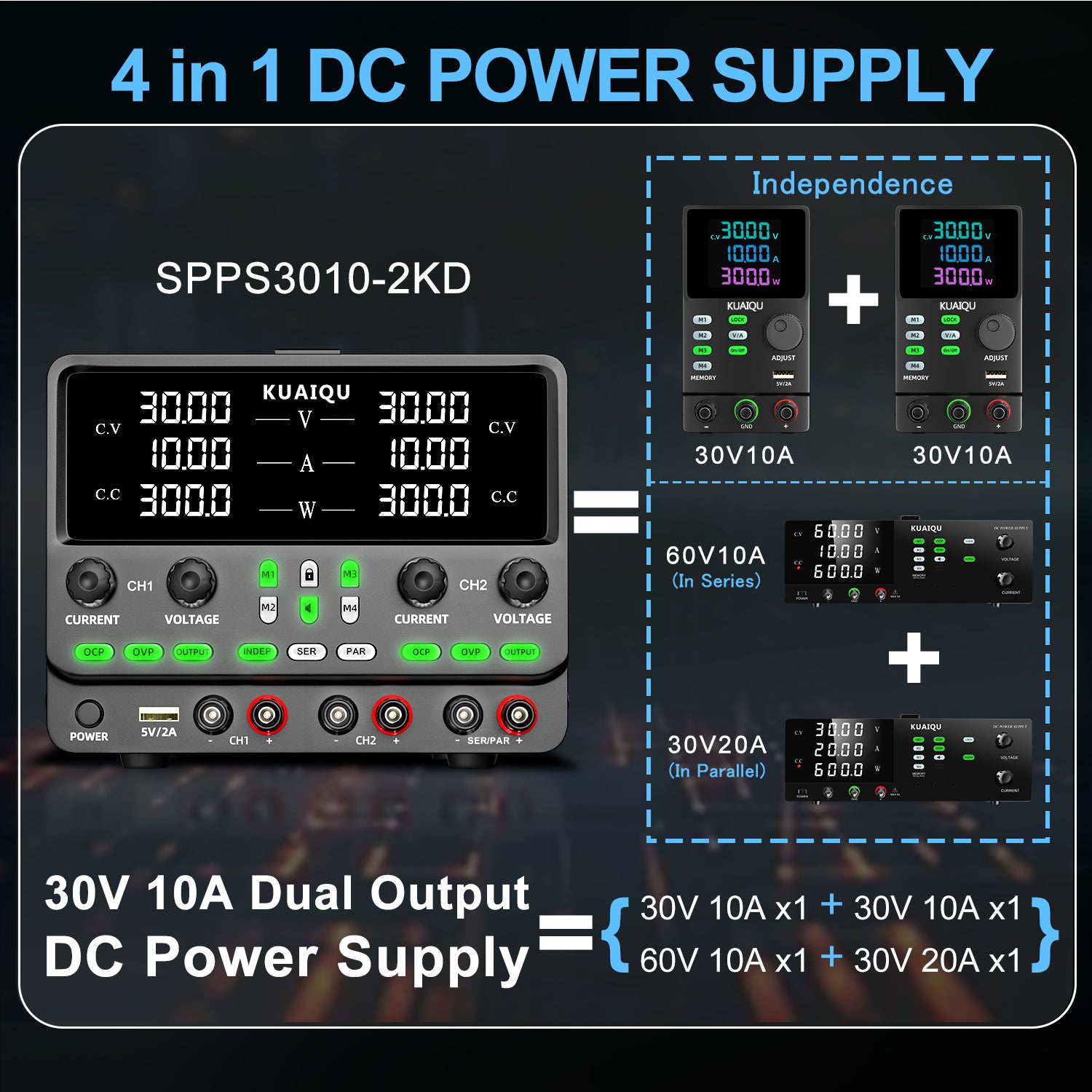

Independent and Series Output Modes
The DC bench power supply supports Independent, Series, and Parallel output modes. Independent mode provides two separate outputs, Series mode provides up to 0-60V and 0-10A with 600W, and Parallel mode provides up to 0-30V and 0-20A with 600W. These output configurations allow the power supply to adapt to different LED driver testing requirements.

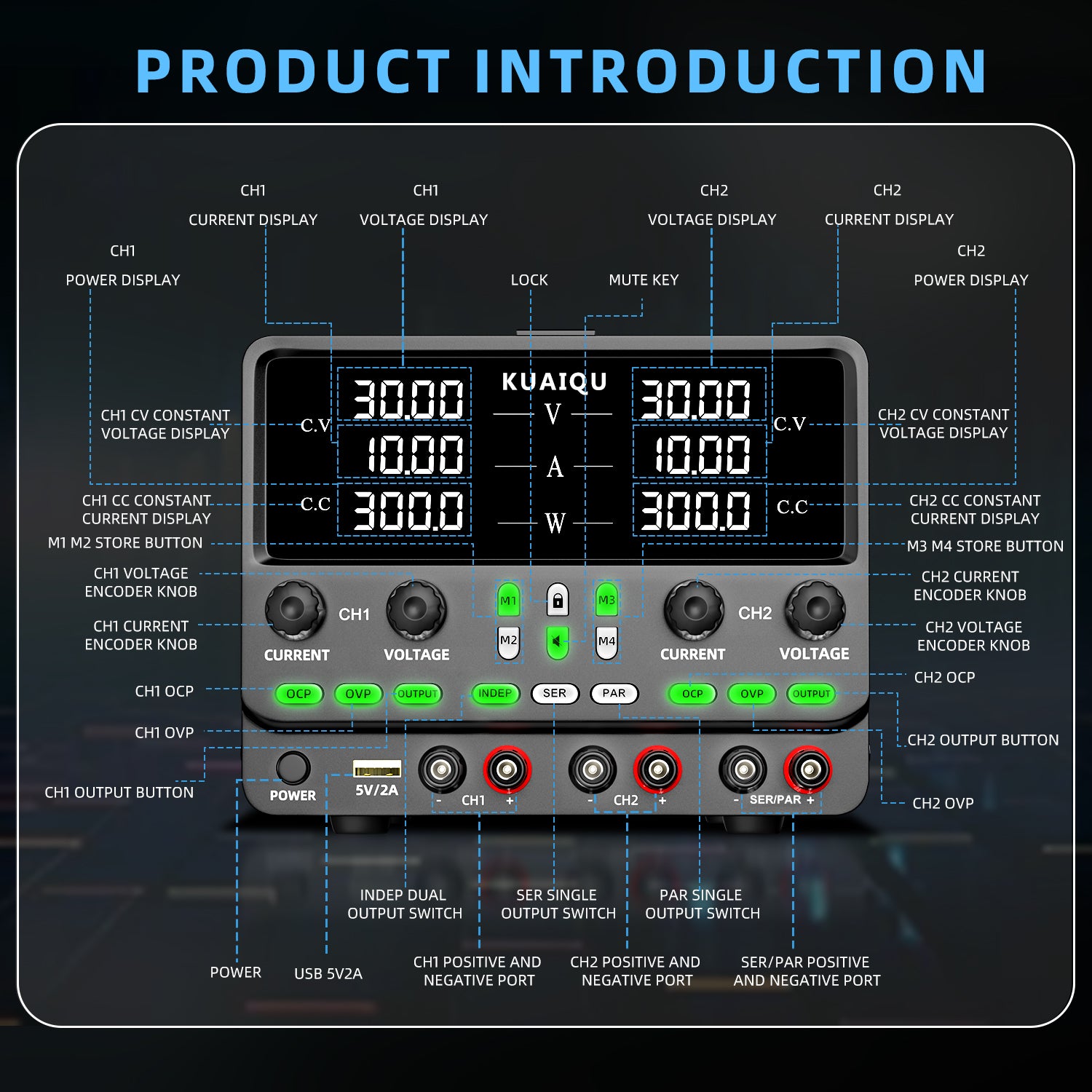

Precision Encoder Adjustment

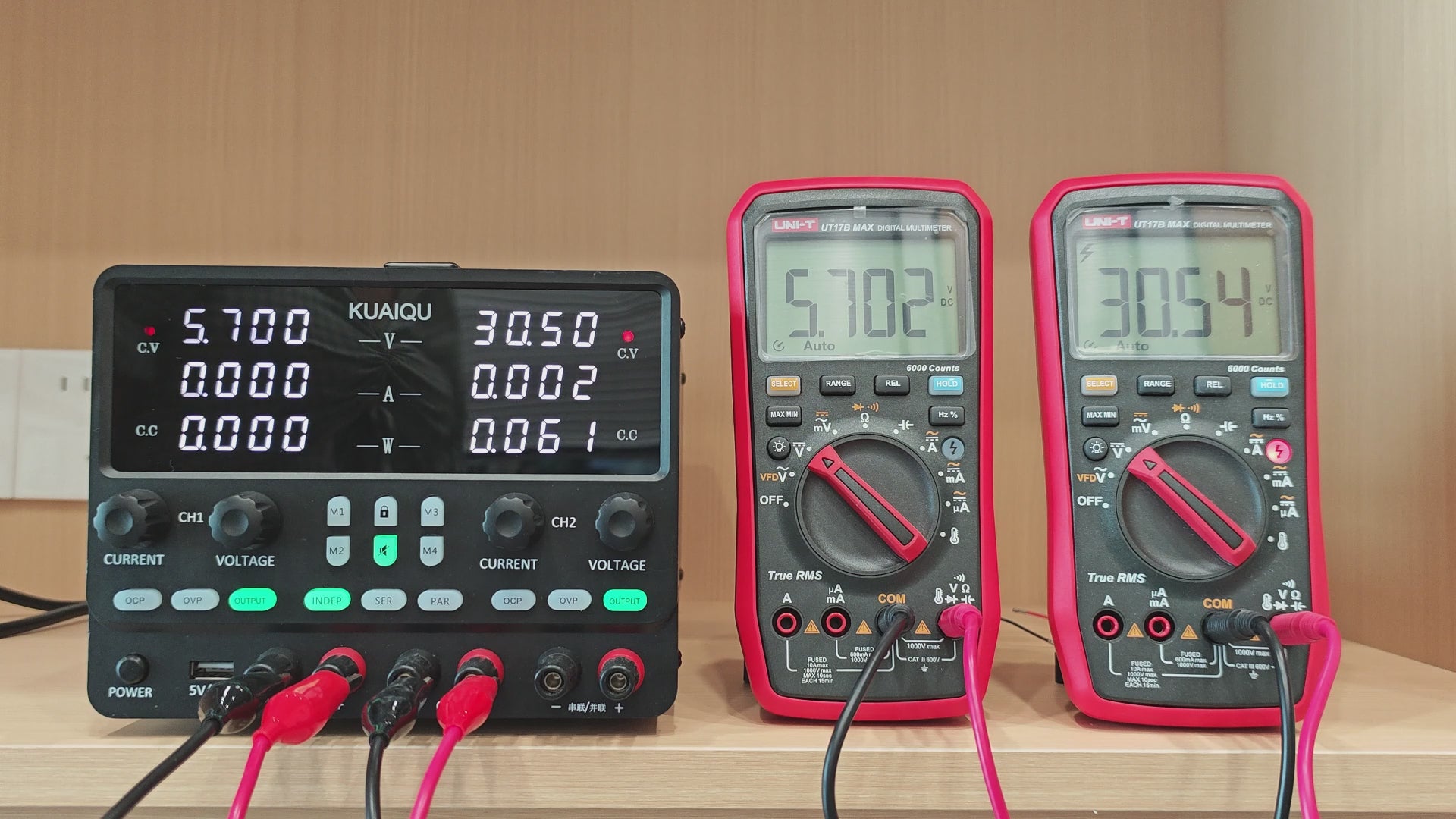

The precision encoder provides controlled adjustment of output voltage and current. With 10mV voltage setting resolution and 1mA current setting resolution, users can make fine adjustments when establishing operating conditions for LED driver testing and evaluating changes in the connected circuit.

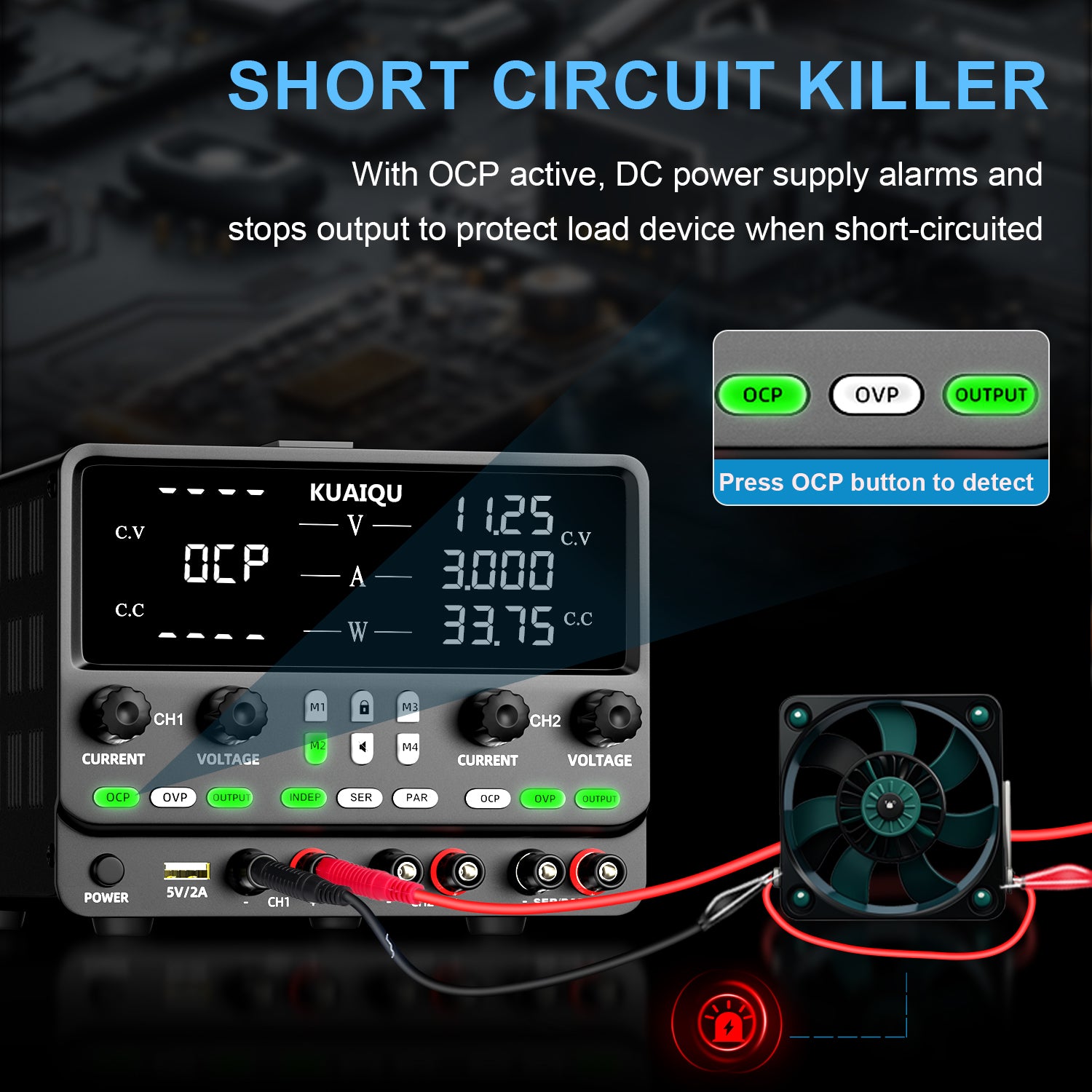

OCP and OVP Protection
OCP and OVP protection are available for the Dual Channel, Series, and Parallel output modes. These protection functions help protect the power supply and connected test circuits from excessive current or voltage conditions during LED driver testing and circuit debugging.
Output ON/OFF Control
The Dual Channel, Series, and Parallel modes support Output ON/OFF control. Users can switch the output on or off while keeping the configured test conditions, making it convenient to connect, disconnect, or restart LED driver circuits during testing.
8-Group Memory Function
The SPPS3010-2KD provides 8 groups of Memory. CH1 and CH2 each have 2 memory groups, while Series and Parallel modes each have 2 memory groups. This allows frequently used voltage and current settings for different LED driver testing conditions to be stored and recalled.
Panel Lock with Buzzer
The Panel Lock Function helps prevent unintended changes to configured output settings during LED driver testing. The built-in Buzzer provides an audible indication during panel operation.
Applications

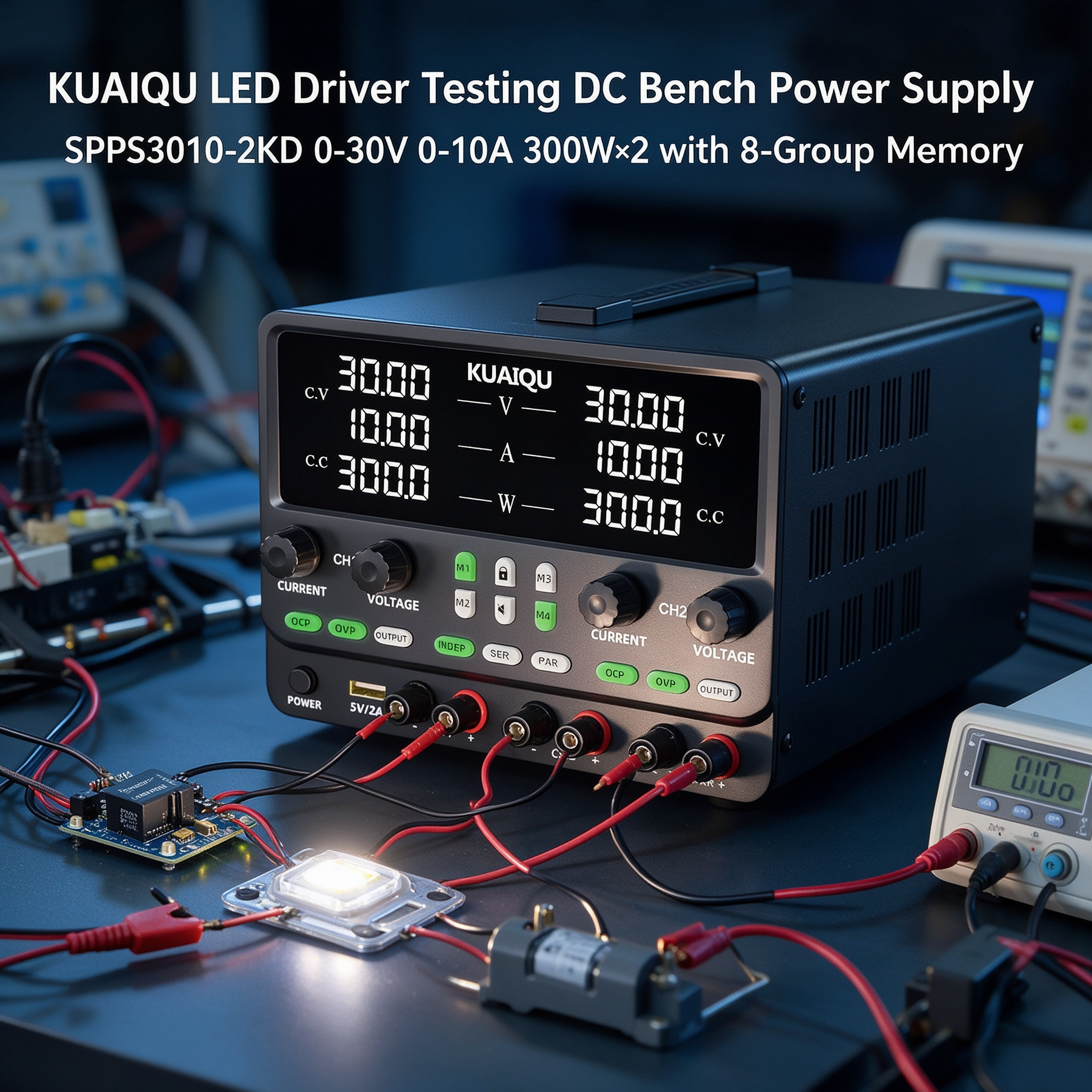

LED Driver Testing
Use the adjustable DC bench power supply to provide controlled voltage and current conditions for LED driver testing. The adjustable output allows users to establish different input conditions while evaluating the electrical behavior of the connected driver circuit.

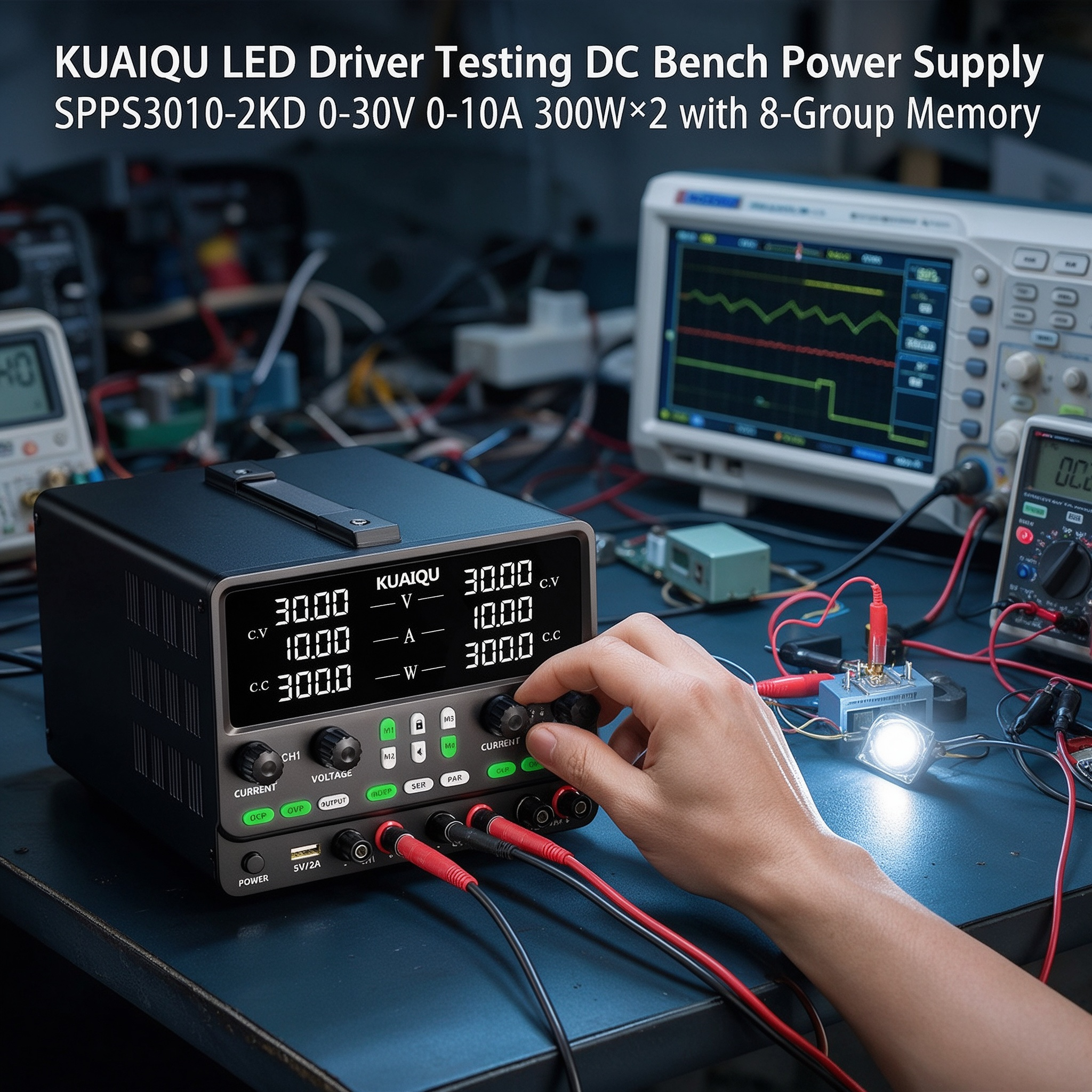

LED Driver Circuit Development
The dual output configuration can be used during development and debugging of LED driver circuits. Independent channels provide separate adjustable outputs for test setups requiring more than one DC power source.
High Current LED Driver Testing
When an LED driver circuit requires higher current, Parallel Output combines both channels to provide up to 20A and 600W within the specified output range. This configuration can be used for suitable higher current LED driver test setups.
Repeated LED Driver Testing
The 8-Group Memory Function allows frequently used voltage and current settings to be stored and recalled. Combined with precision encoder adjustment, Output ON/OFF control, and Panel Lock, the power supply helps users manage repeated LED driver test conditions more conveniently.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Product Model |
SPPS3010-2KD |
| Product Type |
DC Bench Power Supply |
| Independent Output |
0-30V, 0-10A, 300W×2 |
| Series Output |
0-60V, 0-10A, 600W |
| Parallel Output |
0-30V, 0-20A, 600W |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.05%+10mV |
| Current Setting Accuracy |
≤0.01%+10mA |
| Voltage Readback Accuracy |
≤0.05%+10mV |
| Current Readback Accuracy |
≤0.01%+10mA |
| Load Regulation Voltage |
≤0.3%+10mV |
| Load Regulation Current |
≤0.1%+2.5mA |
| Line Regulation Voltage |
≤0.01%+2.5mV |
| Line Regulation Current |
≤0.1%+2.5mA |
| Ripple Independent Voltage |
≤180mVp-p, ≤15mVrms |
| Ripple Series/Parallel Voltage |
≤200mVp-p, ≤20mVrms |
| Ripple Independent Current |
≤15mArms |
| Ripple Series/Parallel Current |
≤30mVrms |
| Rise Time No Load |
≤200mS |
| Rise Time Full Load |
≤300mS |
| Fall Time No Load |
≤20S |
| Fall Time Full Load |
≤300mS |
| Dynamic Response |
≤200mS |
| Efficiency |
≥85% |
| Input Voltage/Current |
110V/8A, 220V/5A |
| USB Output |
5V 2A |
| Protection |
OCP, OVP |
| Memory |
8 Groups |
| Output Control |
Independent Output ON/OFF |
| Output Modes |
Independent, Series, Parallel |
| Series/Parallel Control |
One-Key Series/Parallel Mode |
| Panel Lock |
Yes, with Buzzer |
| Adjustment |
Precision Encoder Adjustment |
| Output Mode |
Negative Voltage - 0 - Positive Voltage |
| Rated Value Temperature |
0℃-40℃ |
| Product Size |
About 24×12.5×13cm |
| Net Weight |
About 2.75KG |
| Package Size |
About 38.5×23.5×20cm |
| Package Weight |
About 3.4KG |
| Carton Quantity |
4 pcs/carton |
Why Choose KUAIQU SPPS3010-2KD?
The KUAIQU SPPS3010-2KD combines dual output capability, adjustable voltage and current, and flexible Independent, Series, and Parallel output modes in one DC bench power supply for LED Driver Testing. Each independent channel provides up to 30V, 10A, and 300W, while Parallel Output provides up to 20A and 600W for suitable higher current test requirements.
For LED driver circuit development and repeated testing, the precision encoder provides fine voltage and current adjustment, while OCP and OVP protection provide additional control during test setup. Output ON/OFF control, 8-Group Memory, and Panel Lock help users manage frequently repeated test conditions, while the Series and Parallel modes provide additional output configurations for different LED driver testing requirements.
