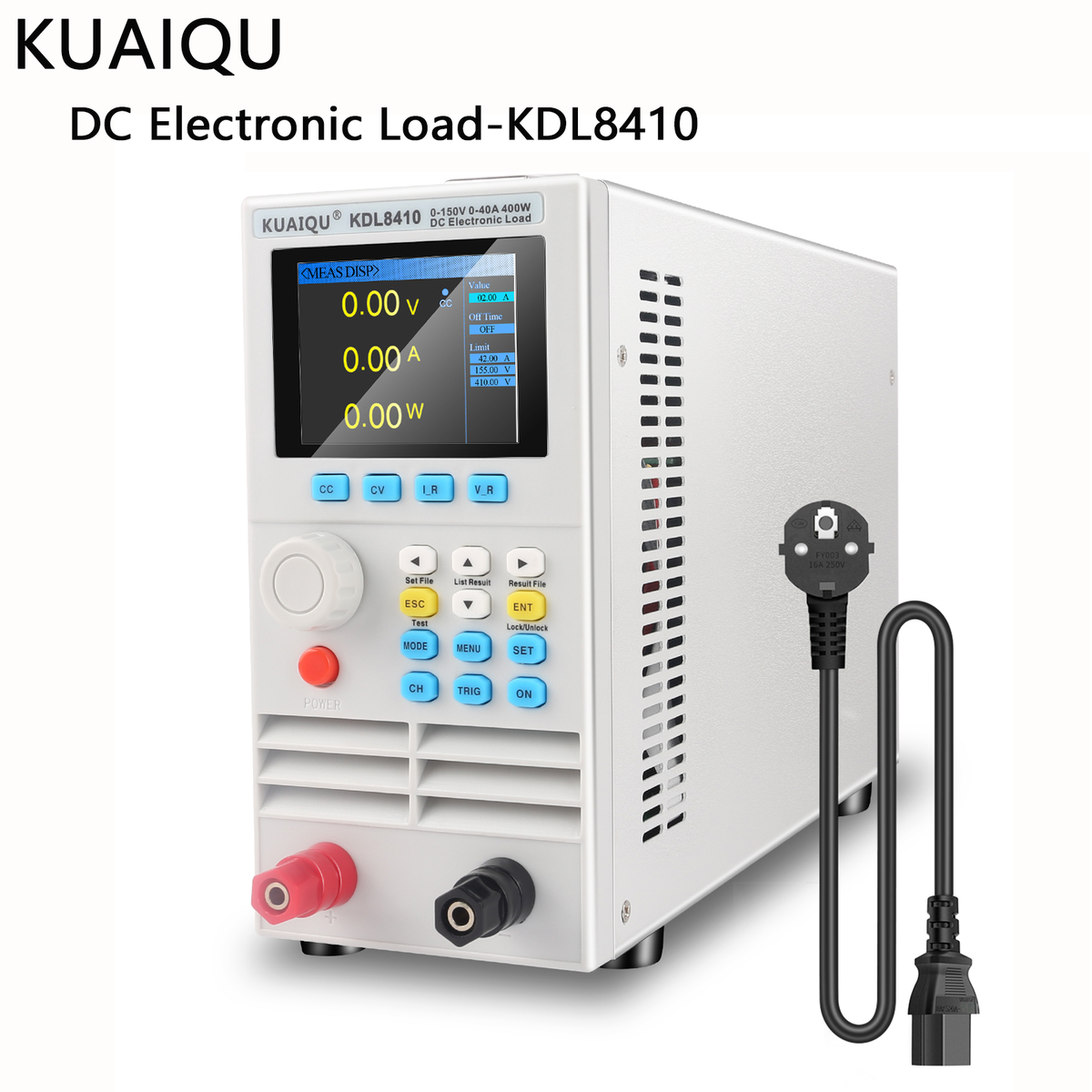

KUAIQU KDL8410 400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load detector Battery Capacity Tester

KUAIQU KDL8410 400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load detector Battery Capacity Tester

$239.00

KUAIQU KDL8410 400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load detector Battery Capacity Tester

$239.00

English Manual

Tired of limited testing modes or inaccurate data for power devices? The KUAIQU KDL8410 DC Electronic Load delivers 400W power, 0-150V voltage, 0-40A current range + 1mV/1mA high resolution—ideal for charger, switch power supply, battery, and LED product testing, plus lab R&D!

User-Friendly & Durable Design

  • Clear Visualization: 2.8-inch TFT HD LCD screen with bilingual (Chinese/English) display, showing rich test data at a glance.
  • Easy Operation: Intuitive interface + one-key entry/exit function reduces learning time; key lock feature prevents misoperation during testing.
  • Reliable Build: Sturdy housing resists workshop wear; built-in buzzer alarm for real-time fault reminders, ensuring safe operation.

Key Specifications

Parameter
Detail
Model
KUAIQU KDL8410
Channels
Single Channel
Rated Input
400W Power, 0-150V Voltage, 0-40A Current
Testing Modes
6 Basic Modes: CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), CP (Constant Power), CC+CV, CR+CV; 8 Professional Modes (Battery Test, LED Test, Dynamic Test, etc.)
Resolution
Voltage: 1mV/10mV; Current: 1mA/10mA; Power: 10mW; Resistance: 10mΩ/100mΩ
Accuracy
Voltage: ±(0.05%+0.02%FS); Current: ±(0.05%+0.05%FS); Power/Resistance: ±(0.1%+0.5%FS)
Battery Test
Discharge Modes: CC/CR; Max Capacity Measurement: 9999Ah; Internal Resistance Test Supported
Dynamic Test
Modes: CC/CV; T1&T2 Range: 1ms-60s (1ms Resolution); Accuracy: 0.1%+1ms
Protection Functions
Over-Voltage (>155V cut-off), Over-Current (>42A cut-off), Over-Power (420W), Over-Temperature (85℃), Reverse Polarity Protection
Connectivity
Standard USB Interface (supports PC connection + free upper computer software); External Trigger Input

Core Advantages

  • Multi-Scenario Adaptability: From battery capacity testing and LED power simulation to power supply dynamic performance testing—one device covers production line verification, lab R&D, and maintenance.
  • High Precision: 1mV/1mA resolution ensures accurate capture of small signal changes, avoiding test errors caused by low precision.
  • Smart Features: Power-off data retention saves test parameters; list mode simulates multiple load status changes, meeting automated testing needs.
  • Safe & Stable: Comprehensive protection mechanisms prevent device damage from abnormal conditions, extending service life.

Applicable Scenarios

  1. Production Line Testing: Test chargers, switch power supplies, linear power supplies—quickly verify product qualification with PASS/FAIL function.
  1. Battery Industry: Measure battery capacity, discharge performance, and internal resistance for lithium-ion, lead-acid, and other batteries.
  1. LED & Electronic R&D: Simulate LED power loads to test stability; support dynamic/scan tests for power supply R&D prototype verification.
  1. Lab & Education: Suitable for scientific research experiments and electronics courses—intuitive operation helps students master load testing principles.

Why Choose KUAIQU KDL8410?

  • All-in-One Testing: 14 professional functions (6 basic + 8 advanced modes) replace multiple single-function tools, saving cost and space.
  • Precision You Can Trust: High-resolution + low error rate ensure reliable test data for critical decision-making.
  • User-Centric Design: Bilingual display, key lock, and one-key operation make it easy for both novices and pros.
Ready to upgrade your power testing workflow? Click “Add to Cart”—the KUAIQU KDL8410’s high precision and versatility make it a must-have for engineers, production teams, and lab researchers. Secure yours today!

Warranty

30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
