KUAIQU Industrial Automation Testing
DC Power Supply 30V 10A 300W×2
SPPS3010-2KD with Series Parallel Output

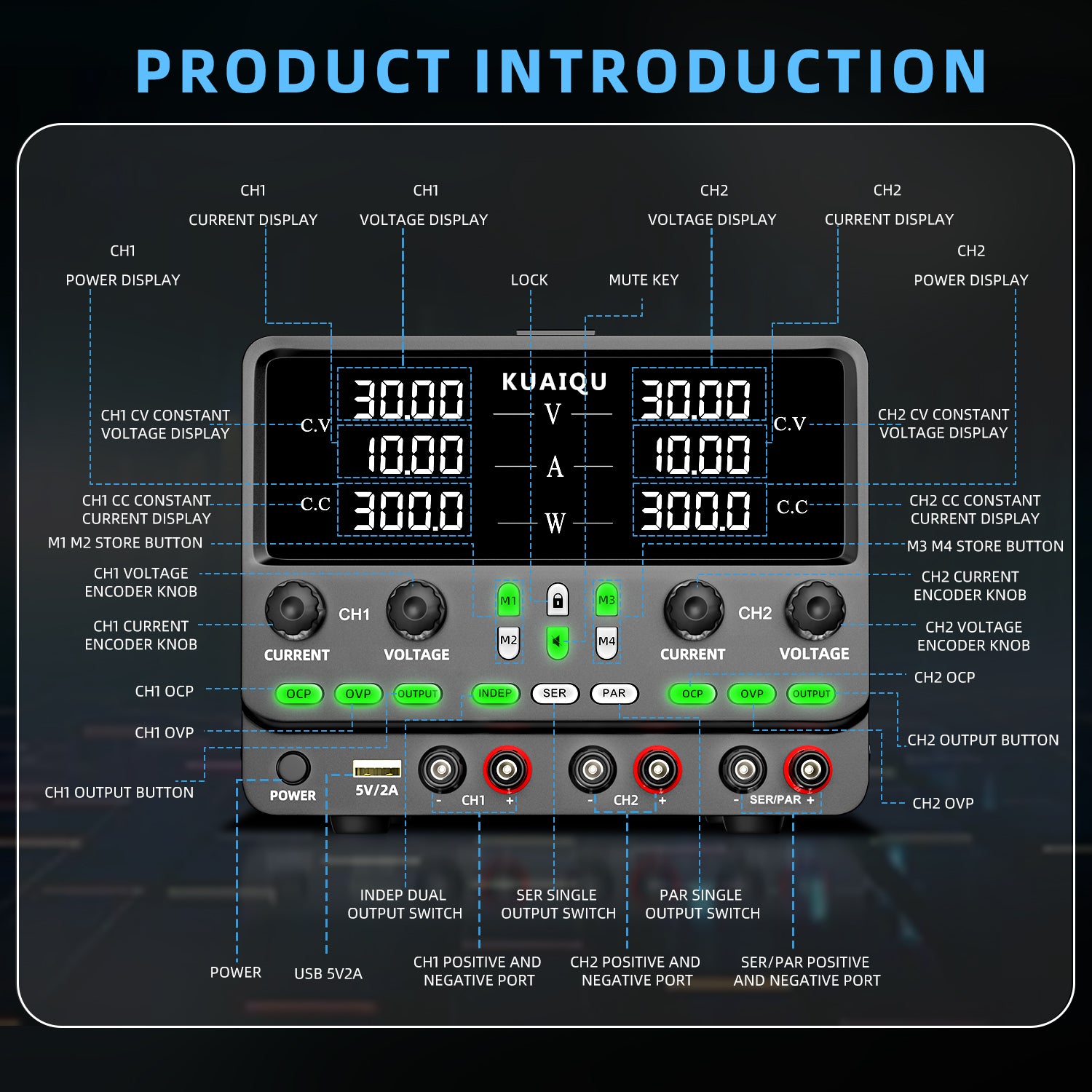

The KUAIQU SPPS3010-2KD is a dual output DC power supply designed for Industrial Automation Testing, control circuit development, and testing of DC powered industrial equipment. It provides two independent 0-30V, 0-10A, 300W outputs, allowing users to establish adjustable DC power conditions for different industrial control test setups. The Series Parallel Output modes provide additional output configurations, with Series Output up to 0-60V, 0-10A, 600W and Parallel Output up to 0-30V, 0-20A, 600W. Precision encoder adjustment, OCP and OVP protection, Output ON/OFF control, and 8-Group Memory provide practical control for repeated Industrial Automation Testing.

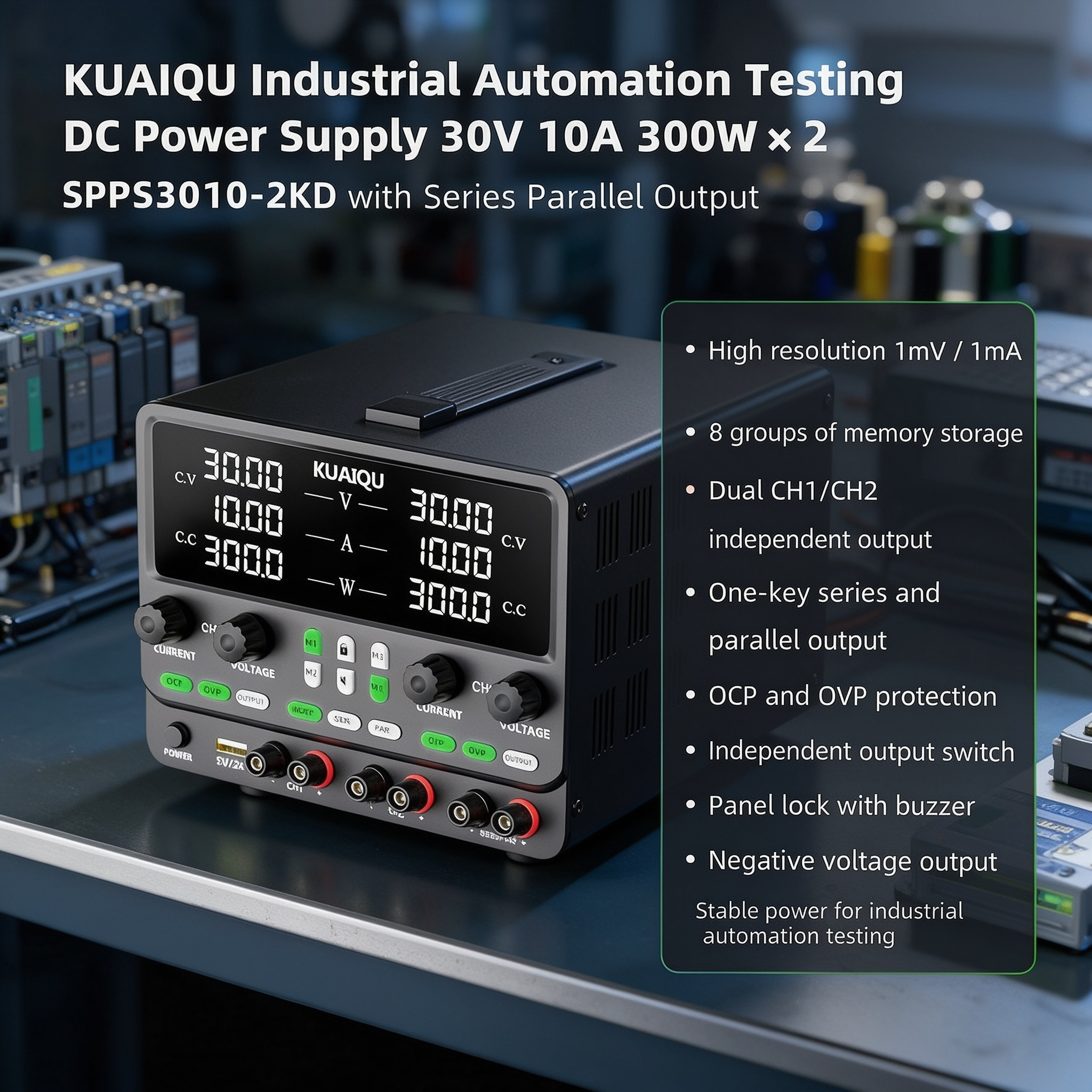

Key Features
Dual Output for Industrial Automation Testing
The SPPS3010-2KD provides two independent adjustable DC outputs, each supporting 0-30V, 0-10A, and up to 300W. The dual output configuration allows users to provide separate DC power conditions for control circuits, sensors, and other suitable DC powered equipment within the rated output range.
Series Parallel Output for Flexible Test Setups
The DC power supply supports Independent, Series, and Parallel output modes. Series Output provides up to 0-60V, 0-10A, and 600W, while Parallel Output provides up to 0-30V, 0-20A, and 600W. These configurations allow the power supply to adapt to different voltage and current requirements during Industrial Automation Testing.

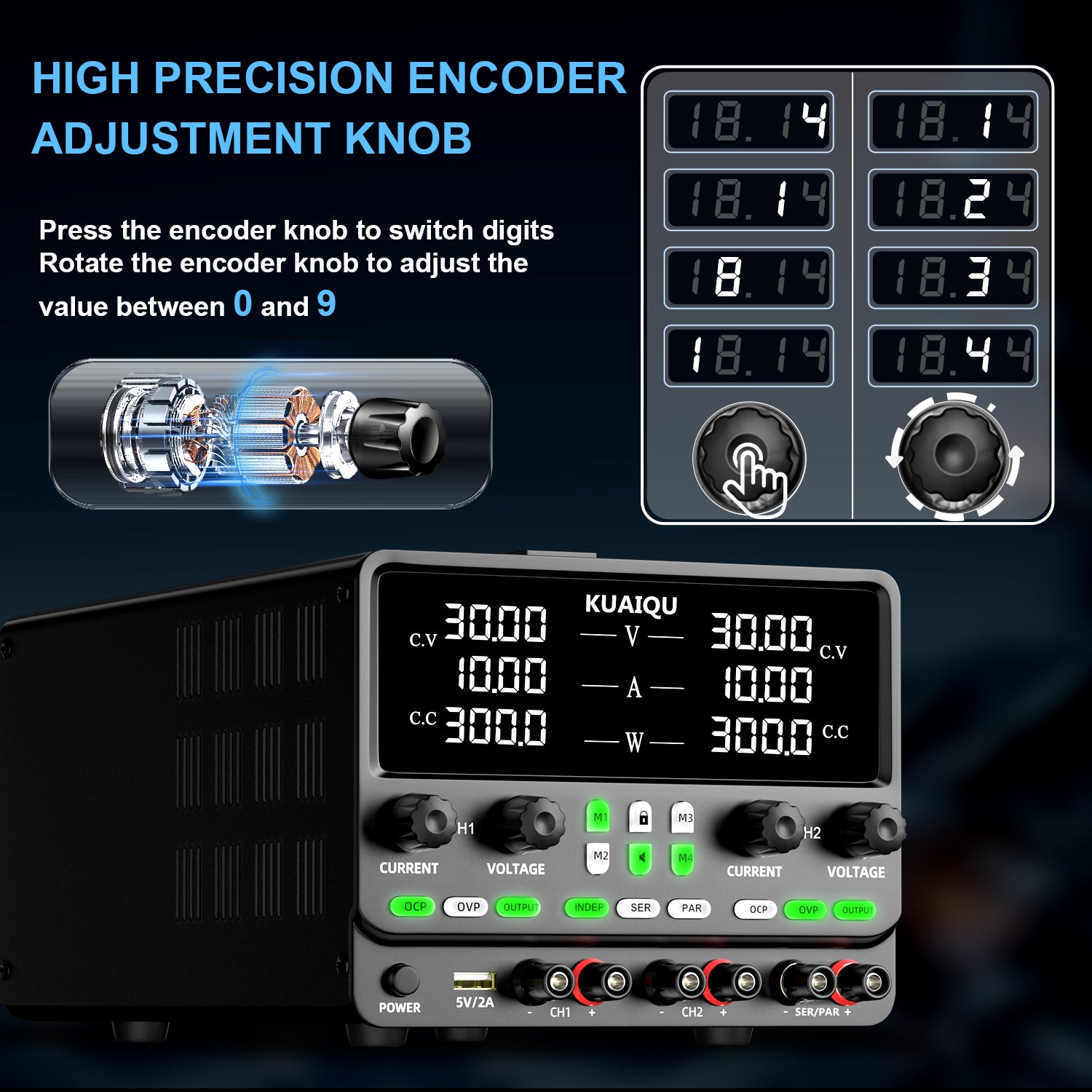

Precision Encoder Adjustment
The precision encoder provides controlled adjustment of output voltage and current. With 10mV voltage setting resolution and 1mA current setting resolution, users can make fine adjustments when establishing DC power conditions for industrial control circuits and equipment testing.
OCP and OVP Protection
OCP and OVP protection are available for the Dual Channel, Series, and Parallel output modes. These protection functions help reduce the risk of excessive current or voltage conditions during Industrial Automation Testing and control circuit debugging.
Output ON/OFF Control
The Dual Channel, Series, and Parallel modes support Output ON/OFF control. Users can switch the output on or off while retaining the configured test settings, which is useful when connecting, disconnecting, or restarting a device under test.
8-Group Memory Function
The SPPS3010-2KD provides 8 groups of Memory. CH1 and CH2 each have 2 memory groups, while Series and Parallel modes each have 2 memory groups. Frequently used voltage and current settings can therefore be stored and recalled for different Industrial Automation Testing conditions.
Panel Lock with Buzzer
The Panel Lock Function helps prevent unintended changes to configured output settings during testing. The built-in Buzzer provides an audible indication during panel operation.
Negative Voltage - 0 - Positive Voltage Output
The SPPS3010-2KD supports Negative Voltage - 0 - Positive Voltage output mode. This provides an additional output configuration for suitable industrial control and electronic circuit test setups that require voltage referenced around zero.
Applications

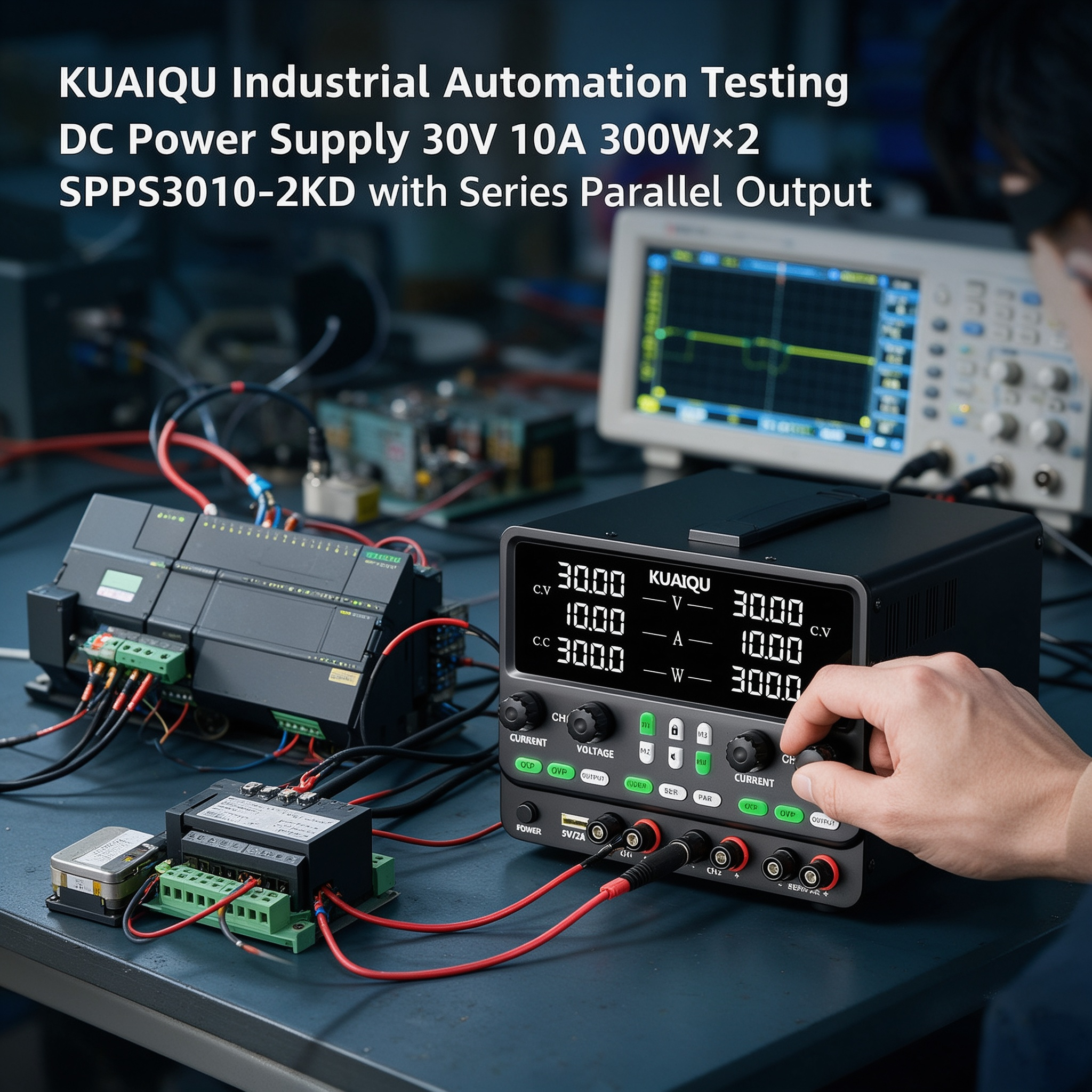

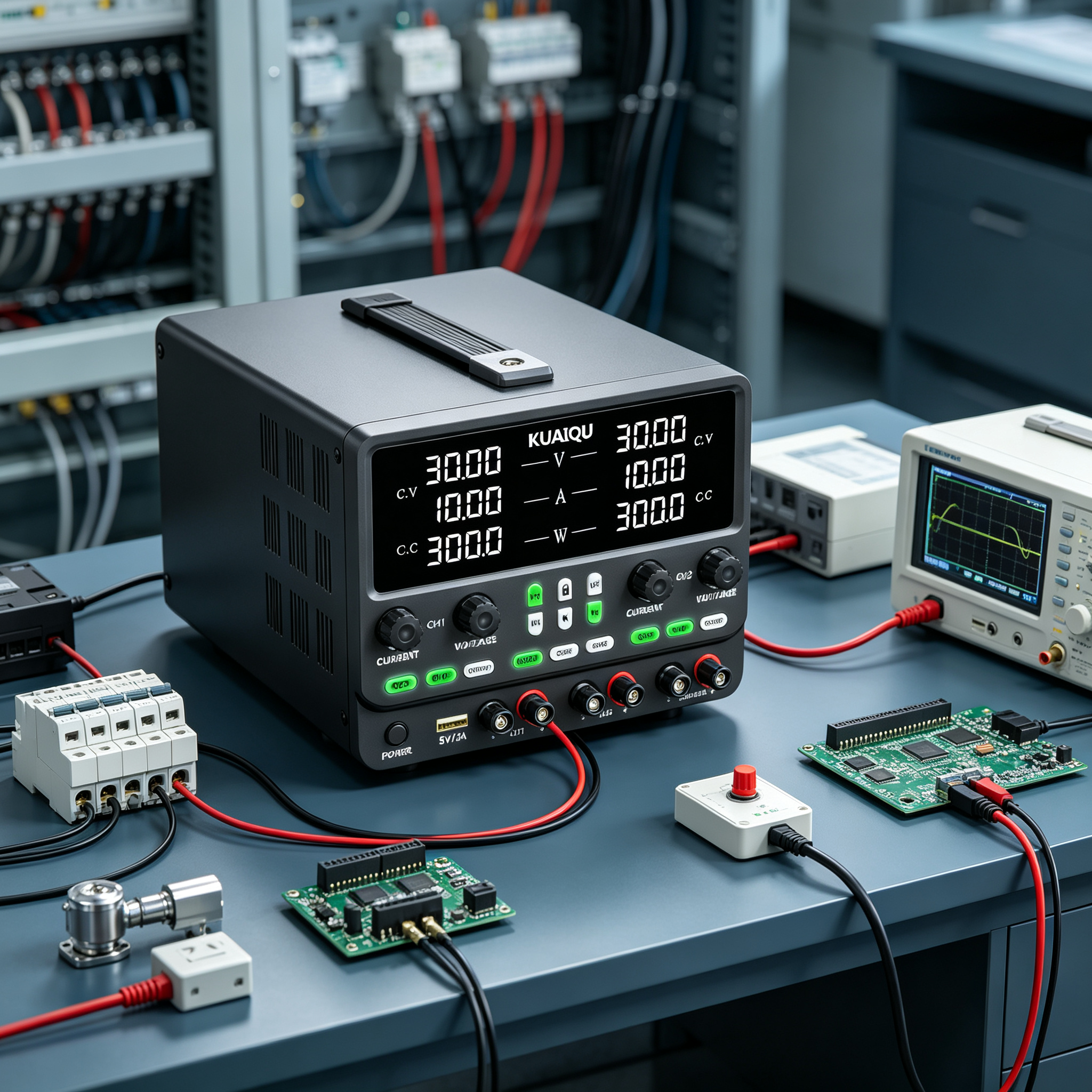

Industrial Automation Testing
The adjustable DC power supply can provide controlled DC voltage and current for testing suitable industrial automation equipment and control circuits. The dual output configuration also allows different test circuits to be powered within the product's rated specifications.
PLC and Control Circuit Power Testing
The adjustable outputs can be used to provide DC power for suitable PLC related control circuits and other industrial control electronics during bench testing and troubleshooting. Voltage and current can be adjusted according to the requirements of the device under test.
Industrial Sensor and Control Device Testing
The independent dual outputs can support test setups involving suitable DC powered sensors, control devices, and related electronic circuits. Independent output control allows different DC power conditions to be established within the two channels.
Repeated Industrial Equipment Testing
The 8-Group Memory Function allows commonly used voltage and current settings to be stored and recalled. Combined with precision encoder adjustment, Output ON/OFF control, and Panel Lock, the power supply provides practical control for repeated industrial automation test procedures.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Product Model |
SPPS3010-2KD |
| Product Type |
DC Power Supply |
| Independent Output |
0-30V, 0-10A, 300W×2 |
| Series Output |
0-60V, 0-10A, 600W |
| Parallel Output |
0-30V, 0-20A, 600W |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.05%+10mV |
| Current Setting Accuracy |
≤0.01%+10mA |
| Voltage Readback Accuracy |
≤0.05%+10mV |
| Current Readback Accuracy |
≤0.01%+10mA |
| Load Regulation Voltage |
≤0.3%+10mV |
| Load Regulation Current |
≤0.1%+2.5mA |
| Line Regulation Voltage |
≤0.01%+2.5mV |
| Line Regulation Current |
≤0.1%+2.5mA |
| Ripple Independent Voltage |
≤180mVp-p, ≤15mVrms |
| Ripple Series/Parallel Voltage |
≤200mVp-p, ≤20mVrms |
| Ripple Independent Current |
≤15mArms |
| Ripple Series/Parallel Current |
≤30mVrms |
| Rise Time No Load |
≤200mS |
| Rise Time Full Load |
≤300mS |
| Fall Time No Load |
≤20S |
| Fall Time Full Load |
≤300mS |
| Dynamic Response |
≤200mS |
| Efficiency |
≥85% |
| Input Voltage/Current |
110V/8A, 220V/5A |
| USB Output |
5V 2A |
| Protection |
OCP, OVP |
| Memory |
8 Groups |
| Output Control |
Independent Output ON/OFF |
| Output Modes |
Independent, Series, Parallel |
| Series/Parallel Control |
One-Key Series/Parallel Mode |
| Panel Lock |
Yes, with Buzzer |
| Adjustment |
Precision Encoder Adjustment |
| Output Mode |
Negative Voltage - 0 - Positive Voltage |
| Rated Value Temperature |
0℃-40℃ |
| Product Size |
About 24×12.5×13cm |
| Net Weight |
About 2.75KG |
| Package Size |
About 38.5×23.5×20cm |
| Package Weight |
About 3.4KG |
| Carton Quantity |
4 pcs/carton |
Why Choose KUAIQU SPPS3010-2KD?
The KUAIQU SPPS3010-2KD combines dual output capability, adjustable DC voltage and current, and Series Parallel Output modes in one DC power supply for Industrial Automation Testing. Each independent channel provides up to 30V, 10A, and 300W, while Series Output provides up to 60V and 10A and Parallel Output provides up to 20A and 600W for suitable test requirements.
For industrial control circuit development, equipment testing, and repeated bench testing, the precision encoder provides fine voltage and current adjustment, while OCP and OVP protection provide additional control during test setup. Output ON/OFF control, 8-Group Memory, and Panel Lock help users manage repeated test conditions, while Independent, Series, and Parallel output modes provide flexible power configurations for different Industrial Automation Testing applications.
