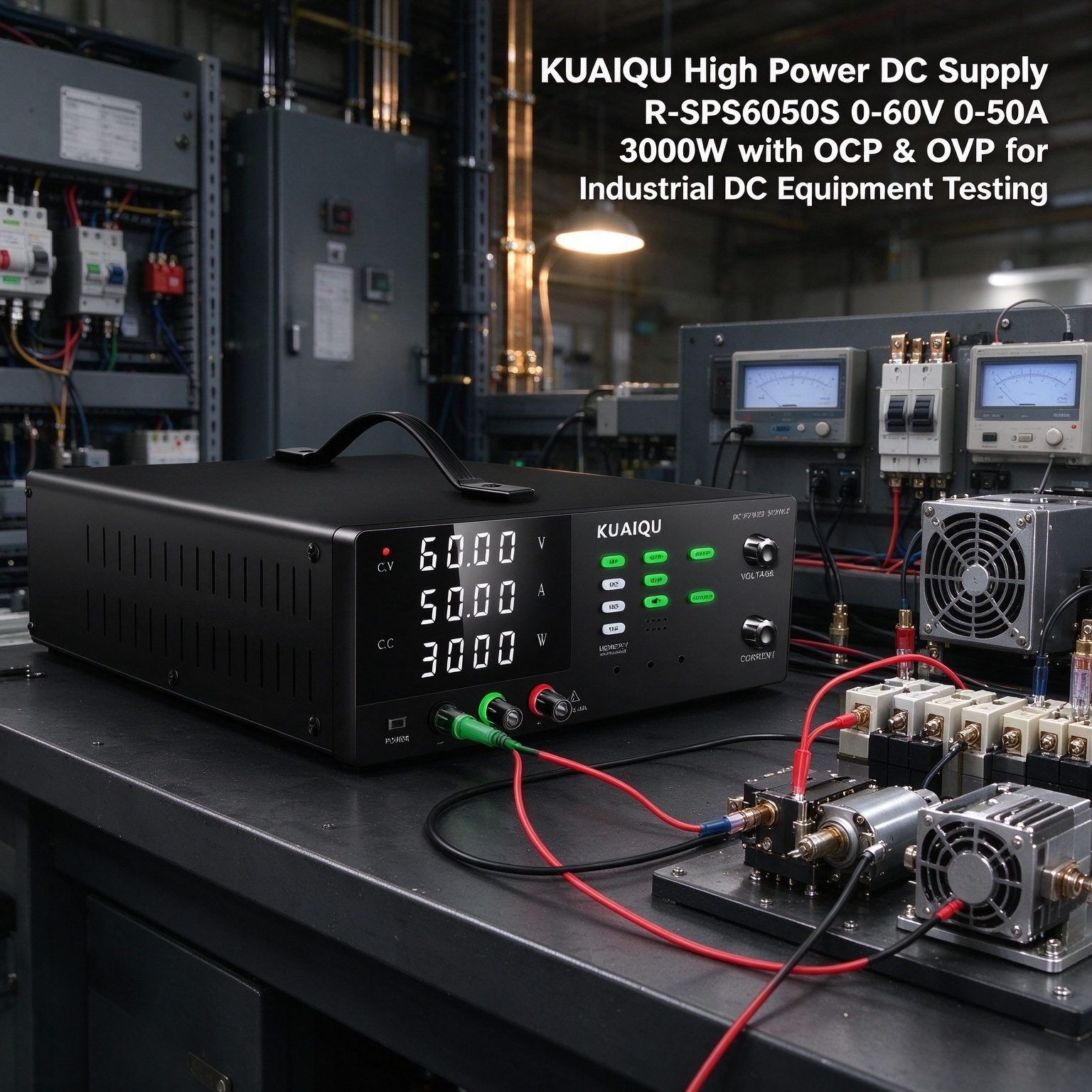

KUAIQU High Power DC Supply R-
SPS6050S 0-60V 0-50A 3000W with OCP &
OVP for Industrial DC Equipment Testing
Key Features
High Power DC Output for Industrial Equipment Evaluation
Industrial DC equipment can require substantially more power during development, verification, and operating tests than conventional laboratory electronics. The R-SPS6050S provides a 0-60V adjustable DC output, up to 50A, and 3000W rated power, giving engineers a high-power source for compatible industrial DC equipment within its rated operating range.
The adjustable output allows users to establish different DC supply conditions when evaluating equipment behavior, power requirements, and operating performance.
Adjustable Voltage and Current for Different Test Conditions
Different industrial DC equipment may require different supply settings during testing. The R-SPS6050S allows both voltage and current settings to be adjusted through the front-panel controls.
The Precision Encoder provides direct adjustment of the configured values, making it practical to move between different test conditions without replacing the DC power source.
4-Digit Display for Voltage, Current and Power Monitoring
During Industrial DC Equipment Testing, monitoring the actual electrical output is important for evaluating equipment power requirements. The R-SPS6050S uses a 4-digit Voltage, Current and Power Display so operators can observe the electrical output while the connected equipment is operating.
The displayed values help engineers compare power demand between different equipment states and test conditions.
Rear High-Current Output for Industrial DC Equipment
Industrial equipment with higher current requirements needs an appropriate output connection. The R-SPS6050S provides a Rear Panel Output that supports the full rated output capability.
The front output is limited to below 5A, while the rear output is designed for the higher-current connection required when testing compatible industrial DC equipment at elevated current levels.

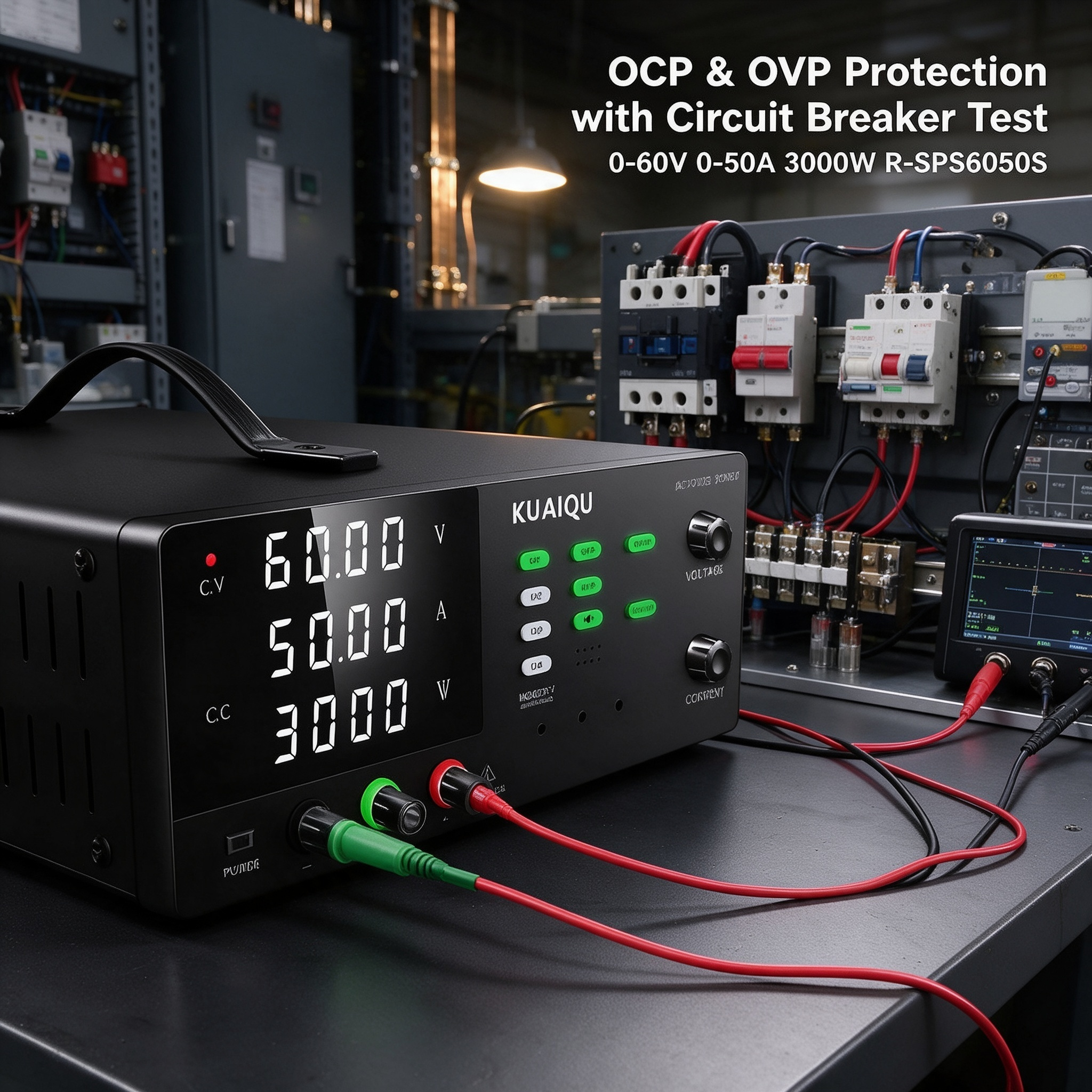

OCP and OVP for High-Power DC Testing
The R-SPS6050S incorporates Over Current Protection and Over Voltage Protection. These functions provide additional safeguards when supplying compatible industrial DC equipment during testing.
For high-power test setups, OCP and OVP can help provide protection when abnormal current or voltage conditions occur. They are protection functions and do not replace the external protection requirements of the equipment under test.
Output ON/OFF for Equipment Power Testing
The Output ON/OFF function allows operators to apply or remove DC output without completely resetting the configured parameters.
This is useful for Industrial DC Equipment Testing that requires repeated power-up, power-down, restart, or power interruption verification.
4-Group Memory for Repeated Equipment Tests
Industrial DC equipment may need to be evaluated under several recurring power conditions. The M1-M4 4-Group Memory Function provides four groups for storing frequently used voltage and current settings.
When repeating established test conditions, engineers can recall the stored settings instead of manually entering the same parameters each time.
Panel Lock for Maintaining Test Parameters
Once a suitable test condition has been established, accidental changes to the front-panel controls can affect test consistency. The Panel Lock function helps prevent unintended parameter adjustment during operation.
This is useful when industrial DC equipment needs to remain under a defined power condition throughout a verification procedure.

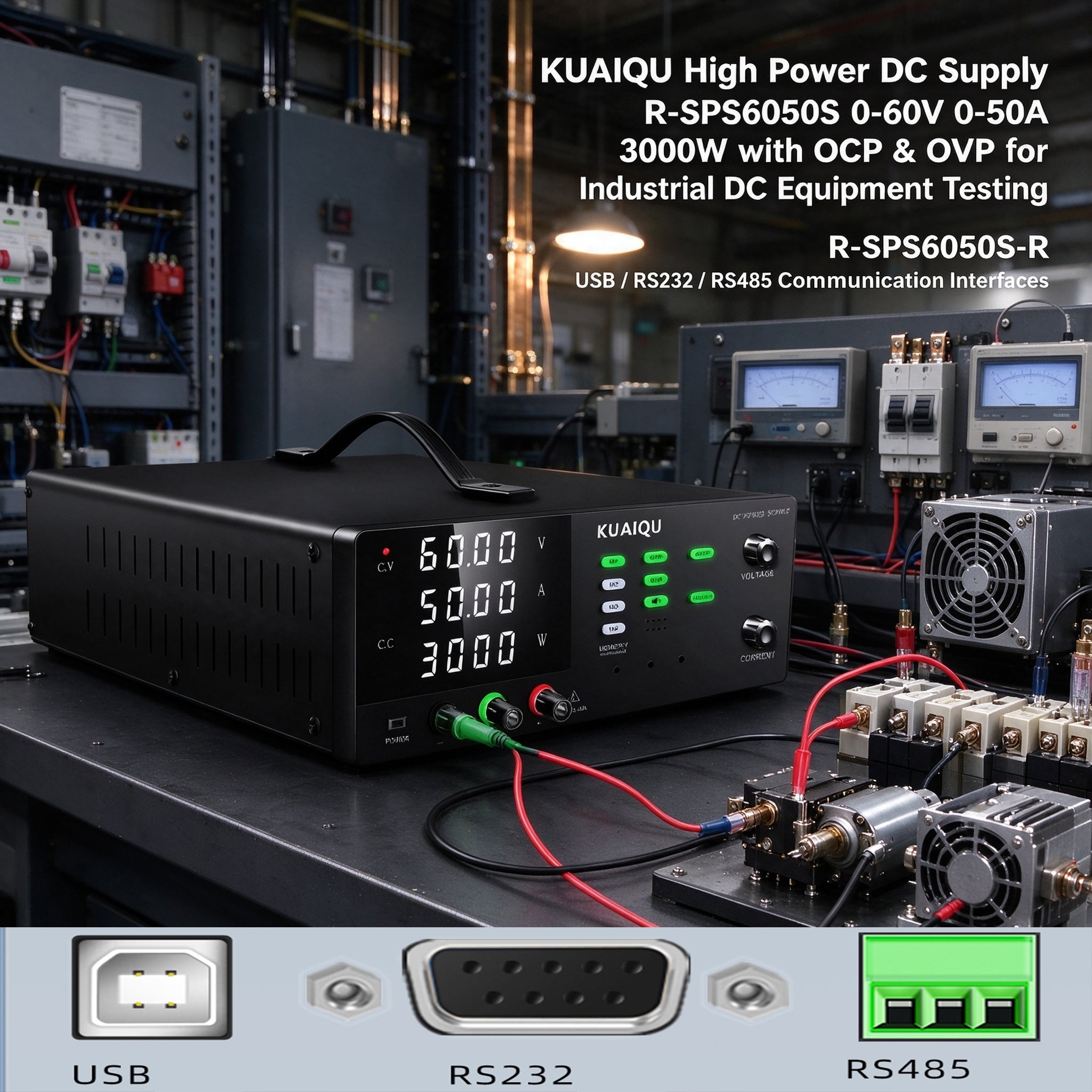

USB, RS232 and RS485 Interfaces for Test Bench Connectivity
The R-SPS6050S provides USB, RS232 and RS485 interfaces, offering multiple connection options for suitable industrial and laboratory test environments.
These interfaces can be used as connectivity options when integrating the High Power DC Supply into compatible test-bench setups. They should not be interpreted as dedicated remote programming, PLC communication, or automatic control functions.
Buzzer Mute for Industrial Test Environments
The encoder knob includes a Buzzer function that can be muted. This provides additional operating convenience when engineers repeatedly adjust voltage and current settings during industrial DC equipment evaluation.
Applications
Industrial DC Equipment Testing
The R-SPS6050S provides 0-60V, 0-50A, and 3000W adjustable DC power for compatible industrial DC equipment. Engineers can establish selected supply conditions and monitor voltage, current, and power during equipment operation.
High Power DC Equipment Evaluation
For industrial DC equipment with higher power requirements, the R-SPS6050S provides up to 3000W of rated output power. This makes it suitable for evaluating compatible equipment under higher-power DC operating conditions within the supply's rated limits.

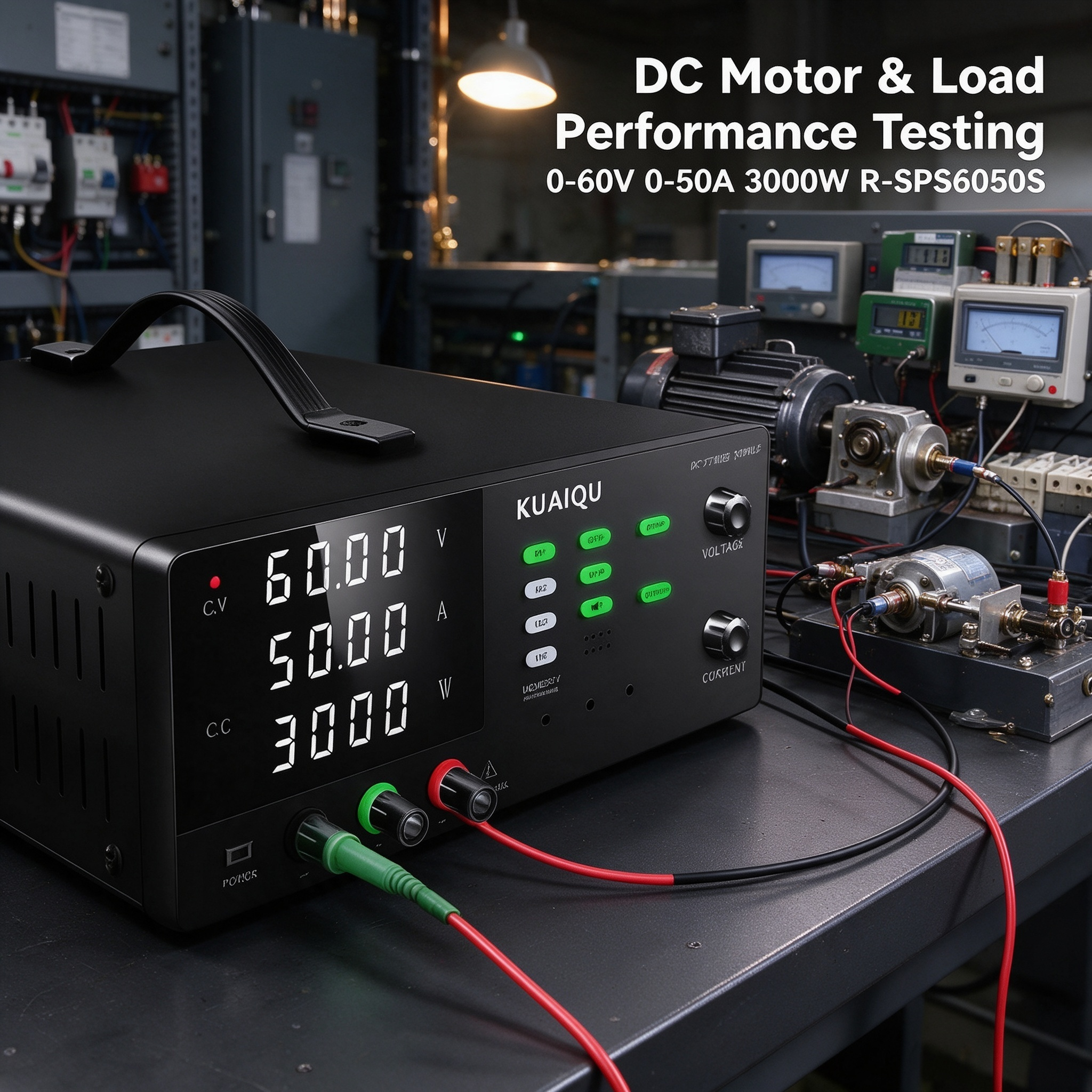

High-Current Industrial Equipment Testing
The 50A maximum output provides substantial current capacity for compatible industrial DC equipment requiring higher-current test conditions.
When testing above the front output connection limit, the rear high-current output should be used with appropriately rated wiring and connections.
Industrial Equipment Power Requirement Testing
The adjustable voltage and current settings allow engineers to establish different DC supply conditions and observe the resulting electrical demand of the connected equipment.
The 4-digit display provides direct visibility of voltage, current, and power during the test, helping users compare equipment behavior under different conditions.
Industrial DC Equipment Startup and Shutdown Testing
The Output ON/OFF function supports repeated application and removal of DC power during equipment verification.
This can be used for compatible industrial equipment startup, shutdown, restart, and power interruption tests where controlled application of DC power is required.
Repeated Industrial Equipment Verification
For testing procedures that repeatedly use the same voltage and current conditions, the M1-M4 Memory Function provides four stored configurations.
This can reduce repeated manual adjustment when engineers evaluate multiple units or repeat the same Industrial DC Equipment Testing procedure.
Industrial DC Power Supply Testing
The R-SPS6050S can also be used as a controlled DC source when evaluating compatible industrial DC power equipment and related components. Engineers can establish different output conditions and monitor the resulting voltage, current, and power within the product's rated specifications.
Industrial Test Bench Integration
The combination of High Power DC Supply capability, rear high-current output, 4-digit electrical display, memory settings, OCP, OVP, Panel Lock, and USB, RS232 and RS485 interfaces makes the R-SPS6050S suitable for compatible industrial and laboratory test benches.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1
-
CE & FCC Certification: The product has passed CE and FCC certification requirements.
-
Inspection Before Shipment: The DC power supply and included accessories are inspected before shipment to help ensure product quality.
-
Customer Support: Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
R-SPS6050S |
| Product Type |
High Power Adjustable DC Power Supply |
| Rated Voltage |
0-60V |
| Rated Current |
0-50A |
| Rated Power |
3000W |
| Operating Temperature |
0°C-40°C |
| Load Regulation, Voltage |
≤0.1% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
10mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
10mA |
| Setting Accuracy, Voltage |
≤0.05% + 10mV |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤800mVp-p / ≤120mVrms |
| Current Ripple |
≤40mArms |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage, Current and Power Display |
| Memory Function |
M1-M4, 4 Groups |
| Protection |
OCP, OVP |
| Output Control |
Output ON/OFF |
| Interfaces |
USB, RS232, RS485 |
| Output Connection |
Front Output and Rear High-Current Output |
| Size |
Approx. 35 × 27 × 10cm |
| Net Weight |
Approx. 6.8kg |
Why Choose KUAIQU R-SPS6050S?
The KUAIQU R-SPS6050S High Power DC Supply is designed for Industrial DC Equipment Testing where a higher-power and adjustable DC source is required. Its 0-60V output, 0-50A maximum current, and 3000W rated power provide substantial capacity for compatible industrial DC equipment and test setups.
The R-SPS6050S combines high output capability with practical test controls. The Precision Encoder allows direct adjustment of voltage and current, while the 4-digit Voltage, Current and Power Display provides visibility into the electrical conditions during testing.
For repeated equipment evaluation, the M1-M4 4-Group Memory Function allows frequently used settings to be stored and recalled. Output ON/OFF supports repeated power application and removal, while Panel Lock helps maintain an established test condition during operation.
For high-current industrial equipment, the Rear High-Current Output supports the full rated output capability. OCP and OVP provide additional protection functions, while USB, RS232 and RS485 interfaces provide flexible connectivity options for compatible test benches.
With its combination of High Power DC Supply capability, adjustable 0-60V output, 50A current capacity, 3000W power rating, OCP and OVP, 4-group memory, electrical monitoring, and high-current rear output, the R-SPS6050S is a practical solution for Industrial DC Equipment Testing, high-power equipment evaluation, industrial power testing, startup and shutdown verification, high-current equipment testing, and repeated industrial equipment verification within its rated specifications.
