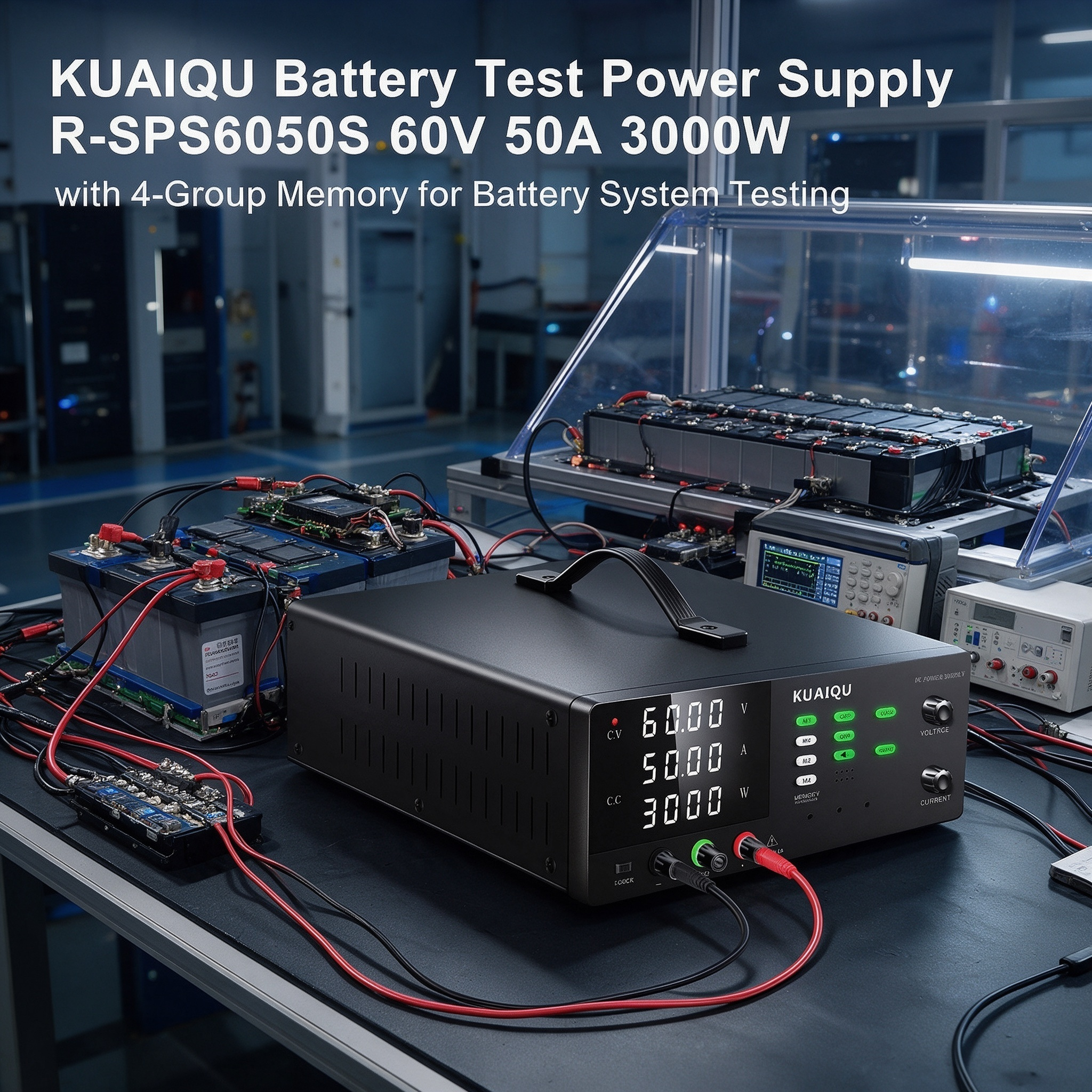

KUAIQU Battery Test Power Supply
R-SPS6050S 60V 50A 3000W with 4-Group
Memory for Battery System Testing
Key Features
0-60V Adjustable Output for Battery System Test Conditions
Battery system testing may require different DC voltage conditions when evaluating battery-related equipment and system components. The R-SPS6050S provides an adjustable 0-60V DC output, allowing engineers to establish selected voltage conditions within the power supply's rated range.
This flexibility is useful when a test procedure requires different DC supply levels for evaluating compatible battery system components, power interfaces, control electronics, and other equipment that operates within the specified voltage range.
50A Output Capacity for High-Current Battery Testing
Battery-related test equipment can require substantially more current than conventional electronic bench applications. With up to 50A output current and 3000W rated power, the R-SPS6050S provides a high-power DC source for compatible battery system test setups with higher current requirements.
The combination of adjustable voltage and high current capacity allows engineers to establish different power conditions without changing to a lower-capacity laboratory supply when the test demand increases within the rated operating range.
Real-Time Voltage, Current and Power Monitoring
Battery System Testing requires engineers to know the electrical conditions being applied to the test setup. The R-SPS6050S uses a 4-digit Voltage, Current and Power Display to provide direct visibility into the output condition.
During testing, users can observe the displayed voltage, current, and power while the connected battery-related equipment operates. This makes it easier to identify changes in power demand and compare electrical conditions between different test configurations.

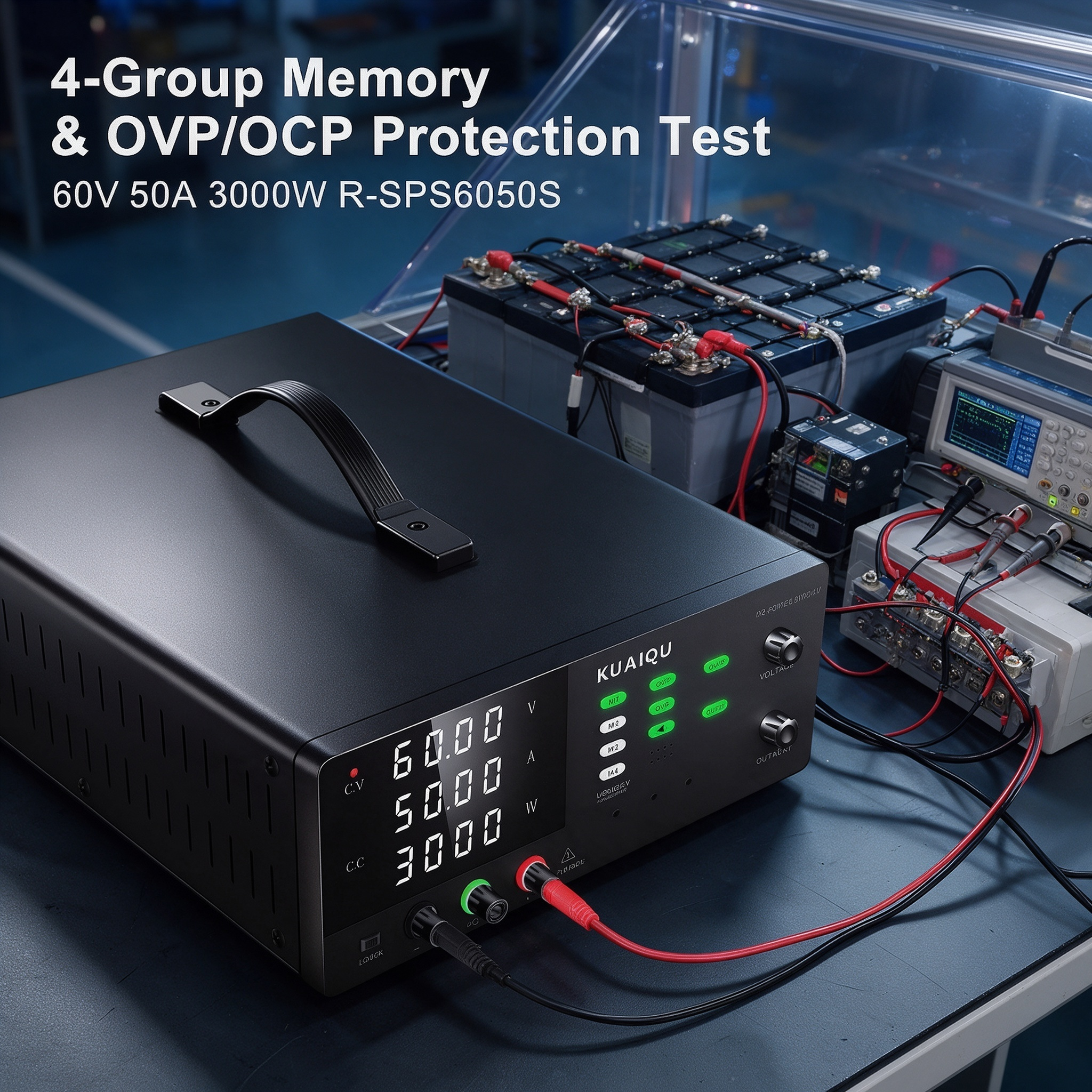

4-Group Memory for Repeated Battery Test Conditions
Battery System Testing may involve multiple predefined test conditions. The M1-M4 4-Group Memory Function allows frequently used voltage and current settings to be stored for later recall.
Instead of manually setting the same parameters every time, engineers can use the stored memory groups when repeating established test configurations. This is particularly useful for development benches where the same battery system test conditions are used repeatedly.
Precision Encoder for Controlled Parameter Adjustment
The Precision Encoder provides direct adjustment of voltage and current settings from the front panel. When a battery system or related component needs to be evaluated at different DC input conditions, the encoder allows the operator to change the configured parameters conveniently.
This is useful during development and verification work where engineers need to move between several selected voltage or current settings rather than operate at only one fixed power condition.
Output ON/OFF for Battery System Power-Up Testing
The Output ON/OFF function allows the operator to apply or remove the DC output while keeping the configured settings available.
For Battery System Testing, this can support repeated power-up and power-down verification of compatible test equipment and battery-related systems. Engineers can switch the output during different test steps without having to completely reconfigure the power supply each time.
OCP and OVP for Controlled Battery Test Setups
The R-SPS6050S incorporates Over Current Protection and Over Voltage Protection. These protection functions provide additional safeguards when adjustable DC power is applied to compatible battery system test equipment.
For higher-power testing, protection functions are especially useful when establishing test conditions or connecting equipment with different electrical requirements. OCP and OVP should be used as protection functions and do not replace the test procedure or external protection requirements of the battery system.
Rear Output Connection for High-Current Test Wiring
The R-SPS6050S provides a Back Panel Output for high-current connections. The front output is limited to below 5A, while the rear output supports the full rated output capability.
For Battery System Testing applications requiring higher current, the rear terminals provide the appropriate connection point for the test setup. This allows the power supply to be connected to compatible battery system equipment using wiring suitable for the required current.
Panel Lock for Stable Test Configuration
Once the required voltage and current have been established, accidental changes to the front-panel controls can affect test consistency. The Panel Lock function helps prevent unintended parameter adjustments during testing.
This is useful when a battery system test needs to remain under a defined DC power condition for an extended evaluation or repeated verification procedure.

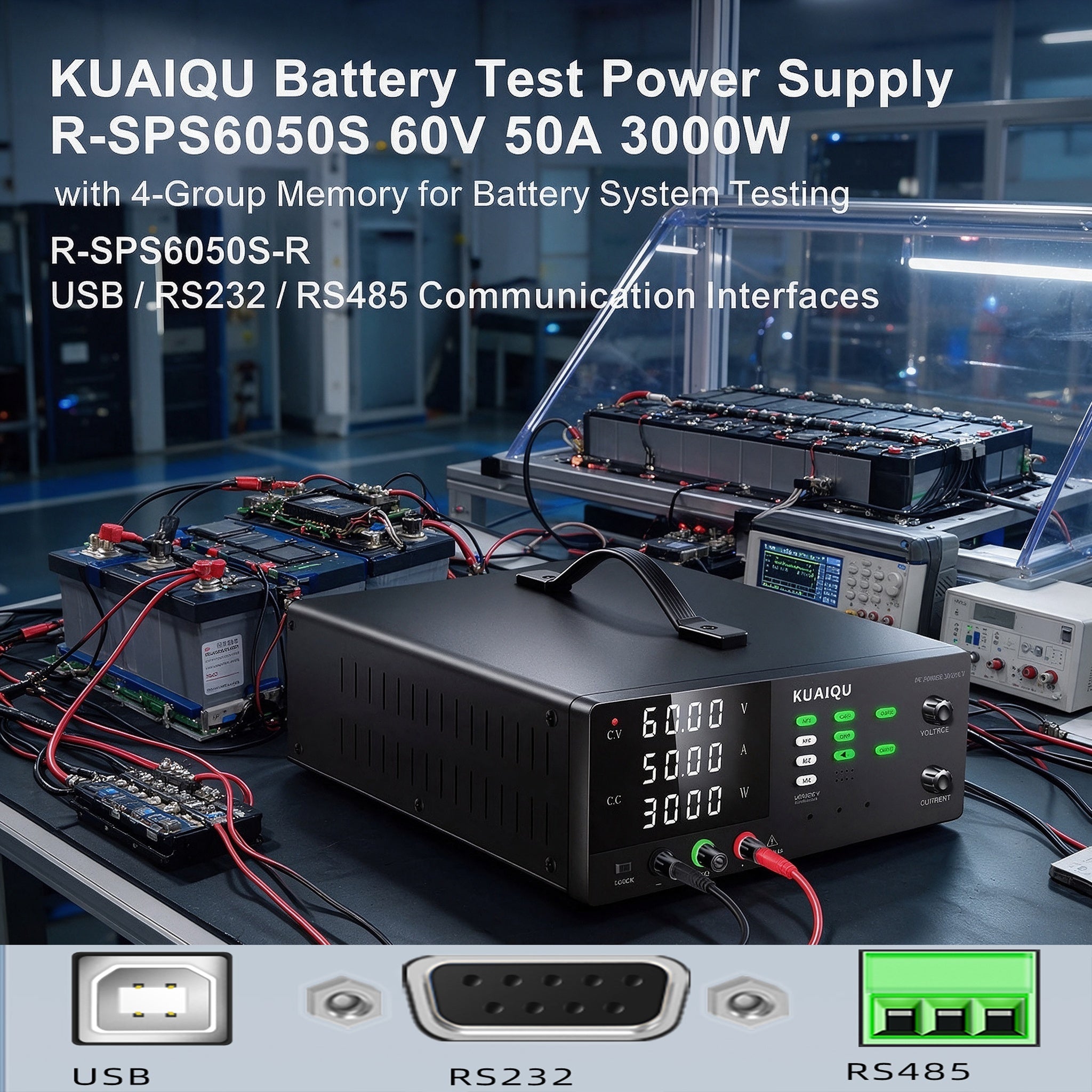

USB, RS232 and RS485 Interfaces for Test Bench Integration
The R-SPS6050S includes USB, RS232 and RS485 interfaces, providing several connection options for suitable engineering and laboratory test environments.
These interfaces allow the Battery Test Power Supply to be incorporated into compatible test-bench setups where the power supply needs to coexist with other equipment. The interfaces should not be interpreted as dedicated BMS communication or battery management functions.
Buzzer Mute for Laboratory Test Operation
The encoder knob includes a Buzzer function that can be muted. This provides additional operating convenience when engineers repeatedly adjust settings during battery system development, verification, and bench testing.
Applications
Battery System Testing
The R-SPS6050S provides adjustable DC power for compatible battery system test setups requiring up to 60V, 50A, and 3000W. Engineers can establish different supply conditions and observe the resulting voltage, current, and power during evaluation.
Battery System Power Input Evaluation
The adjustable output can be used to establish selected DC input conditions for compatible battery-related equipment. Engineers can change the voltage and current settings according to the requirements of the specific test procedure and the rated limits of the equipment under test.
High-Current Battery Equipment Testing
For battery-related equipment that requires higher DC current during evaluation, the 50A maximum output and 3000W power rating provide substantially greater capacity than lower-power bench supplies.
The rear output connection is suitable for high-current test wiring when the required test current exceeds the front output connection limit.
Battery System Startup and Shutdown Verification
The Output ON/OFF function can be used when a test procedure requires repeated application and removal of DC power. This can support startup, shutdown, restart, and power interruption verification of compatible battery system equipment.
Battery System Operating Condition Comparison
Battery system development may require evaluation under more than one selected DC supply condition. The 0-60V adjustable output and Precision Encoder allow engineers to change the configured power condition and compare the electrical response of the connected test equipment.
Repeated Battery Test Configuration
For test procedures that use recurring voltage and current settings, the M1-M4 Memory Function provides four groups for storing frequently used configurations.
This can reduce repeated manual adjustment when engineers perform the same Battery System Testing procedure across multiple test units or repeat a previously established verification condition.
Battery-Related Power Electronics Testing
Battery systems often work together with power conversion and electronic control equipment. Within its rated 0-60V, 0-50A, and 3000W output capability, the R-SPS6050S can provide adjustable DC power for compatible battery-related power electronics and control equipment during development and verification.
Battery Test Bench Integration
The combination of high-power DC output, real-time electrical display, rear high-current output, memory settings, Panel Lock, and USB, RS232 and RS485 interfaces makes the R-SPS6050S suitable for integration into compatible laboratory and engineering battery test benches.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1
-
CE & FCC Certification: The product has passed CE and FCC certification requirements.
-
Inspection Before Shipment: The DC power supply and included accessories are inspected before shipment to help ensure product quality.
-
Customer Support: Contact us with any questions, and our customer support team will respond within 24 hours.
Technical Specifications
| Parameter |
R-SPS6050S |
| Product Type |
High Power Adjustable DC Power Supply |
| Rated Voltage |
0-60V |
| Rated Current |
0-50A |
| Rated Power |
3000W |
| Operating Temperature |
0°C-40°C |
| Load Regulation, Voltage |
≤0.1% + 10mV |
| Load Regulation, Current |
≤0.1% + 2.5mA |
| Line Regulation, Voltage |
≤0.01% + 2.5mV |
| Line Regulation, Current |
≤0.1% + 2.5mA |
| Setting Resolution, Voltage |
10mV |
| Setting Resolution, Current |
10mA |
| Readback Resolution, Voltage |
10mV |
| Readback Resolution, Current |
10mA |
| Setting Accuracy, Voltage |
≤0.05% + 10mV |
| Setting Accuracy, Current |
≤0.01% + 10mA |
| Readback Accuracy, Voltage |
≤0.05% + 10mV |
| Readback Accuracy, Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤800mVp-p / ≤120mVrms |
| Current Ripple |
≤40mArms |
| Rise Time, No Load |
≤100ms |
| Rise Time, Full Load |
≤150ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage, Current and Power Display |
| Memory Function |
M1-M4, 4 Groups |
| Protection |
OCP, OVP |
| Output Control |
Output ON/OFF |
| Interfaces |
USB, RS232, RS485 |
| Output Connection |
Front Output and Rear High-Current Output |
| Size |
Approx. 35 × 27 × 10cm |
| Net Weight |
Approx. 6.8kg |
Why Choose KUAIQU R-SPS6050S?
The KUAIQU Battery Test Power Supply R-SPS6050S combines a 0-60V adjustable output, 0-50A maximum current, and 3000W rated power for battery system test environments that require more DC power capacity than conventional laboratory supplies.
Its value for Battery System Testing comes from the combination of adjustable power and practical test-operation features. The 4-digit Voltage, Current and Power Display allows engineers to observe the electrical output during testing, while the Precision Encoder provides direct adjustment when different test conditions are required.
For repeated battery test procedures, the M1-M4 4-Group Memory Function helps recall frequently used voltage and current settings. Output ON/OFF supports repeated power application and removal, while Panel Lock helps maintain an established test configuration.
For higher-current battery system setups, the rear high-current output provides a suitable connection point for the full rated output, while OCP and OVP provide additional protection functions. The built-in USB, RS232 and RS485 interfaces also provide flexible connectivity for suitable laboratory and engineering test benches.
With its combination of high-current output, adjustable DC power, 4-group memory, real-time electrical monitoring, protection functions, and high-current rear connection, the R-SPS6050S is a practical Battery Test Power Supply for Battery System Testing, battery equipment evaluation, high-current battery testing, operating condition comparison, startup and shutdown verification, and repeated battery test procedures within its rated specifications.
