KUAIQU 30V 30A 900W R-SPS3030S
Adjustable DC Power Source with OCP
OVP for Battery and Energy Storage
Testing
The KUAIQU R-SPS3030S is a 30V 30A 900W Adjustable DC Power Source designed to provide controlled DC power for Battery and Energy Storage Testing. With an adjustable 0-30V output and current capability up to 30A, it can be used to establish different DC input conditions for battery-related circuits, energy storage components, power conversion circuits, and electronic modules within its rated operating range. The four-digit display provides real-time voltage, current, and power readings, while OCP, OVP, Output ON/OFF control, and panel lock help operators manage test conditions during laboratory and development work.
Key Features
30V 30A 900W Adjustable DC Power Source
The R-SPS3030S provides a 0-30V adjustable DC output with current capability up to 30A and a maximum power rating of 900W. This output range provides a practical DC power source for battery and energy storage related test circuits that require adjustable voltage and higher current conditions.
Adjustable Output for Battery and Energy Storage Testing
Different battery-related circuits and energy storage components may require different DC input conditions during development and evaluation. The adjustable voltage and current output allows users to set suitable test conditions within the rated 0-30V, 0-30A and 900W operating range.
High Current Output for Energy Storage Test Circuits
With up to 30A output capability, the R-SPS3030S can supply higher current to suitable battery-related circuits, energy storage electronics, and power conversion test setups. The 900W power capacity provides additional operating range for test applications that require more current than a low-power bench supply.
Four-Digit Voltage, Current, and Power Display
The four-digit display provides real-time readings of output voltage, current, and power. This allows operators to observe the actual electrical conditions of a test setup while adjusting the DC output for different battery and energy storage testing requirements.
Precision Encoder Adjustment
The precision encoder provides controlled adjustment of voltage and current settings. This is useful when test conditions need to be adjusted during battery circuit development, energy storage electronics evaluation, or repeated laboratory testing.
OCP and OVP Protection
Built-in Over Current Protection and Over Voltage Protection provide additional protection during testing. These functions are particularly useful when working with different battery-related circuits and electronic modules where controlled output conditions are important.
Output ON/OFF Control
The independent Output ON/OFF control allows users to enable or disable the DC output without changing the configured voltage and current settings. This can simplify repeated test operations when the same test conditions need to be applied multiple times.
M1-M3 Memory for Repeated Test Conditions
The R-SPS3030S provides three memory groups, M1-M3, for storing commonly used output settings. This can help reduce repeated manual adjustment when the same voltage and current conditions are used across multiple battery or energy storage test procedures.
Panel Lock for Stable Test Settings
The Panel Lock function helps prevent unintended changes to the configured output settings during testing. This is useful when a battery-related test requires stable voltage and current parameters while measurements or evaluations are being performed.
Front and Rear Output Connections
The power supply provides both front and rear output connections. The front panel is suitable for convenient bench access, while the rear output connection can be used when integrating the power supply into a more organized laboratory or test-bench setup.

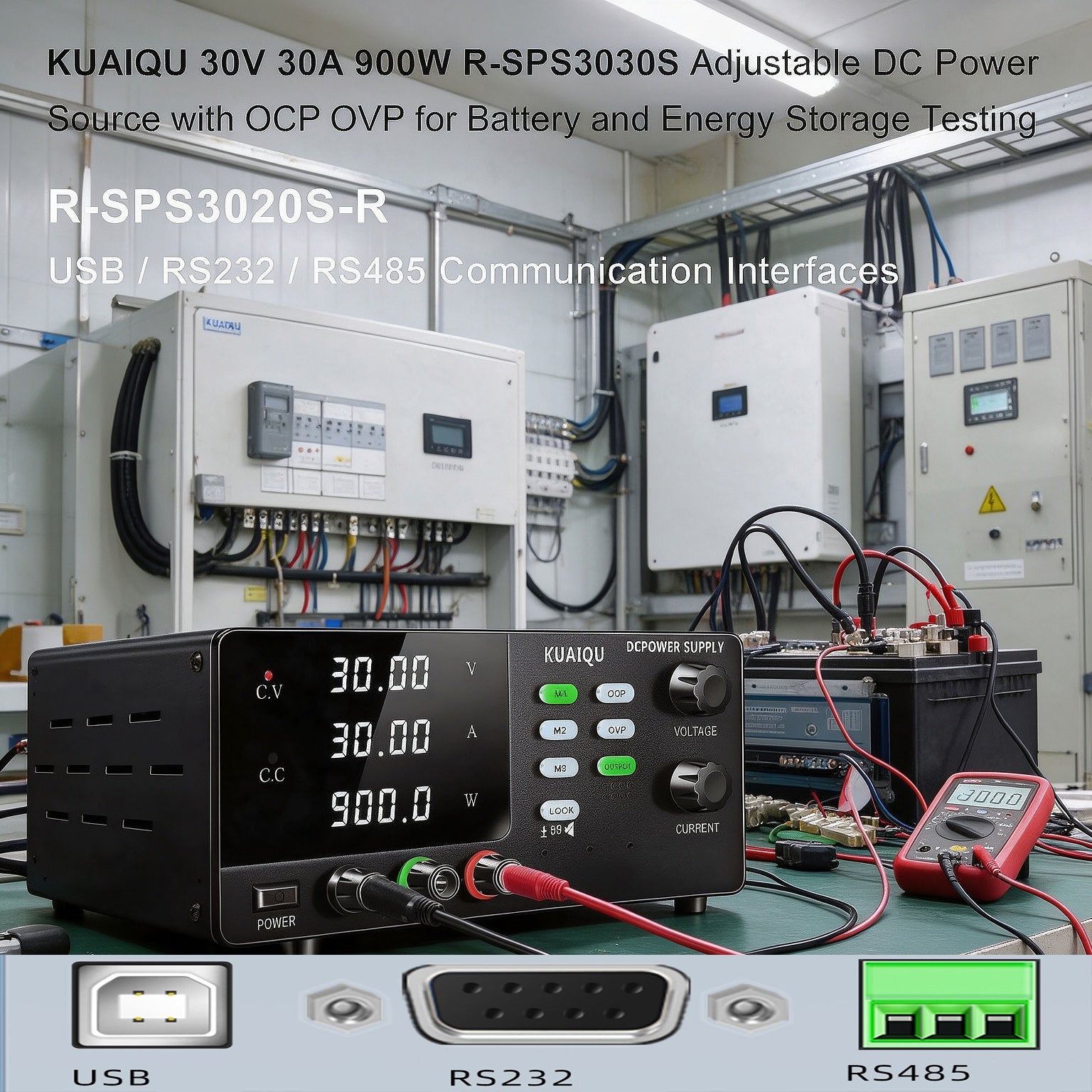

USB and Optional RS232/RS485 Communication Interfaces
The R-SPS3030S supports a standard USB interface, with RS232 and RS485 available as optional communication interfaces. These interfaces provide additional connection options for compatible test or control environments without claiming unsupported battery simulation or automatic test functions.
Applications

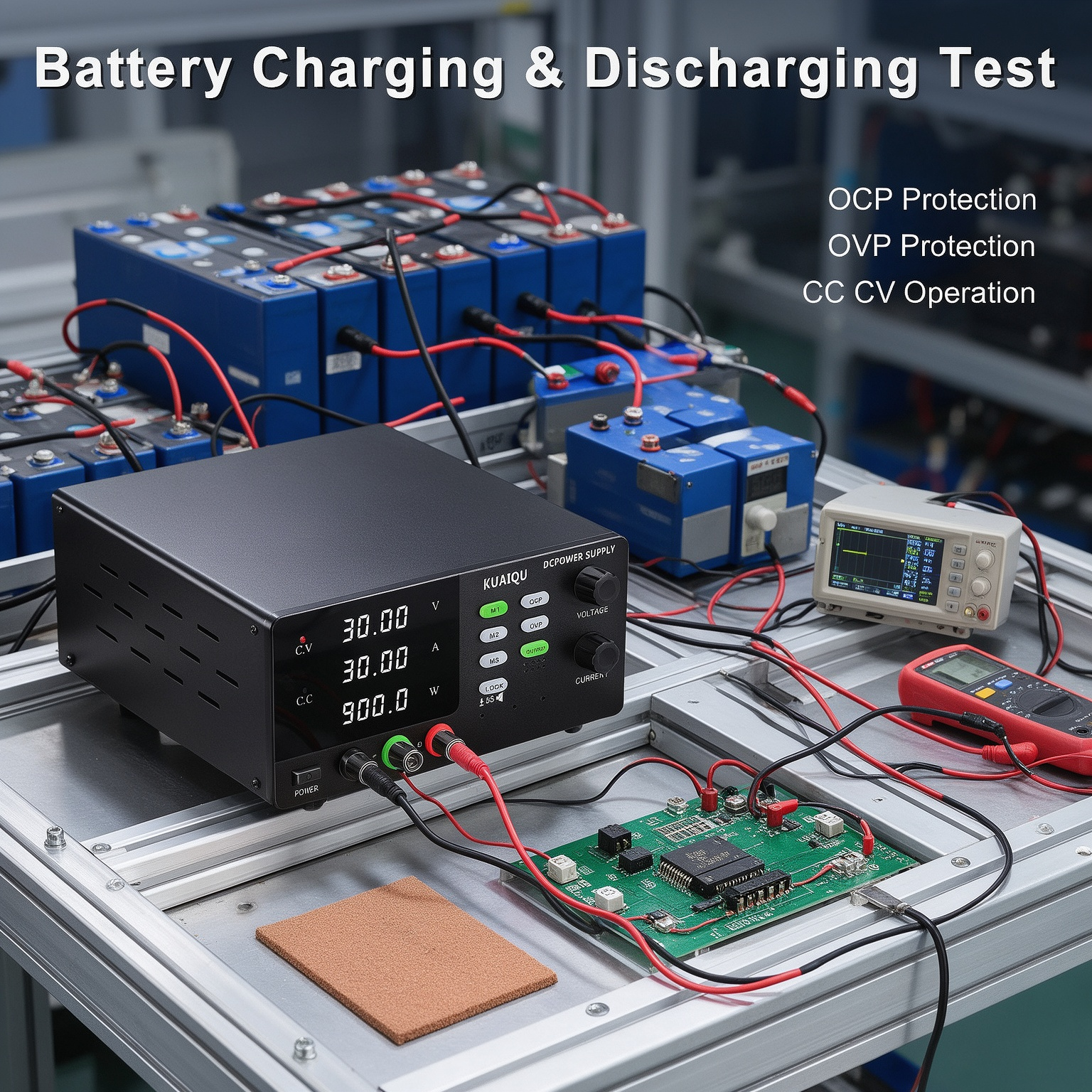

Battery and Energy Storage Testing
Provides adjustable DC power for battery-related electronic circuits and energy storage test setups requiring controlled voltage and current conditions within the 30V, 30A, and 900W rating.
Battery Test Circuit Development
Suitable for supplying adjustable DC power during the development and evaluation of battery-related circuits where different input voltage and current conditions need to be tested.
Energy Storage Electronics Testing
Can be used to provide controlled DC power for electronic circuits associated with energy storage systems, provided the required operating conditions remain within the power supply's rated range.
Battery Power Circuit Testing
The adjustable 0-30V output and up to 30A current capability can be used when evaluating battery power circuits that require different DC input conditions during laboratory testing.

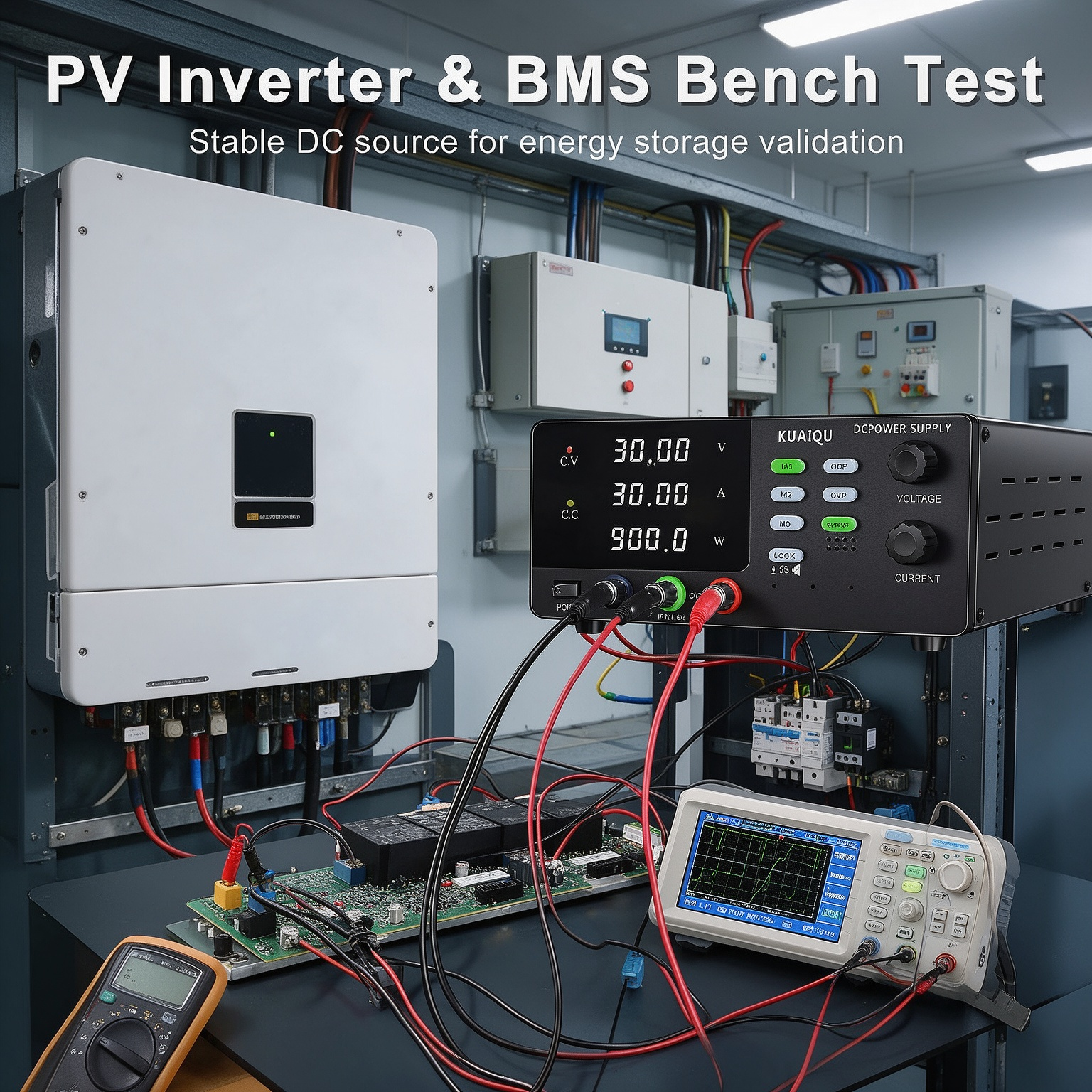

Energy Storage Power Conversion Testing
Suitable as a DC source for test setups involving power conversion circuits associated with energy storage applications, allowing users to adjust the supplied DC conditions according to the requirements of the circuit under test.
Battery-Related Electronic Module Testing
Provides adjustable DC power for compatible electronic modules used in battery and energy storage systems. The voltage, current, and power display allows operators to monitor the supplied electrical conditions during testing.
High Current Battery Circuit Testing
The 30A maximum output provides a higher-current DC source for suitable battery-related circuits and test setups that require more current within the 900W power limit.

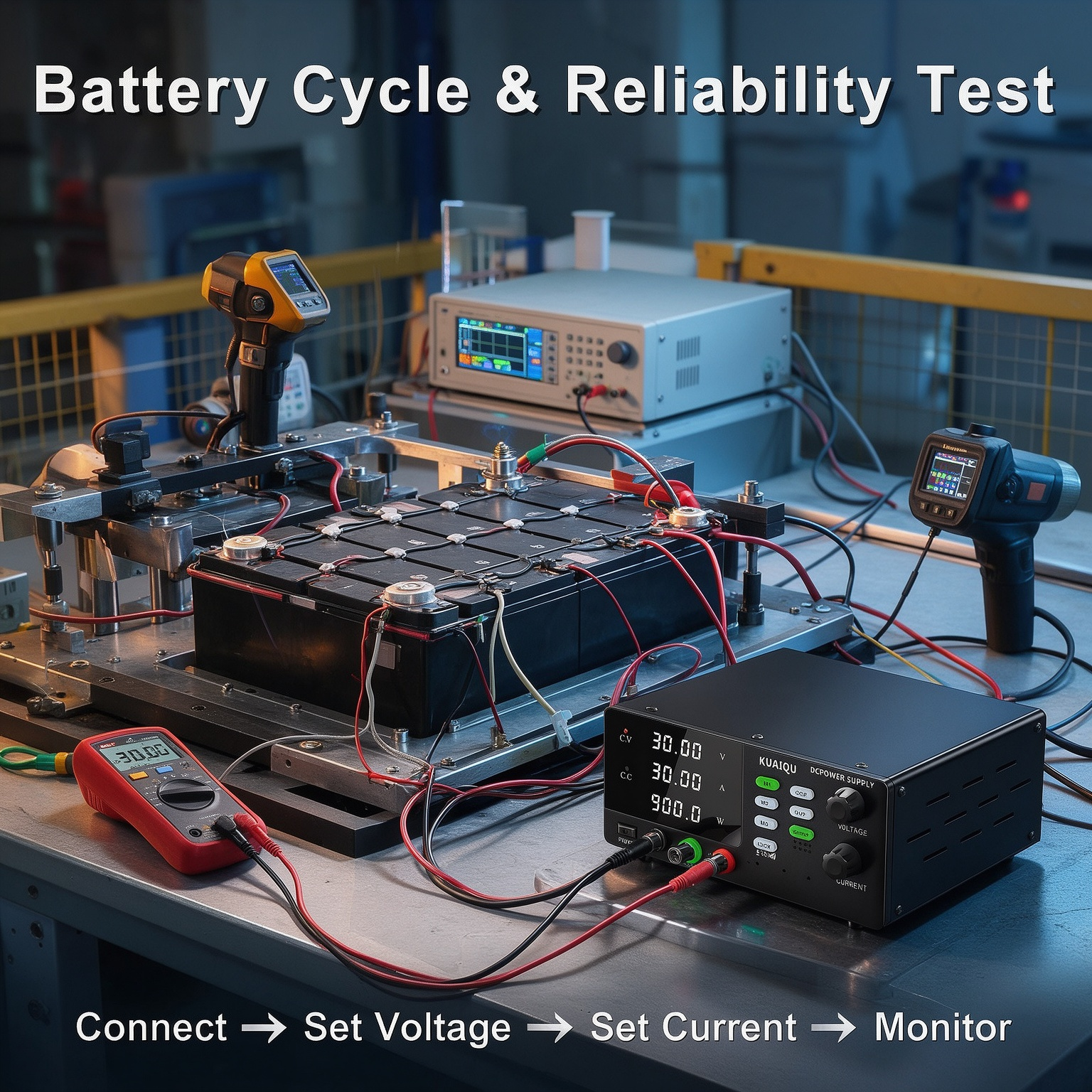

Repeated Battery Test Conditions
M1-M3 memory settings can be used when the same voltage and current conditions need to be recalled for repeated battery circuit or energy storage electronics tests.
Laboratory Energy Storage Testing
The R-SPS3030S can be used as a bench DC power source for laboratory development, circuit evaluation, and controlled testing related to battery and energy storage electronics.
Power Supply Testing for Energy Storage Systems
The adjustable DC output, real-time voltage/current/power display, Output ON/OFF control, OCP, and OVP provide practical functions for establishing and monitoring DC power conditions during energy storage system-related electronic testing.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS3030S |
| Product Type |
Adjustable DC Power Source |
| Output Voltage |
0-30V |
| Output Current |
0-30A |
| Rated Power |
900W |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Ripple |
≤400 mVp-p / ≤60 mVrms |
| Current Ripple |
≤20 mArms |
| No-Load Rise Time |
≤150ms |
| Full-Load Rise Time |
≤200ms |
| No-Load Fall Time |
≤15s |
| Full-Load Fall Time |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Display |
Four-Digit Voltage, Current, and Power Display |
| Protection |
OCP / OVP |
| Output Control |
Output ON/OFF |
| Memory |
M1-M3, 3 Groups |
| Adjustment |
Precision Encoder |
| Panel Lock |
Yes |
| USB Interface |
Standard |
| RS232 / RS485 |
Optional |
| Output Connections |
Front and Rear |
| Front Panel Output |
<5A |
| Rear Panel Output |
Full Power Available |
| Operating Temperature |
0°C-40°C |
| Dimensions |
Approx. 26.5 × 19 × 8.5 cm |
| Net Weight |
Approx. 2.5 kg |
| Package Size |
Approx. 38 × 24.5 × 12.5 cm |
| Package Weight |
Approx. 3.2 kg |
| Carton Quantity |
6 pcs/carton |
Why Choose KUAIQU R-SPS3030S?
The KUAIQU R-SPS3030S combines a 30V 30A 900W Adjustable DC Power Source with functions that are directly useful for Battery and Energy Storage Testing. Its higher current capacity supports suitable battery-related test circuits within the rated 900W output, while adjustable voltage and current settings allow different DC operating conditions to be established during development and evaluation.
For repeated testing, the M1-M3 memory, precision encoder, four-digit voltage/current/power display, Output ON/OFF control, and Panel Lock help make test setup and operation more consistent. OCP and OVP provide additional protection during controlled DC power testing, while the standard USB interface and optional RS232/RS485 interfaces provide additional connection options for compatible test environments.
Overall, the R-SPS3030S is positioned as an Adjustable DC Power Source for Battery and Energy Storage Testing, with its 30V, 30A, and 900W output capability providing the primary advantage for test setups that require adjustable and relatively high-current DC power.
