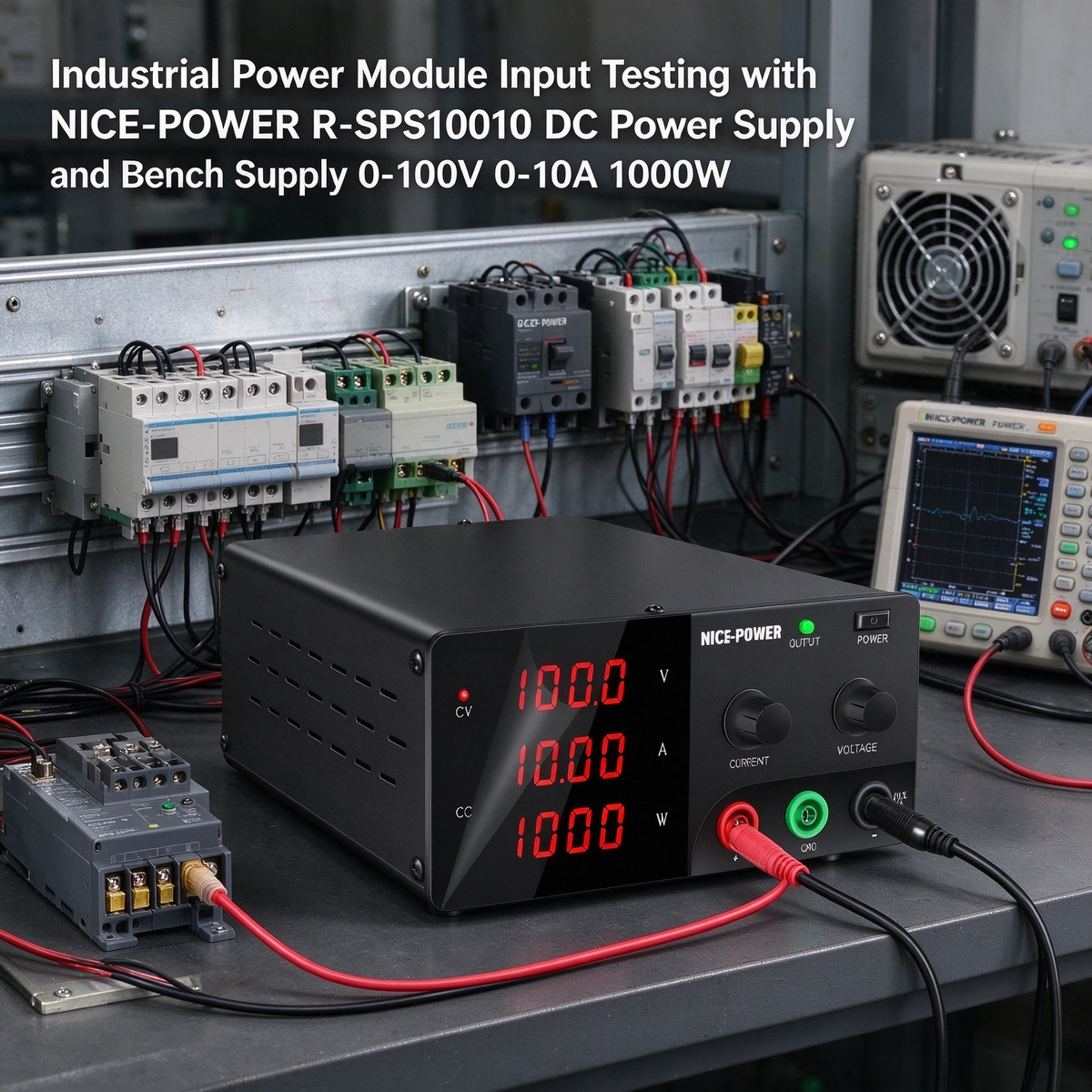

Industrial Power Module Input Testing with
NICE-POWER R-SPS10010 DC Power Supply and
Bench Supply 0-100V 0-10A 1000W
Key Features
Adjustable 0–100V DC Output for Industrial Module Input Testing
The NICE-POWER R-SPS10010 DC Power Supply provides an adjustable output voltage from 0 to 100V, a maximum output current of 10A, and rated output power of 1000W. For Industrial Power Module Input Testing, engineers can set the DC supply voltage to match the module's specified input requirements. This provides a controlled source for initial power-up checks and input-side verification during industrial electronics development.
1000W Rated Power for Industrial Electronics Bench Testing
With 1000W of rated output power, the R-SPS10010 can supply compatible industrial power modules during laboratory testing and engineering troubleshooting. Before connecting a module, engineers should confirm its nominal input voltage, expected current, polarity, and power requirements. The module's demand must remain within the power supply's voltage, current, and power ratings.
CV/CC Operation for Managed Input Power
The R-SPS10010 supports constant-voltage (CV) and constant-current (CC) operation, switching automatically according to output and load conditions. CV operation is suitable for applying a specified DC input voltage to a compatible power module. CC operation can limit the current delivered under applicable conditions, which can be useful when investigating unexpected input current during initial testing. These modes do not replace dedicated protection devices or a complete automated test system.
Voltage, Current, and Power Readings for Source Monitoring
The front-panel display shows output voltage and current, with power also displayed. During industrial module input testing, engineers can observe the power supply's output readings while applying DC power to the module. Changes in source current or power may help identify conditions requiring further inspection. These readings reflect the power supply output and do not independently measure the module's internal operating parameters or regulated output performance.
Front-Panel Adjustment and Output ON/OFF Control
The encoder knob provides manual adjustment of the output settings, while the output ON/OFF control allows engineers to enable or disable the DC output during bench work. These controls support preparation of the input voltage, controlled power-up procedures, and safe interruption of output before wiring changes. The standard R-SPS10010 is manually adjusted and should not be described as an automatically executing test instrument.
Front and Rear Output Terminals for Industrial Bench Connections
The R-SPS10010 includes front and rear output terminals to accommodate different current requirements and bench setups. The front output terminal is intended for currents below 5A, while the rear terminals can be used for full-power output with suitable wiring and connections. For modules that require more than 5A, use the appropriate rear output connection and follow the manufacturer's connection instructions.
Applications
Industrial Power Module Input Voltage Verification
Supply a specified DC input voltage to compatible industrial power modules during engineering verification. Engineers can set the source voltage according to the module's input rating and observe the supply's output readings during initial operation. The test voltage must remain within the module's specified input range and the power supply's own operating limits.
Industrial Control Power Supply Module Power-Up Checks
Use the R-SPS10010 as a bench supply when powering compatible control-system power modules during assembly checks or after circuit repairs. The adjustable DC output supports setting the required input voltage before the module is energized. Observe the source-side current during startup and use suitable measurement instruments to verify the module's actual output behavior.
Auxiliary DC Power Module Input Testing
Provide DC input power to compatible auxiliary power modules used in industrial electronic equipment. Engineers can use the variable output to establish the specified input condition while checking wiring, polarity, and source-side power demand. Confirm the module's input specification before testing, especially when working with modules designed for different DC voltage ranges.
Industrial Power Board and Module Troubleshooting
Use the DC Power Supply during bench troubleshooting when an industrial power board or module shows unexpected current demand or fails to start correctly. Set the intended input voltage and monitor the supply's output readings while inspecting connections and the input stage. The readings can support the troubleshooting process but cannot independently identify a defective component.
Power Module Engineering and Maintenance Evaluation
Supply DC power to compatible industrial power modules during laboratory evaluation, repair verification, and maintenance-related checks. The R-SPS10010 provides an adjustable source for applying known input conditions within its ratings. Additional instruments are required to verify output regulation, ripple, efficiency, temperature behavior, and other module performance characteristics.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.
-
Certifications: Has passed CE & FCC Certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS10010 / R-SPS10010-R |
| Product Type |
Regulated DC Power Supply / Bench Supply |
| Rated Output Power |
1000W |
| Output Voltage Range |
0–100V |
| Output Current Range |
0–10A |
| Operating Mode |
Constant Voltage (CV) / Constant Current (CC) |
| Load Regulation (Voltage) |
≤0.1% + 10mV |
| Load Regulation (Current) |
≤0.1% + 2.5mA |
| Line Regulation (Voltage) |
≤0.01% + 2.5mV |
| Line Regulation (Current) |
≤0.1% + 2.5mA |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Ripple (Peak-to-Peak) |
≤400mVp-p |
| Voltage Ripple (RMS) |
≤60mVrms |
| Current Ripple |
≤20mArms (20Hz–20MHz) |
| Rise Time (No Load) |
≤150ms |
| Rise Time (Full Load) |
≤200ms |
| Fall Time (No Load) |
≤15s |
| Fall Time (Full Load) |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Conversion Efficiency |
≥85% |
| Display |
Four-digit voltage/current display with power display |
| Output Control |
Output ON/OFF |
| Adjustment Method |
Encoder knob adjustment |
| Output Terminals |
Front and rear output terminals |
| Front Output Terminal Use |
For output currents below 5A |
| Rear Output Terminal Use |
Available for full-power output with suitable wiring and connections |
| Communication Interfaces |
Optional; confirm the selected model and configuration |
| Operating Temperature |
0°C–40°C |
| Product Dimensions |
Approx. 26.5 × 18.5 × 8cm |
| Net Weight |
Approx. 2.8kg |
Why Choose NICE-POWER R-SPS10010 for Industrial Power Module Input Testing?
The NICE-POWER R-SPS10010 DC Power Supply combines a 0–100V adjustable DC output, 10A maximum output current, and 1000W rated output power for industrial electronics development and bench testing. Its CV/CC operation, front-panel adjustment, output ON/OFF control, and voltage, current, and power readings support controlled input-power delivery when testing compatible industrial power modules.
For engineers working with industrial control power supplies, auxiliary DC modules, and power boards, this Bench Supply provides an adjustable source for input voltage verification, power-up checks, and source-side troubleshooting. It supplies DC power to the module; separate measurement instruments are needed to assess the module's regulated output and overall performance.
Model Configuration Note: R-SPS10010 is the standard manual-adjustment version. R-SPS10010-R is the programmable version. USB, RS232, and RS485 communication interfaces are optional; confirm the specific model configuration before ordering.
