Product Details

Overview

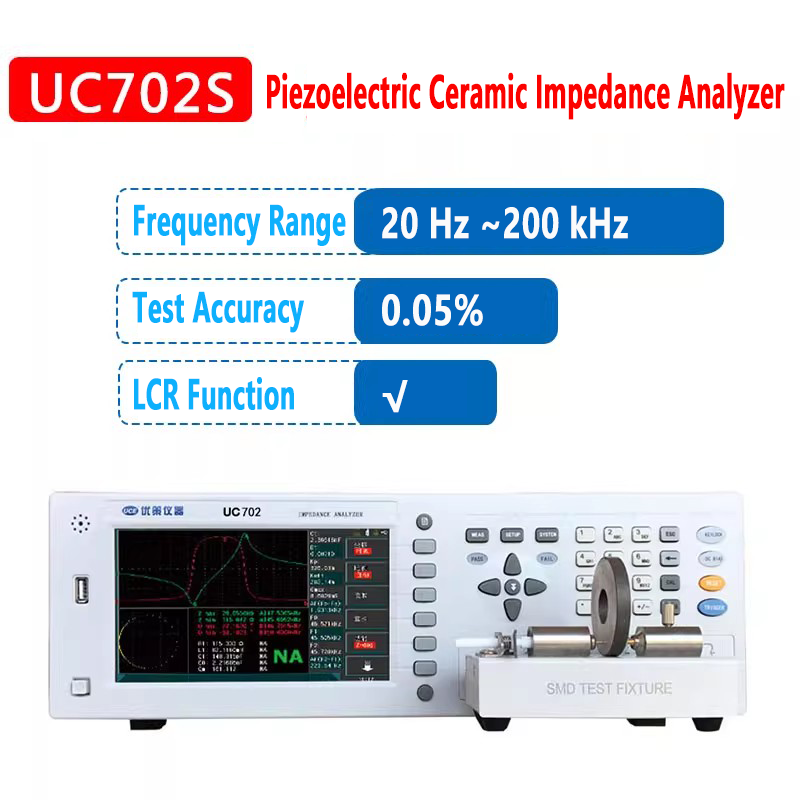

This impedance analyzer is a high - performance instrument tailored for impedance analysis and testing of devices such as piezoelectric ceramics, piezoelectric crystals, ultrasonic transducers, and ultrasonic welding machines. It enables accurate and swift screening of product performance.

Key Features

  • High - Speed Analysis: As a high - speed impedance analyzer, it's well - suited for high - speed testing systems.
  • High Precision: Boasts a test accuracy of 0.05%.
  • Comparable Data: Test data is highly comparable to that from international brand manufacturers.
  • Data Protection: Equipped with a keyboard lock function and data loss protection to safeguard your data.
  • Dual Language Interface: Supports simplified Chinese and English operation interfaces for user convenience.
  • Scanning and Analysis: Offers impedance frequency response characteristic scanning and analysis functions.
  • Software Upgrade: Allows for U - disk upgrade of the instrument software to keep it up - to - date.
  • Abundant Test Files: The instrument has 50 groups of internal test files and 500 groups of U - disk test files, which can be accessed at any time.
  • Rich Interfaces: Comes with diverse interfaces including RS232C, USB DEVICE, HANDELER, and optional GPIB.

Technical Specifications

Parameter
UC702
UC702S
Frequency Range
20Hz - 200kHz
20Hz - 200kHz
Maximum Frequency
200kHz
200kHz
LCR Function
No
Yes
Test Accuracy
0.05%
0.05%
Test Speed
100 times/second
100 times/second
Language Interface
Simplified Chinese, English
Simplified Chinese, English
Interface Options
RS232C, USB DEVICE, HANDELER, optional GPIB
RS232C, USB DEVICE, HANDELER, optional GPIB
Internal Test Files
50 groups
50 groups
U - disk Test Files
500 groups
500 groups

Application Scenarios

  1. Piezoelectric Ceramic Manufacturing: Analyzes and tests the impedance of piezoelectric ceramics to ensure product quality.
  1. Ultrasonic Transducer Production: Tests ultrasonic transducers to select products with excellent performance.
  1. Ultrasonic Welding Machine Maintenance: Conducts impedance analysis on ultrasonic welding machines to detect and resolve issues.
  1. Research Laboratories: Utilized in laboratories for researching the impedance characteristics of various ultrasonic devices.
  1. Electronic Component Industry: Tests electronic components related to ultrasonic technology for quality control.
  1. Ultrasonic Cleaning Machine Production: Ensures the impedance performance of ultrasonic cleaning machines meets standards during production.
Get this impedance analyzer now for accurate and efficient impedance analysis and testing!
