Product Details

Overview

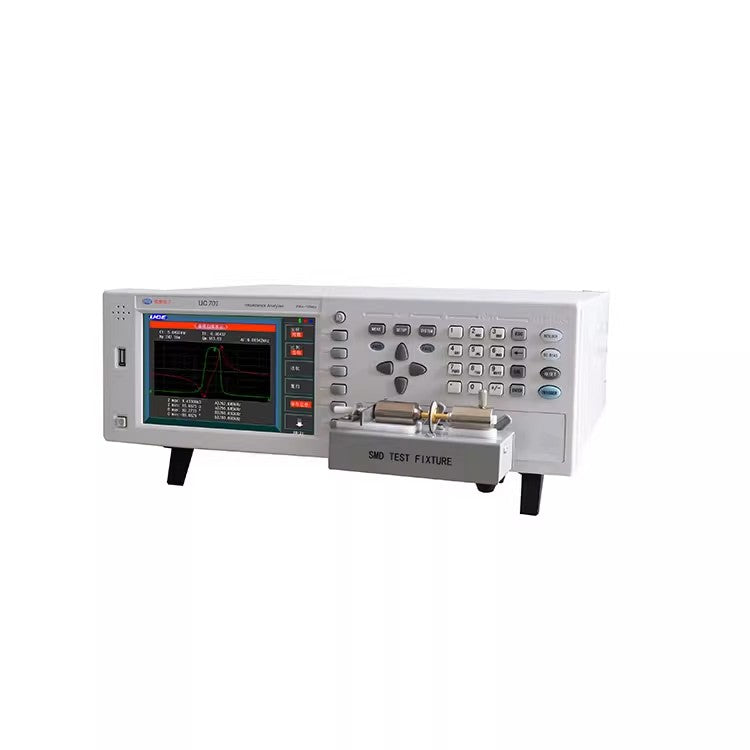

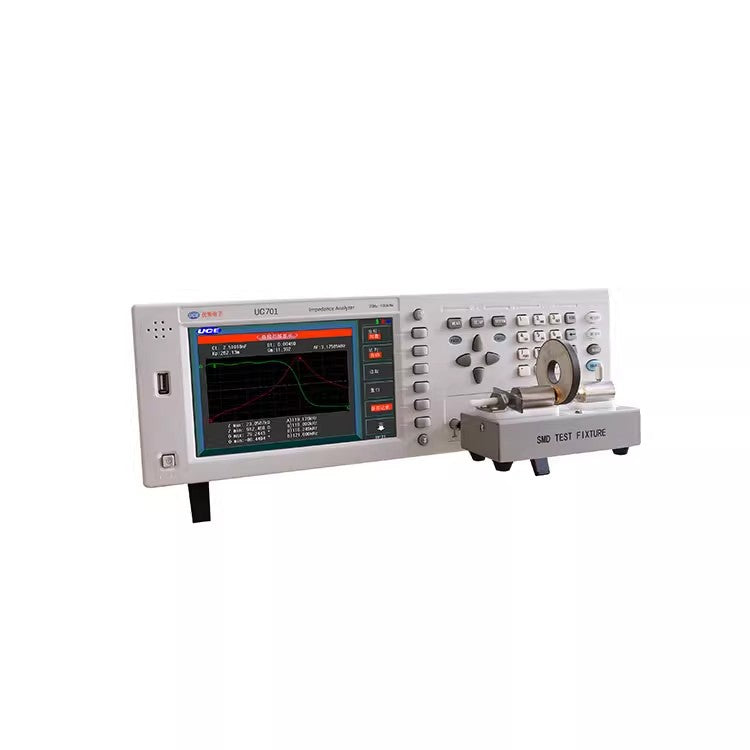

This impedance analyzer is a high - performance instrument designed for impedance analysis and testing of devices like piezoelectric ceramics, piezoelectric crystals, ultrasonic transducers, and ultrasonic welding machines. It enables accurate and rapid screening of product performance.

Key Features

  • High - Speed Analysis: A high - speed impedance analyzer suitable for high - speed testing systems.
  • High Precision: Offers a test accuracy of 0.05% .
  • Comparable Data: Test data is highly comparable with that of international brand manufacturers.
  • Data Protection: Equipped with keyboard lock function and data loss protection function.
  • Dual Language Interface: Supports simplified Chinese and English operation interfaces.

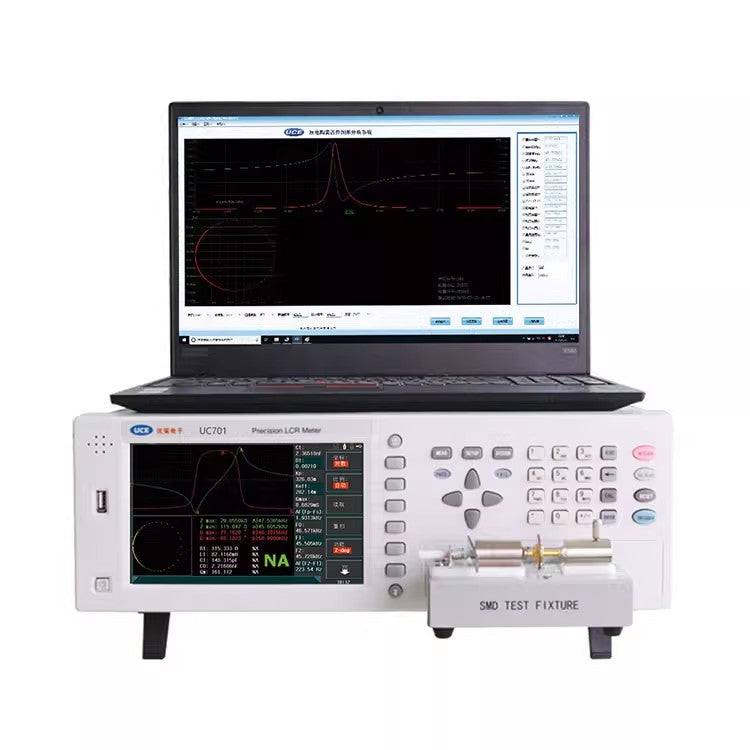

  • Scanning and Analysis: Provides impedance frequency response characteristic scanning and analysis functions.
  • Software Upgrade: Supports U - disk upgrade of instrument software.
  • Abundant Test Files: The instrument has 50 groups of internal test files and 500 groups of U - disk test files, which can be called at any time.
  • Rich Interfaces: Comes with rich interfaces including RS232C, USB DEVICE, HANDELER, and optional GPIB.

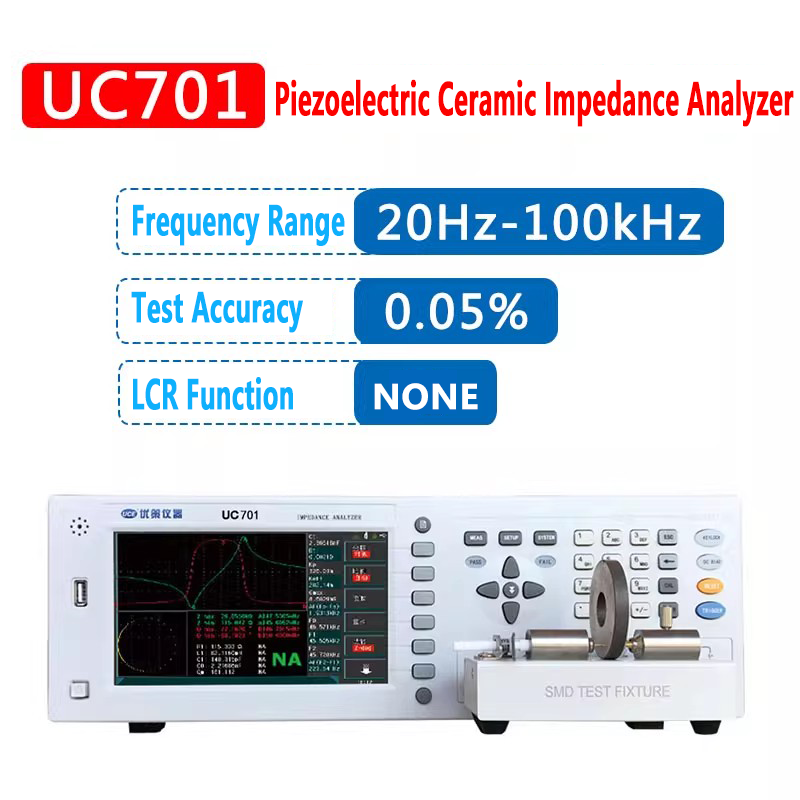

Technical Specifications

Parameter
UC701
UC701S
Frequency Range
20Hz - 100kHz
20Hz - 100kHz
Maximum Frequency
100kHz
100kHz
LCR Function
No
Yes
Test Accuracy
0.05%
0.05%
Test Speed
100 times/second
100 times/second
Language Interface
Simplified Chinese, English
Simplified Chinese, English
Interface Options
RS232C, USB DEVICE, HANDELER, optional GPIB
RS232C, USB DEVICE, HANDELER, optional GPIB
Internal Test Files
50 groups
50 groups
U - disk Test Files
500 groups
500 groups

Application Scenarios

  1. Piezoelectric Ceramic Manufacturing: Analyzes and tests the impedance of piezoelectric ceramics to ensure product quality.
  1. Ultrasonic Transducer Production: Tests ultrasonic transducers to screen out products with good performance.
  1. Ultrasonic Welding Machine Maintenance: Performs impedance analysis on ultrasonic welding machines to detect and solve problems.
  1. Research Laboratories: Used in laboratories for researching the impedance characteristics of various ultrasonic devices.
  1. Electronic Component Industry: Tests electronic components related to ultrasonic technology for quality control.
  1. Ultrasonic Cleaning Machine Production: Ensures the impedance performance of ultrasonic cleaning machines meets requirements during production.
Get this impedance analyzer now for accurate and efficient impedance analysis and testing!
