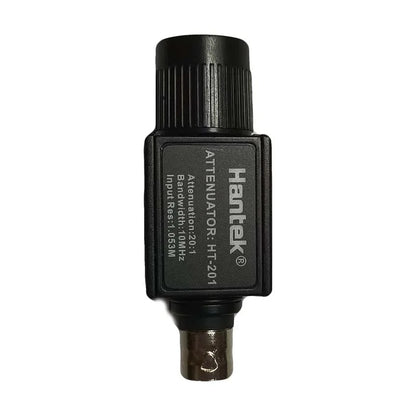

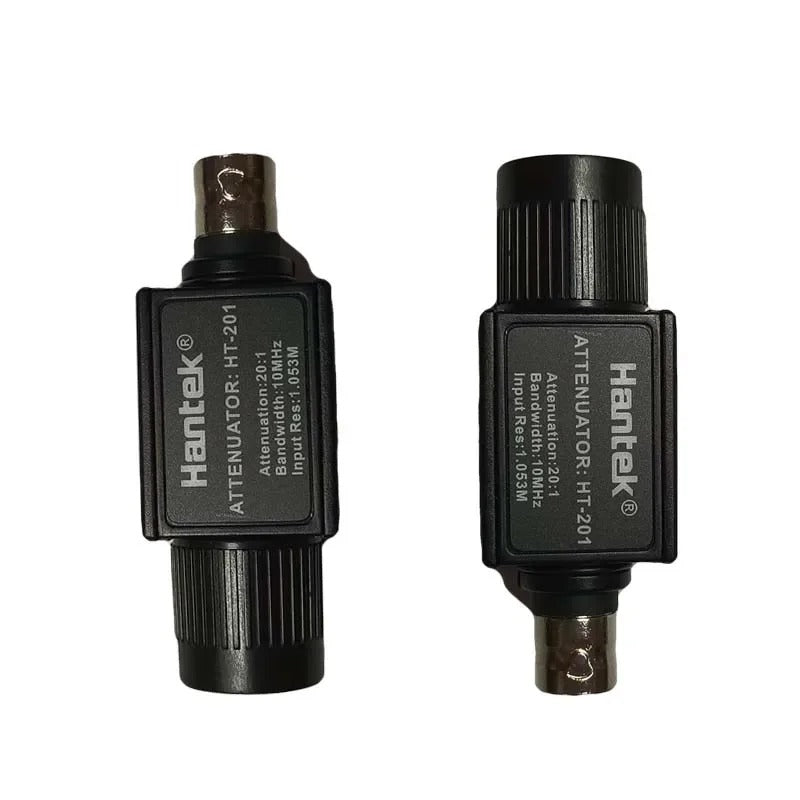

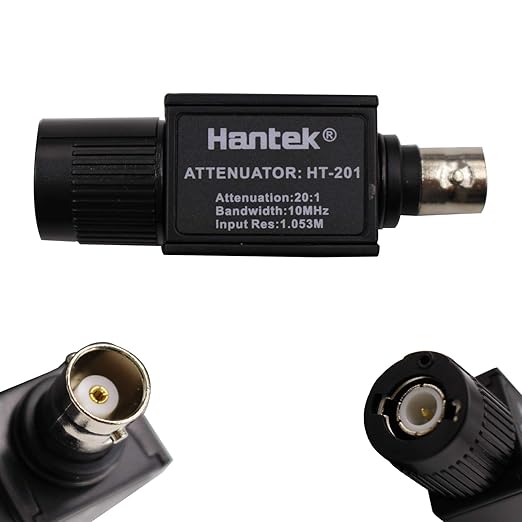

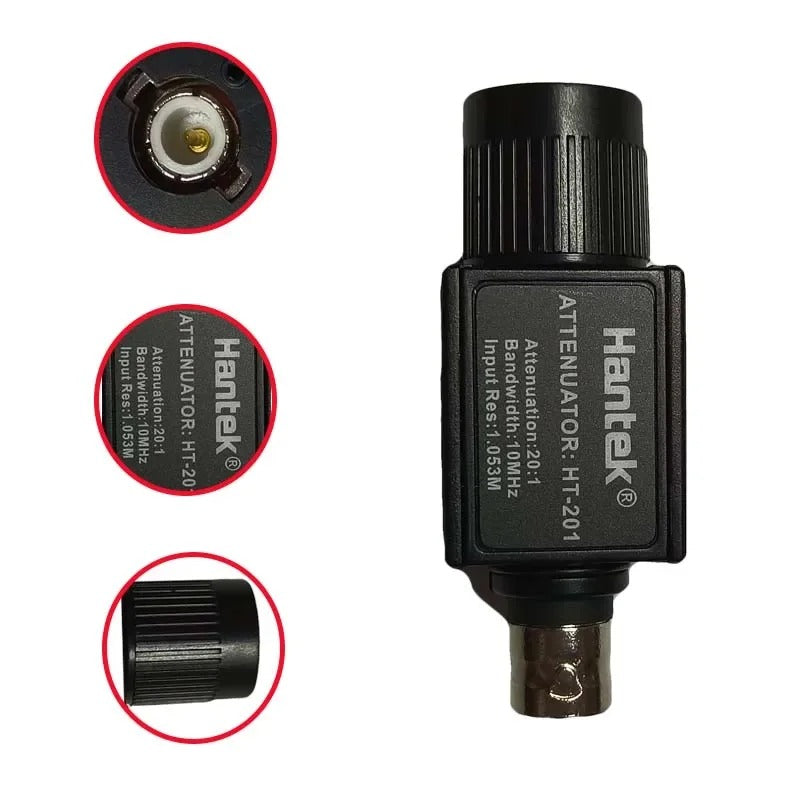

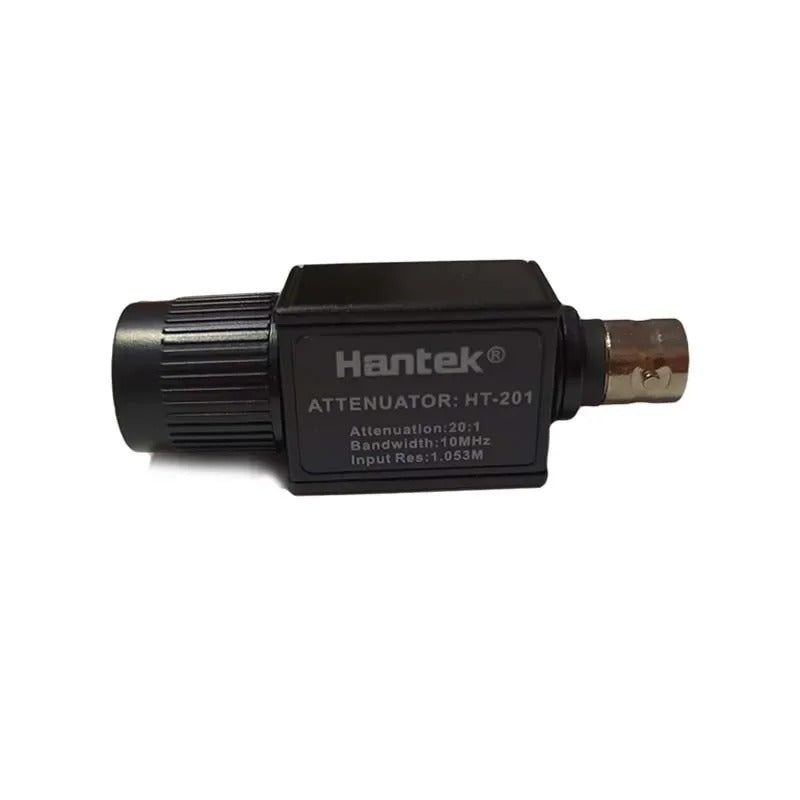

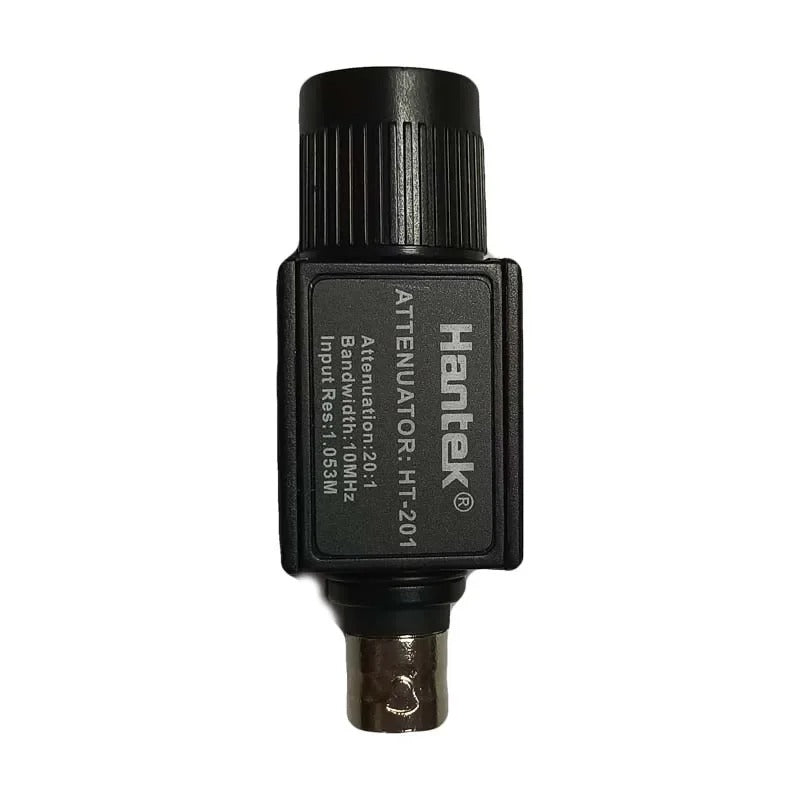

HT201 20:1 Passive Attenuator for Hantek Oscilloscopes
Product Overview
100% brand - new and high - quality, the HT201 Attenuator is designed to pair with Hantek oscilloscopes. It enables measurement of fuel injector and primary ignition waveforms, expanding your oscilloscope's capabilities.
Key Features
20:1 Attenuation: Converts a 20V input signal to 1V output, allowing your oscilloscope to safely measure voltages up to 20V (exceeding its standard range for these specific applications).
10MHz Bandwidth: Ensures accurate capture of relevant waveform details for fuel injector and primary ignition systems.
Compact & Lightweight: Measures 2.36×0.7×0.6in and weighs just 0.85oz, easy to carry and integrate into your test setup.
Ideal Use Scenarios
Perfect for automotive technicians and hobbyists using Hantek oscilloscopes to diagnose fuel injection and primary ignition systems in vehicles. It's essential for analyzing waveforms in these specific automotive electrical components.
Specifications
Attenuation: 20:1
Bandwidth: 10MHz
Input Resistance: 1.053M
Size: 60×18×16mm
Weight: 24g
Package Includes
1× HT201 Attenuator
Note: For use with fuel injector and primary ignition measurements only—do not use for other high - voltage applications.
