Product Details

Overview

This series of high voltage differential probes is engineered for precise measurement of ultra-high-frequency, high-voltage differential signals, catering to advanced power electronics, new energy, and cutting-edge R&D applications. With exceptional amplitude-frequency characteristics, high common-mode rejection ratio, and user-centric design, they ensure accurate signal acquisition and analysis in the most demanding testing scenarios.

Key Features

  • Ultra-High Bandwidth and Precision: All models feature a 500MHz bandwidth, enabling precise measurement of ultra-high-frequency signals.
  • Different Voltage Ranges:

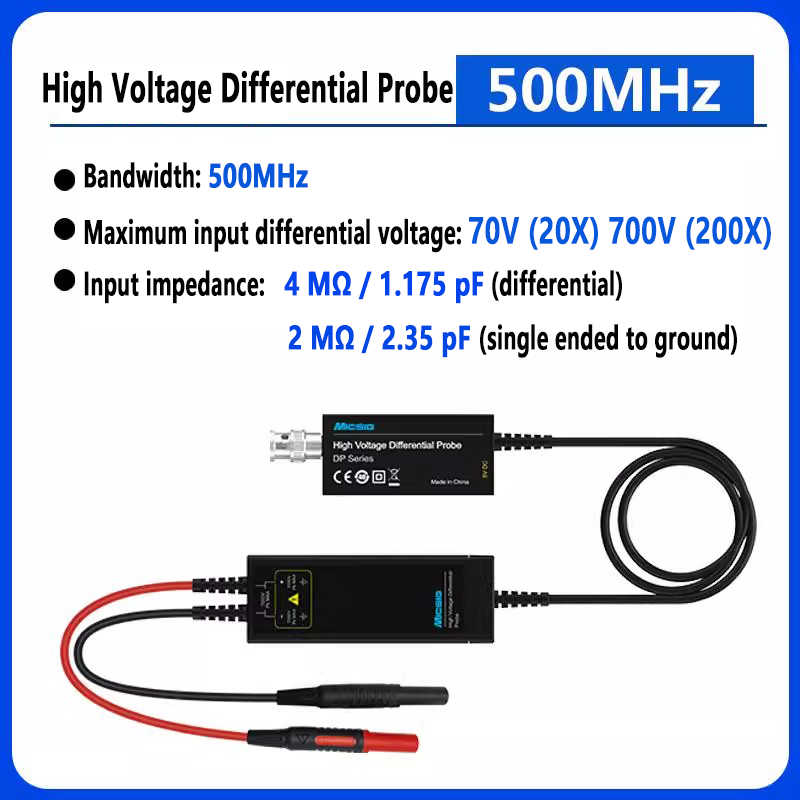

    • Model 1: Supports up to 700V (DC+AC PK) with 20X/200X attenuation.

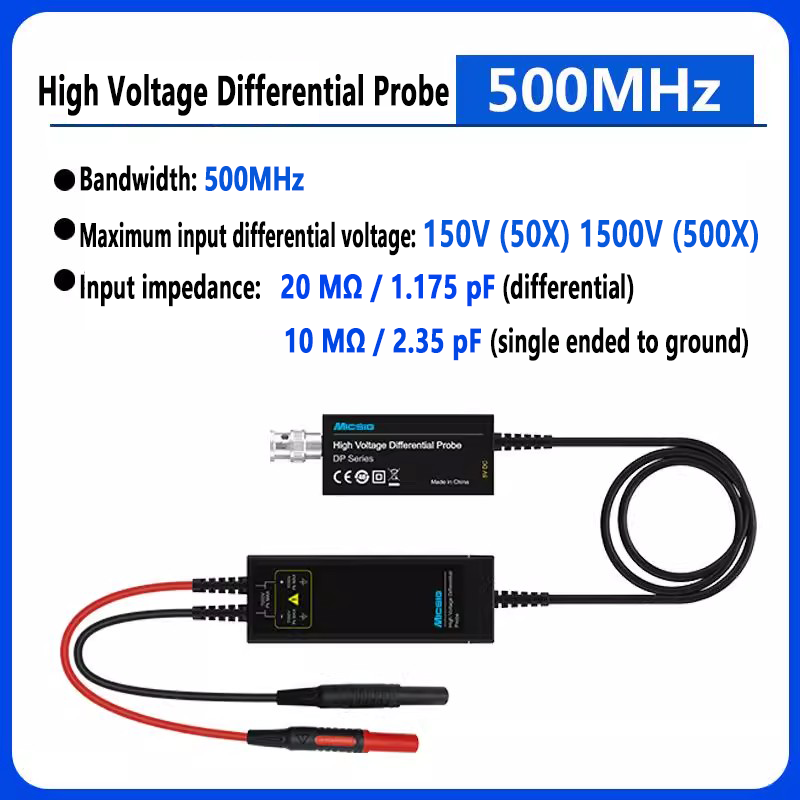

    • Model 2: Supports up to 1500V (DC+AC PK) with 50X/500X attenuation.
    • Model 3: Supports up to 3000V (DC+AC PK) with 100X/1000X attenuation.
  • Excellent Common-Mode Rejection Ratio (CMRR): Delivers high CMRR (DC: >80dB, 100kHz: >60dB, 20MHz: >40dB), enabling accurate measurement in high common-mode voltage environments.
  • Low Load Effect: Optimized input impedance and capacitance minimize the load impact on the Device Under Test (DUT).
  • User-Friendly Functions: Includes one-button zero adjustment, dual-range selection, overvoltage alarm (with LED and audible alerts), and compact design for easy handling.
  • Wide Compatibility: Standard BNC interface is compatible with all oscilloscope brands, ensuring seamless integration.
  • Ultra-Low Noise: Delivers minimal noise interference for clear and accurate signal measurement.
  • Superior Amplitude-Frequency Characteristics: Maintains signal measurement accuracy (amplitude fluctuation <0.5dB within half bandwidth) even in high-frequency segments.

Technical Specifications

Parameter
Model 1
Model 2
Model 3
Bandwidth
500MHz
500MHz
500MHz
Max Input Differential Voltage (DC+AC PK)
70V (20X),
700V (200X)
150V (50X),
1500V (500X)
300V (100X),
3000V (1000X)
Common-Mode Rejection Ratio (CMRR)
DC: >80dB,
100kHz: >60dB,
20MHz: >40dB
DC: >80dB,
100kHz: >60dB, 20MHz: >40dB
DC: >80dB,
100kHz: >60dB, 20MHz: >40dB
Input Impedance (Differential/Single-Ended to Ground)
4MΩ/1.175pF / 2MΩ/2.35pF
20MΩ/1.175pF / 10MΩ/2.35pF
20MΩ/1.175pF / 10MΩ/2.35pF


Model Selection Tips

  • Model 1: Ideal for applications requiring up to 700V differential voltage measurement, such as small power supplies, low-voltage electronic devices, and scenarios where moderate voltage range and cost-effectiveness are key.
  • Model 2: Perfect for mid-range voltage testing (up to 1500V) with higher input impedance, suitable for power converters, motor drives, and medium-voltage electronic systems.
  • Model 3: Suited for high-voltage scenarios (up to 3000V), ideal for new energy vehicles, high-power inverters, and industrial high-voltage equipment testing where extreme voltage measurement and robust performance are needed.

Application Scenarios

  1. New Energy Vehicles: Test high-voltage power systems, motor drives, and battery management systems.
  1. Advanced Power Electronics: Analyze ultra-high-frequency switching power supplies, inverters, and rectifiers.
  1. Industrial Automation: Measure signals in high-voltage industrial control systems and power transmission equipment.
  1. Renewable Energy: Test high-frequency photovoltaic inverters and wind power converters.
  1. Electronics R&D: Conduct ultra-high-frequency, high-voltage signal analysis in cutting-edge lab environments.
  1. Third-Generation Semiconductor Testing: Support testing of advanced semiconductor devices under high-voltage, high-frequency conditions.
Get this high voltage differential probe now to achieve accurate, reliable, and efficient ultra-high-frequency high-voltage signal measurement for your professional testing and development needs!
